Specifications
Equipped With
SPECIFICATIONS:
Manufacturer..................... Kalamazoo
Serial number.................... 033189001
Model............................ HS350SA
New.............................. 2004
Capacity ........................ 12"
Blade Drive HP .................. 3
Blade Speeds .................... 65 - 360 fpm
Blade Size ...................... 1" x 133"
Material Height ................. 37"
Coolant Tank Capacity ........... 5 gal
Vise Openings ................... 13 3/4"
Machine Weight .................. 1700 lbs
Floor Dimensions ................ 60" x 72"
Electrics........................ 3 Phase
Capacity Details:
-90 Degrees ................... 12"
-45 Degrees (Left) ............ 10"
-45 Degrees (Right) ........... 10"
-60 Degrees (Right) ........... 6 1/2"
EQUIPPED WITH
HYDRAULIC PART CLAMPING
SEMI AUTOMATIC PROGRAMMING-NOT WORK PIECE FEED

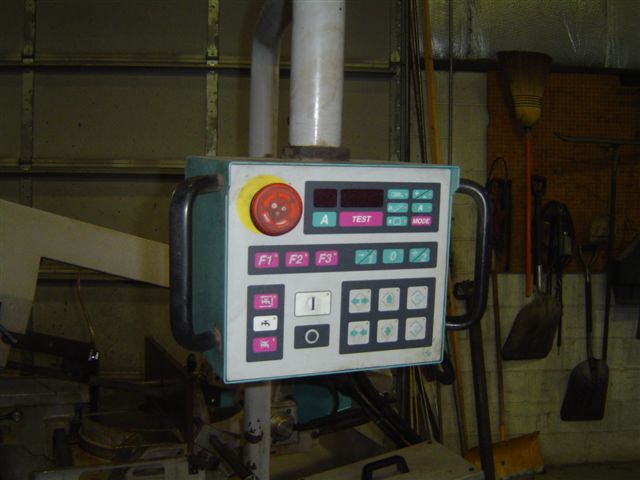

PENDANT CONTROL THAT HAS THE FOLLOWING FUNCTIONS
EMERGENCY STOP, BLADE DRIVE MOTOR AMMETER, 4 FIGURE DISPLAY, TEST FUNCTION KEY, DISPLAY CUTTING TIME OF LAST CUT, BLADE LIFE, PIECE COUNTER, FIRST BLADE SPEED, 2ND BLADE SPEED, MODE TO ALLOW DRY RUN, SET MATERIAL WORK HEIGHT, MATERIAL COMPLETION OF CUT HEIGHT, RAISE & LOWER SAW FRAME, OPEN & CLOSE VISE, CYCLE START & STOP, COOLANT ON/OFF OR AUTO,
