GENERAL SPECIFICATIONS:

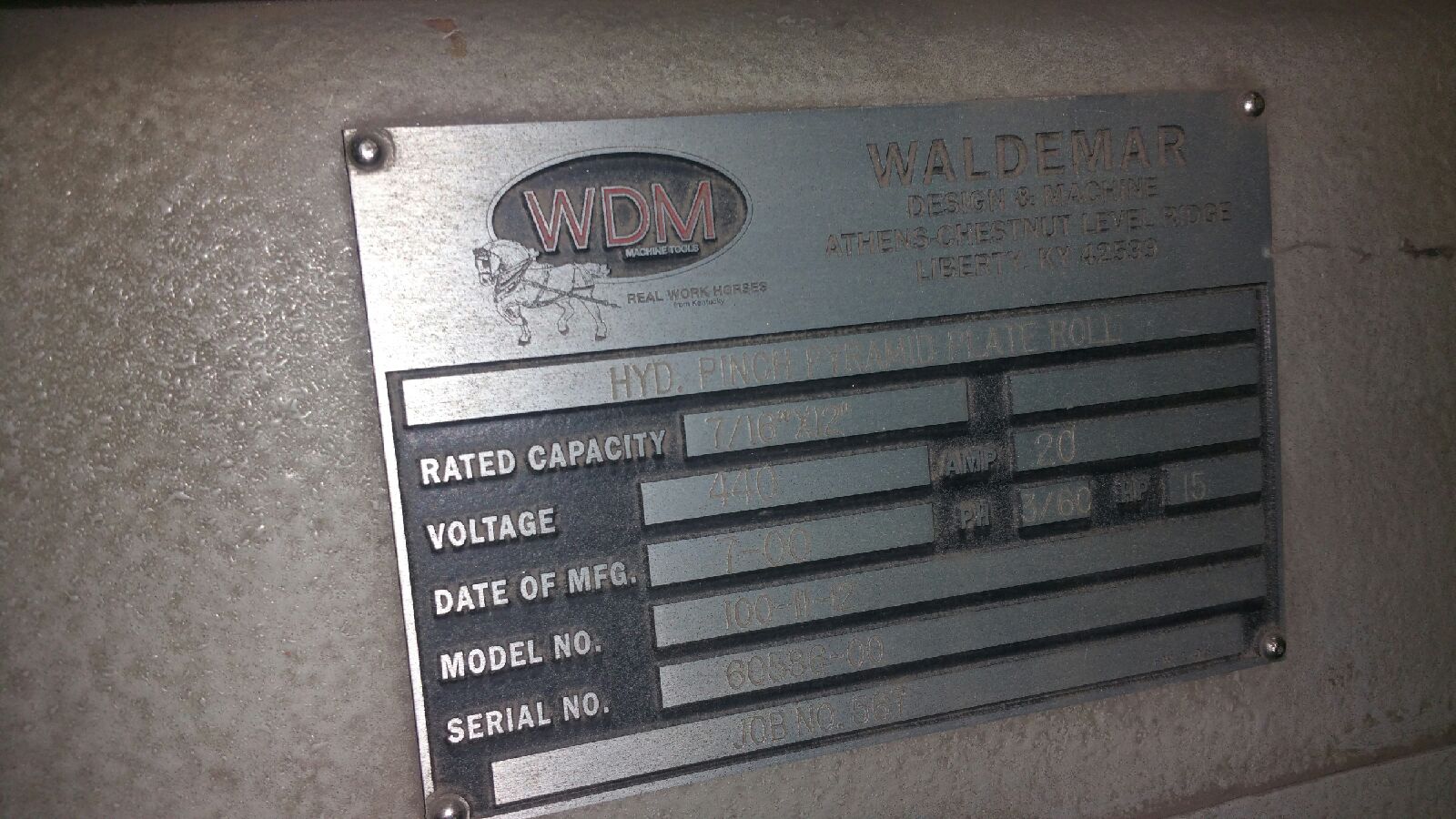

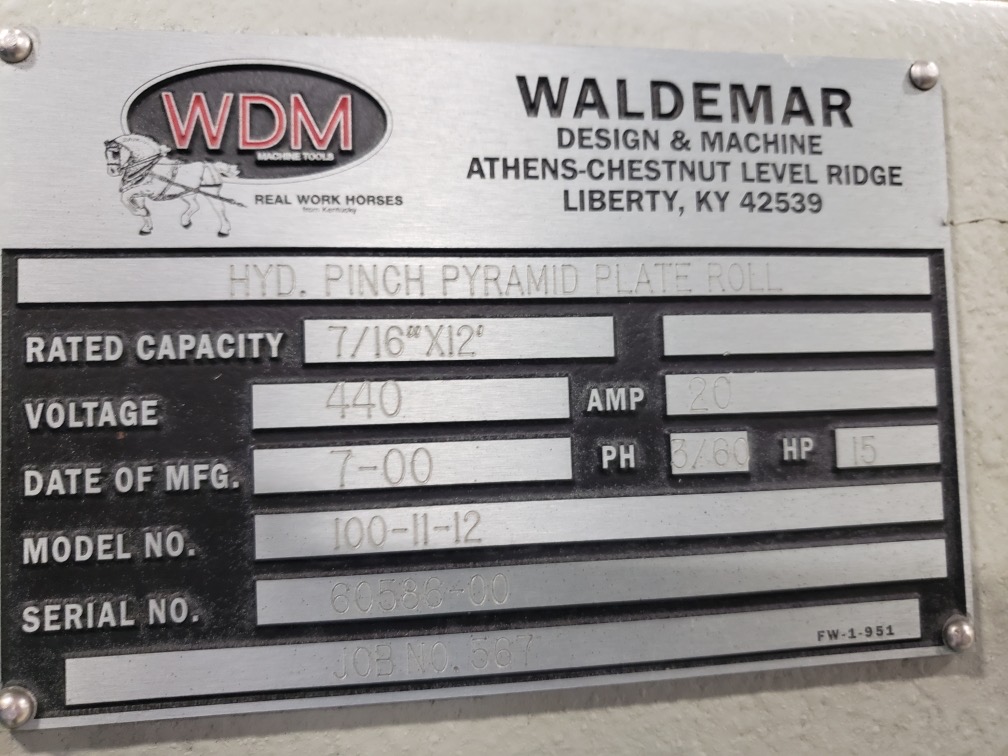

MAKE.......................... WALDEMAR DESIGN & MACHINE (WDM)
MODEL......................... 100-11-12
SERIAL NUMBER................. 60586-00
AGE (YEAR).................... 2000
RATED CAPACITY................ 7/16" X 12'
CAPACITY 12 X TOP ROLL DIA.... 1/2" X 12'
BAR ON EDGE................... 3" X 1.25"
ANGLE......................... 3.5" X 3.5" X .5"
LENGTH........................ 144"
ROLL DIAMETER................. 11"
OVERALL SIZE.................. 210" X 55" X 54"
HORSEPOWER.................... 15 HP
VOLTAGE....................... 440/3 PHASE
EQUIPPED WITH:

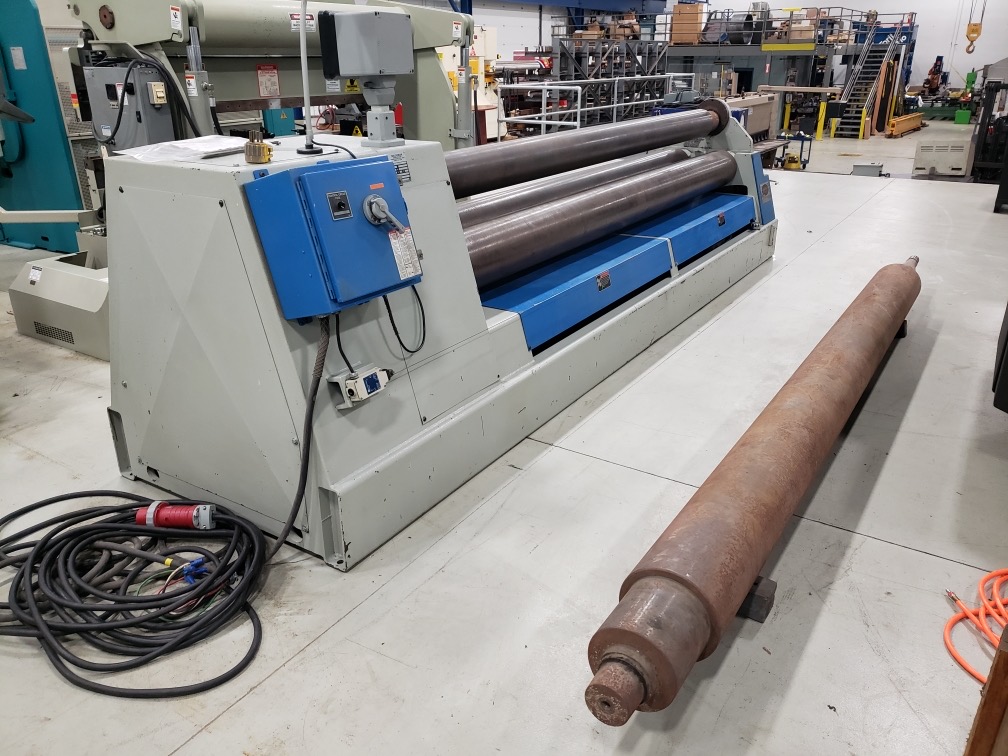

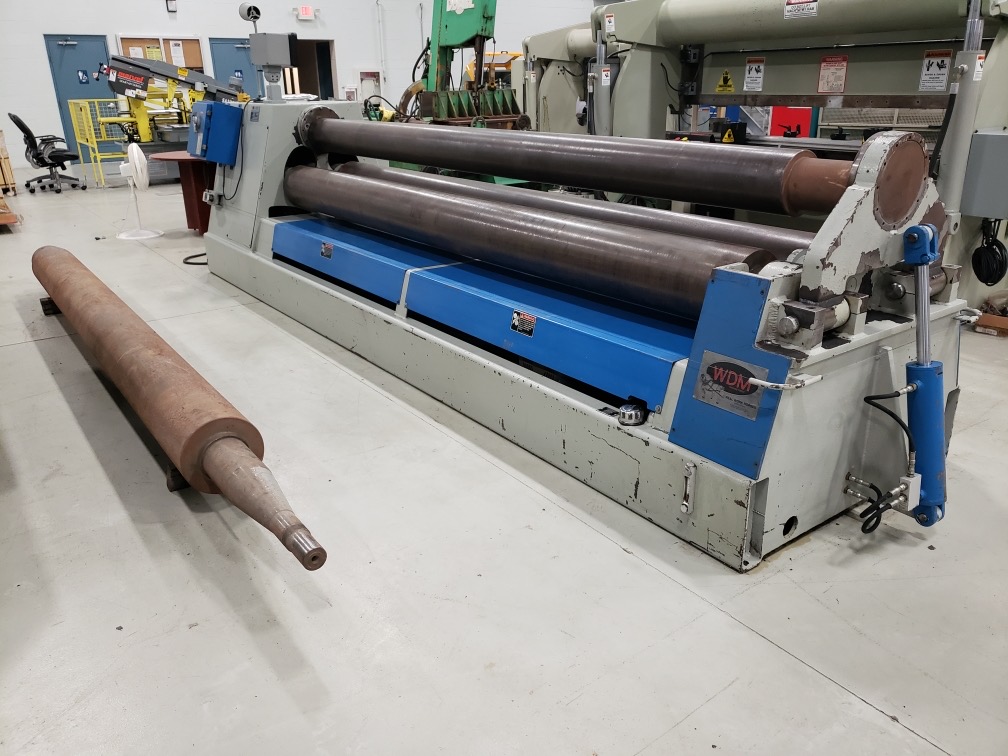

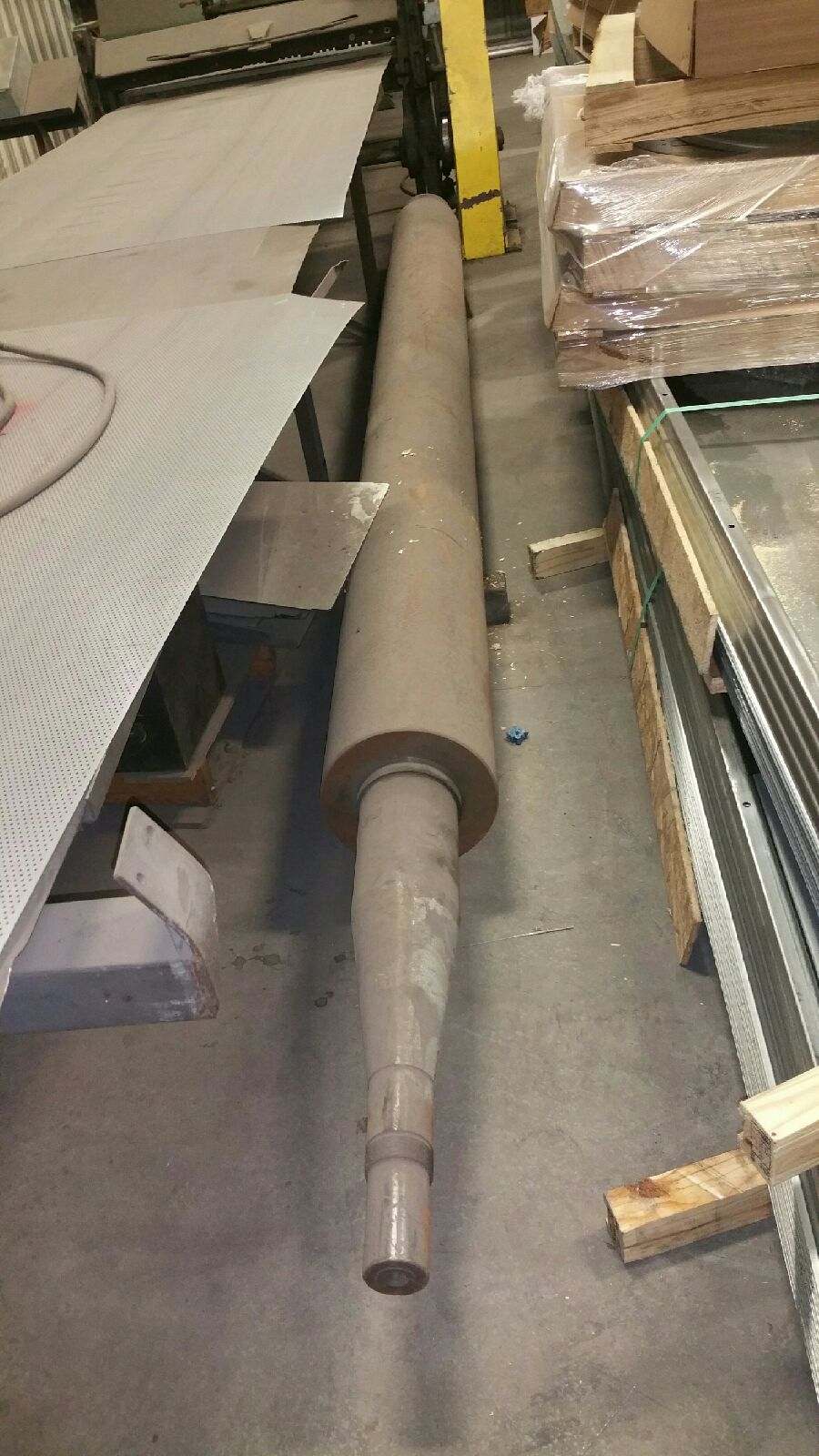

SPARE TOP ROLL FOR SMALLER DIAMETERS

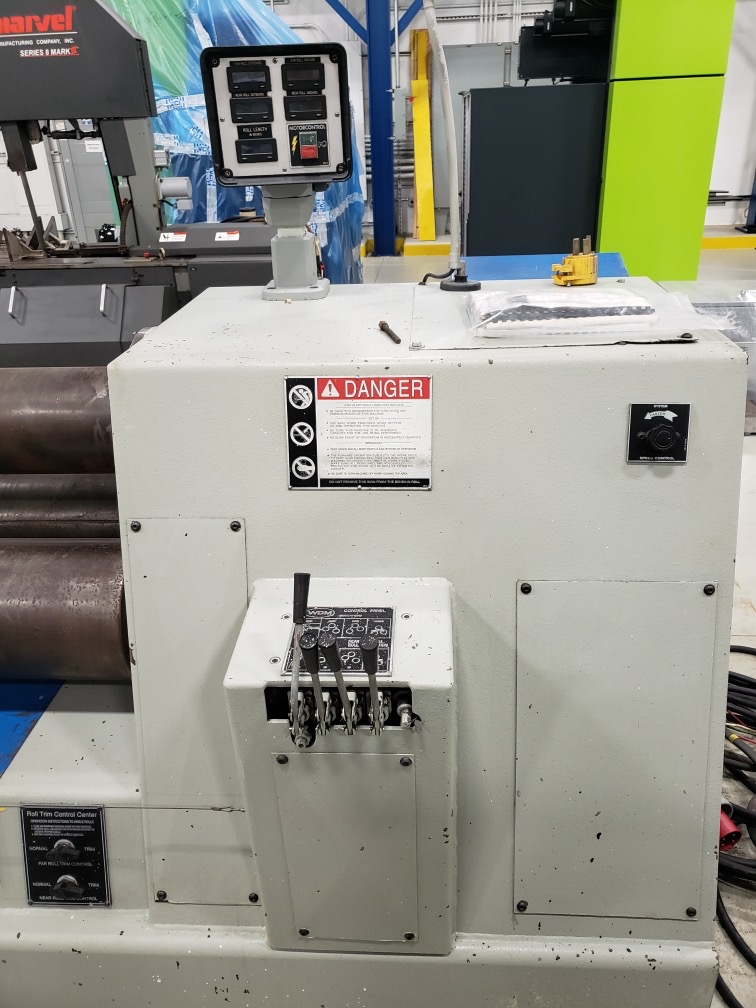

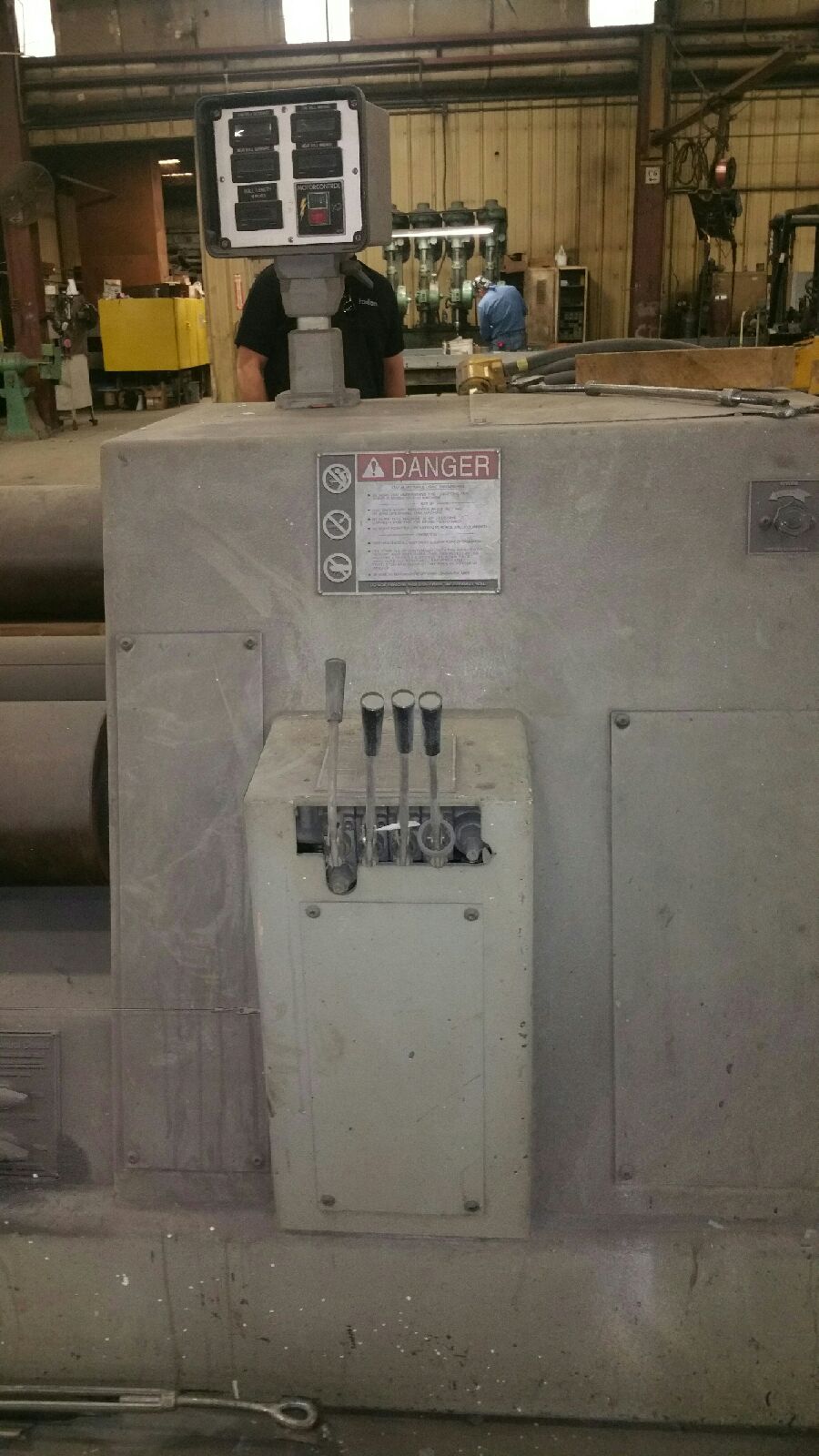

HYDRAULIC OPERATION
ALL 3 ROLLS ARE DRIVEN
SPECIFICATIONS SUBJECT TO VERIFICATION
