Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER................ KOIKE
MODEL....................... LD-300R
AGE......................... 2006
MAX. LOAD HORIZONTAL........ 660 LBS (300kg)
MAX. LOAD VERTICAL.......... 440 LBS. (200kg)
TABLE TILT ANGLE............ 0 TO 90 DEGREES
POWER SUPPLY................ 110 SINGLE PHASE
TABLE DIAMETER.............. 17.7" (450 kg)

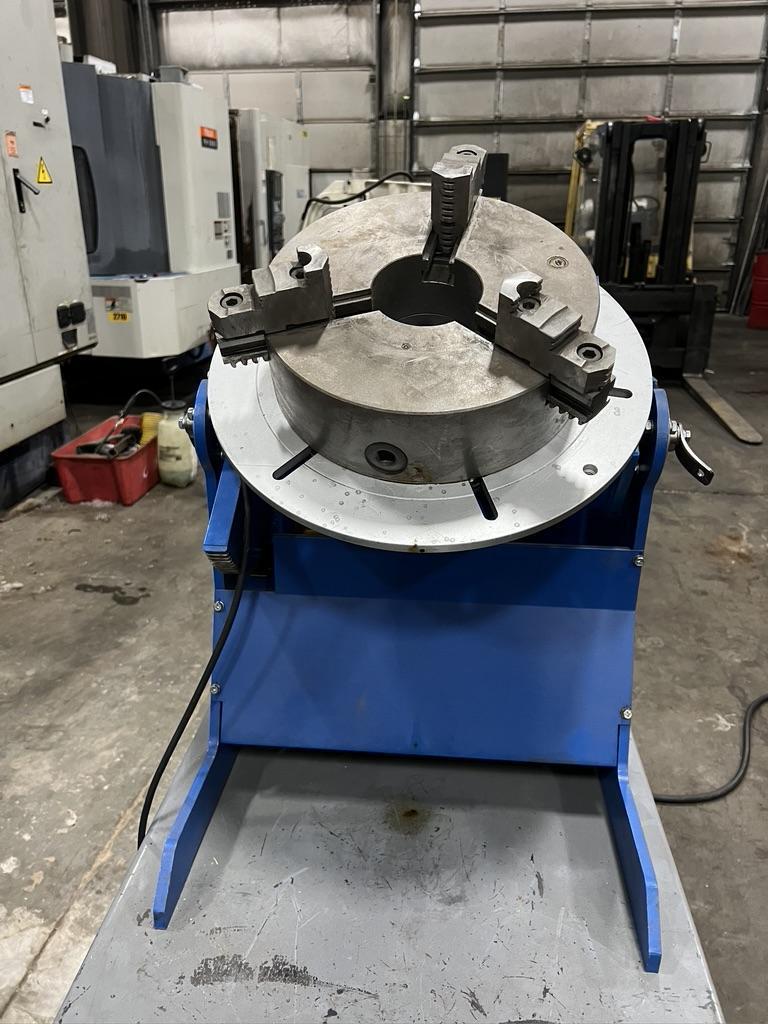

3 JAW CHUCK................. 12"
TABLE ROTATION.............. .23 TO 4.6 RPM
WEIGHT OF MAIN UNIT......... 300 LBS
ALLOWABLE WELDING CURRENT... 500 AMPS
EQUIPPED WITH:
MISC. MANUALS
12" 3 JAW CHUCK WITH WRENCH

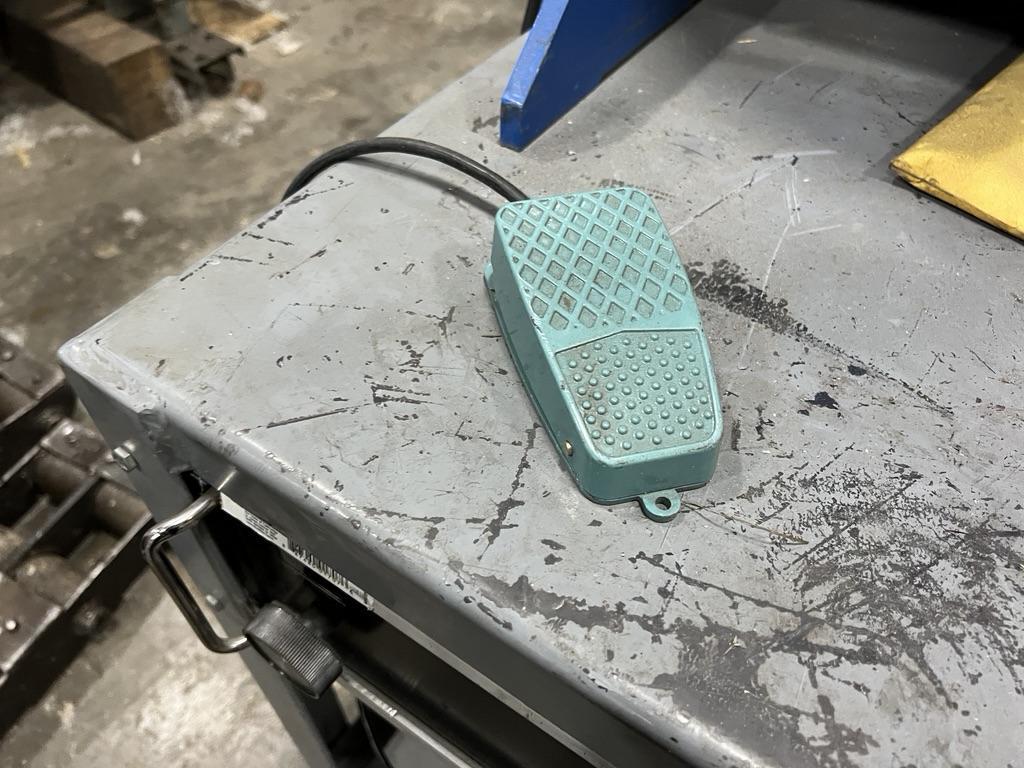

FOOT CONTROL
MOUNTED ON ROLL AROUND TABLE
