GENERAL SPECIFICATION:

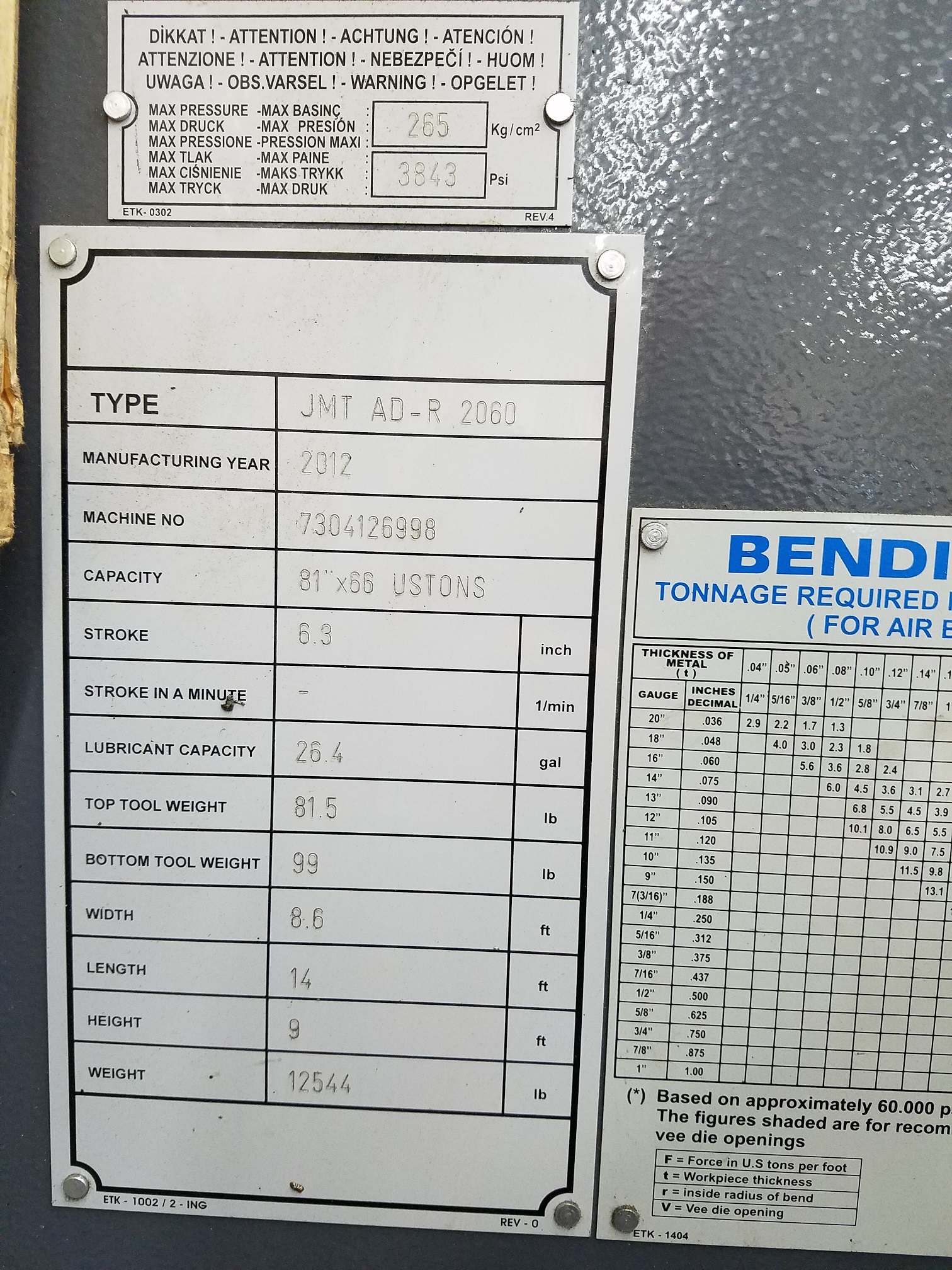

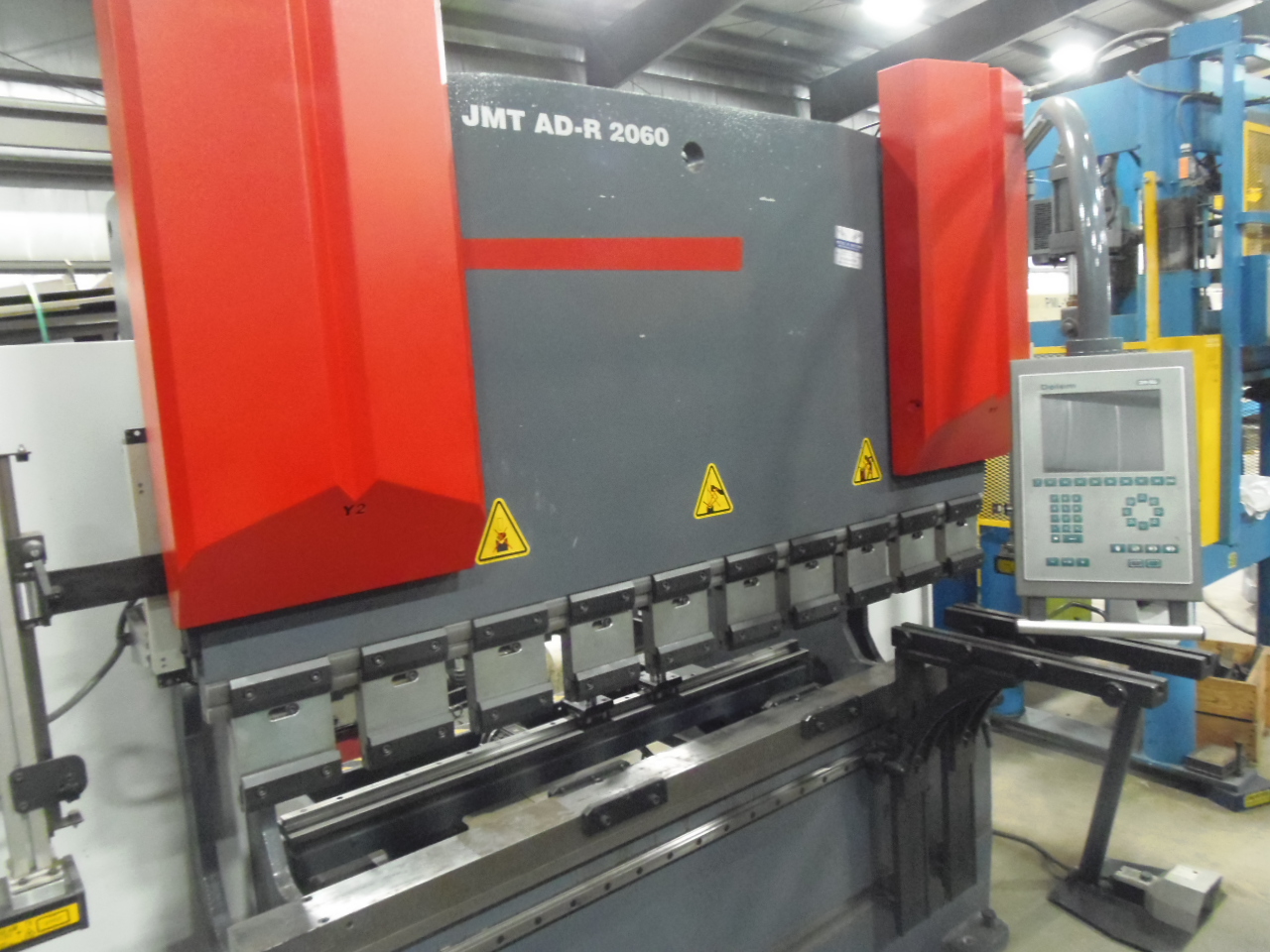

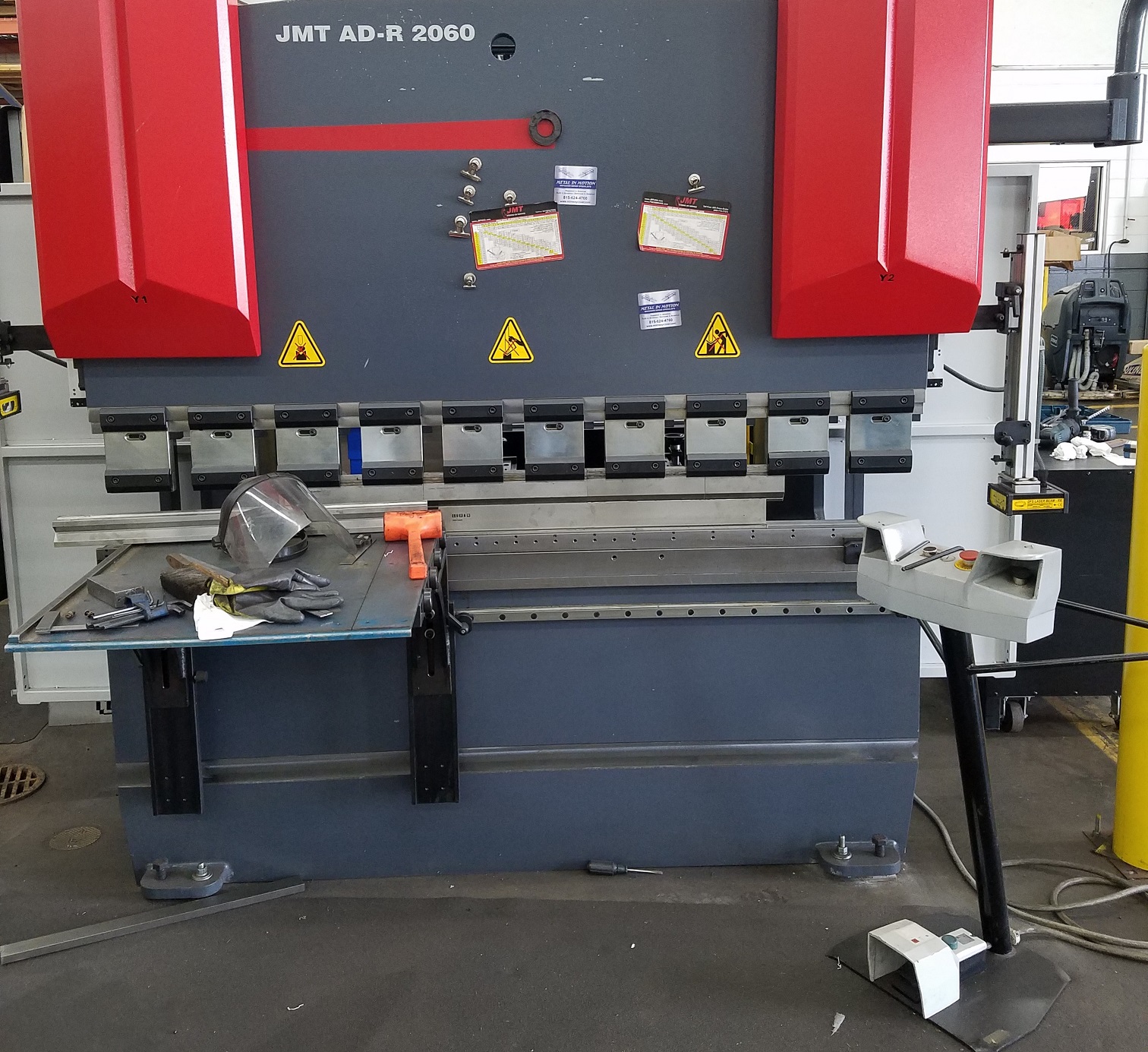

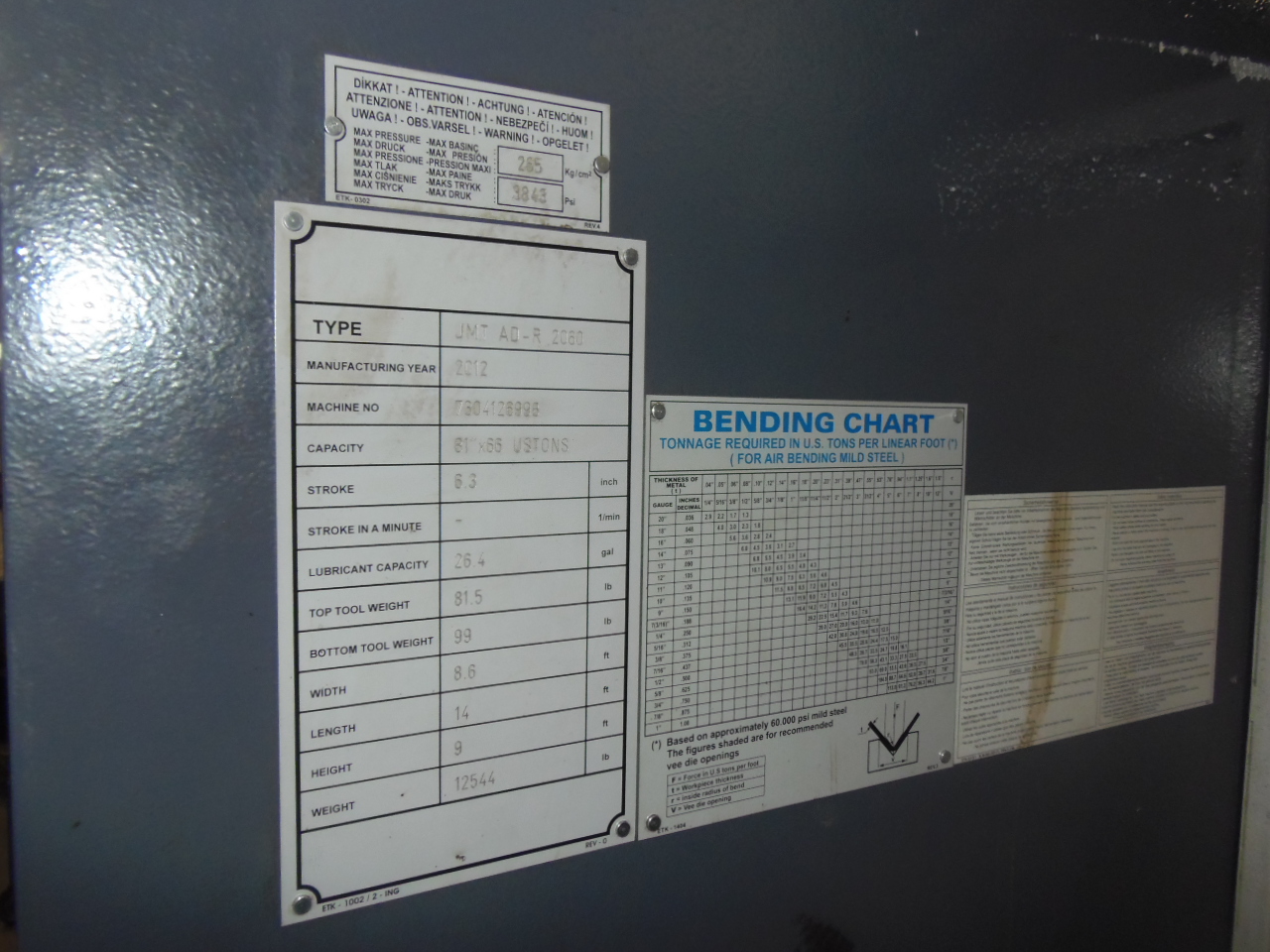

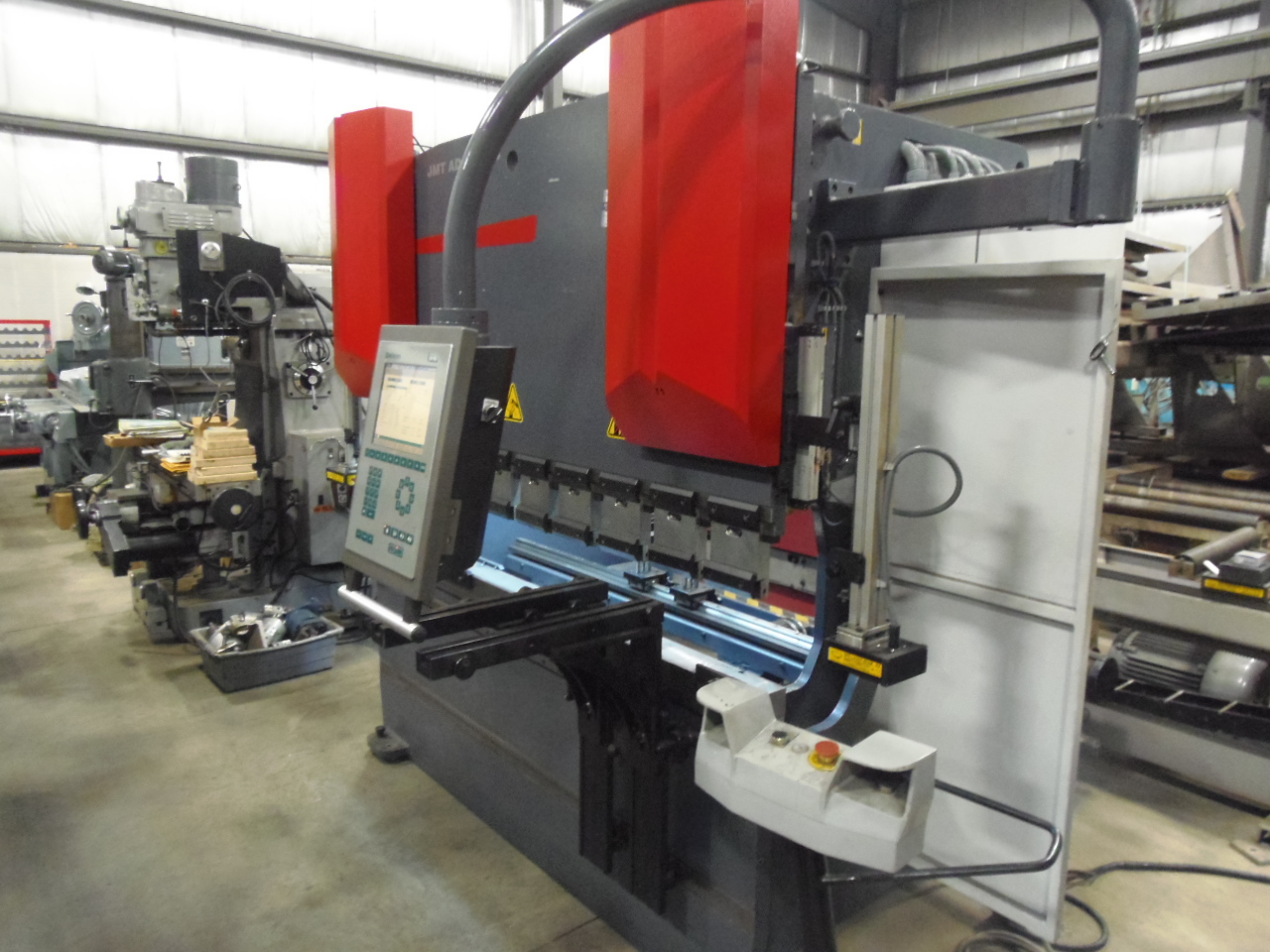

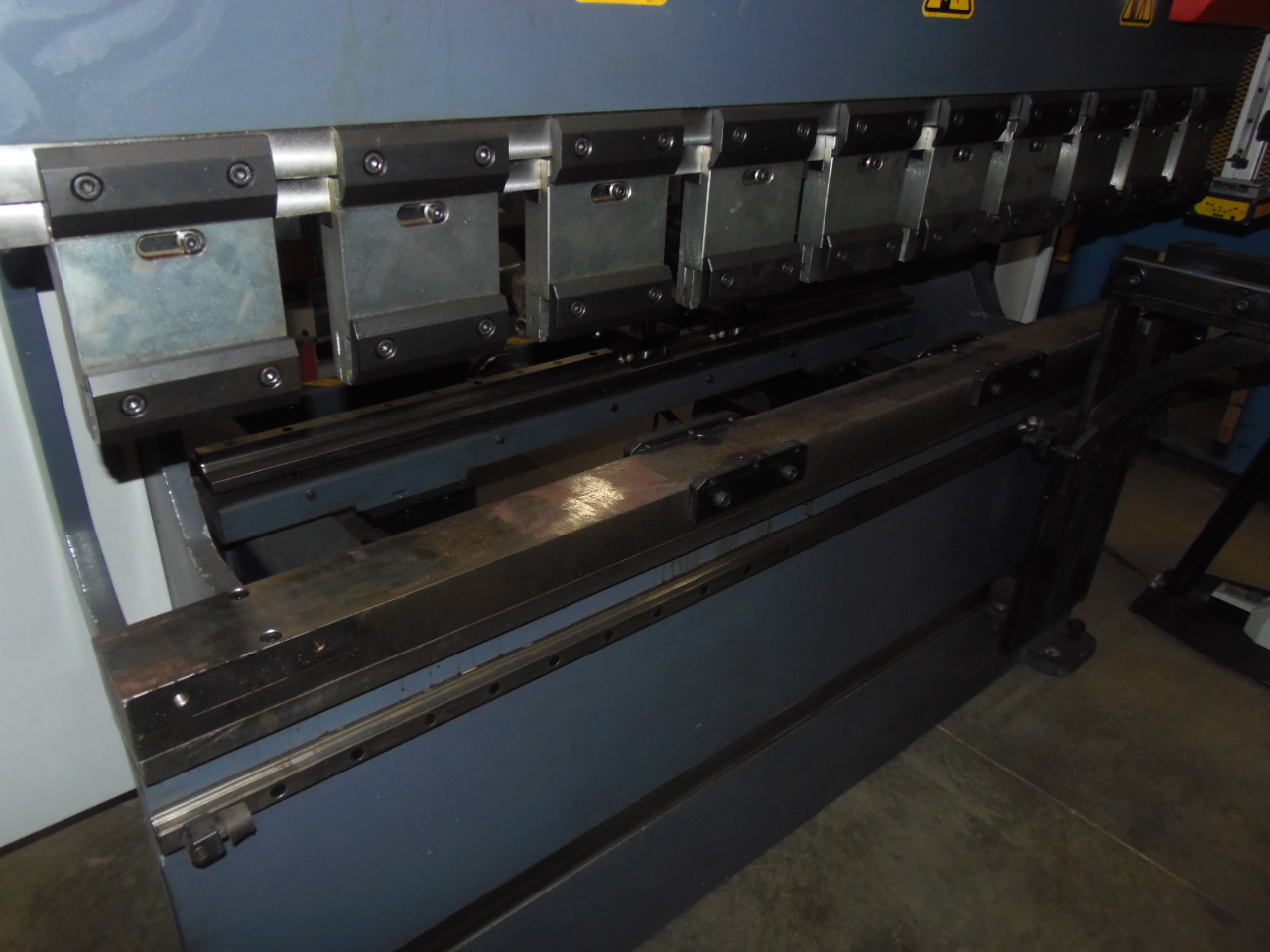

Manufacturer..................... Durma
Model............................ AD-S2060
Serial number.................... 7304126998
Age.............................. 2012
Capacity......................... 66 U.S. tons
Bend Length...................... 80 inches
Distance Between Housings........ 67 inches
Maximum Stroke Length............ 6.3 inches
Daylight......................... 20.8 inches
Throat Depth..................... 16 inches
Y Rapid Speed.................... 472 ipm
Y Working Speed.................. 23 ipm
Y Return Speed................... 283 ipm
Crowning......................... Manual

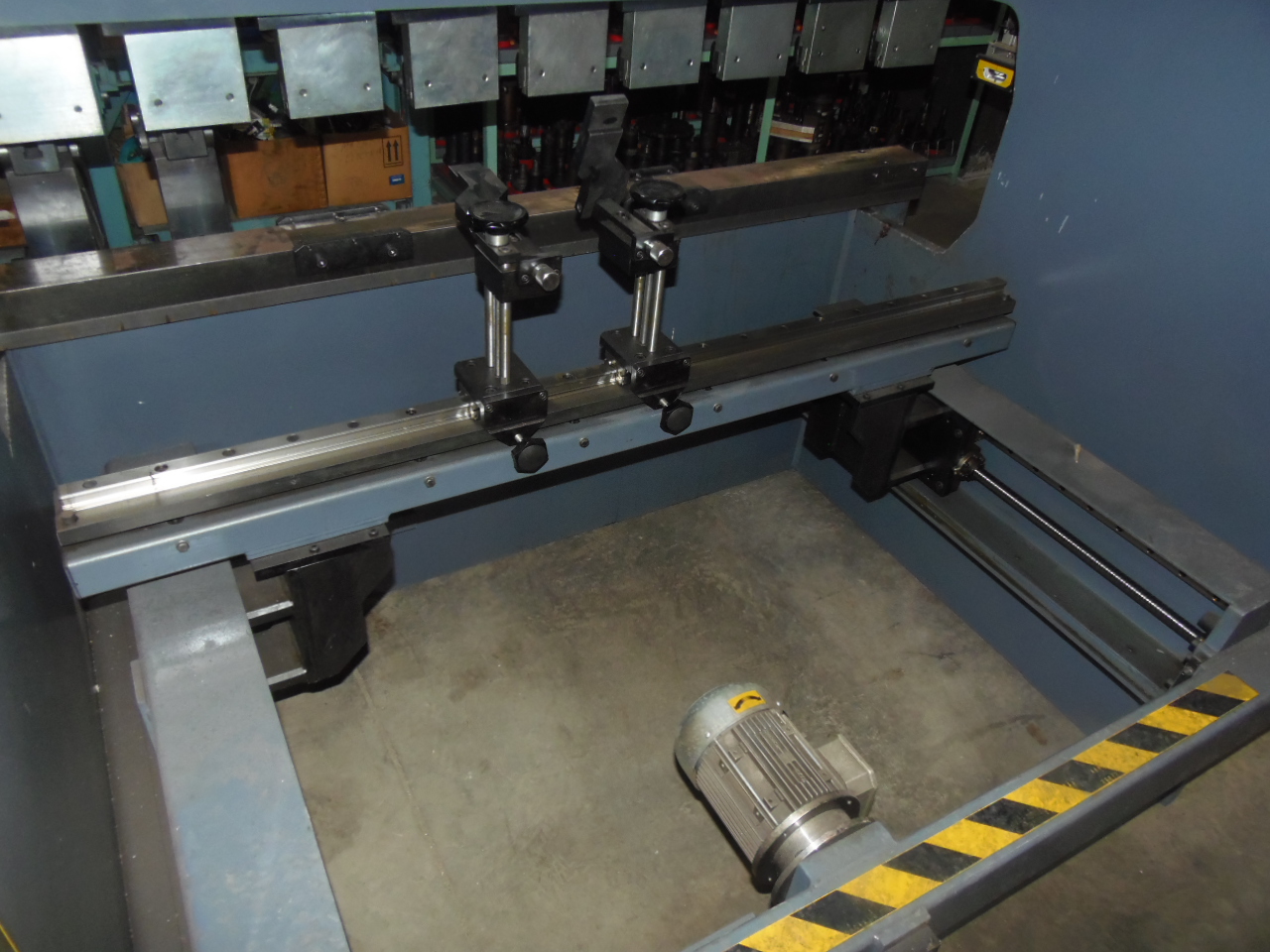

Travel in X-axis................. 17"
Speed of Travel in X-axis........ 590 ipm
Travel in R-axis................. 9.84 inches
Speed of Travel in R-axis........ 826 ipm
Table Width...................... 4.09 inches
Table Height..................... 35.4"
Overall Machine Length........... 139.7 inches
Machine Width.................... 62 inches
Machine Height................... 106 inches
Machine Weight................... 13,500 pounds

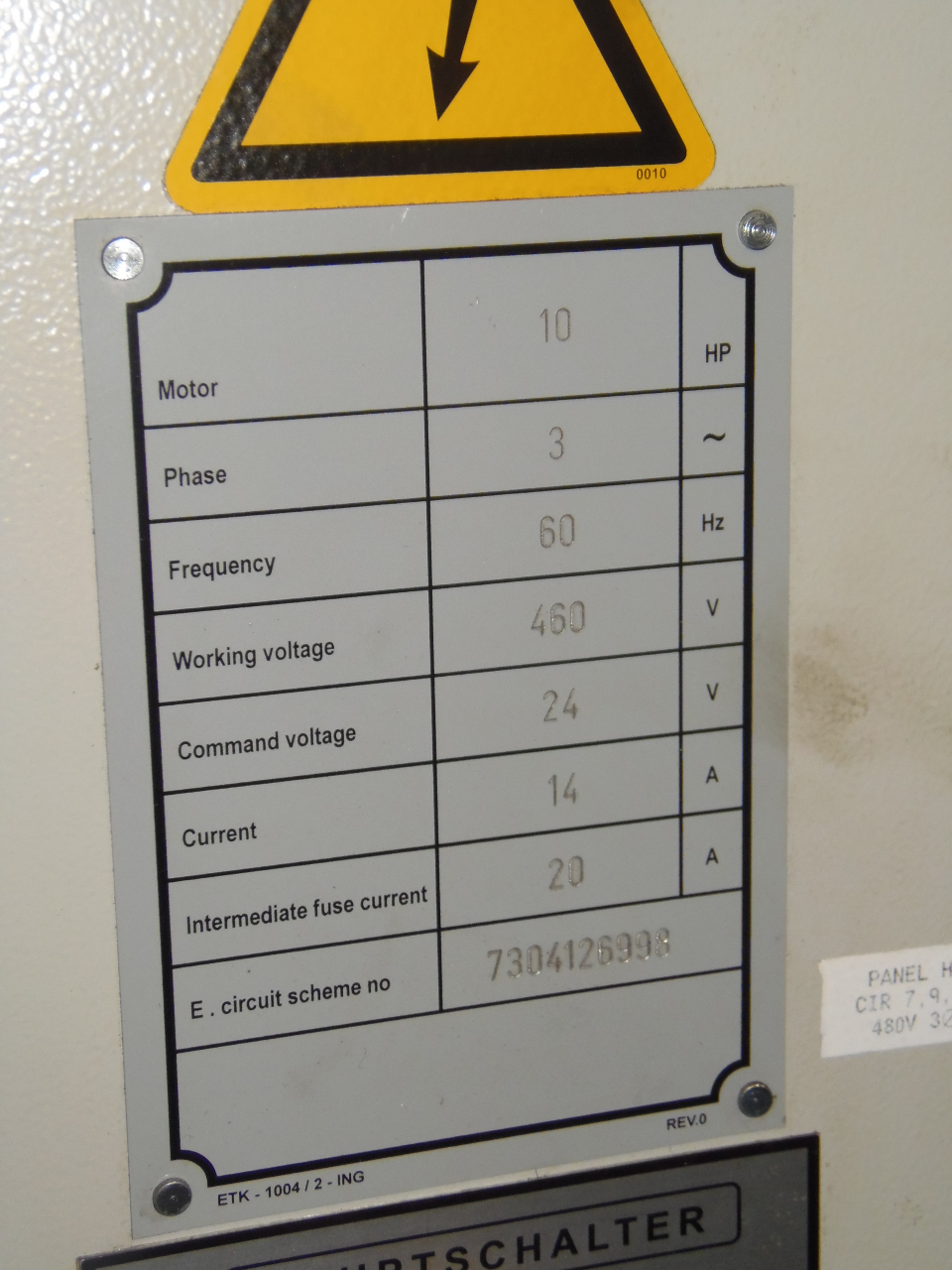

Motor HP......................... 10 running 440v
EQUIPPED WITH:

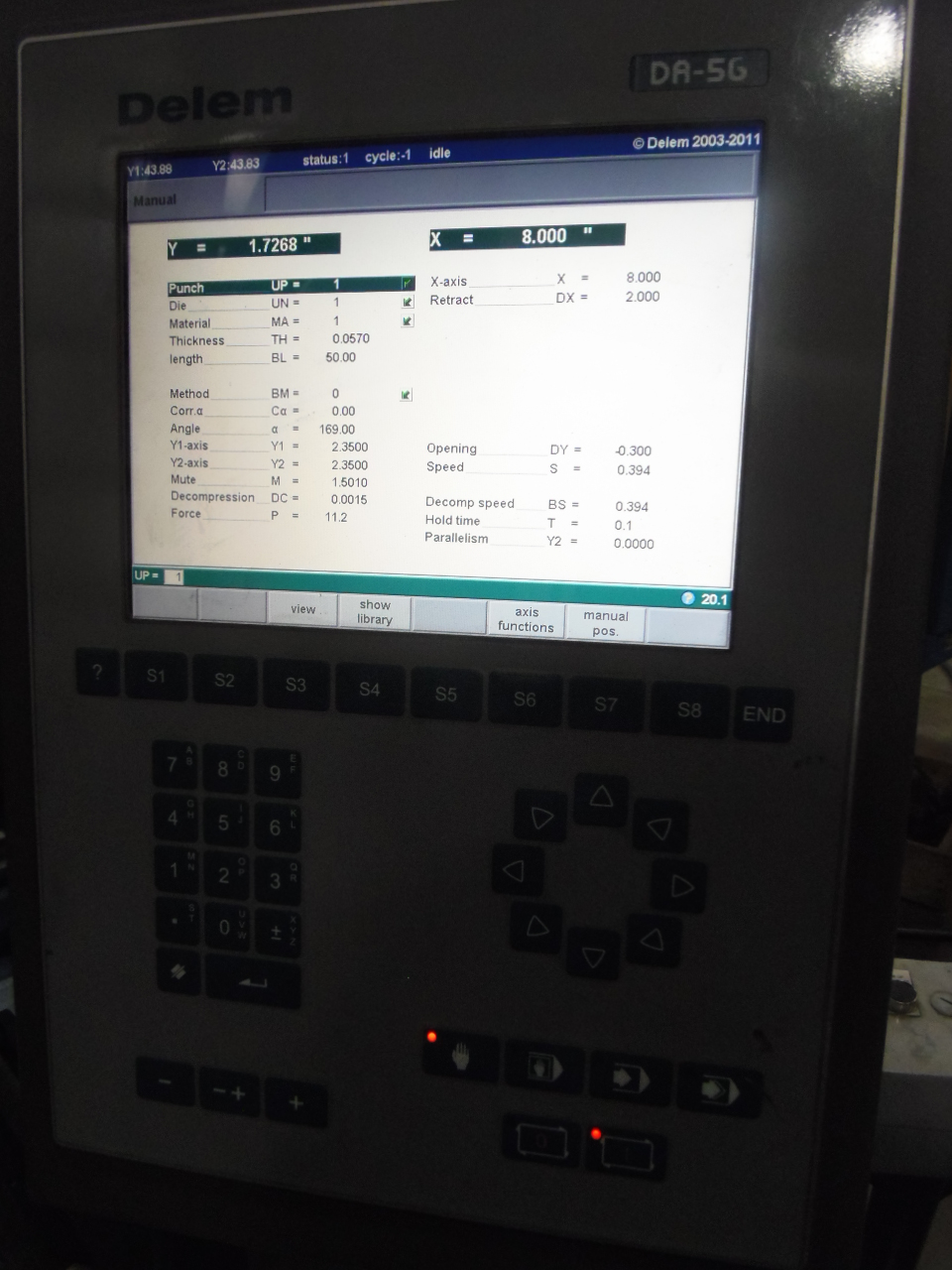

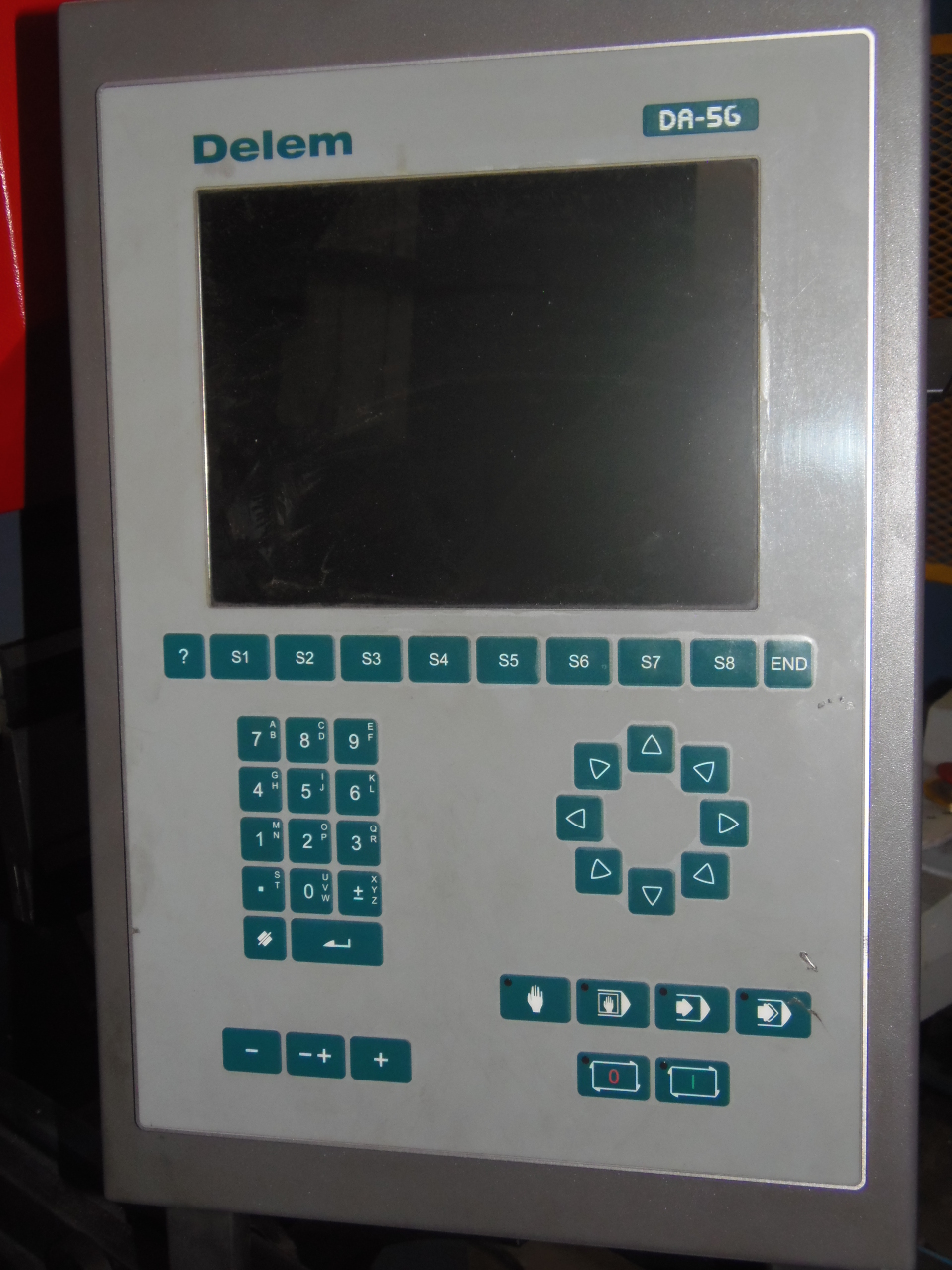

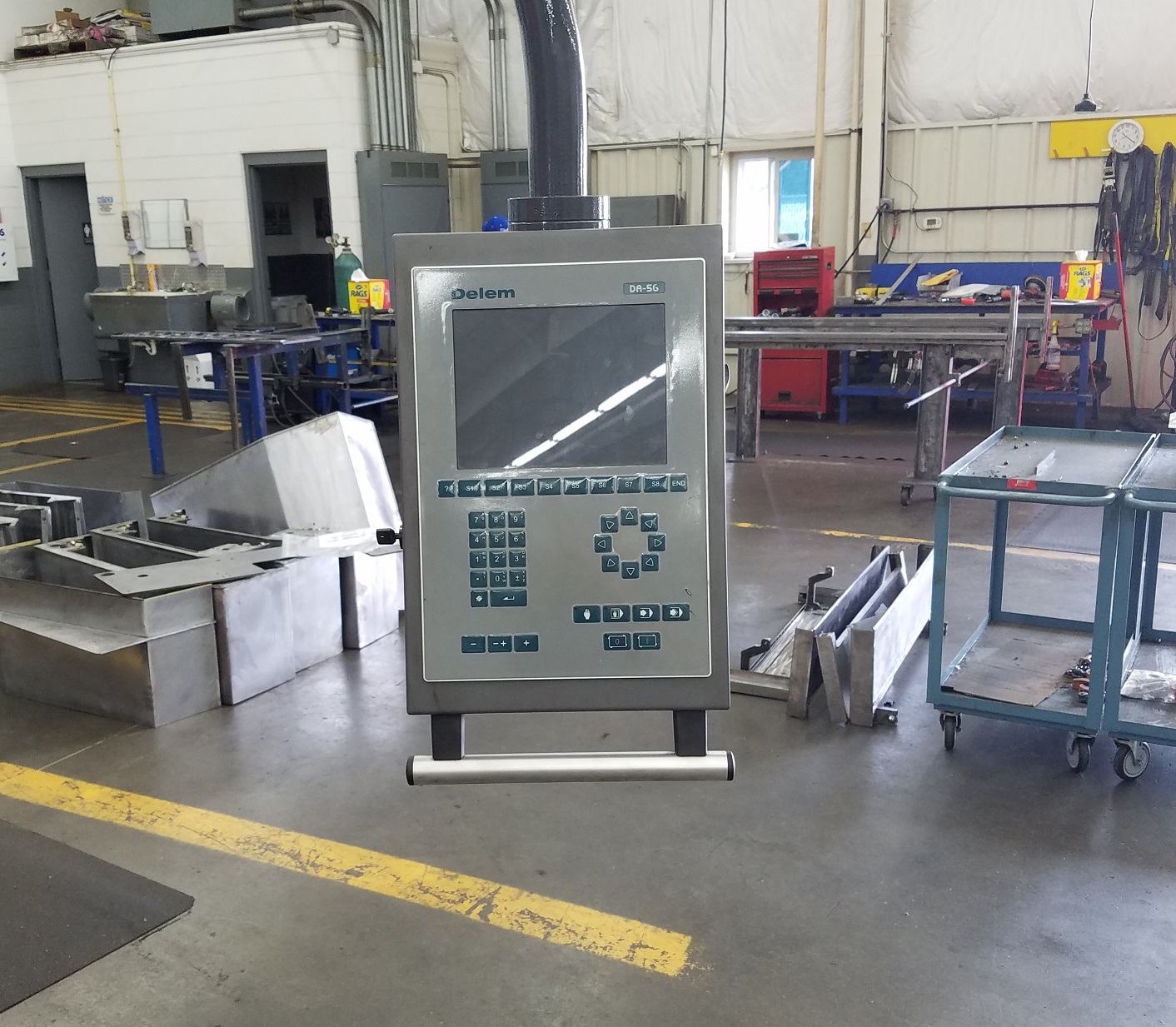

DELEM DA-56 CNC CONTROL
