Specifications
Equipped With
GENERAL SPECIFICATIONS:

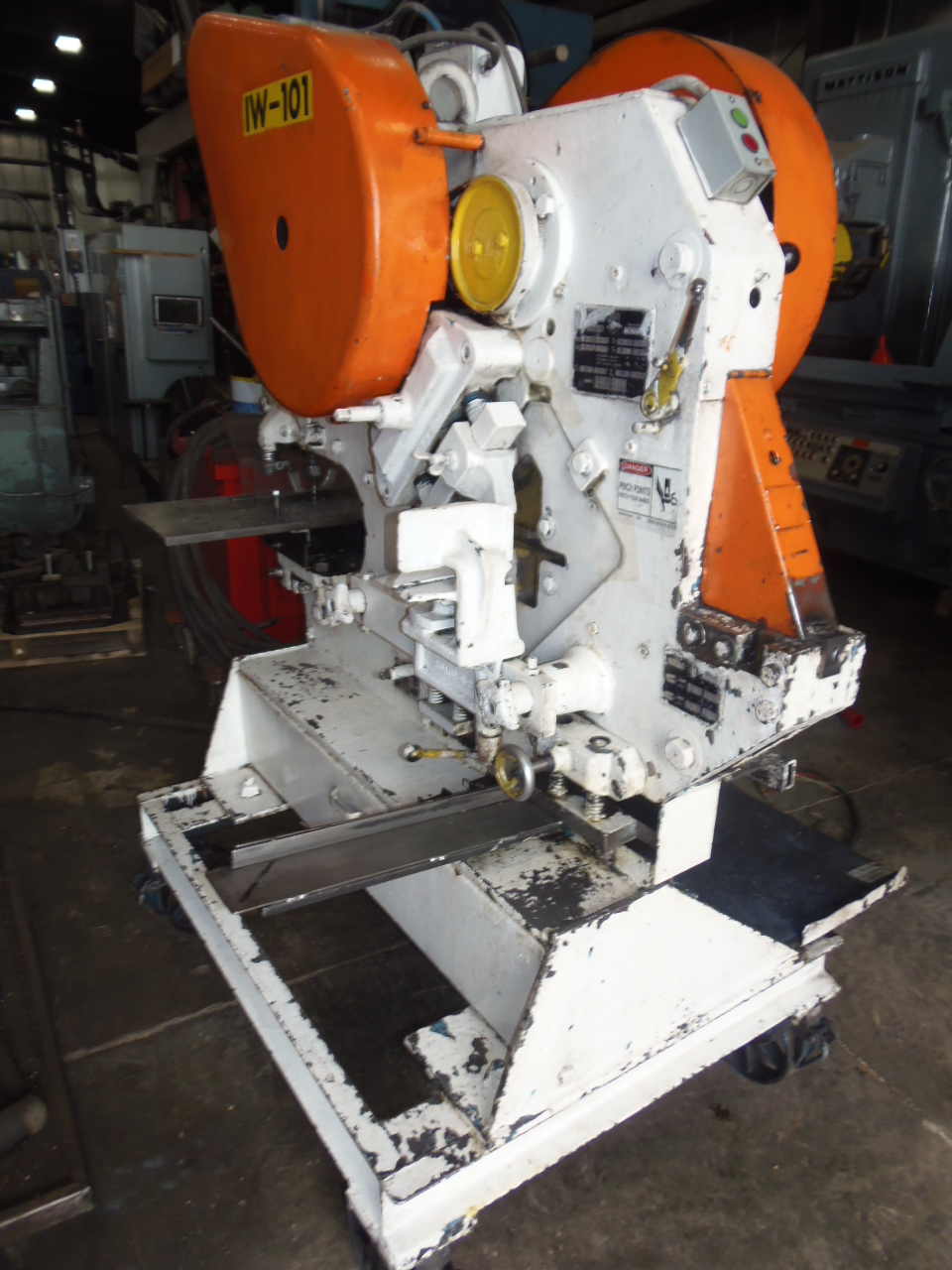

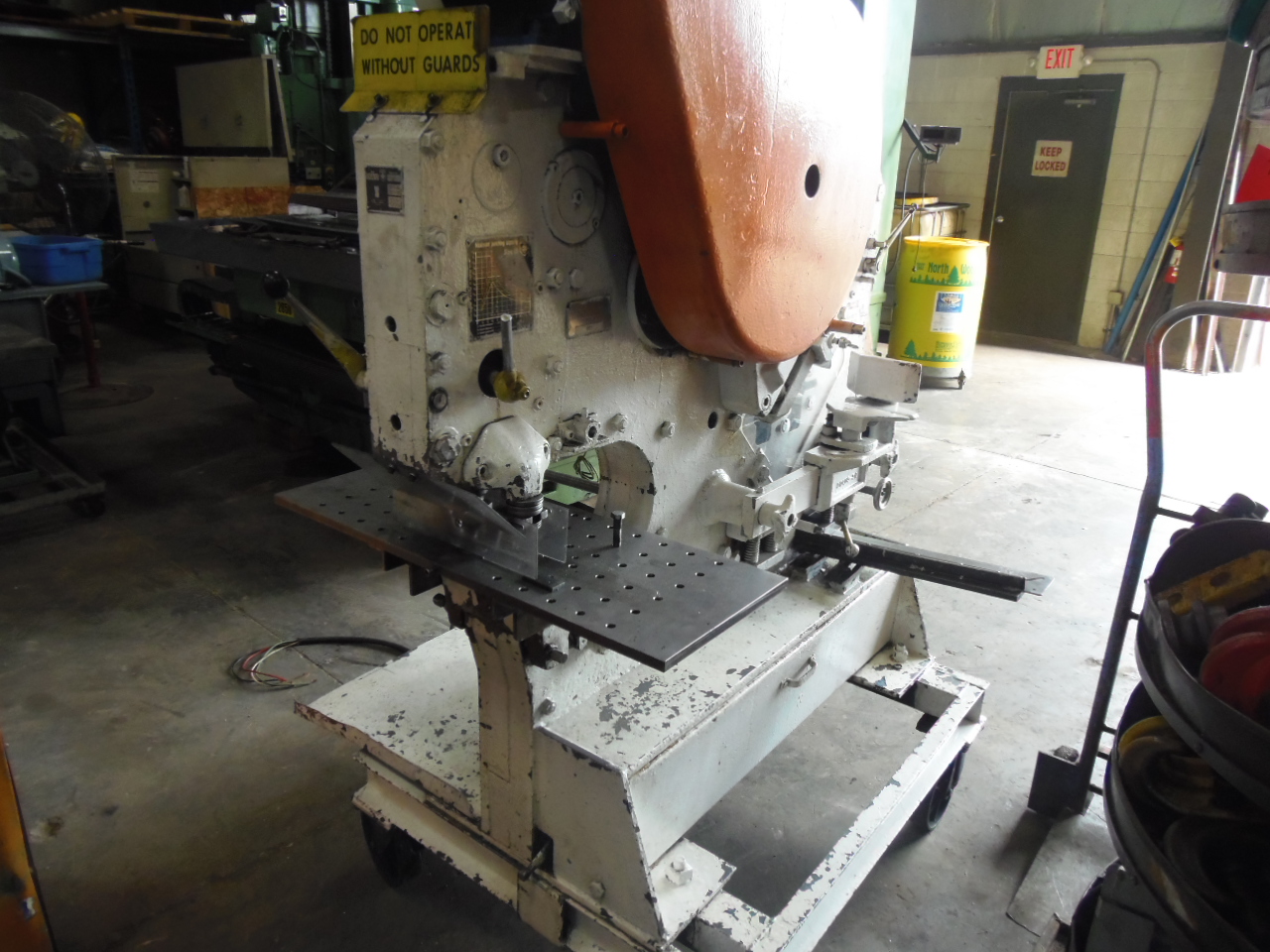

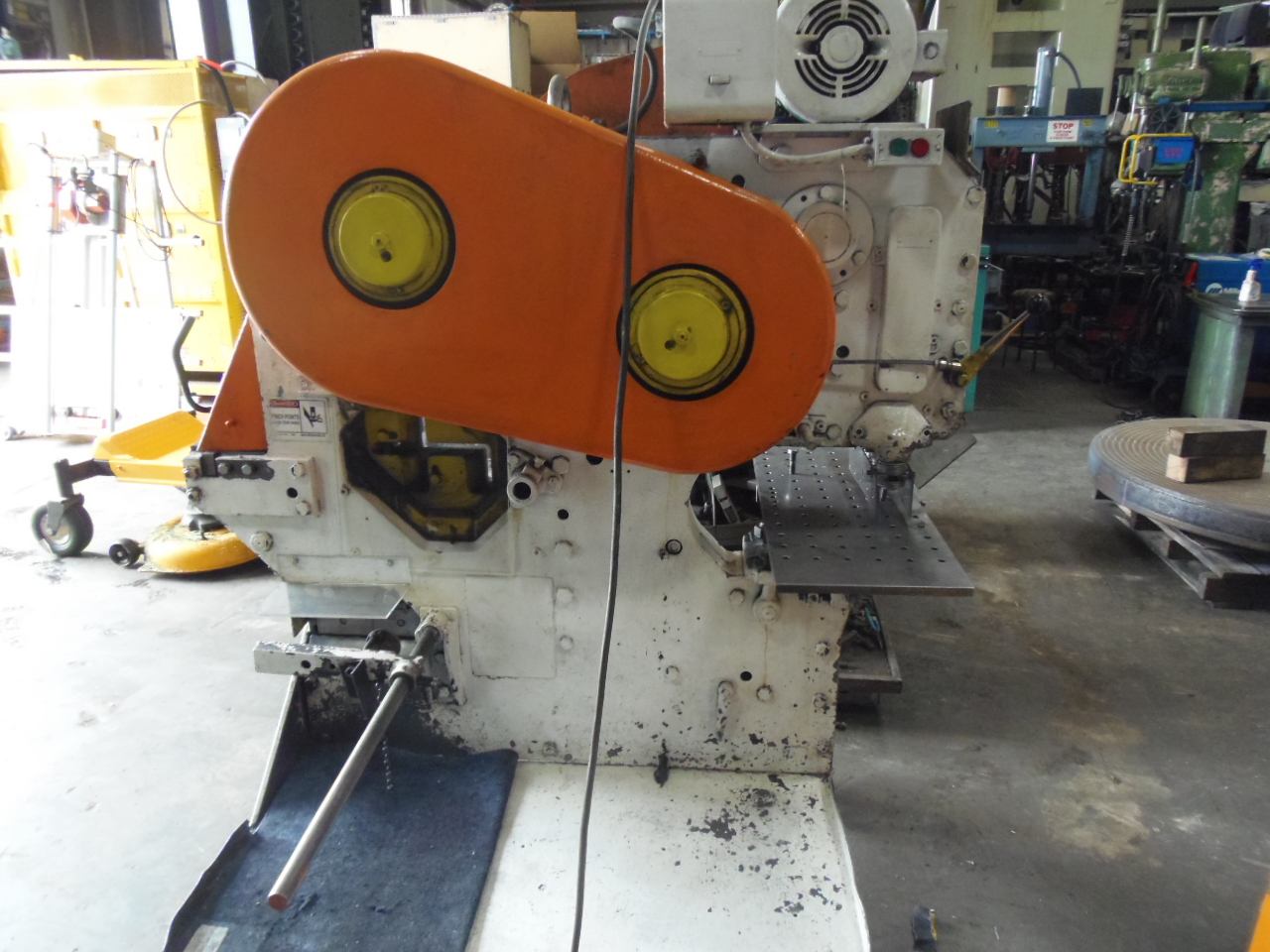

MANUFACTURER..................... PEDDINGHAUS

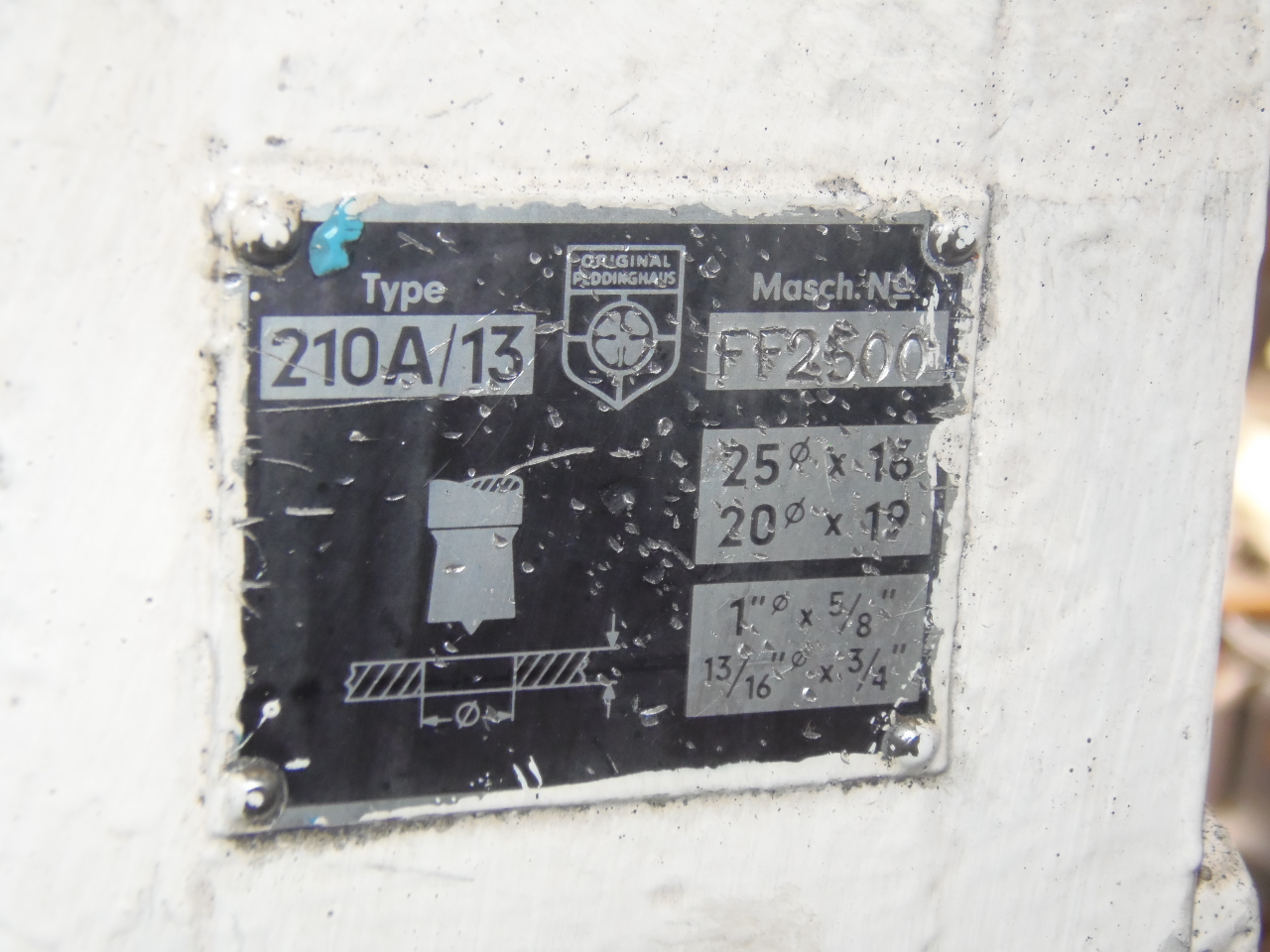

MODEL............................ 210A/13
SERIAL NUMBER.................... FF2500

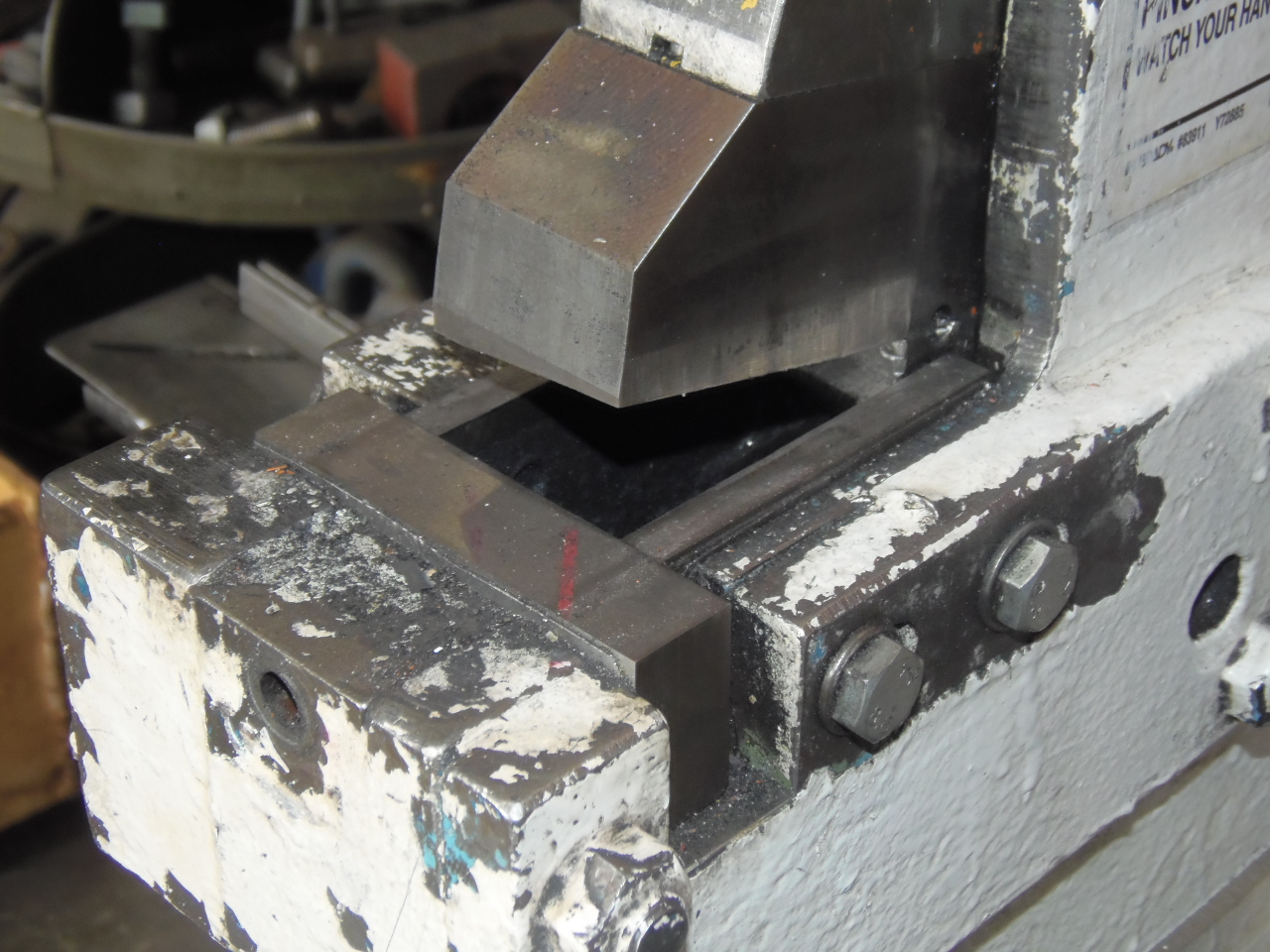

SHEARING
FLAT SHEAR....................... 9.5" X 5/16"
4" X 3/4"
CHANNELS 90 DEGREE............... 14.75 LBS
45...................... 12.5 LBS

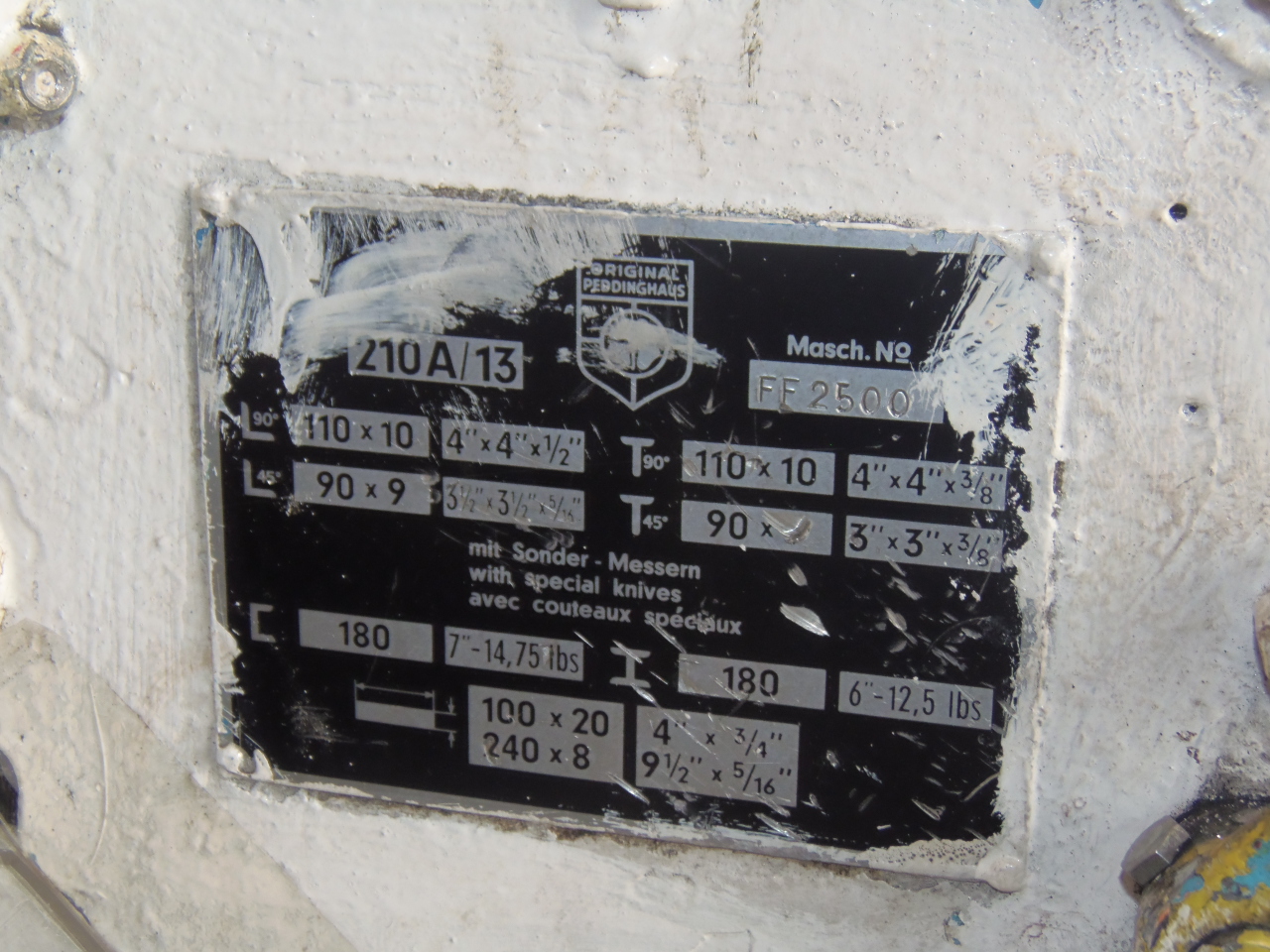

ANGLES 90 DEGREE................. 4" X 4" X 1/2"
45 DEGREE................. 3.5" X 3.5" X 5/16"
T SHAPE 90 DEGREE................ 4" X 4" X 3/8"
45 DEGREE................ 3" X 3" X 3/8"

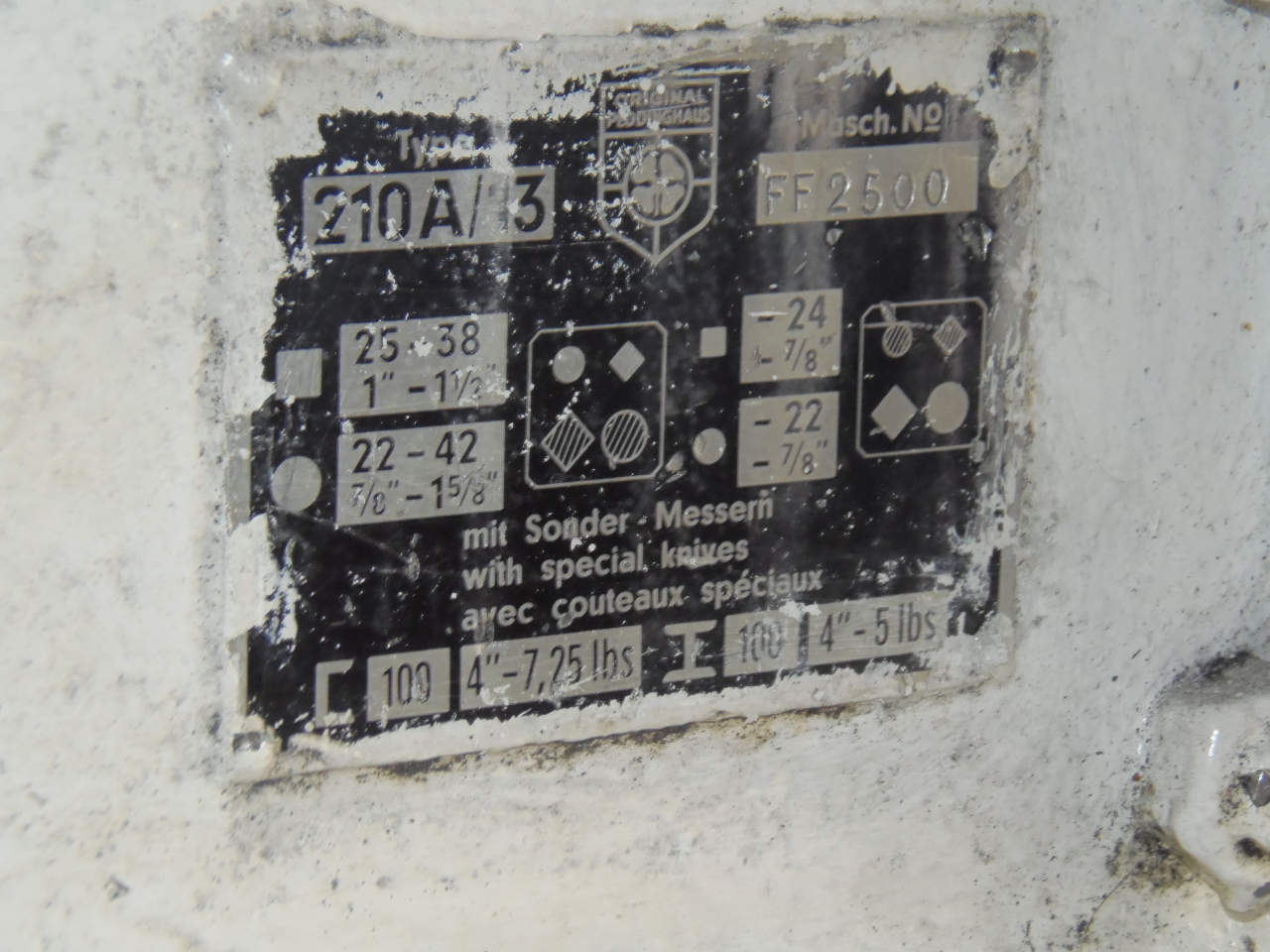

SQUARE BARS...................... 1.5"
ROUND BARS....................... 1 5/8"

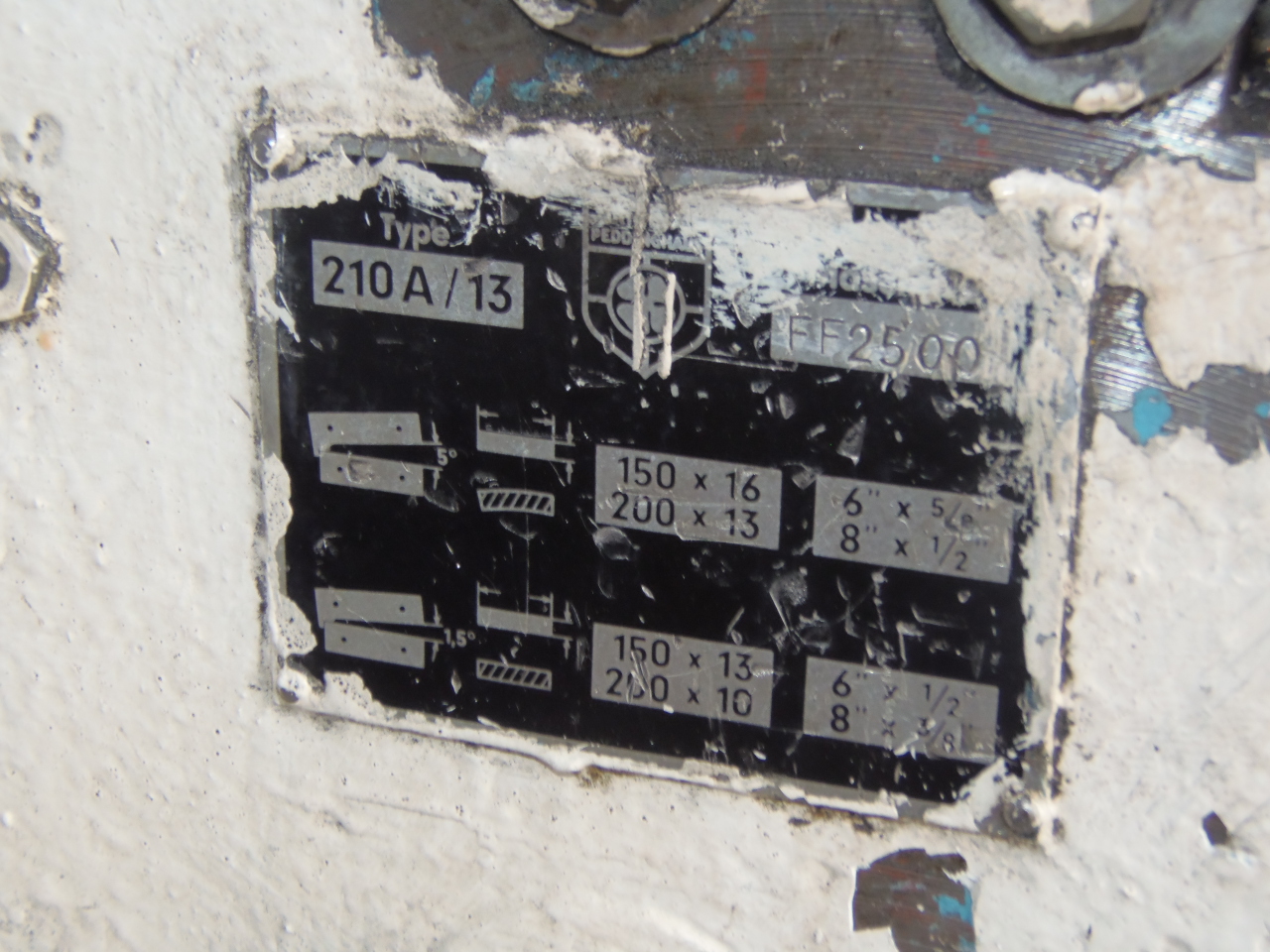

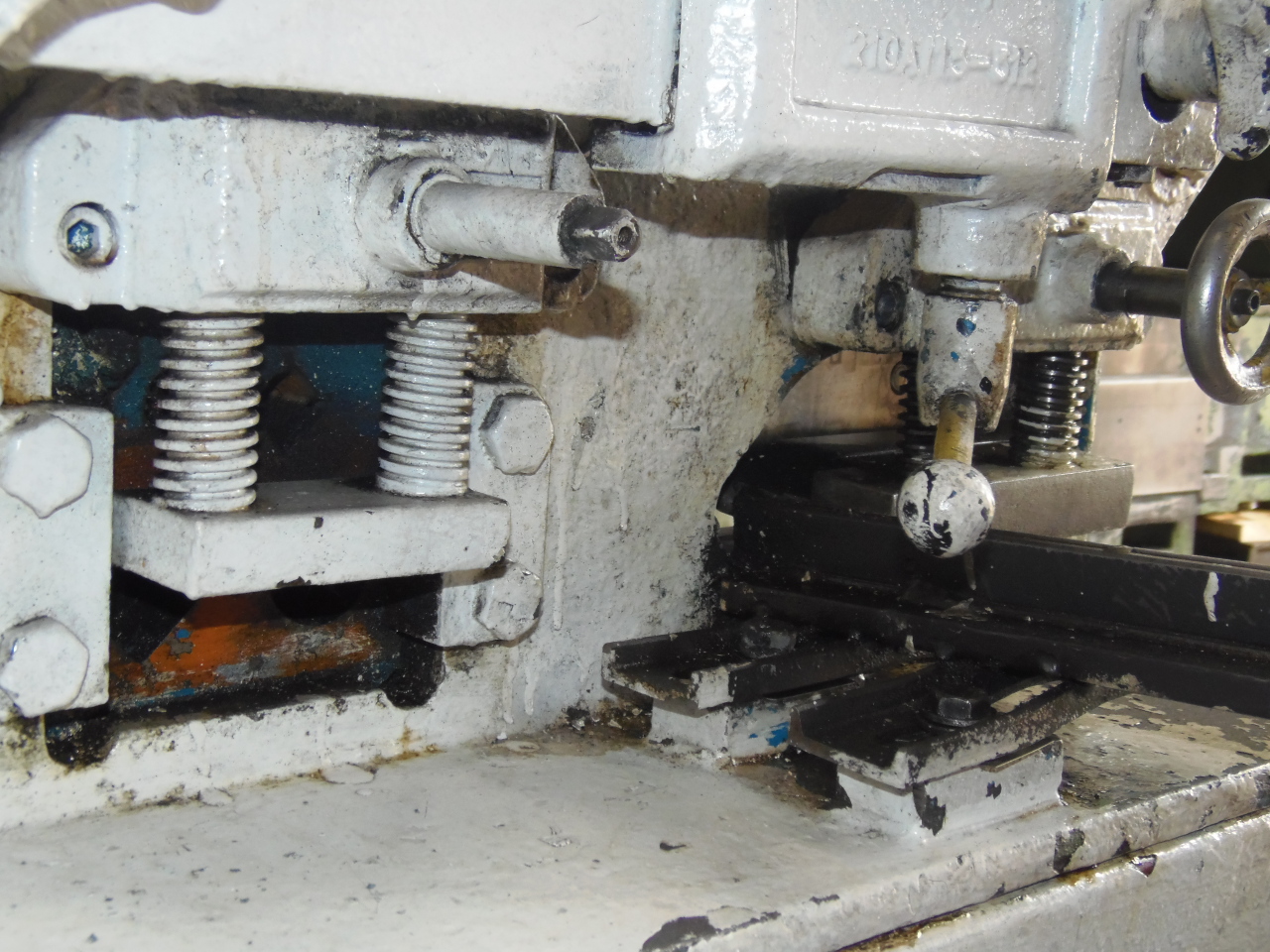

NOTCHING......................... 8" X 1/2"
6" X 1/2""

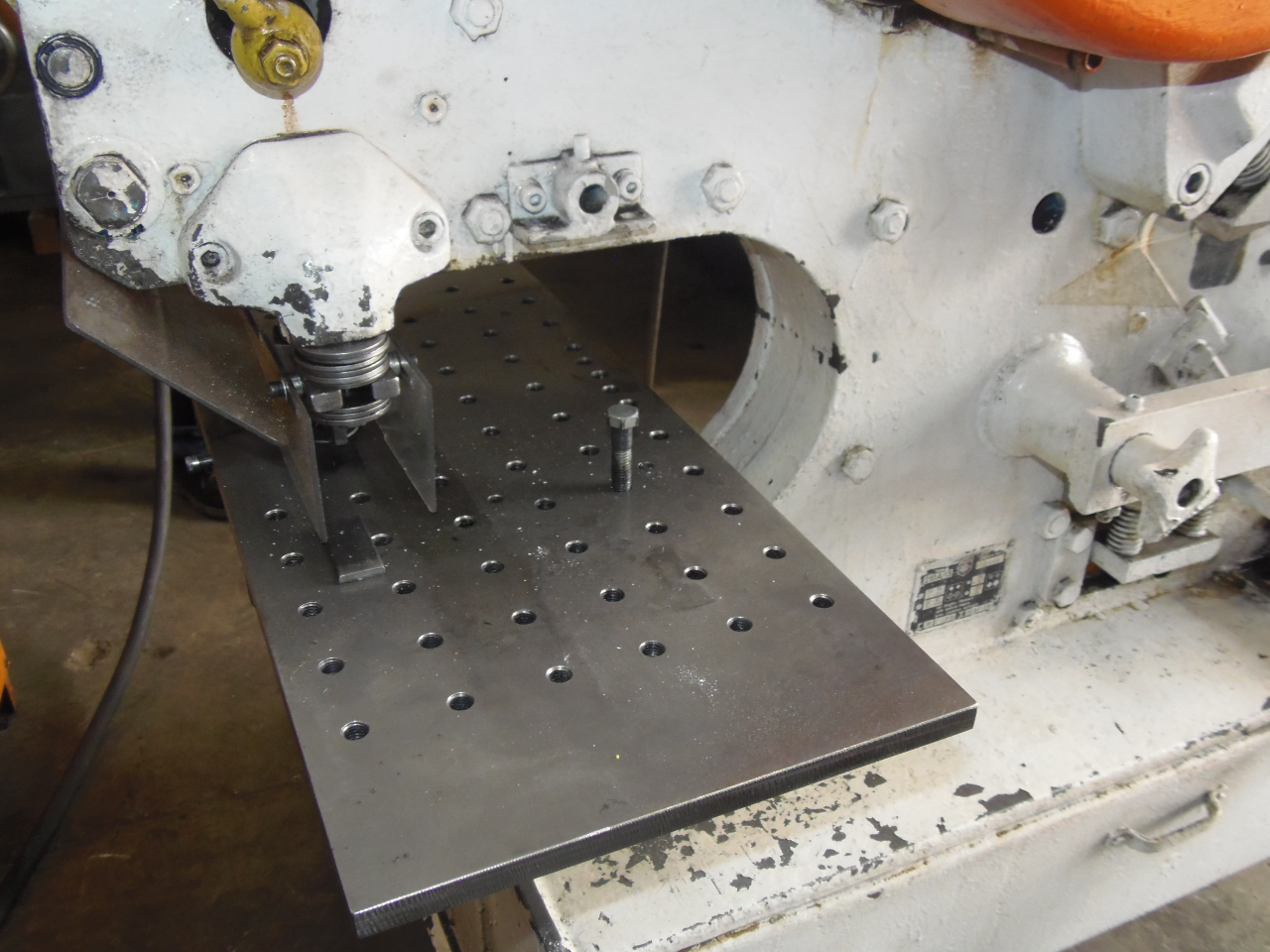

PUNCHING
PUNCH UNIT....................... 66 TONS
LENGTH OF STROKE................. 1 1/16"

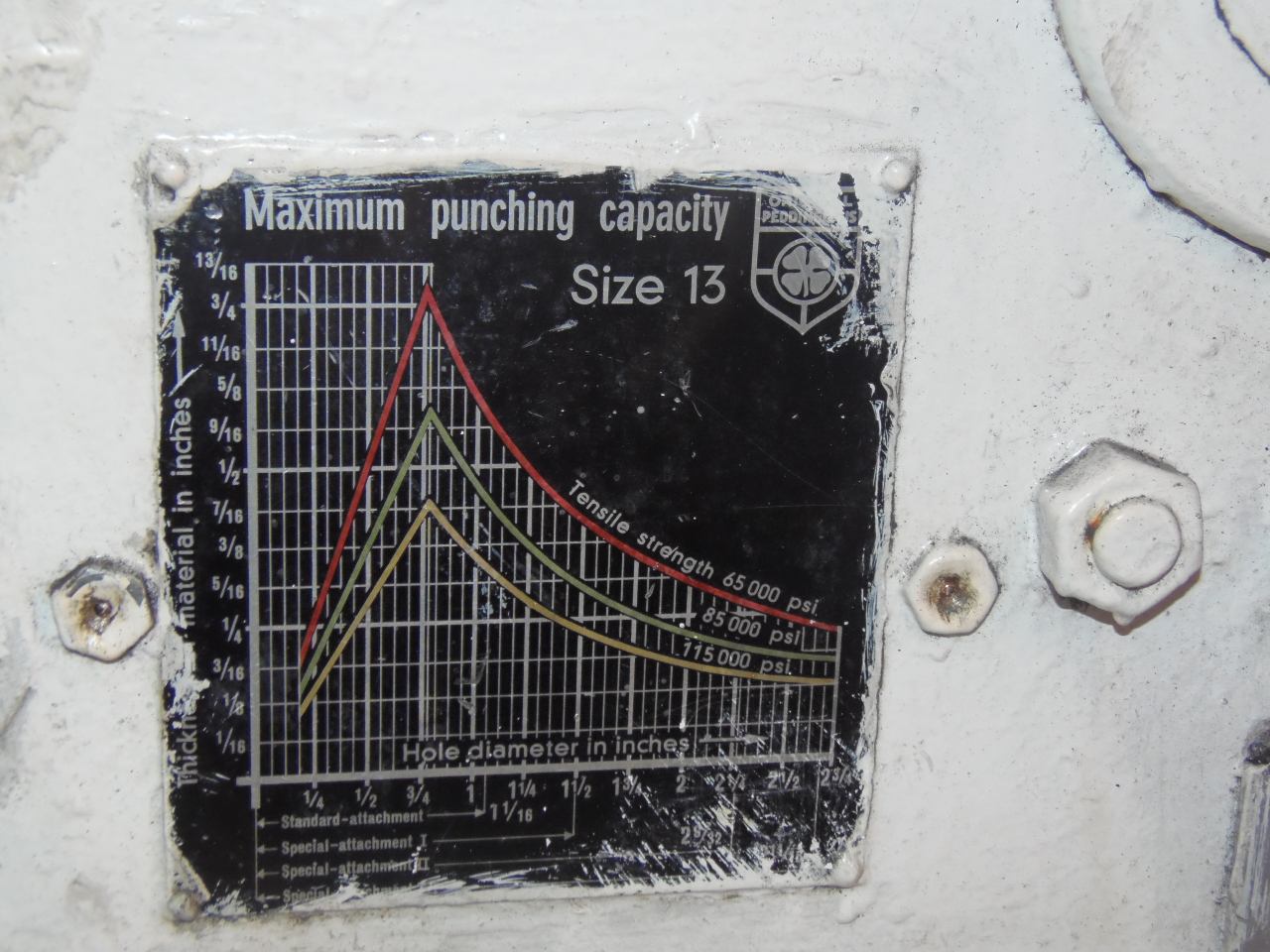

HOLE CAPACITY.................... 1" THICKNESS X 5/8" HOLE
13/16" THICKNESS X 3/4" HOLE
1/4" THICKNESS X 2 3/4" HOLE
HORSE POWER...................... 5
THROAT DEPTH..................... 14"
