Specifications
Equipped With
General Specifications:
Swing Over Bed: ....................... 64" (1625 mm)
Swing In Gap: ......................... 117" (2971 mm)
Swing Over Cross Slide: ............... 55" (1397 mm)
Distance Between Centers w/ Gap Open: 317" ( 8 meters)
Distance Between Centers w/ Gap Closed: 251" (6.37 meters)
Spindle Bore: ......................... 6 1/2" (165 mm)
Spindle Speeds(24): ................... 0.7-100 RPM
Lead Screw Diameter: .................. 3" (75 mm)
Max. Length of Gap from Face of Chuck: 66" (1676 mm)
Diameter of Tailstock Quill:........... 8" (203 mm)
Electrics: ............................ 50 HP Wired 220 V(220/440v) 3ph 60 Cycle
Overall Size: ......................... 38'3"L (11.66 meters) x 117"W (2.96 meters) x 111"H (2.8 meters) Approximate Weight: ................... 160,000 LBS (72,727 kg)
Equipped With:
Quick Change Feeds & Threads
63" (1600 mm) 4 Jaw Chuck
102" (2590 mm) Faceplate w/ 42" (1066 mm) ID & 4 Bottom Jaws
Soft Start/Soft Stop Controls on Carriage & Headstock
(1) Follow Rest
(2) Steady Rest- 17" (431 mm)Max. Diameter & 34" (863 mm) Diameter Auxiliary Slide For Gap
Overall Size = 58"L x 41"W x 56"H (1473 x 1041 x 1422)
Can Be Mounted on Base with "T" Slots, Outside the Gap,

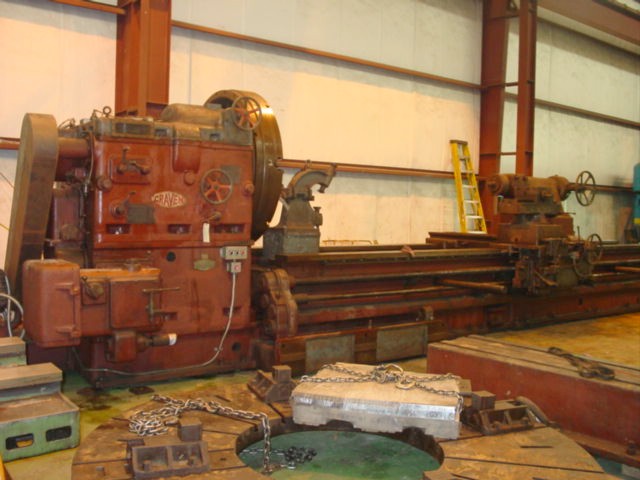

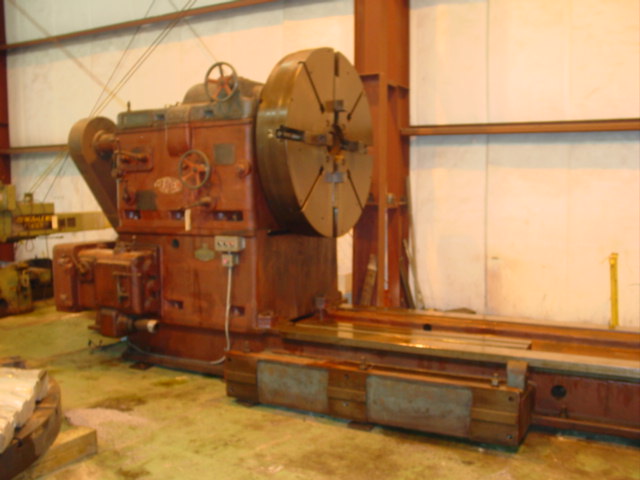

Or Mounted Inside the gap on "T" Slots (See pictures)
Slide Will Travel 21" (2125)X and Cross Slide 19" (482)
There is also a Compound
(All movements of auxiliary attachments are power feed with push button controls).
Machine Has 6 Way Rapid Traverse.
Power Gap Adjustment
Sliding Bed Never Extends Beyond Main Bed Condition Good
