Specifications
Equipped With
GENERAL SPECIFICATIONS:

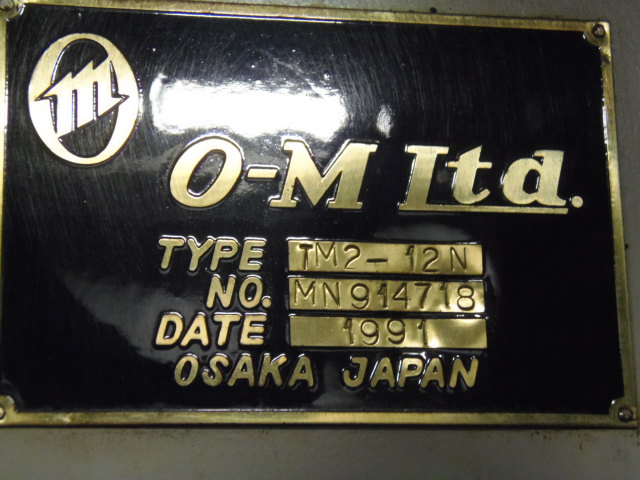

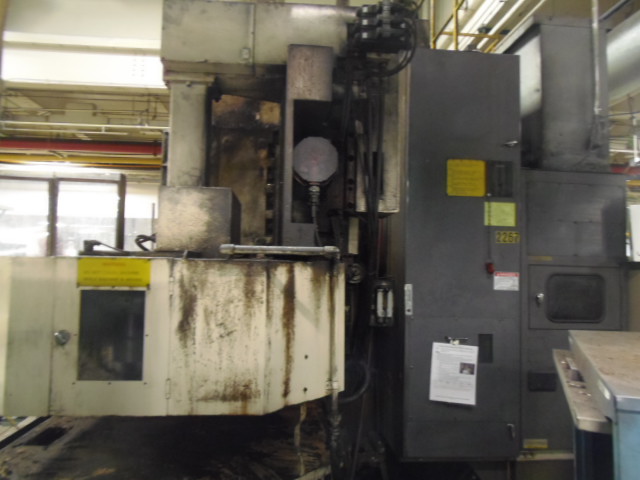

MANUFACTURER..................... OM
MODEL............................ TM2-12N
NEW.............................. 1991
MAX. SWING....................... 63" (1600 MM)

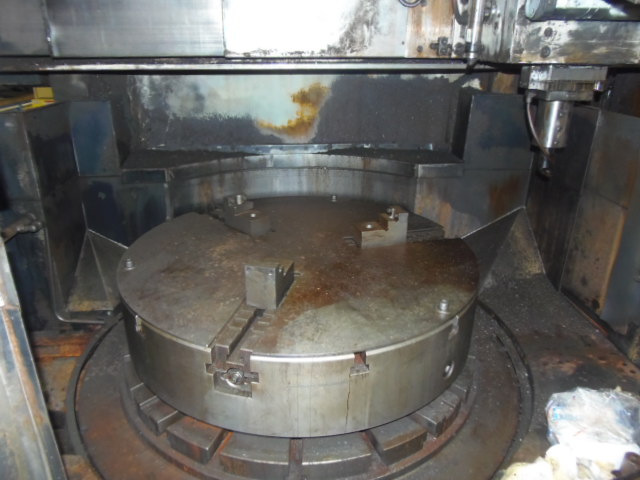

CHUCK DIAMETER (3 JAW MANUAL).... 47" (1250 MM)
MAX. TURNING DIAMETER............ 53" (1350 MM)
MAX. TURNING HEIGHT.............. 49.25" (1250 MM)
MAX. WORK PIECE WEIGHT........... 5,000 LBS.
MAX. TORQUE OF TABLE............. 9,040 FT/LBS.
MAX. CUTTING FORCE............... 5,500 LBS (2500 KG)
SPEED RANGE (LOW)................ 2-84 RPM
SPEED RANGE (HIGH)............... 8-350 RPM
HEIGHT UNDER CROSS RAIL (MAX).... 58" (1565 MM)
HEIGHT UNDER CROSS RAIL (MIN).... 22.25" (565 MM)
CROSS RAIL POSITIONING STEP...... 7 7/8" (6 STEP)
TOOL HEAD VERT. TRAVEL........... 35.5" (900 MM)
TOOL HEAD HORZ. TRAVEL (RIGHT OF TBL). 61" (1560 MM)
TOOL HEAD HORZ. TRAVEL (LEFT OF TBL).. 3 7/8" (100 MM)
TOOL HOLDER SHANK SIZE........... 1.25" X 1.25"
RAM SIZE (SQUARE)................ 7" (180 MM)
FEED RATE........................ 0.0001 - 20" / REV
RAPID TRAVERSE................... 393"/MIN (10000MM/MIN)
ELEVATING SPEED OF CROSS RAIL.... 14"/MIN (60HZ)
NET WEIGHT....................... 33,000 LBS (15000 KG)
WORK AREA DIMENSIONS............. 217" W X 142" D X 200" H
EQUIPPED WITH:

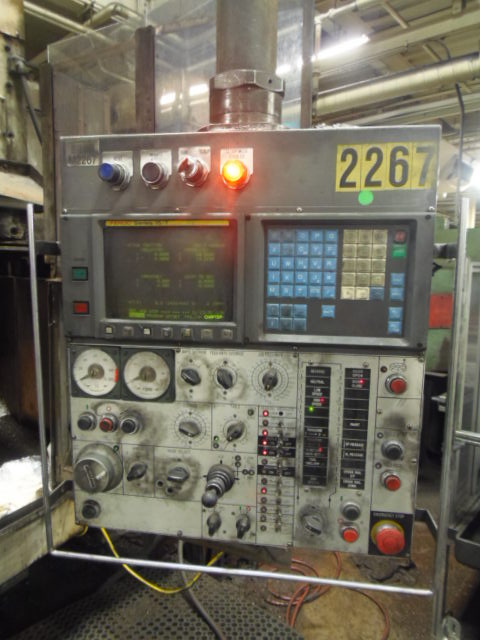

FANUC 15TA CONTROL
ADJUSTABLE CROSS RAIL

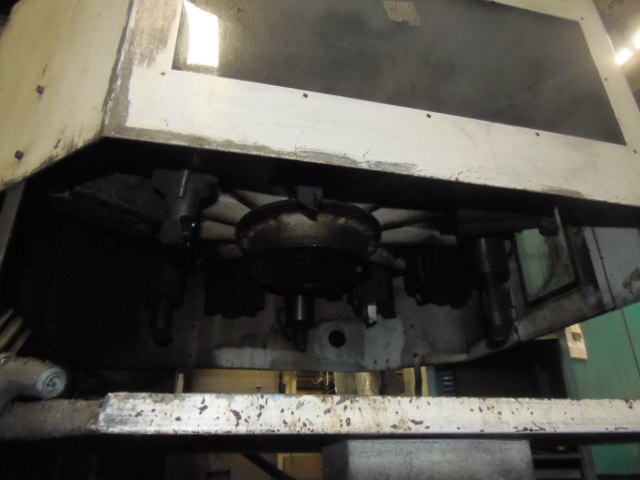

12 TOOL ATC WITH 10 TOOL HOLDERS

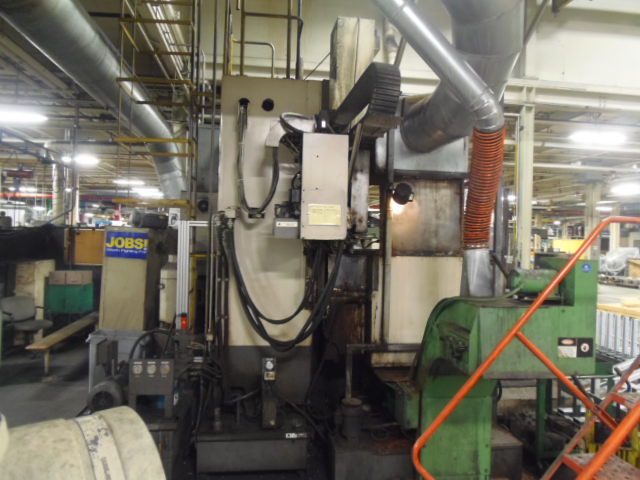

CHIP CONVEYOR
MANUALS
****INSPECT UNDER POWER IN OUR FACILITY****
SPECIFICATIONS SUBJECT TO VERIFICATION
