Specifications
Equipped With

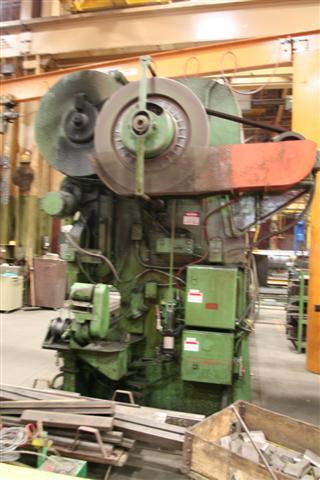

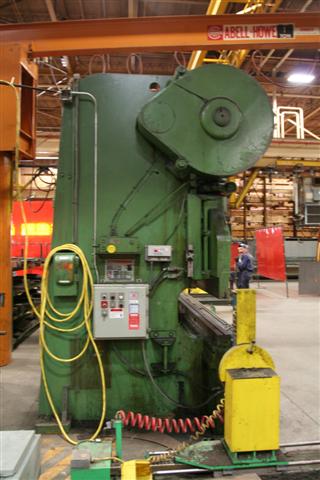

Manufacturer Cincinnati
Model 21x12
Serial 31398
Year 1963
Capacity 600 tons
Bending capacity 12' x 1/2"
Overall length of bed & ram 16' (192")
Distance between housings 12' 6" (150")
Stroke of ram 4"
Shut height 14"
Adjustment 6" (motorized)
Throat depth 14"
Speed 30 spm
Drive motor 30 hp
Dimensions 215" lr x 112" fb x 136" high
Weight 83,400 lbs.
Machine is equipped with:
motorized ram adjustment w/ micrometer adjustment at both ends
Madison Kipp automatic lube system,

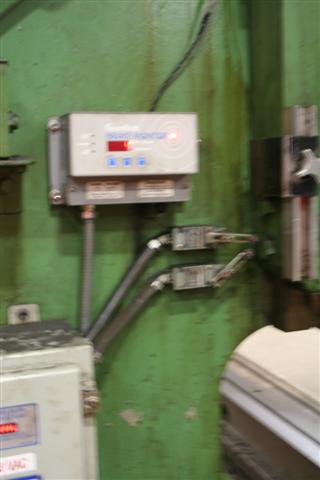

tonnage indicator
bed and ram machined for angles
adjustable light curtains
2-speed
UNDERPOWER VIDEO AVAILABLE ON REQUEST
*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION
