Specifications
Equipped With
General Specifications

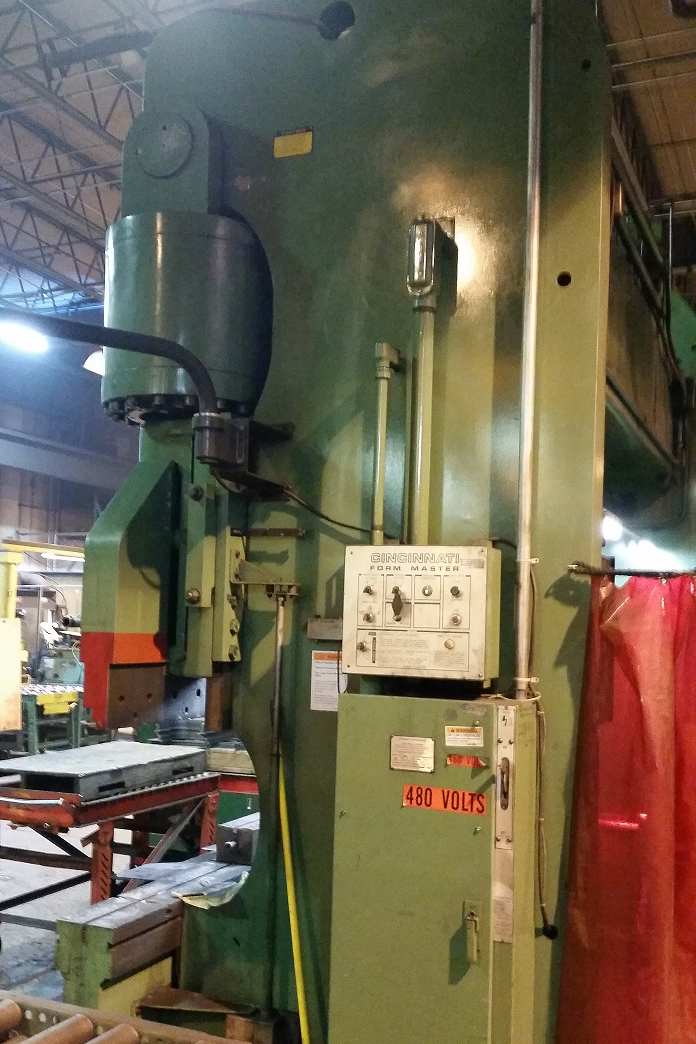

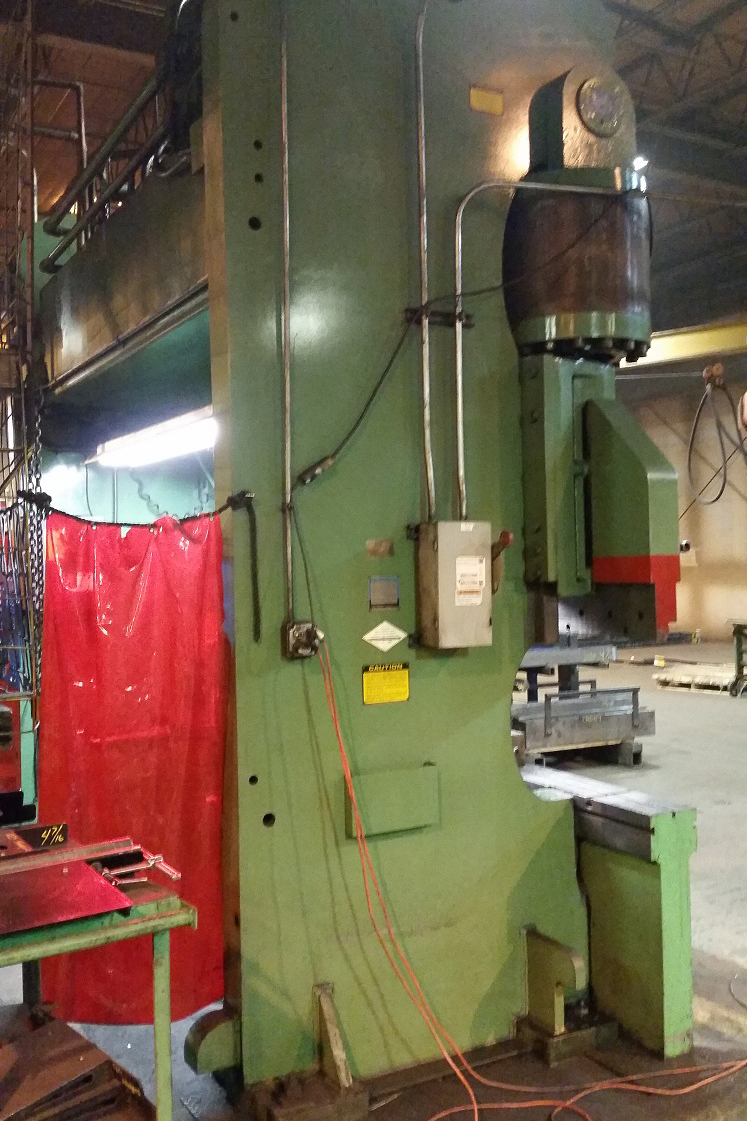

Manufacturer................ Cincinnati
Model....................... 600 FM X 10
Serial...................... 41801
Year........................ 1982
Capacity.................... 600 tons
Overall die surface......... 14'
Bending capacity 8" V....... 3/14" X 14'
(19 MM X 4.3 M)
5" V....... 5/8" X 12'
Overall length of bed & ram. 14'
Distance between housings... 10' 6"
Stroke of ram............... 12"
Shut height................. 10"
Open height................. 22"
Rapid advance............... 99 IPM
Fast press.................. 44 IPM
Full tonnage press.......... 19 IPM
Return speed................ 43 IPM
Drive motor................. 50 hp
Weight...................... 78,000 lbs.
Height above floor.......... 12'8"
Dimensions.................. 14' x 6'3" deep
current voltage............. 480v
Machine is equipped with:

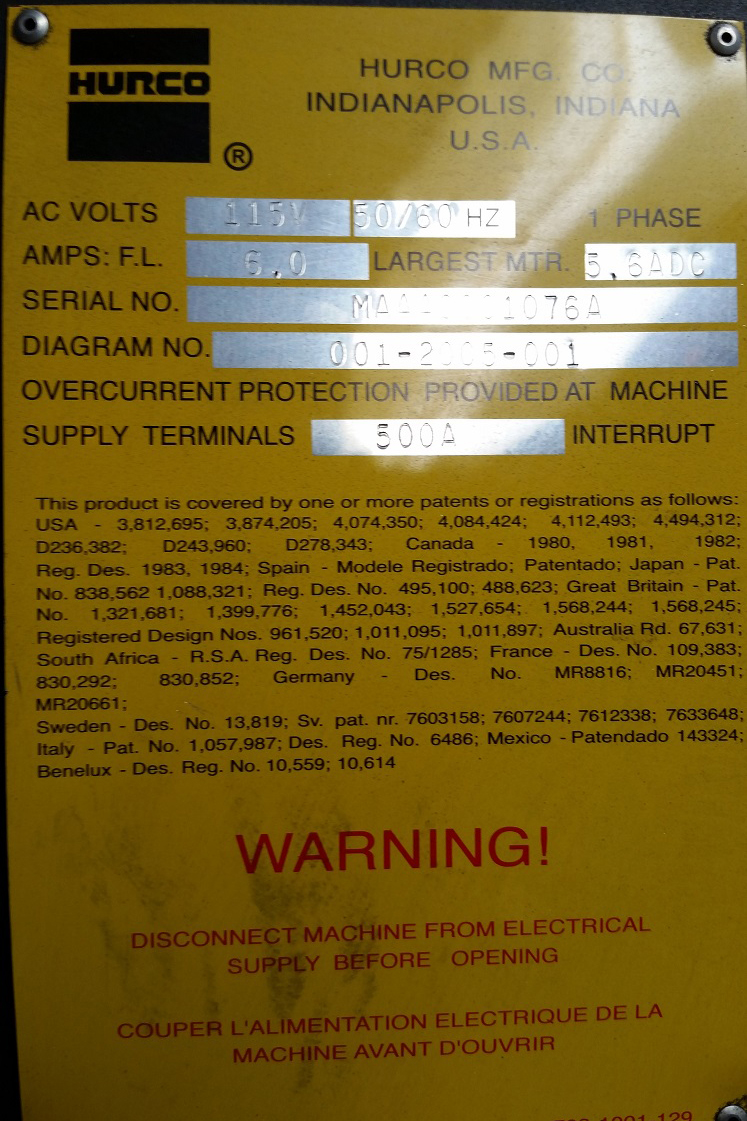

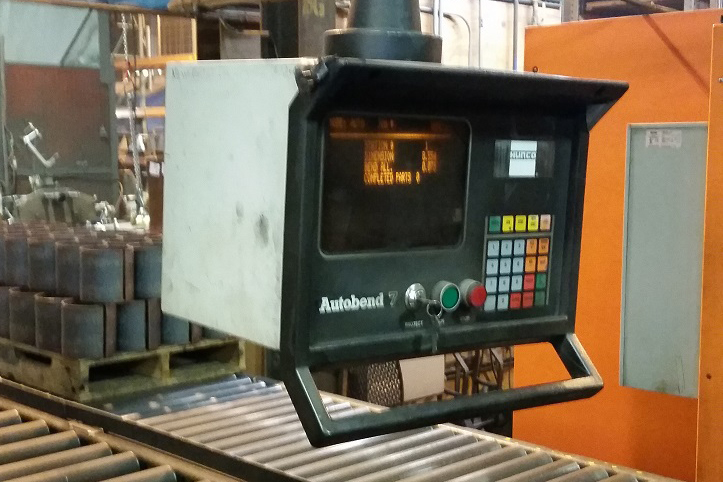

Hurco Autobend 7 control with AB5/S8 backguage
AB7 control features - stores 600 jobs, 2,400 tool bends, tool libraries with 45 punches and 45 dies.

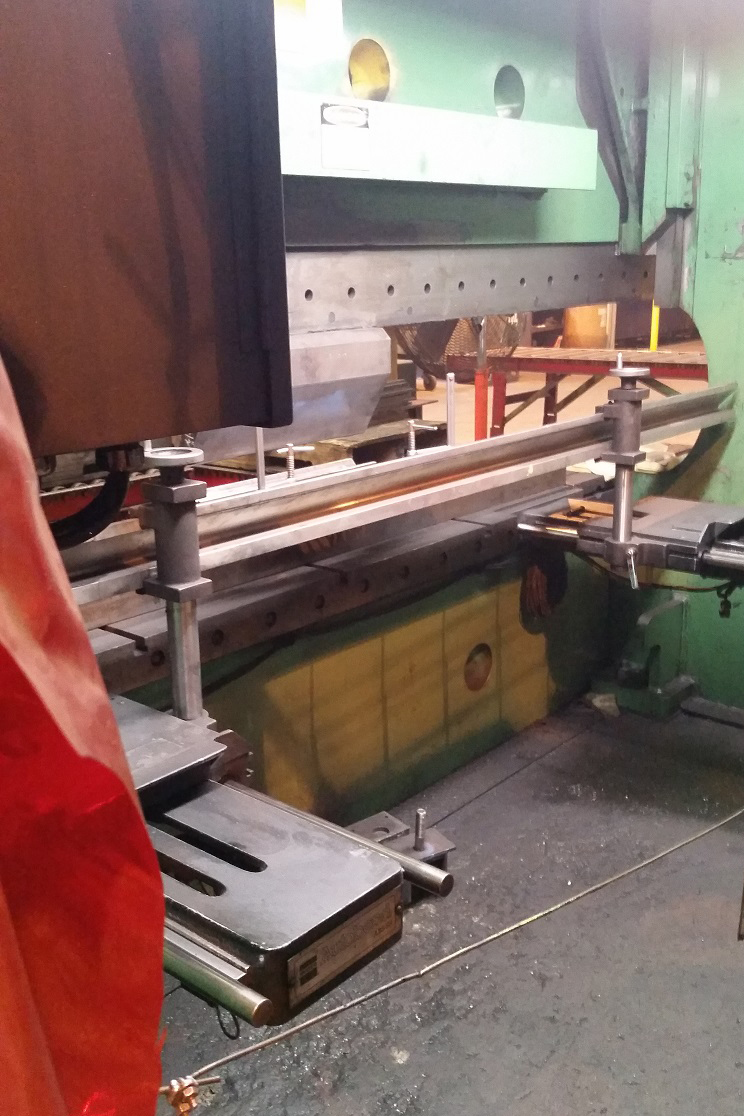

S8 backgauge features - 24" travel, 10" vertical adjustment, 9" horizontal adjustment, 800 ipm gauge speed
Motorized ram adjustment
Dual Palm station
Foot Pedal
33" deep slot for bed plate
6" deep slot for end frames

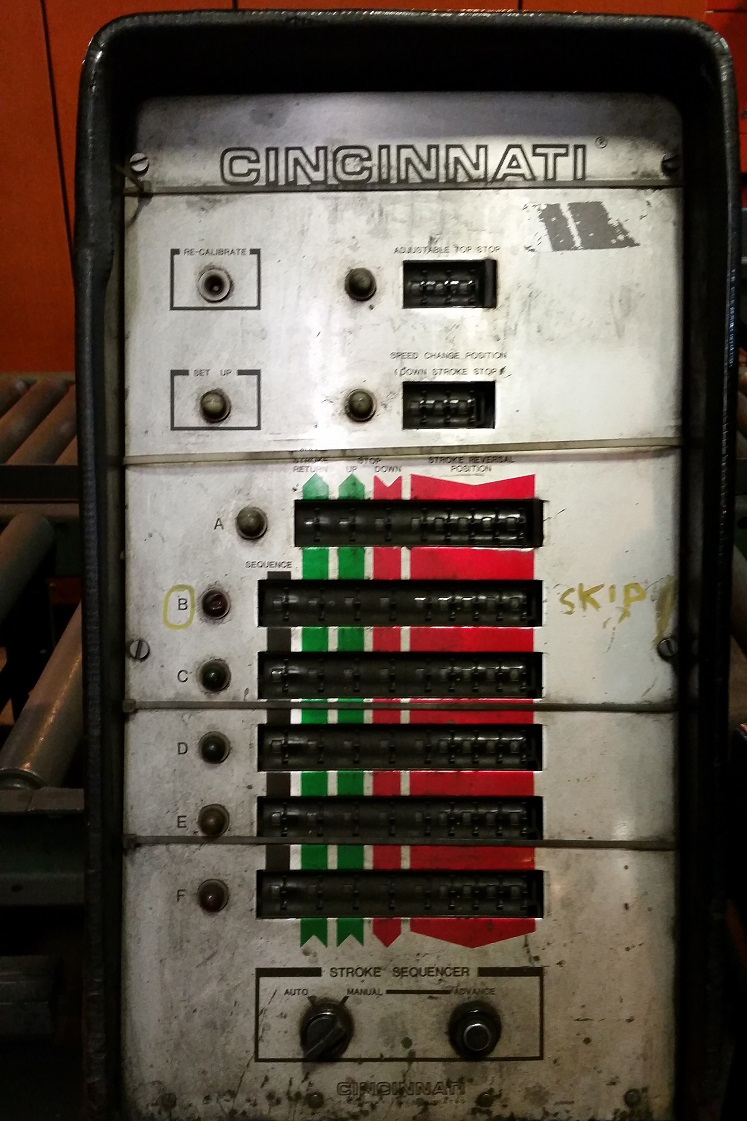

Cincinnati multi position control for 6 bends and stroke control
IN PLANT AND CAN BE SEEN UNDER POWER.
