60" X 84" GIDDING & LEWIS AIRLIFT ROTARY TABLE

Brand
GIDDINGS & LEWIS

Model
60 X 84 AIR LIFT

Type
Tables, Rotary

Stock #
10522

Condition
Reconditioned

Year

Request a Quote

Specifications

Equipped With

GENERAL SPECIFICATIONS
MAKE.......................... GIDDINGS & LEWIS
MODEL......................... 60 X 84 HEAVY DUTY AIR LIFT

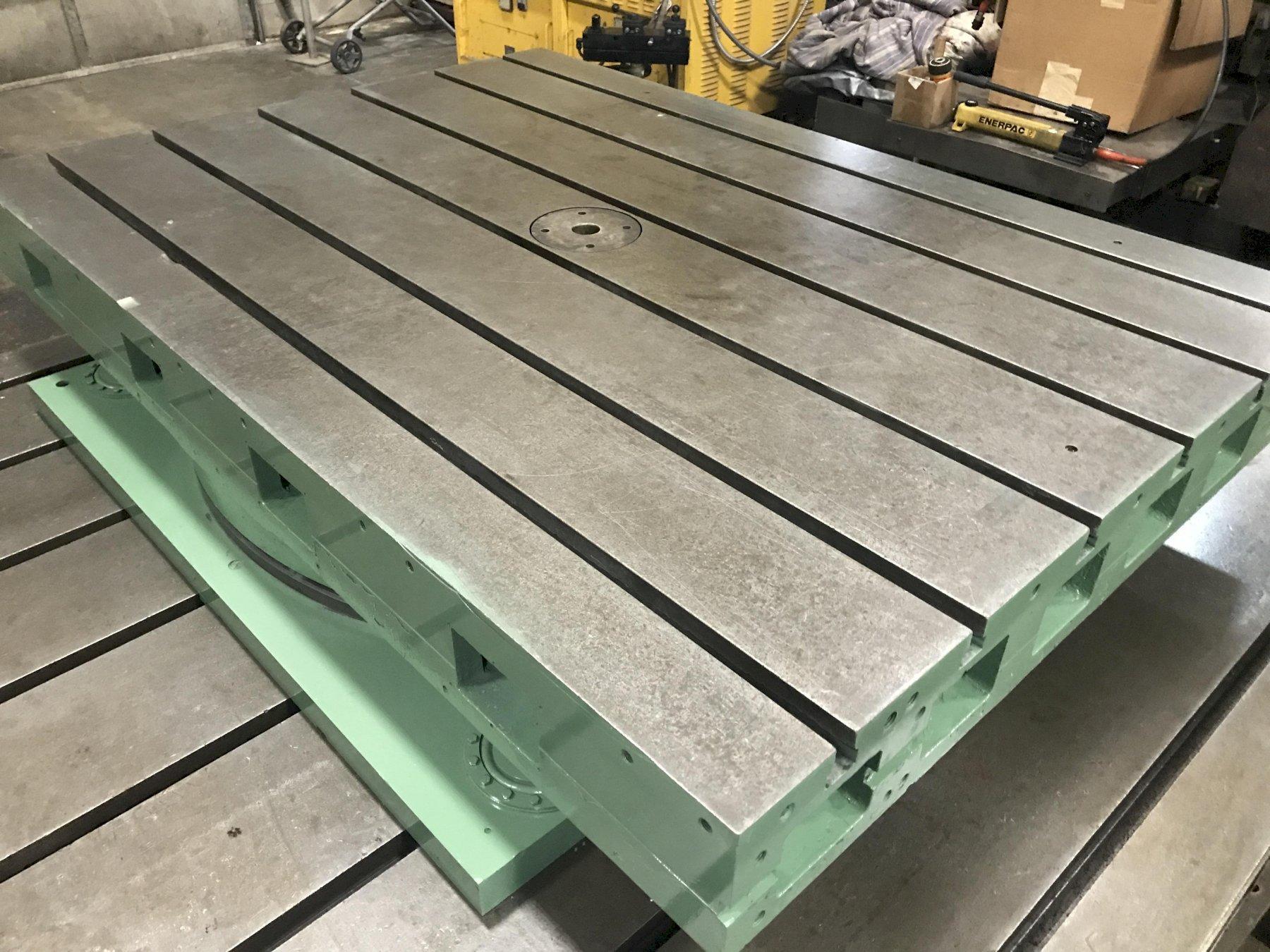

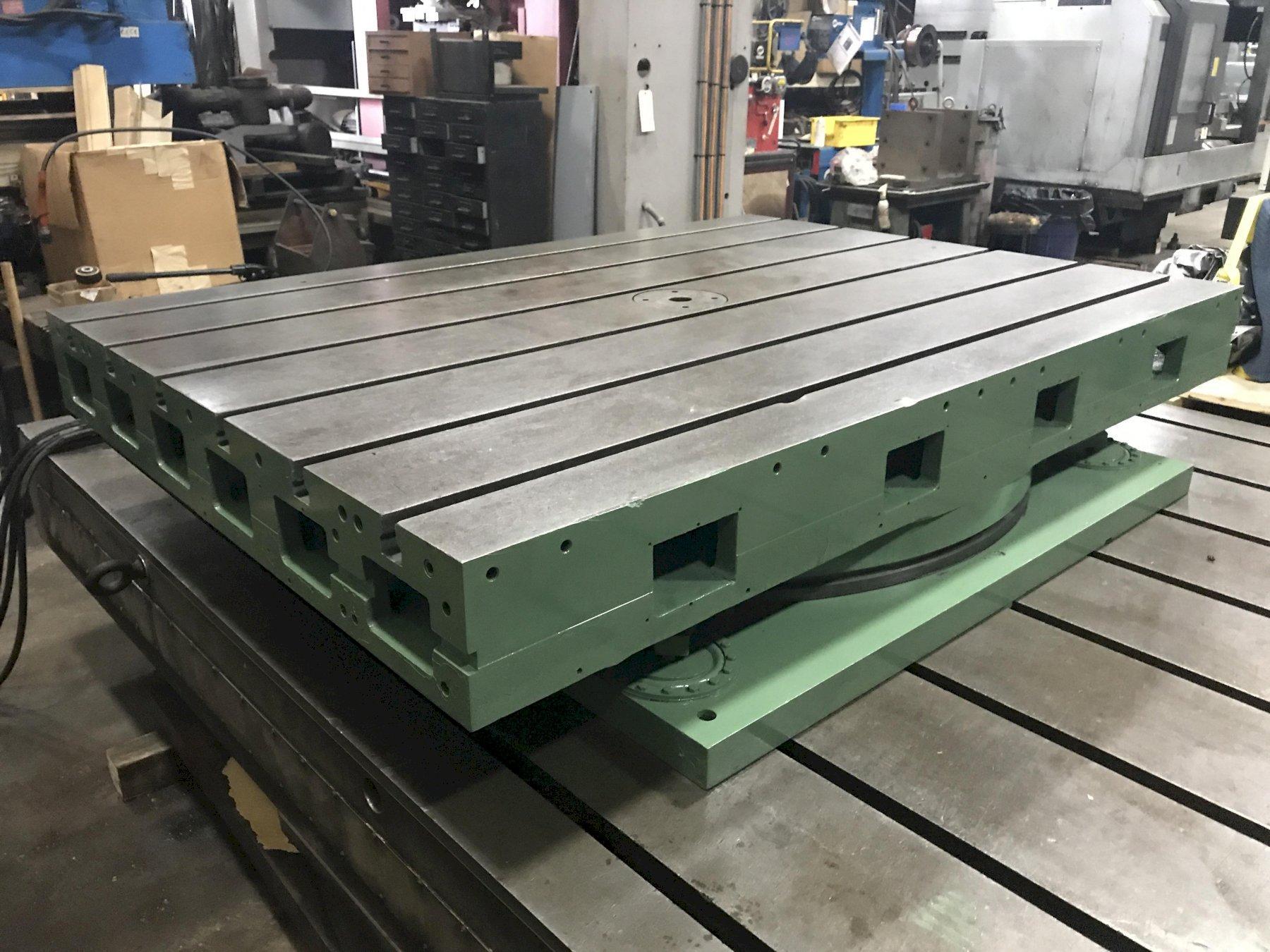

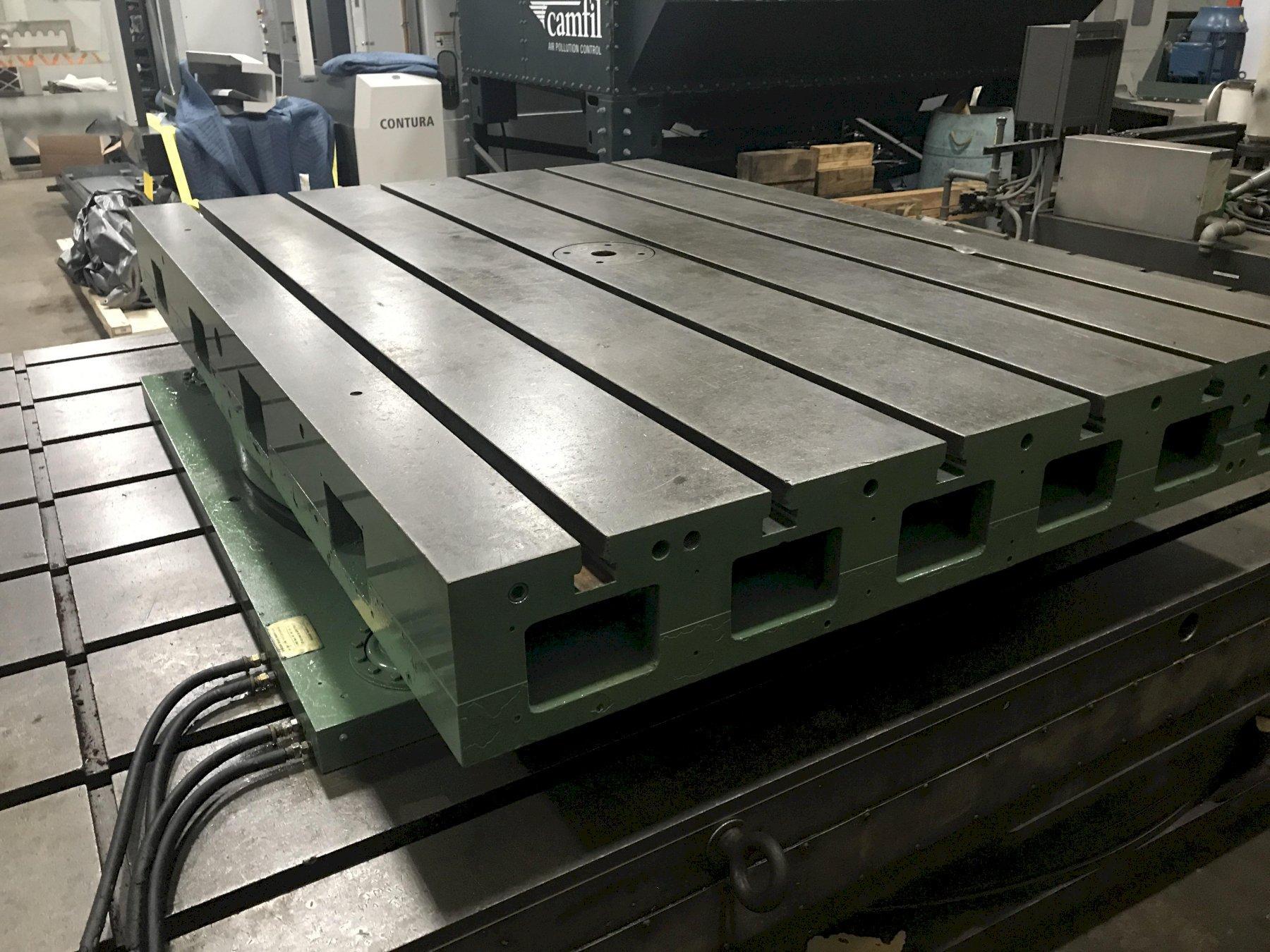

TABLE SIZE.................... 60" X 84"
SIZE OF BASE.................. 60" X 66"
HEIGHT FROM FLOOR............. 16"
NUMBER OF T SLOTS............. 6
WIDTH OF T SLOTS, TOP......... 1"
WIDTH OF T SLOTS, BOTTOM...... 1.875"
DEPTH OF T SLOTS, OVERALL..... 2"
DISTANCE BET. T SLOT CENTERS.. 10"
SHOT PIN LOCATIONS (DEGREES).. 90, 180, 270, 360
WEIGHT CAPACITY............... 30,000 LBS
TOTAL TABLE & BASE WEIGHT..... 10,300 LBS


EQUIPPED WITH:

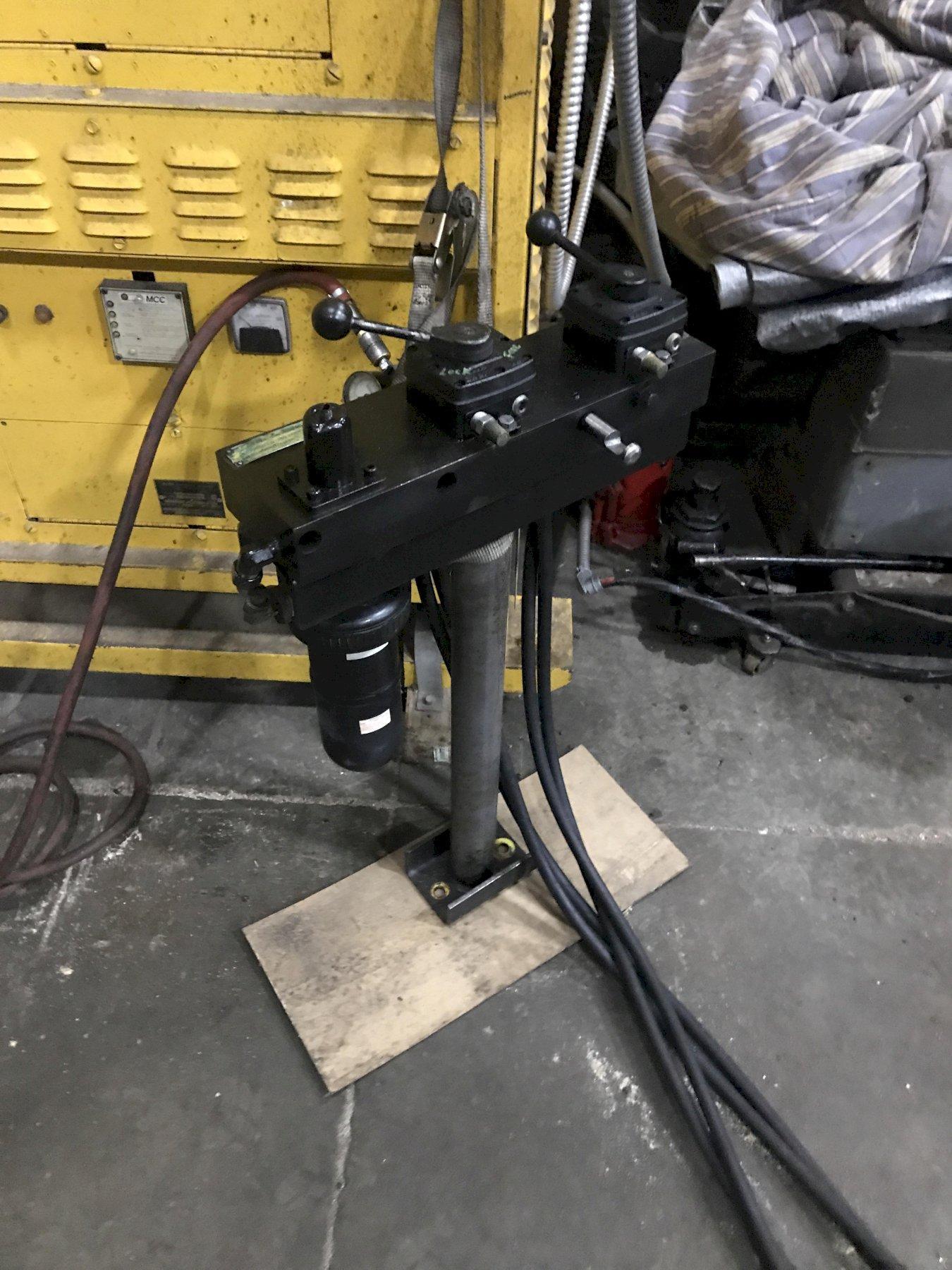

REMOTE OPERATING PENDANT

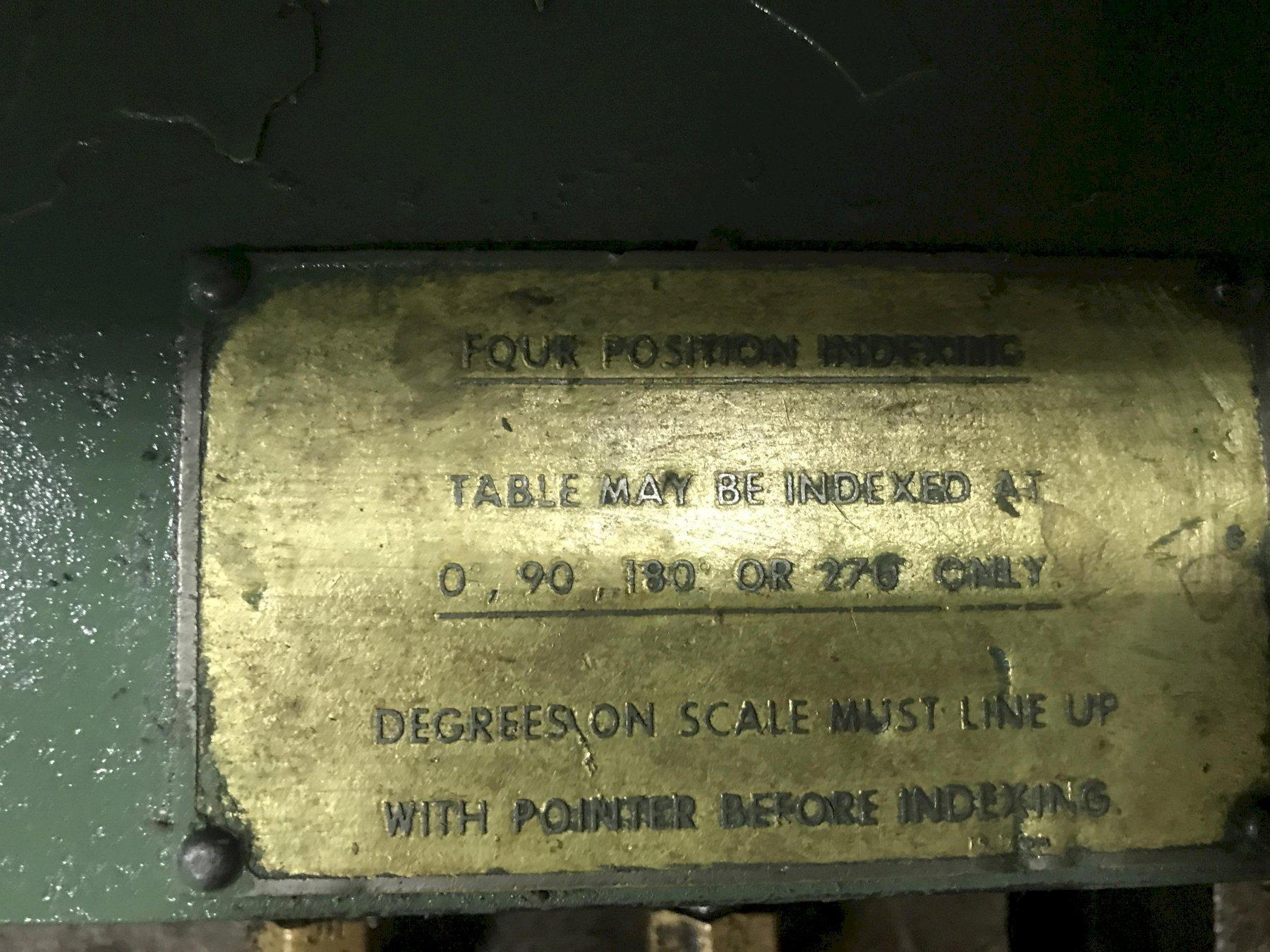

4 POSITIVE AIR SHOT PIN LOCKS AT 90, 180, 270, 360
360 DEGREE SCALE WITH 1/2 DEGREE INCREMENTS
FIXTURE LOCATING KEY WAY
