Specifications
Equipped With
GENERAL SPECIFICATIONS:

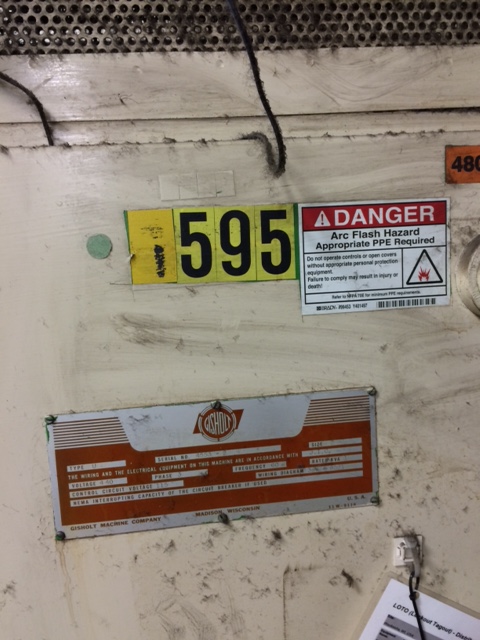

MANUFACTURER...................... GISHOLT
MODEL............................. 6U

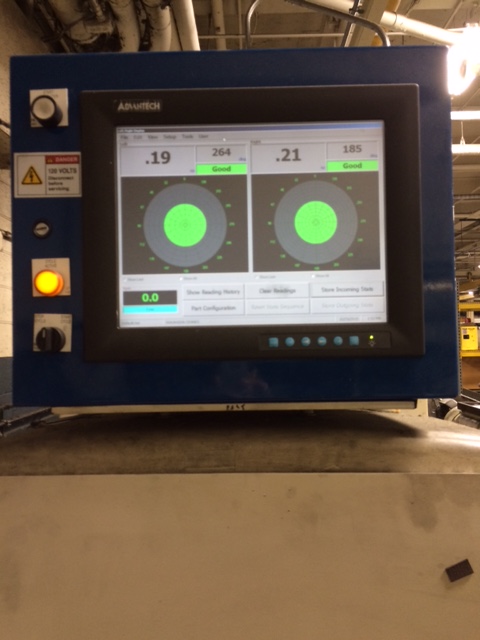

CONTROL........................... VISUAL BASIC VERSION 7 INSTALLED IN 2012 BY BALANCE TECHNOLOGY INC. RUNNING ON WINDOWS 7
MODEL............................. 2012
TYPE OF BALANCER.................. STATIC/DYNAMIC 2 PLANES
MAXIMUM LENGTH.................... 72"
MAXIMUM DIAMETER.................. 60"
RPM'S............................. 300 OR 600
WEIGHT CAPACITY................... 1400 PER STAND (2800 TOTAL)
FLOOR SPACE 4' X 11' WEIGHING 5500 LBS
THIS IS MEASURING CRANKSHAFTS AT A ISO READING OF .03
THE CONTROL IS CURRENT TECHNOLOGY. THE FACTORY CAN INSTALL AND TRAIN IN APPROXIMATELY TWO DAYS.
