Specifications
Equipped With
GENERAL SPECIFICATIONS:
SERIAL FM413
NEW APPROXIMATELY 1966
TYPE MC
MILLING HEADS:
10 HP AC VARIABLE SPEED MOTOR ON
EACH HEAD SPINDLE NOSE #50 STANDARD
MAXIMUM WORK LENGTH 60"
MAXIMUM DIAMETER MILLING WITH 9" CUTTERS 6-1/4"
MAXIMUM DIAMETER MILLING WITH 10" CUTTERS 8"
MAXIMUM DIAMETER CLAMPING 8"
MINIMUM DIAMETER CLAMPING 1/2"
(18) SPEED RANGE (THRU PICK OFF GEARS) 31-283 RPM
SLIDE STROKE 9-3/4"
FAST TRAVERSE RATE 150 IPM
FEED RATE (INF. VARIABLE) 0-150 IPM
DRILLING HEADS:
3 HP AC DIRECT DRIVE MOTOR ON EACH HEAD
(15) SPEED RANGE (THRU PICK OFF GEARS) 377-1145 RPM
QUILL STROKE 3"
FEED STROKE 2-3/4"
HEAD ADJUSTMENT 3"
FAST TRAVERSE RATE 100 IPM
FEED RATE (INF. VARIABLE) 0-100 IPM
WEIGHT APPROXIMATELY 10,000 LBS.
EQUIPPED WITH:

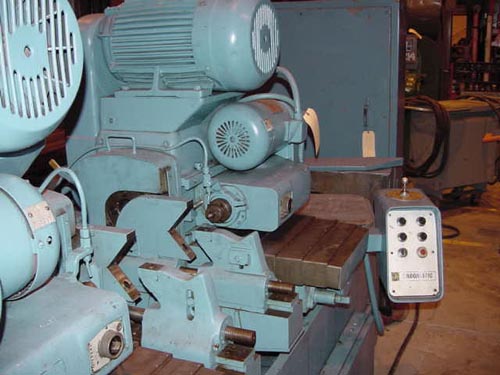

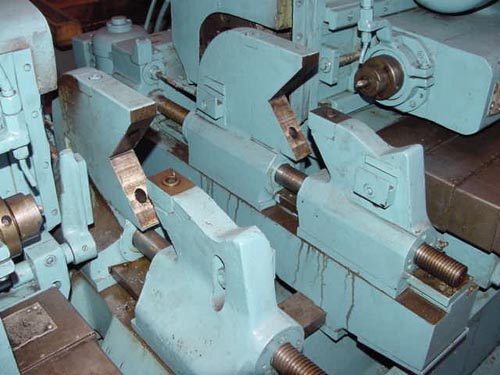

POWER OPERATED SELF CENTERING VISES

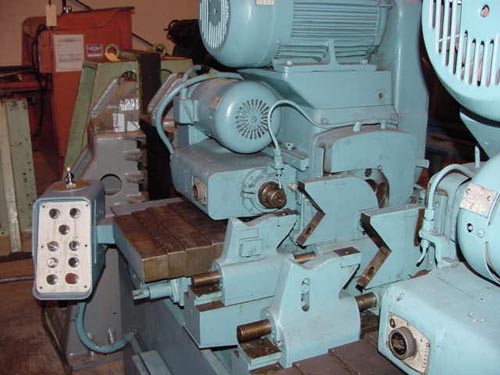

JOY STICK CONTROL AND PENDANT STATION ON BOTH ENDS
ONE SHOT LUBRICATION SYSTEM
COOLANT SYSTEM WITH PUMP AND TANK
ELECTRICAL CONTROL CABINET
HARDENED WAYS
VICKERS HYDRAULIC SYSTEM
2 REAR HYDRAULIC UNITS
44T&66T GEARS-792 RPM
64T&54T GEARS-49,69,91 OR 128 RPM
