Specifications
Equipped With

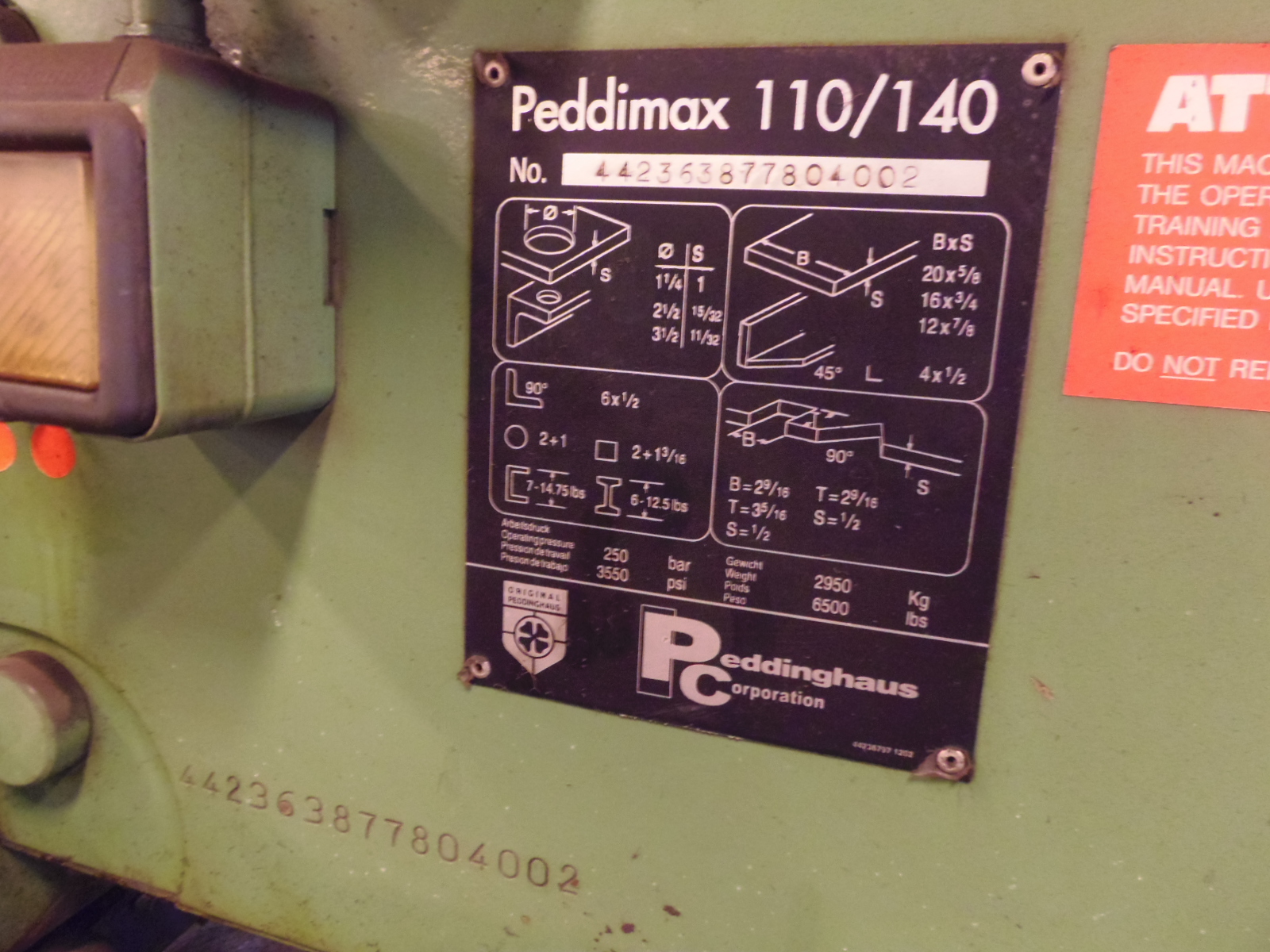

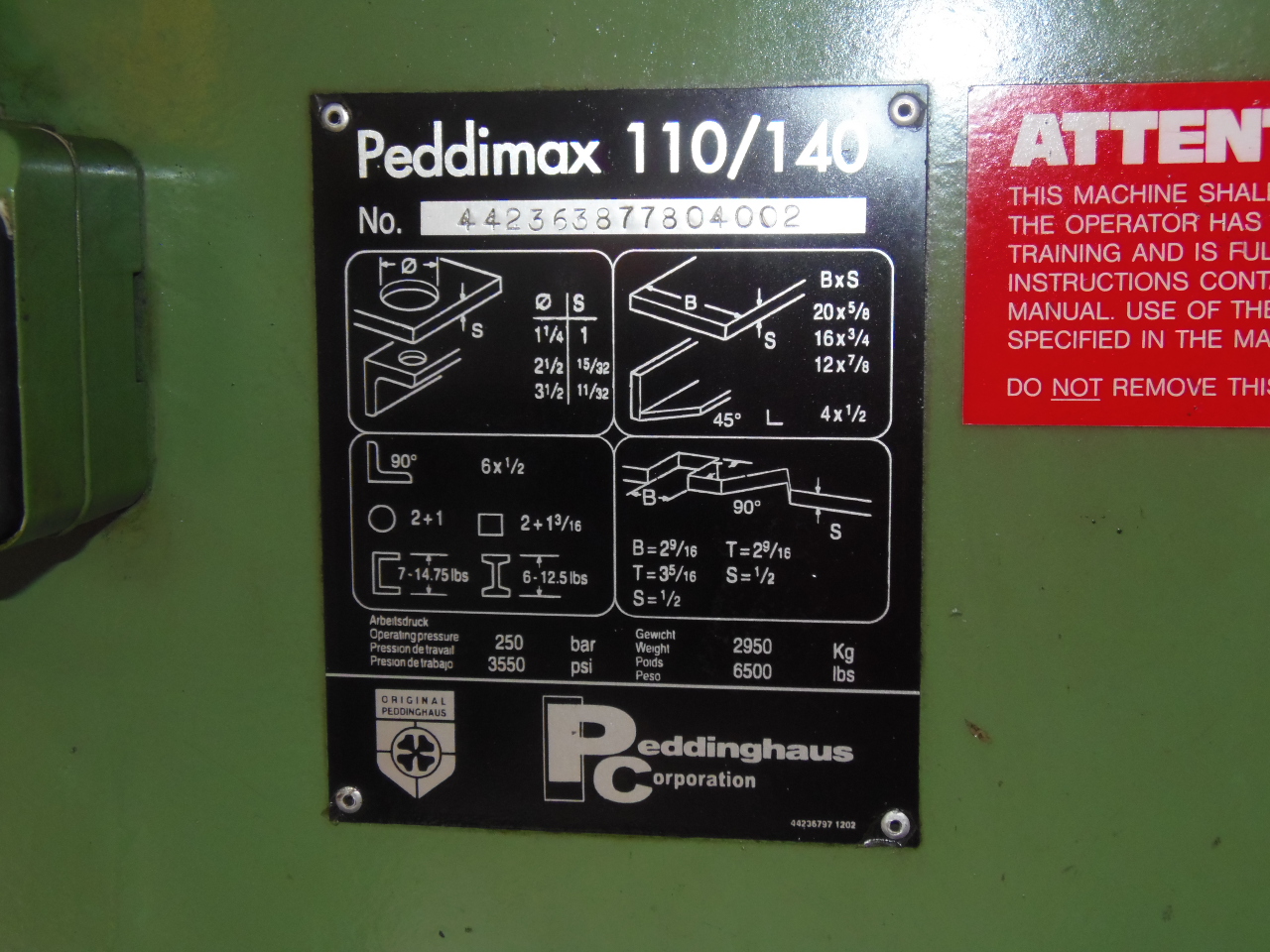

SERIAL ................................. 442363877804002

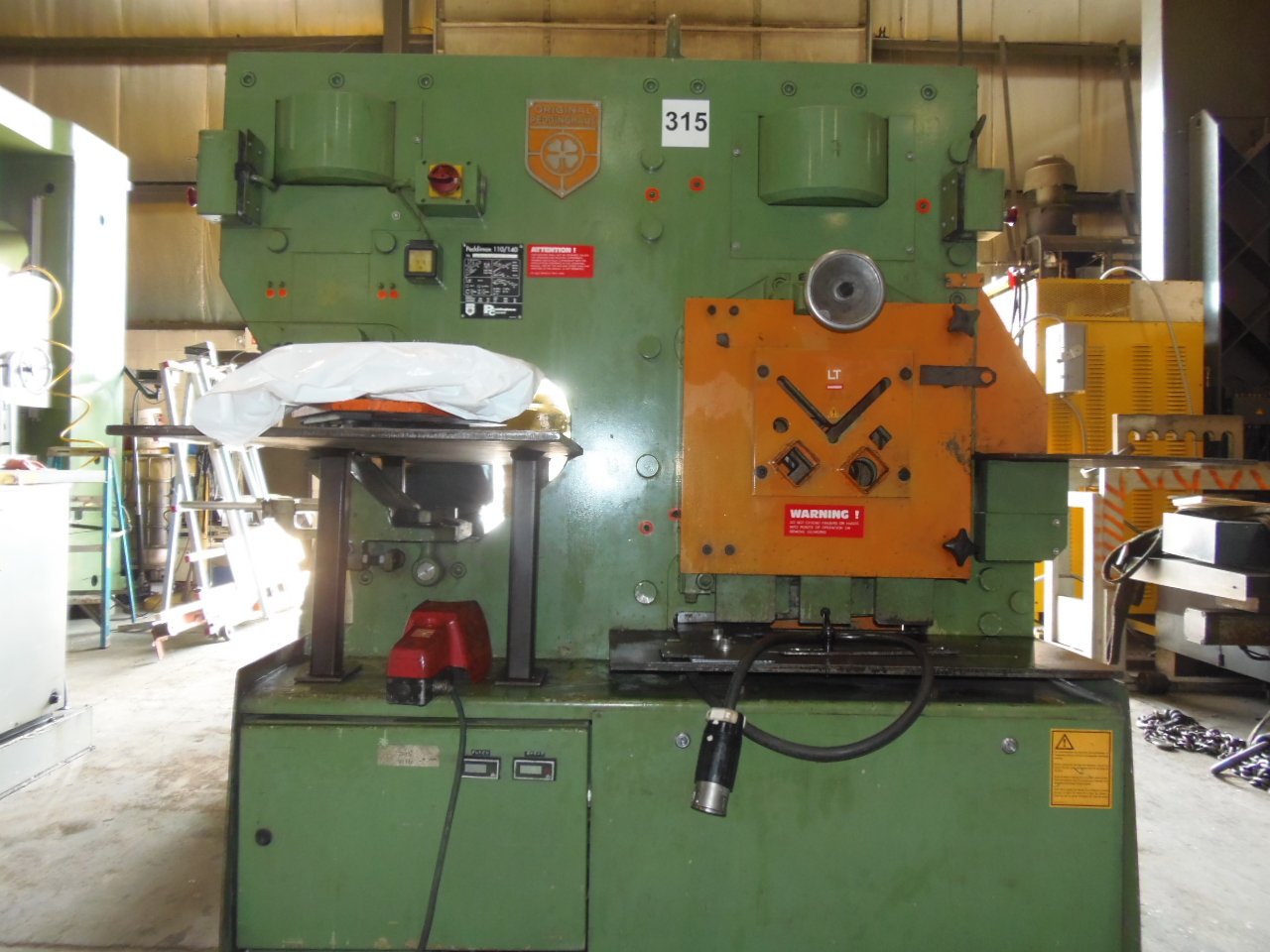

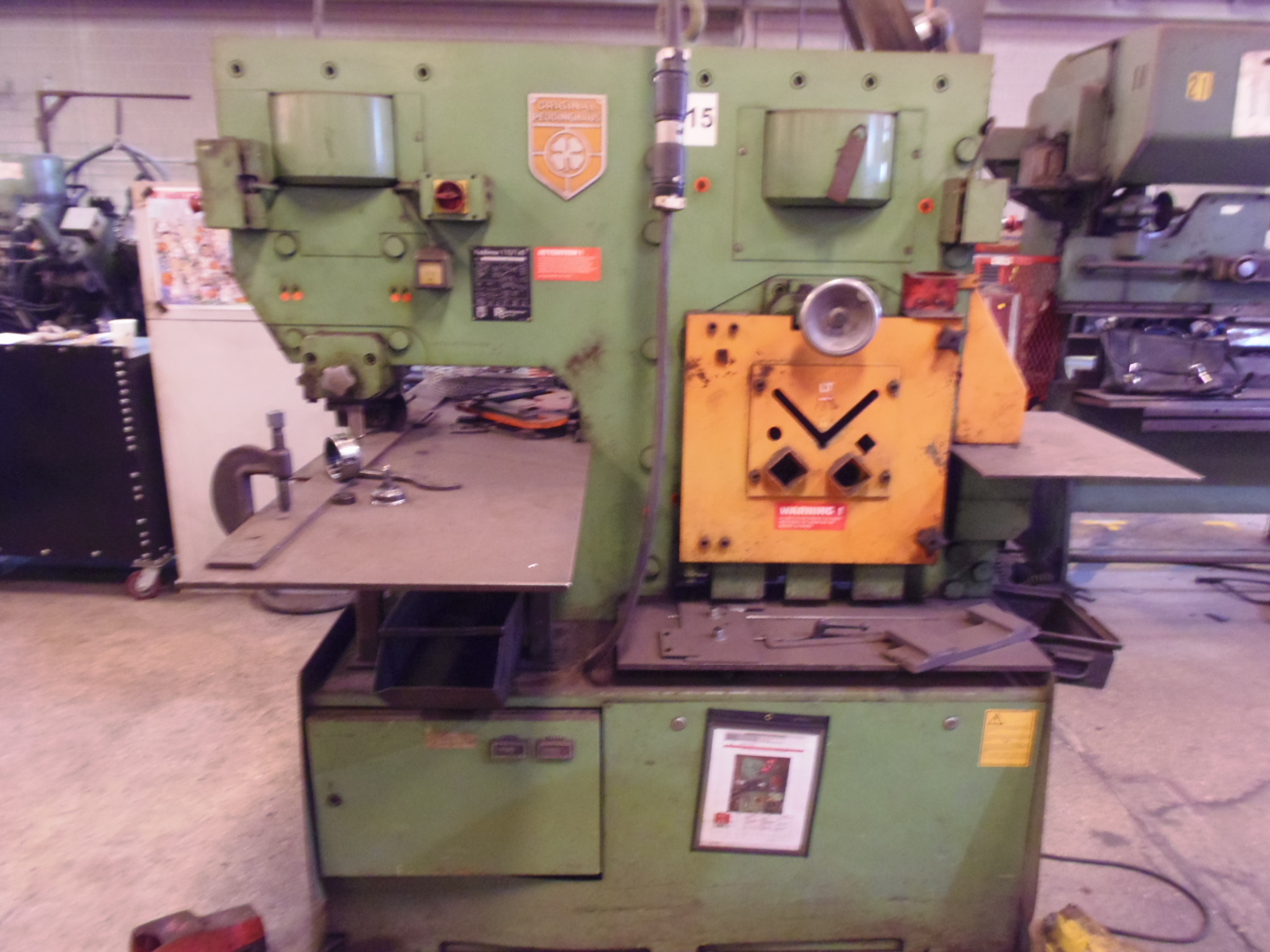

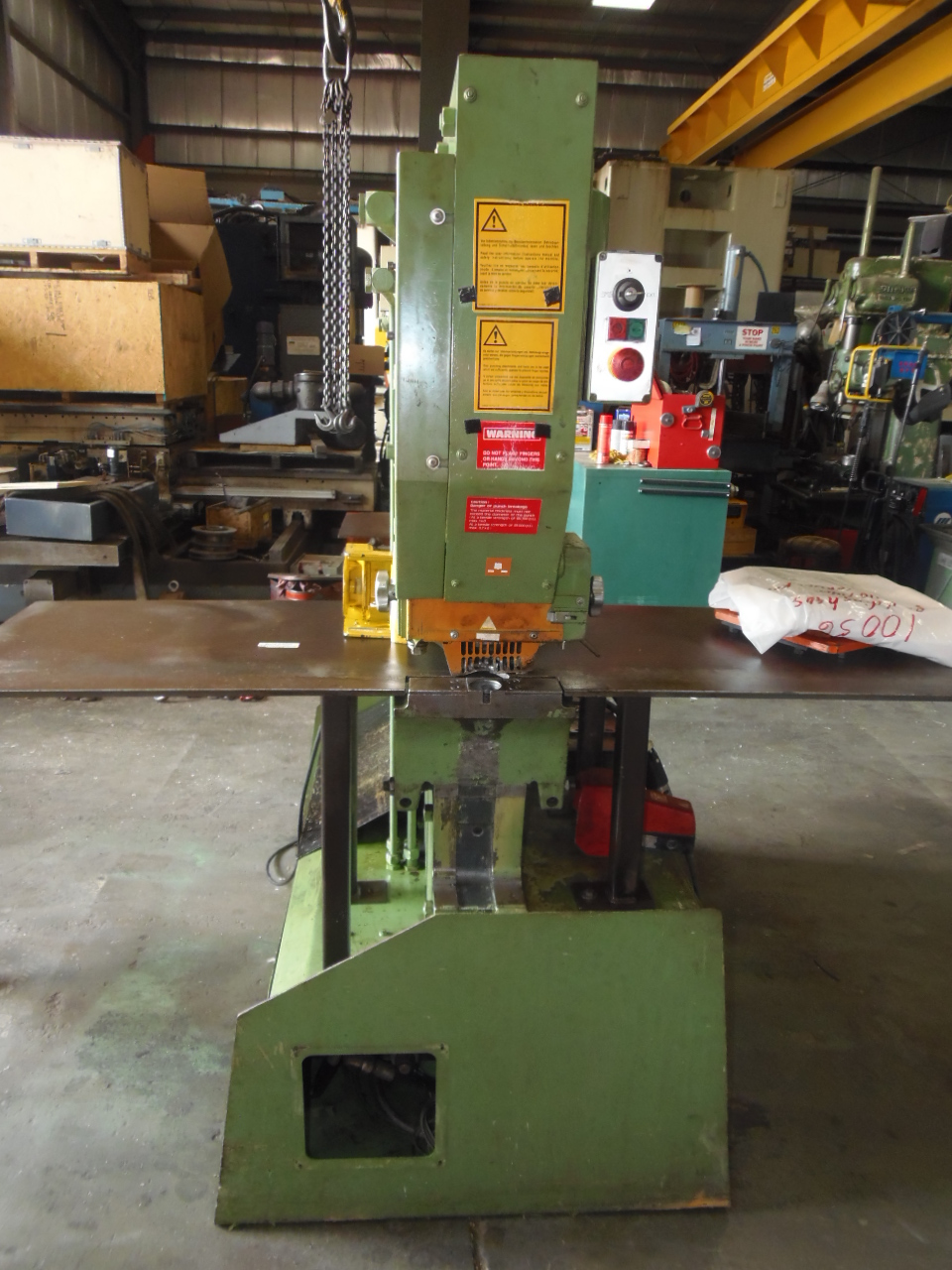

MODEL .................................. PEDDIMAX 110/140
AGE..................................... 1992
OPERATION............................... HYDRAULIC

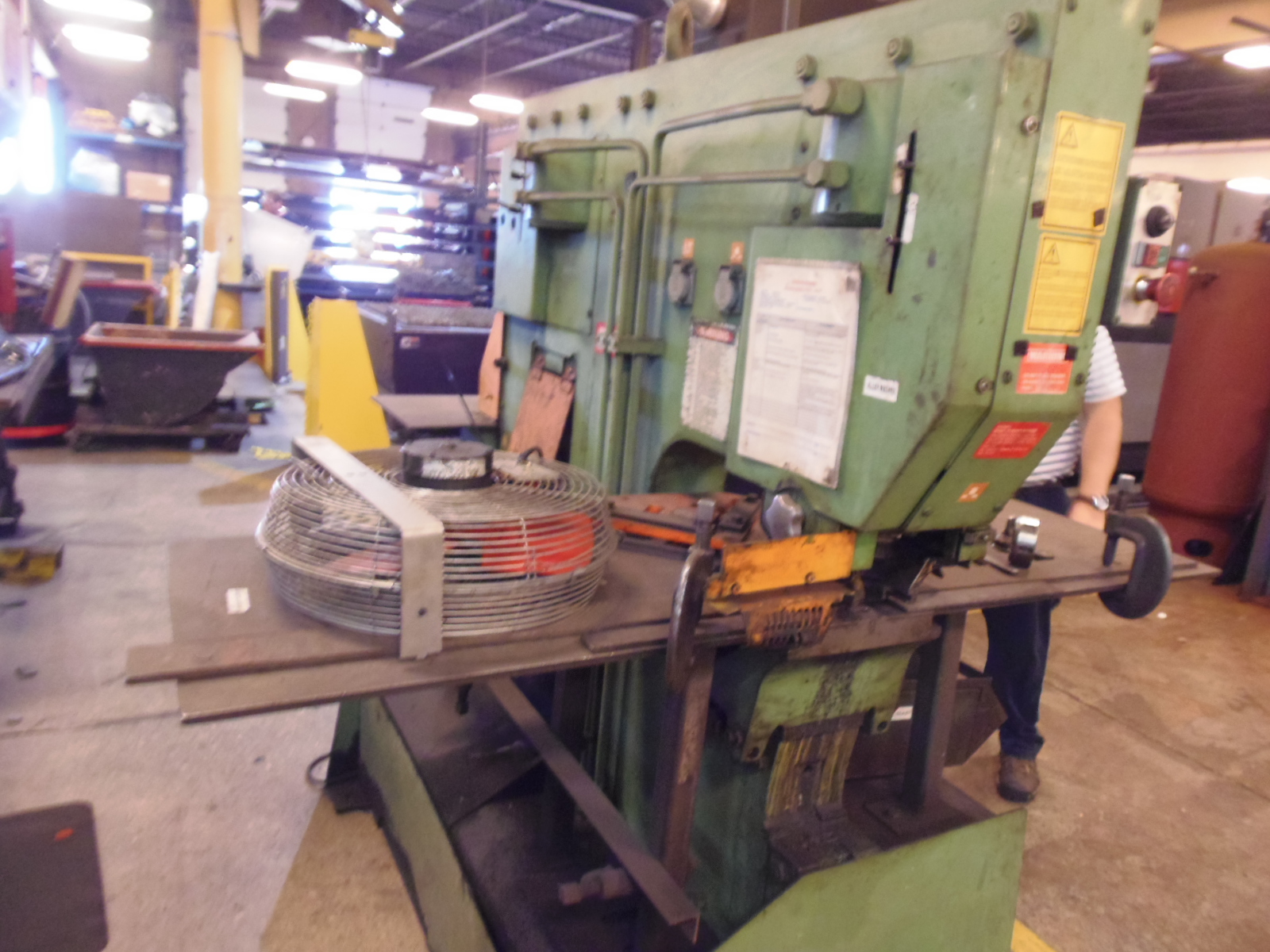

FLAT BAR WITH MINIMUM DISTORTION ....... 20" X 5/8"
....... 16" X 3/4"
....... 12" X 7/8"
ANGLE IRON 90 DEGREE CUT ............... 6" X 1/2"
ANGLE IRON 45 DEGREE CUT ............... 4" X 1/2"
FLANGES ................................ 7" HIGH 14.75 LBS
I BEAMS ................................ 6" HIGH X 12.5 LBS
CROSS SECTION SQUARE INCHES ............ 5.75"

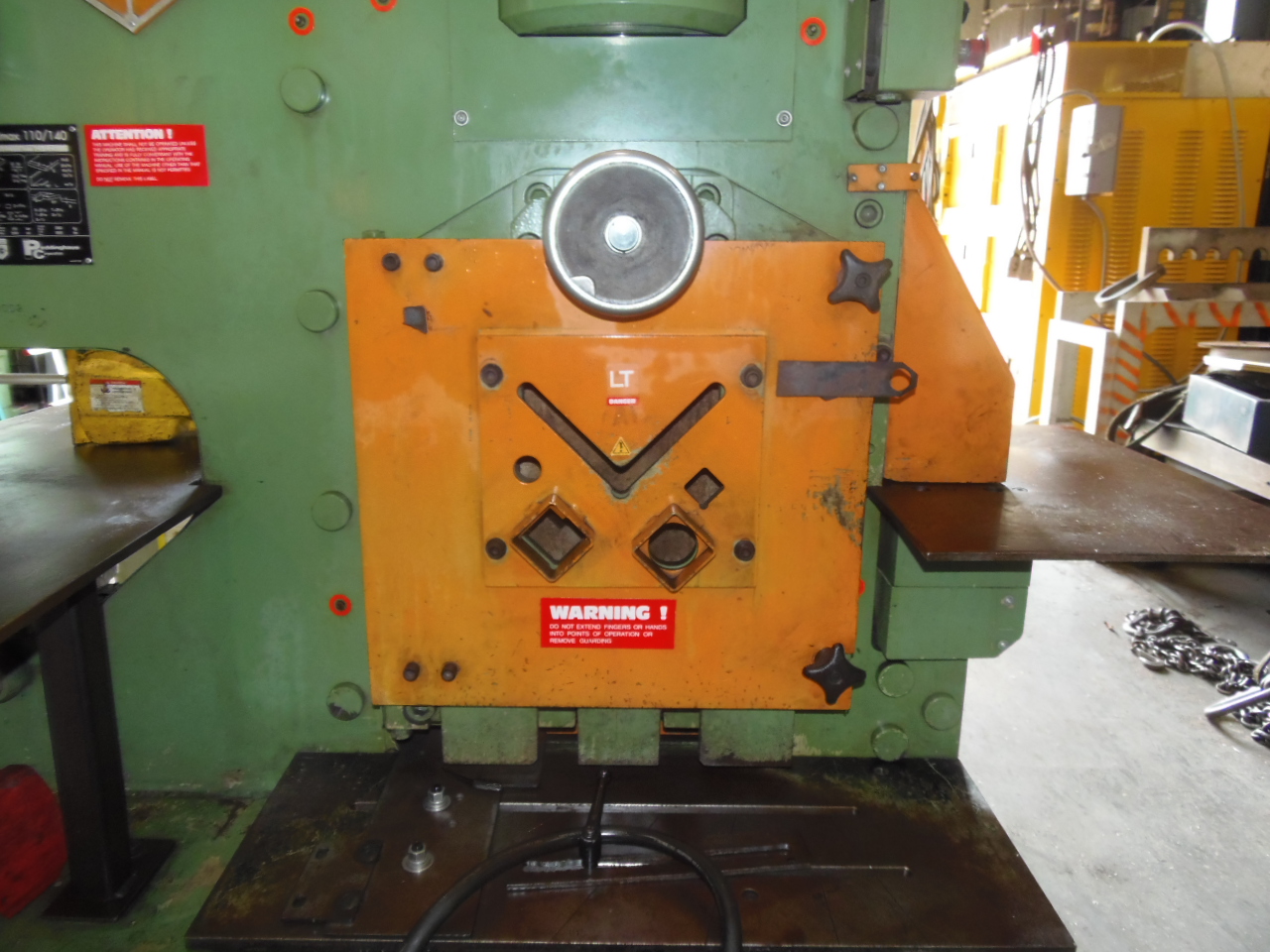

CUTS WITH STANDARD BLADES 90 DEGREE .... 6" X 6" X 1/2"
ROUNDS ................................ 2" AND 1"
SQUARES ................................ 2" AND 1-3/16"

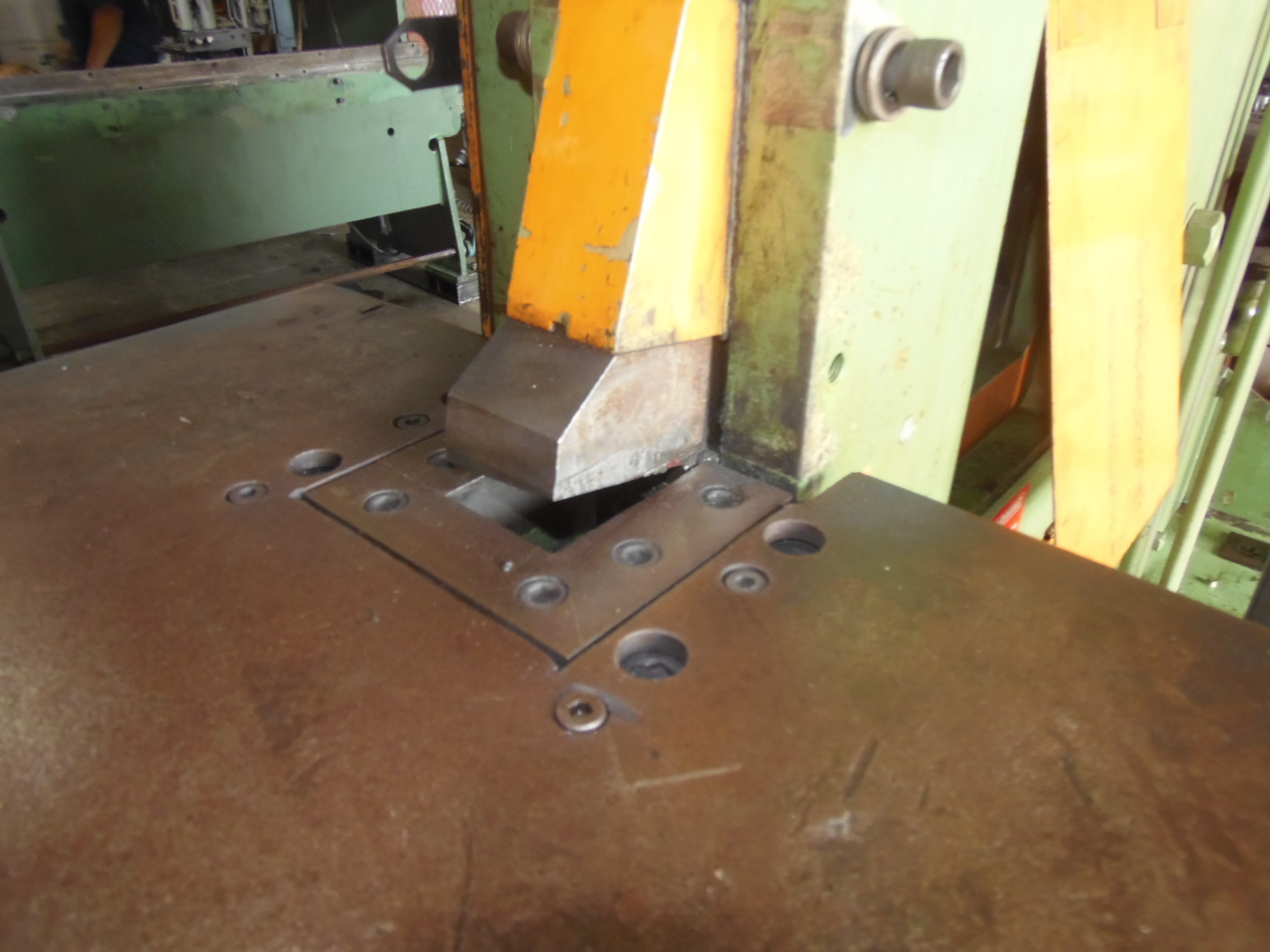

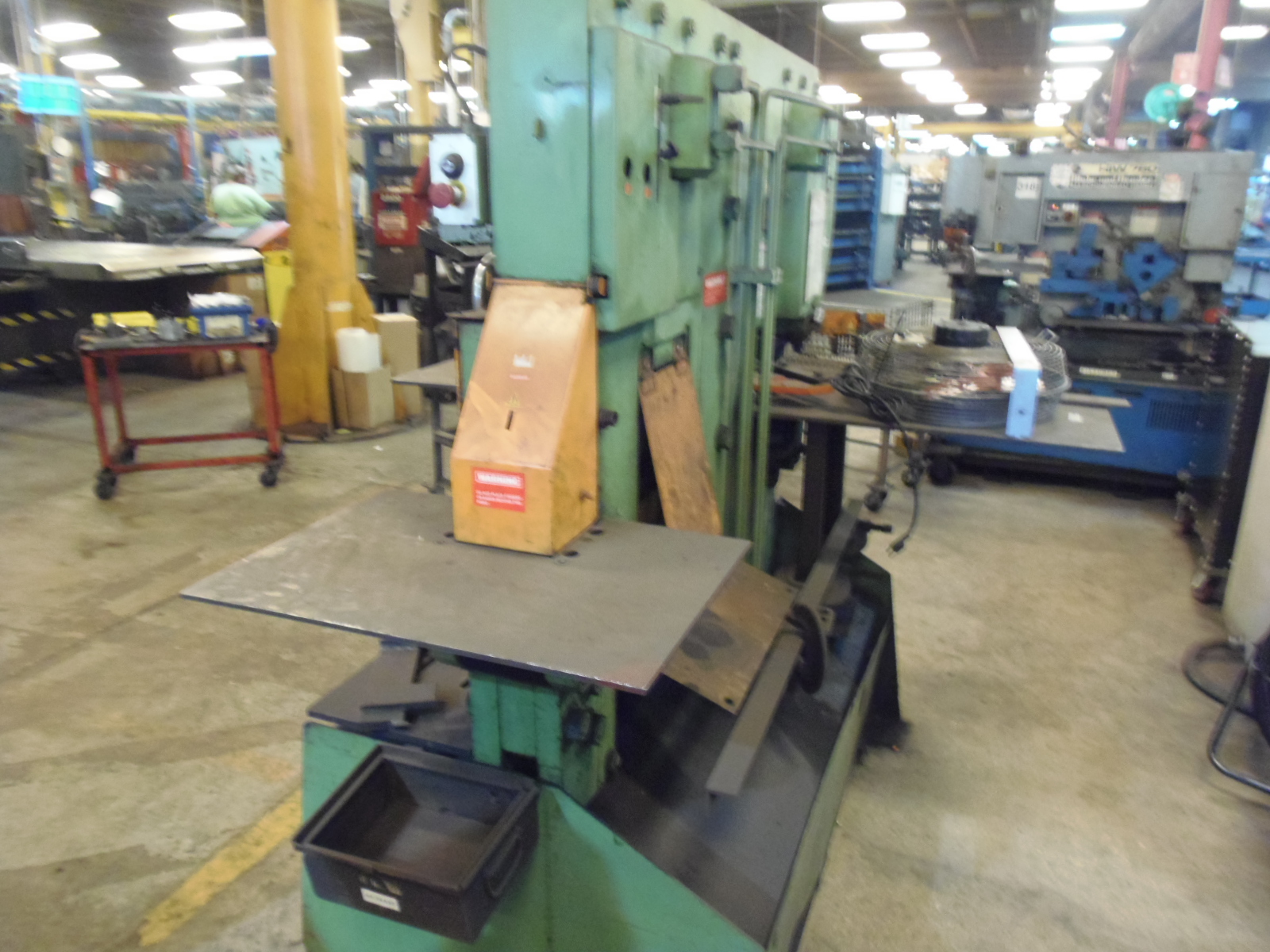

SQUARE NOTCHER PLATE ................... 1/2"
ANGLES ................................. 3" X 1/2"
CHANNELS IN FLANGE ..................... 3" TO 6"
NOTCH WIDTH ............................ 2-9/16" THRU 1/2"
NOTCH DEPTH ............................ 3-5/16" THRU 1/2"
TRIANGULAR NOTCHER ..................... 1/2"
ANGLES ................................. 3" X 3/8"
NOTCH DEPTH ............................ 2-9/16"
WORKING HEIGHT ......................... 43-1/4"
RATED CAPACITY ......................... 110 TON
PUNCH CAPACITY ......................... 1-1/4" THRU 1"
......................... 2-1/2" THRU 15/32"
......................... 3-1/2" THRU 11/32"
CHANNELS IN FLANGE ..................... 4" TO 15"
CHANNELS IN WEB ........................ 4" TO 15"
NUMBER OF STROKES ...................... 22
STROKE INFINITELY ADJUSTABLE ........... 3/8" TO 2"
POWER RATING ........................... 10 HP
NET WEIGHT ............................. 6500 LBS
MACHINE DIMENSIONS ..................... 77" X 40" X 81"
EQUIPPED WITH:
OPERATIONS & PARTS MANUAL
