Specifications
Equipped With
GENERAL SPECIFICATIONS:

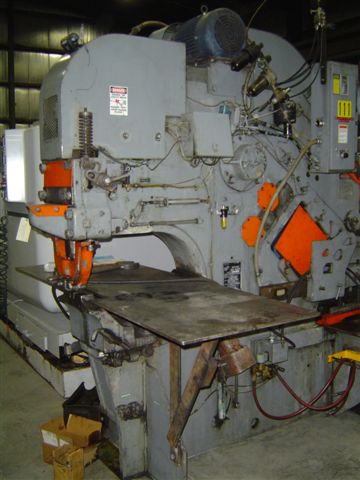

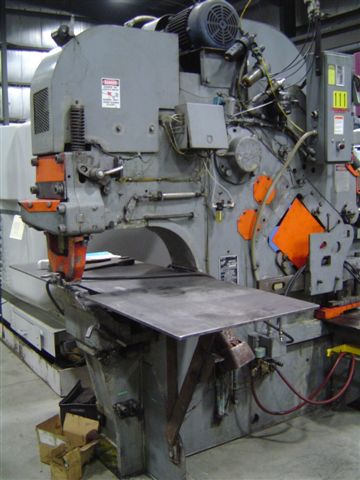

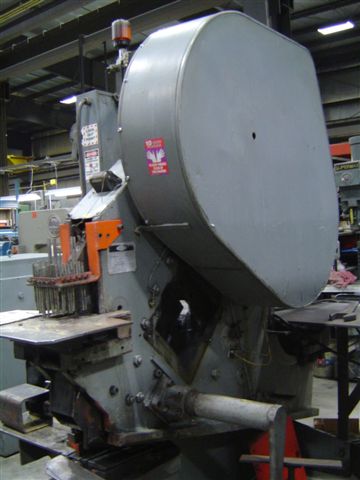

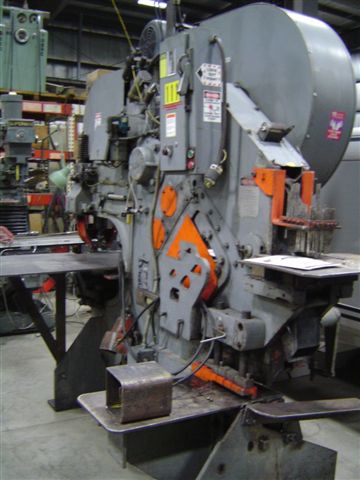

MANUFACTURER BUFFALO
MODEL 2 1/2
SERIAL# 76Z1516
AGE APPROXIMATELY 1976
CAPACITY 125 TON
PUNCHING STANDARD TOOLING 1 1/2" IN 1" MATERIAL
SPEED IN 3/4" MATERIAL 23 CYCLES PER MINUTE
THROAT DEPTH 16"
STROKE 3 1/8"
FLAT BAR SHEAR (MAX 24") 12" OF 1" MATERIAL
RECTANGLE NOTCHER 2 1/4" X 4" IN 1/2"
APPROXIMATE WEIGHT 8800 LBS
DIMENSIONS 85" X 38" X 83"H
EQUIPPED WITH:
5 WORK STATIONS, DUAL CYLINDER OPERATION
PUNCHING
JOG MODE
FLAT BAR SHEARING
NOTCHER
ADJUSTABLE STROKE CONTROL FOR PUNCH STATION
BENDING ATTACHMENT AND 6 WAY VEE BOTTOM
15 HP MOTOR
FOOT CONTROLS
ELECTRIC LENGTH GAUGE W/40" LINEAR SCALE
LINEAR SCALES ON THE GAUGE TABLE FOR PUNCH AND COPER NOTCHER
SOME TOOLING
TOOLBOX
NOTE: THE ANGLE SHEAR AND BAR SHEAR MECHANISMS HAS BEEN REMOVED
