GENERAL SPECIFICATIONS:
Manufacturer................................ Landis
Model....................................... 1R
Serial number............................... 846-3
Age......................................... 1972
Swing Over Table............................ 6"
Maximum Distance Between Centers............ 18"
Standard Grinding Wheel Size................ 16" x 1" x 5" Bore
Max. width full wheel....................... 3"
Min. dia. worn wheel........................ 9.5"
Grinding wheel spindle speeds............... 2000 - 2530 RPM
Traverse per turn of handwheel.............. 0.200"
Traverse handwheel graduations.............. 0.001"
Wheelhead motor............................. 3 hp
Swivel table inches per foot................ 4"
Swivel table degrees included angle......... 20
Variable table traverse speed............... 2 to 240 IPM
Work drive motor............................ 1/4 hp
Headstock speeds (live)..................... 60,90,150,225,400,600
Floor space................................. 50" x 106"
Machine weight.............................. 4200 lbs
Equipped with:

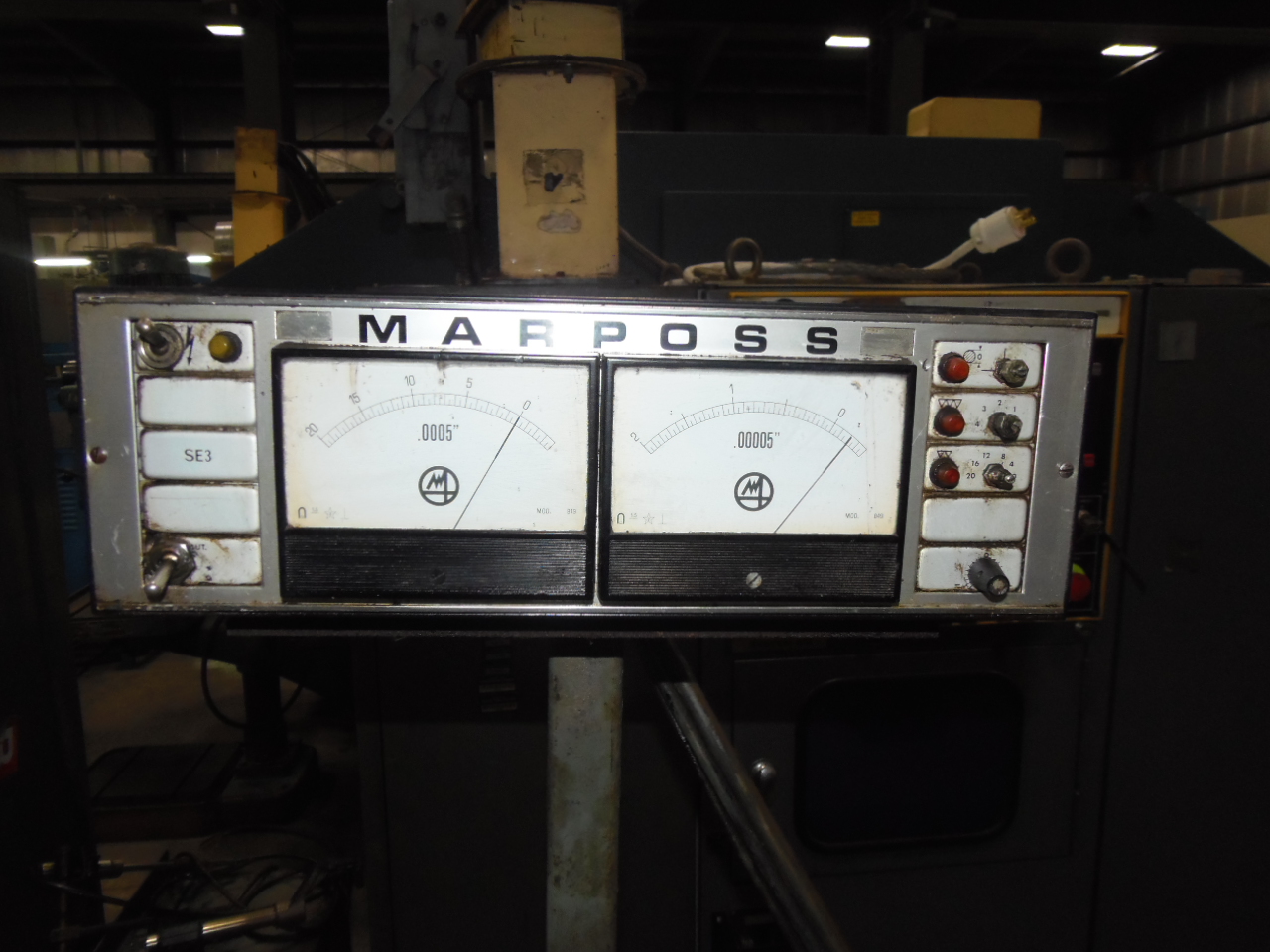

Marposs SE3 with snap on gauge
Behind the wheel hydraulic dresser
coolant system
Operators and Parts books
Misc. tooling and spare parts.
