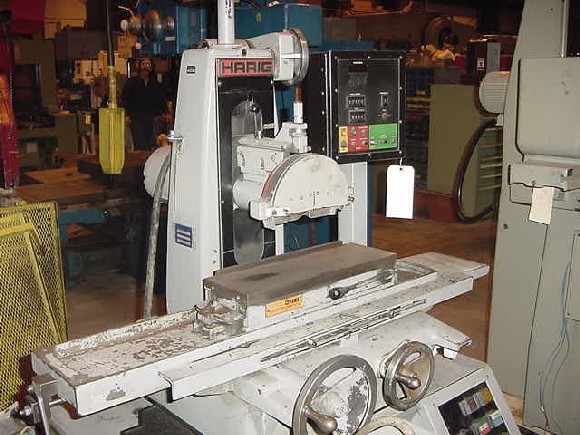

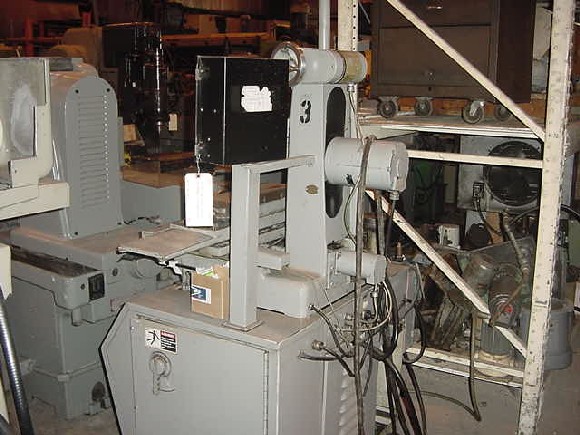

6" x 18", HARIG, No. AUTO STEP III,SPDL.MOTOR 1HP 220/440,6"x18" MAG. CHUCK,

GENERAL SPECIFICATIONS:
NEW 1984
SERIAL NUMBER 59244
TABLE TRAVEL: LONG 20"
: CROSS 6-3/4"
TABLE SPEED LONG VARIABLE 3 IPM, 70 FPM
CROSS FEED PER PASS VARIABLE .0005"-.0099"
RAPID UP-DOWN 2-1/4" IPM
DOWN FEED PER PASS VARIABLE .0001-.0099"
MAXIMUM UNDER 7" WHEEL 11-3/4"
MAXIMUM GRINDING WHEEL SIZE 8" x 1-1/4" x 1-1/4"
WEIGHT 1,500 LBS.

EQUIPPED WITH:
SPINDLE MOTOR 1 HP 220/440
AUTO LUB
6" x 18" MAGNETIC CHUCK
SERVO MOTOR CROSS FEED
SERVO MOTOR VERTICAL FEED
OVER HEAD DRESSER
