Specifications
Equipped With
GENERAL SPECIFICATIONS:

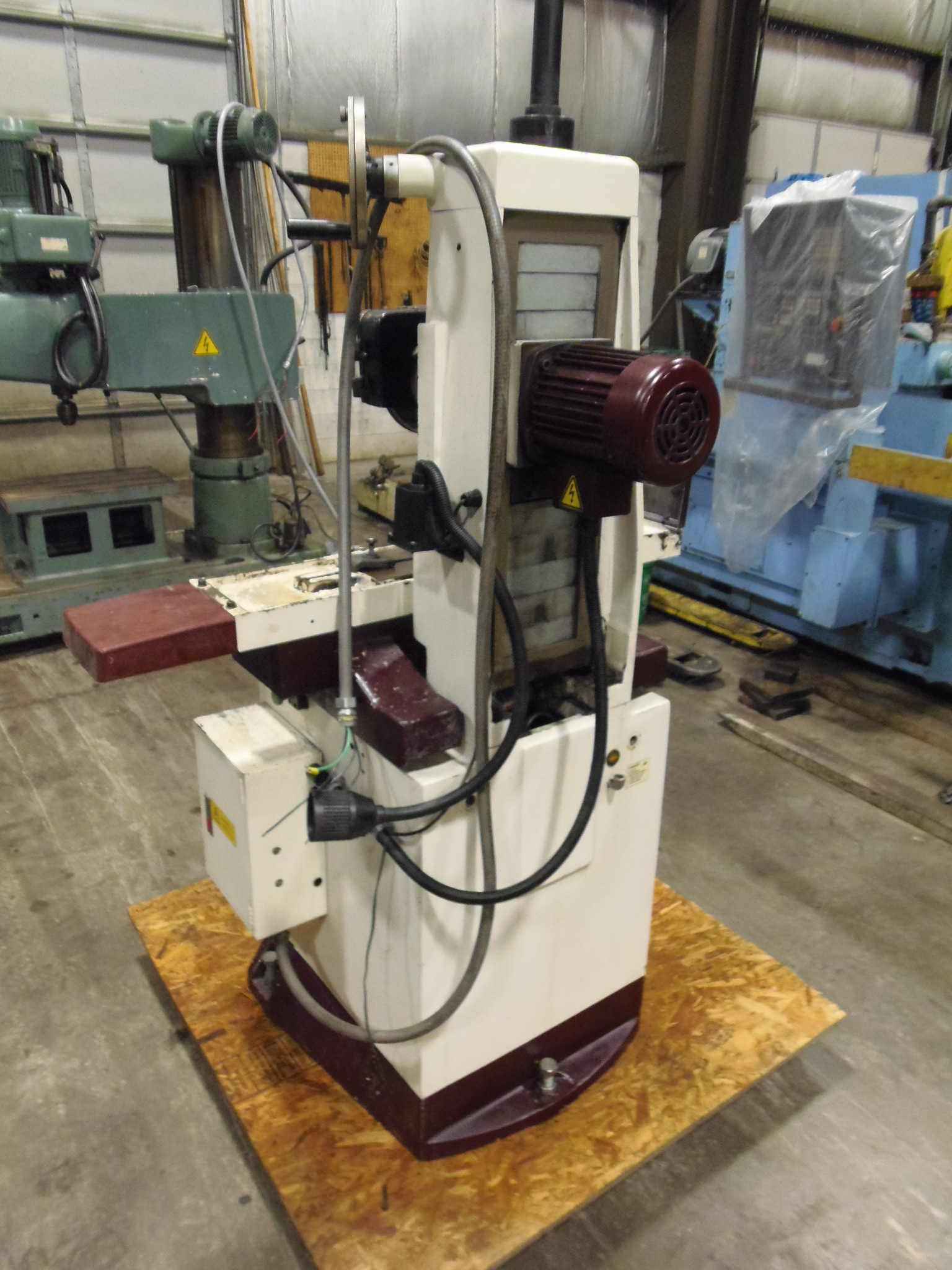

MANUFACTURER.................................CHEVALIER
MODEL........................................FSG618M
AGE APPROXIMATELY............................2000

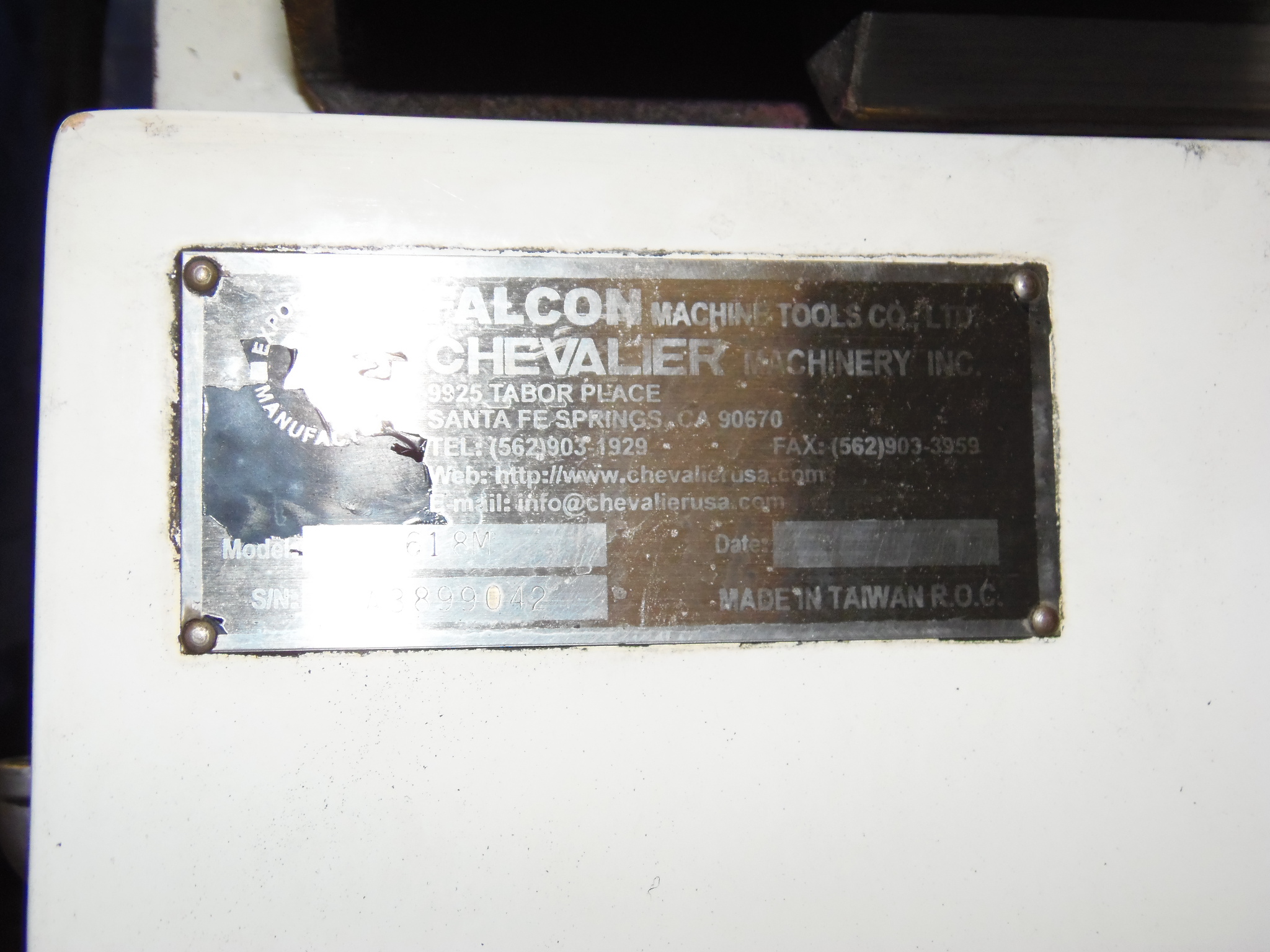

SERIAL#......................................A3899042

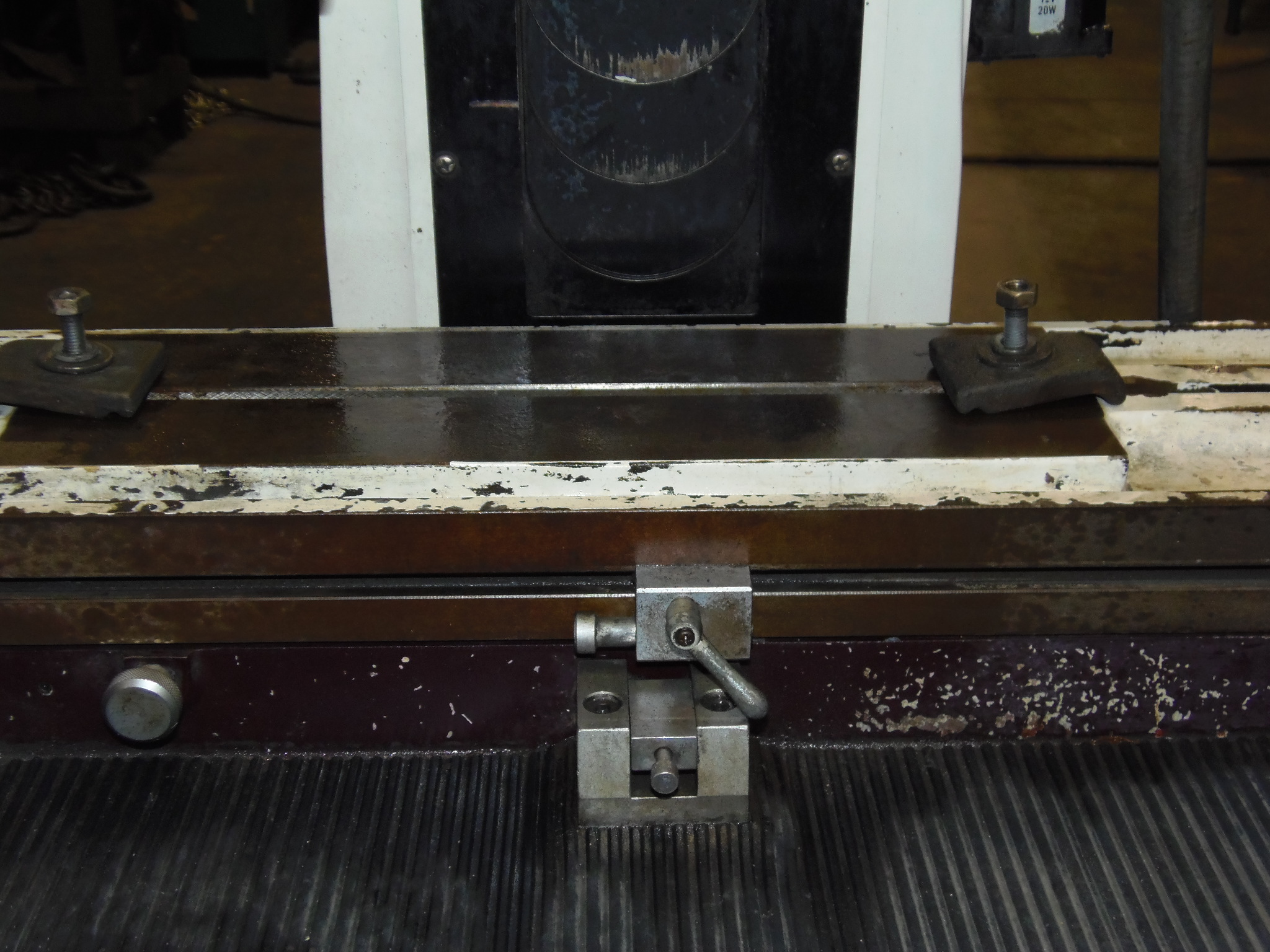

TABLE SIZE...................................5 3/4" X 18"
MAX GRINDING LENGTH..........................18"
MAX GRINDING WIDTH...........................6"
MAX DISTANCE TABLE TO SPINDLE CTR............18"
TABLE SPEED (VARIABLE).......................16-82 FPM
RAPID TRAVEL APPROX..........................38 IPM
MAIN MOTOR...................................2.2 HP / 575 V
DIMENSIONS...................................41" X 47" X 83"
WEIGHT APPROX................................1500 LBS
NO CHUCK
