Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER................................CHEVALIER
MODEL.......................................FSG618M
AGE APPROXIMATELY...........................1996

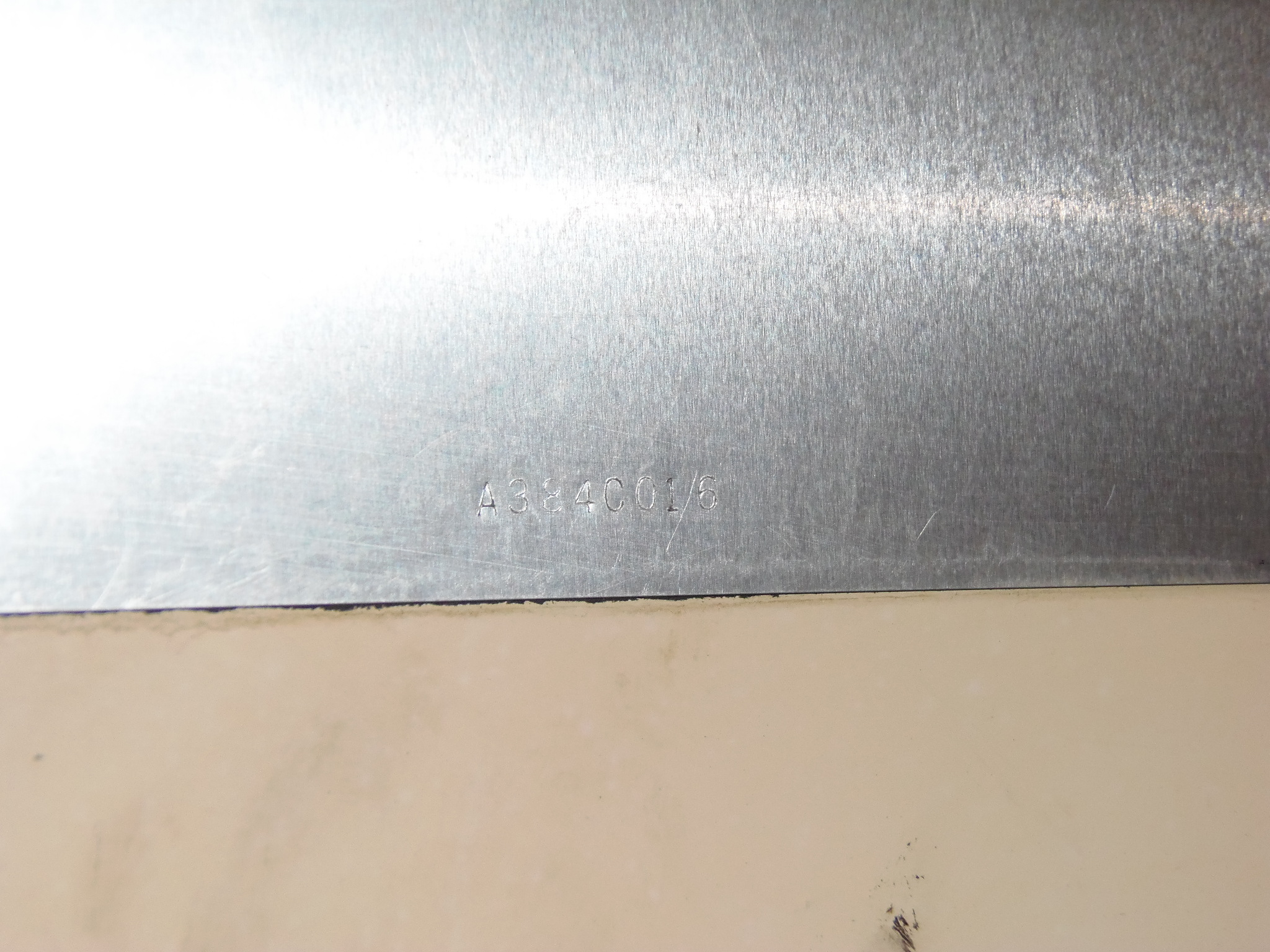

SERIAL#.....................................A384C016
TABLE SIZE..................................5 3/4" X 18"
MAX GRINDING LENGTH.........................18"
MAX GRINDING WIDTH..........................6"
MAX DISTANCE TABLE TO SPINDLE CTR...........18"
TABLE SPEED (VARIABLE)......................16-82 FPM
RAPID TRAVEL APPROX.........................38 IPM
MAIN MOTOR..................................2.2 HP / 575 V
DIMENSIONS..................................41" X 47" X 83"
WEIGHT APPROX...............................1500 LBS
NO CHUCK
