GENERAL SPECIFICATIONS:

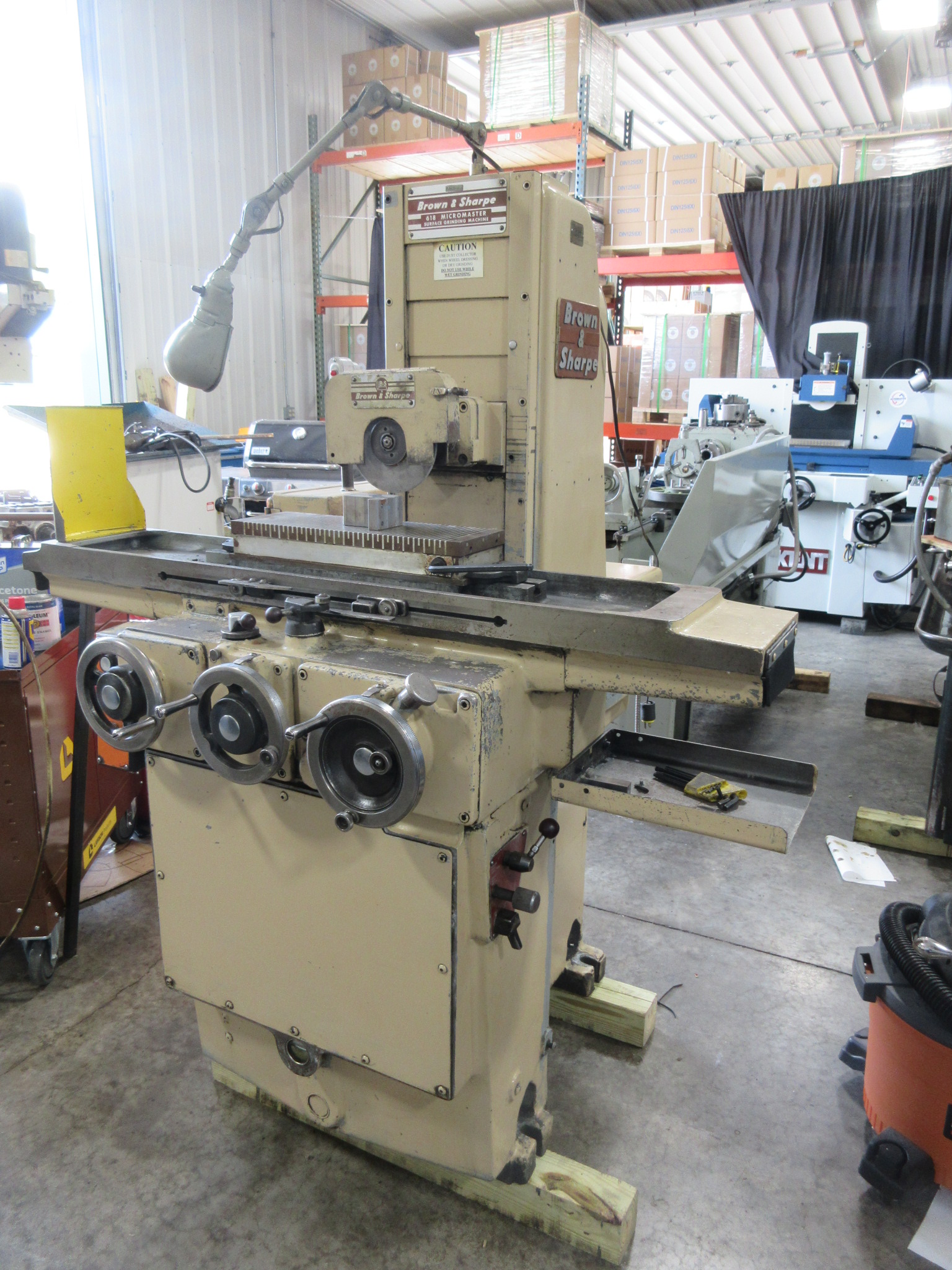

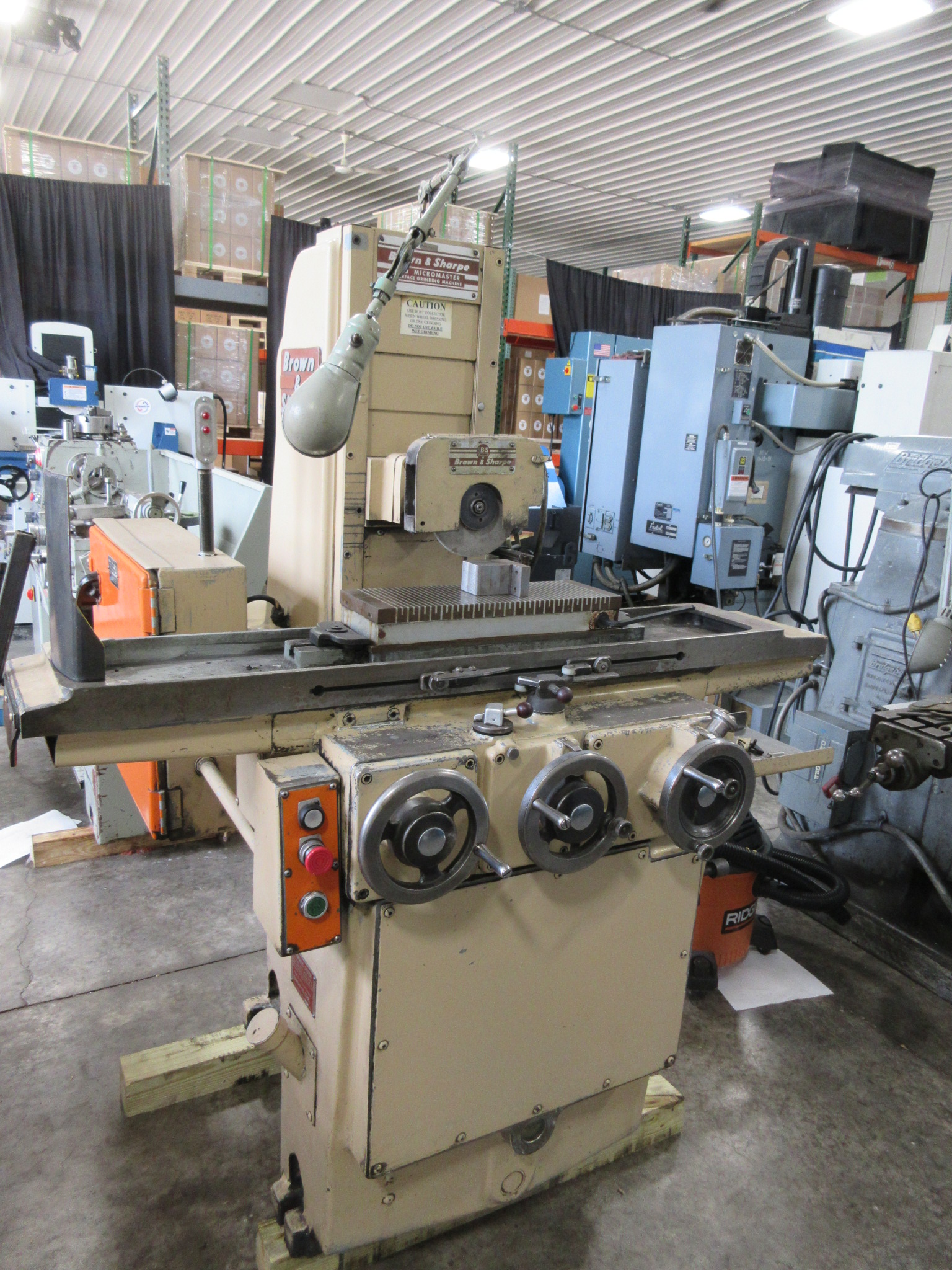

MANUFACTURER................... BROWN & SHARPE
MODEL.......................... 618 MICROMASTER

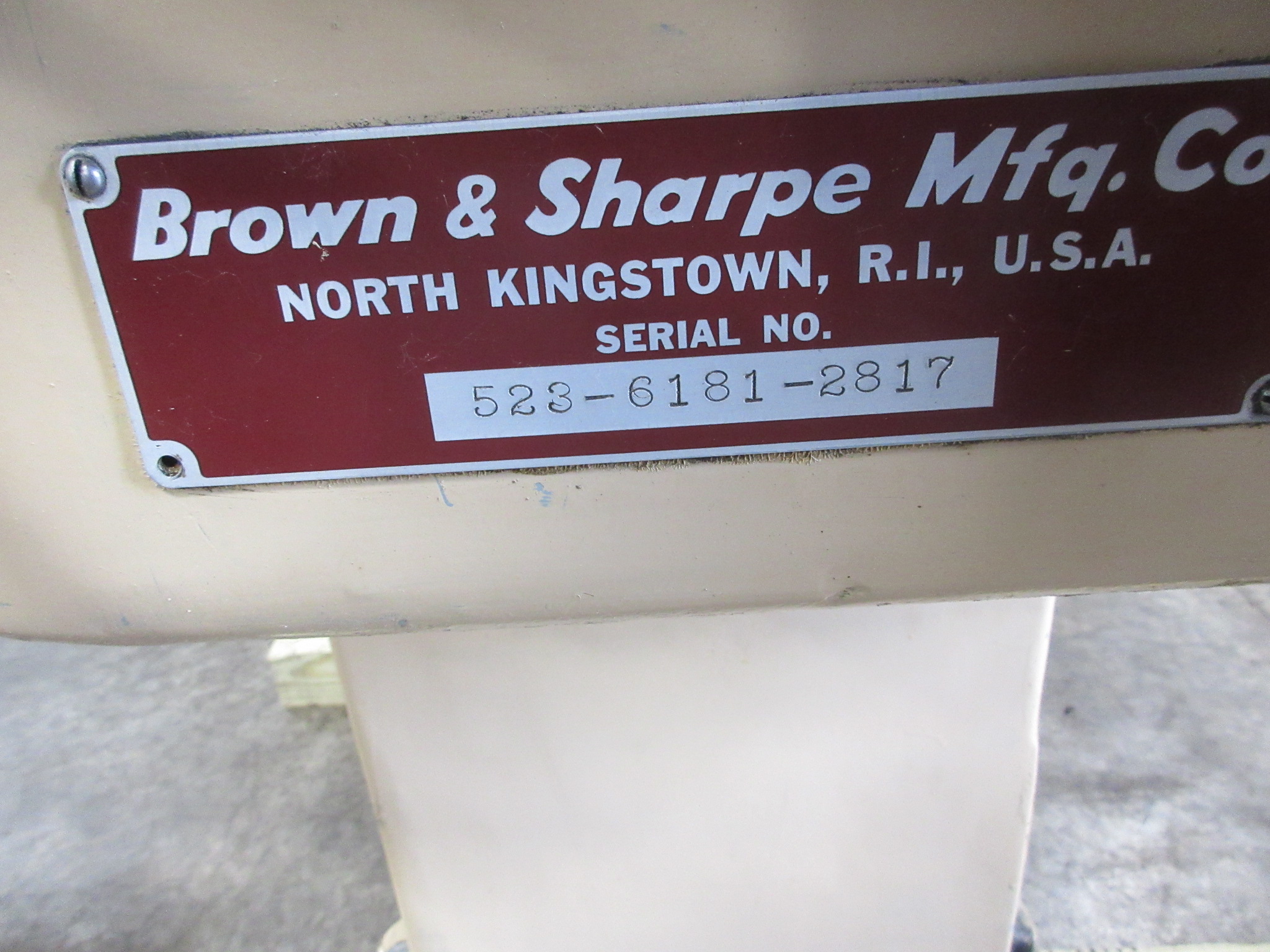

SERIAL NUMBER.................. 523-6181-2817
TABLE TRAVEL:
LONGITUDINAL................... 22"
CROSS.......................... 7"
MAXIMUM HEIGHT UNDER WHEEL........ 15"
TABLE LOAD CAPACITY WITH CHUCK.... 220 LBS
MAXIMUM GRINDING WHEEL SIZE....... 7" x 1-1/4" x 1-1/2"
SPINDLE MOTOR..................... 1.5 HP
SPINDLE SPEED..................... 3,450 RPM
FLOOR SPACE REQUIRED.............. 84" X 62" X 75"
WEIGHT ........................... 1,500 LBS.

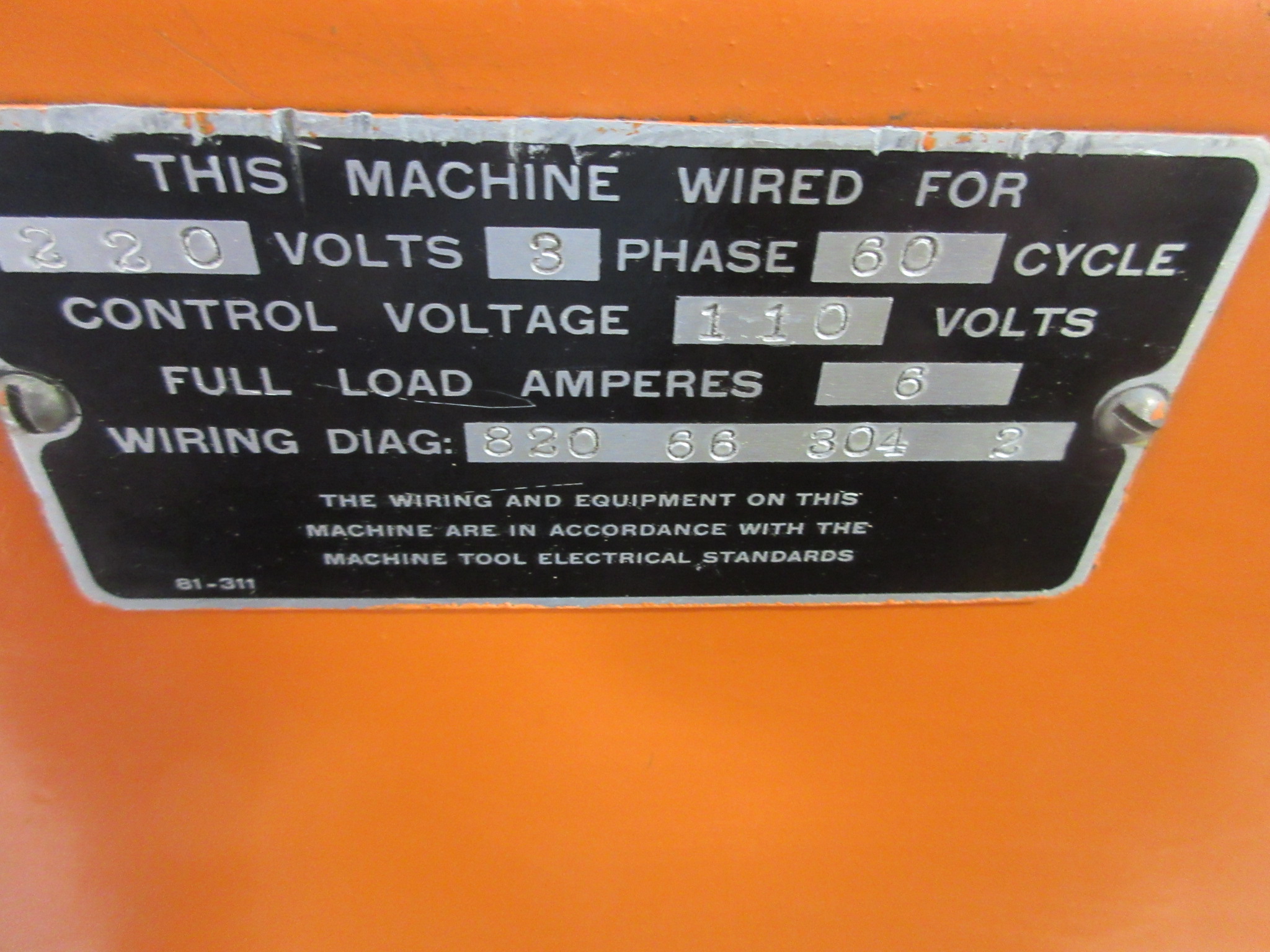

VOLTAGE........................... 220/3/60
MACHINE WEIGHT.................... 2,625 LBS
EQUIPPED WITH:

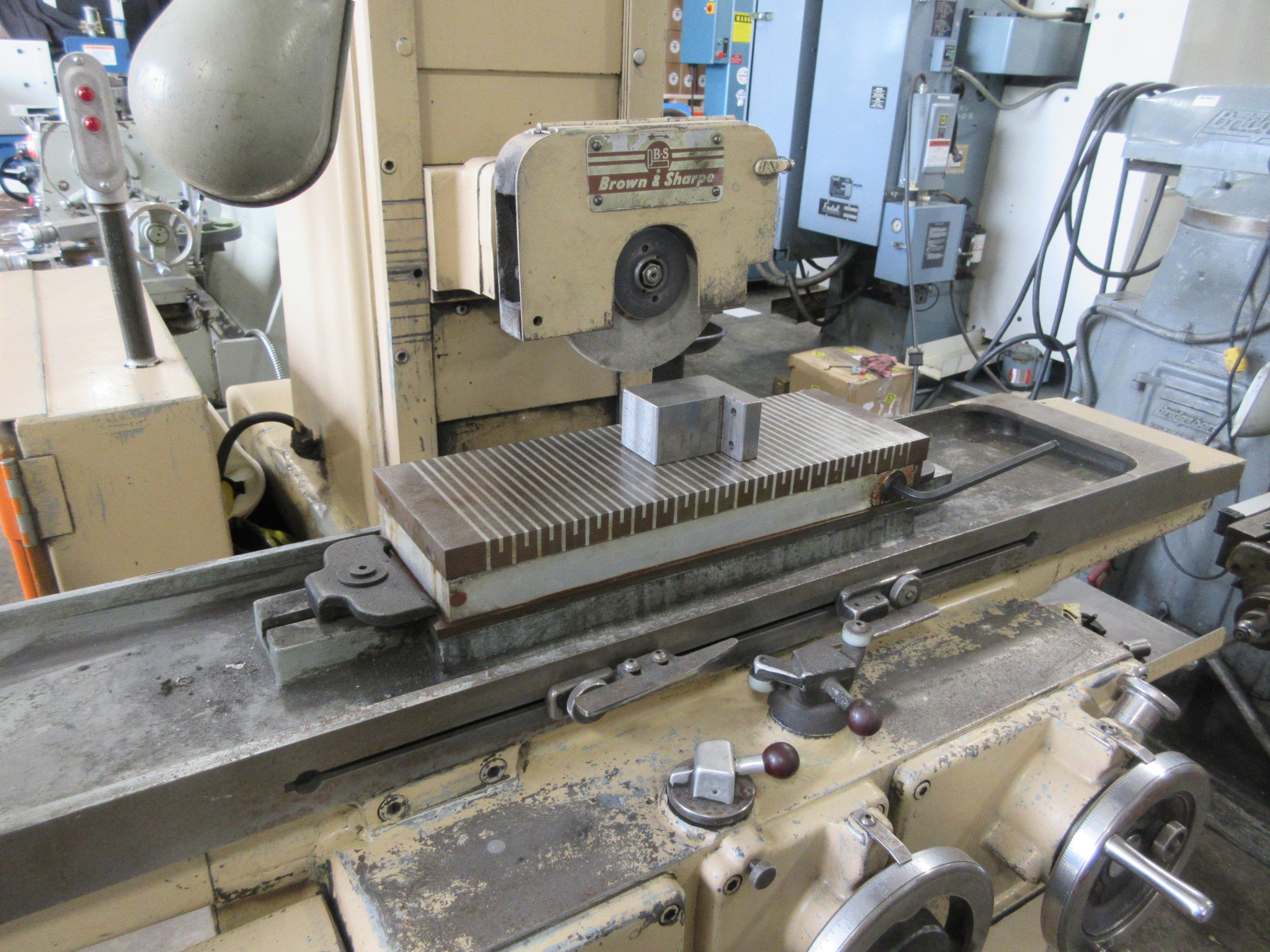

6 X 18 PERMANENT MAGNETIC CHUCK
MICROMETER DOWN FEED DEVICE
MACHINE LAMP
