Specifications
Equipped With
Specifications:

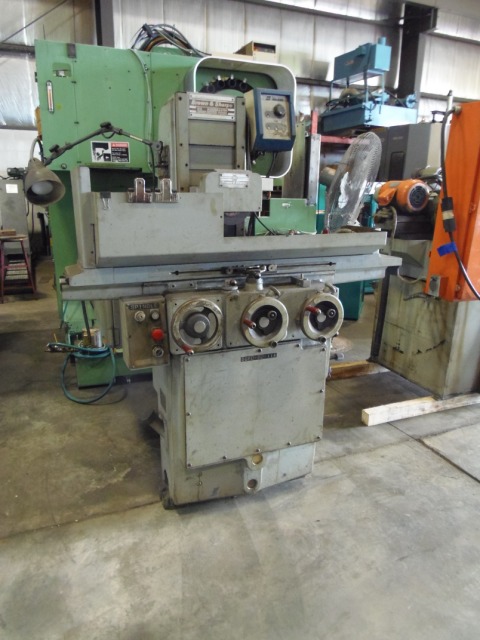

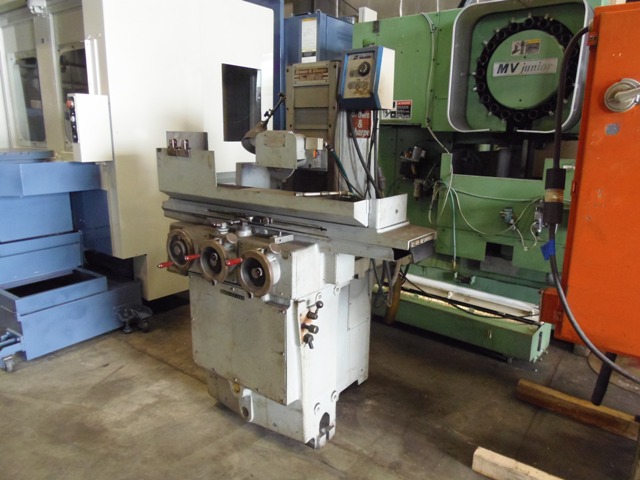

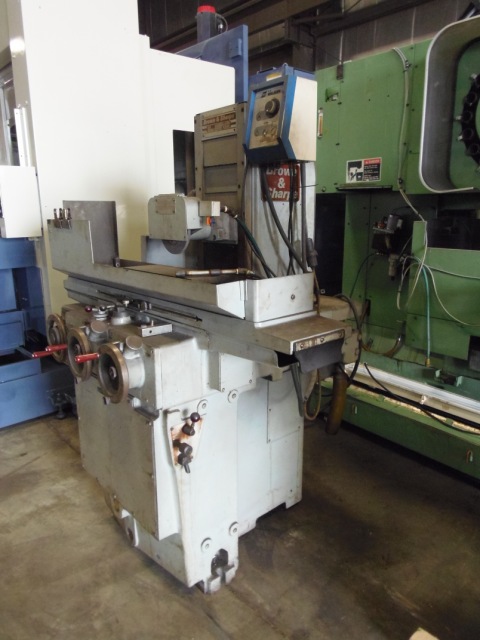

Manufacturer..................Brown & Sharpe
Age...........................1972
Table Size....................6" x 18"
Longitudinal Table Travel.....22"
Cross Saddle Travel...........7"
Max. Vertical Travel..........19 1/2"
Table Speed (Variable)........5- 100 FPM
Cross Saddle Feed.............0.01"- 0.25"
Continuous Saddle Feed........10 FPM
Grinding Wheel Size...........7" x 1/2" x 1 1/4"
Oil Capacity..................22 Gallons
Dimensions (W x D x H)........40" x 48" x 73"
Weight........................2,500 Lbs.
Year..........................1972
Equipped With:
2 Axis Hydraulic Feeds (X- Y)
6" x 18" Walker ElectroMagnetic Fine Pole Chuck
