Specifications
Equipped With
GENERAL SPECIFICATIONS:

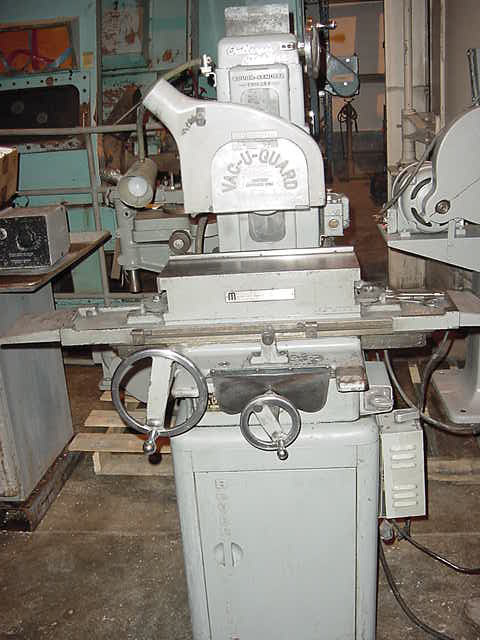

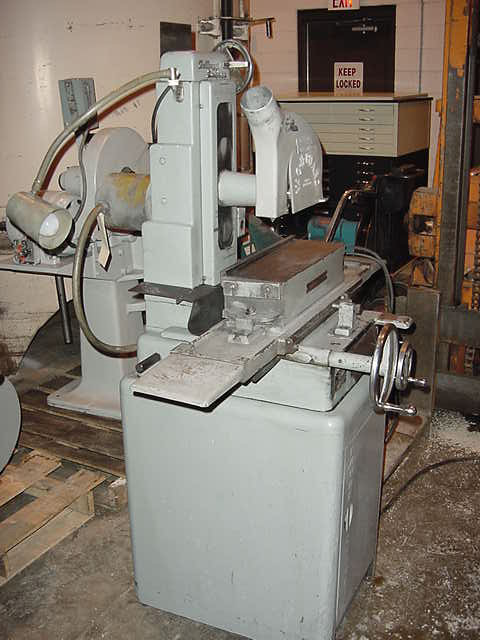

MANUFACTURER............................ BOYAR SCHULTZ
MODEL................................... CHALLENGER DELUXE
SERIAL #................................ C-1036
NEW APPROXIMATELY....................... 1967
CAPACITY................................ 6" x 18"
LONGITUDINAL FEED....................... 20"
CROSS FEED.............................. 6"
MAX. DIST. CENTER LINE OF SPINDLE....... 13-1/2"
MAIN MOTOR DRIVE........................ 3/4 HP
EQUIPPED WITH:
6x18 MAGNALOCK ELECTRO MAGNETIC CHUCK
LIGHT TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
