GENERAL SPECIFICATIONS:

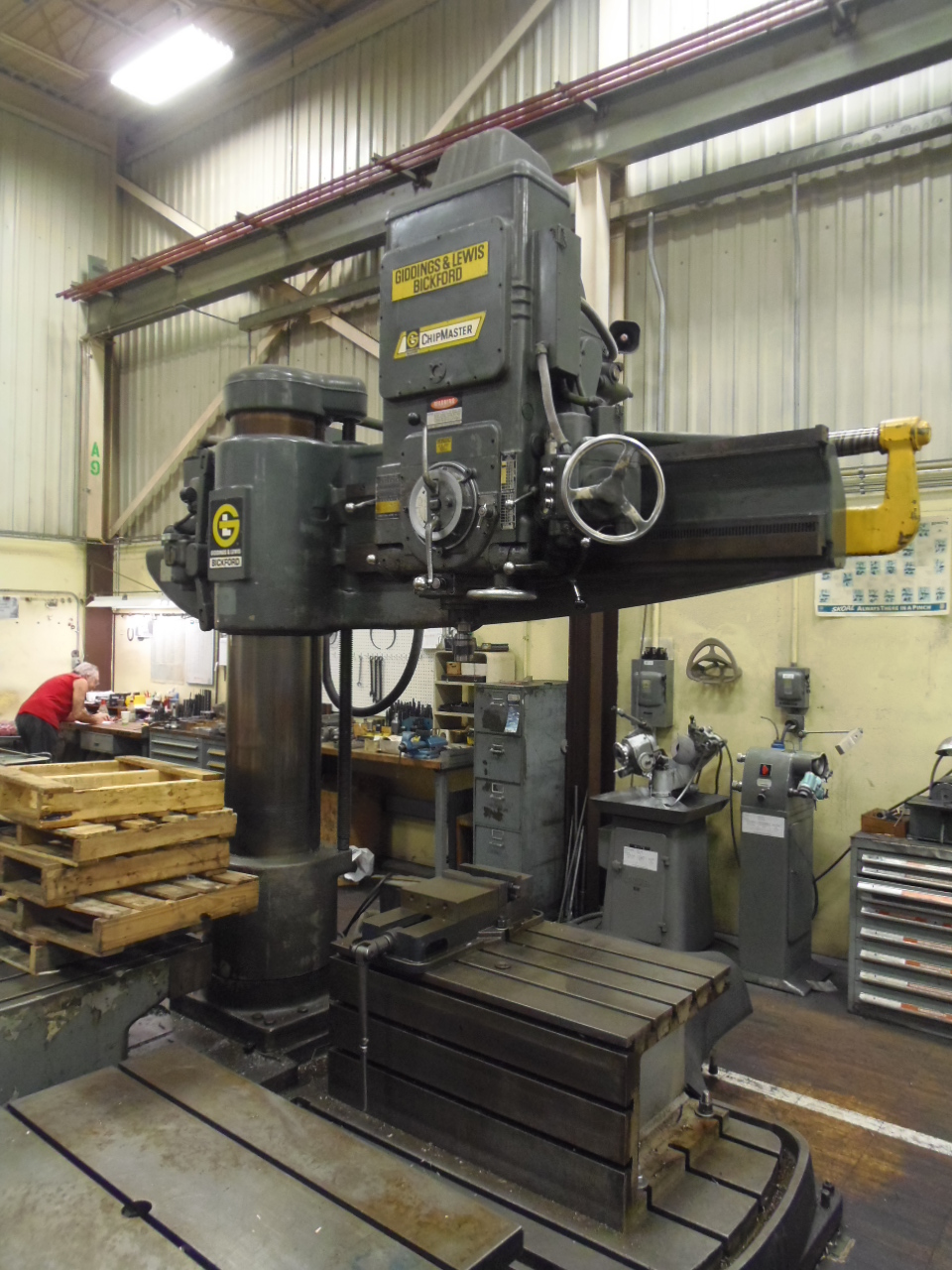

MANUFACTURER..................... GIDDINGS & LEWIS
TYPE............................. BICKFORD "CHIPMASTER"

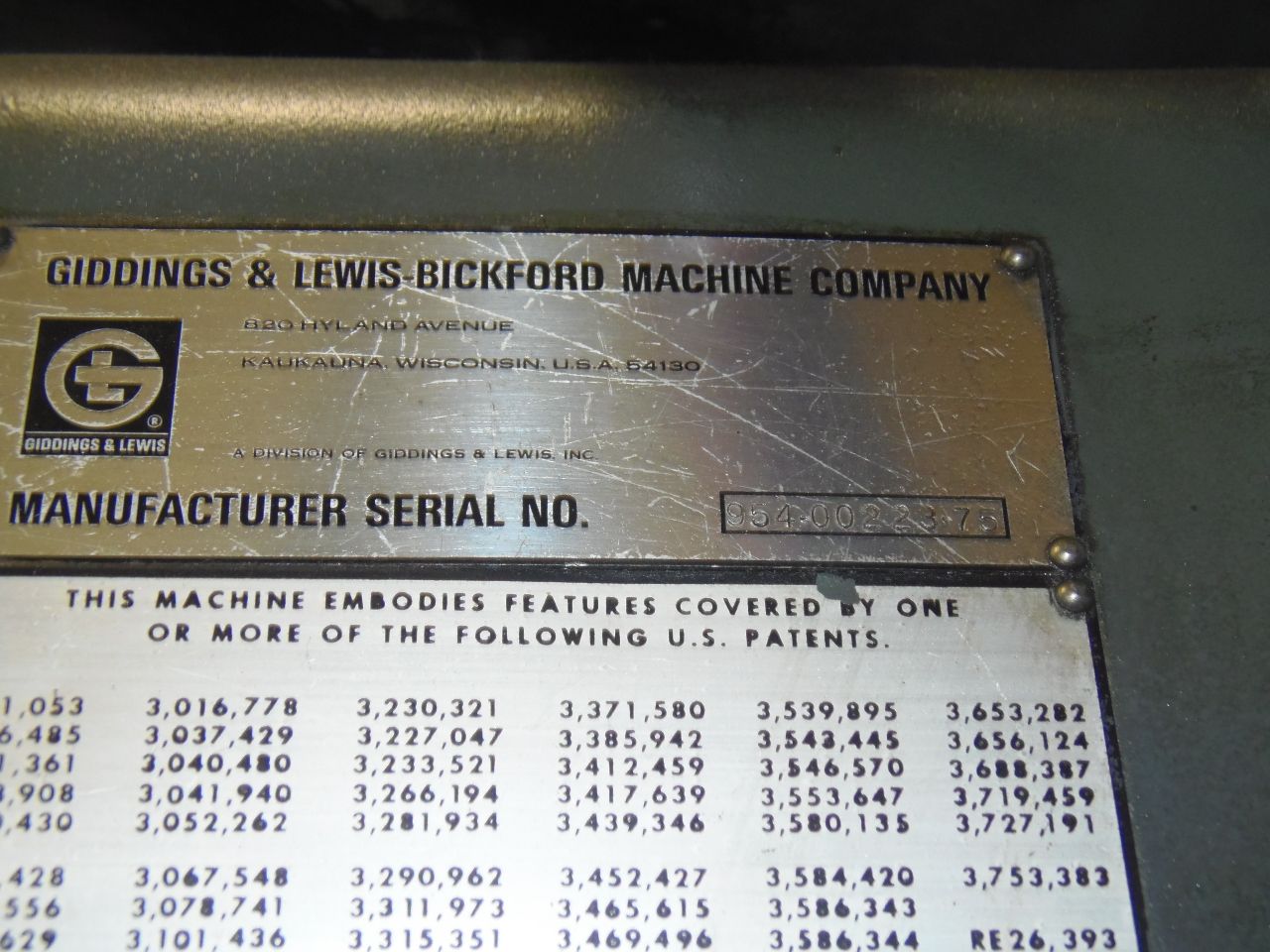

SERIAL NUMBER.................... 954-00223-75
AGE.............................. 1975

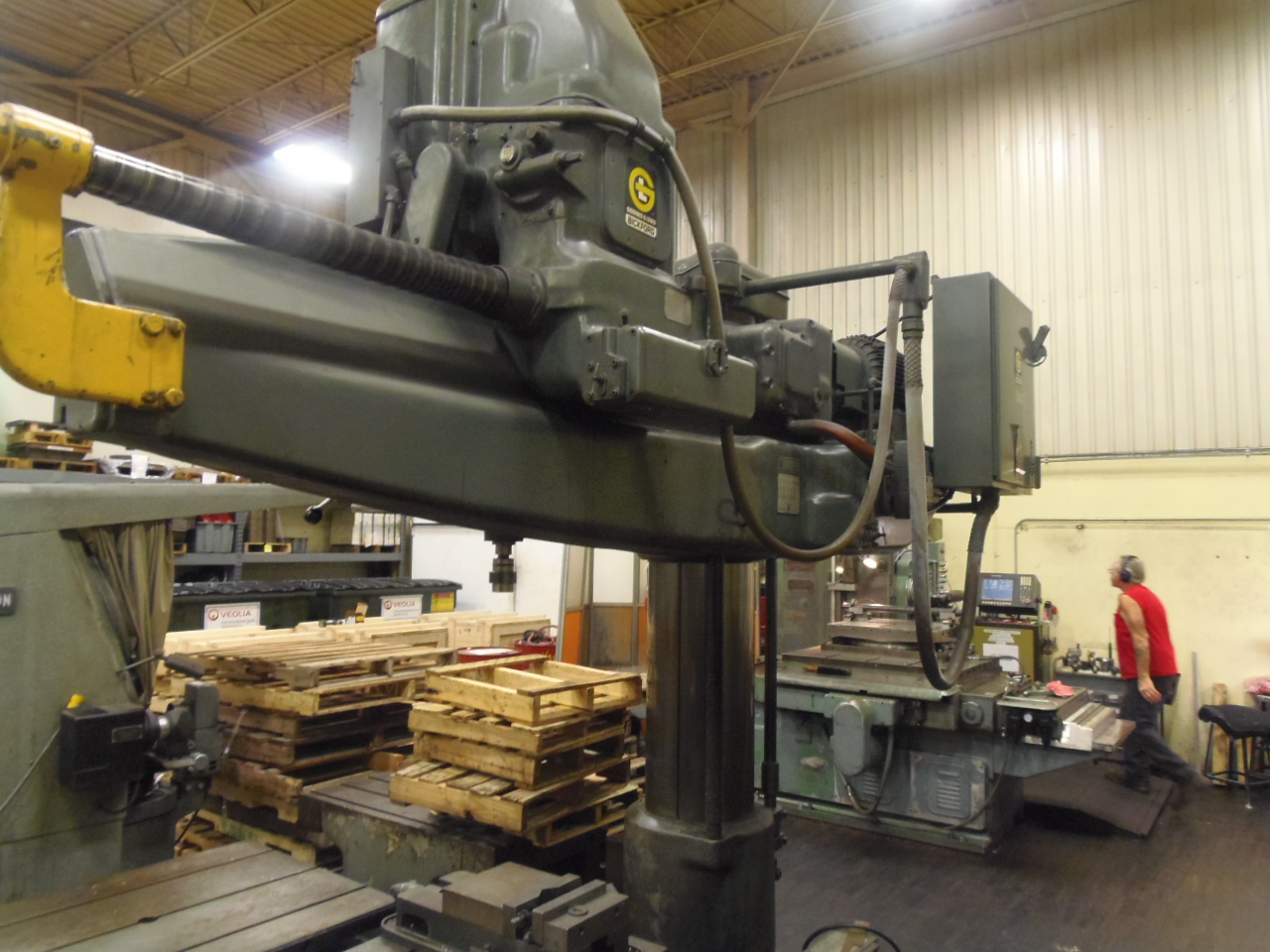

ARM LENGTH....................... 6'

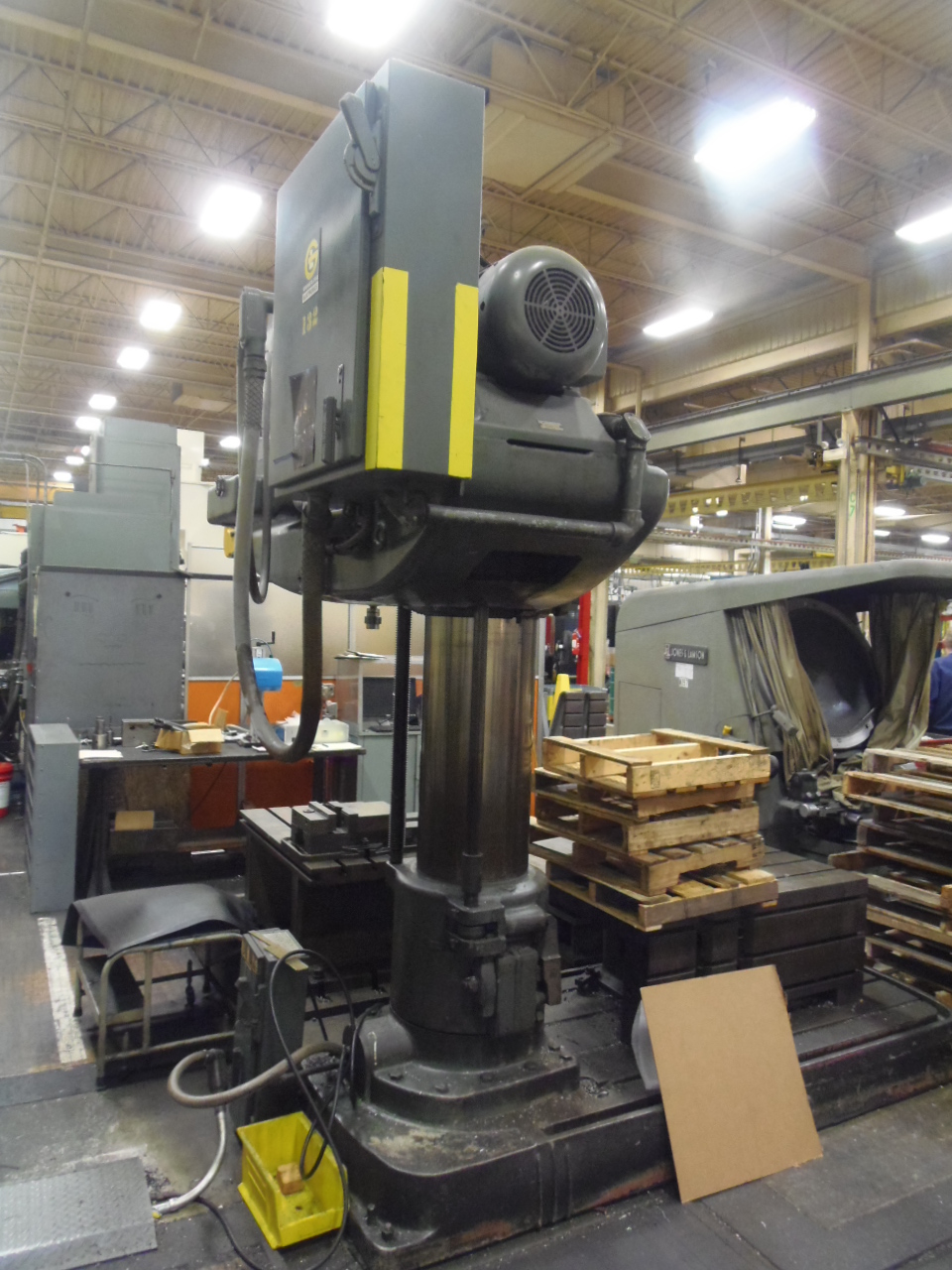

COLUMN DIAMETER.................. 15"
THROAT DEPTH..................... 22" TO 82"
DISTANCE SPINDLE FACE TO BASE... 10" TO 66"
SPINDLE SPEED.................... 12 - 1500 RPM

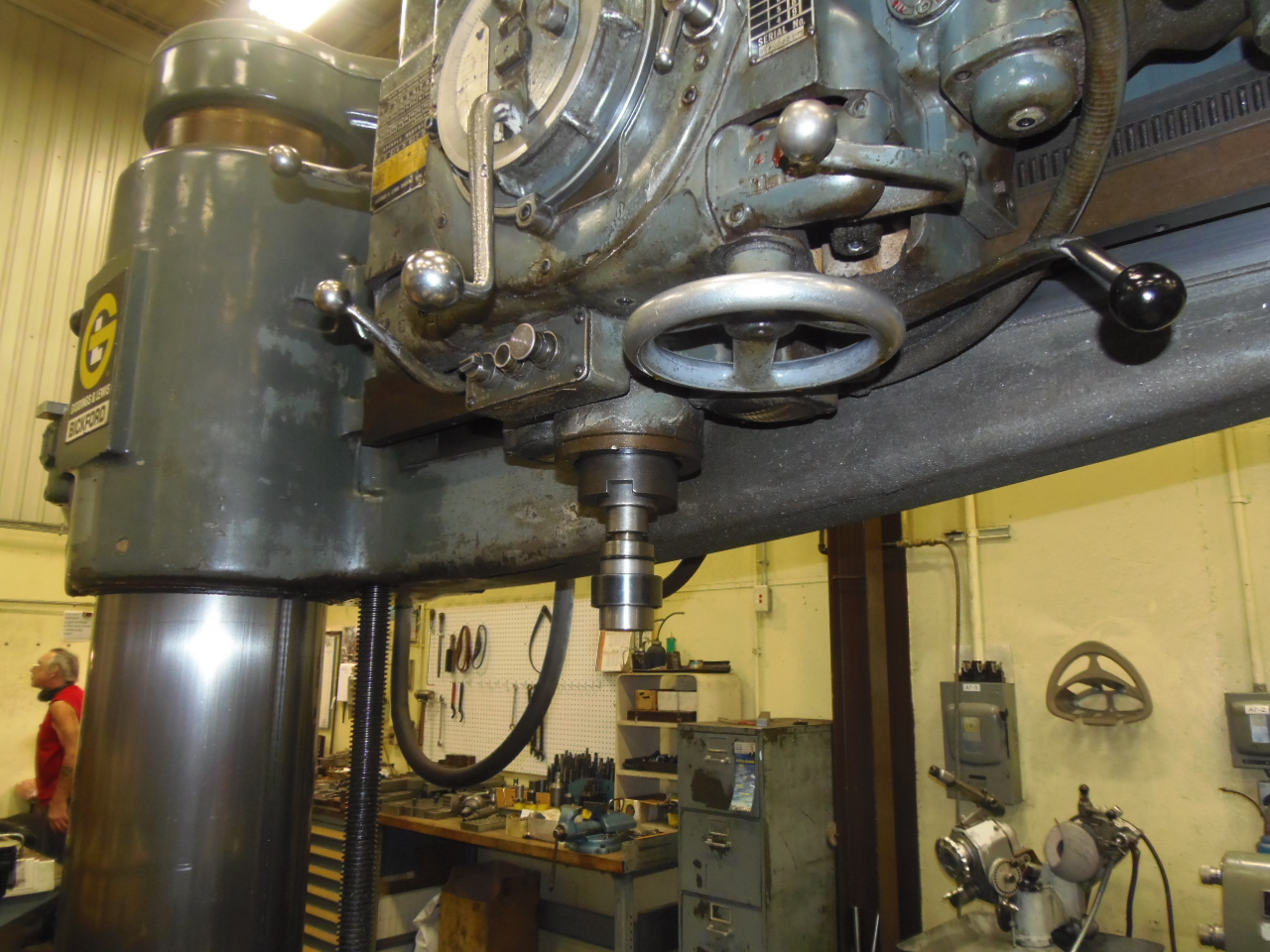

SPINDLE TAPER.................... 5 MT
FEED RANGE....................... .004 TO .125 IPR
THREADS.......................... 8, 11.5, 14, 18, 20, 27
POWER CLAMPING................... YES
POWER MOVEMENTS.................. YES
MAIN MOTOR....................... 20 HP 220/440
CURRENT VOLTAGE.................. 240
DIMENSIONS....................... 112" X 70" X 111" TALL
WEIGHT WITHOUT EXTENSION......... 18,000 LBS
EQUIPPED WITH:
26" X 44" X 26" HIGH BOX TABLE
42" X 60" REMOVABLE L BASE EXTENSION
COOLANT
*NOTE* VICE ON TABLE AND QUICK CHANGE COLLET HOLDER ARE NOT INCLUDED*
