Specifications
Equipped With
GENERAL SPECIFICATIONS:

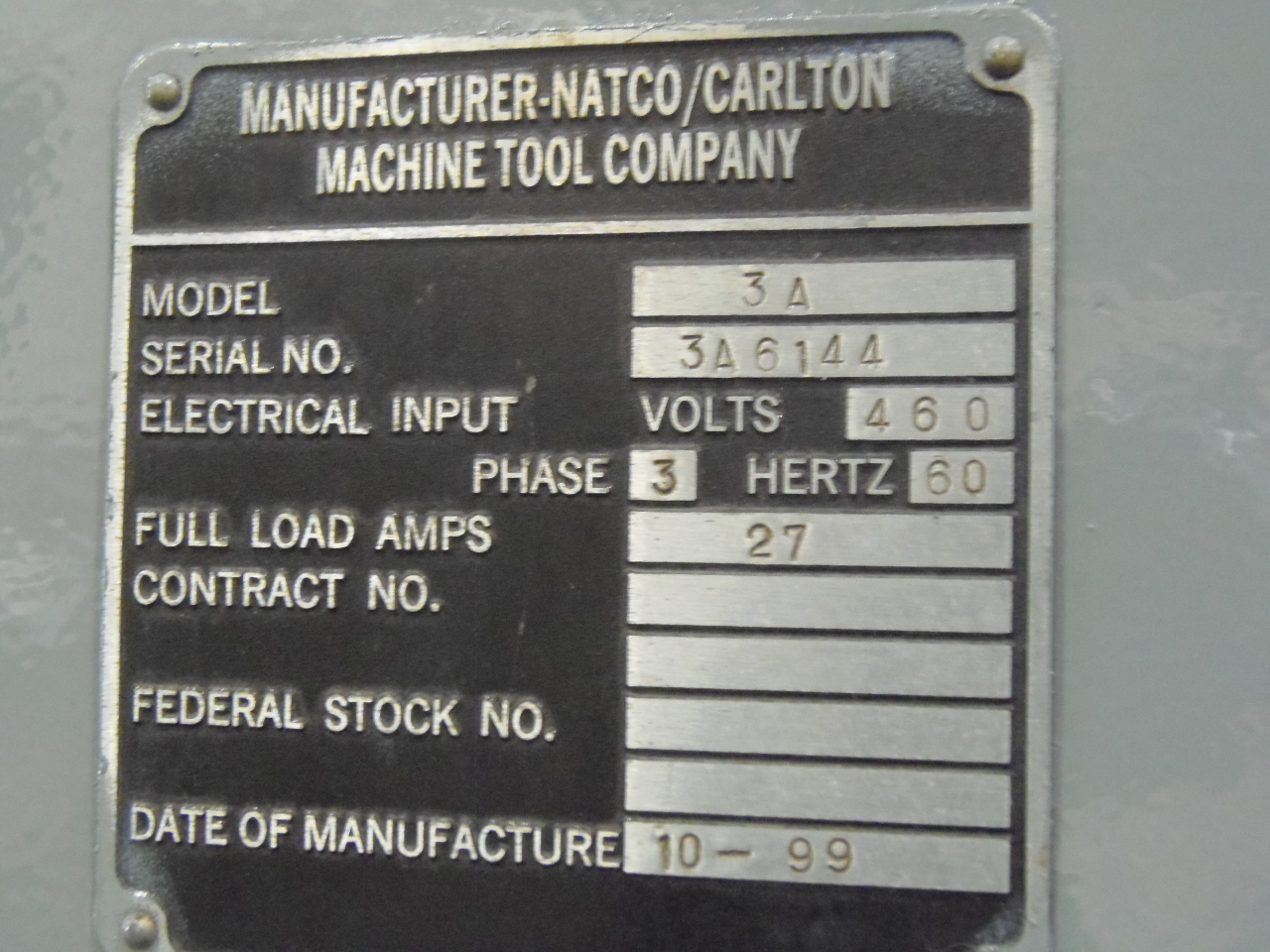

MANUFACTURER................................ CARLTON
MODEL....................................... 3A
SERIAL NUMBER............................... 3A-6144
NEW APPROXIMATELY........................... 1999
ARM LENGTH.................................. 6'
COLUMN DIAMETER............................. 15"
TRAVERSE OF ARM ON COLUMN................... 37.5"

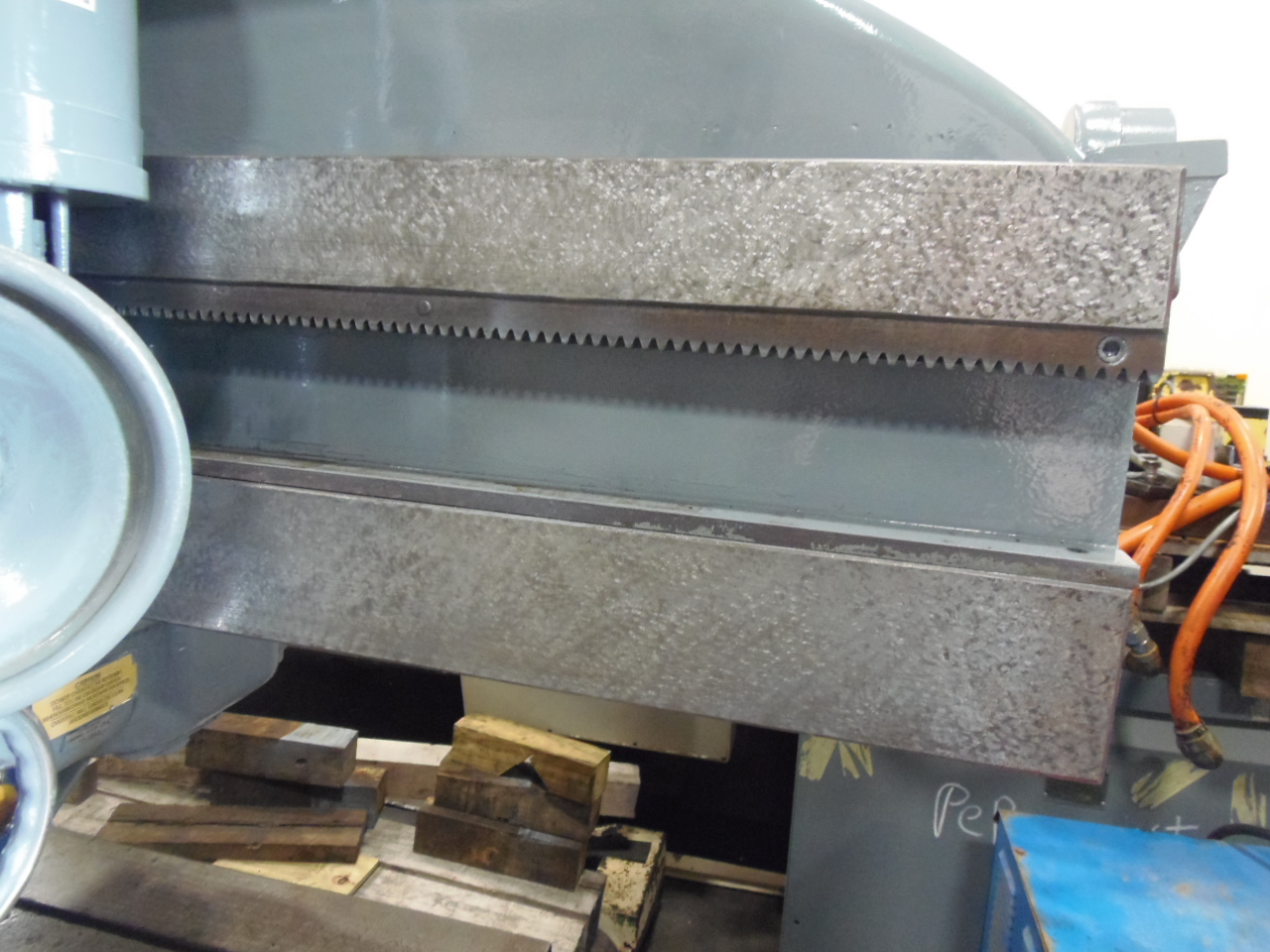

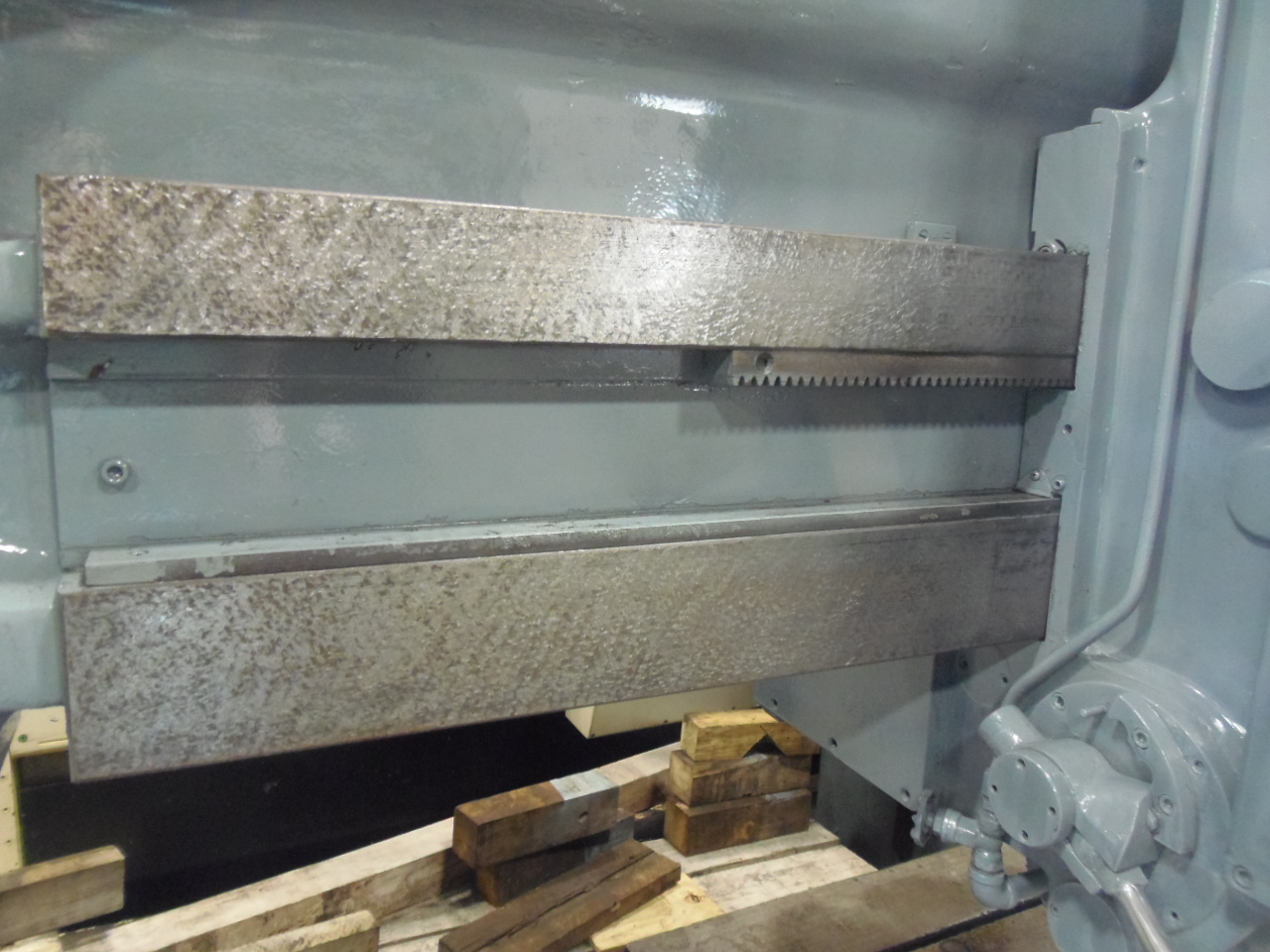

TRAVERSE OF HEAD ON ARM..................... 57"
DRILLS TO CENTER OF CIRCLE.................. 12'
SWING OF ARM................................ 8'4"
FACE OF COLUMN TO CENTER OF SPINDLE:
MIN......................................... 15"
MAX......................................... 72"
SPINDLE TO BASE (MIN.)...................... 10.5"
SPINDLE TO BASE (MAX.)...................... 5'6"

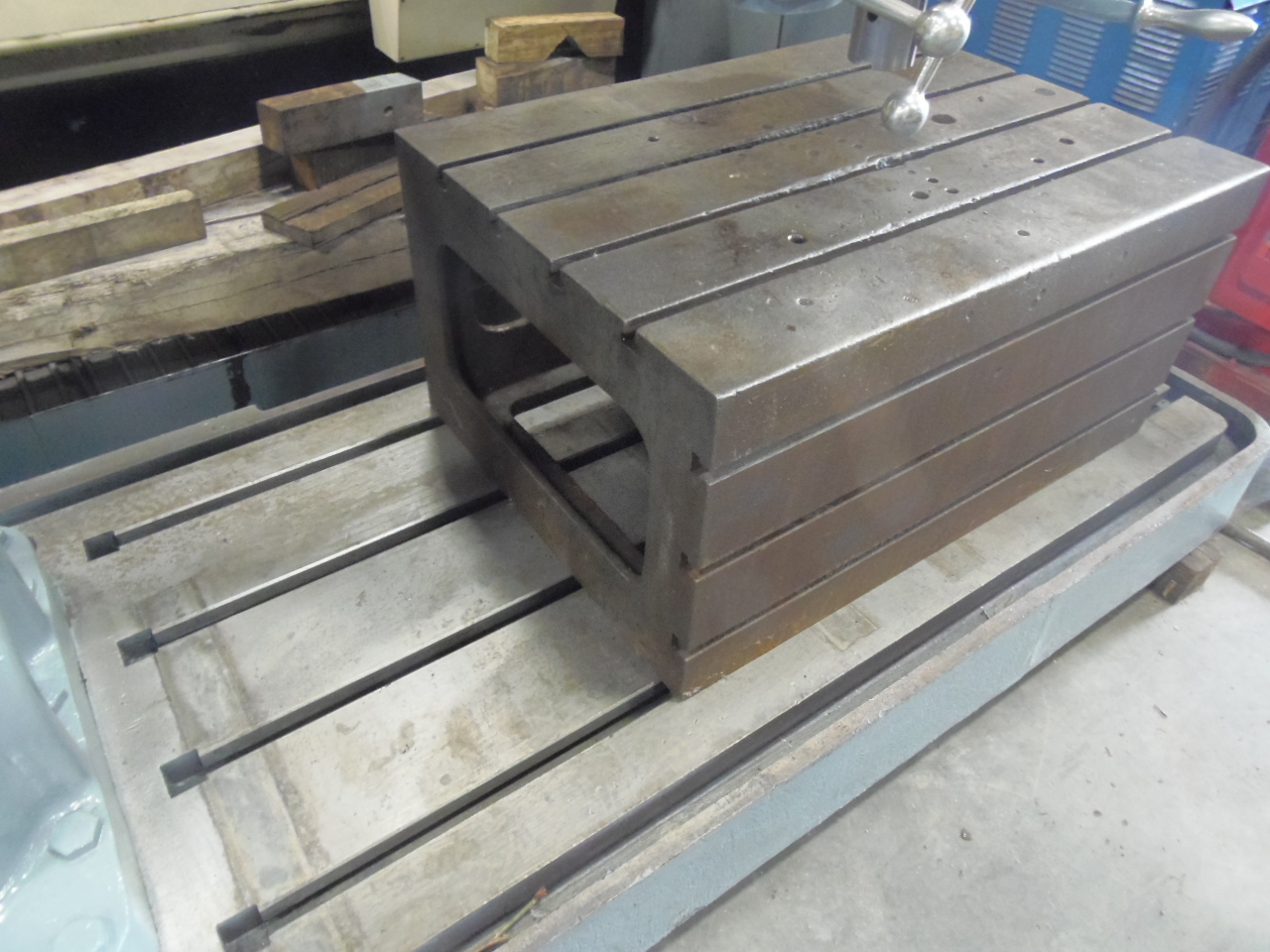

WORKING SURFACE OF BASE..................... 42" X 77"

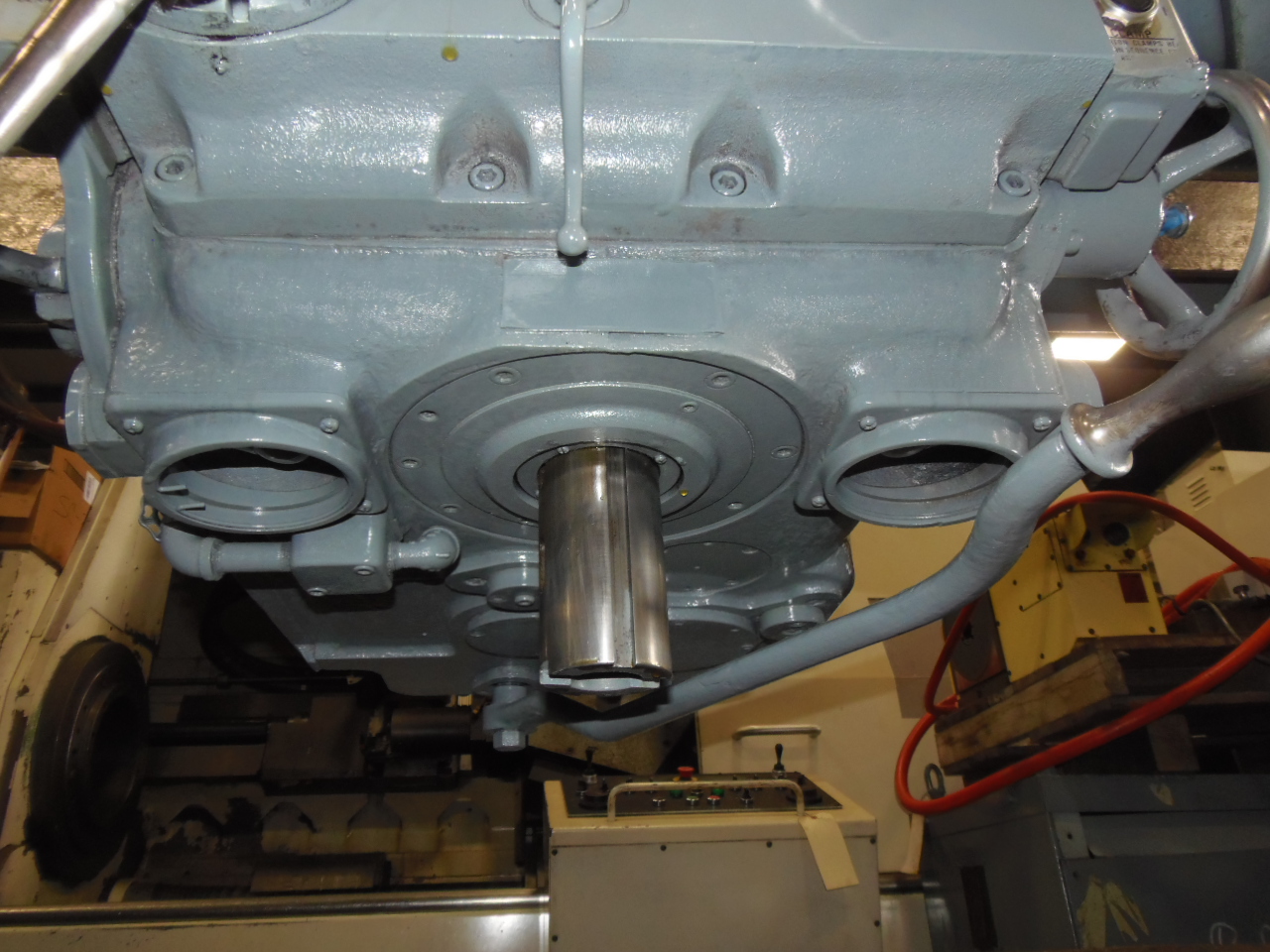

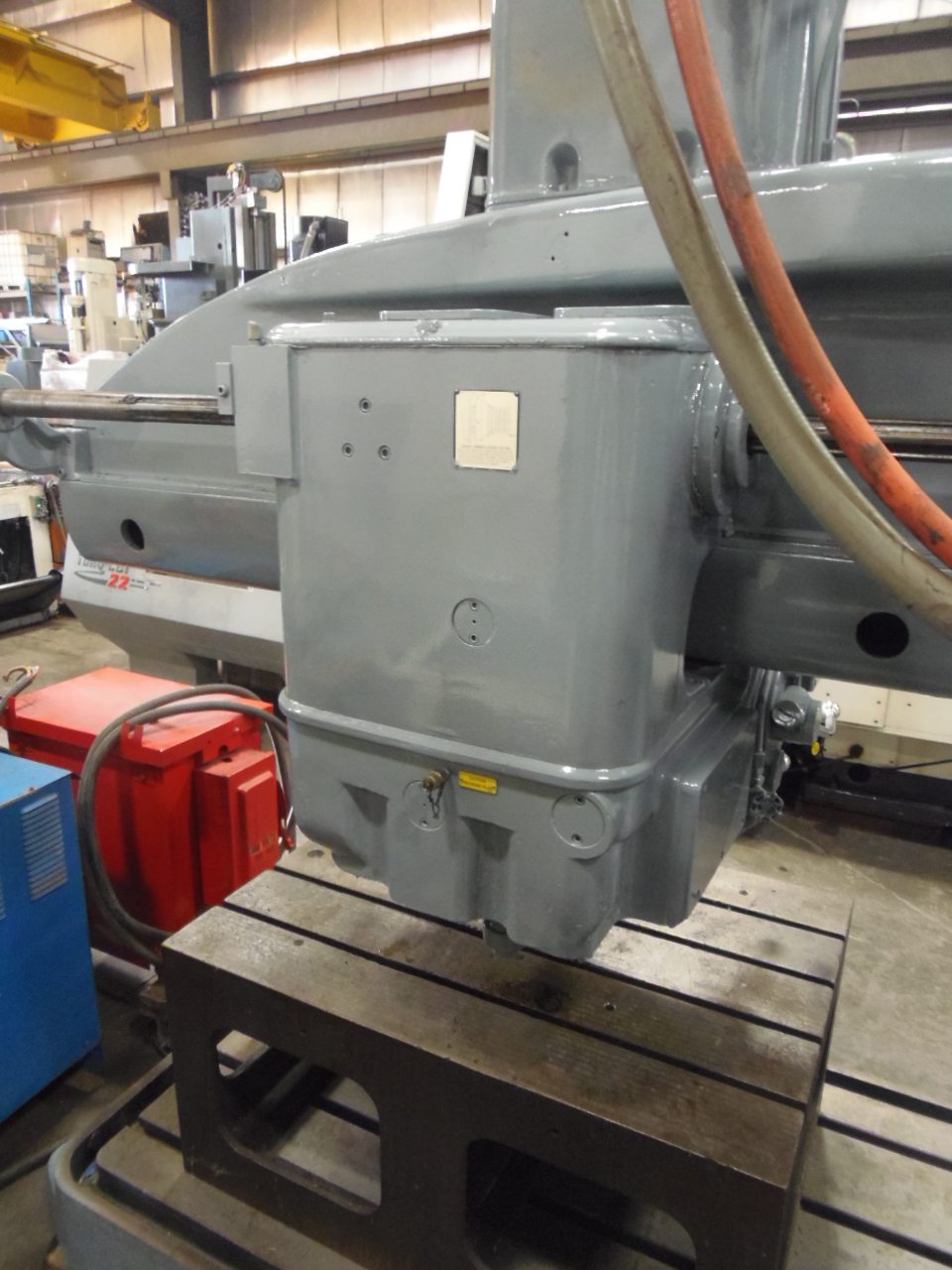

SPINDLE DIAMETER............................ 3 3/16"
QUILL DOWN TRAVEL........................... 18"
TAPER IN SPINDLE............................ #5 MORSE

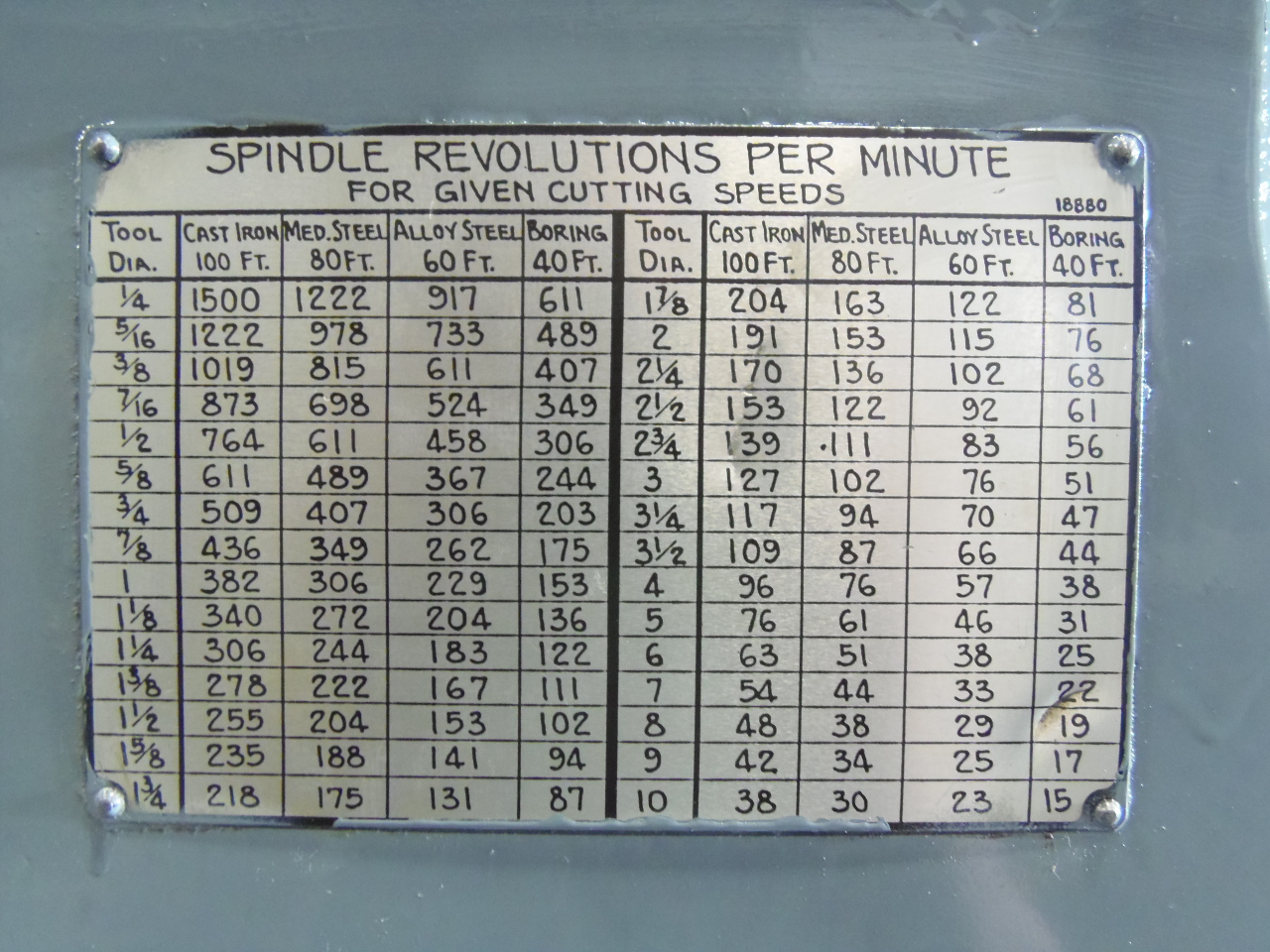

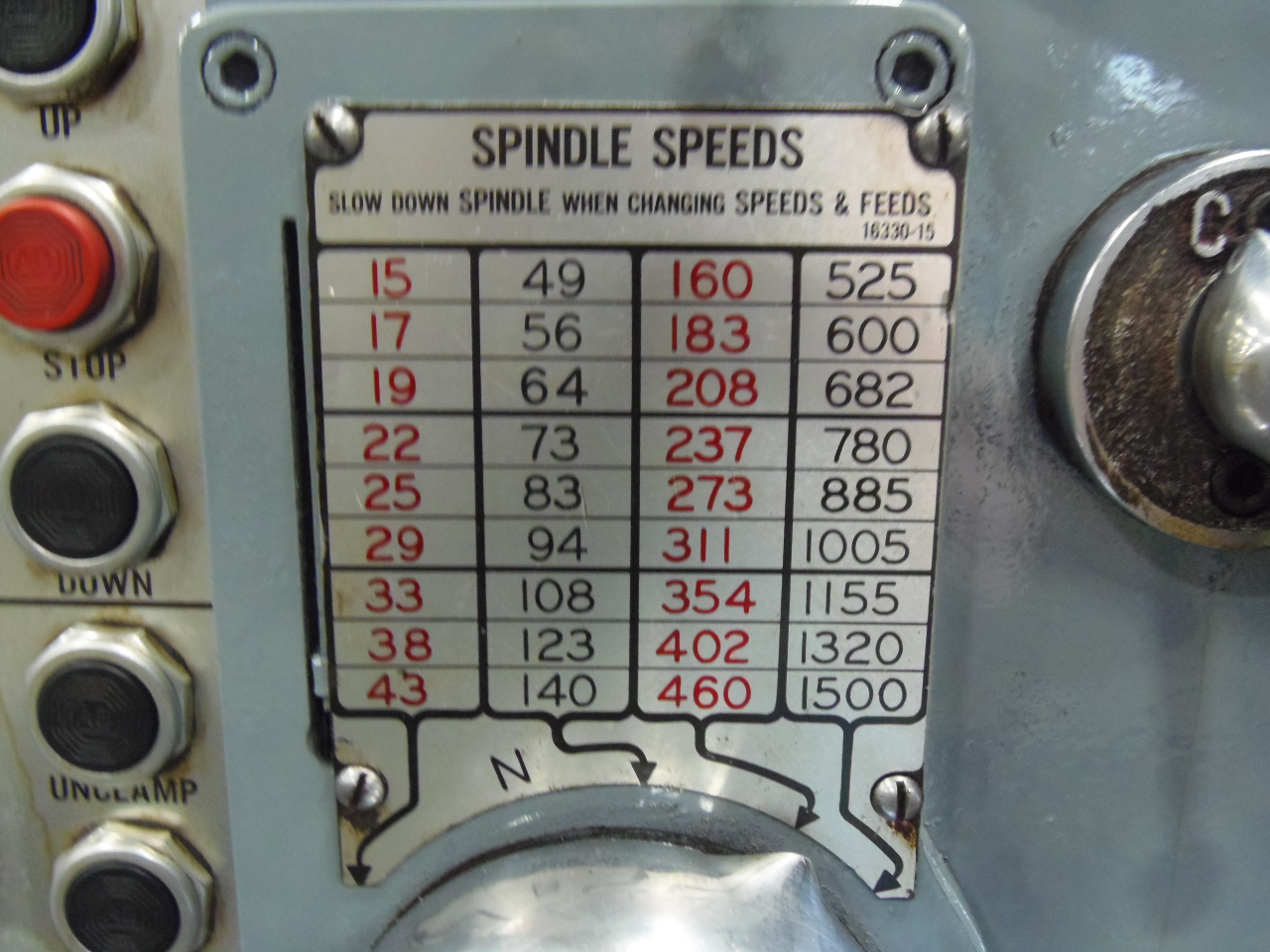

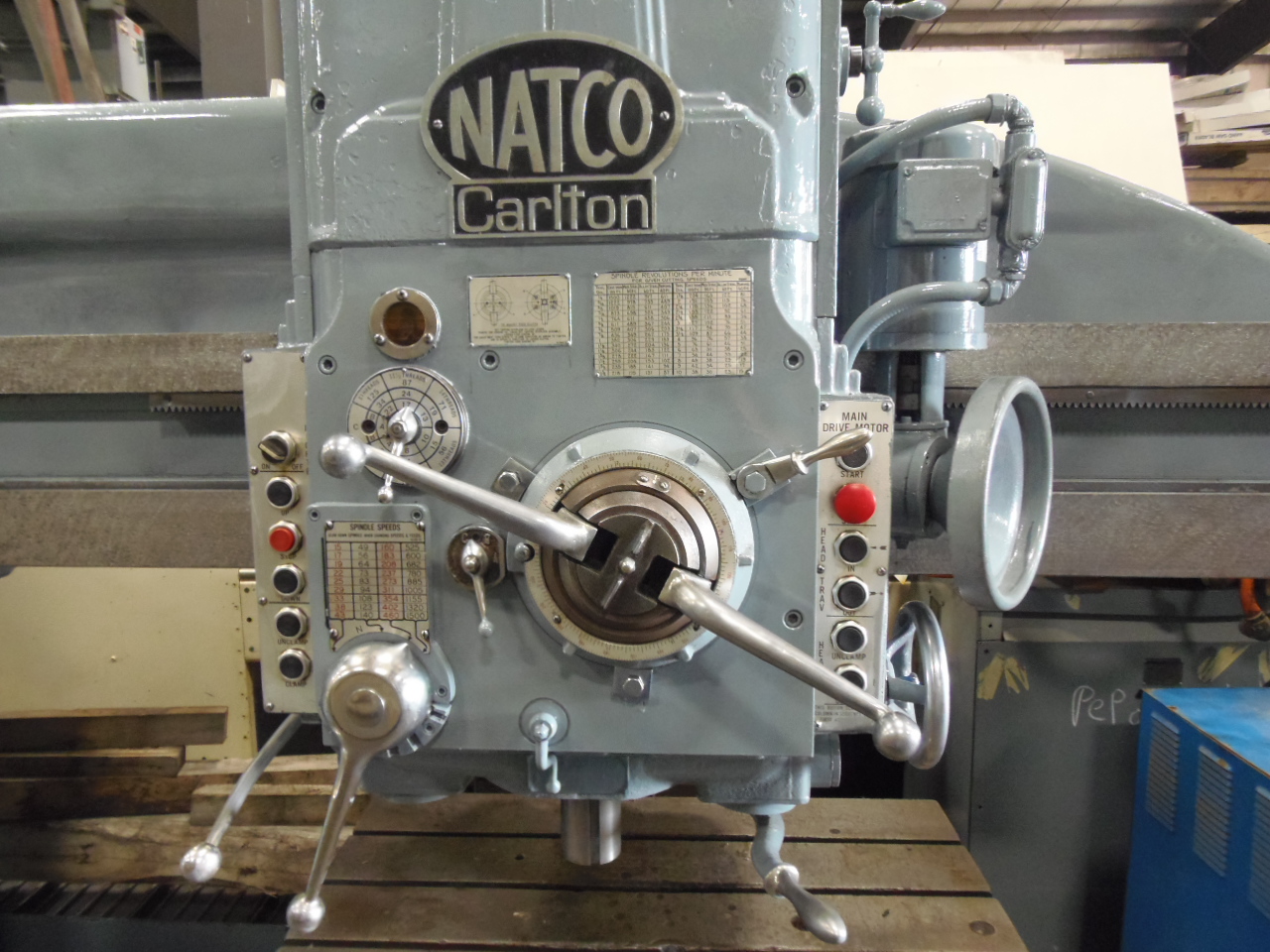

SPINDLE SPEED (36).......................... 15-1500 RPM
SPINDLE FEEDS (18).......................... .004 TO .125 IPR

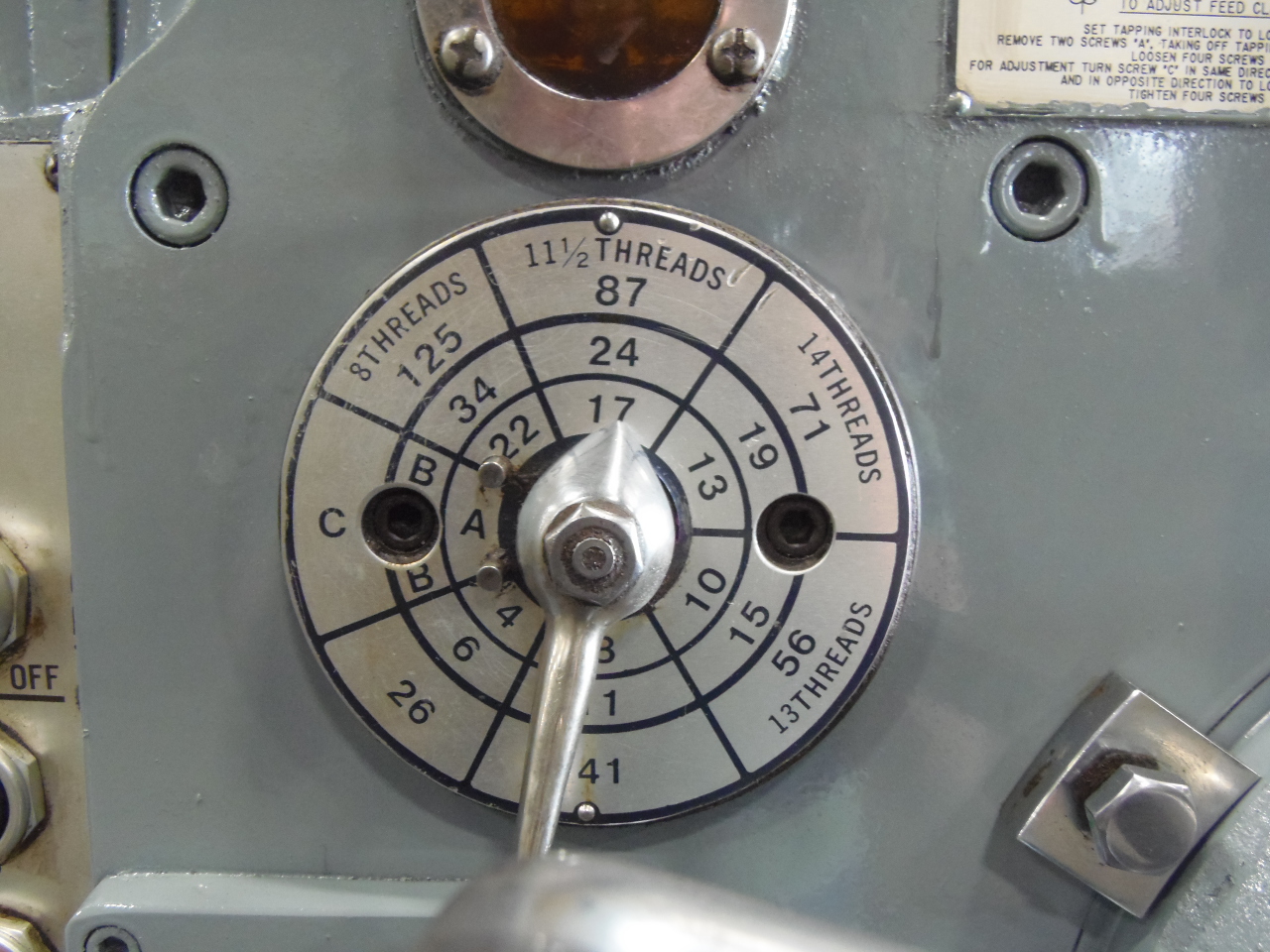

TAP LEADS (4)............................... 8 to 18 TPI
WEIGHT (APPROX.)............................ 30,000 LBS.
DIMENSIONS (APPROX.)........................ 52"LR x 140"FB x 141"H
APPROXIMATE WEIGHT.......................... 19,000 LBS
MAX. HEIGHT OVER HEAD....................... 10' 7"
MAX. HEIGHT OVER COLUMN CAP................. 9' 11"
EQUIPPED WITH:

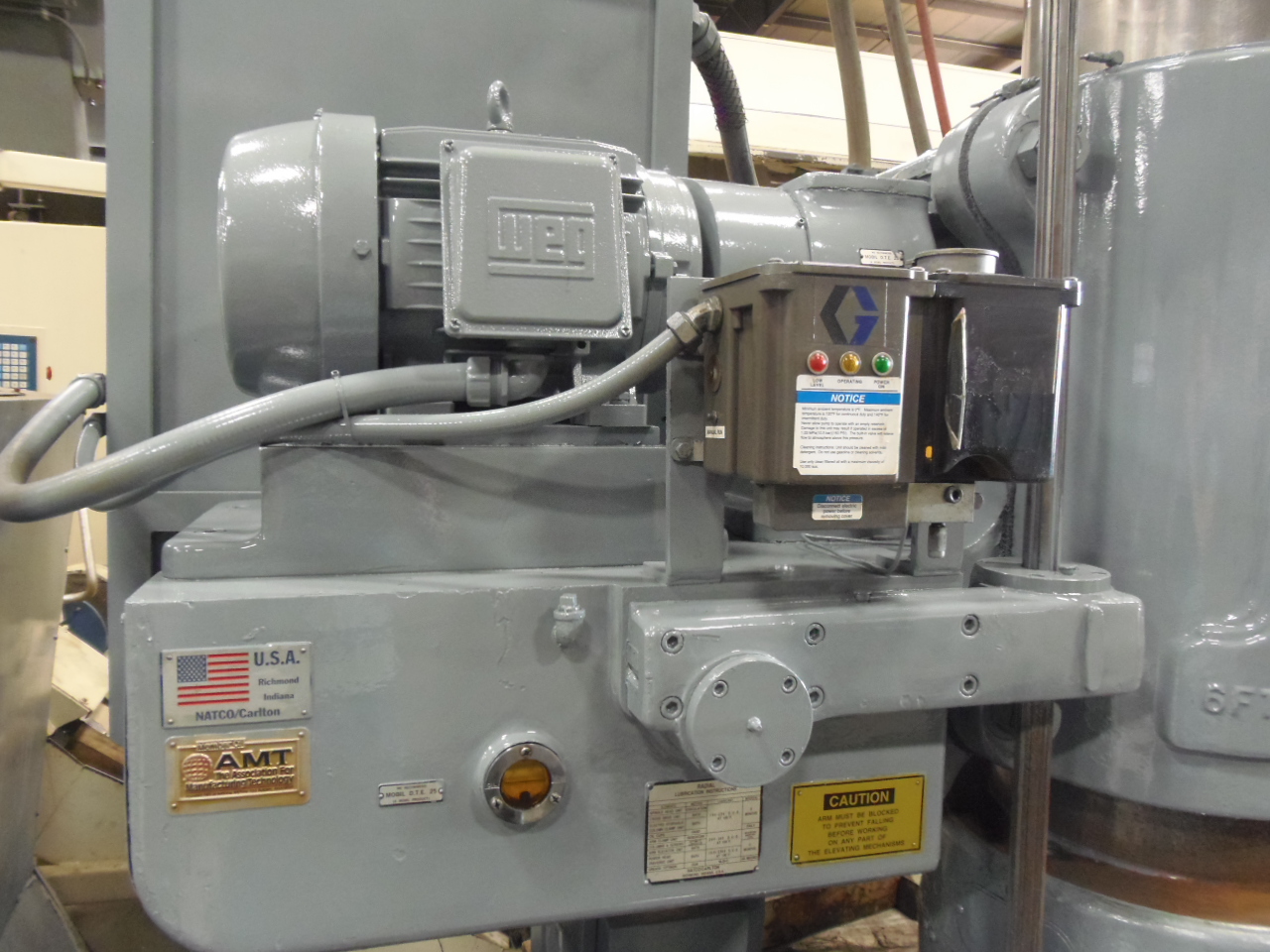

15HP MAIN DRIVE MOTOR CURRENTLY WIRED FOR 440V

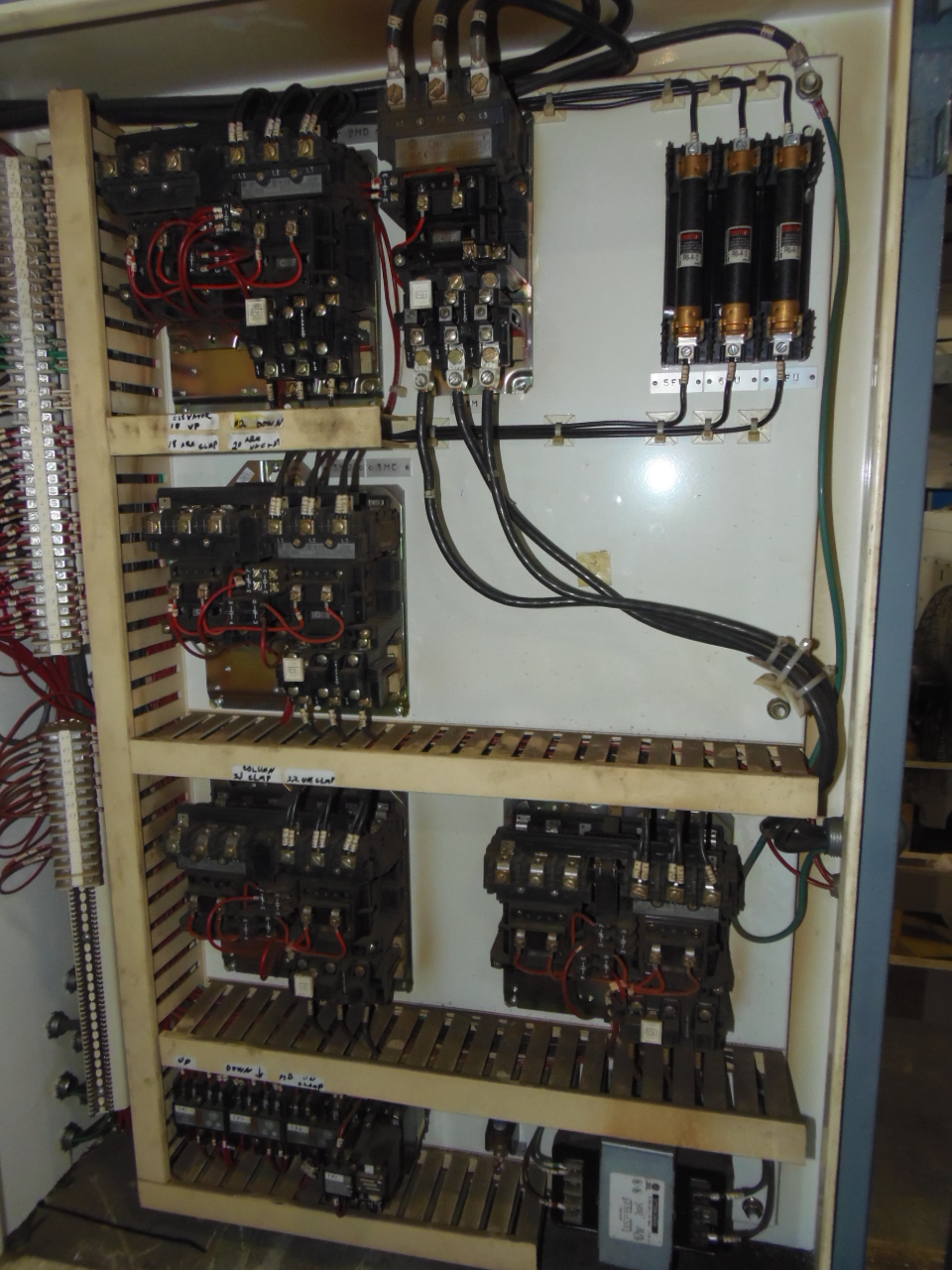

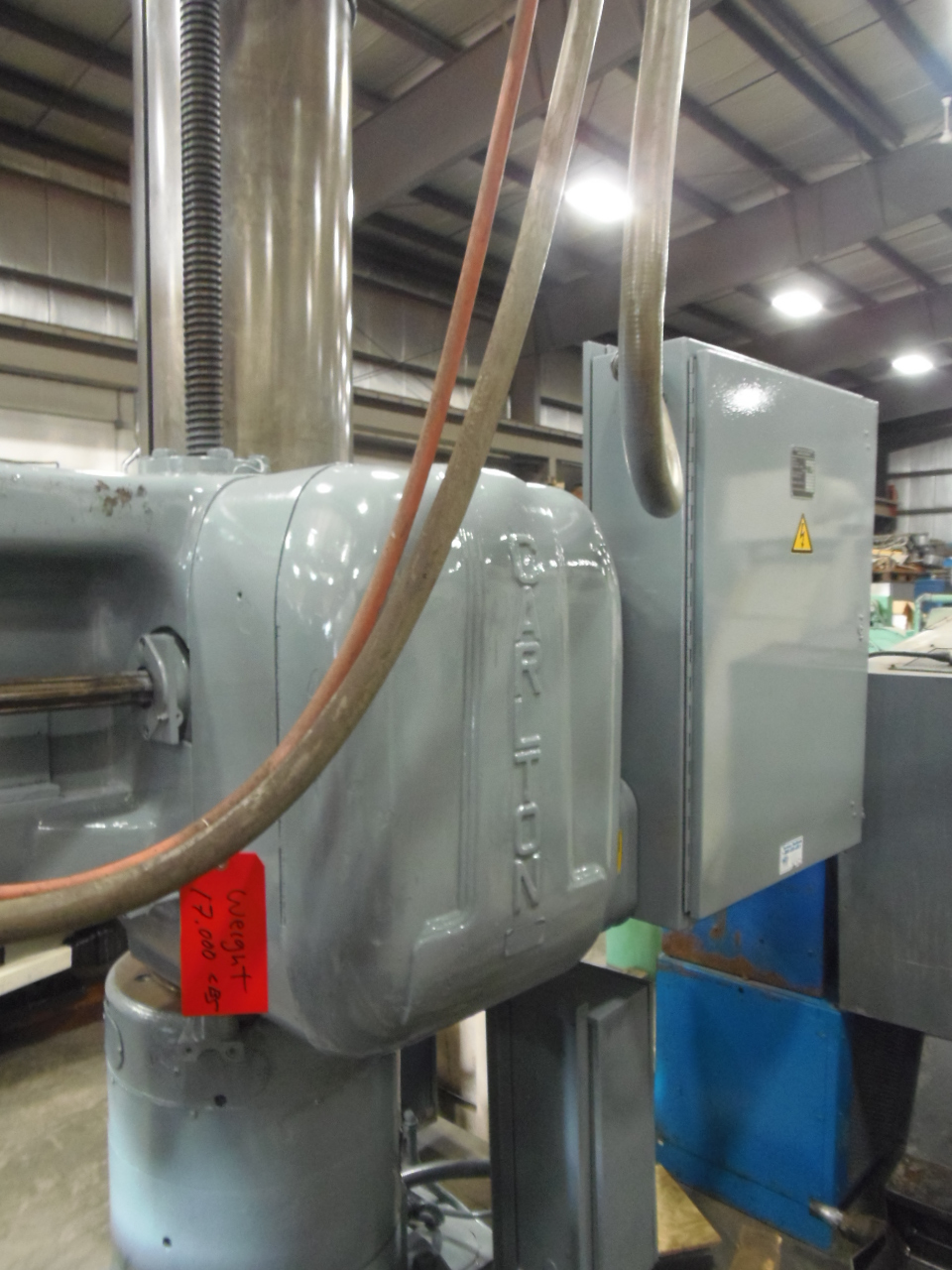

ELECTRICAL CONTROLS

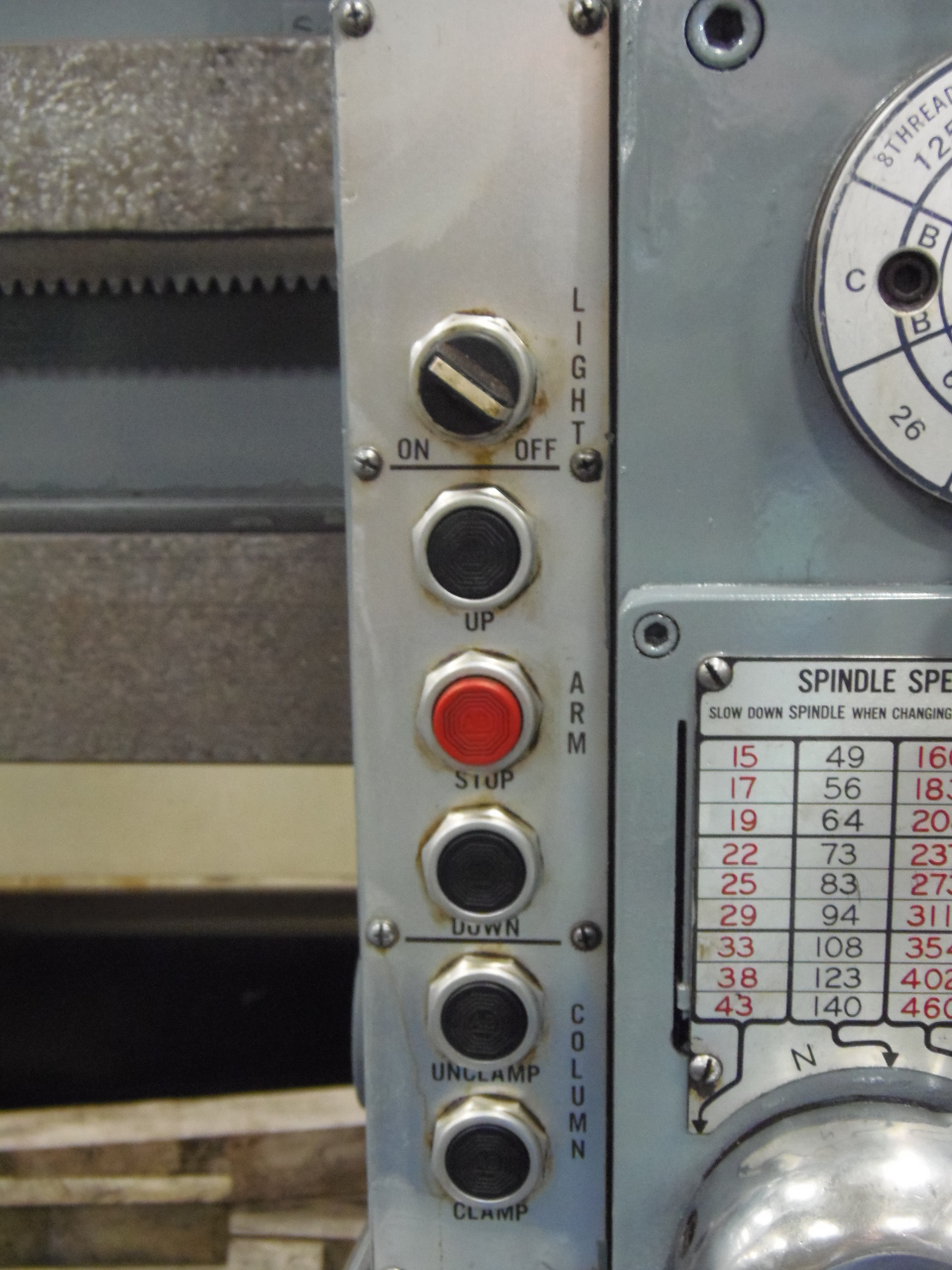

POWER CLAMPING TO HEAD AND COLUMN

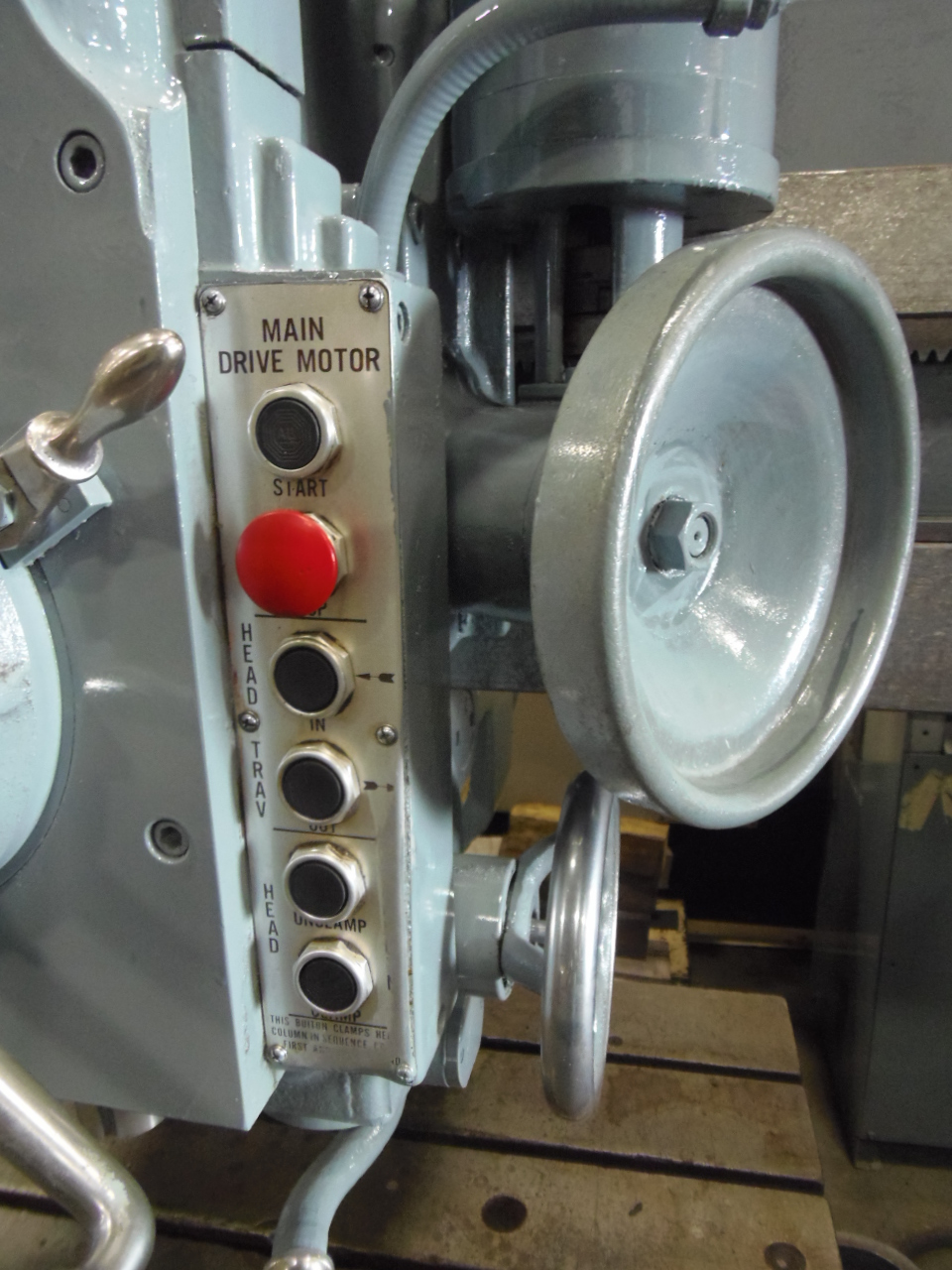

RAPID TRAVERSE TO HEAD
PRESELECT SPEEDS AND FEEDS
COOLANT SYSTEM
