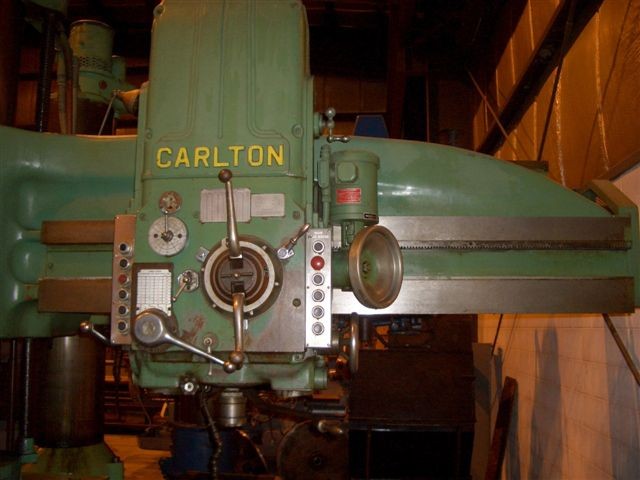

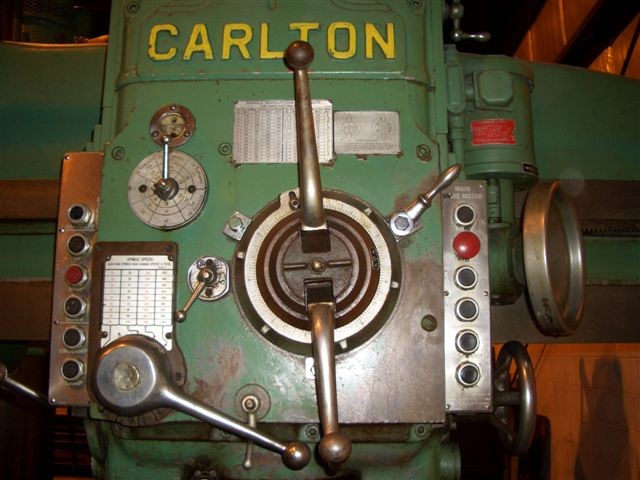

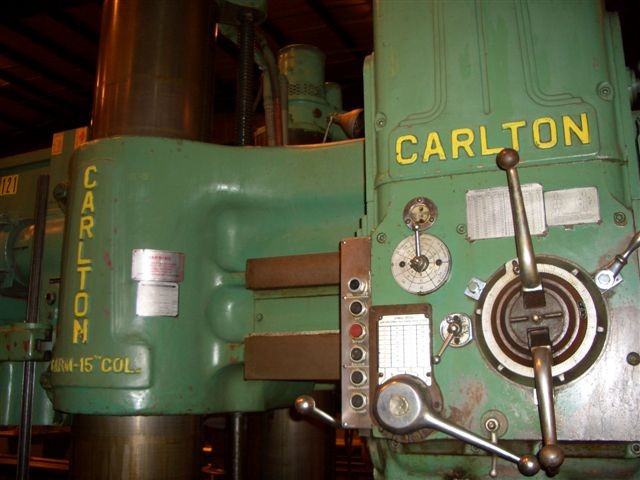

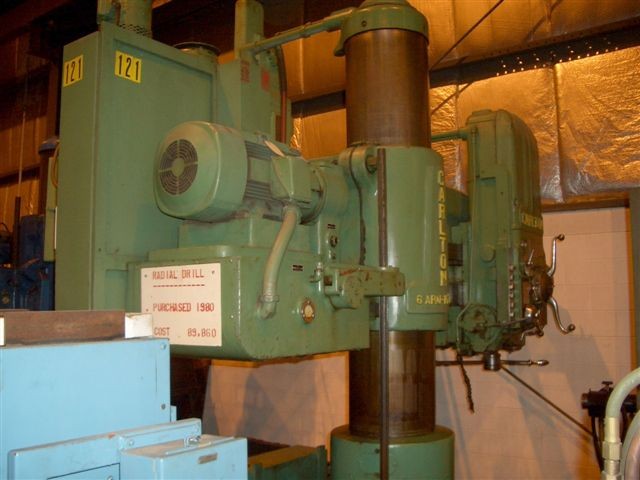

6' x 15", CARLTON, 1979,20 HP,1500 RPM,#5 MT, BOX TABLE, POWER CLAMP/ELEVATION

Brand
CARLTON

Model
3A

Type
Drills, Radial

Stock #
6304

Condition
Used

Year
1979

Request a Quote

Specifications

Equipped With

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1979
MODEL 3A
ARM LENGTH: MAX. COLUMN TO SPNDL DIST. 6'
MIN. COLUMN TO SPINDLE DISTANCE 15"
COLUMN DIAMETER 15"
TRAVERSE OF HEAD ON ARM 4'9"
TRAVERSE OF ARM ON COLUM 3'2"
MAIN MOTOR 20 HP
SPINDLE SPEED 15-1500 RPM
SPINDLE TAPER #5 MT
SPINDLE STROKE 18"
MINIMUM SPINDLE TO FLOOR 26"
THREAD TAP LEADS 8, 11.5, 14, 18
DIMENSIONS APPROXIMATELY 157"LX48"WX132"H
WEIGHT APPROXIMATELY 19,000 LBS

EQUIPPED WITH:

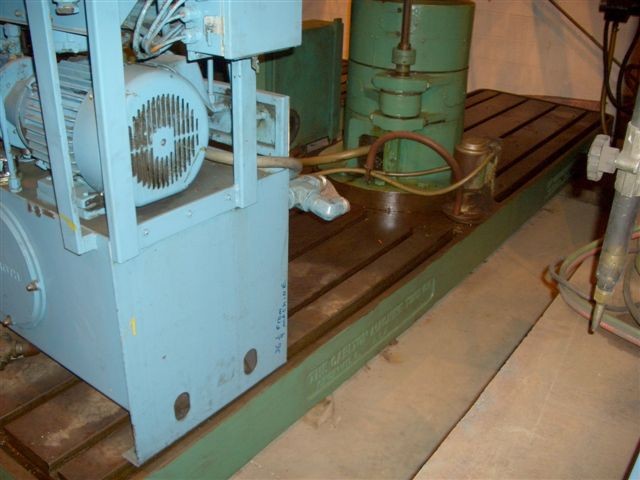

T-SLOTTED BASE
BOX TABLE
POWER ELEVATION
POWER CLAMPING
