Specifications
Equipped With
GENERAL SPECIFICATIONS

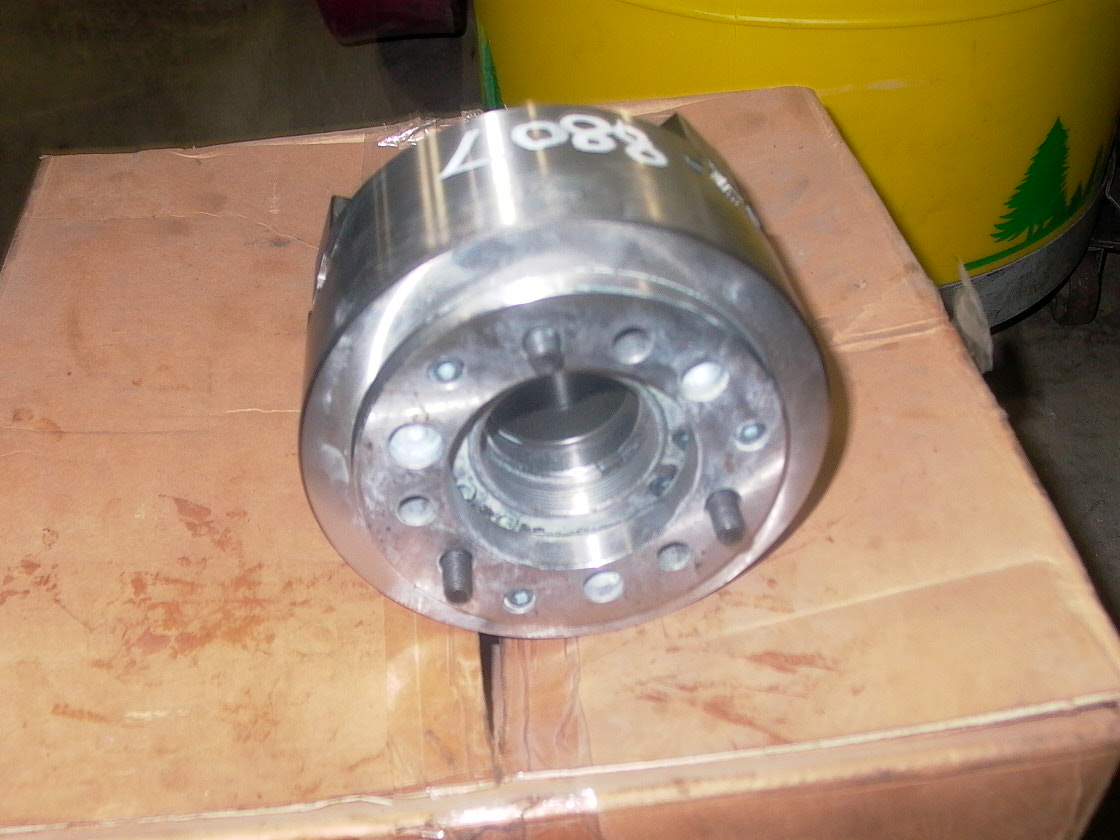

MANUFACTURER............................SAMCHULLY
MODEL...................................MH-206
OUTSIDE DIAMETER........................6.5"
MAX. RPM................................6000
MOUNTING TYPE..........................
BORE.................................... 2.047"
FMAX.....................................24.7 KN
ES MAX.................................57.3 KN
MASS......................................11.9KG
• 3-jaw, wedge-type chuck with large bore
• Powerful gripping force and high turning speed
• Manufactured from high grade alloy steel
• All sliding surfaces are hardened and
ground for accuracy and repeatability
CAME OFF OF A DAEWOO CNC LATHE. NEVER USED.
