Specifications
Equipped With
GENERAL SPECIFICATIONS
MANUFACTURER.......................... MITTS & MERRILL
MODEL................................. 6-HFR

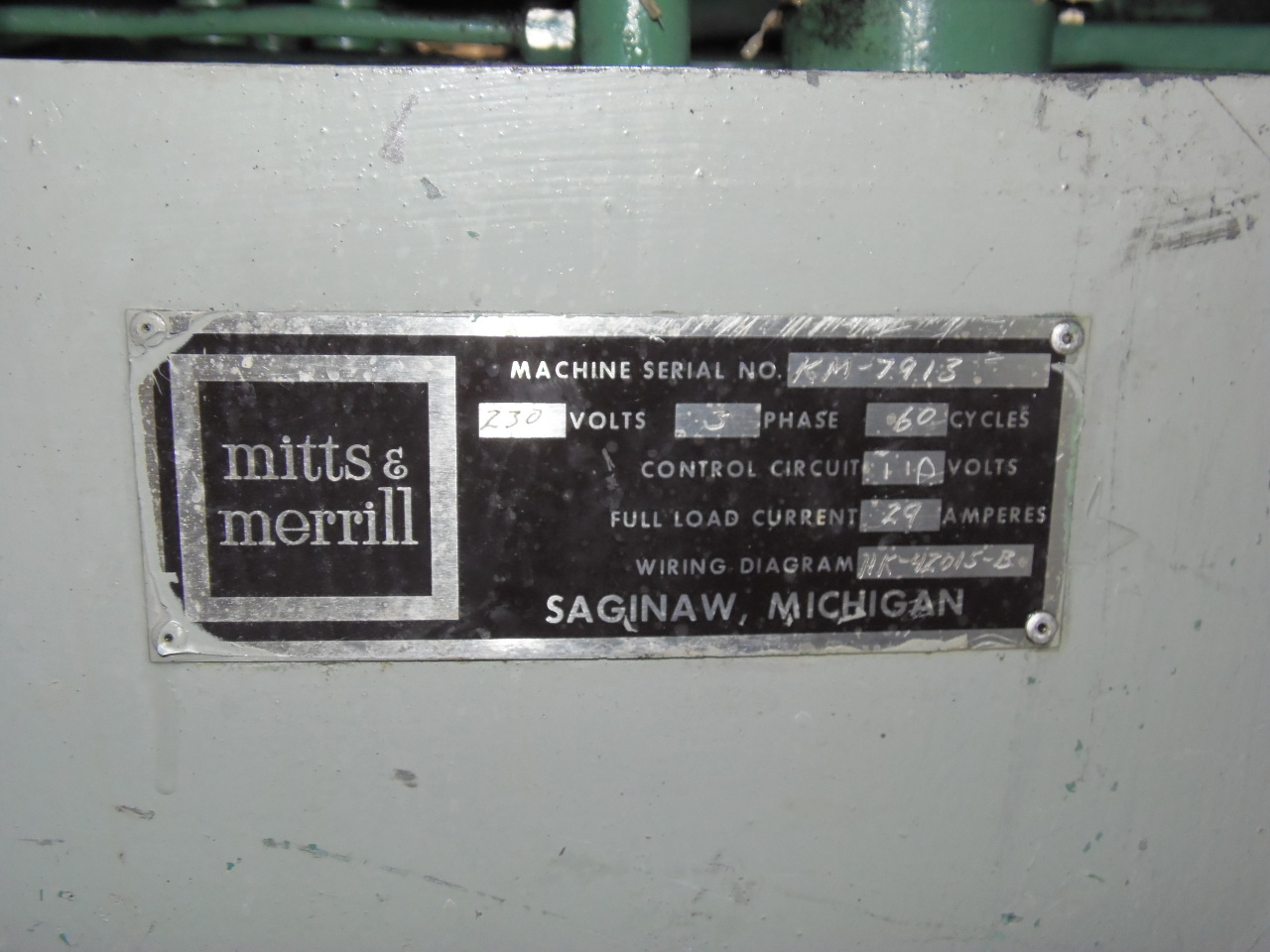

SERIAL NUMBER......................... KM7913
AGE................................... 1979
TYPE OF OPERATION..................... HYDRAULIC
MAXIMUM KEY WAY LENGTH................ 30"
MAXIMUM KEY WAY WIDTH................. 3.5"
LARGEST STANDARD POST................. 5 5/8"
CUTTING SPEED VARIABLE (FT PER MIN)... 7 - 23 FPM
RETURN SPEED.......................... 37 FPM
FEED RATES PER STROKE VARY............ .02 - .10
CROSSHEAD PULL IN LBS @ 1000 PSI...... 12,500
NORMAL MAX. WORK PIECE WEIGHT......... 20,000 LBS
HEIGHT FLOOR TO TABLE................. 43.5"
FLOOR SPACE........................... 75" X 30"
DEPTH OF PIT.......................... 56"
EQUIPPED WITH:

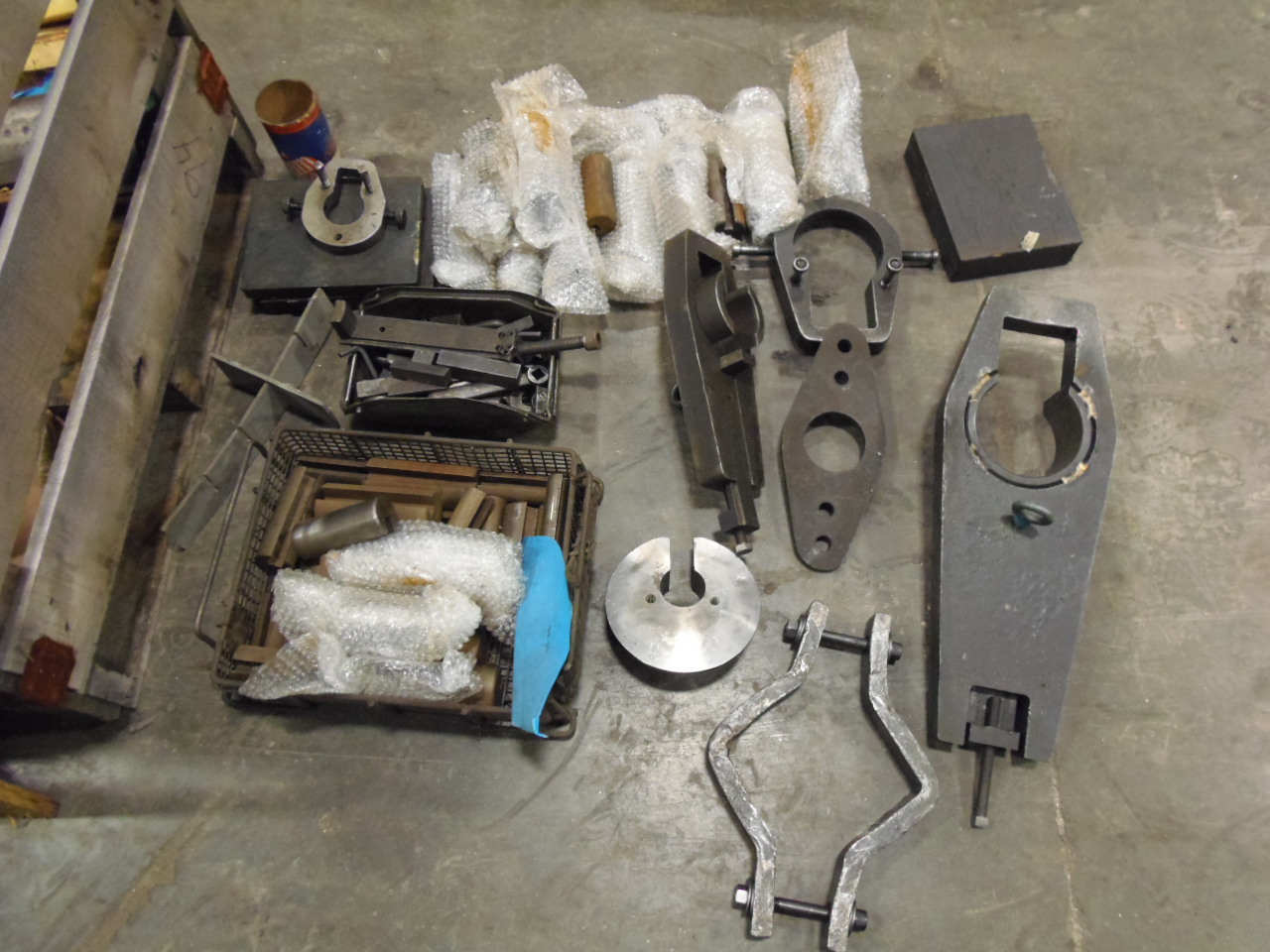

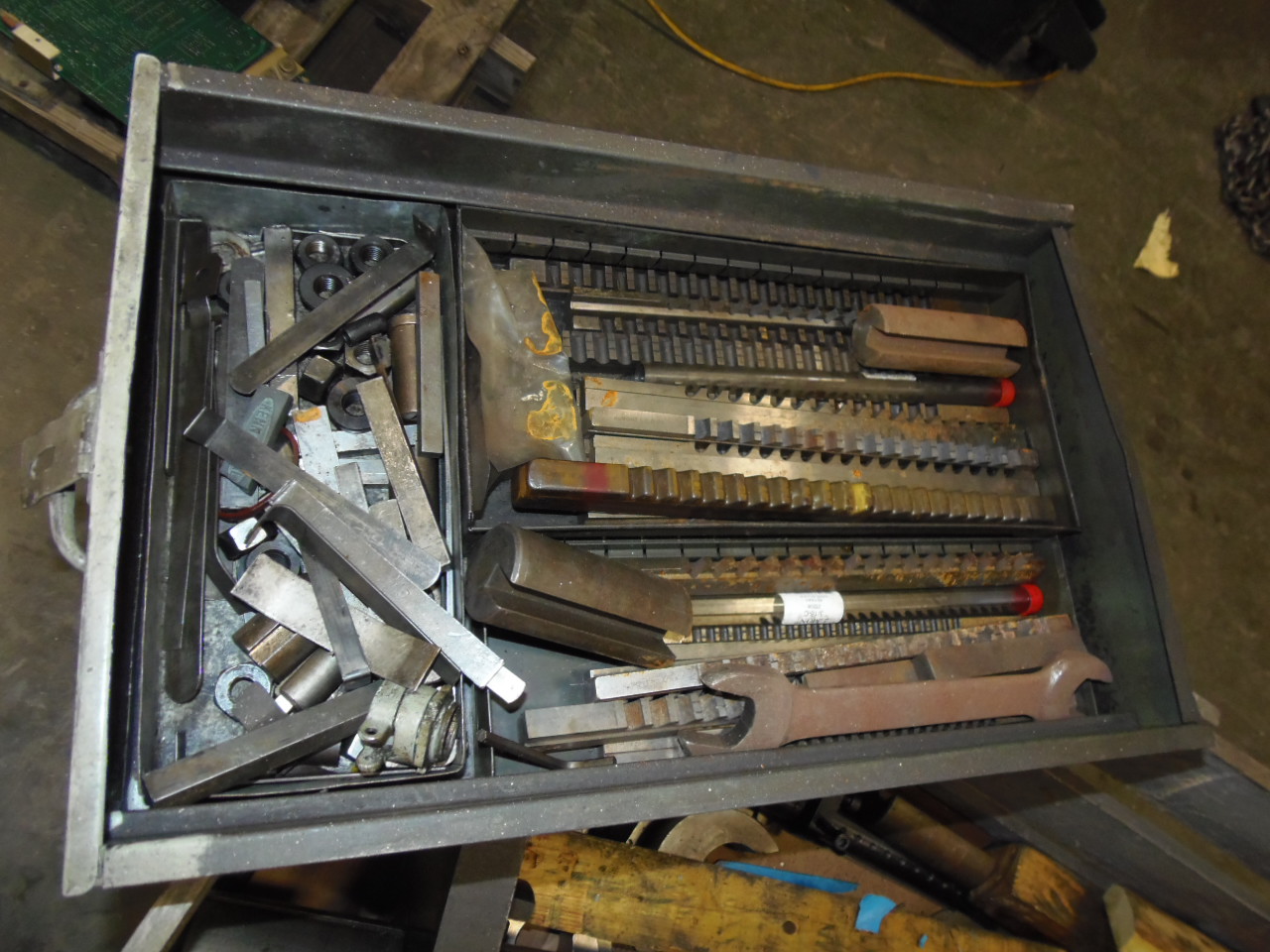

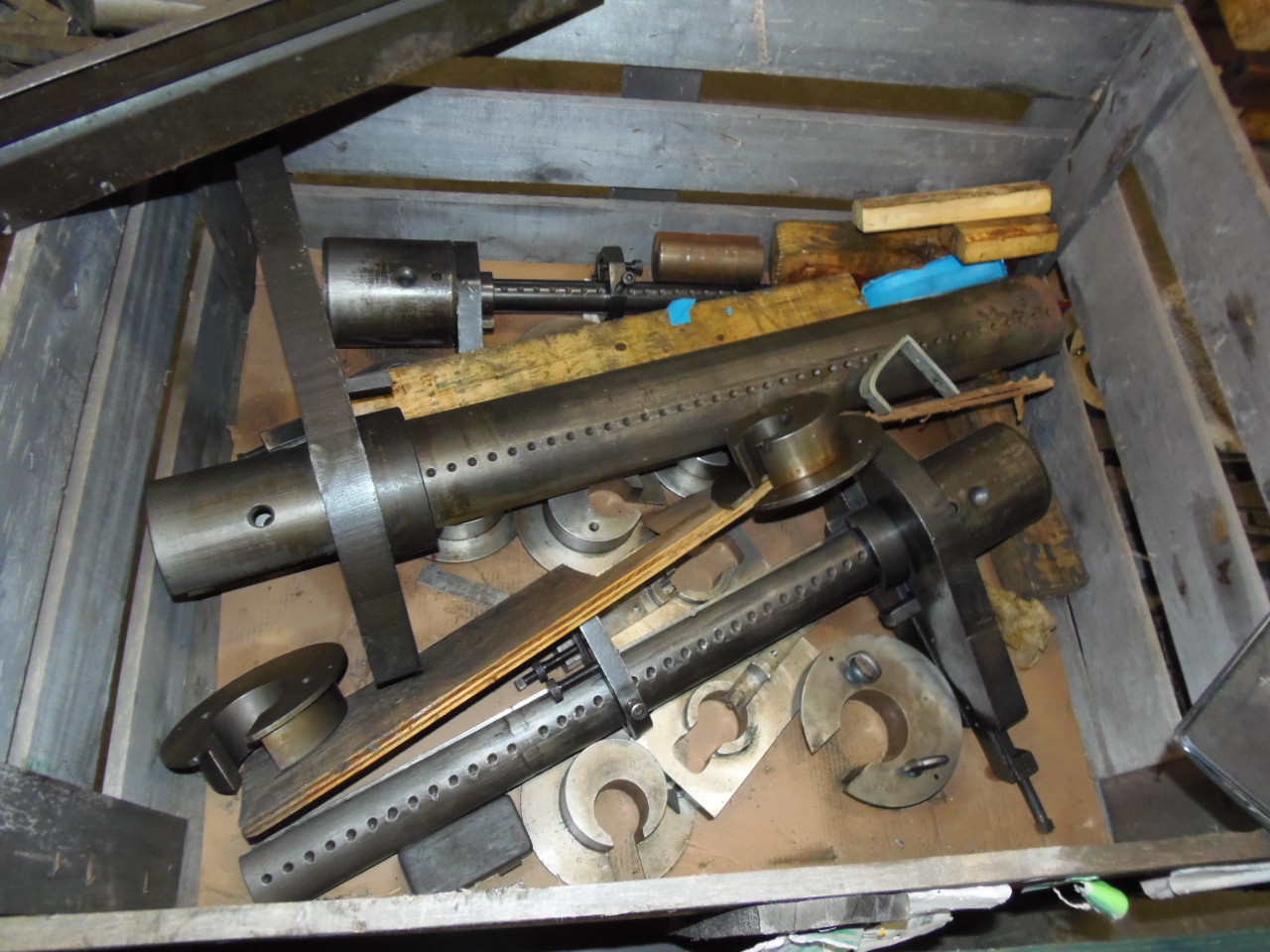

LARGE LOT OF TOOLING

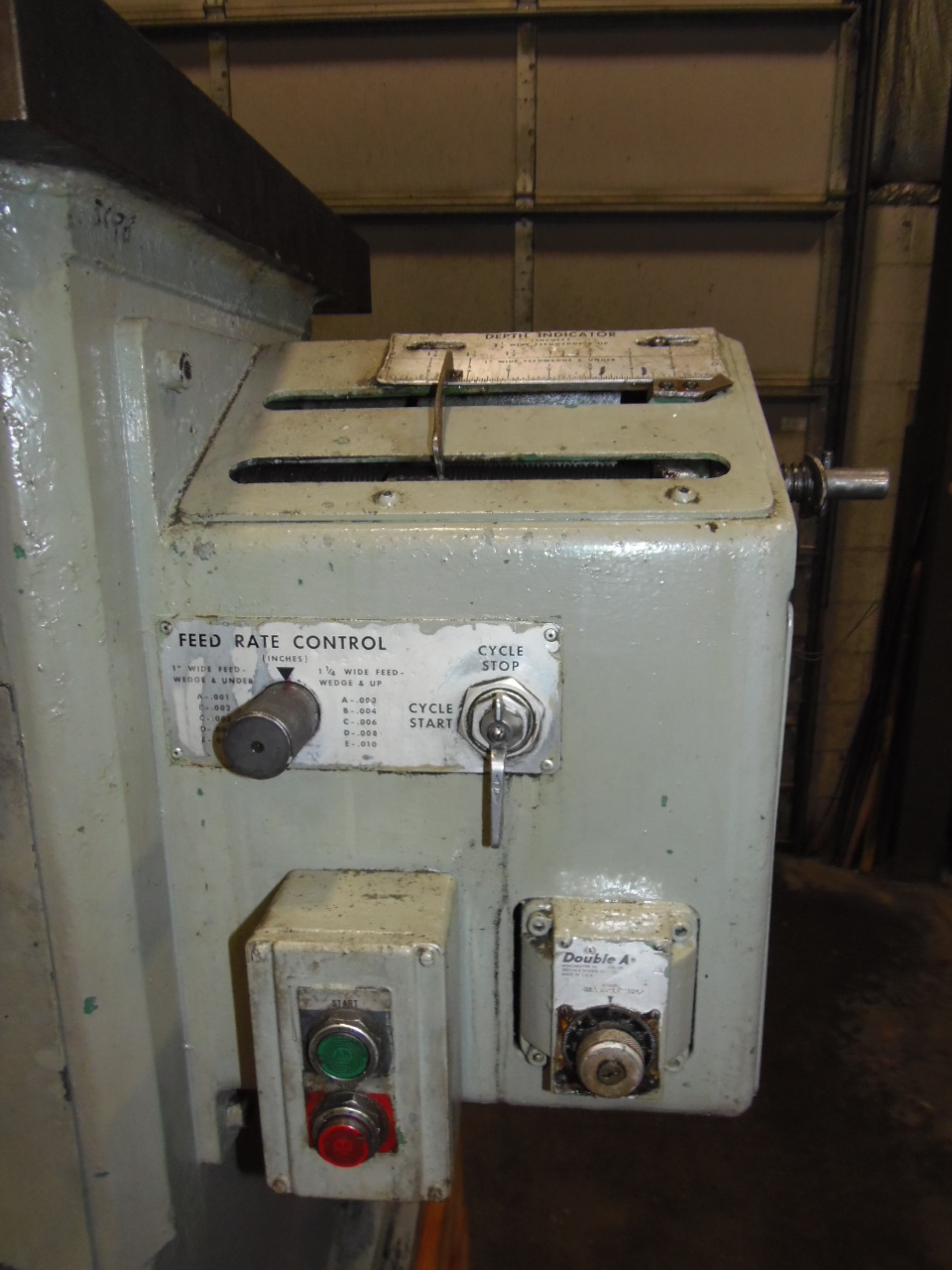

KEY WAY DEPTH INDICATOR
AUTOMATIC HYDRAULIC /MANUAL FEED
HYDRAULIC TOOL RELIEF
CUTTING SPEED CONTROL
FEED RATE CONTROL
CHIP DISCHARGE CHUTE
