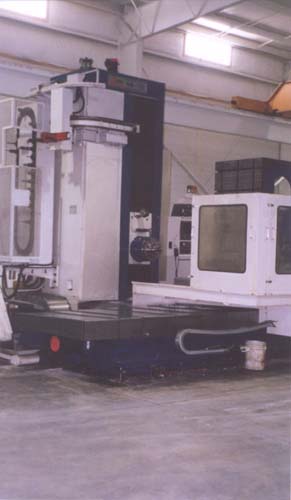

Specifications
Equipped With
GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 2000
TRAVEL: X AXIS (LONGITUDE) 118.1"
Y (SPINDLE VERTICAL) 90.5"
Z (COLUMN TRAVEL) 63"
W (QUILL) 27.6"
TABLE 63" X 70.9"
MAXIMUM TABLE LOAD 33,000 LBS.
TABLE AUTO INDEXING 0.001
(90 DEG. LOCATION PIN)
SPINDLE BORING DIAMETER 5.9"
MAXIMUM SPINDLE SPEED 2000 RPM
SPINDLE DRIVE 3 GEAR TRANSMISSION
SPINDLE DRIVE MOTOR 40/50 HP (CONT./30 MIN.)
SPINDLE TAPER 50 TAPER
RAPID FEED RATE (X, Y, Z AXIS) 393.7 IPM
RAPID FEED RATE (W AXIS) 236.2 IPM
FEED RATE (X, Y, Z, W AXIS) 0-141.7 RPM
FINE FEED (X, Y, Z, W AXIS) M.P.G.
FLOOR SPACE APPROXIMATELY 263.8" X 295"
HEIGHT APPROXIMATELY 187"
WEIGHT APPROXIMATELY 88,000 LBS.
EQUIPPED WITH:
FANUC 16-M CONTROL
40 ATC
CHIP CONVEYOR
SCALES
SPLASH GUARDS
RIGID TAP
COOLANT THRU SPINDLE
