Specifications
Equipped With
GENERAL SPECIFICATIONS:

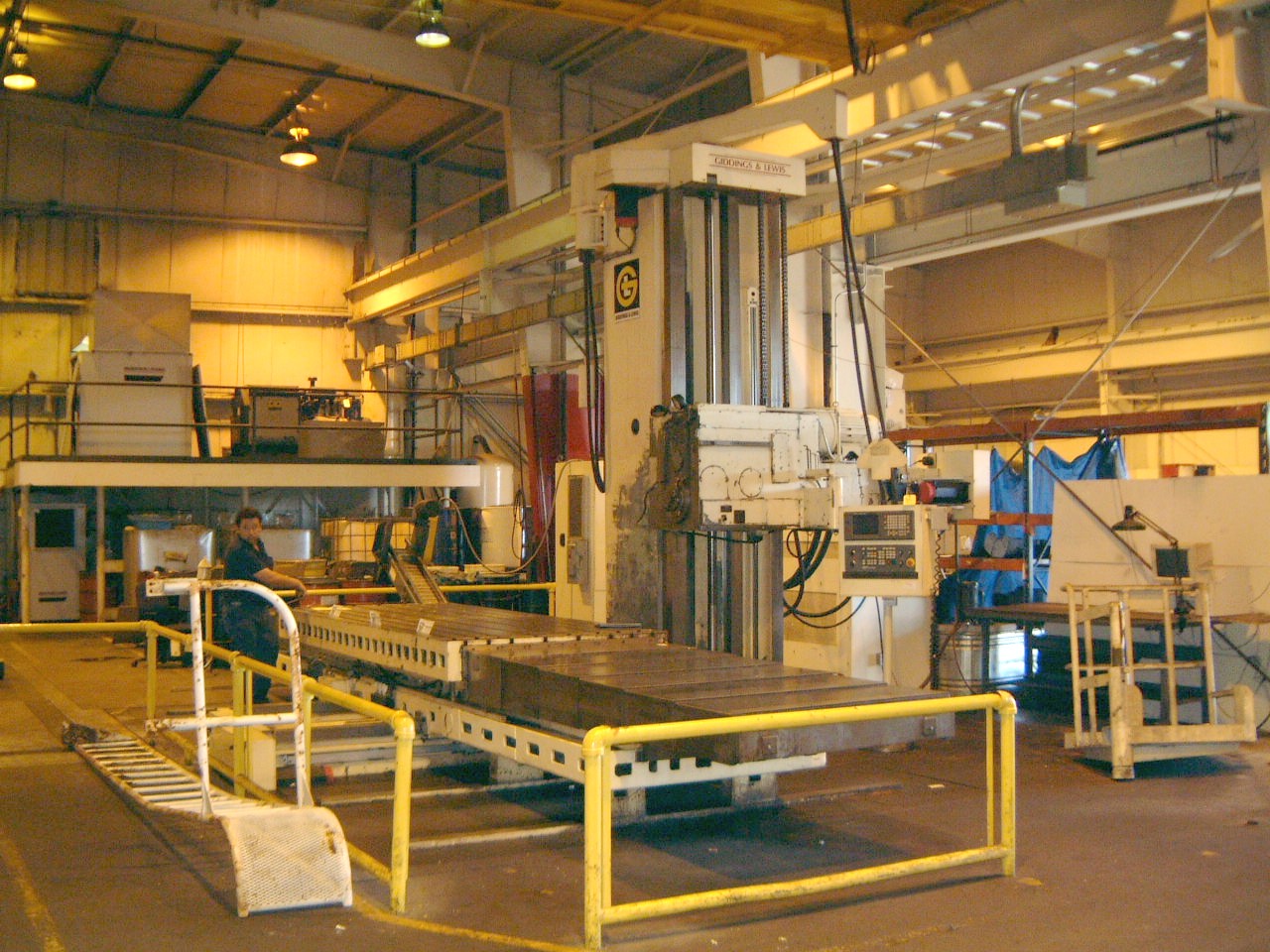

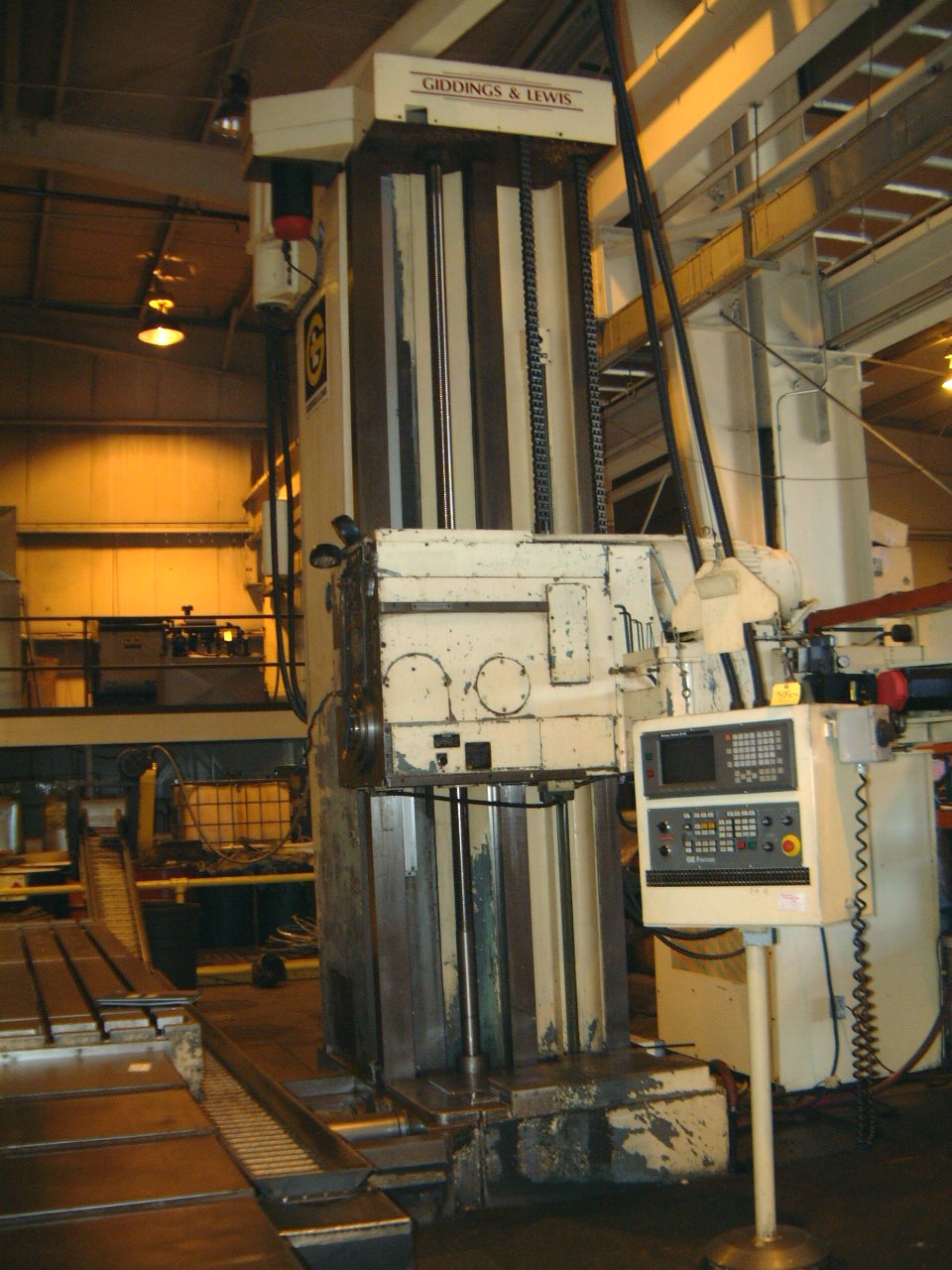

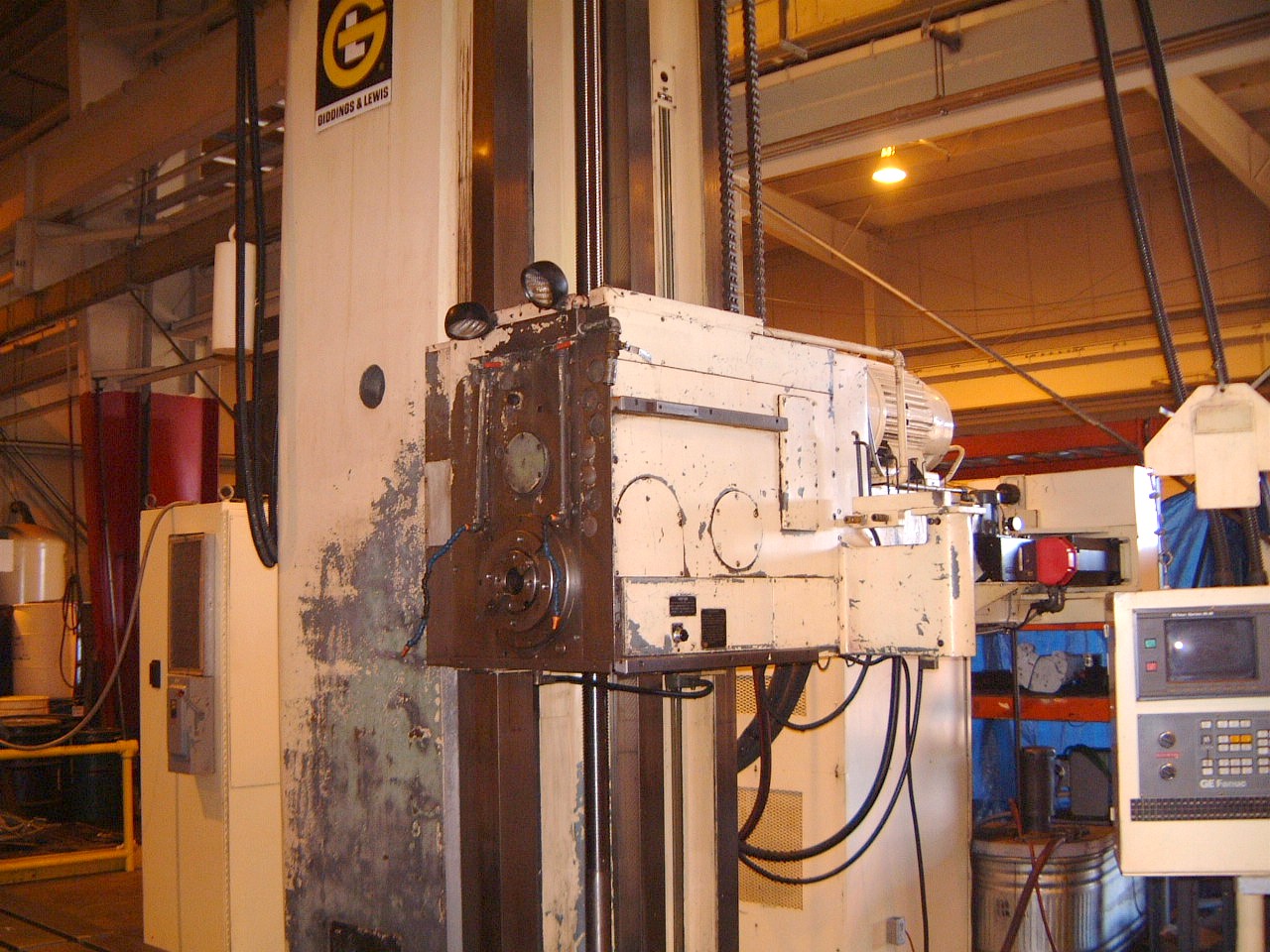

MANUFACTURER GIDDINGS & LEWIS
MODEL 70-H6-T
NEW (APPROX.) 1973
SERIAL # 420-260-73
SPINDLE DIAMETER 6"
TAPER IN SPINDLE #50
Y TRAVEL (VERTICAL HEAD) 96"
X TRAVEL (TABLE CROSS) 132"
W TRAVEL (SADDLE) 70"
Z TRAVEL (SPINDLE) 48"
SPINDLE SPEEDS 5.6 - 1020 RPM
TABLE SIZE 60" x 146"
SPINDLE FEEDS .0007 - .250 IPR
SPINDLE DRIVE MOTOR 40 HP
EQUIPPED WITH:
REBUILT & CNC RETROFIT IN 1993

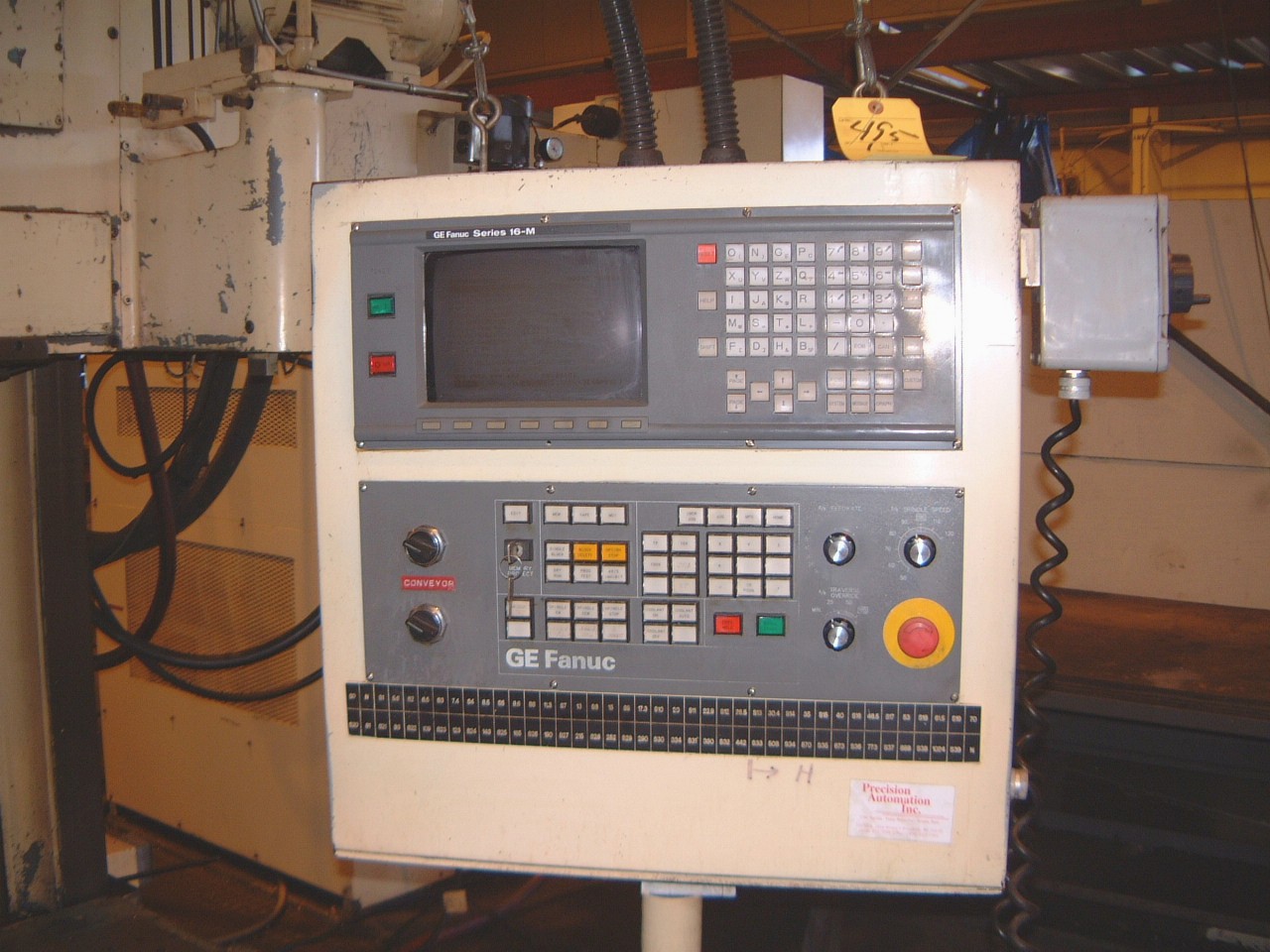

FANUC 16M 4-AXIS CNC CONTROL PENDANT MOUNTED
INDEPENDANT SERVO DRIVES & BALL SCREWS
HARDENED WAYS ON ALL AXES
3 WAY COLUMN
POWER DRAW BAR
TELESCOPING WAY COVERS
DOUBLE OUTRIGGER TABLE SUPPORTS
CHIP CONVEYOR
POWER DRAW BAR
