GENERAL SPECIFICATIONS:
MANUFACTURER............................... GIDDING & LEWIS
MODEL...................................... MC60
SERIAL..................................... 450-239
NEW........................................ 1989 INSTALLED 1990
SPINDLE DIAMETER........................... 6"
TAPER IN SPINDLE........................... CAT 50
Y-AXIS (VERT. TRAVEL OF HEADSTOCK)......... 59"
X-AXIS (PALLET CROSS TRAVEL)............... 72"
W-AXIS..................................... 51"
Z-AXIS (SPINDLE TRAVEL).................... 36"
SPINDLE SPEEDS (4 GEAR RANGES)............. 12 - 2500 RPM
PALLET SIZE (3)............................ 48" x 72"
PALLET INDEX .............................. 1 DEGREE (360 POSITIONS)
AUTOMATIC TOOL CHANGER..................... 120 STATION
ROTARY TABLE WEIGHT CAPACITY............... 25,000 LBS.
RAPID TRAVERSE RATE........................ 300 IPM
ELECTRICS.................................. 440/3/60
SPINDLE DRIVE MOTOR........................ 40 HP/37 KW
EQUIPPED WITH:

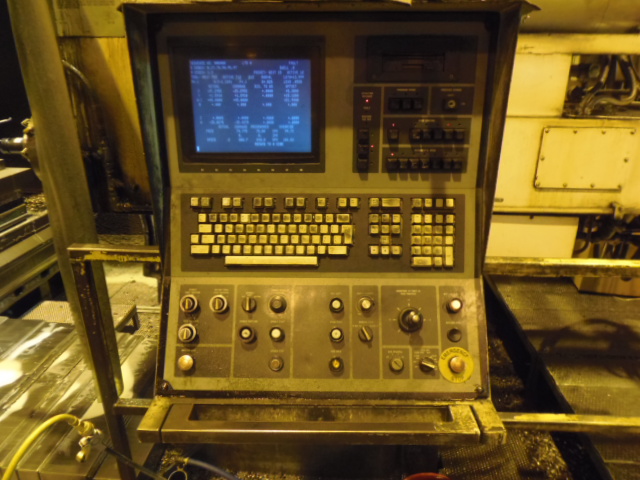

G & L 8000M CNC CONTROL
COOLANT THRU SPINDLE
HARDENED REPLACEABLE WAYS
WAY COVERS

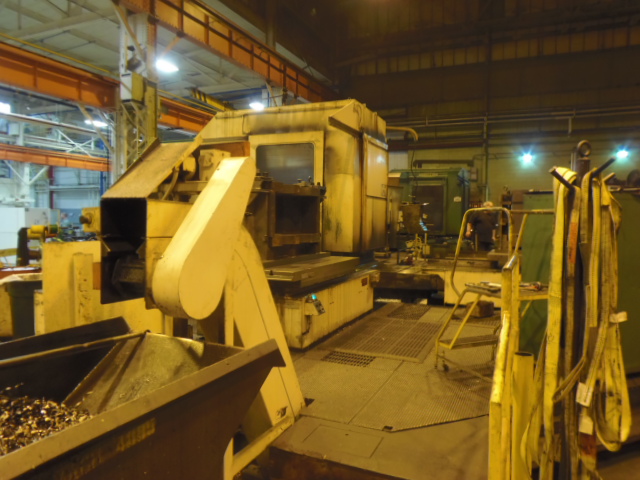

CHIP CONVEYOR
COOLANT ENCLOSURES
