Specifications
Equipped With
GENERAL SPECIFICATIONS
MANUFACTURER............................SAMCHULLY
MODEL...................................HS-06
OUTSIDE DIAMETER........................6.5"
MAX. RPM................................6000
MOUNTING TYPE...........................A2
BORE....................................1.77"
FMAX...................................22KN
ES MAX.................................57KN
NMAX....................................6000 RPM
MASS......................................11.9 KG
• 3-jaw, wedge-type chuck with large bore
• Powerful gripping force and high turning speed
• Interchangeable with Kitagawa B200 Series
power chucks
• Manufactured from high grade alloy steel
• All sliding surfaces are hardened and
ground for accuracy and repeatability
Known worldwide for excellent quality, Samchully produces power chucks, hydraulic cylinders and scroll chucks.
Samchully Machinery Co., Ltd. has achieved and maintains its' ISO 9001, and CE Mark certifications. Formerly
known as Samwoo / Kitagawa, Samchully was started in association with Kitagawa Japan in 1975. Samchully's
relationship with Kitagawa has morphed over the years through contractual agreements, and OEM work for Kitagawa
Japan. Samchully product is not a copy of Kitagawa product, but the same in the majority of cases. Power chucks
and hydraulic cylinders for CNC lathes manufactured by Samchully are standard equipment in products made by
Hyundai-KIA and Doosan (Korea's top machine tools manufacturers). Samchully is also a major supplier of chucking
systems to HAAS Automation, Inc.
• Samchully HS series chucks are interchangeable with Kitagawa B200 series chucks

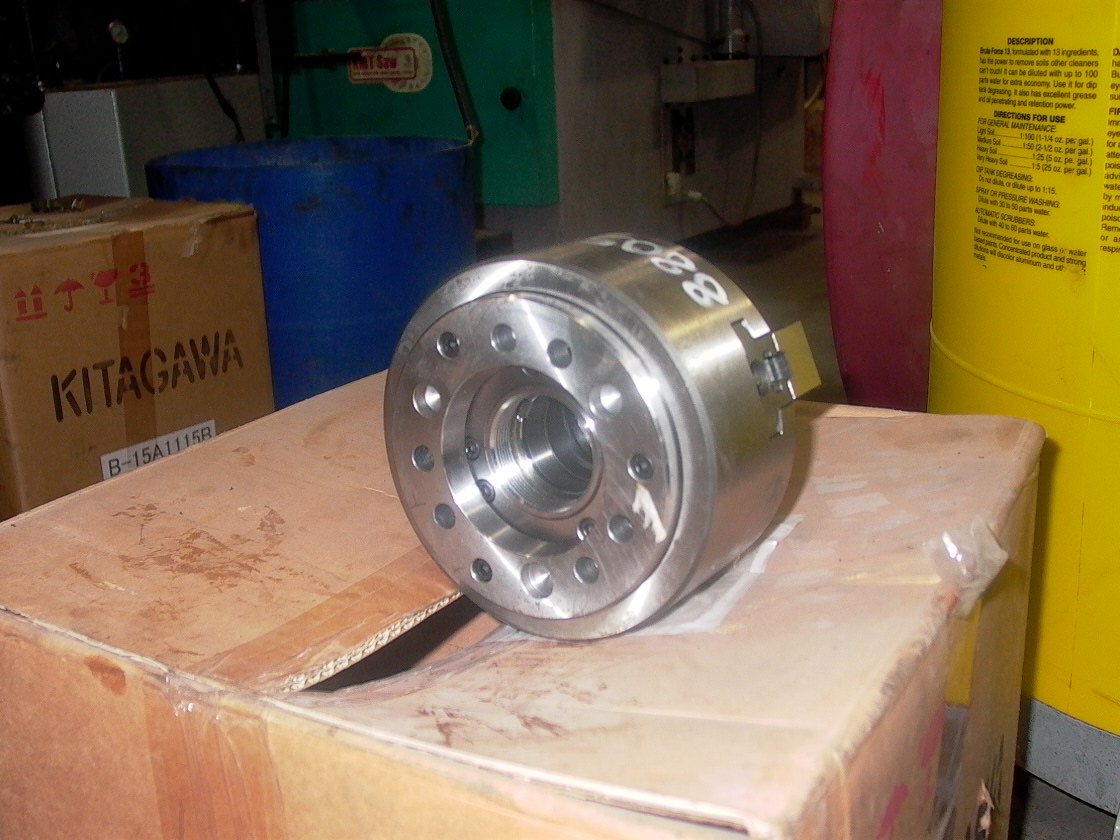

CAME OFF OF A DAEWOO CNC LATHE. NEVER USED.
