Specifications
Equipped With

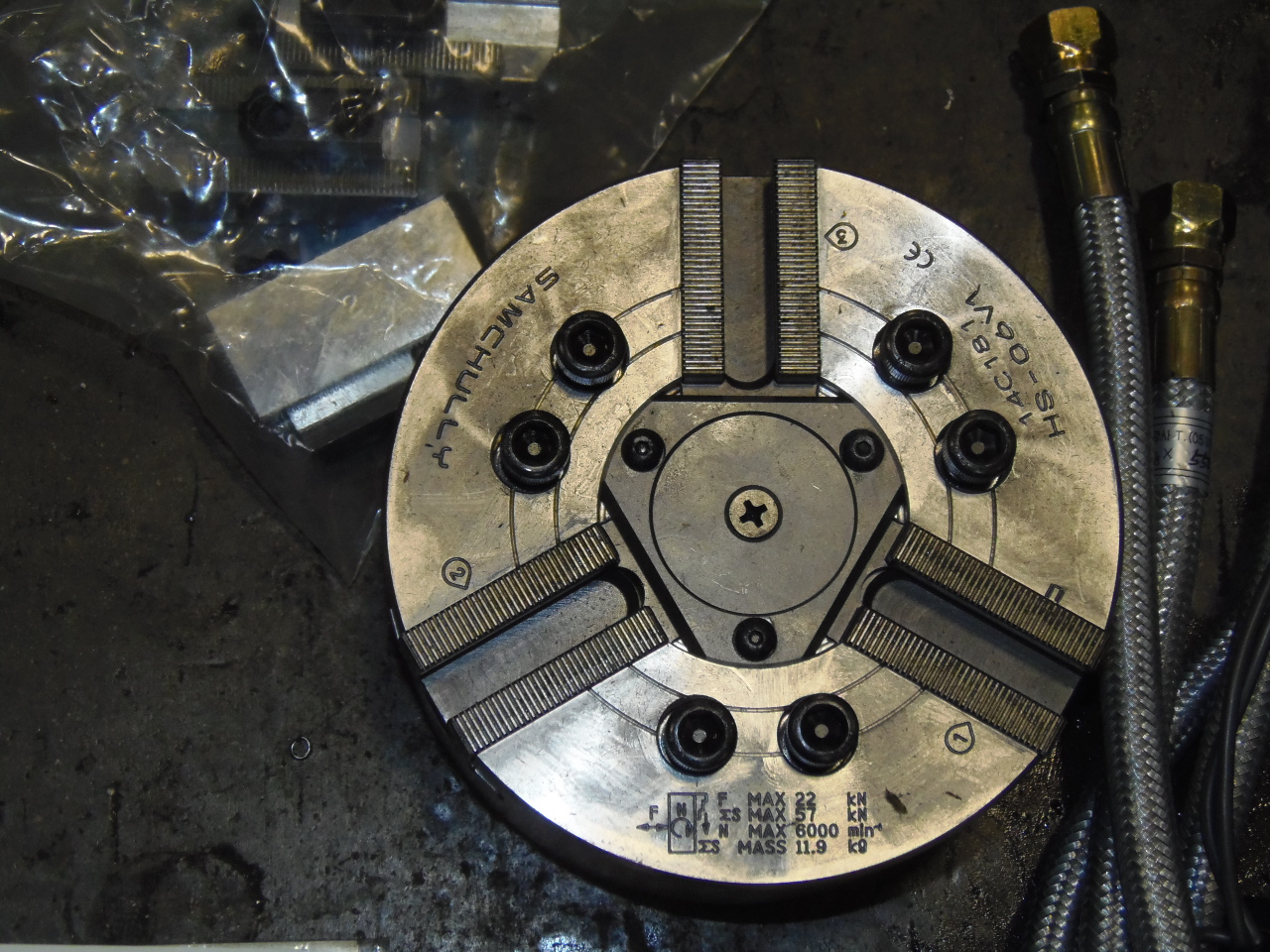

GENERAL SPECIFICATIONS:
MAKE.......................... SAMCHULLY

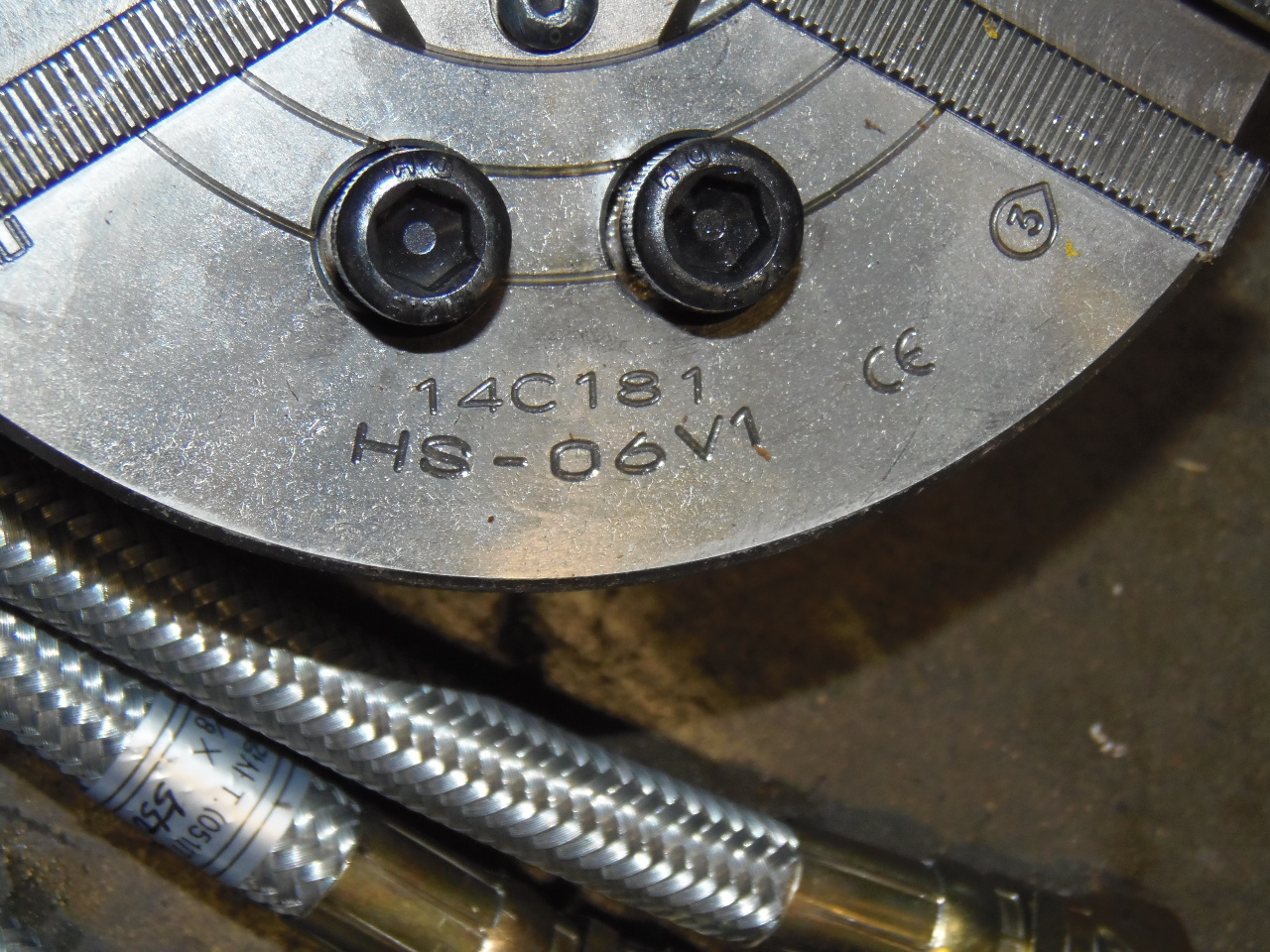

MODEL......................... HS-06V1
SERIAL NUMBER................. 14C181

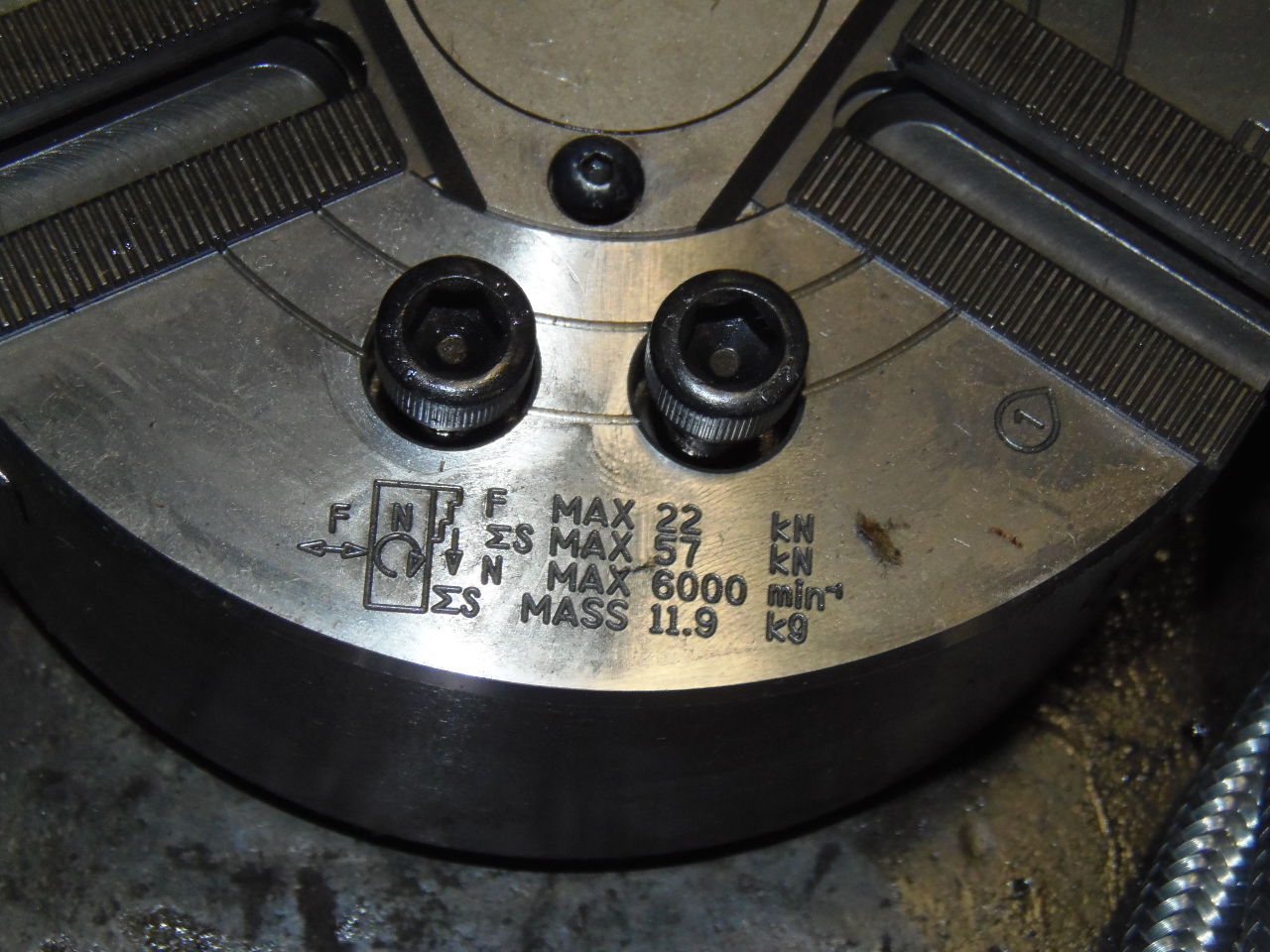

CHUCK DIAMETER................ 6.5" (169 MM)
THRU HOLD DIAMETER............ 1.75" (46 MM)
GRIP DIAMETER MAX............. 6.5" (169 MM)
GRIP DIAMETER MIN............. 0.590" (15 MM)
JAW STROKE.................... 0.216" (5.5 MM)
PLUNGER STROKE................ .472" (12 MM)
OPEN CENTER................... 1.75" (45 MM)
STANDARD SOFT JAW HEIGHT...... 1.14" (29 MM)
MAX RPM OF CHUCK.............. 6000 RPM
KITAGAWA MODEL #.............. B-206

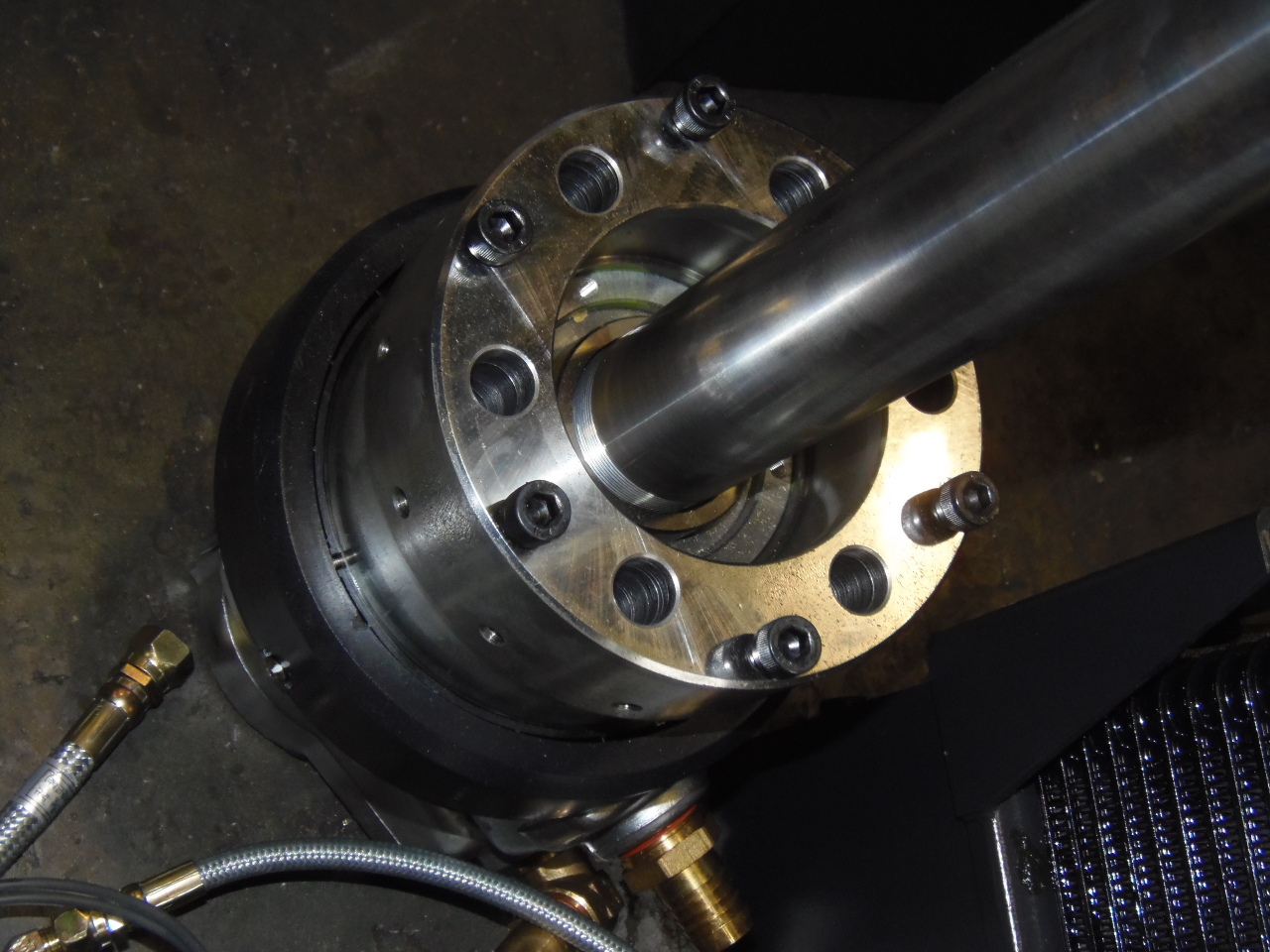

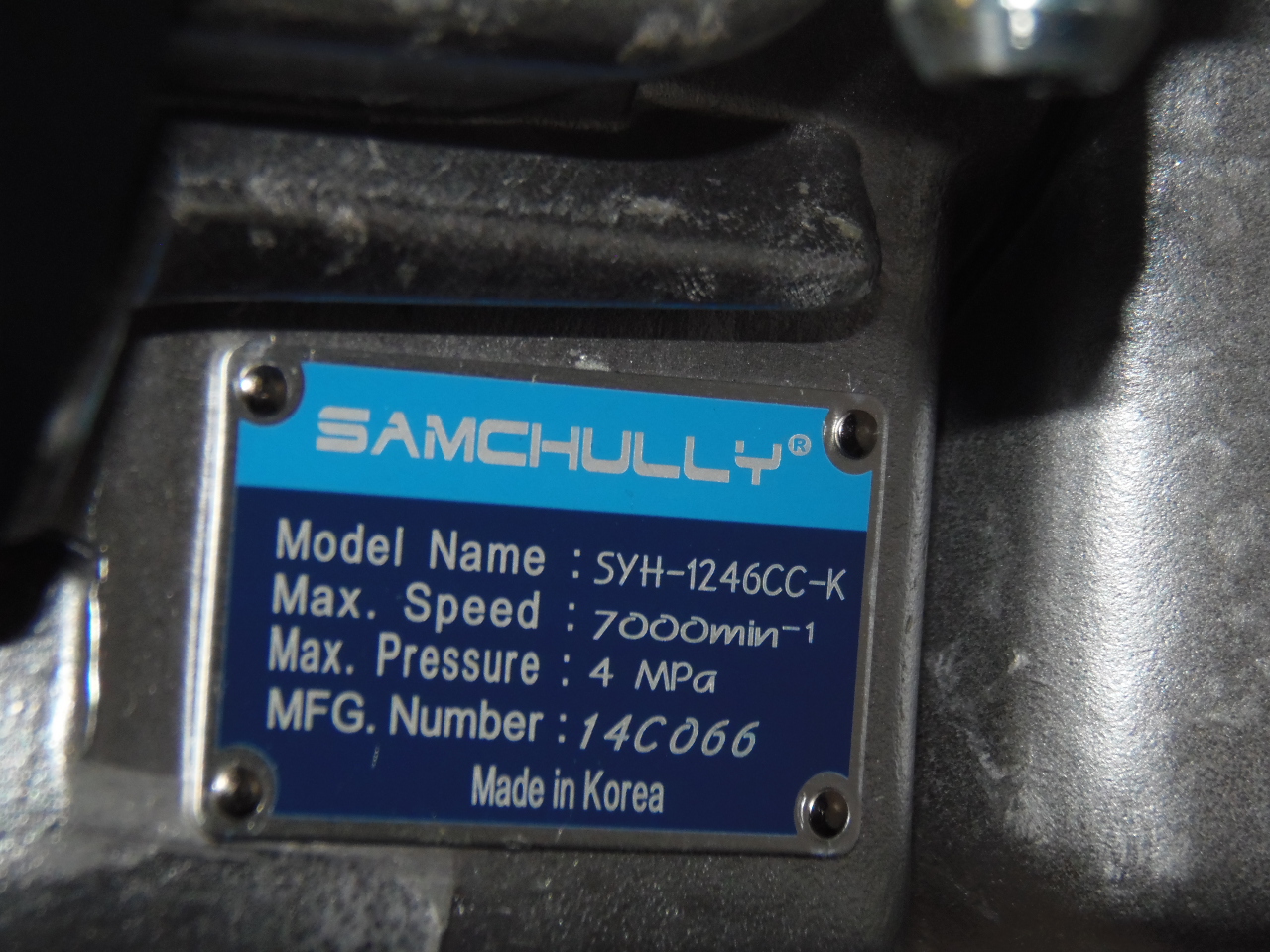

HYDRAULIC CYLINDER (ACTUATOR)
MAKE.......................... SAMCHULLY
MODEL......................... SYH-1246CC-K
SERIAL NUMBER................. 14C066
MAX. SPEED OF CYLINDER........ 7000 RPM
MAX. PRESSURE................. 4 MPa

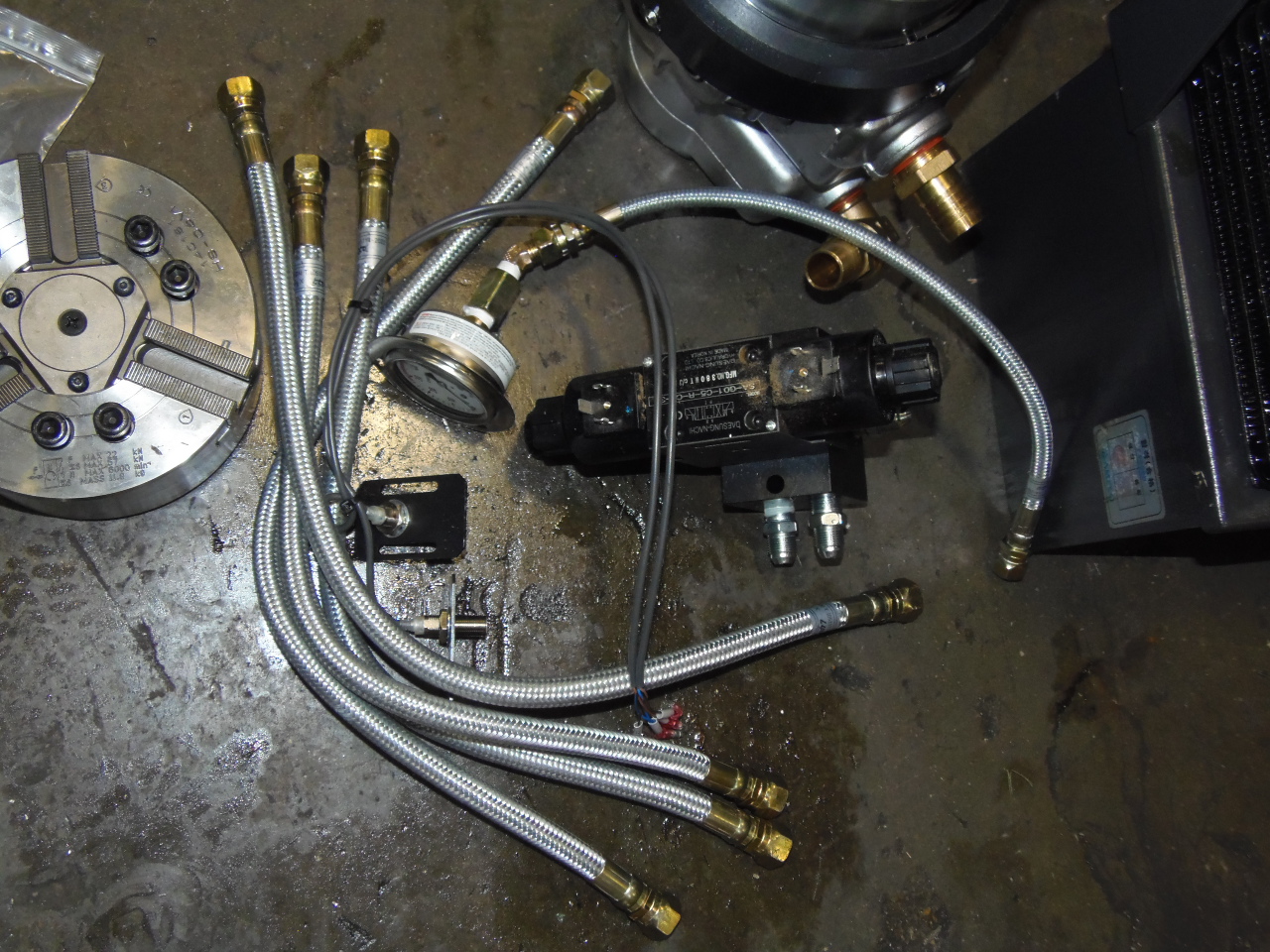

EQUIPPED WITH:
SOFT JAWS
DRAW TUBE: 2" OD -- 1.75" ID

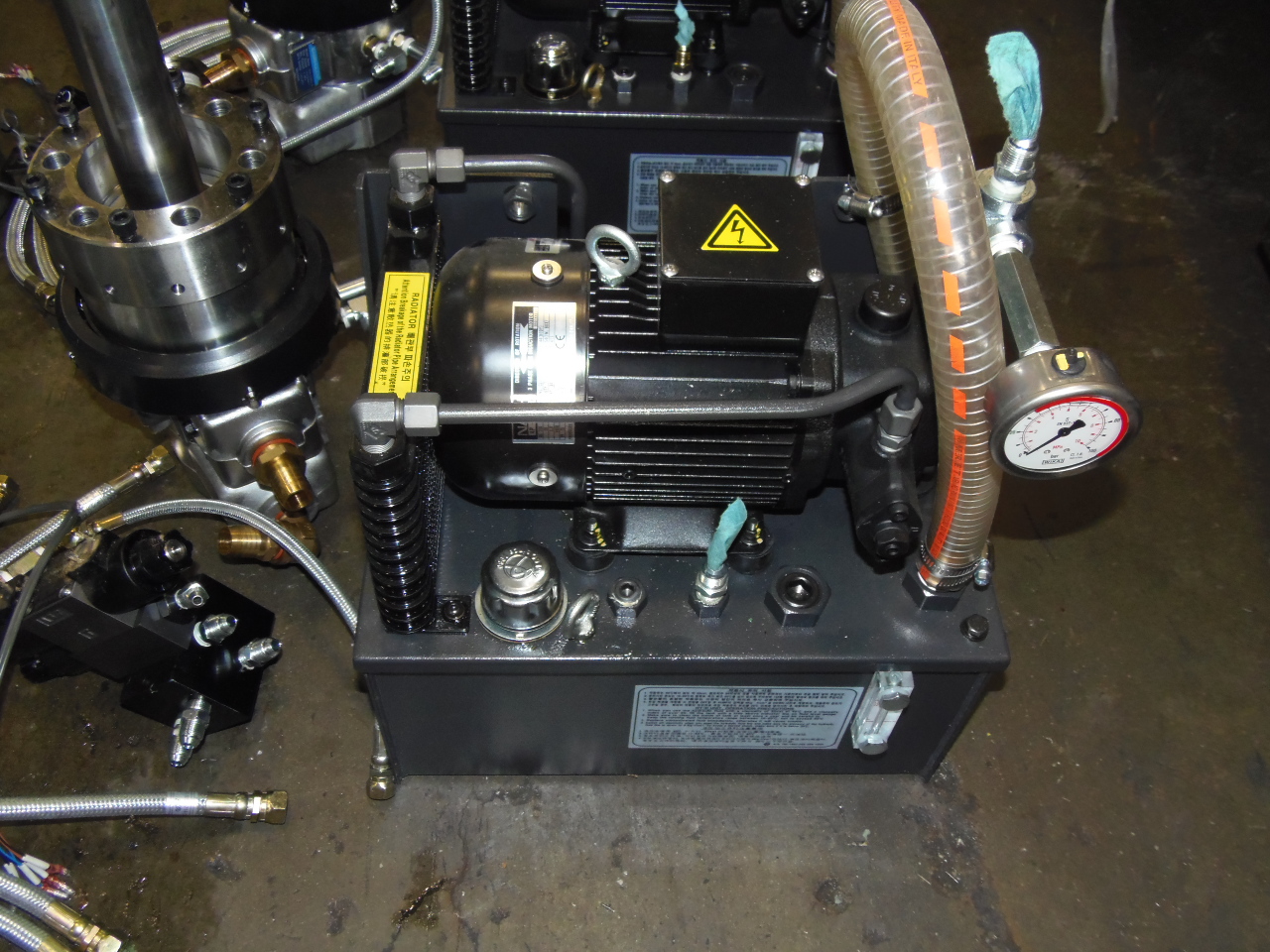

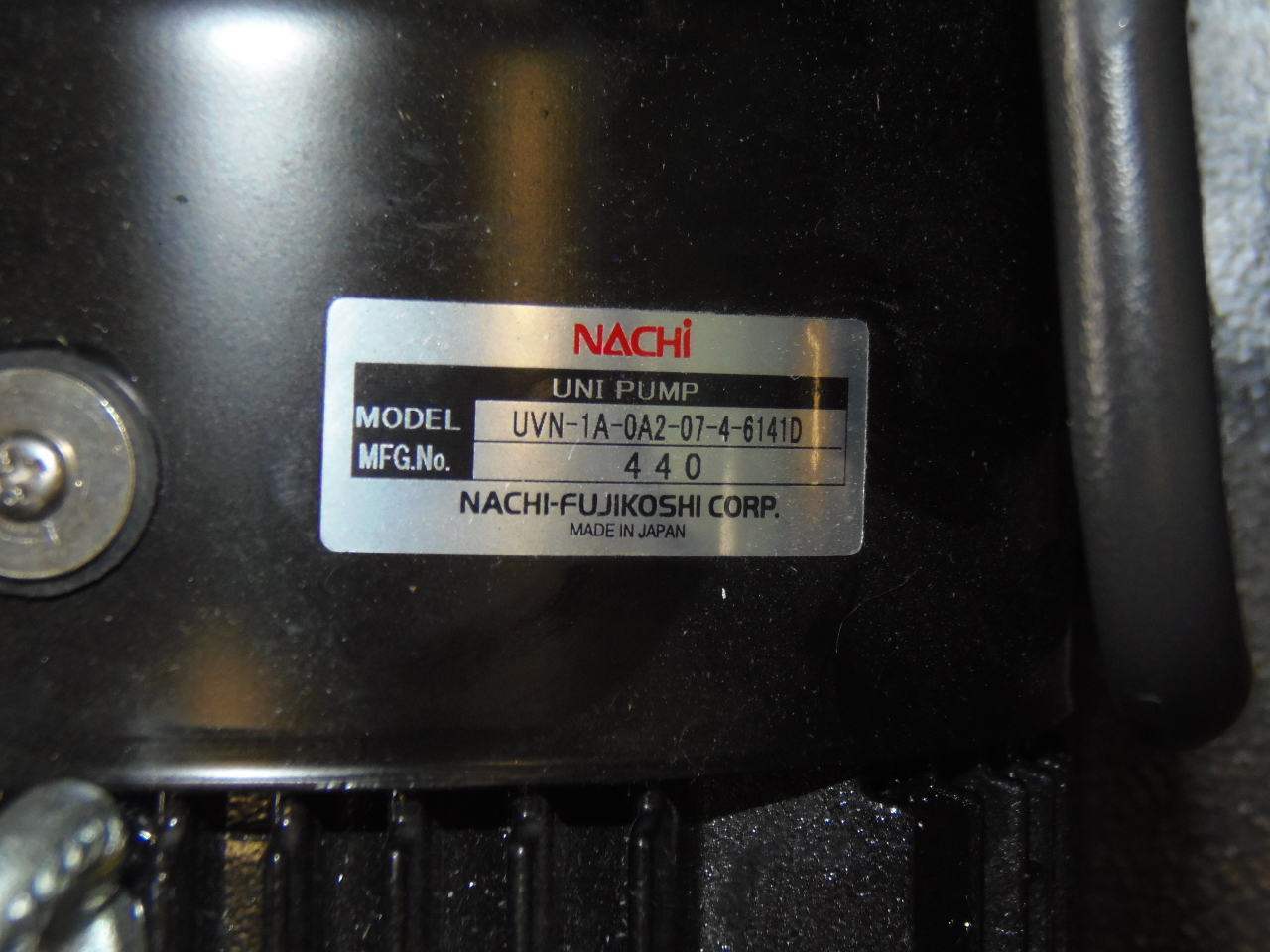

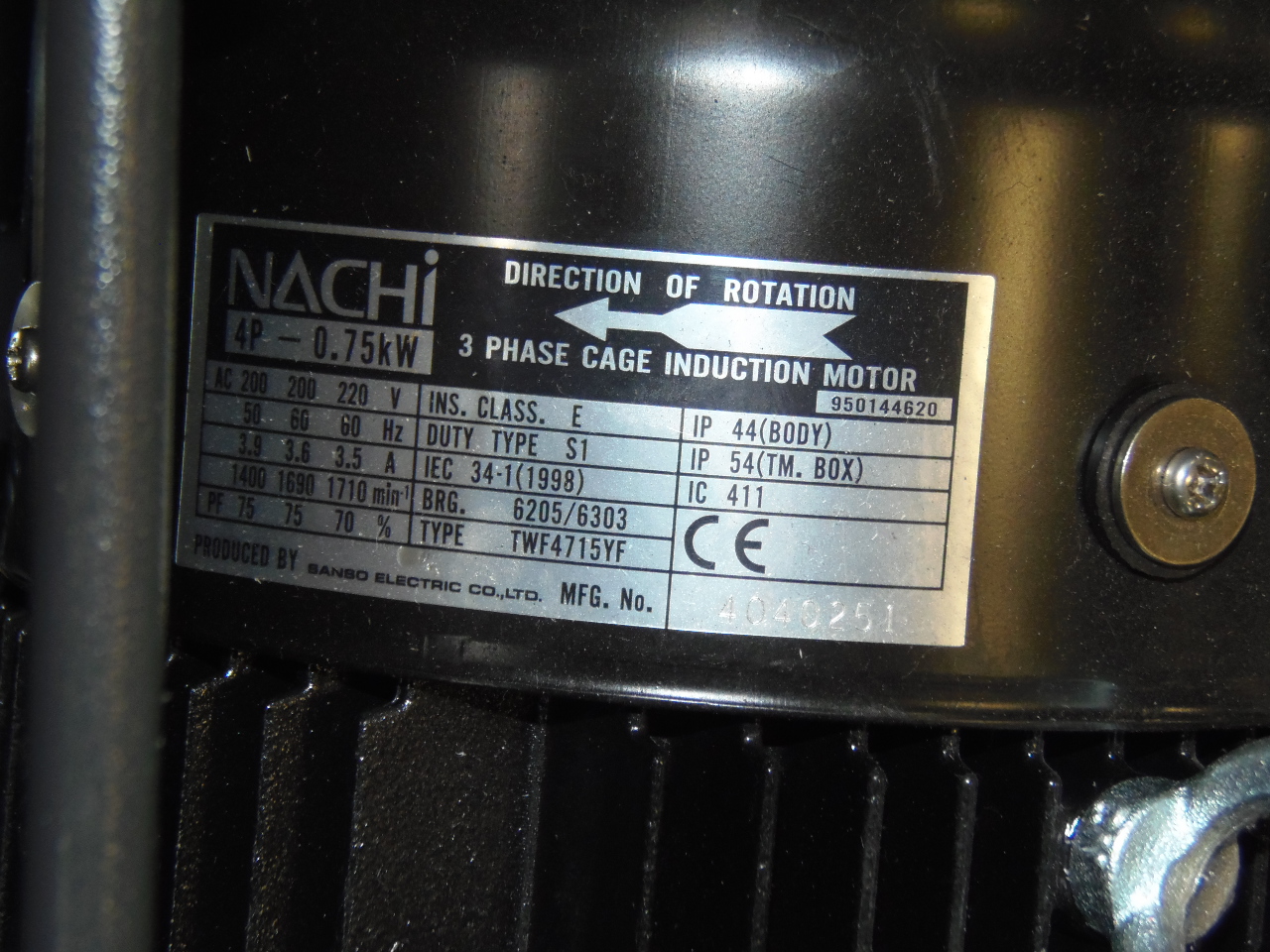

HYDRAULIC PUMP
UNUSED CAME OFF A KIA 450 CNC LATHE
SPECIFICATIONS SUBJECT TO VERIFICATION
