Specifications
Equipped With
GENERAL SPECIFICATIONS:
Manufacturer.......................... SCHIESS
Model................................. BFT160T
Age (Year)............................ 1980 RETRO 1990
Spindle size.......................... 6.375" Diameter
Spindle Taper......................... NMTB 50
Spindle Travel........................ 24"
Spindle Motor......................... 40 HP
Spindle Speeds........................ 3 - 1180 RPM
Vertical Headstock Travel............. 78.74"

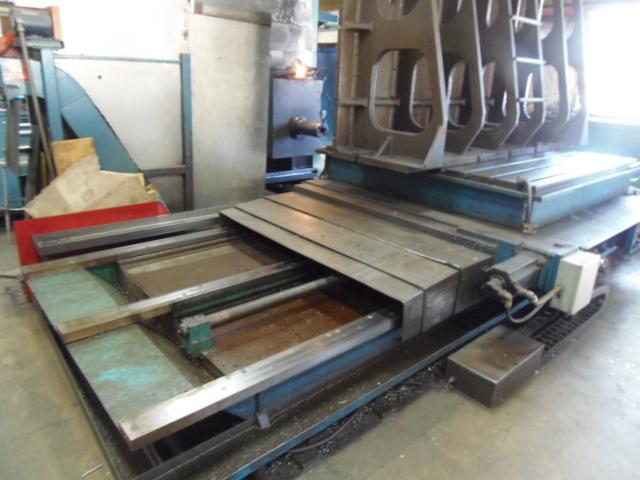

Built-in Rotary Table Size............ 78.74" x 78.74"
Table Indexing........................ .001 positions
Table Capacity........................ 40,000 lbs
Cross Travel.......................... 110.23"
Column In feed (z axis)............... 48.03"
Rapids X,Z............................ 120"/Min.
Rapids Y.............................. 150"/Min
Machine weight........................ 33,000 lbs

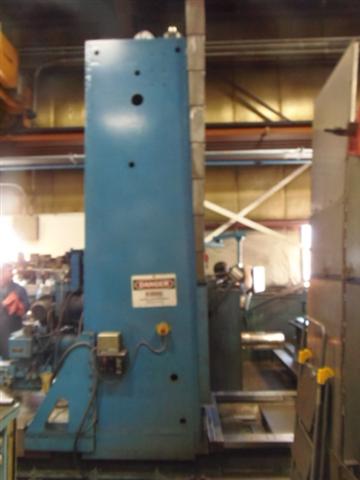

Column Height......................... 13.5'
INSPECT UNDER POWER
EQUIPPED WITH:

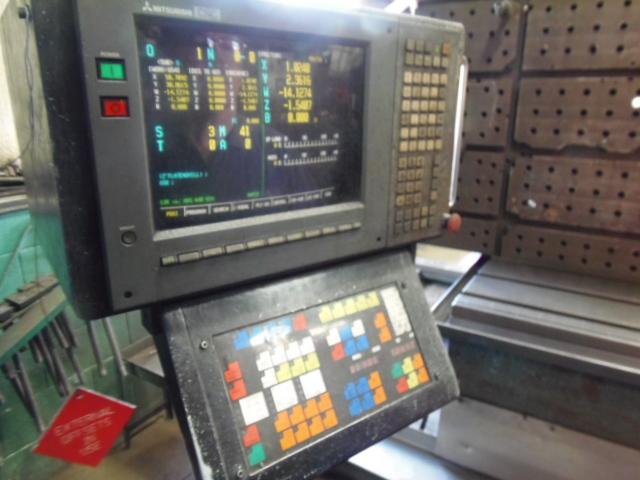

Mitsubishi 330 cnc control new 1990
New servo motors 1990
Built in B-axis rotary table
Power draw bar

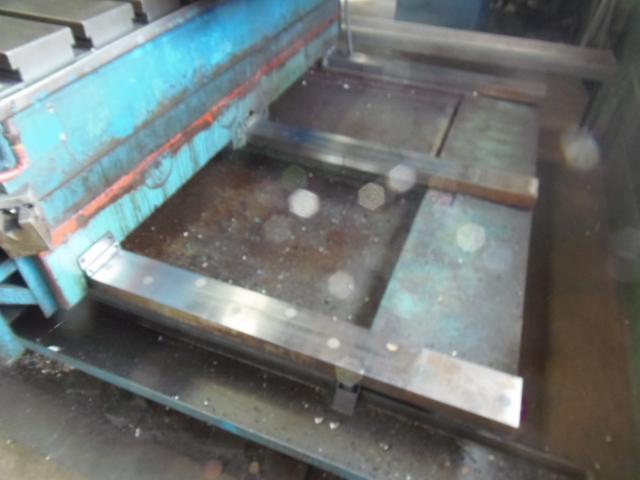

Telescoping steel way covers
Renishaw Probe Ready
Pit not required
