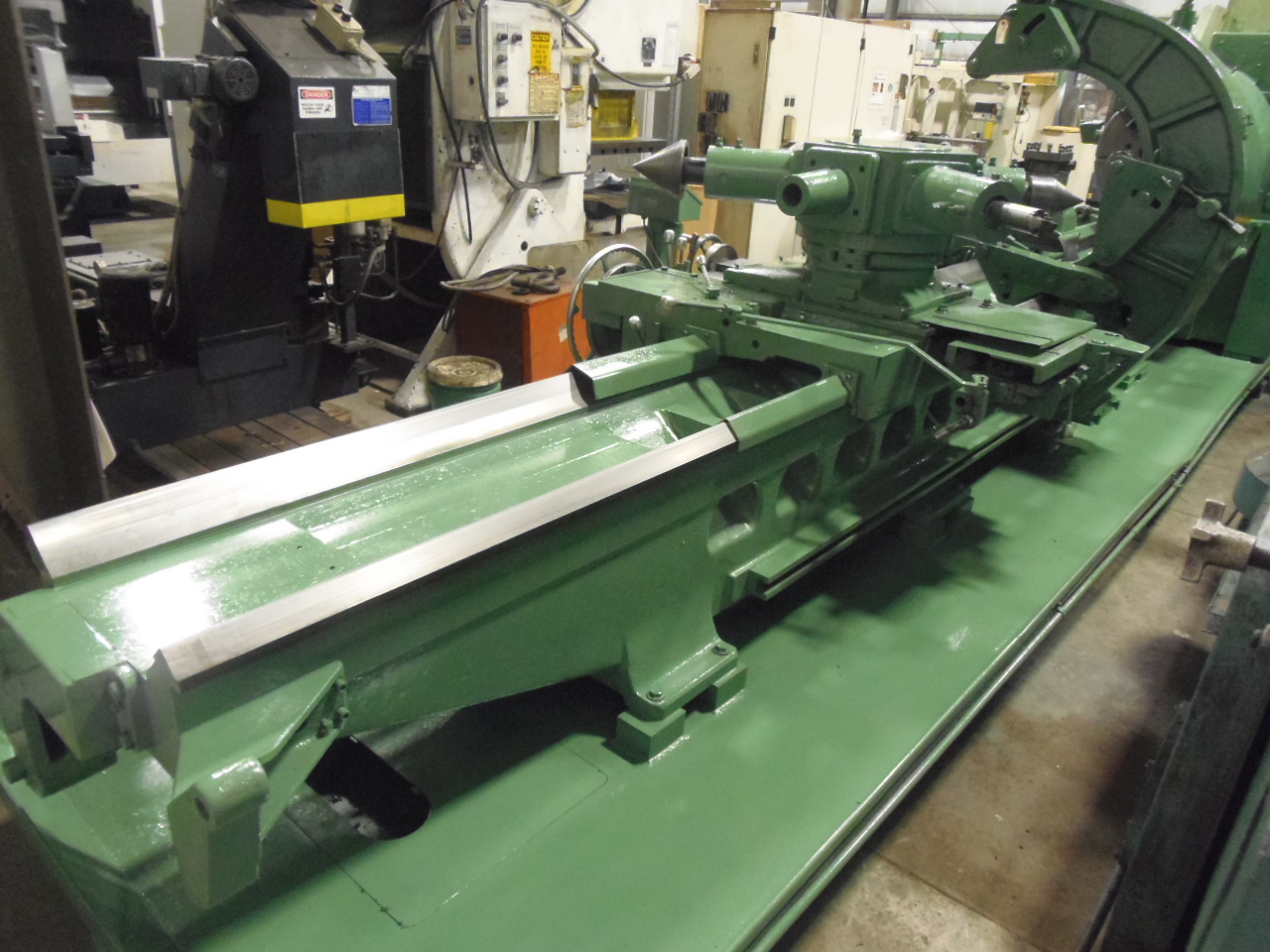

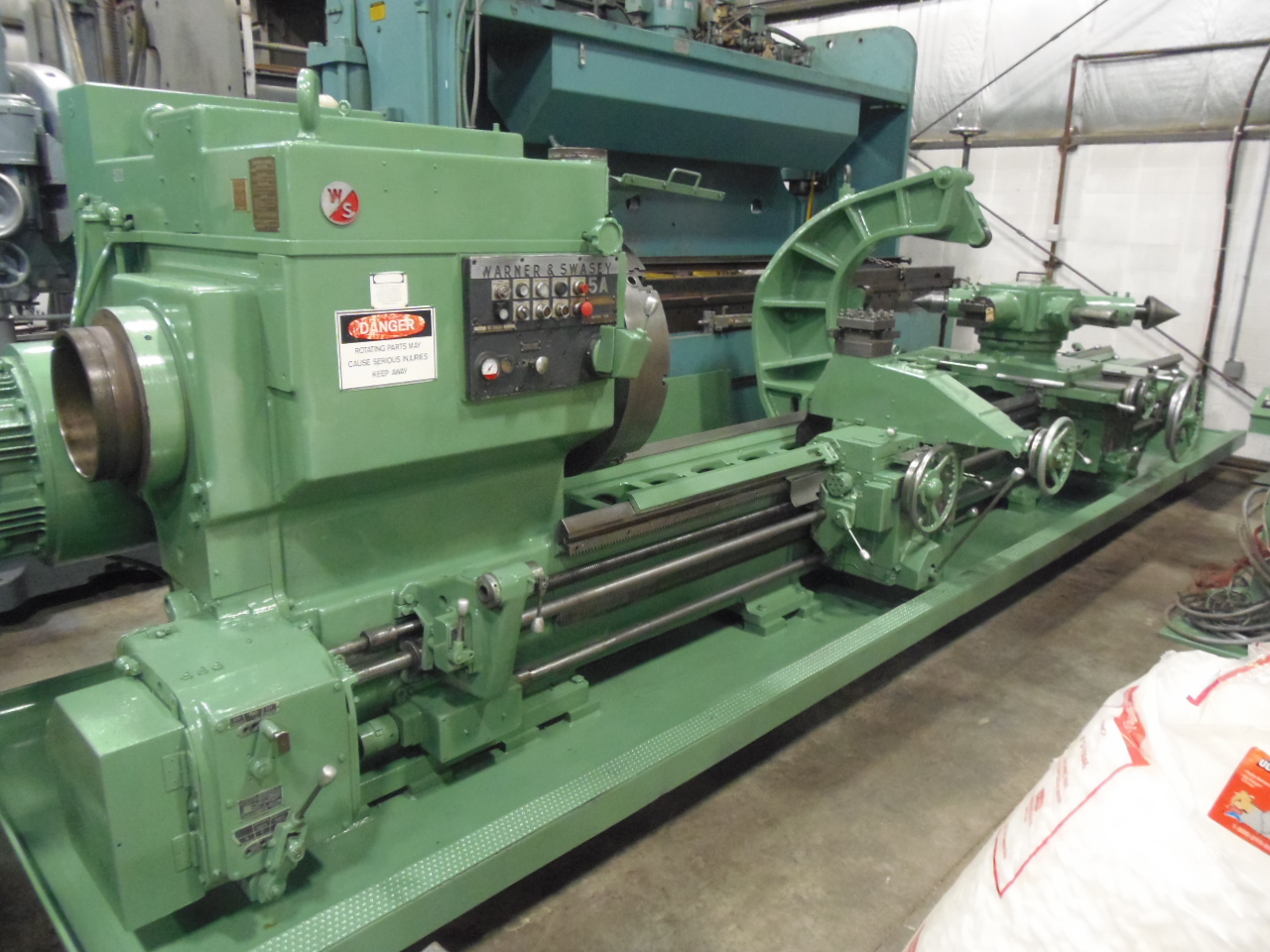

GENERAL SPECIFICATIONS:
MANUFACTURER.......................... WARNER & SWASEY
MODEL................................. 5A M-3600
LOT................................... 861
SERIAL #.............................. 2843499
NEW .................................. 1981

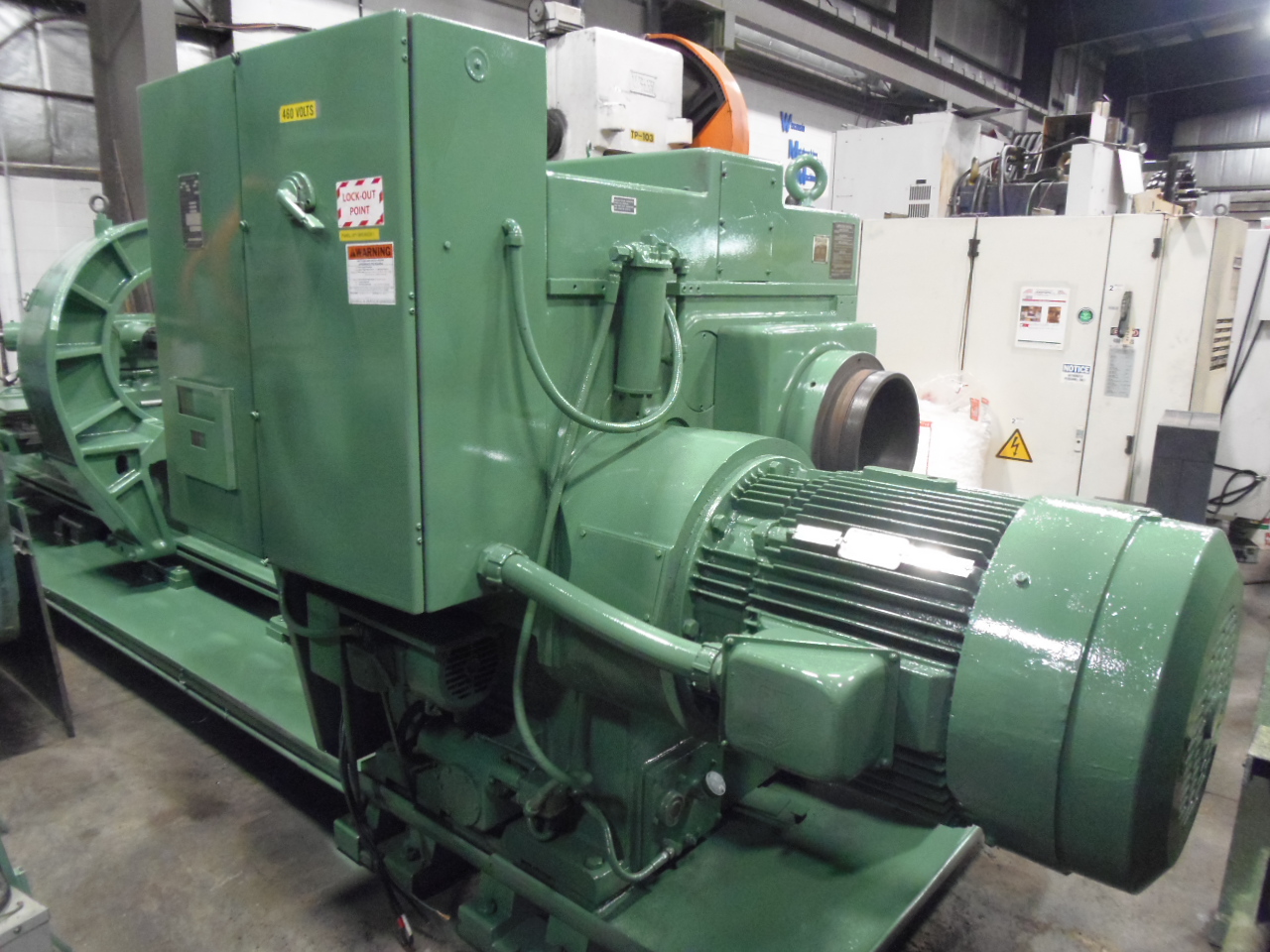

HORSEPOWER
HIGH............................... 75
LOW................................ 35.5

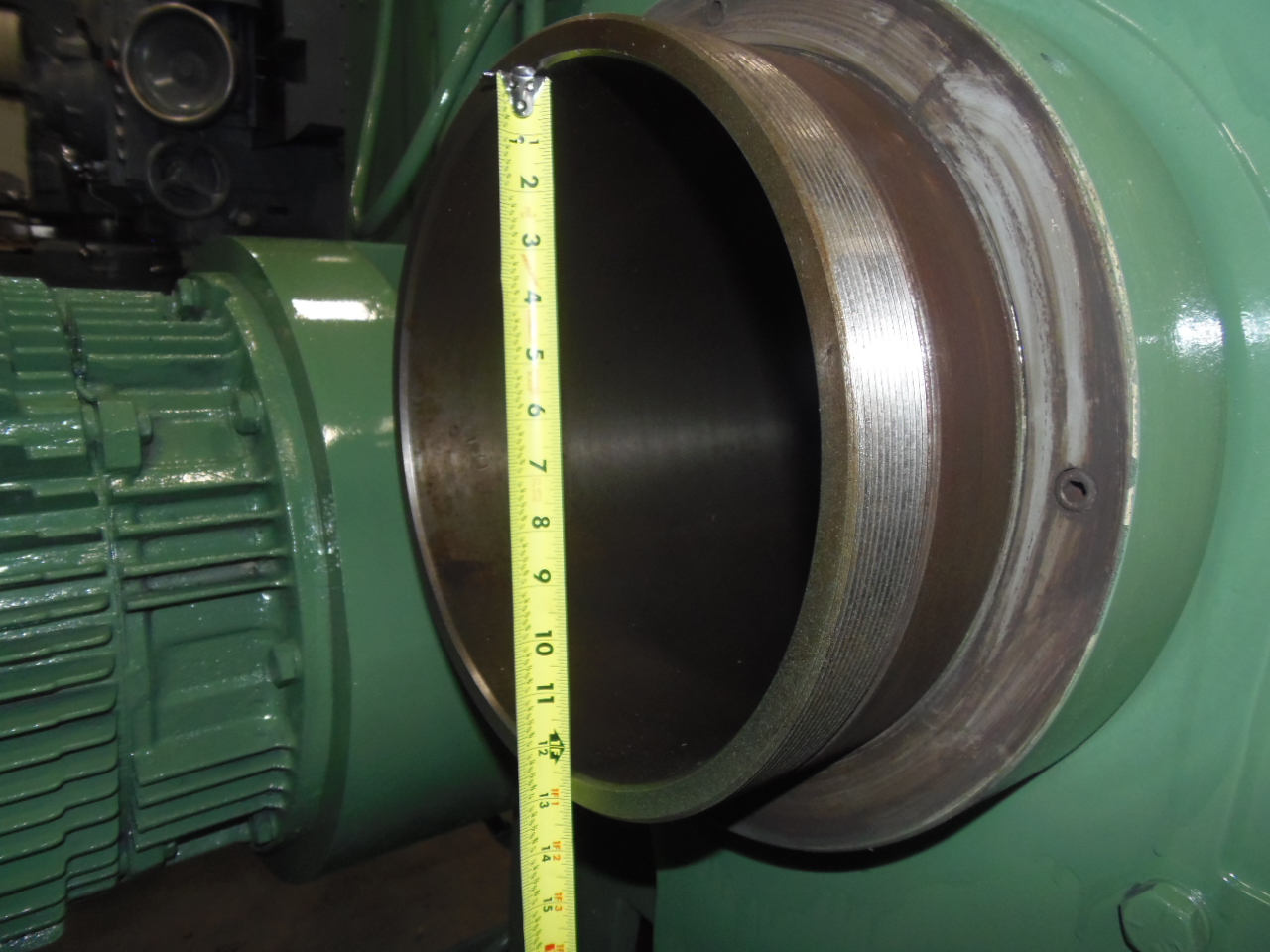

SPINDLE BORE SIZE..................... 12-1/2"

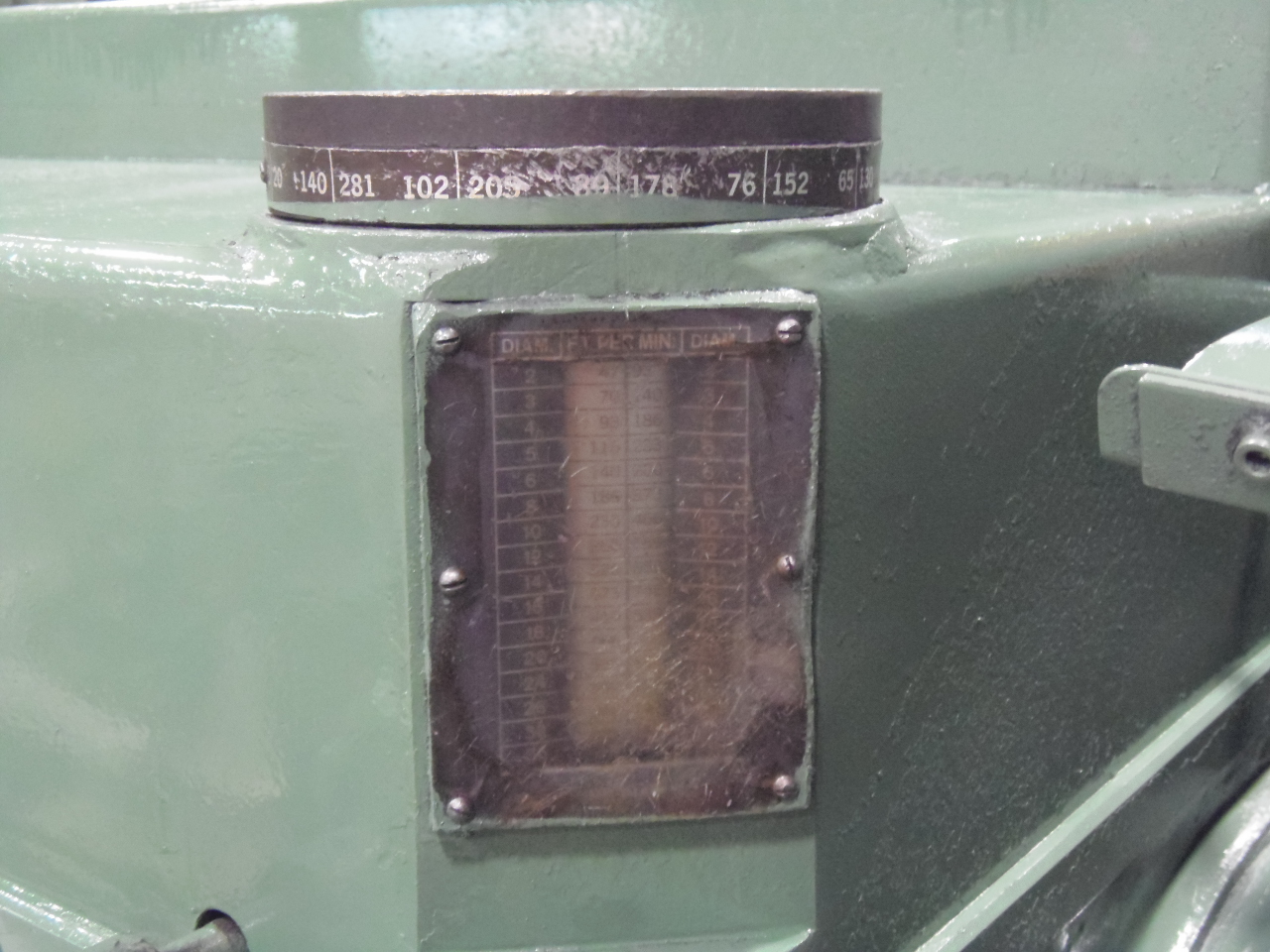

SPINDLE SPEED......................... 10 - 281 RPM

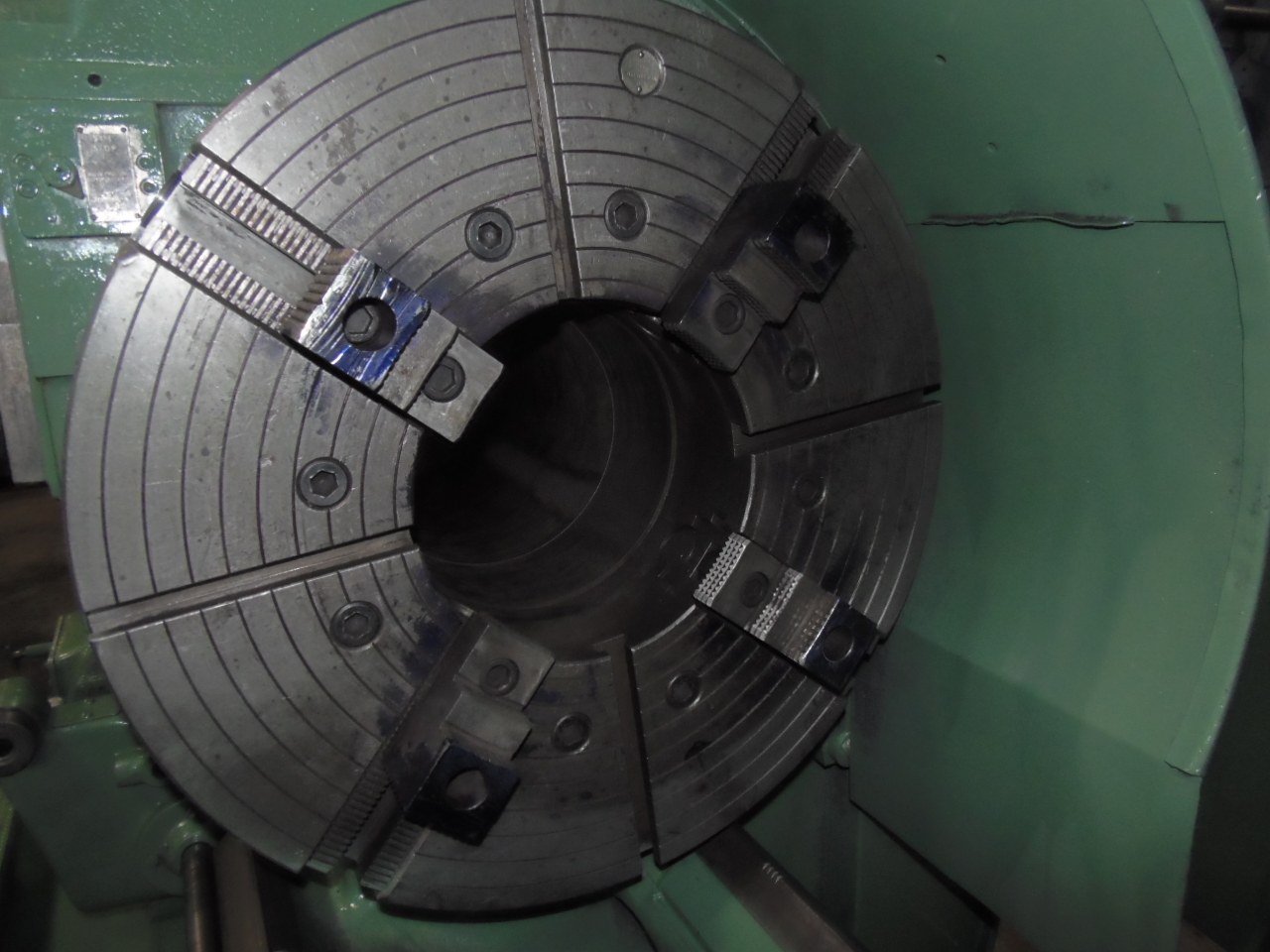

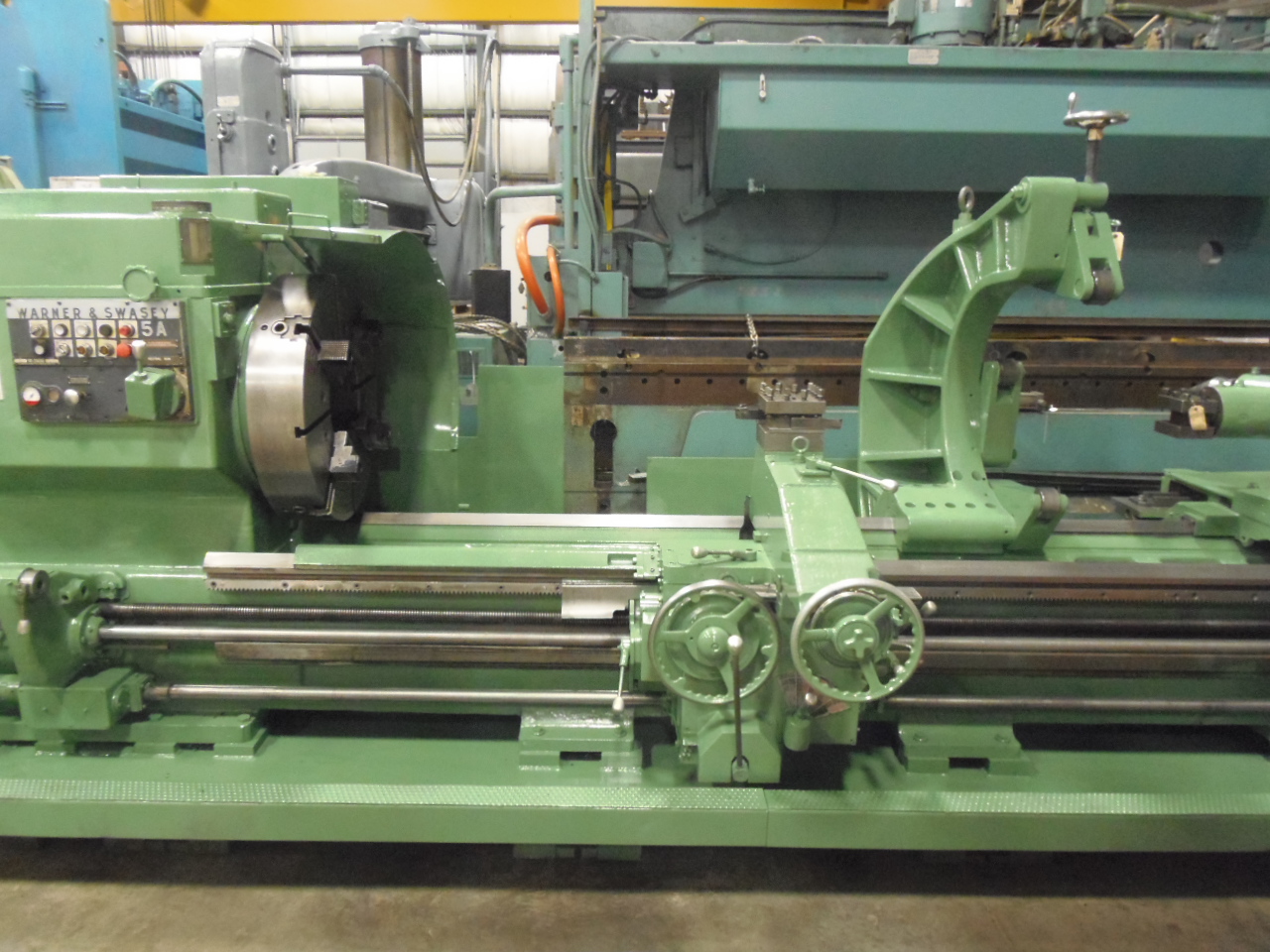

CHUCK................................. 32" CUSHMAN 4 JAW
MAXIMUM SIZE OF TOOL HOLES............ 6.25"
SWING CAPACITIES:
CARRIAGE........................... 32.75"
WAYS............................... 36.5"
LENGTH CAPACITIES:
MAX DISTANCE SPINDLE TO TURRET FACE... 194"
CROSS TRAVEL ON CARRIAGE.............. 21"
MAX TURNING LENGTH.................... 170"
CROSS TRAVEL ON HEXAGON TURRET........ 14"
WEIGHT APPROXIMATELY.................. 40,000 LBS
APPORX. MACHINE DIMENSIONS............ 28' X 8' X 7'

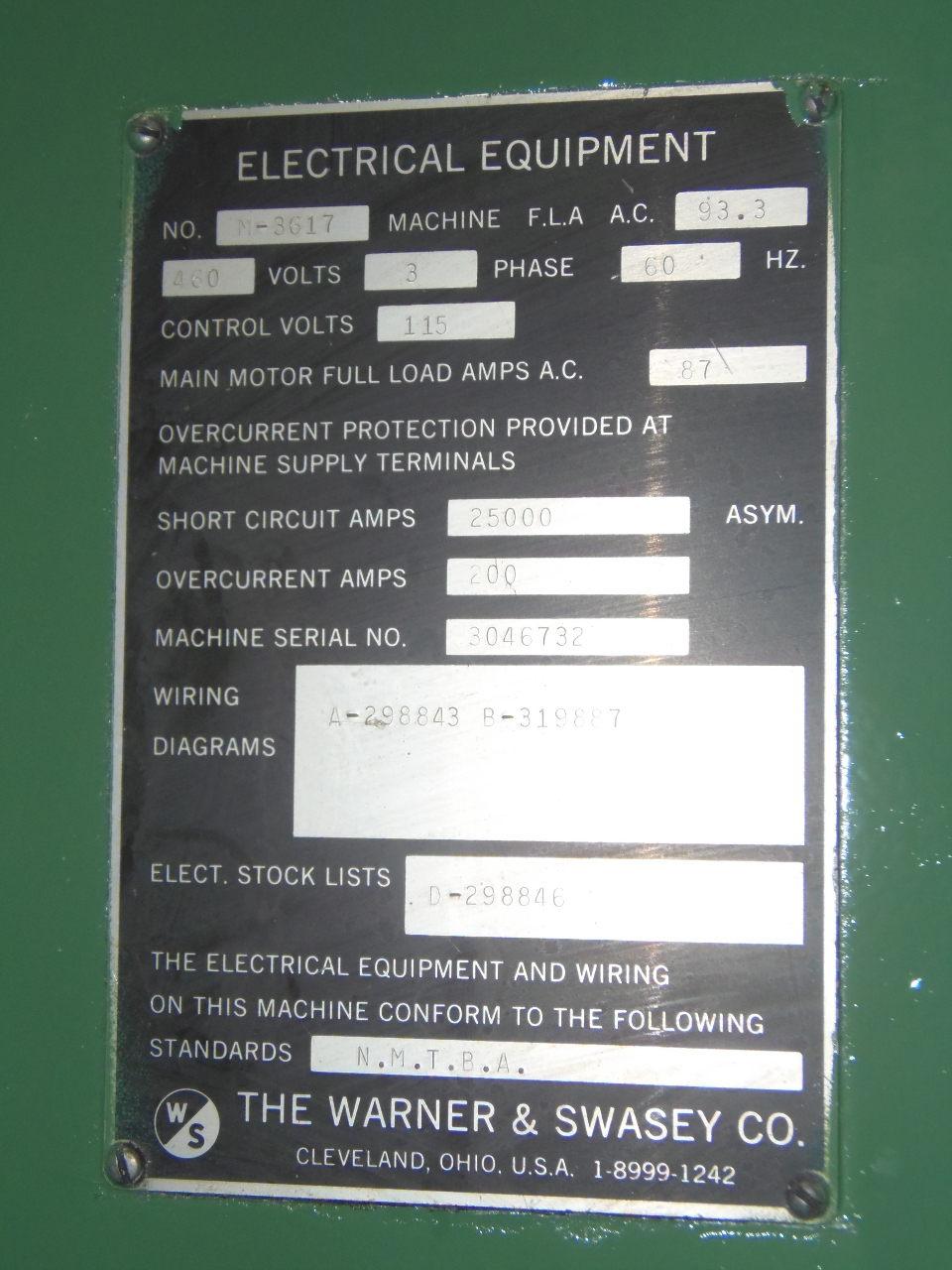

ELECTRICS 440V/3PH/60HZ
EQUIPPED WITH:

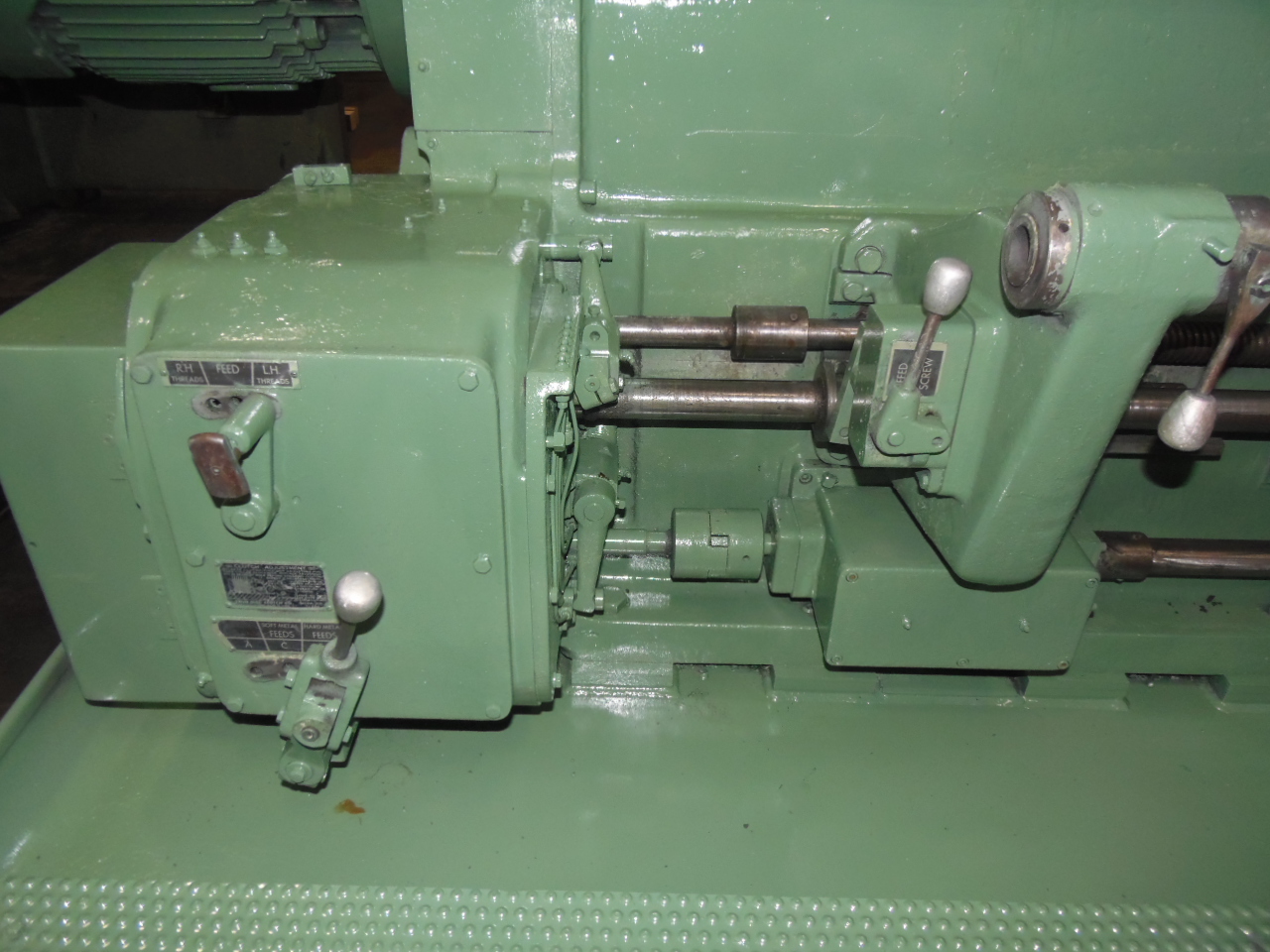

SPECIAL THREADING AND GEAR BOX
FRONT AND REAR TAPER ATTACHMENT
FULL LENGTH LEAD SCREW THREADING

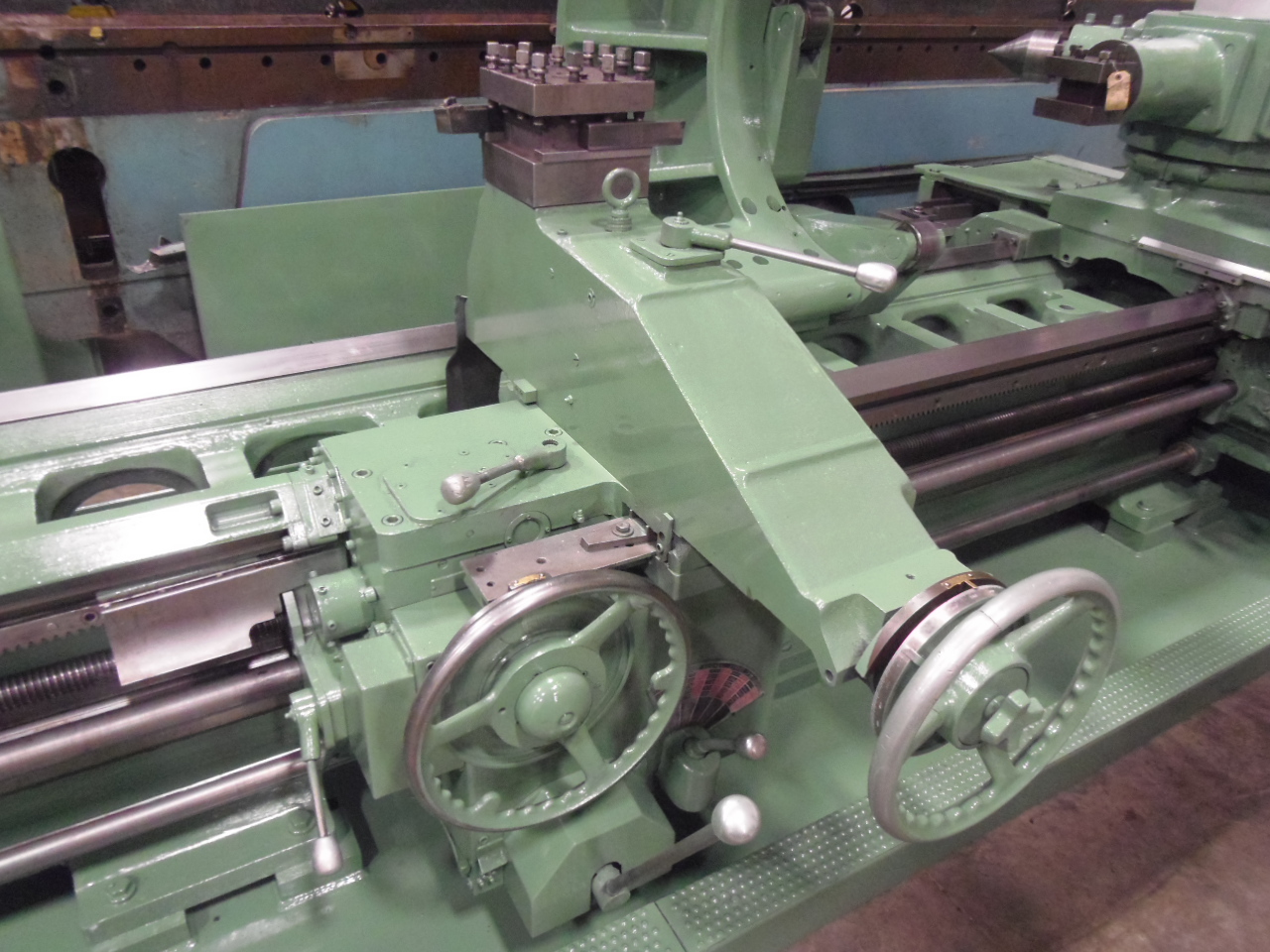

CARRIAGE CROSS FEEDS

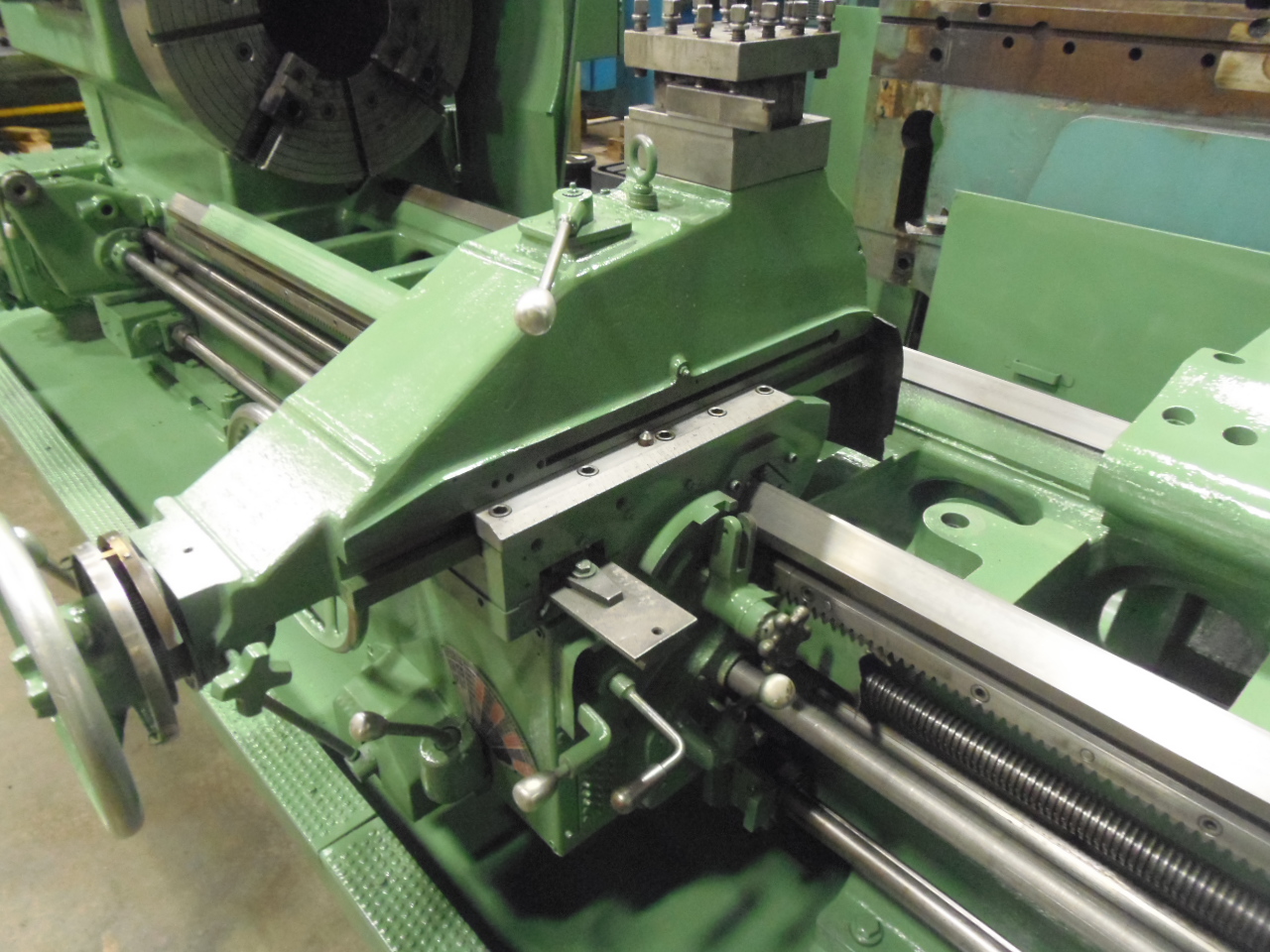

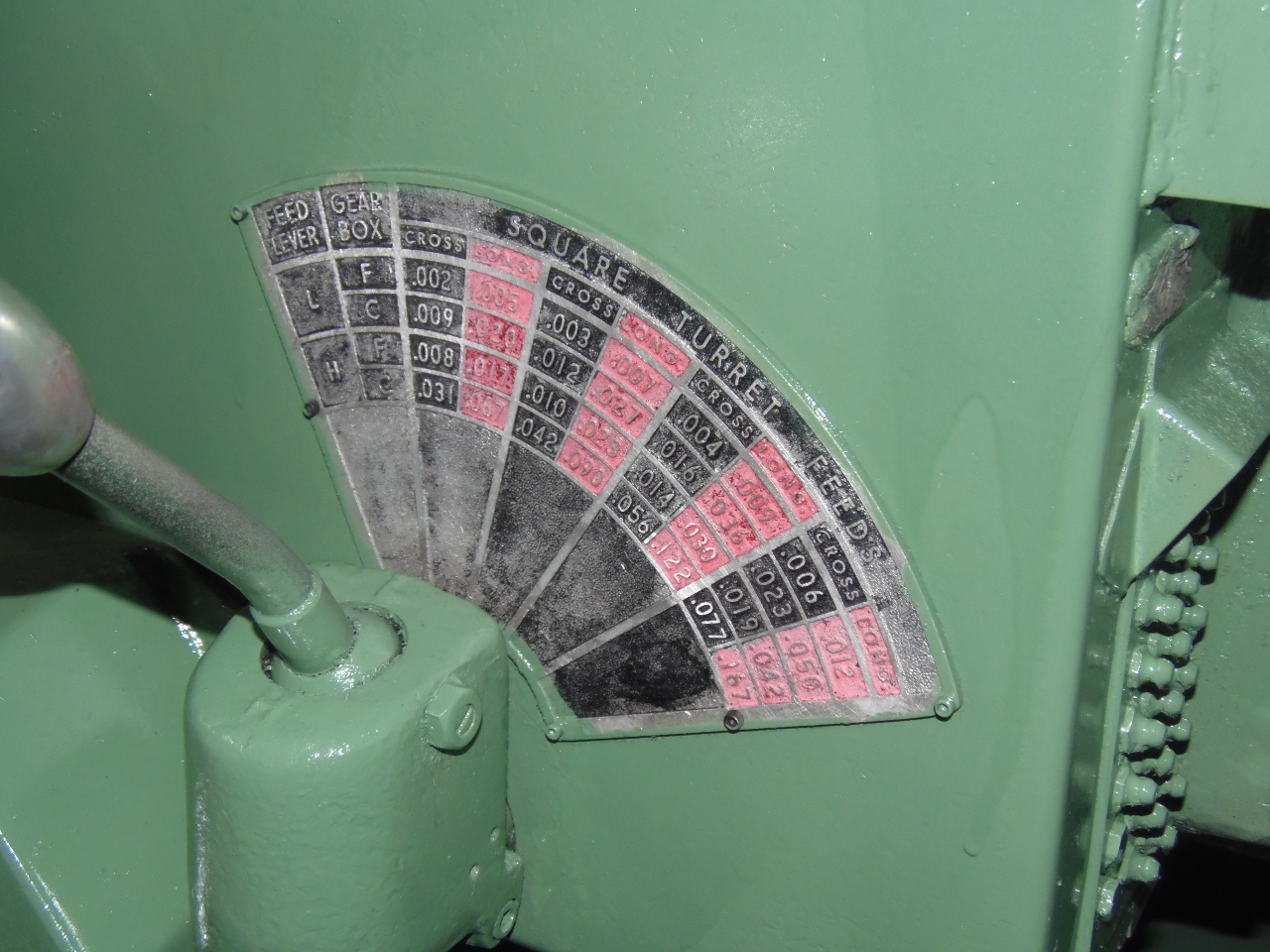

SQUARE TURRET TOOL POST

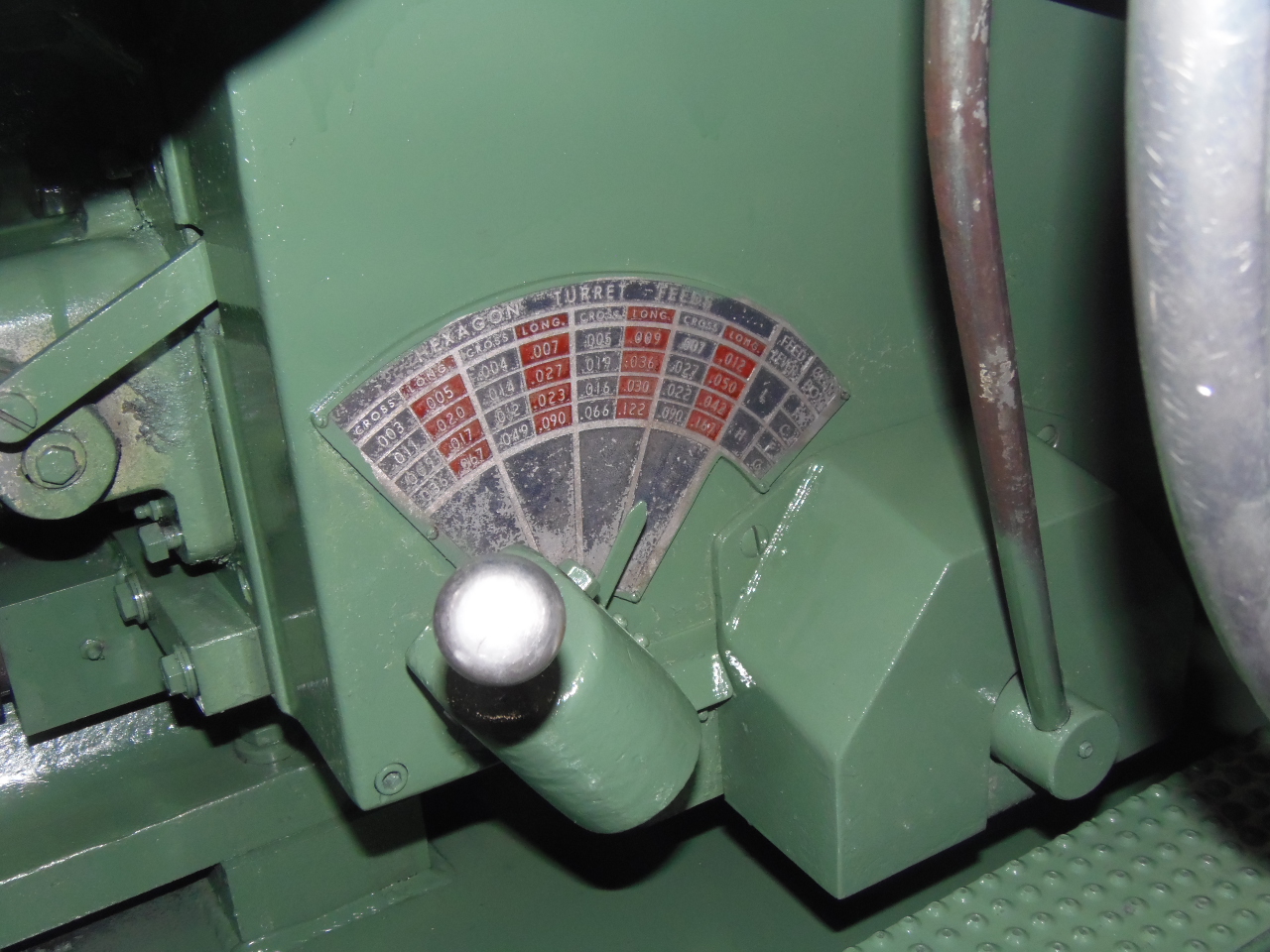

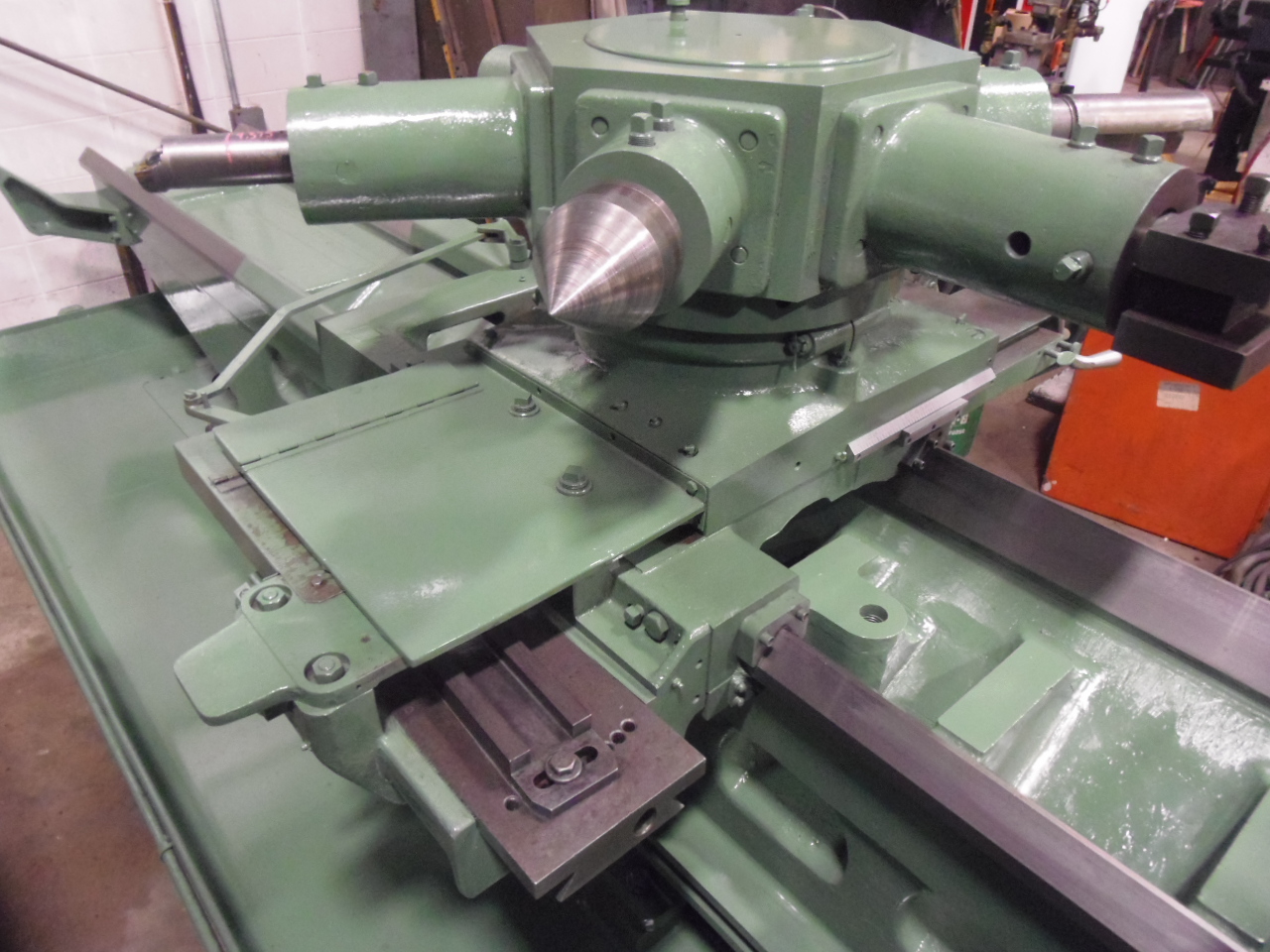

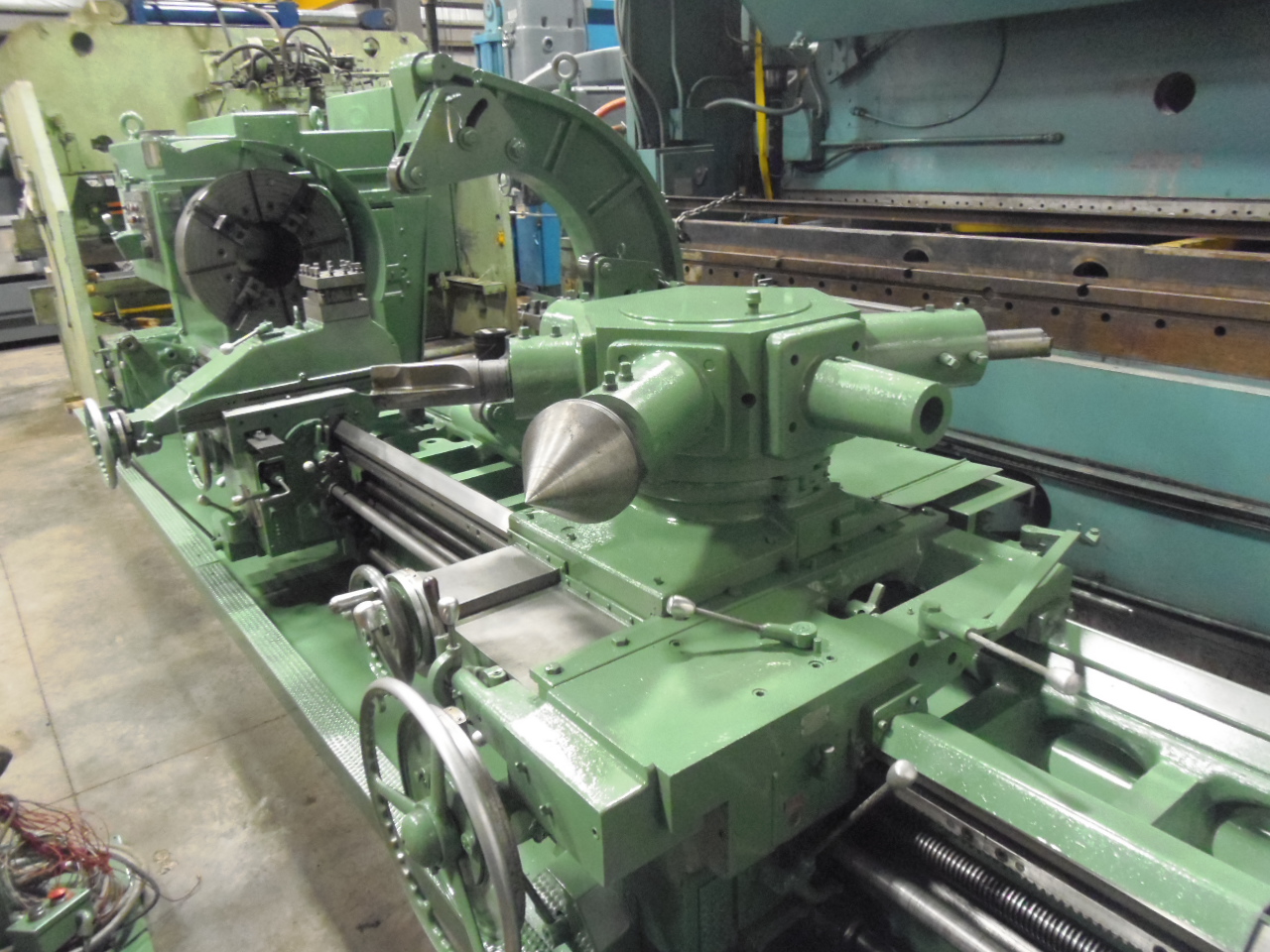

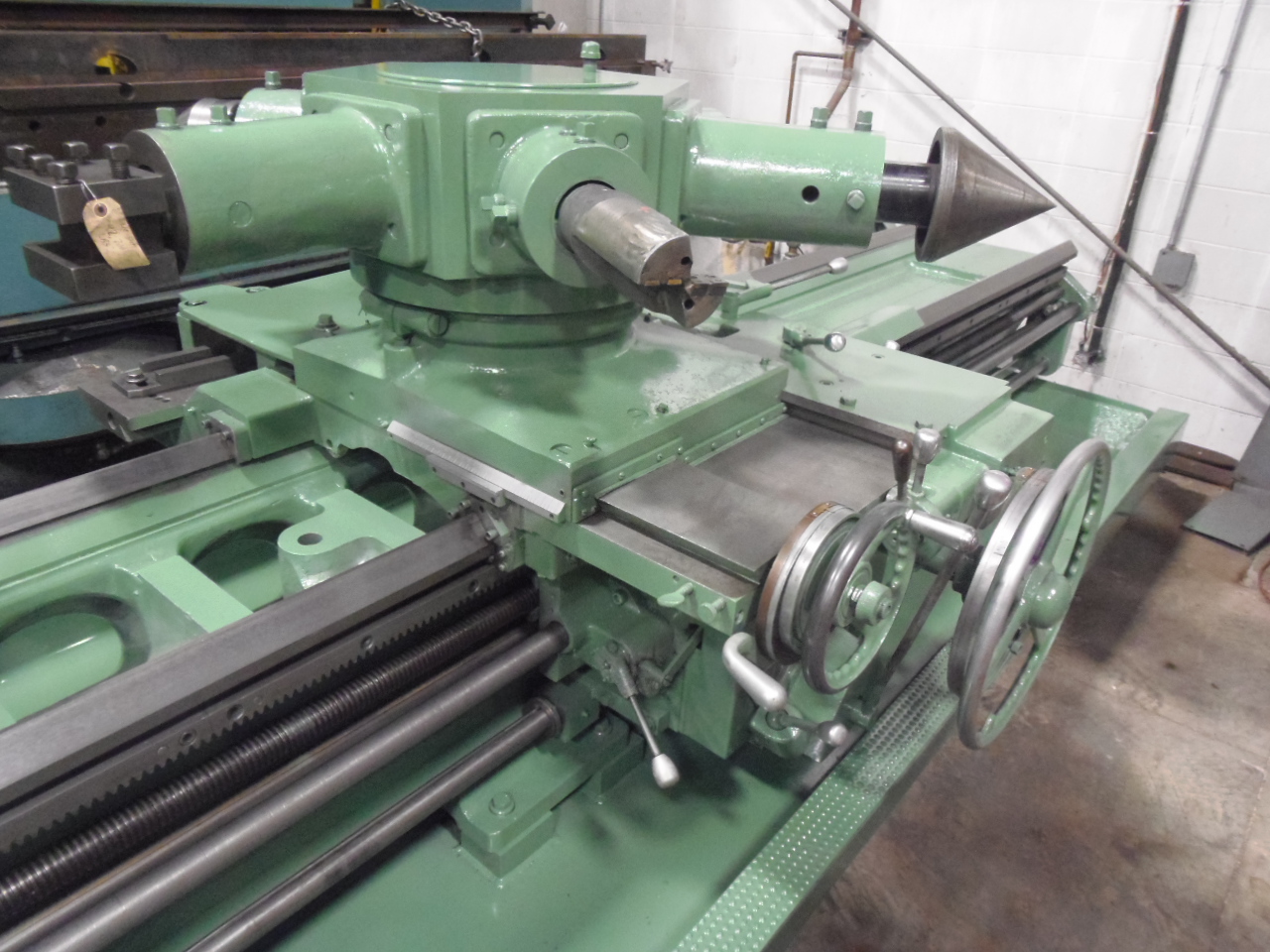

HEXAGON TURRET CROSS FEEDS
CARRIAGE LONGITUDINAL FEEDS

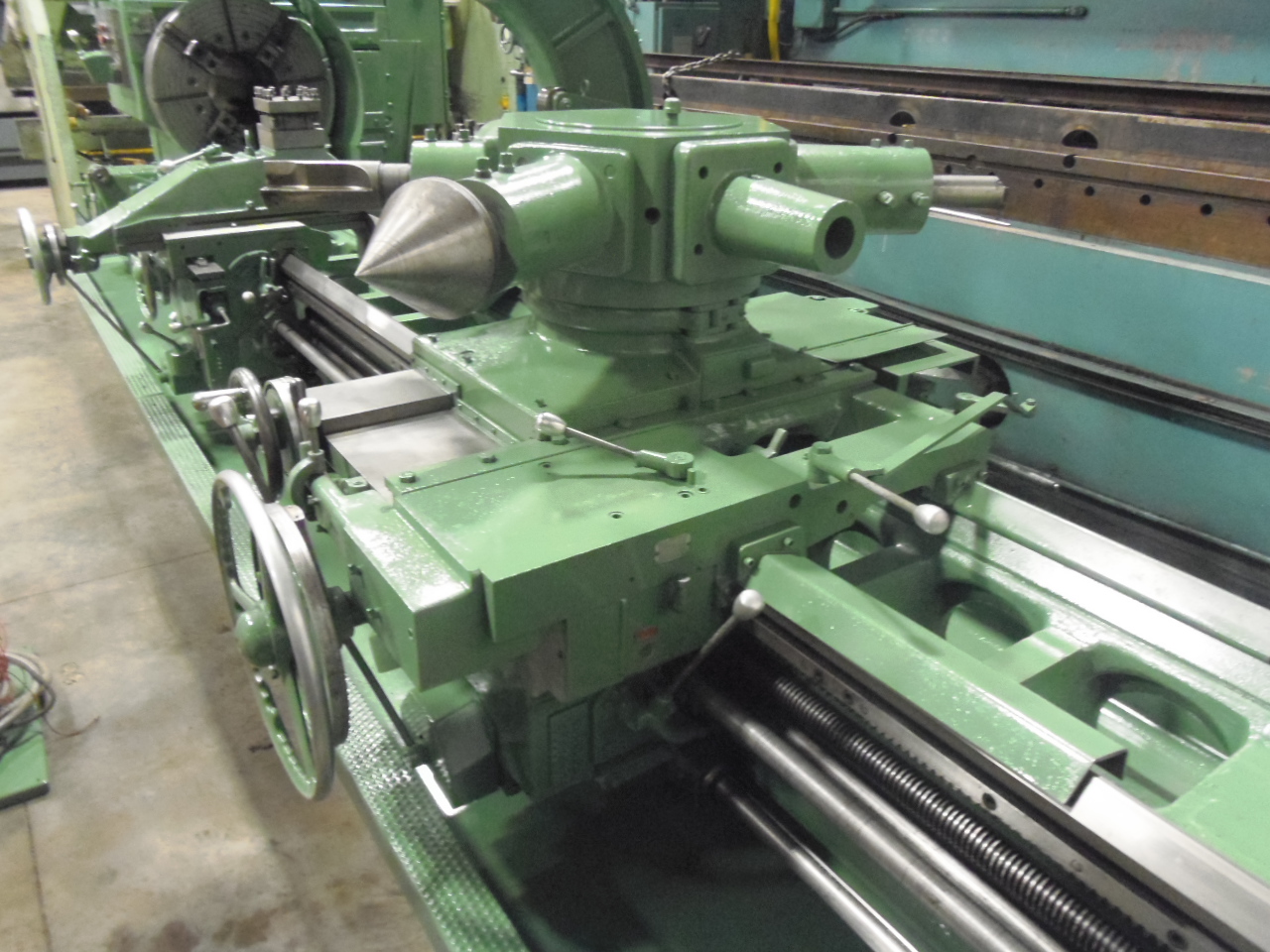

HEXAGON TURRET LONGITUDINAL FEEDS

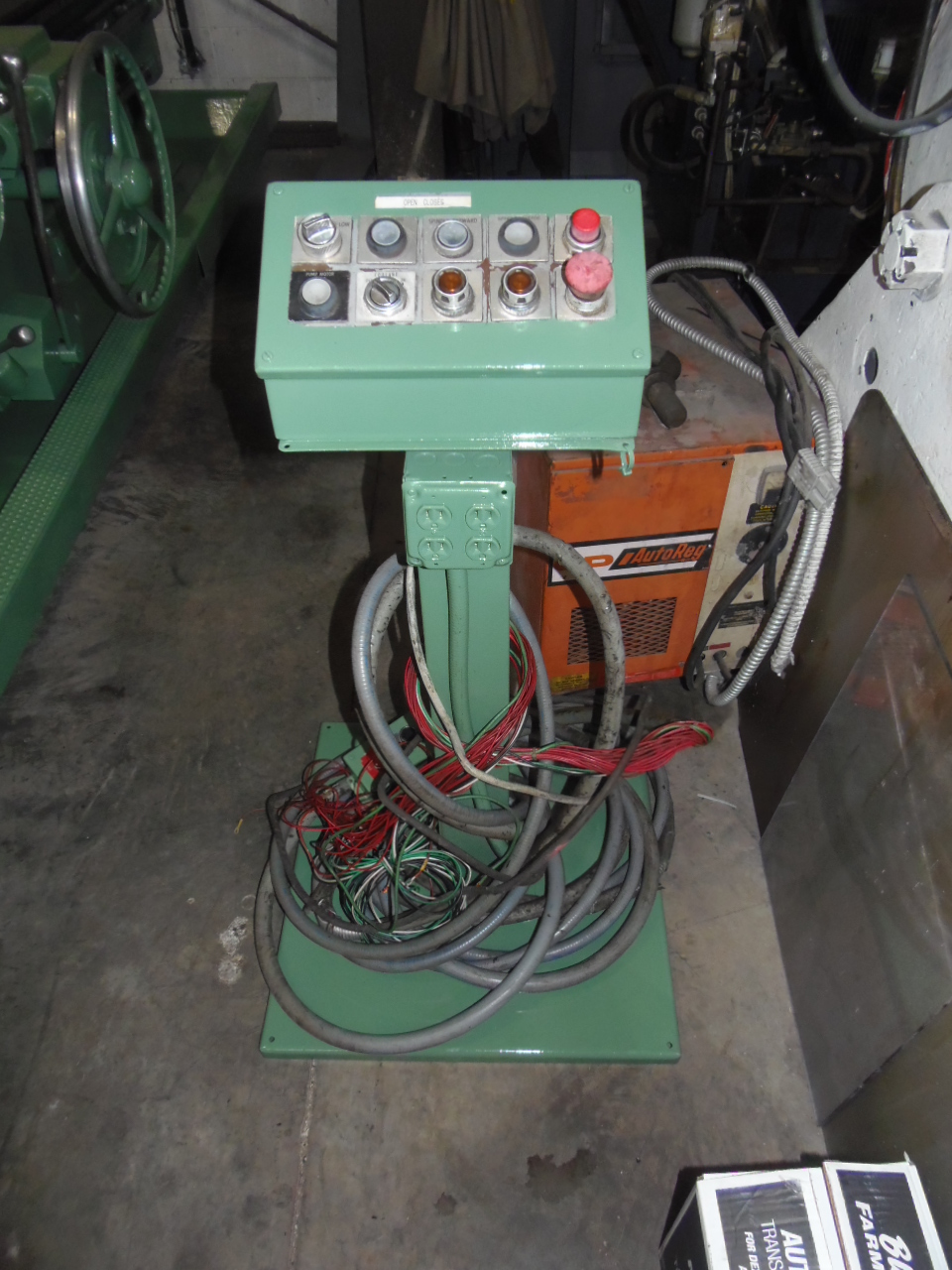

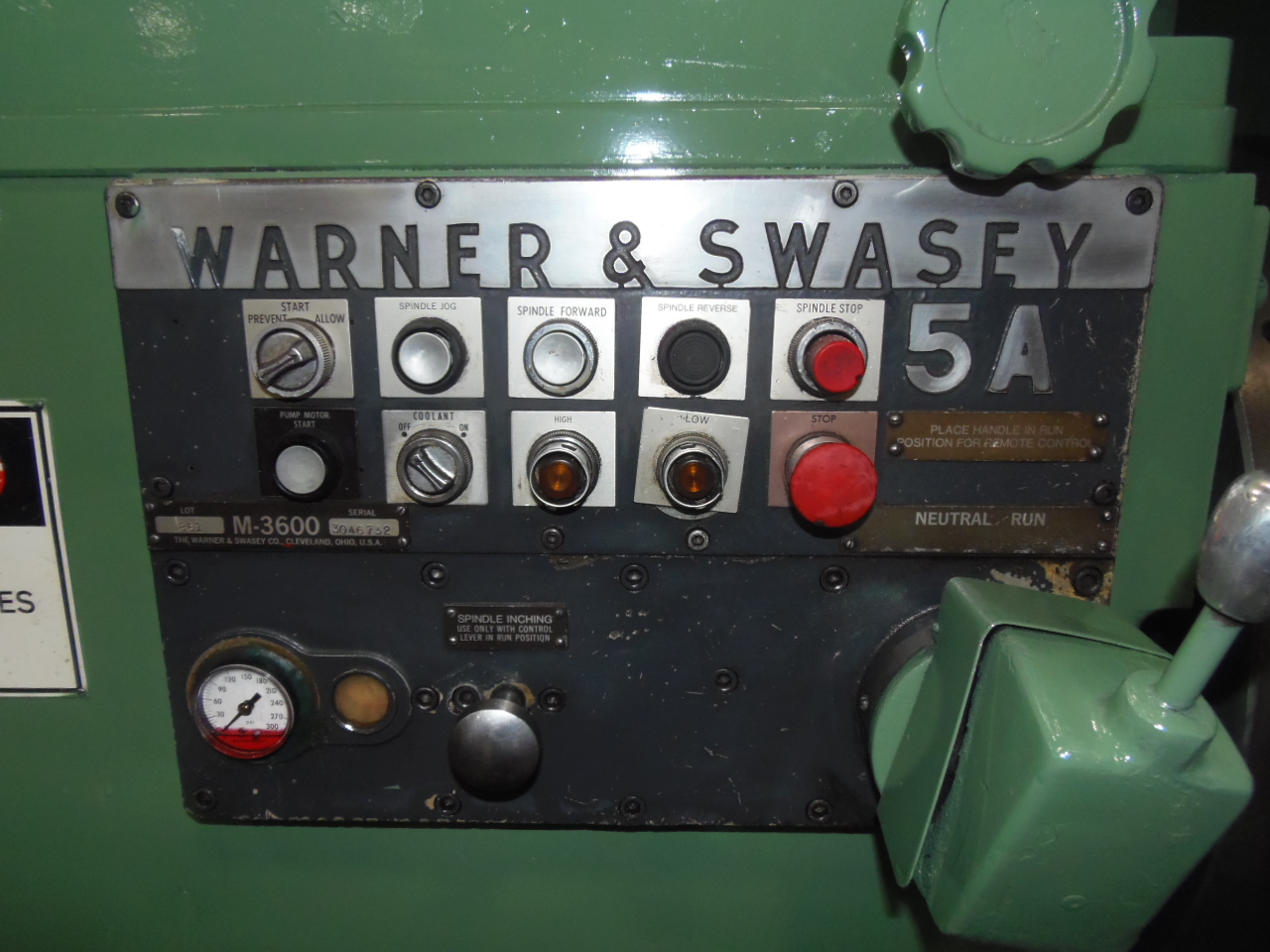

REMOTE OPERATOR CONTROL STATION
THREADED REAR FLANGE FOR CHUCK MOUNTING

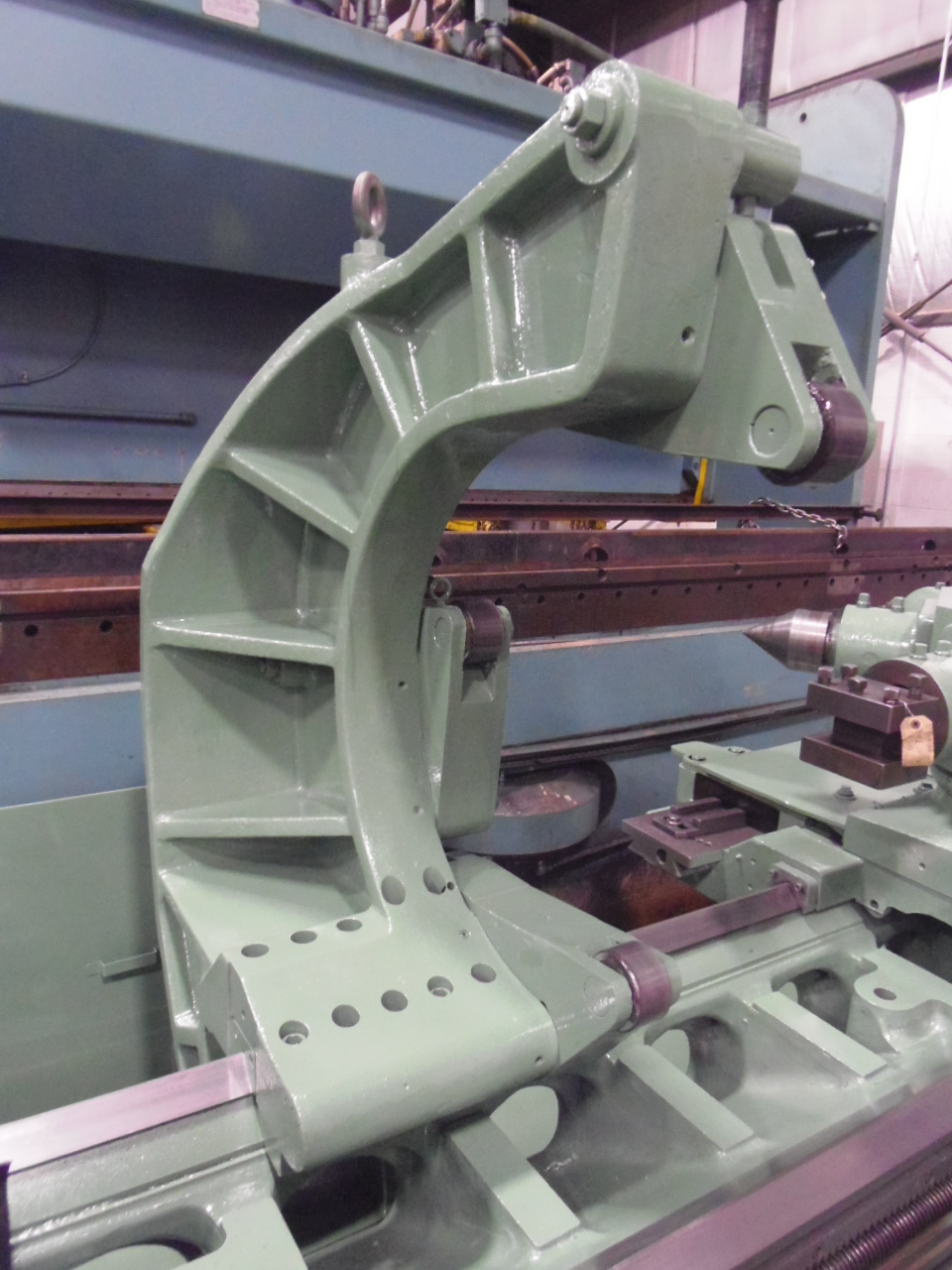

24" ROLLER STEADY REST
(5) LONG FLANGED TOOL HOLDERS
(1) FLANGE MOUNTED SLIDE TOOL
COOLANT
MANUALS
