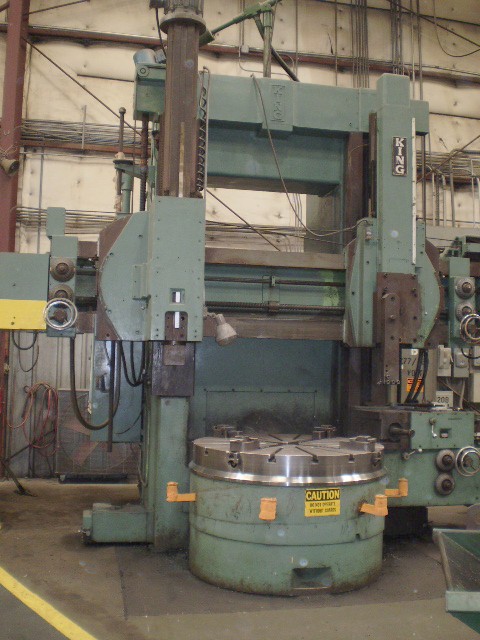

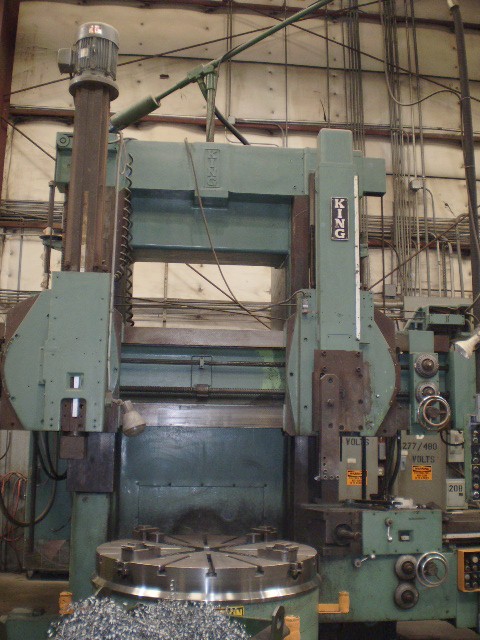

56" KING 3 HEAD VTL, 2 RAM HEADS ONE A LIVE SPINDLE, SIDE HEAD, 4 JAW CHUCK, EXTENDED COLUMN

GENERAL SPECIFICATIONS:

TABLE DIAMETER 56"
CHUCK TYPE 4 JAW
MAX. HEIGHT UNDER MOVEABLE CROSS RAIL 67"
MAX. HEIGHT UNDER RIGHT RAIL 79"
NUMBER OF HEADS 3

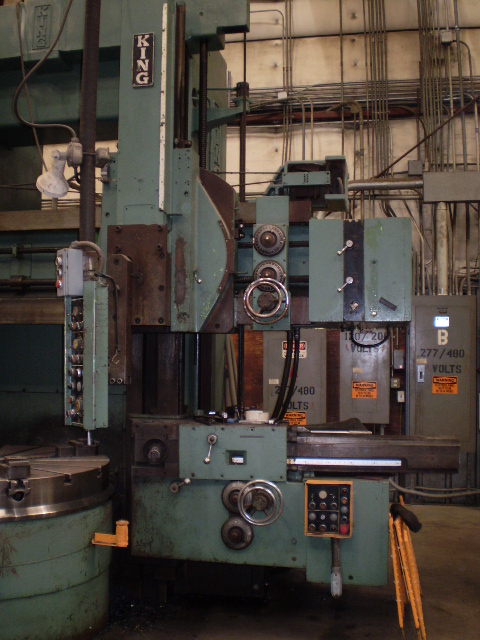

TYPES OF HEADS SIDEHEAD
MODIFYED RAM HEAD WITH 46" STROKE
MOTORIZED SETCO HEAD WITH 58" OF STROKE
SWIVEL ON RAM HEADS 30 DEGREE
TABLE SPEEDS (24) 4.1-150 RPM
FEED CHANGES (24) .0016-.230 IPR
MAIN DRIVE MOTOR 60 HP

NOTE:NEEDS ELECTRICAL WORK
SPECIAL PRICE BEFORE REMOVAL
