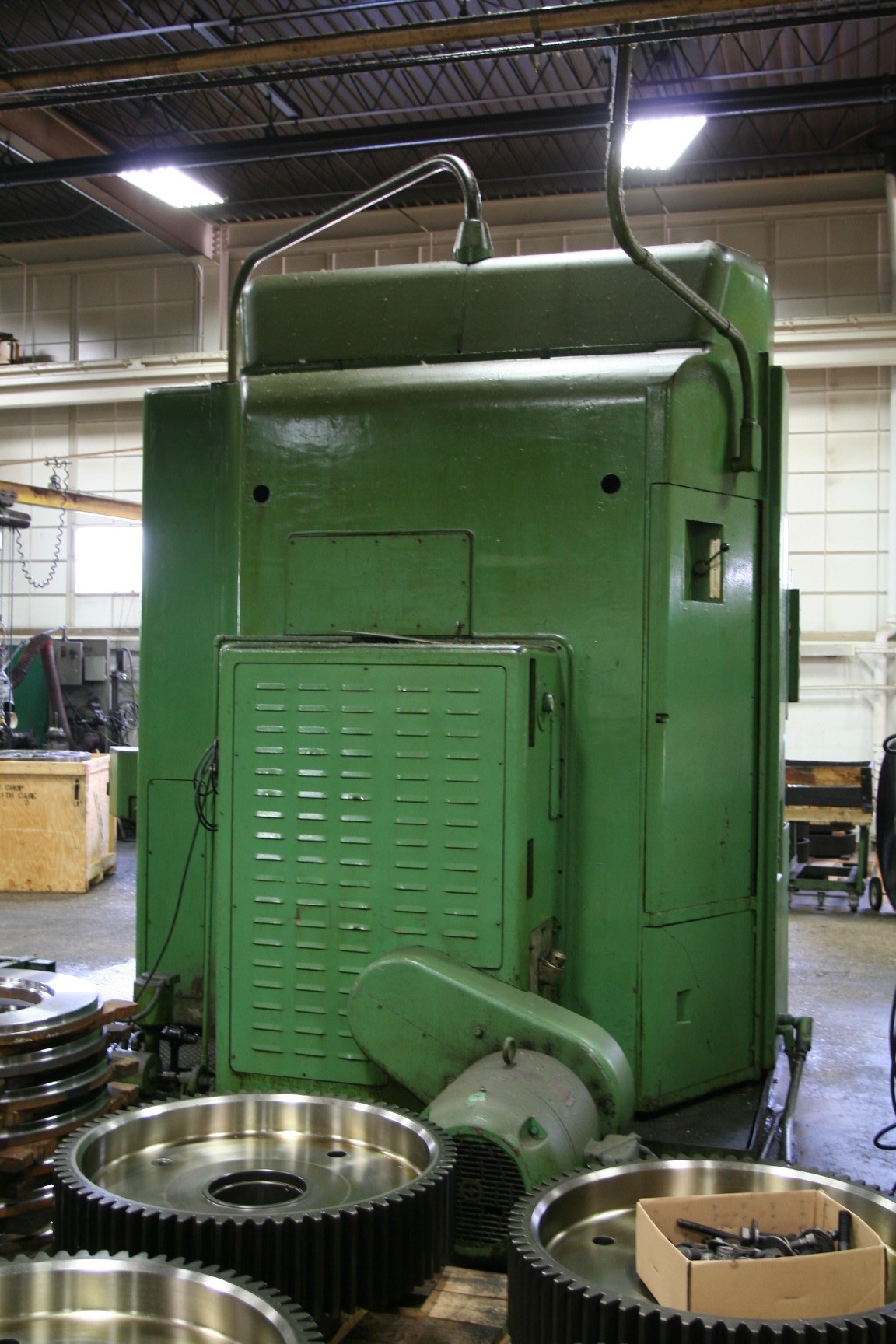

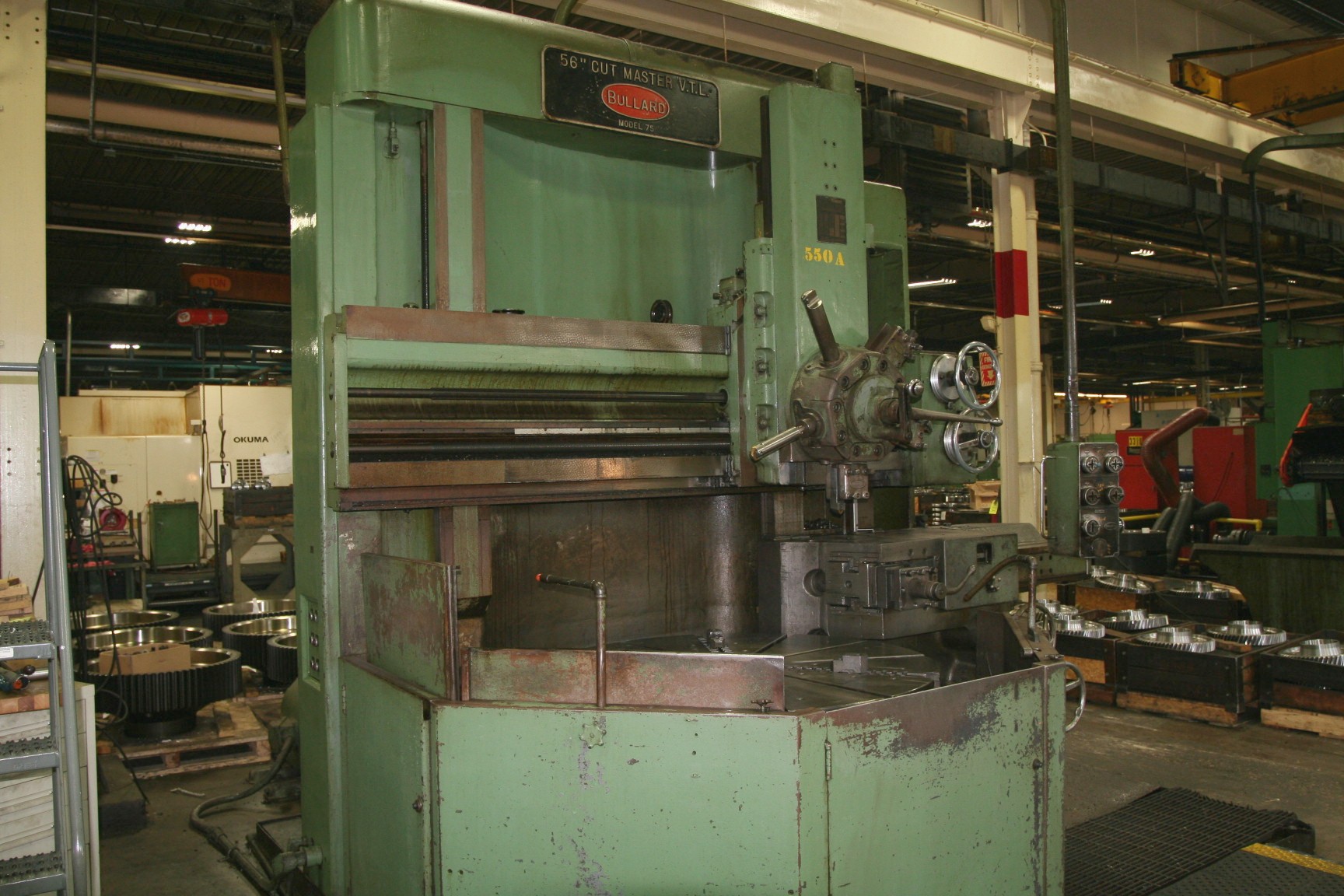

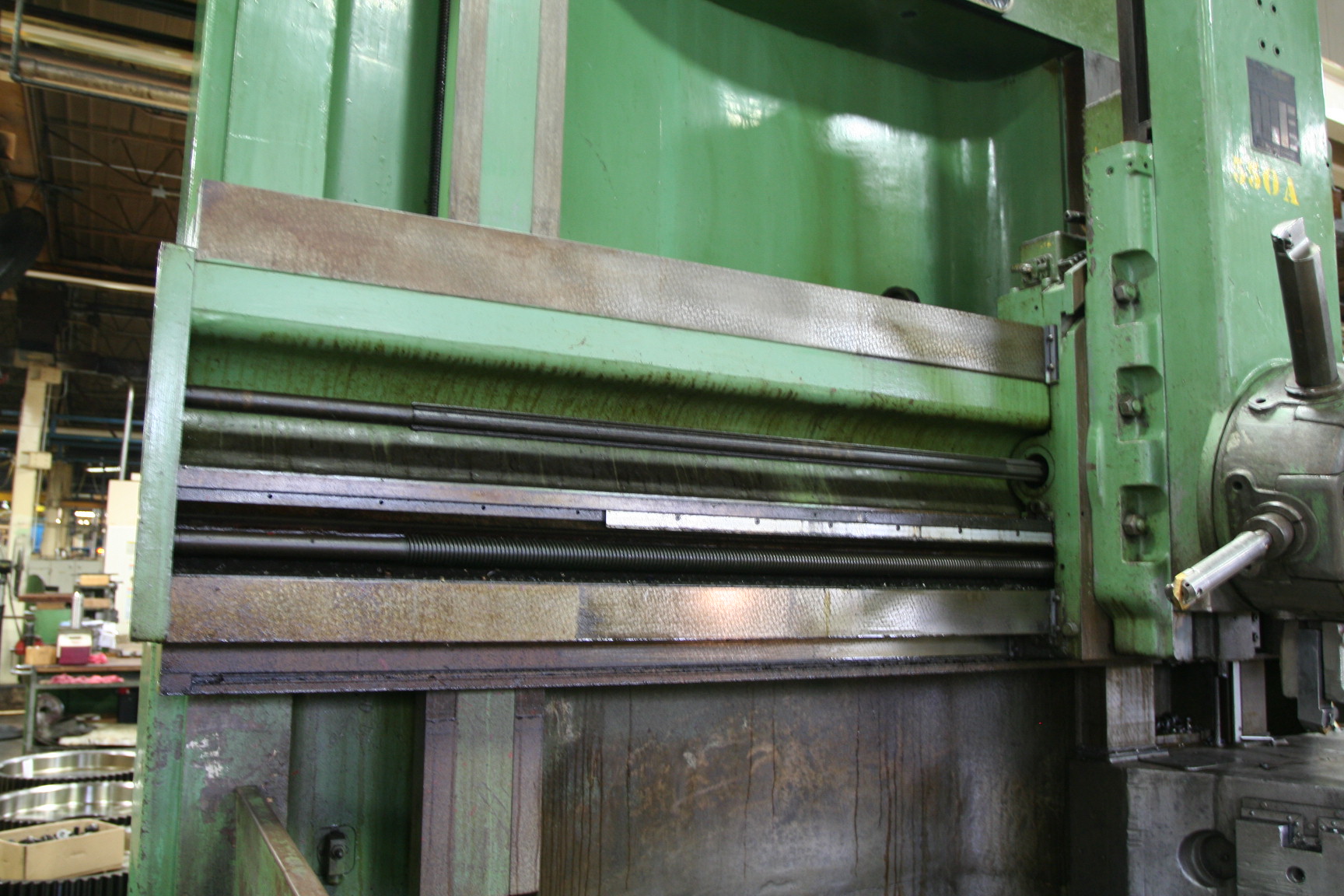

56" BULLARD CUTMASTER 75, 200 RPM, 40 HP, TURRET & SIDE HEAD'S, PENDANT CTRL, COOLANT

GENERAL SPECIFICATIONS:
MANUFACTURER BULLARD
MODEL CUTMASTER 75
NEW (APPROX.) 1955

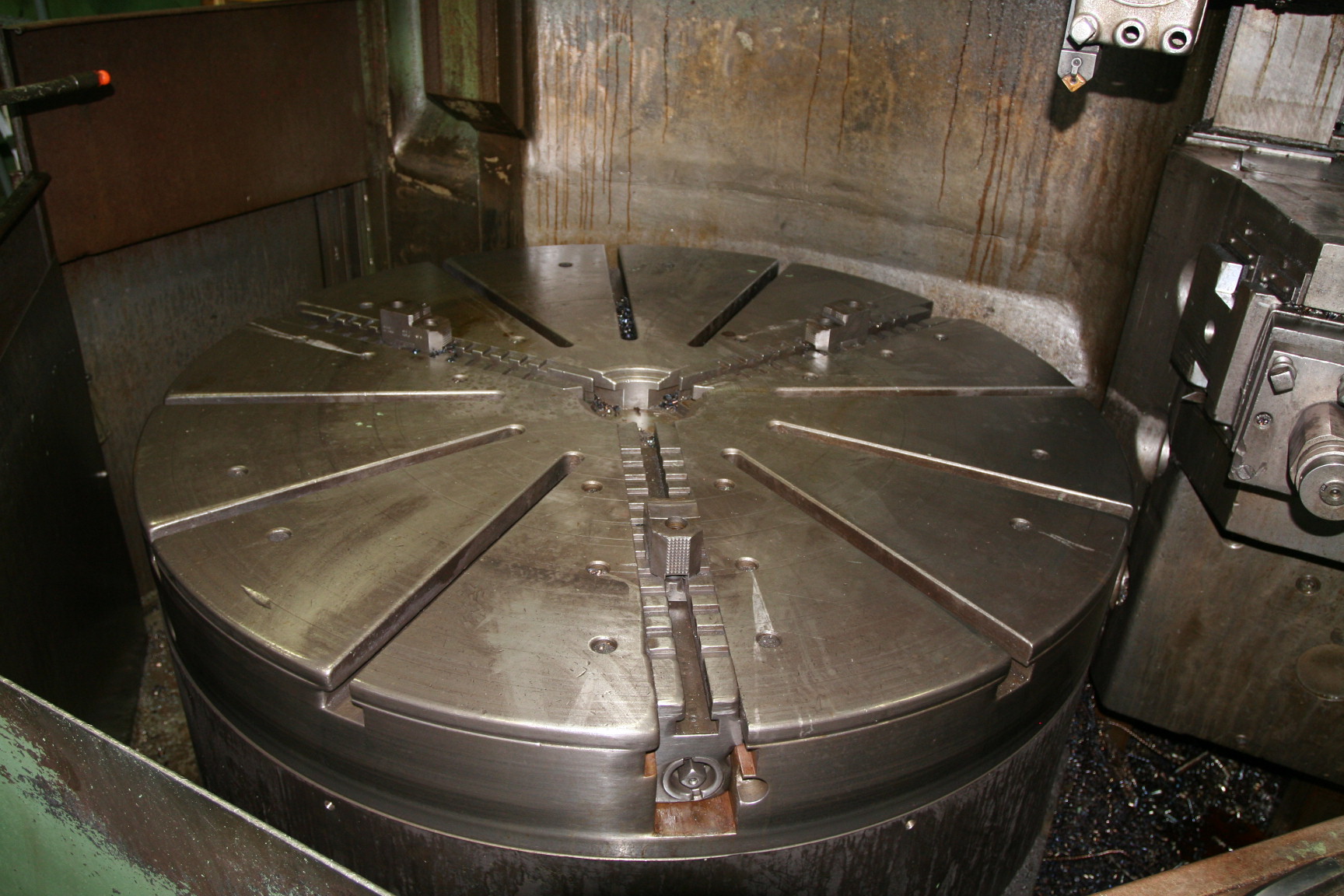

TABLE DIAMETER 56"
MAX. SWING SIDE HEAD BELOW TBL 68"
MAX. SWING SIDE HEAD IN WORK POS. 60"
MAX. HEIGHT UNDER RAIL 48"
TABLE SPEED 5.4 - 200 RPM
FEED RATE 0.00065 - 0.125 IPM
TURRET HEAD TRAVEL HORIZ. 74"
TURRET HEAD TRAVEL VERT. 42"
SIDE HEAD TRAVEL HORIZ. 26"
SIDE HEAD TRAVEL VERT. 47"
MAIN MOTOR 40 HP
DIMENSIONS (APPROX.) 144"L x 132"W x 139"H
DIMENSIONS CTRL BOOM ADDITIONAL ADD 24"
WEIGHT (APPROX.) 60,000 LBS.

EQUIPPED WITH:

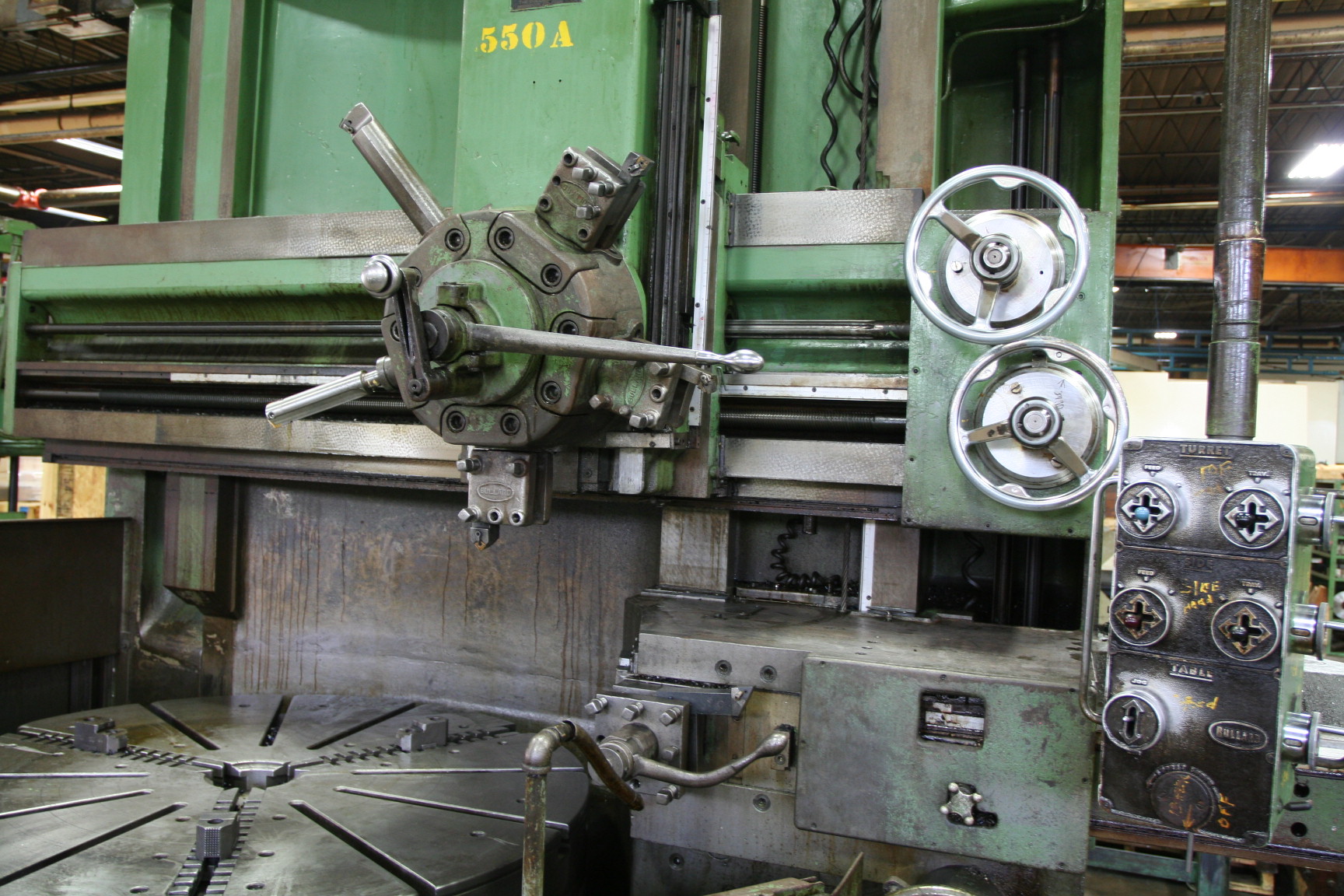

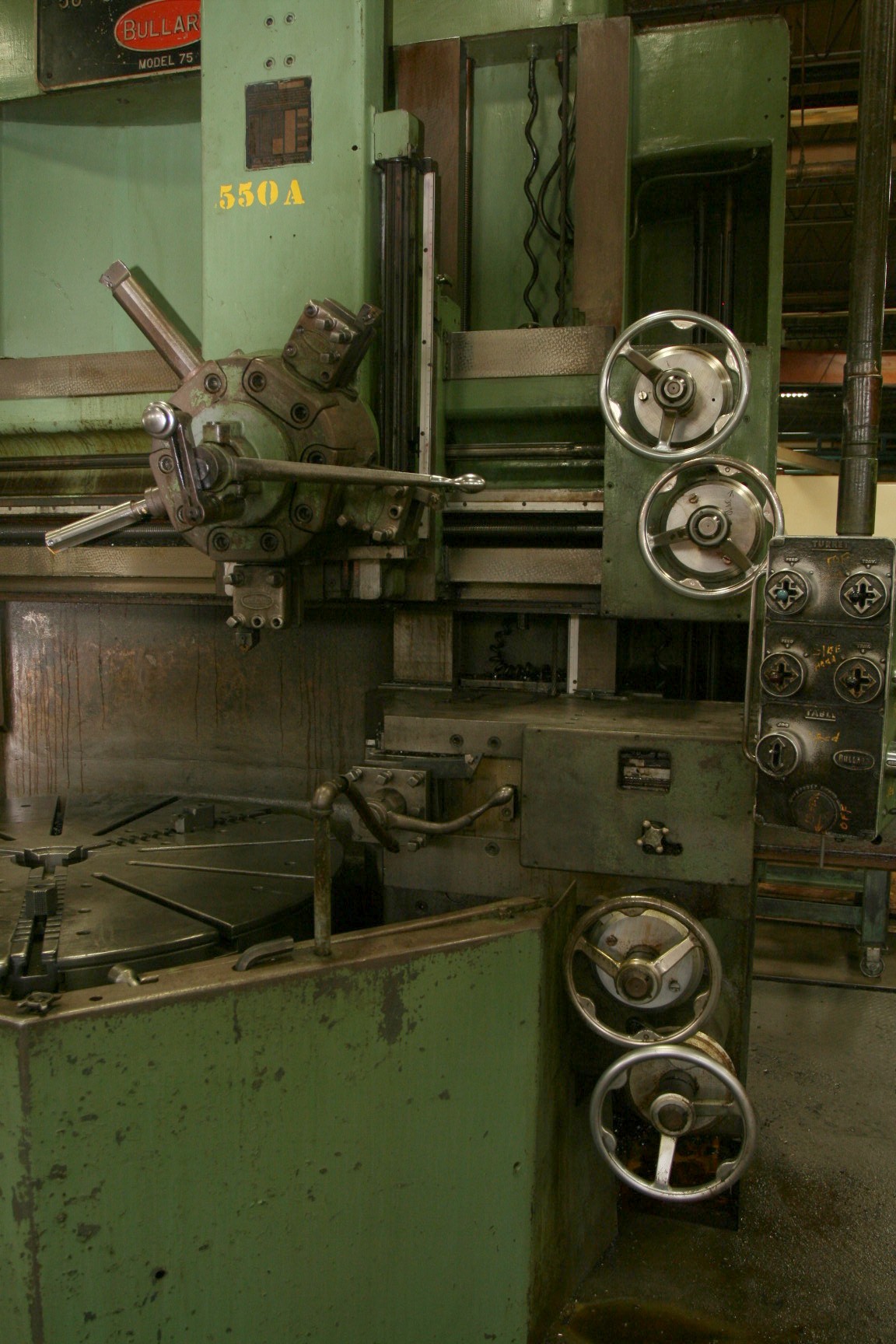

5-POSITION TURRET HEAD
SIDE HEAD
PENDANT CONTROL
COOLANT
