Specifications
Equipped With
GENERAL SPECIFIATIONS:

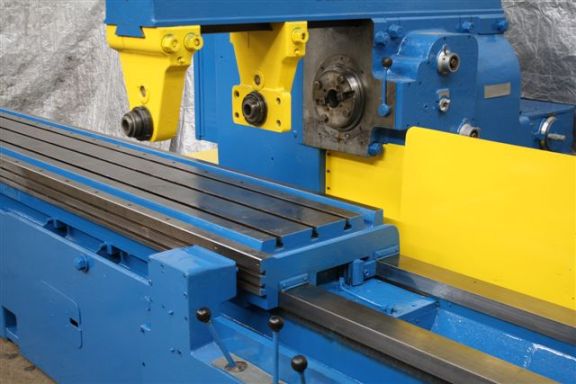

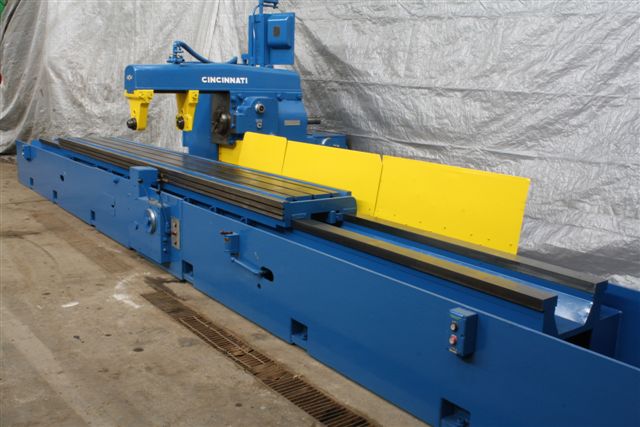

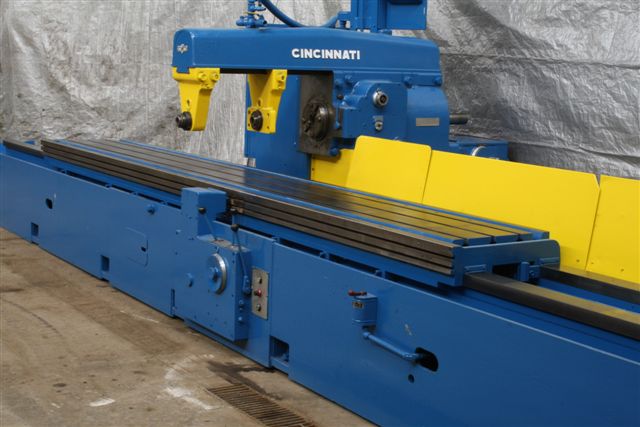

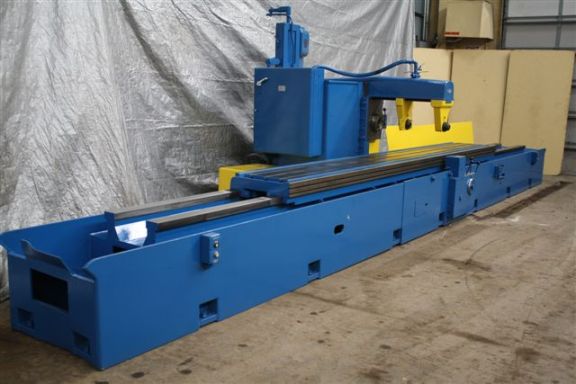

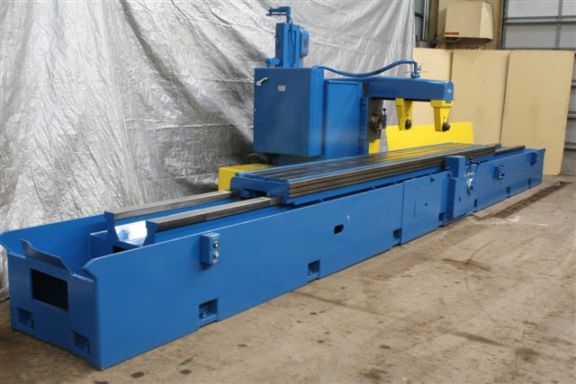

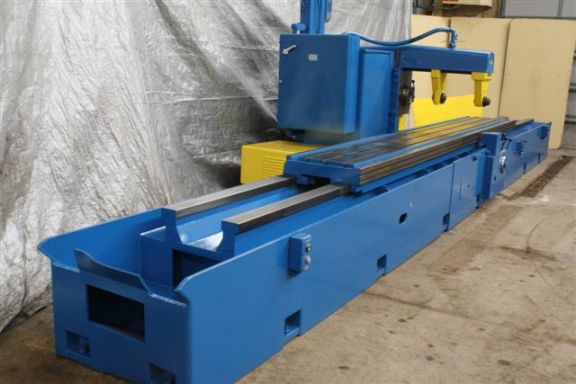

MANUFACTURER.............................CINCINNATI
MODEL....................................500-2614 HYPOWERMATIC
SERIAL NUMBER............................6B59P5D-2
TABLE SIZE...............................26" X 196"
TABLE TRAVELS............................168"
VERTICAL ADJUSTMENT OF SPINDLE CARRIER...20.5"
QUILL ADJUSTMENT.........................8"
CENTER OF TABLE TO FACE OF SPINDLE.......8.5" MIN, 16.5" MAX
CENTER OF TABLE TO SPINDLE CARRIER.......18.25"
TOP OF TABLE TO CENTER LINE OF SPINDLE...5.5" MIN, 26" MAX
RAPID TRAVERSE...........................200 IPM
TAPER IN SPINDLE.........................#50NS
HYDRAULIC MOTOR..........................7.5 HP
SPINDLE MOTOR............................30 HP
EQUIPPED WITH:
AUTO QUILL RETRACT

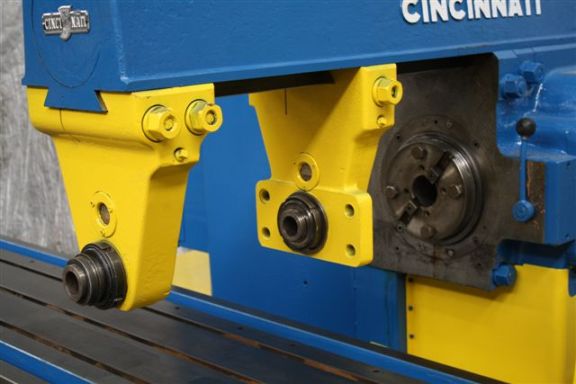

2 OVERARM SUPPORTS
COOLANT

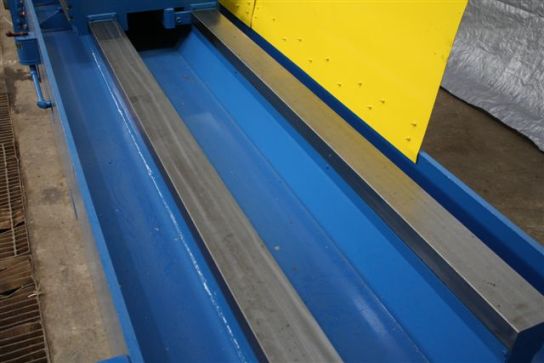

HARD WAYS
