Specifications
Equipped With
GENERAL SPECIFICATIONS:

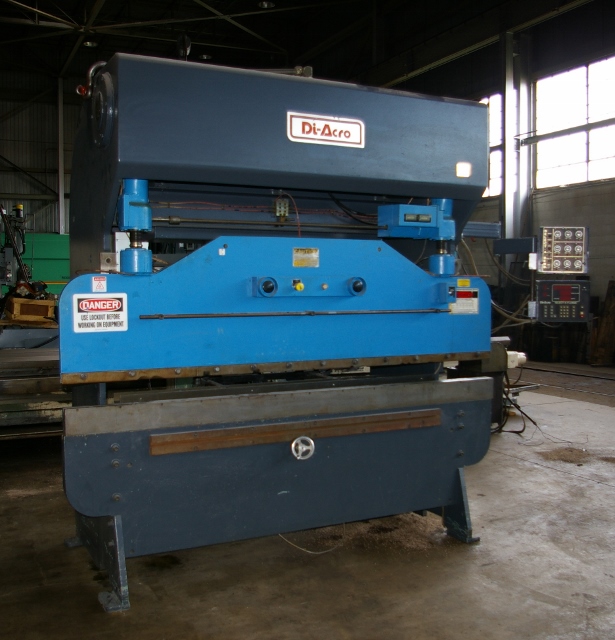

MAKE........................ DI-ACRO
MODEL....................... 55-8
SERIAL NUMBER............... 6651080151
AGE (APPROX)................ 1980
BED LENGTH.................. 100"
DISTANCE BETWEEN HOUSINGS... 80"
STROKE...................... 3"
SHUT HEIGHT................. 12"
RAM ADJUST.................. 4"
THROAT...................... 8"
MAIN MOTOR.................. 10 HP
ELECTRICS................... 230/460 VOLTS - 3PH - 60HZ
WEIGHT (APPROX)............. 10,000 LBS.
DIMENSIONS.................. 108" X 64" 105" H
EQUIPPED WITH:
2 AXIS MANUAL BACKGAUGE
STROKE ADJUST

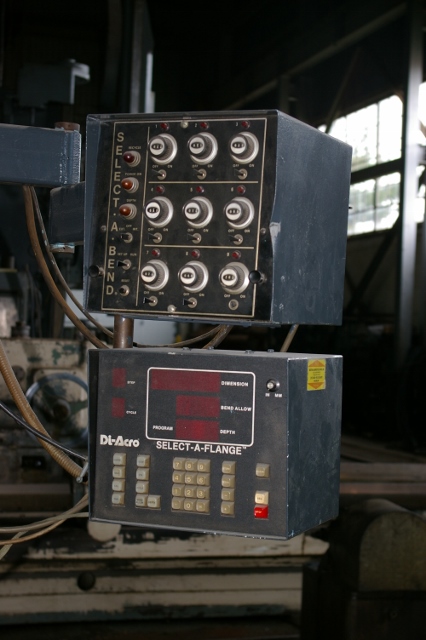

PRESELECT AUTOMATIC DEPTH STOP CONTROL
COMPLETE HYDRAULIC SYSTEM
TOP AND LOWER DIE HOLDERS
FOOT PEDAL
DUAL PALM BUTTON
HI/LOW SPEED CONTROL
SPECIFICATIONS SUBJECT TO VERIFICATION
