Specifications
Equipped With
GENERAL SPECIFICATIONS:

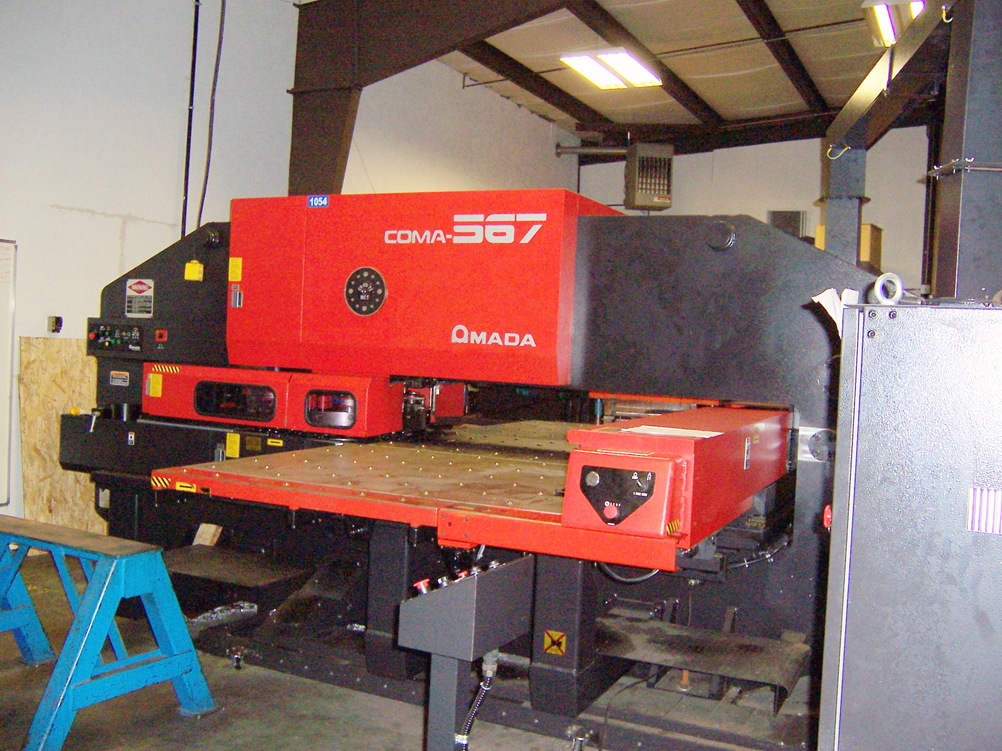

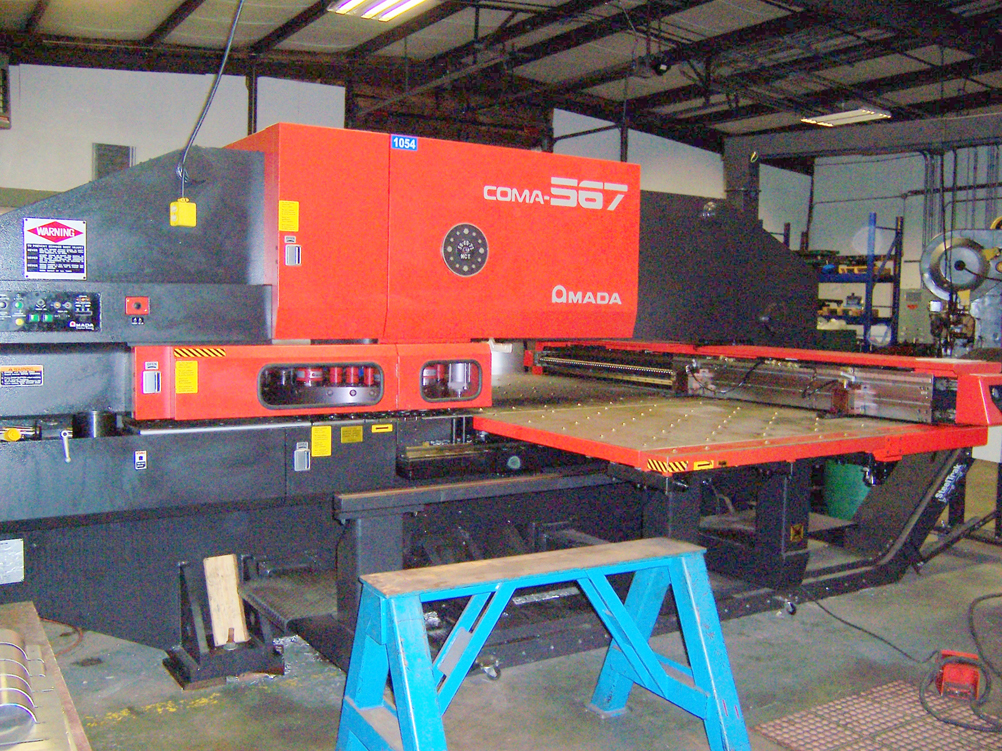

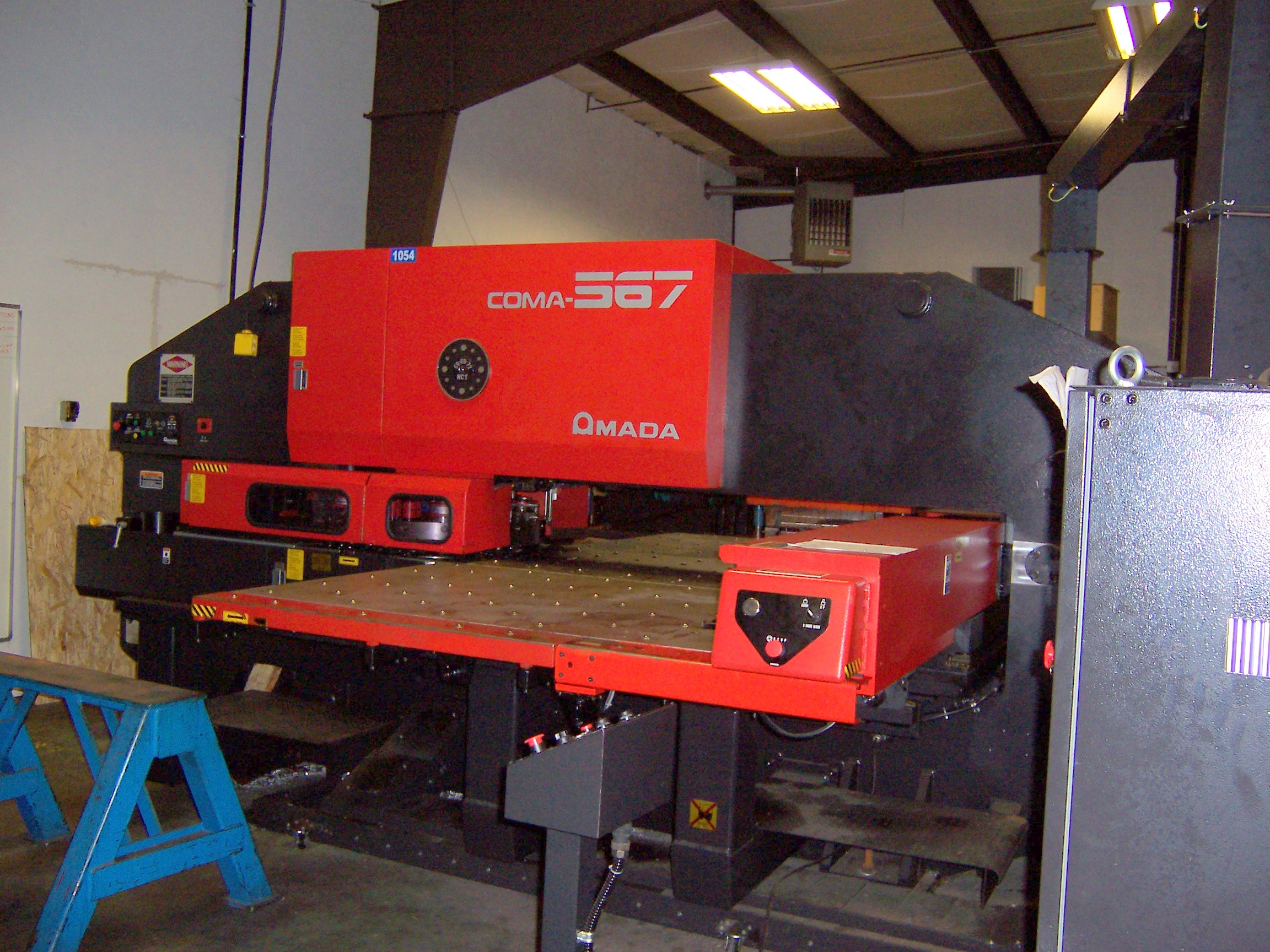

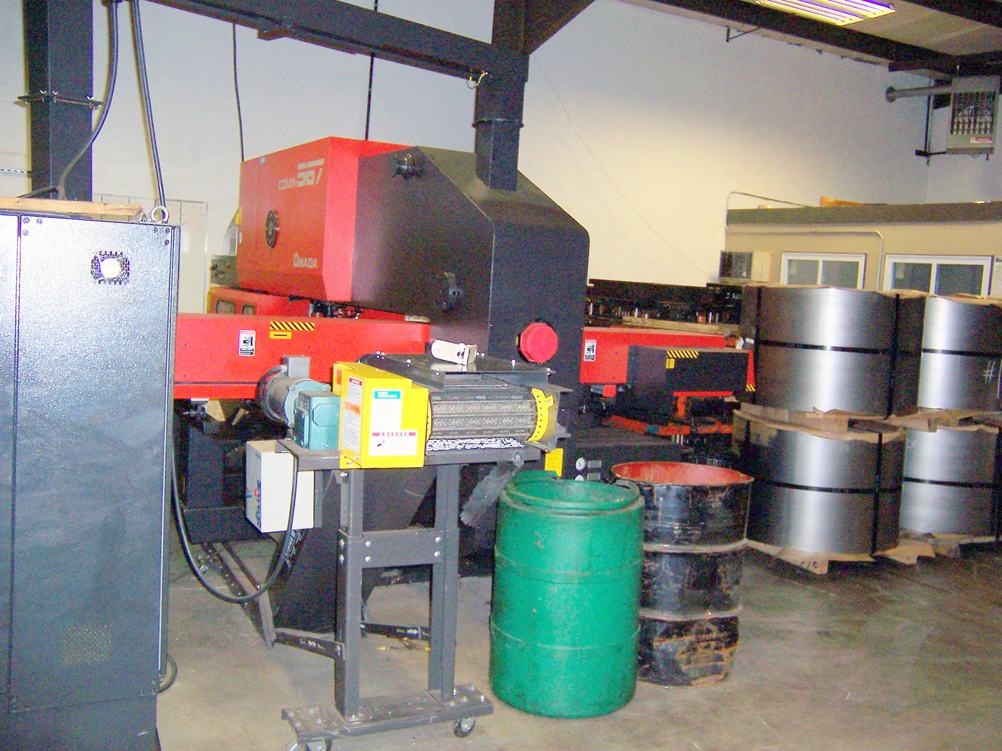

MANUFACTURER............................ AMADA
MODEL................................... COMA 567
AGE..................................... 2008
TONNAGE................................. 55
PRESS STROKE............................ 1.25"
PRESS SPEED............................. 300 SPM
HIT RATE 1" MOVES....................... 200 HPM
PRESS DRIVE MOTOR....................... 7.3 HP
MAX. HOLE DIAMETER...................... 4.5"
TOOL TYPE............................... AMADA THICK TURRET
TURRET ROTATION SPEED................... 30 RPM
TURRET CAPACITY......................... 44 STATIONS (2 AUTO INDEX)
TURRET STATION SIZES.................... 18-1/2", 6-1.25", 4-2", 2-3.5",2-4.5", 2-1.25" AUTO-INDEX

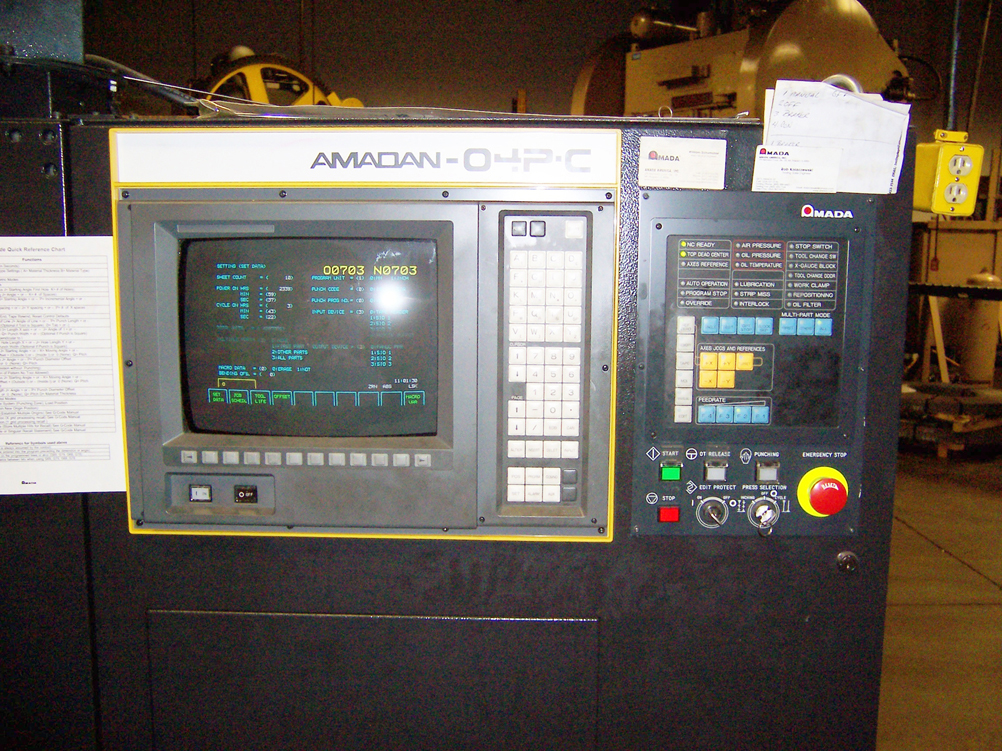

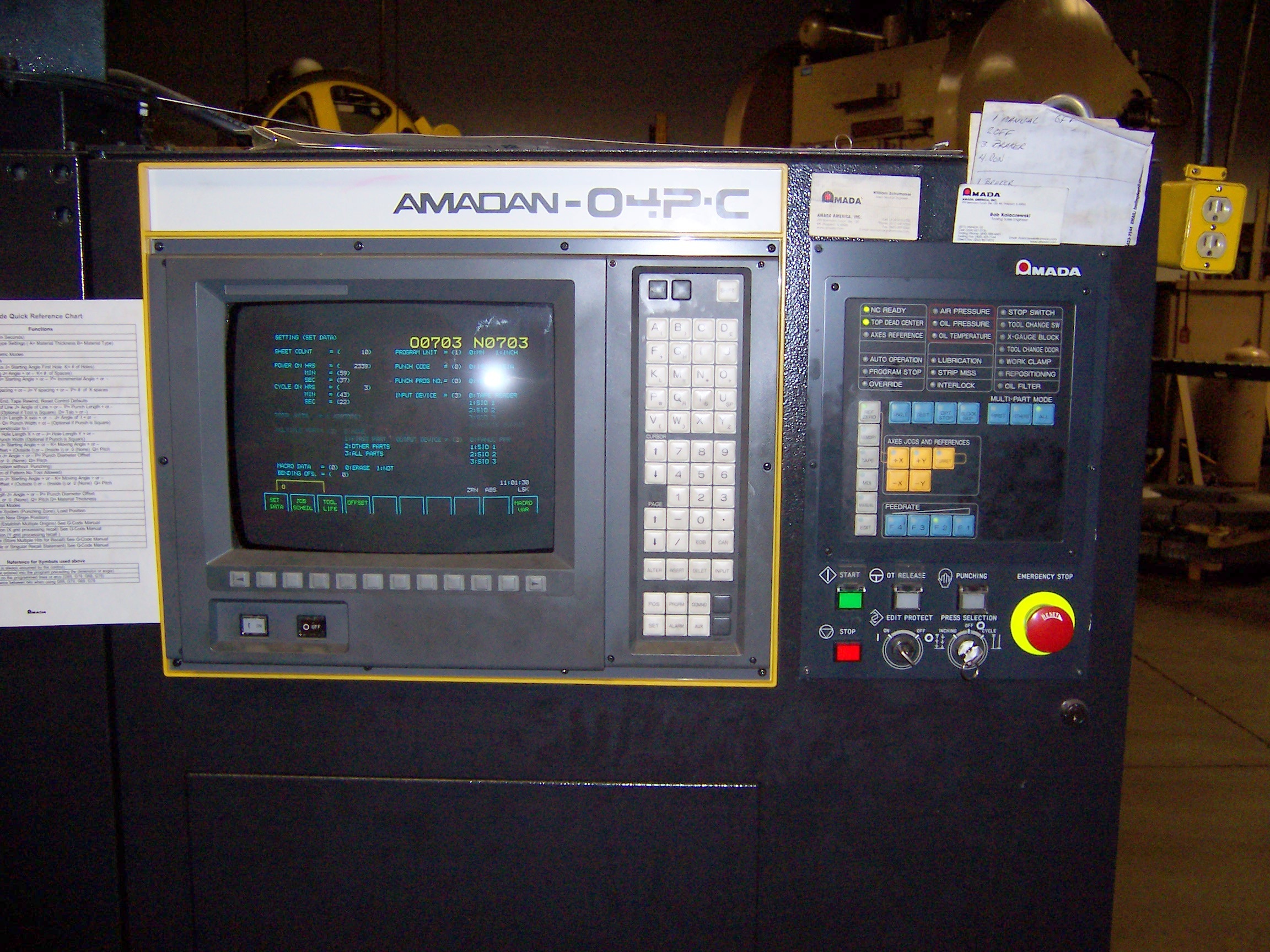

CNC CONTROLLER.......................... FANUC 04PC
TABLE SIZE.............................. 60" X 72"
MAX SHEET SIZE.......................... 60" Y X 144" X WITH ONE REPOSITIONING CYCLE
MAX. SHEET THICKNESS.................... 3/8"
MAX. MATERIAL WEIGHT.................... 485 LBS
MAX. AXIS TRAVEL........................ 60" Y & 72" X
MAX LINEAR TABLE SPEED.................. 1968"/MIN
TRAVEL METHOD........................... X & Y AXIS WORK PIECE MOVEMENT
CONTROL METHOD.......................... X,Y,T & C
DRIVE MOTORS............................ FANUC AC SERVO
MACHINE WEIGHT.......................... 39,700 LBS
MACHINE SIZE............................ 200"L X 94"H X 150"W
EQUIPPED WITH:

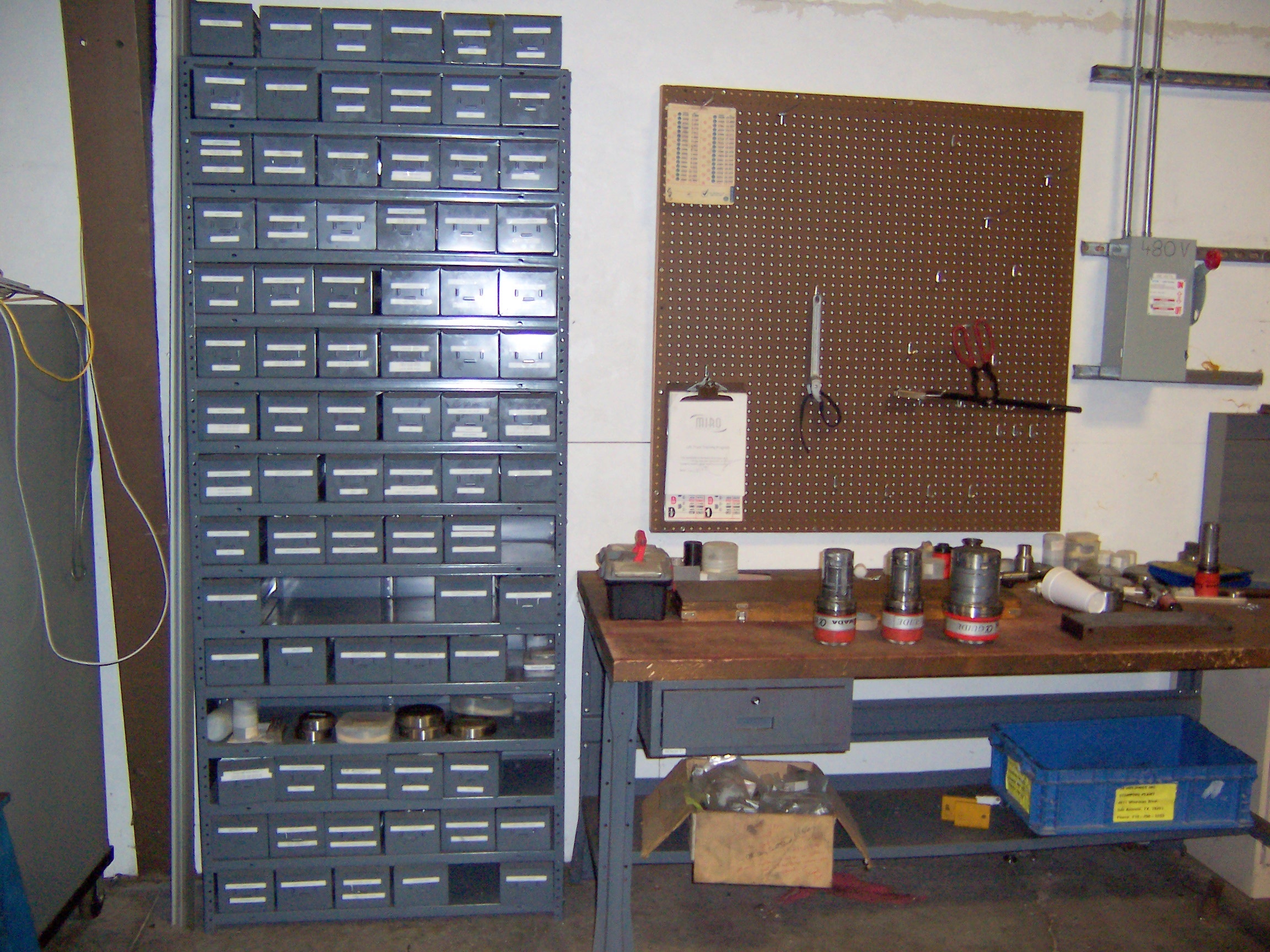

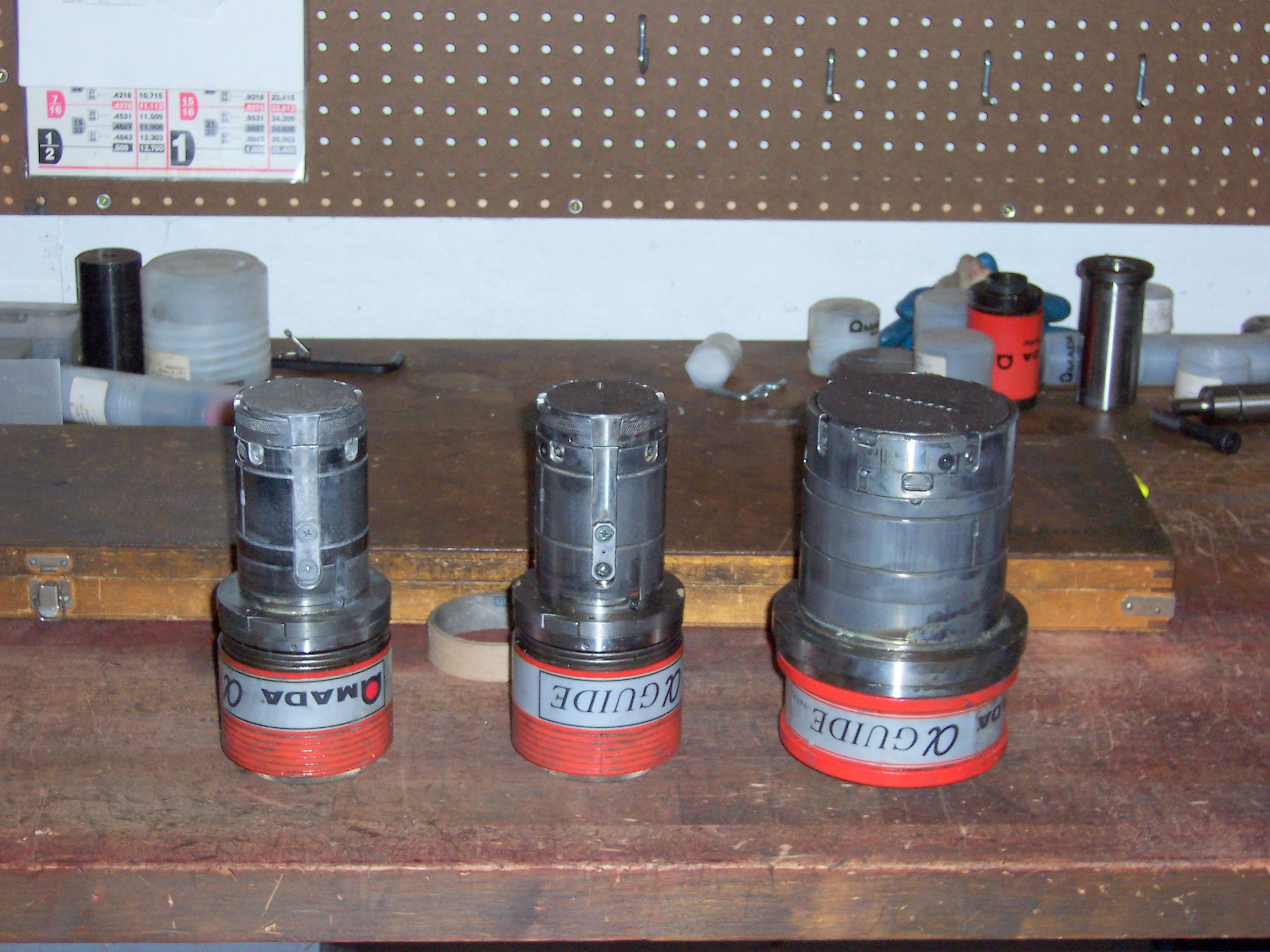

A LARGE LOT OF PUNCHES AND DIES
MACHINE HAS ONLY 2500 OF POWER ON HOURS
