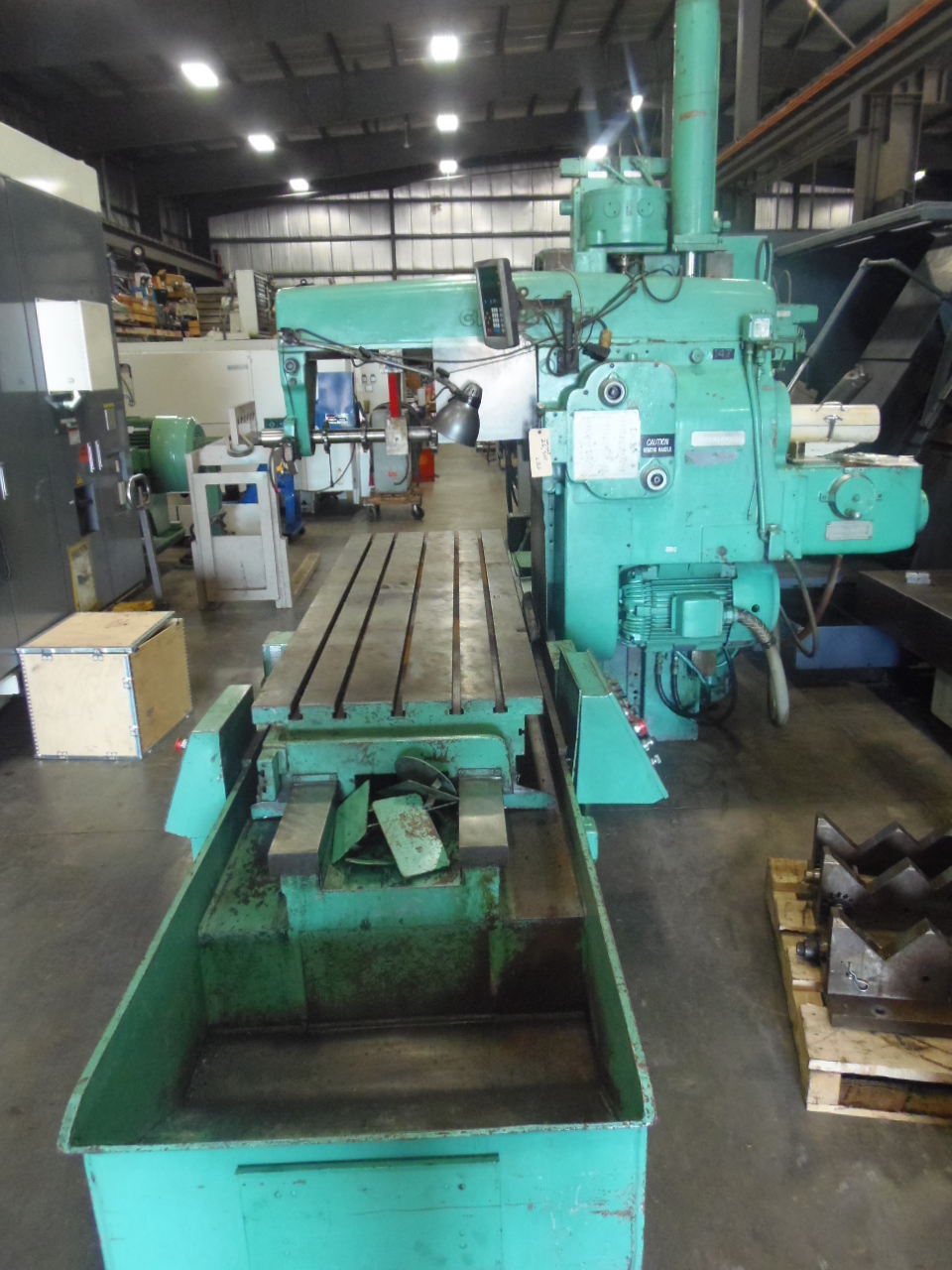

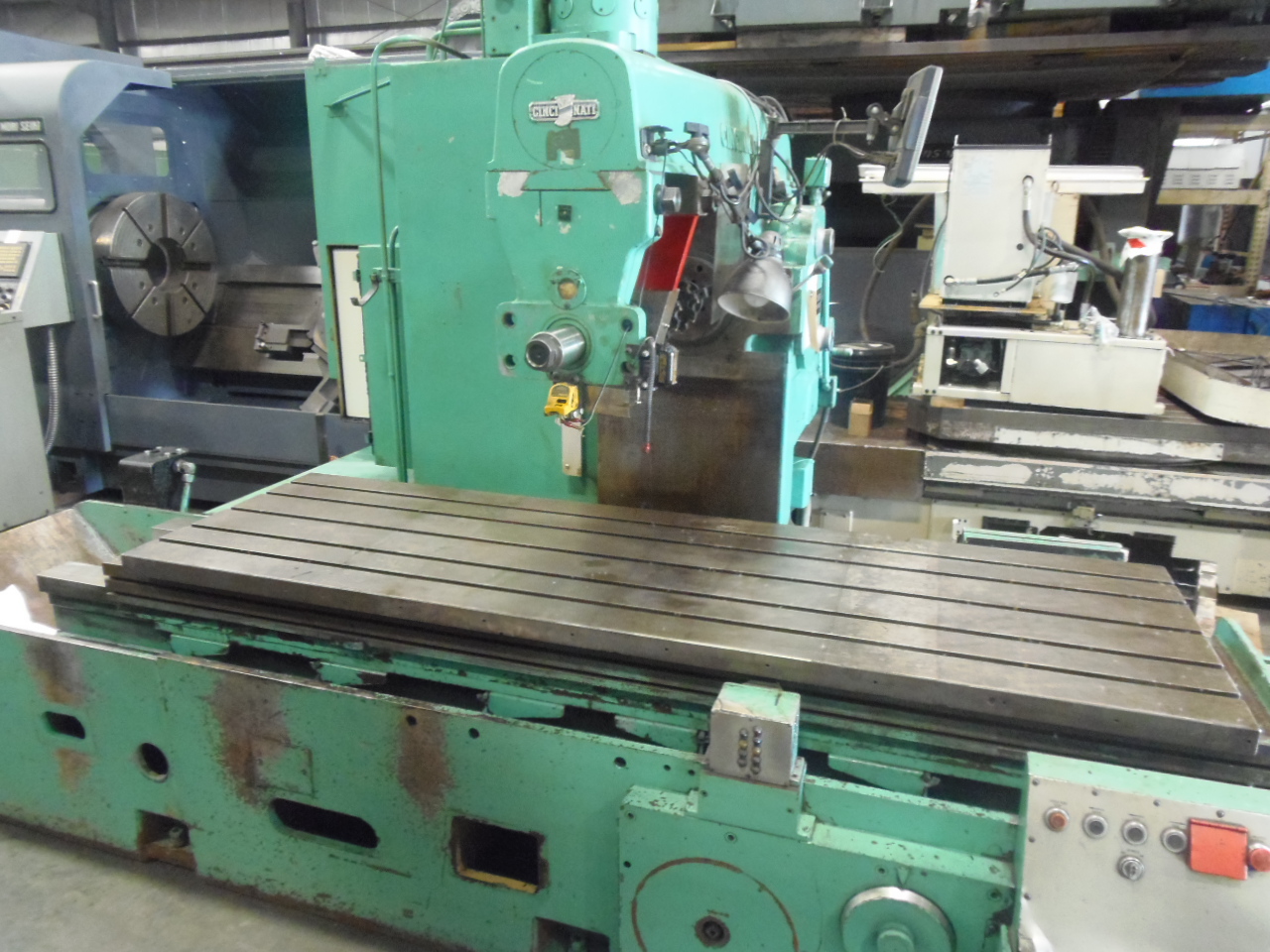

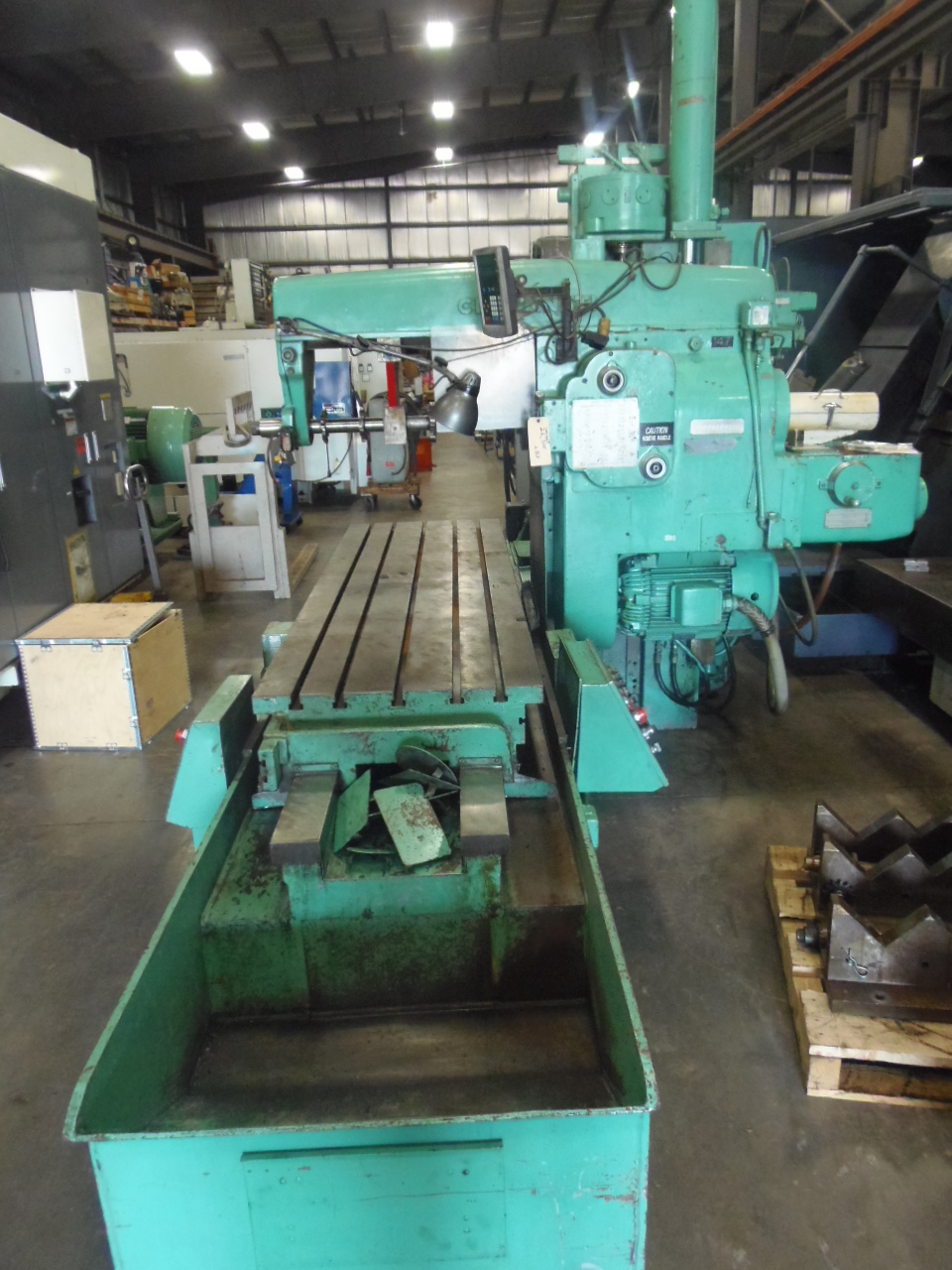

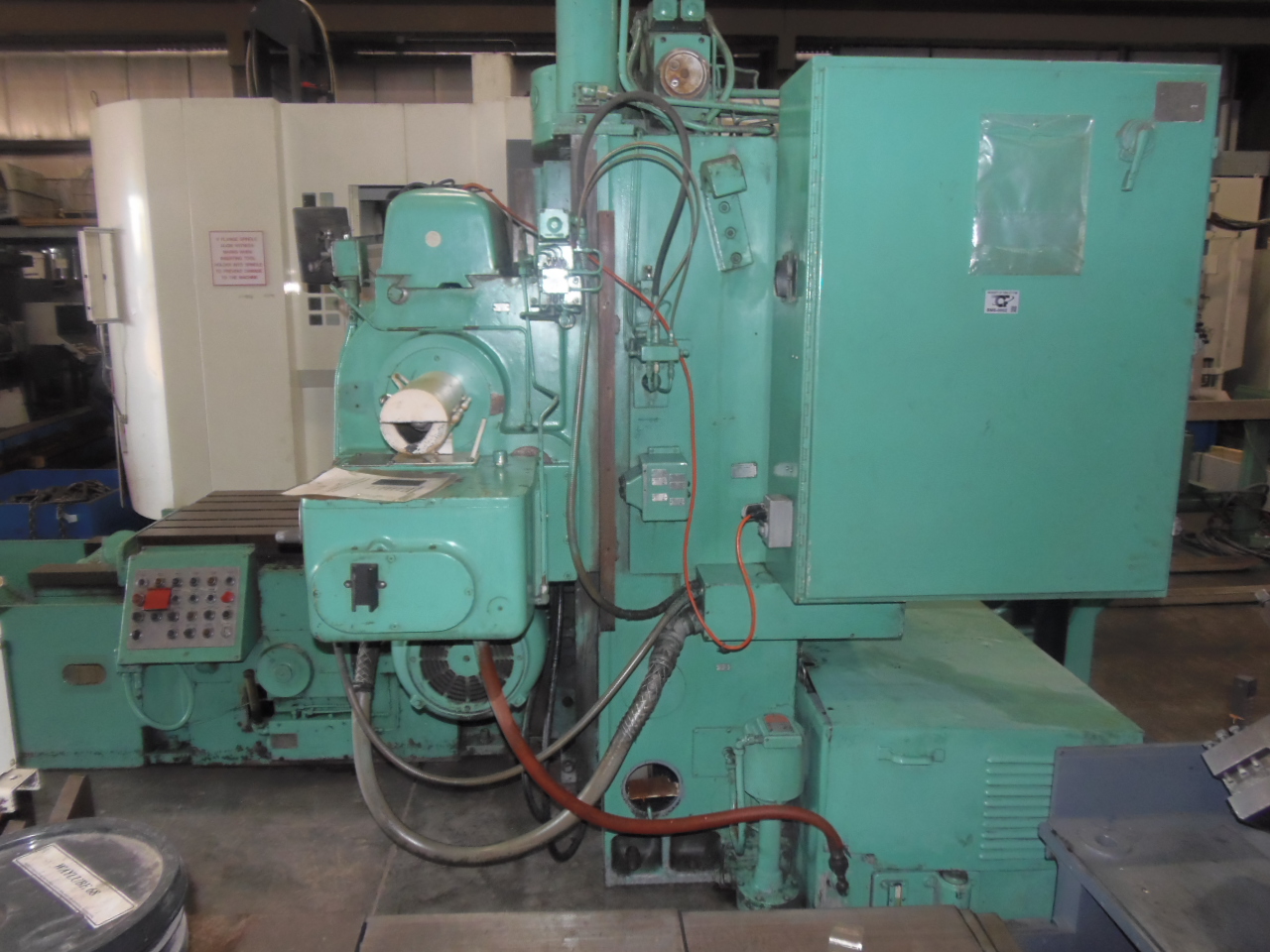

GENERAL SPECIFICATIONS:

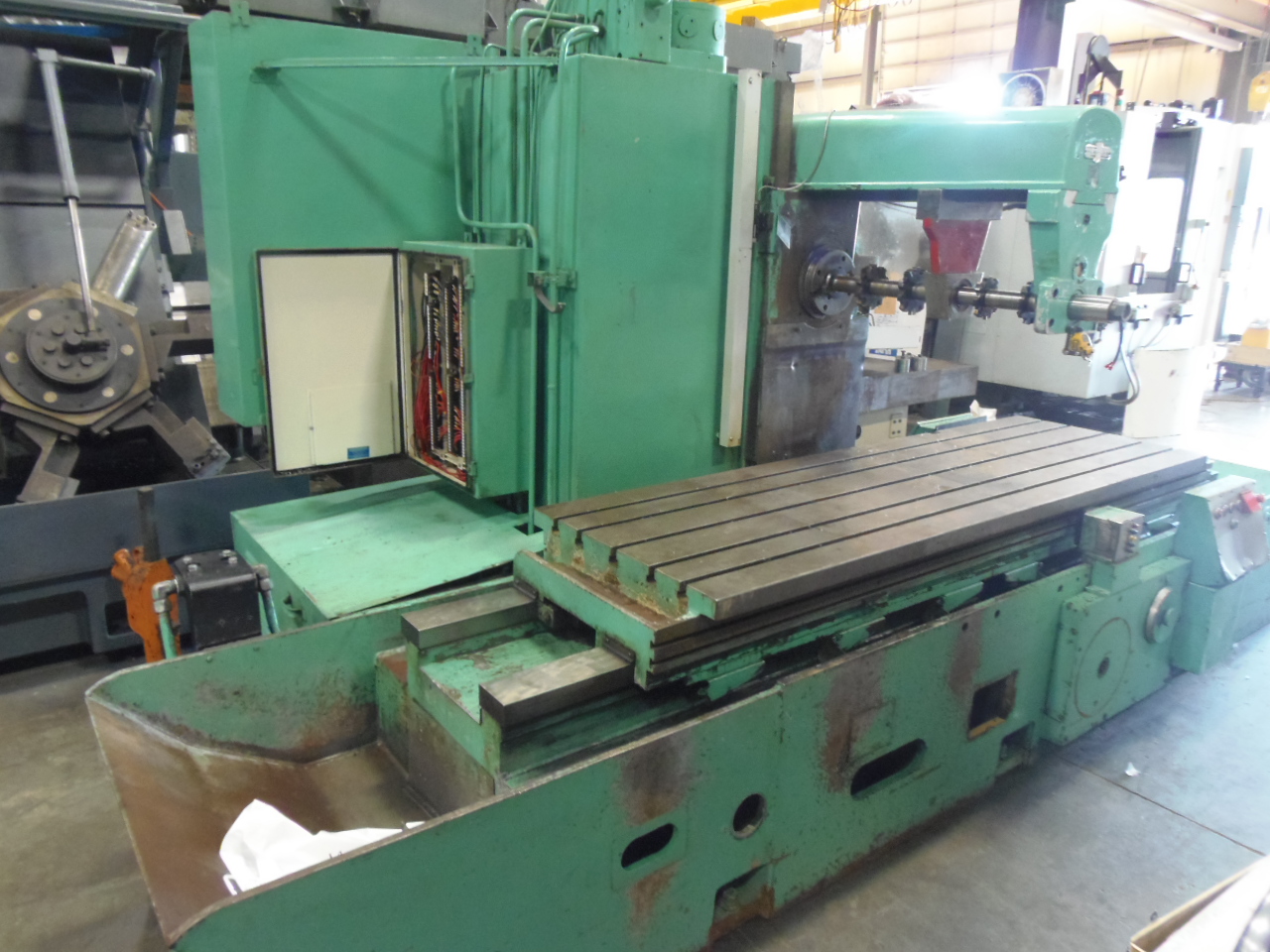

MANUFACTURER............................. CINCINNATI
MODEL.................................... 500-266 HYPOWERMATIC

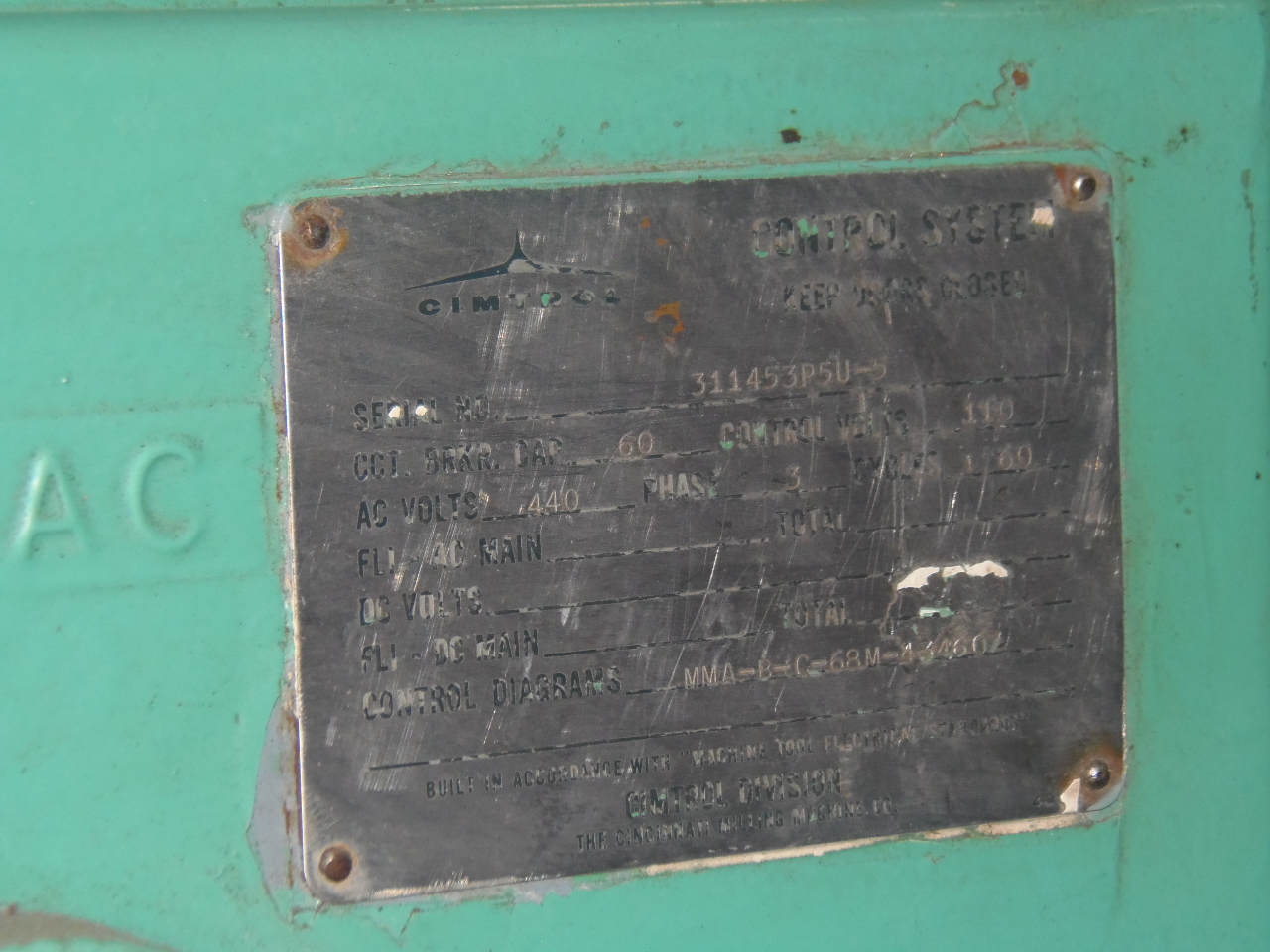

SERIAL NUMBER............................ 311455P5U-5

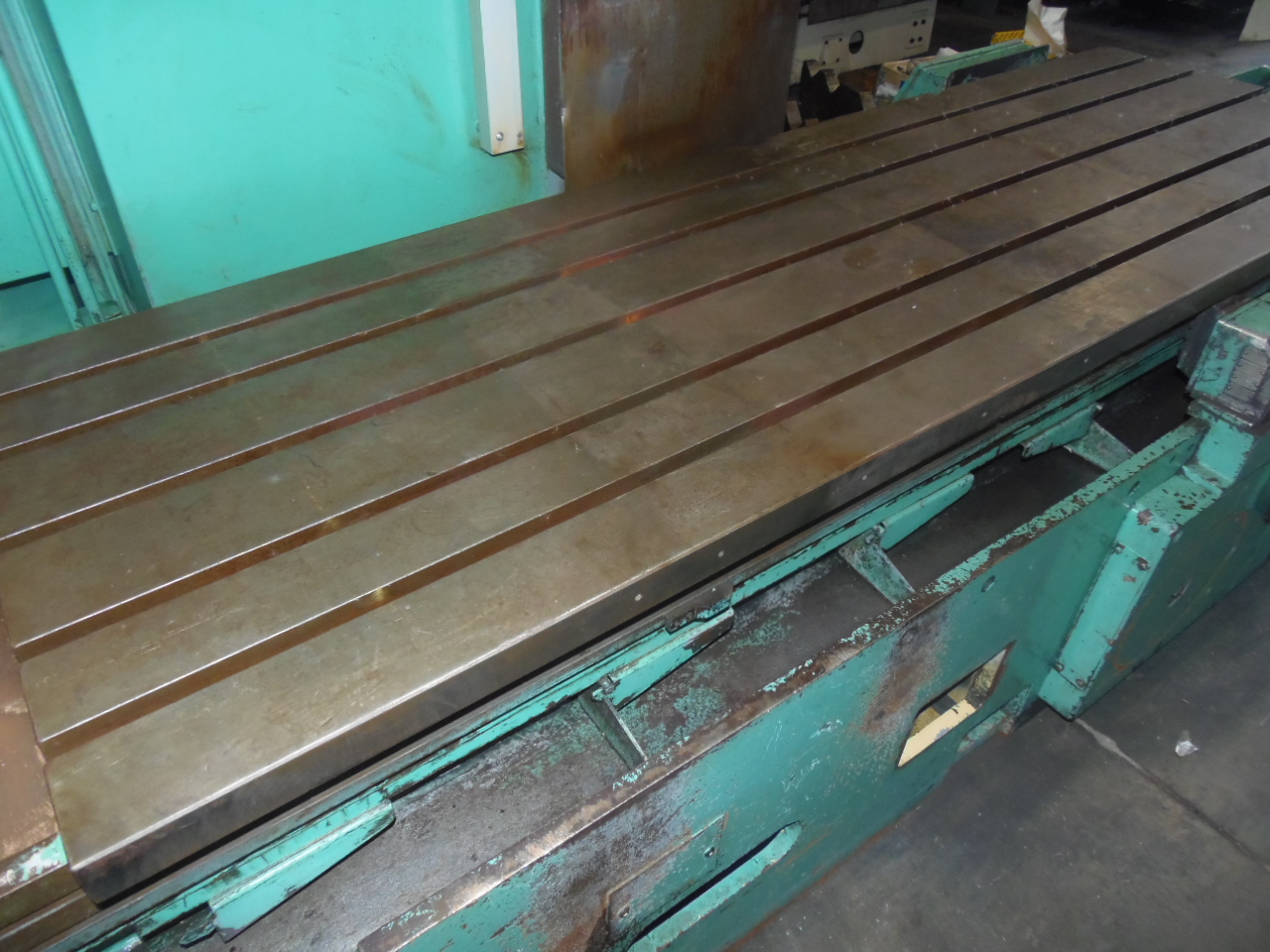

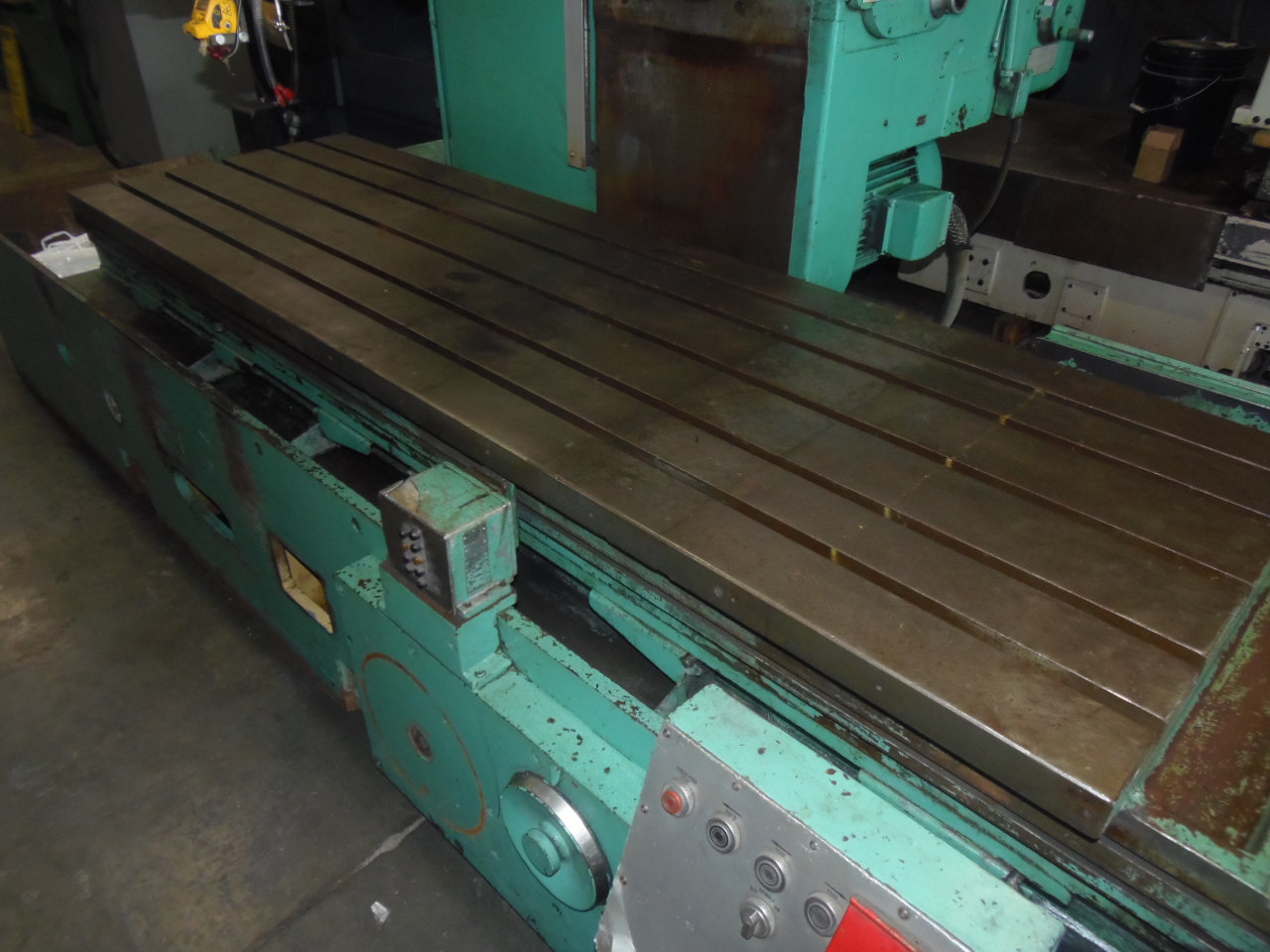

TABLE SIZE............................... 30" X 96"
TABLE TRAVELS............................ 72"
VERTICAL ADJUSTMENT OF SPINDLE CARRIER... 36"
QUILL ADJUSTMENT......................... 8"
CENTER OF TABLE TO FACE OF SPINDLE....... 8.5" MIN, 16.5" MAX
TOP OF TABLE TO CENTER LINE OF SPINDLE... O" MIN, 36" MAX

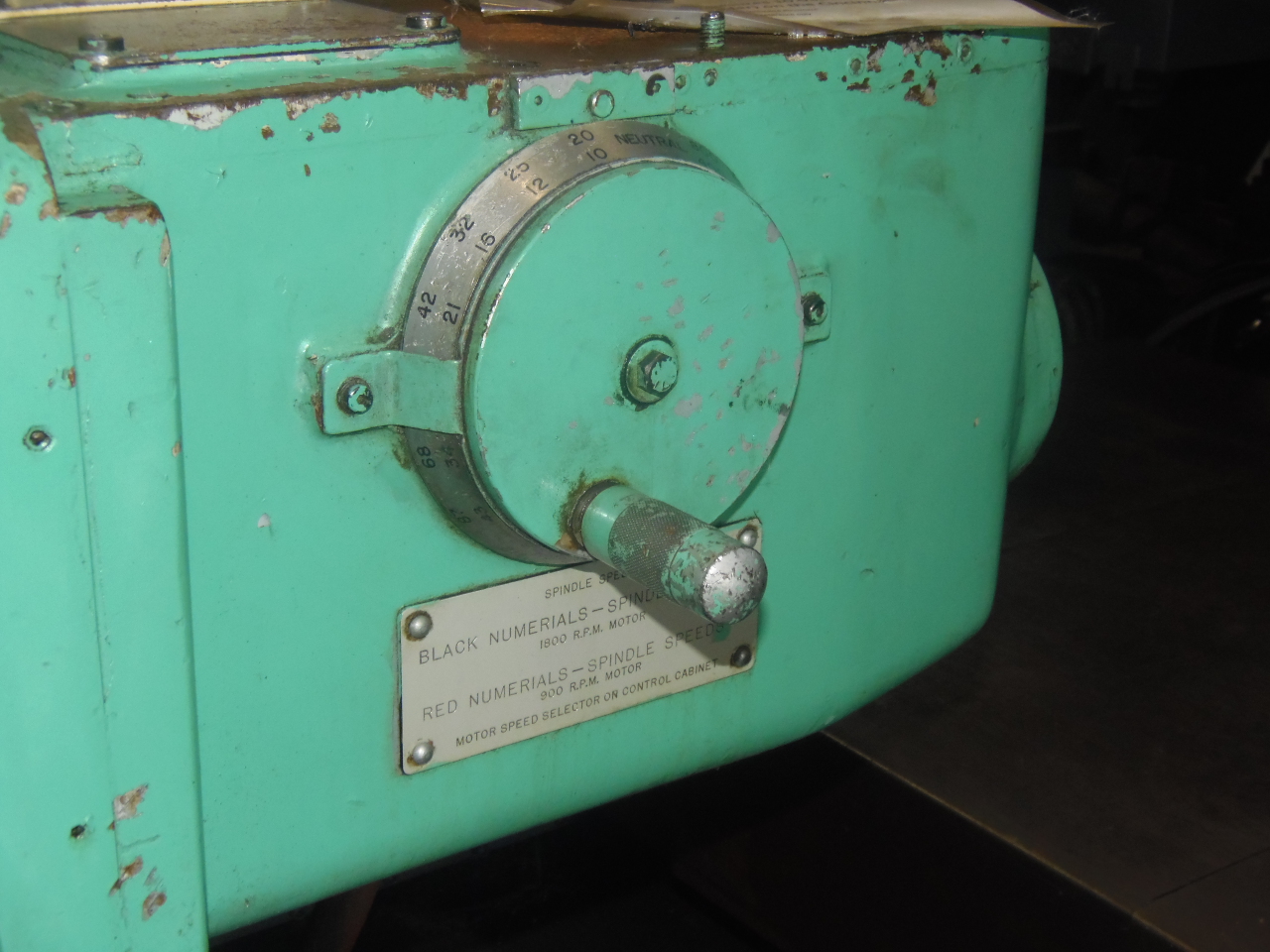

RPM RANGE
LOW................................... 10 - 400 RPM
HIGH.................................. 20 - 800 RPM
RAPID TRAVERSE........................... 200 IPM

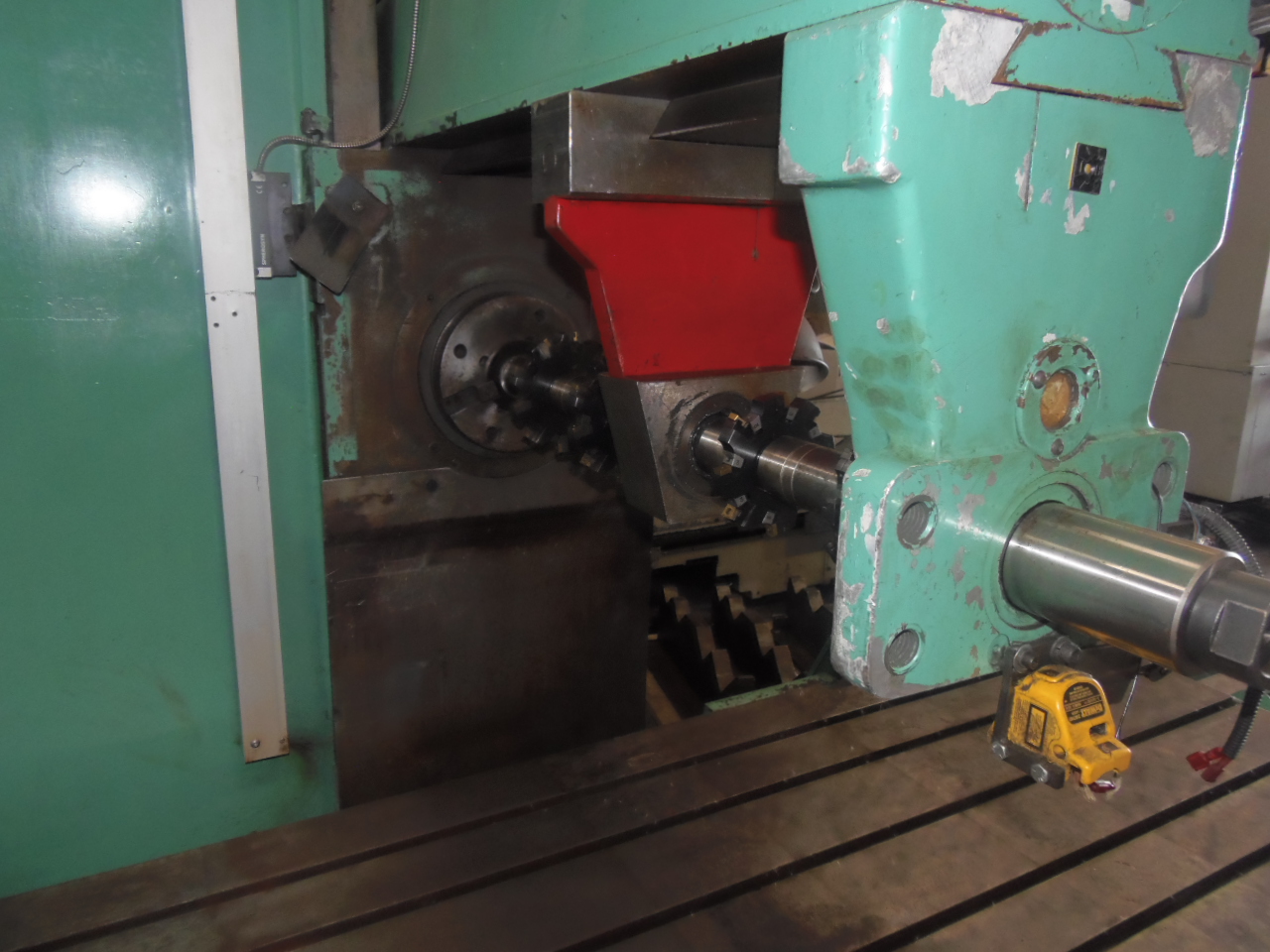

TAPER IN SPINDLE......................... #50NS
HYDRAULIC MOTOR.......................... 7.5 HP
SPINDLE MOTOR............................ 30 HP
WEIGHT................................... 26,500 LBS
EQUIPPED WITH:

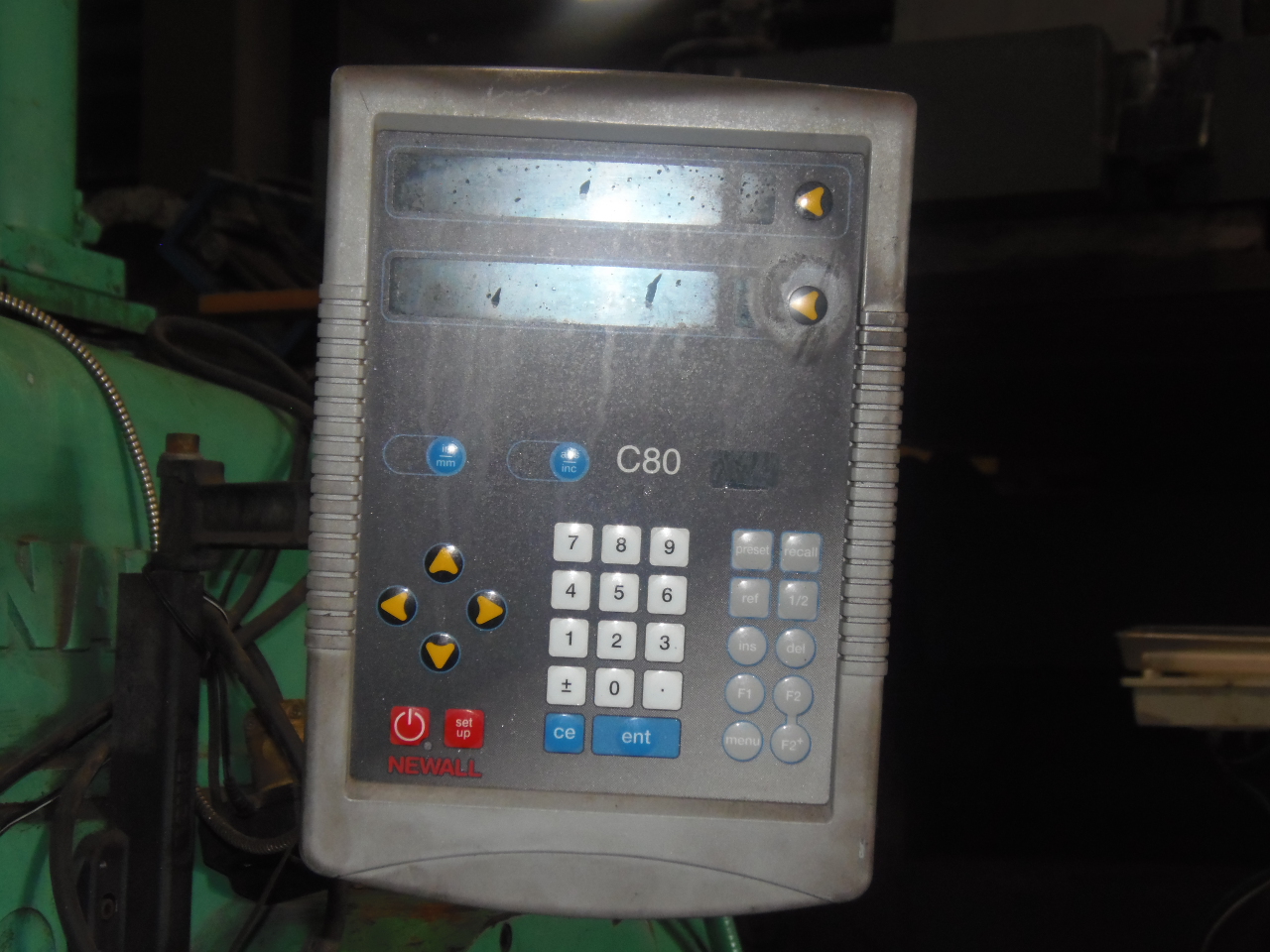

NEWALL C80 2 AXIS DIGITAL READOUT SYSTEM

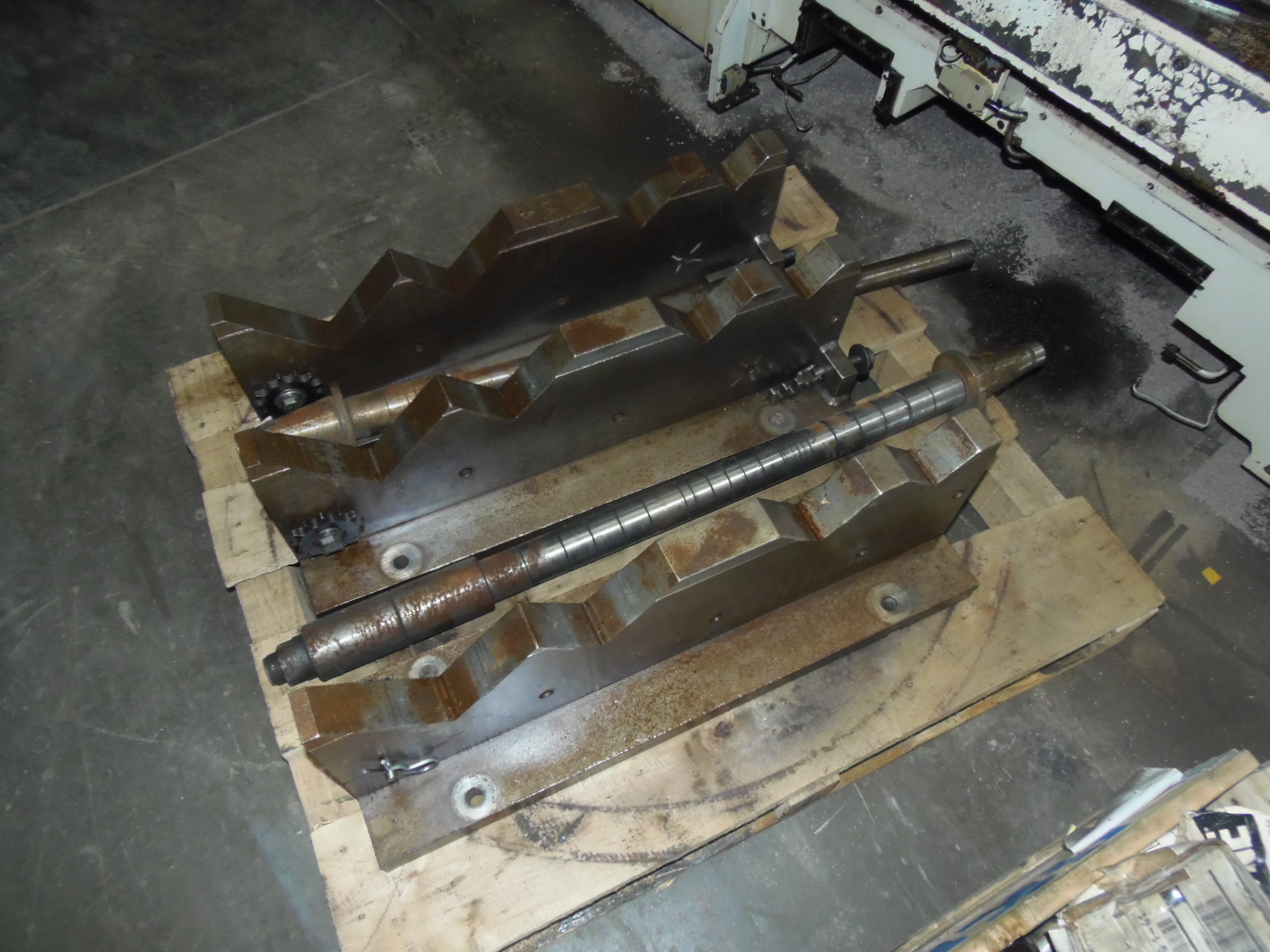

2 OVERARM SUPPORTS
2 ARBORS
COOLANT
HARD WAYS
