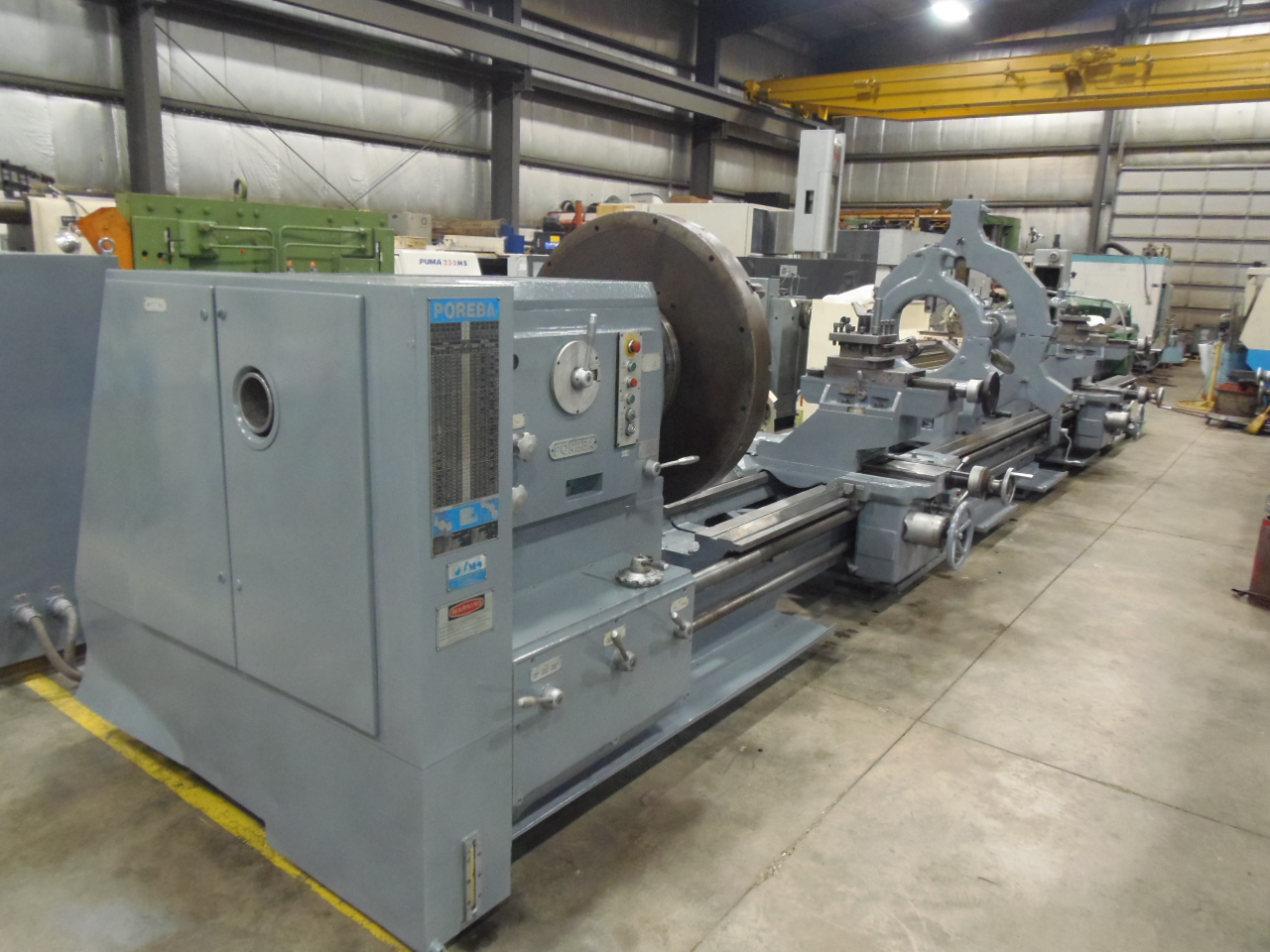

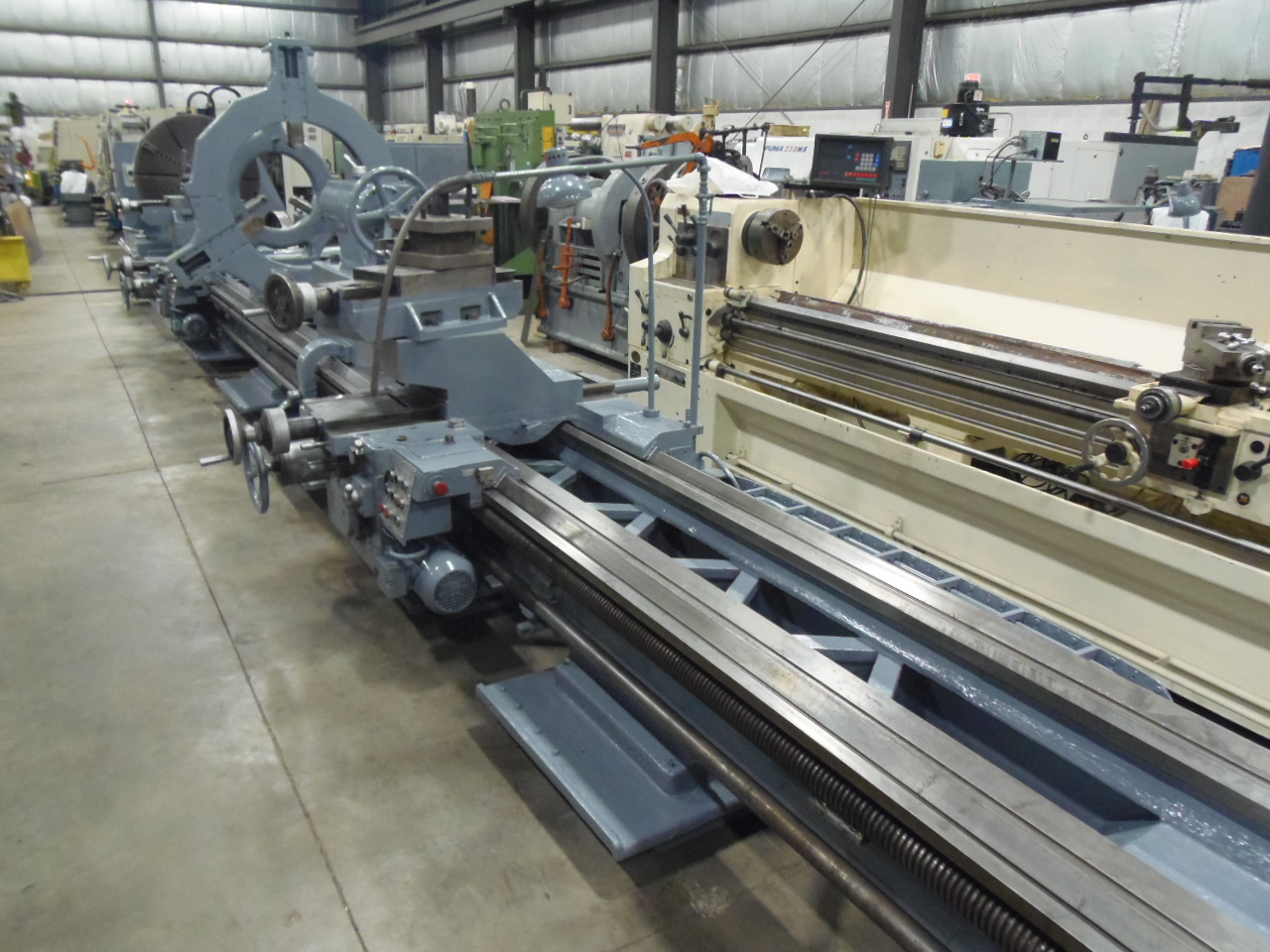

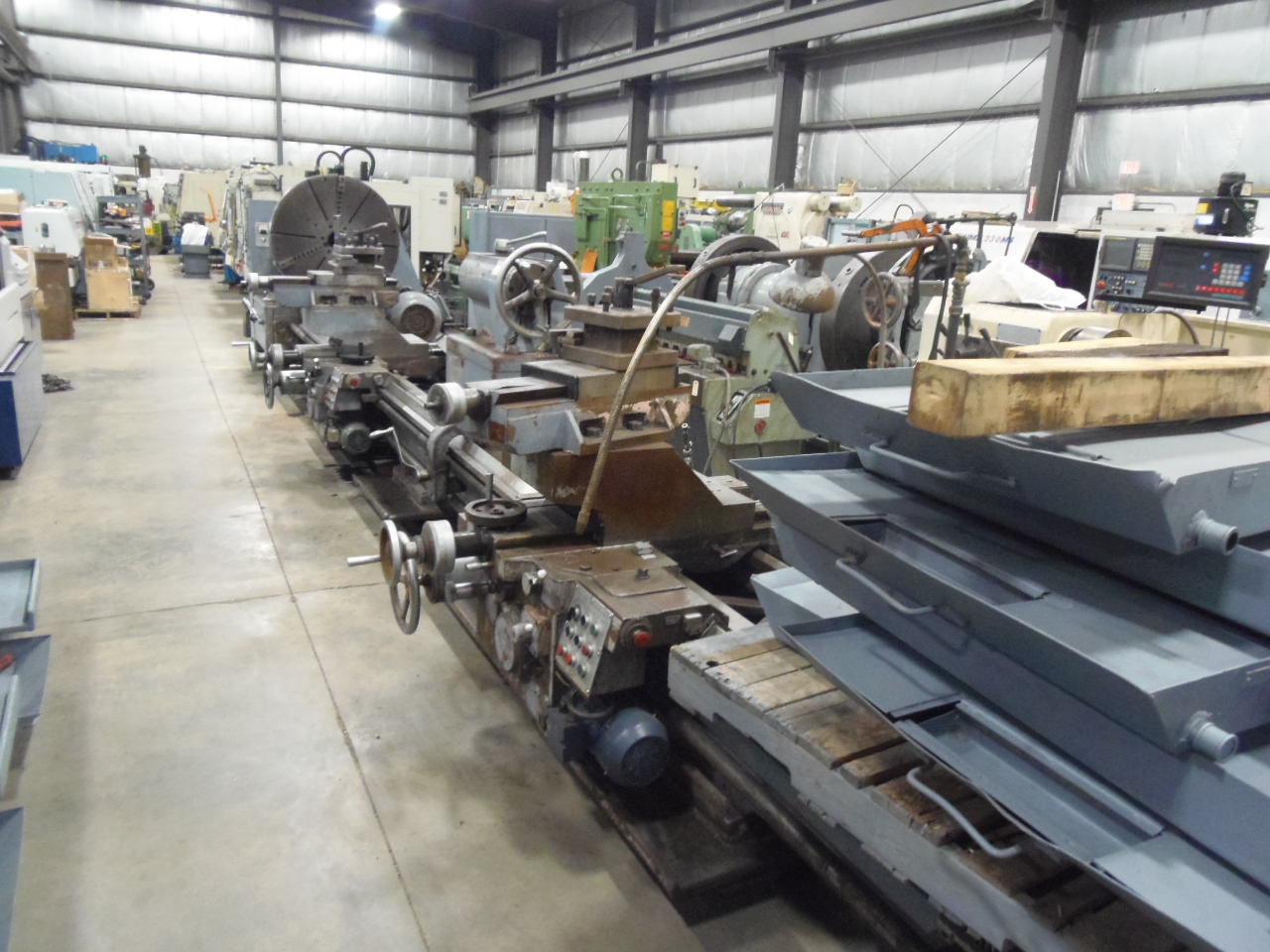

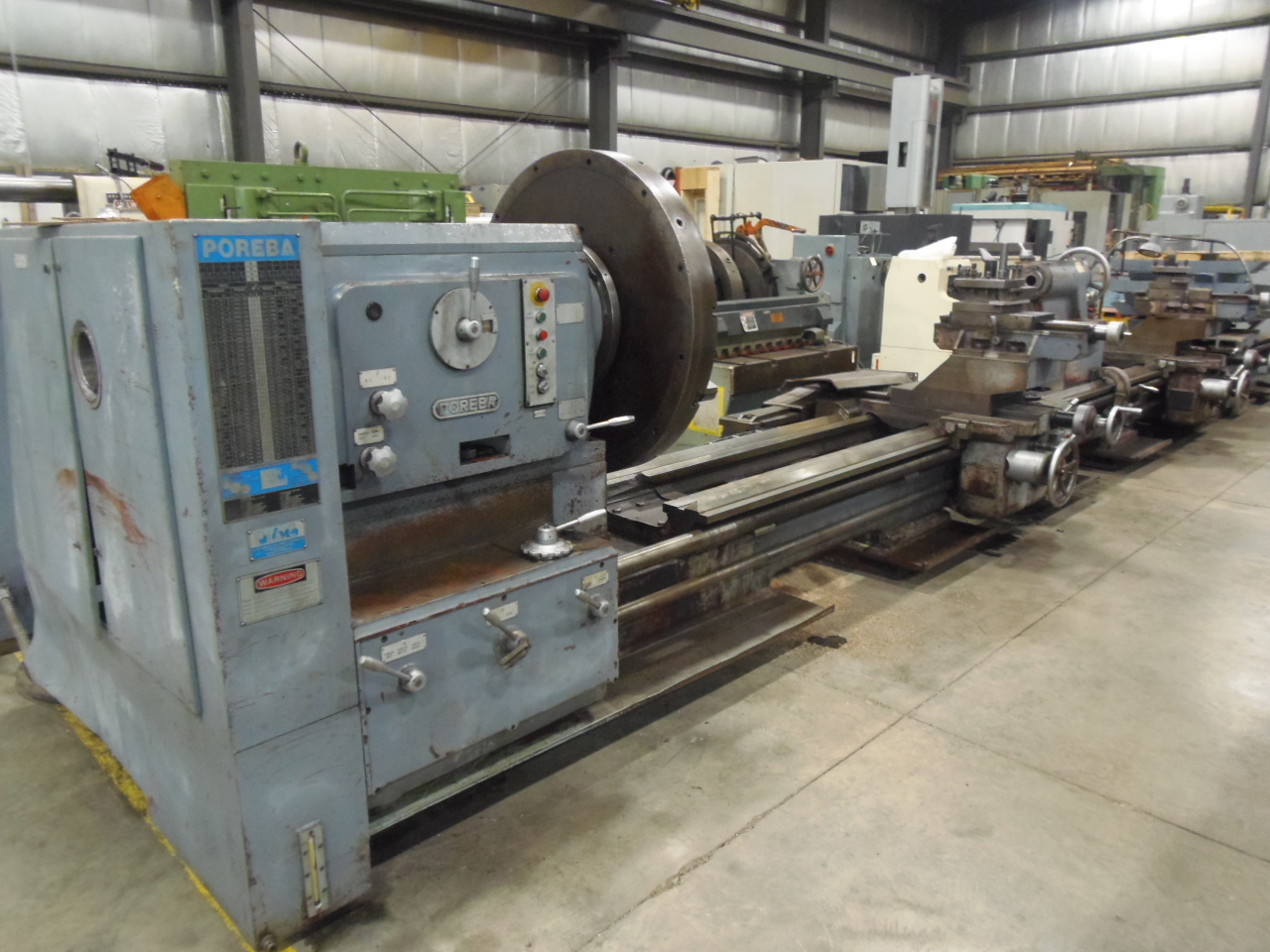

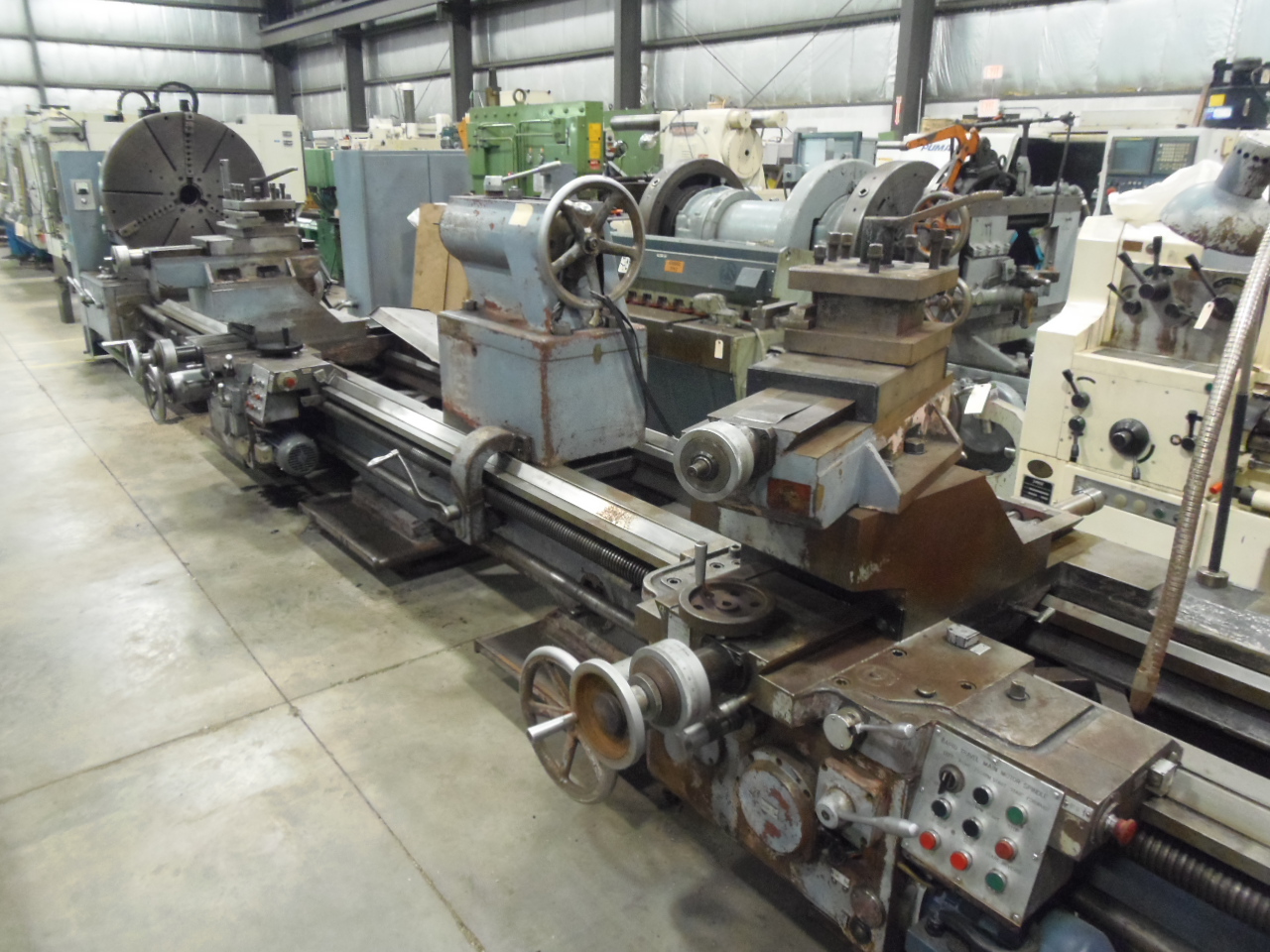

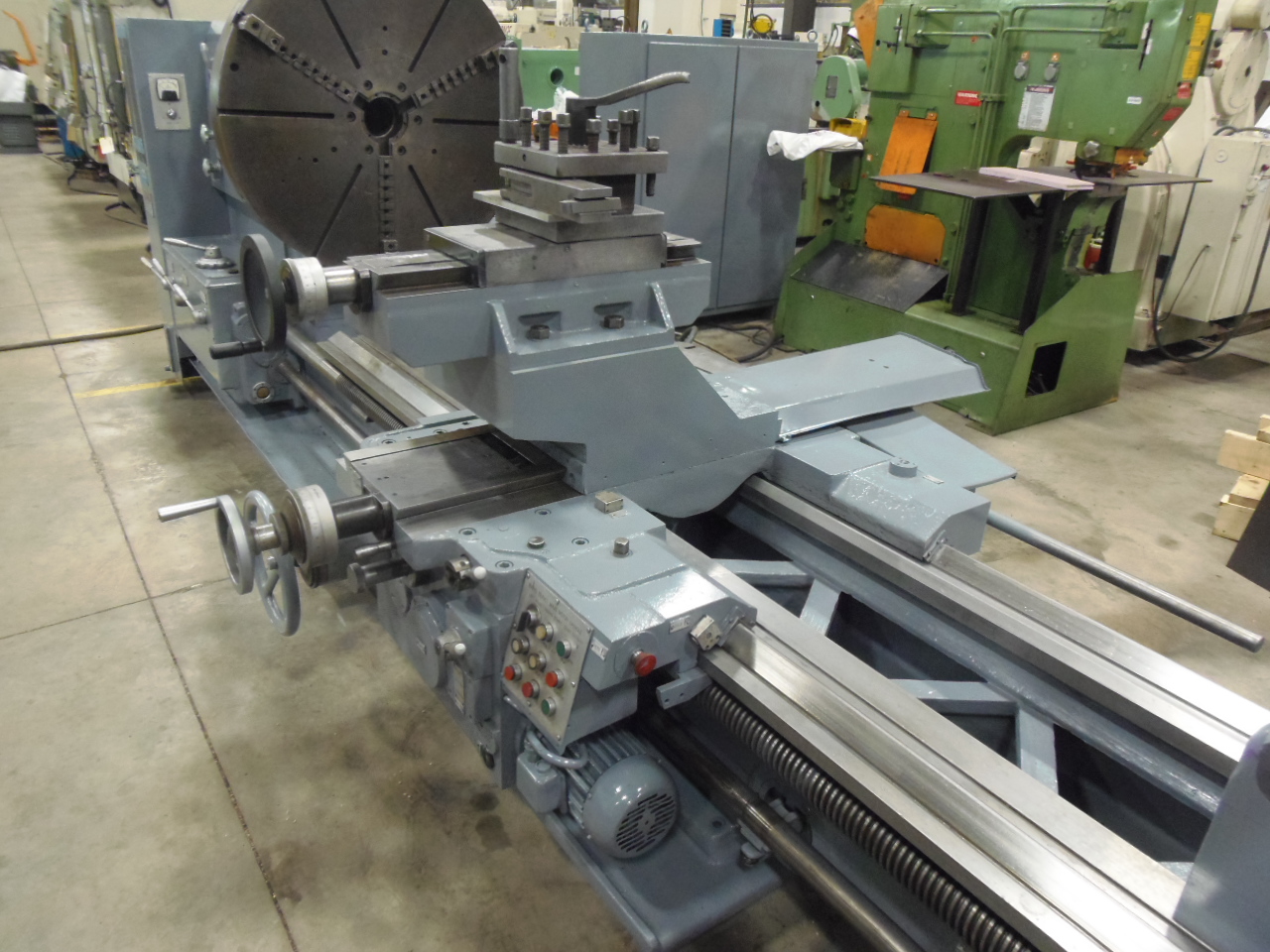

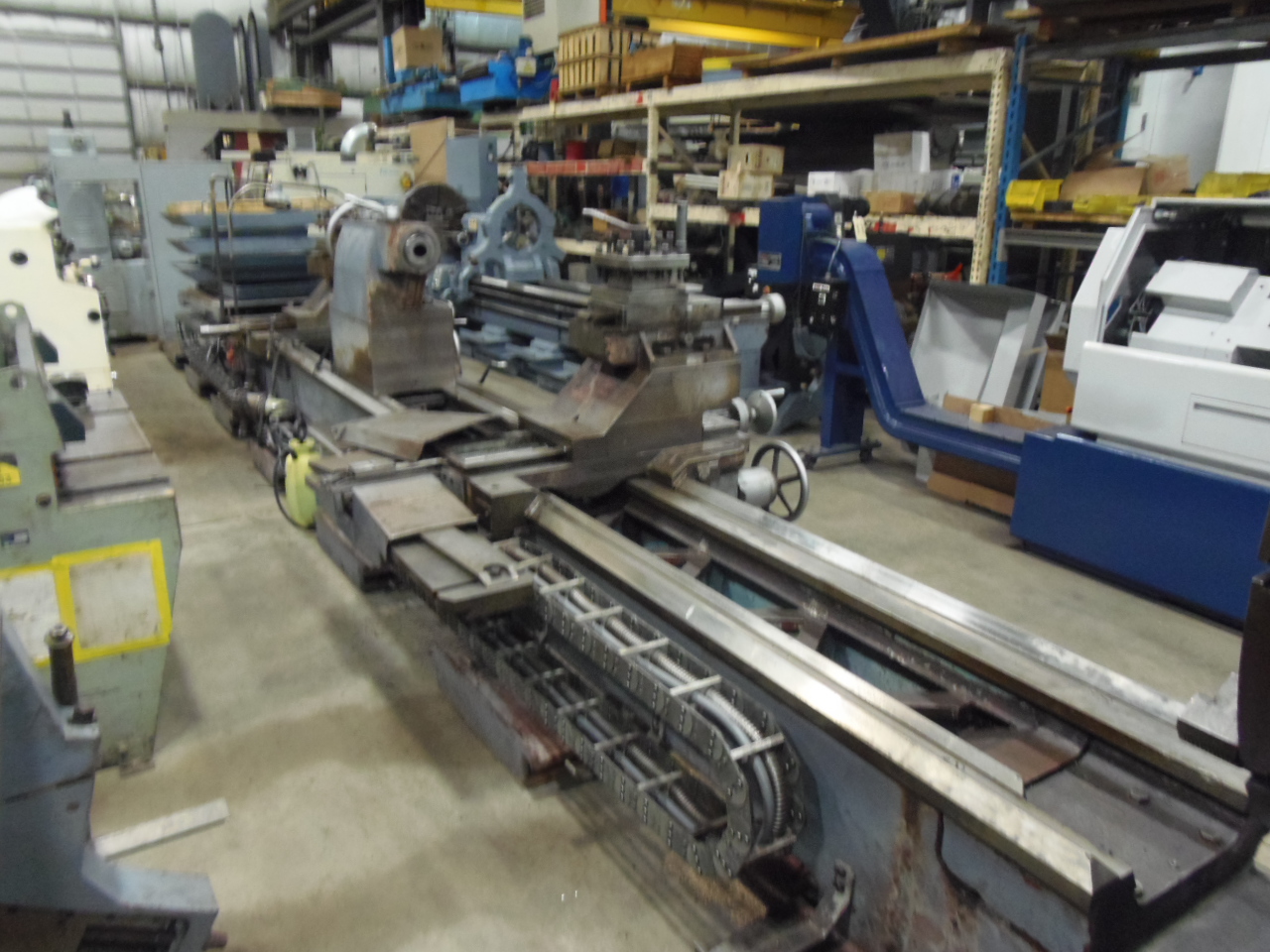

53"/40" x 315" POREBA TR-135-B1/8M, 2 CARRIAGES, 42" 3 JAW, TAPER, 6 WAY RAPIDS, S.R.,
Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER......................... POREBA
MODEL................................ TR135B1X8M
SERIAL #............................. 1191-270
NEW.................................. 1979
SWING OVER BED....................... 53.14"
SWING OVER GAP....................... 66.92"
LENGTH OF GAP FROM SPINDLE NOSE...... 22"
SWING OVER CROSS SLIDE............... 40.15"
CENTERS.............................. 315.2"

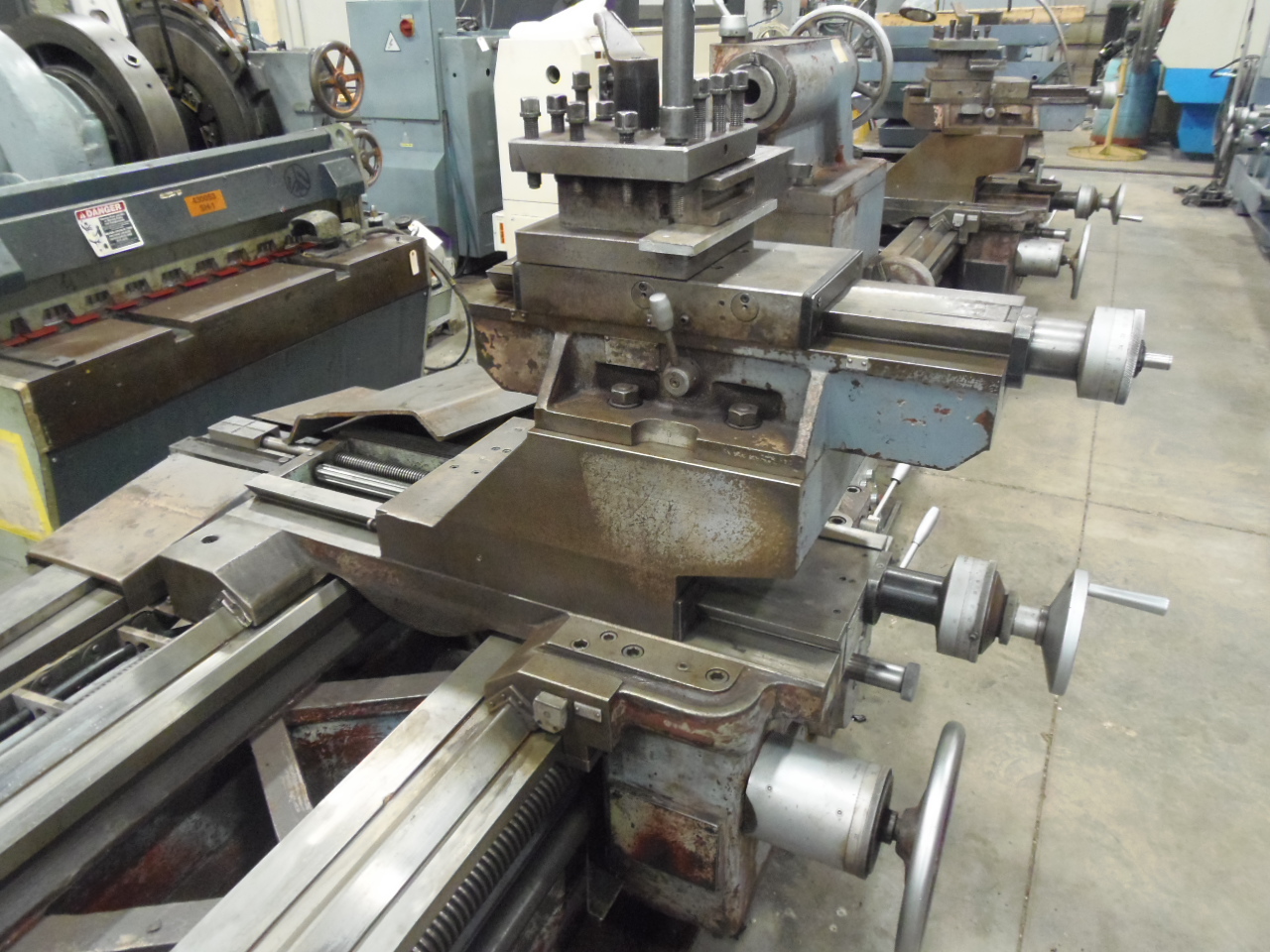

NUMBER OF CARRIAGES.................. 2
SPINDLE SPEED (18)................... 5 - 500 RPM
SPINDLE HOLE......................... 4.72"

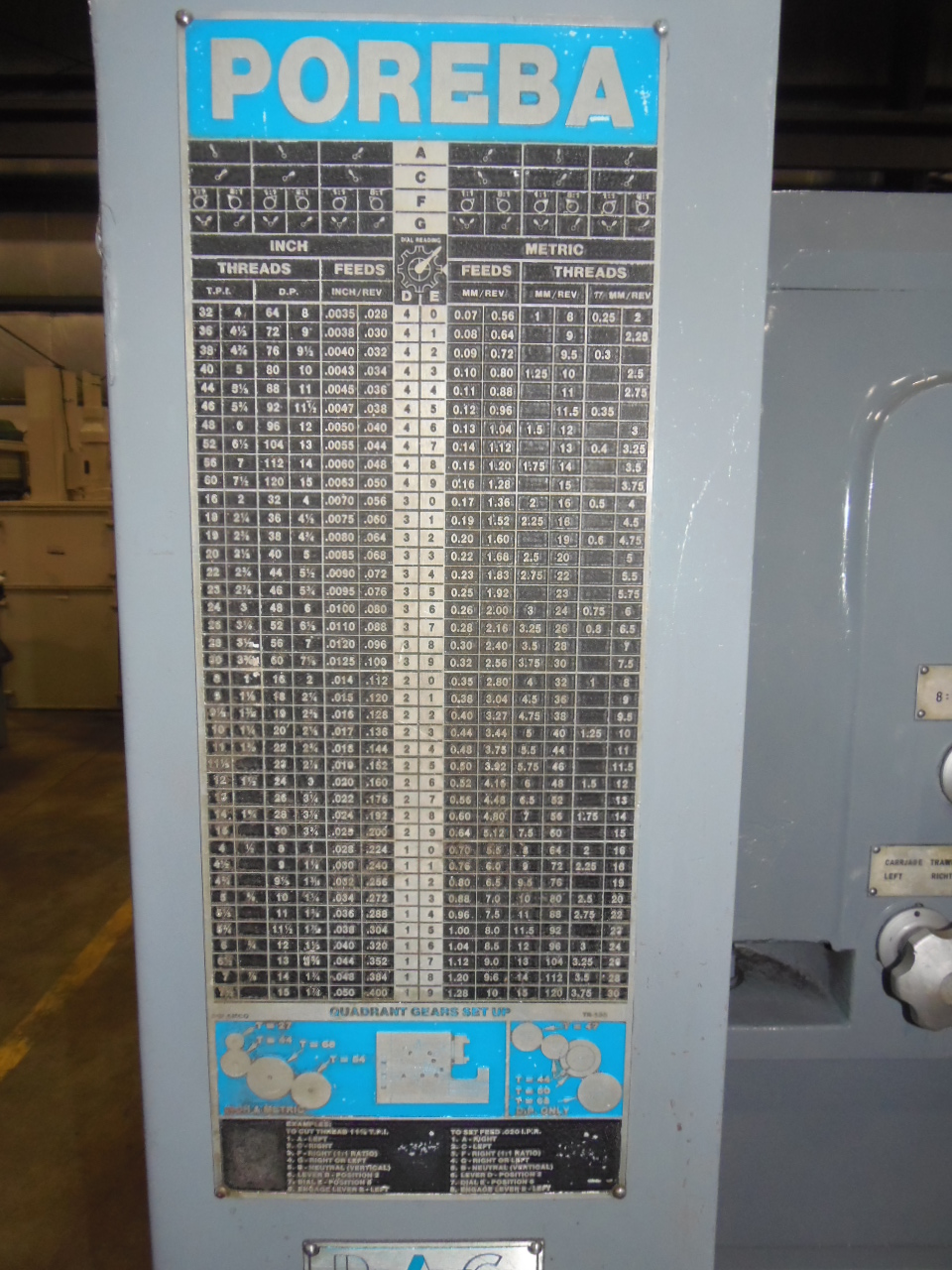

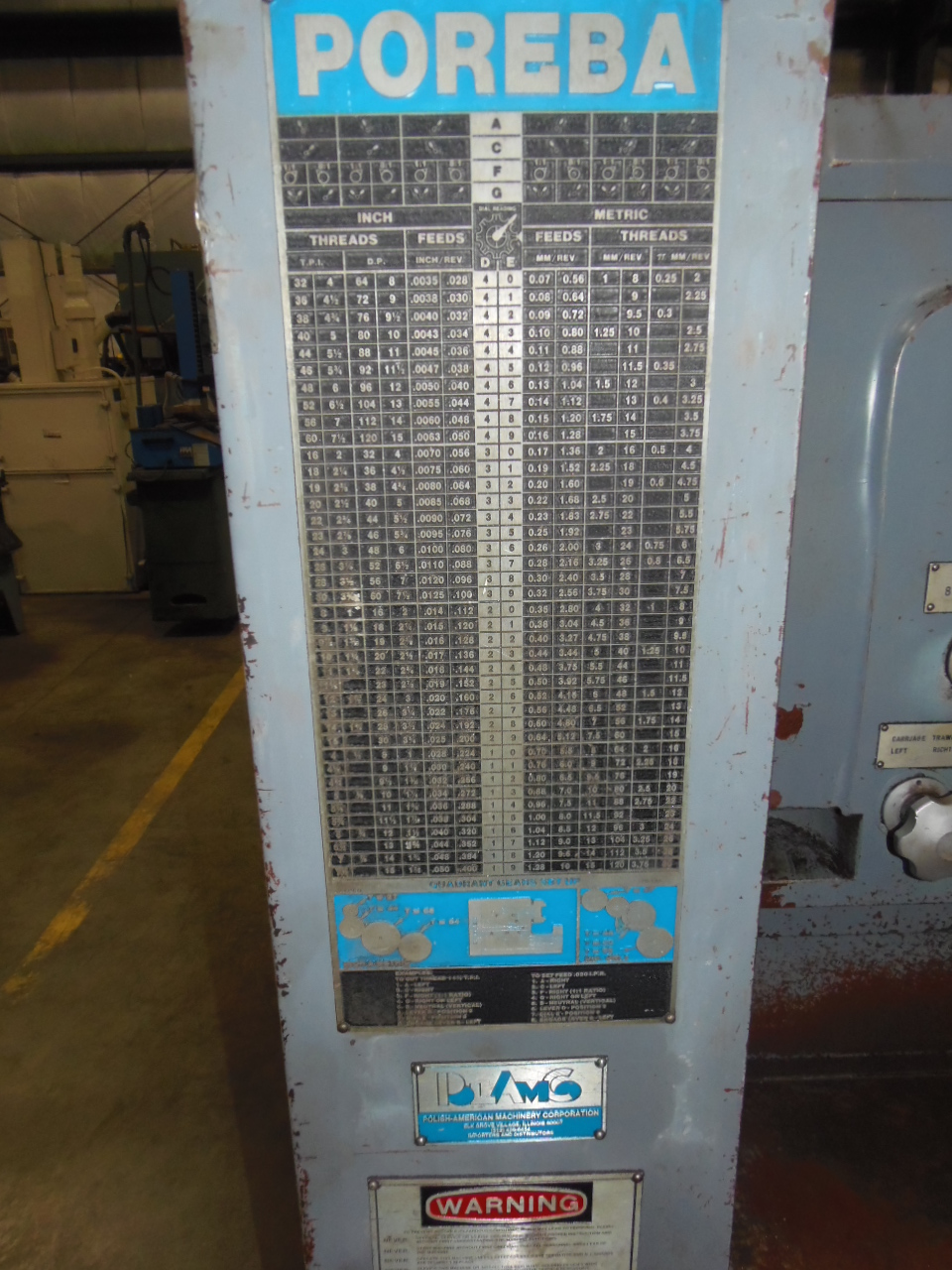

THREADING
INCH (61)......................... 5-60 TPI
METRIC (62)....................... 1-120 MM
MODULE (45)....................... .025-30
DP (70)........................... 5-60 TPI
SPINDLE NOSE MOUNT................... A1-11
TAIL STOCK QUILL DIAMETER............ 7.5"
TAIL STOCK QUILL TRAVEL.............. 12"

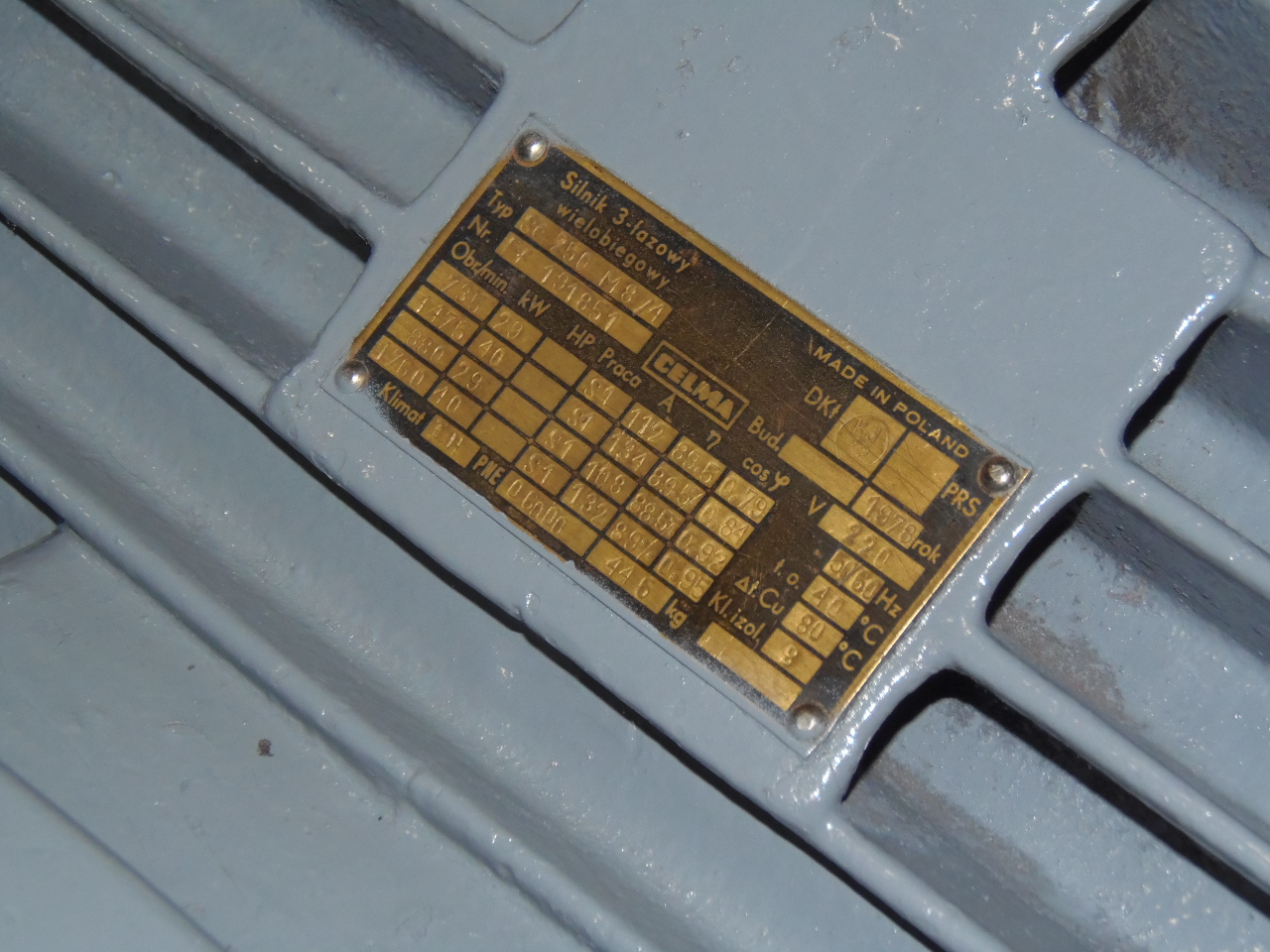

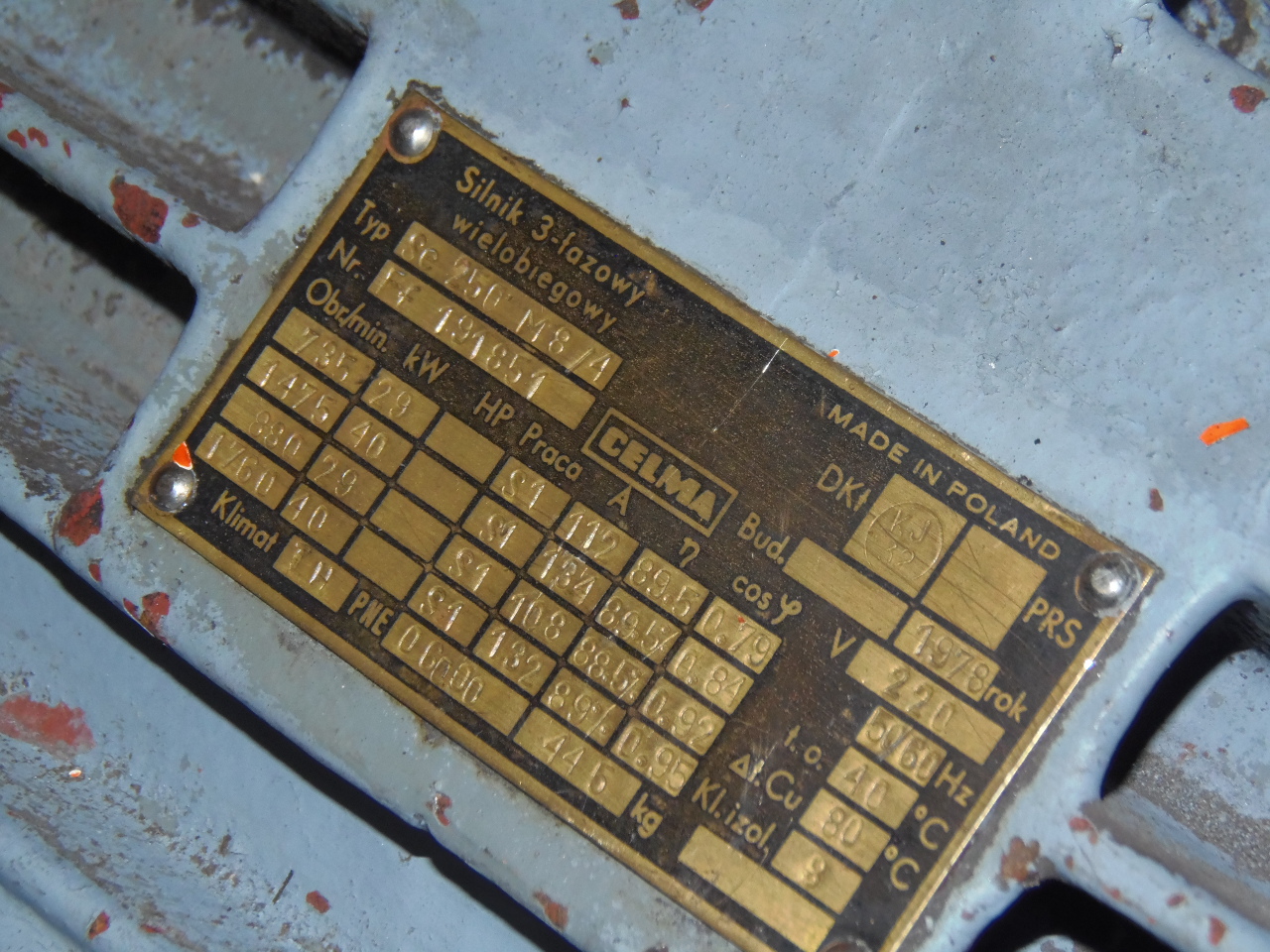

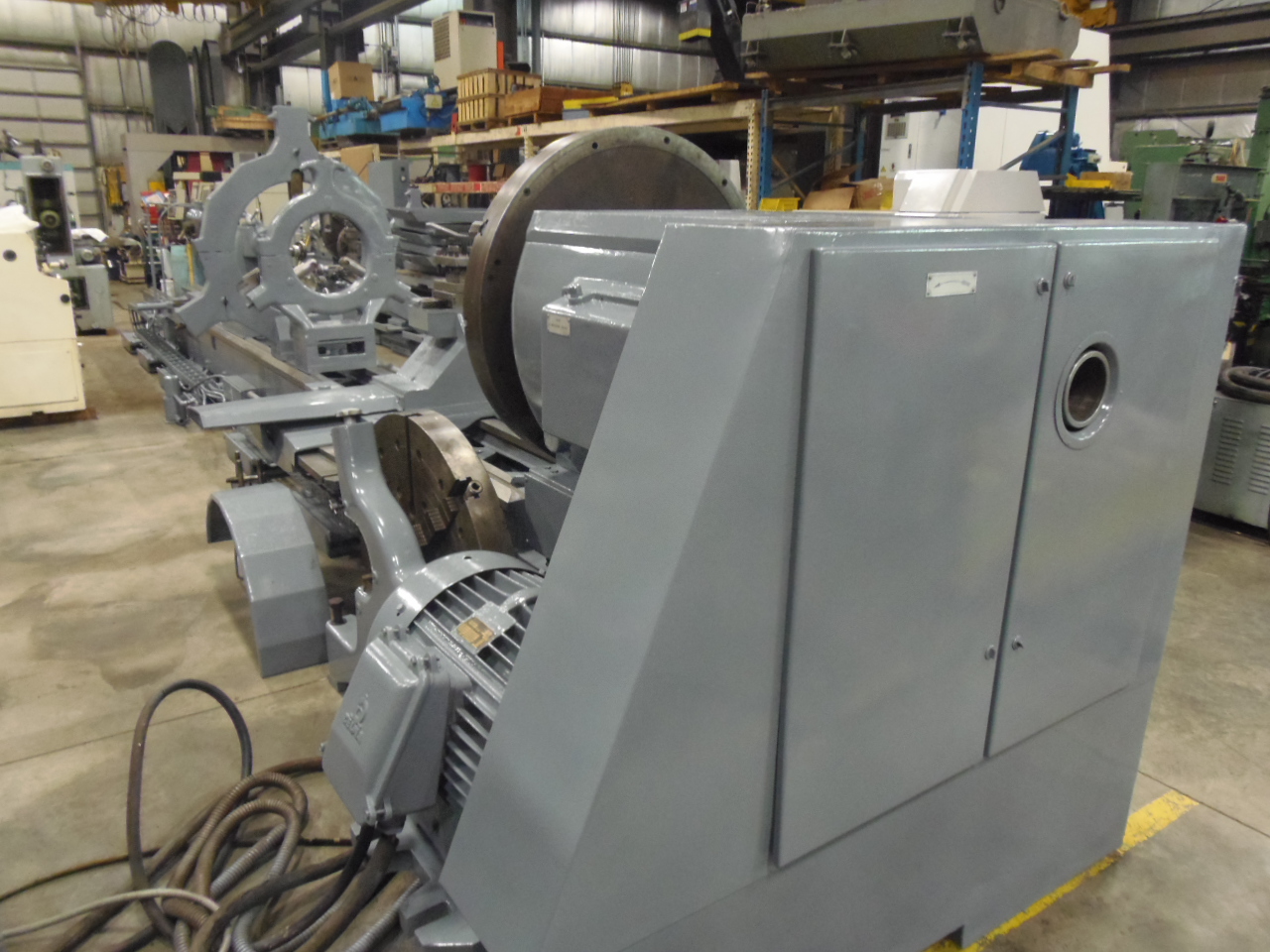

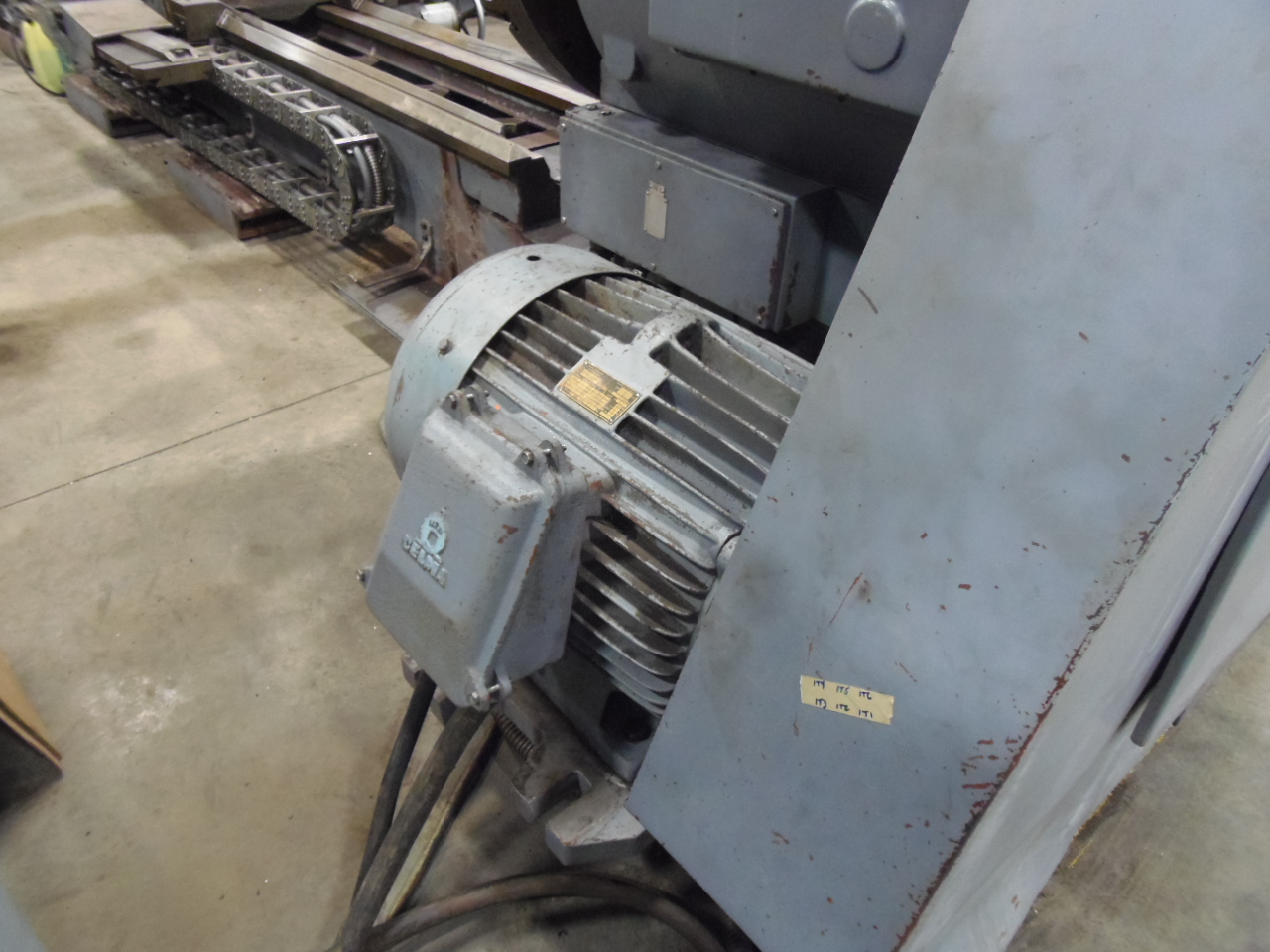

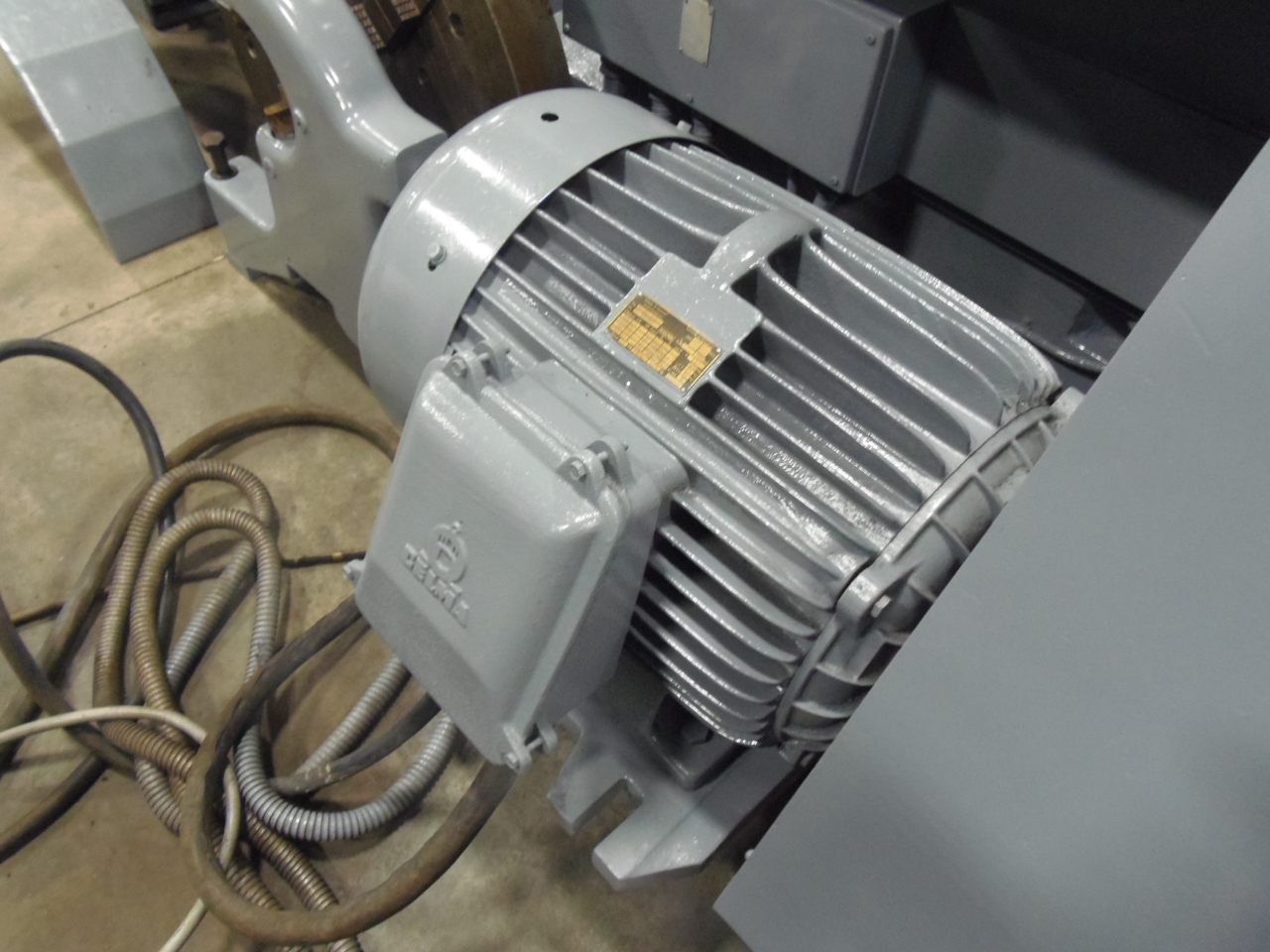

MOTOR................................ 30 HP
APPROX. WEIGHT....................... 42,000 LBS
EQUIPPED WITH:

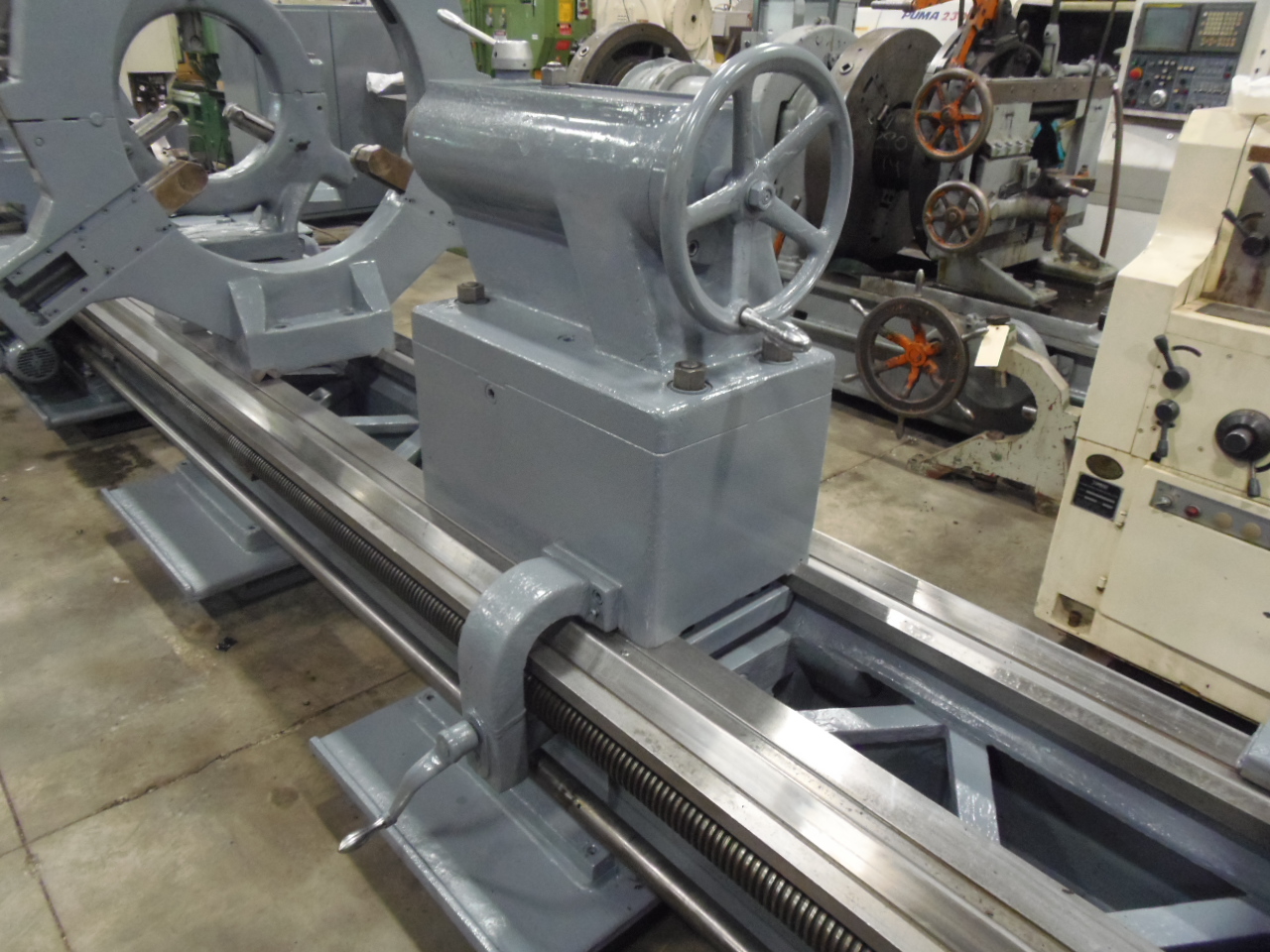

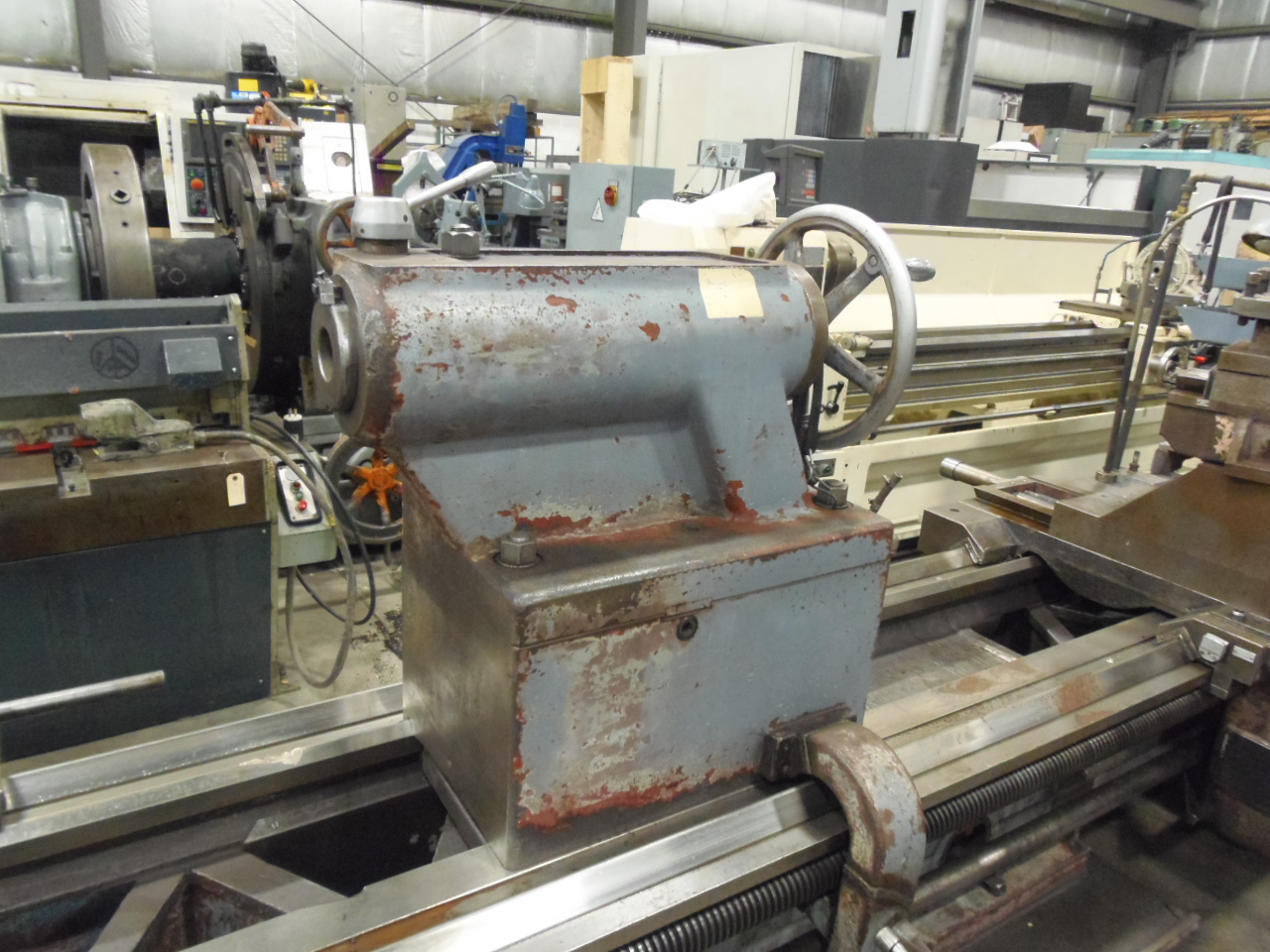

TAIL STOCK

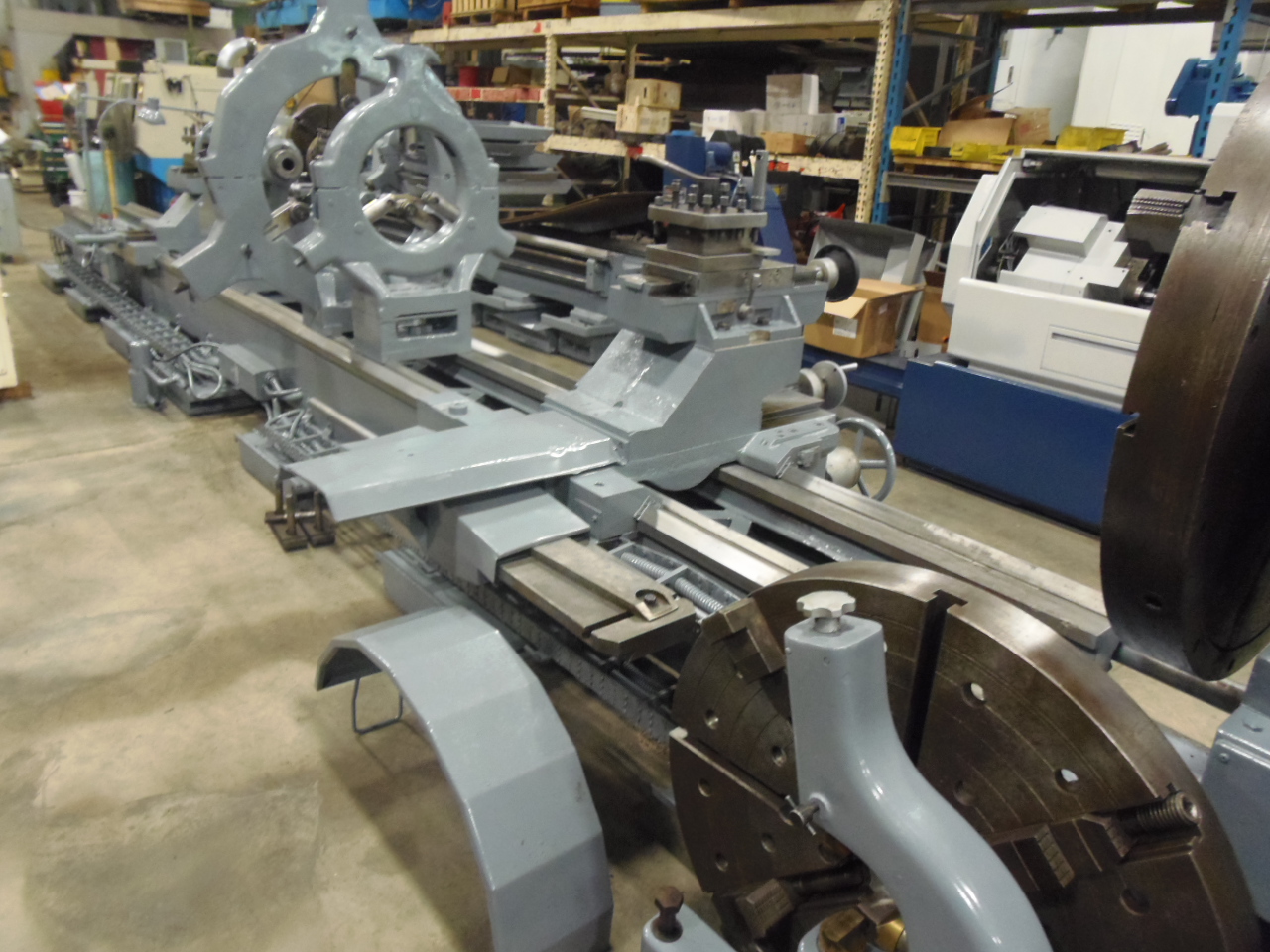

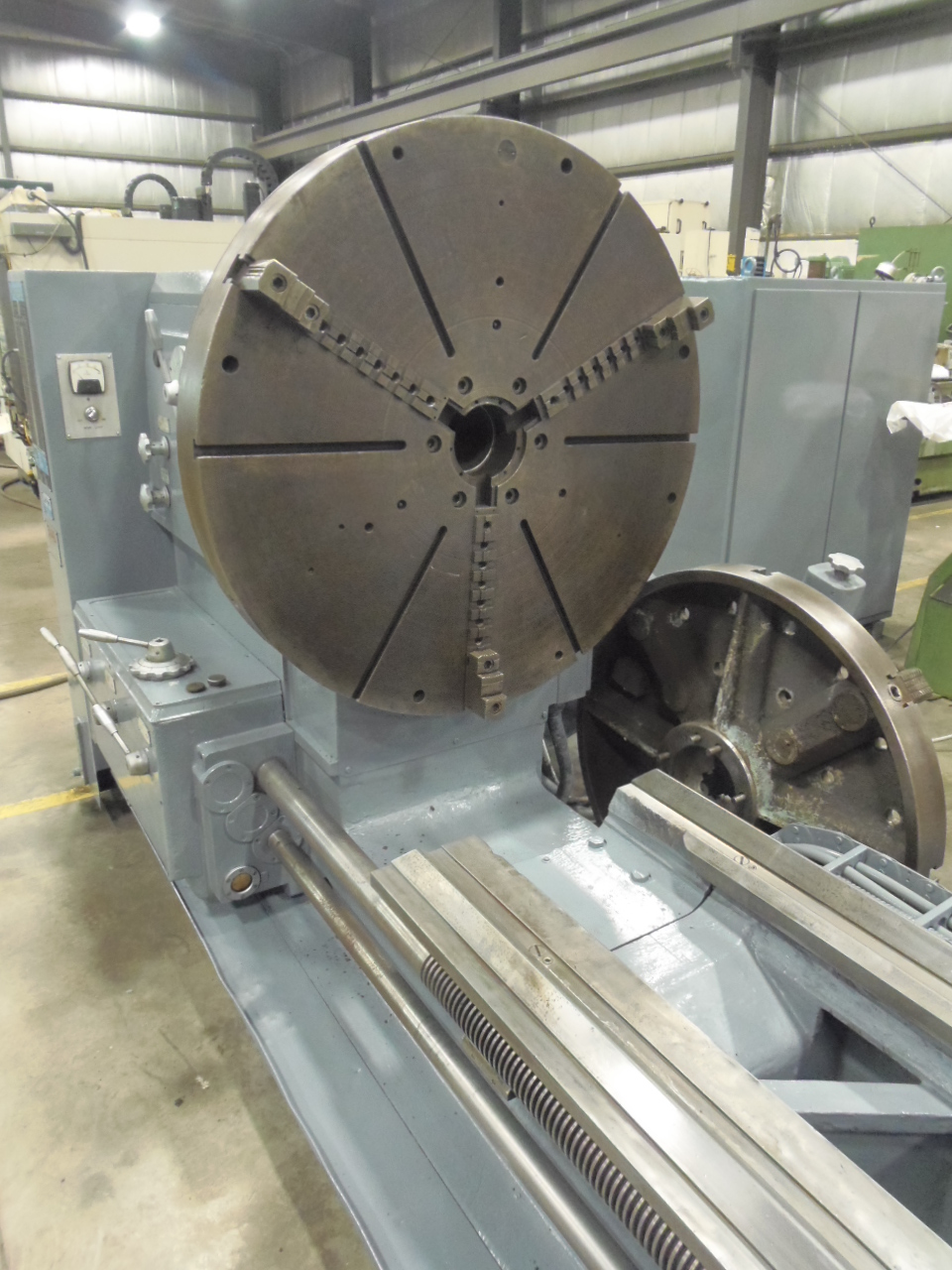

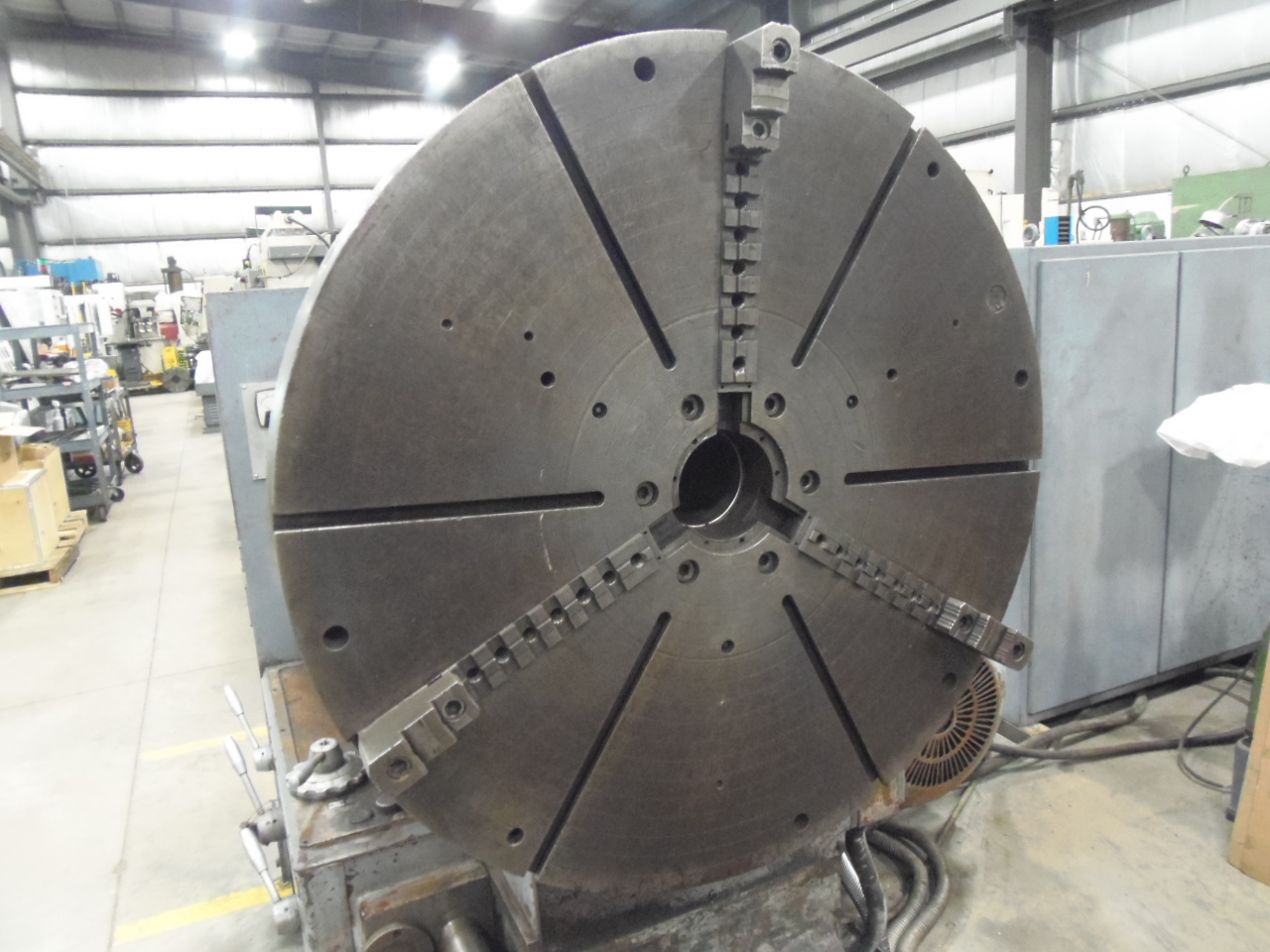

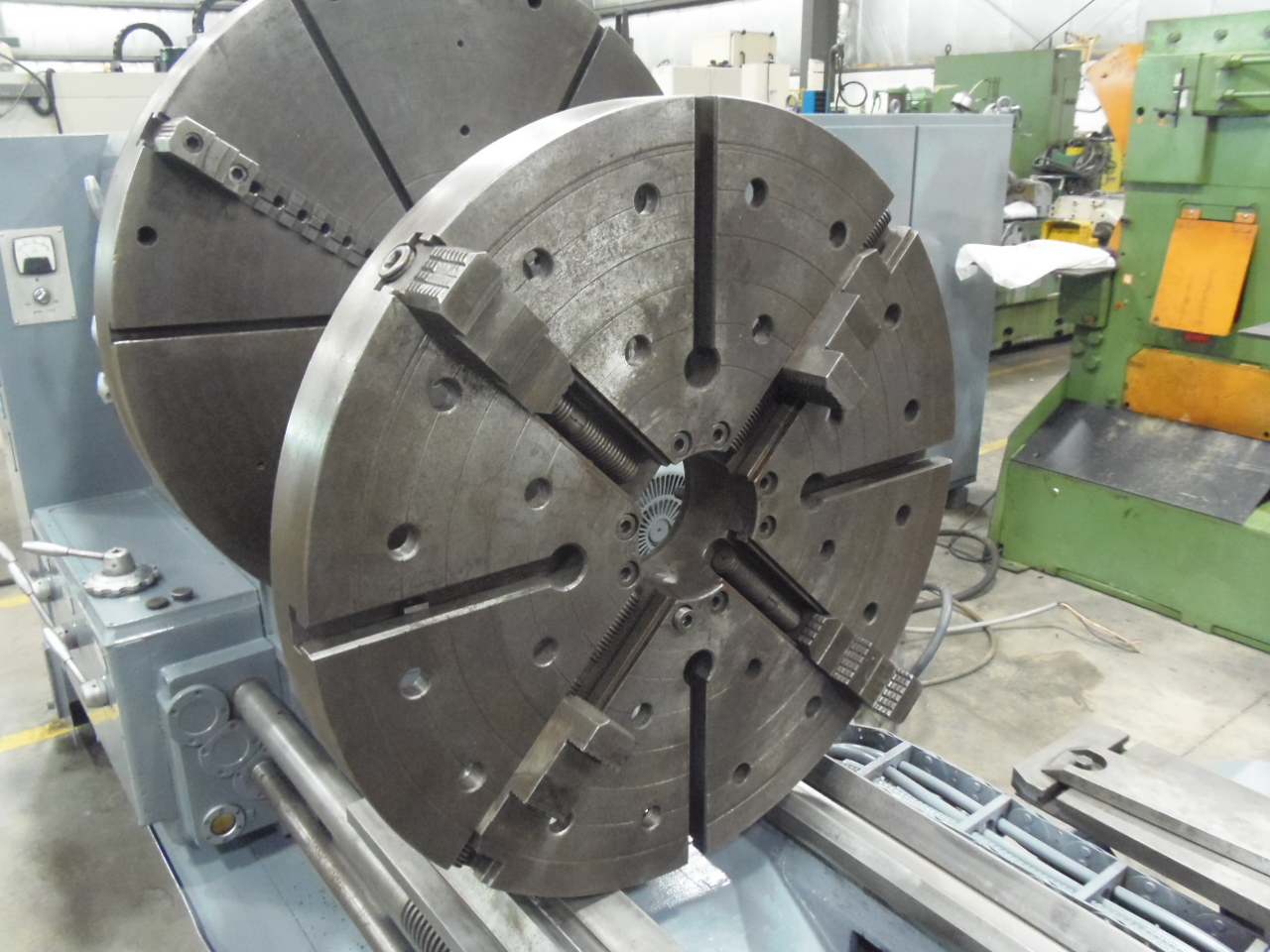

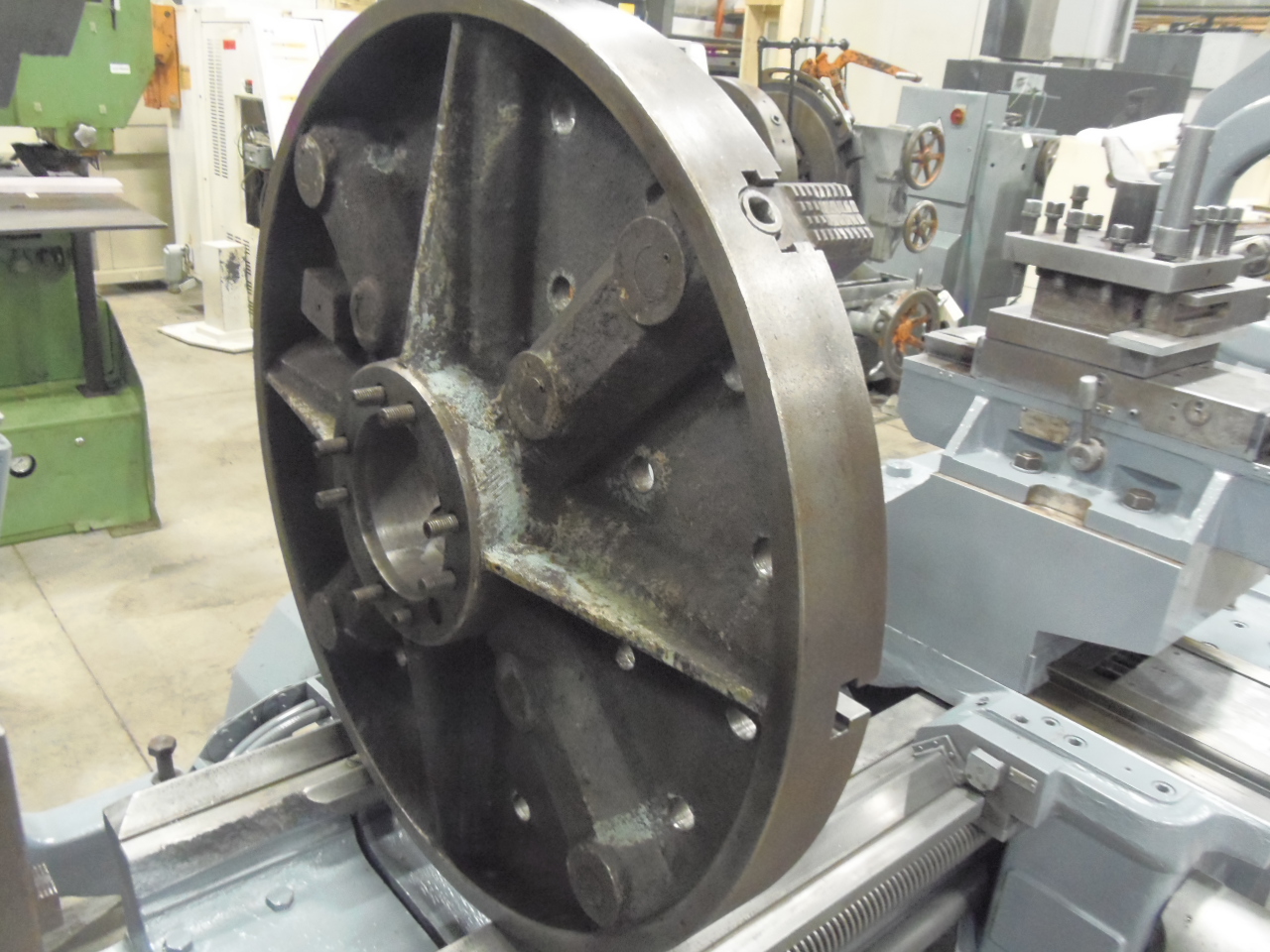

42" 3-JAW CHUCK
39" 4-JAW CHUCK

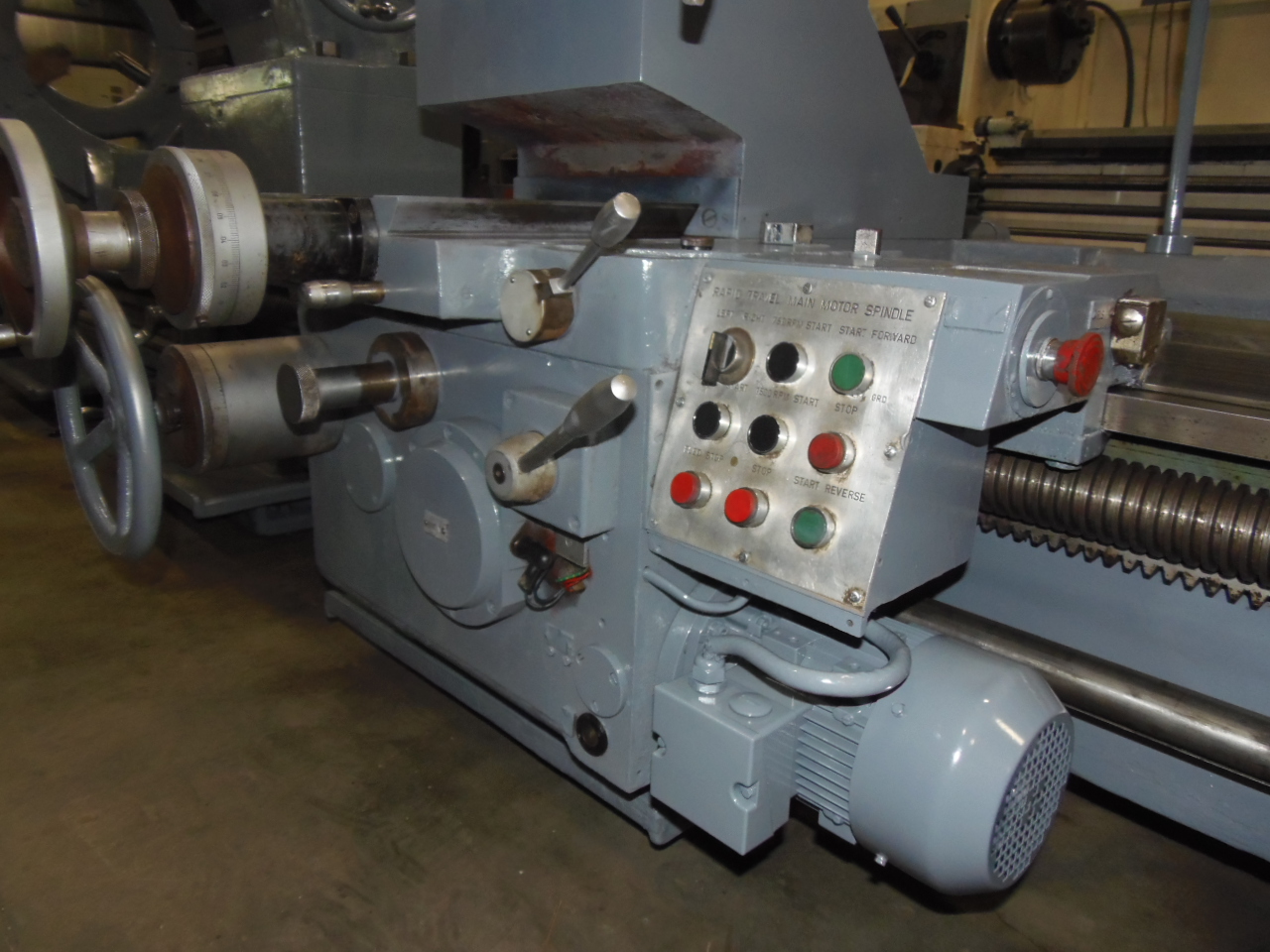

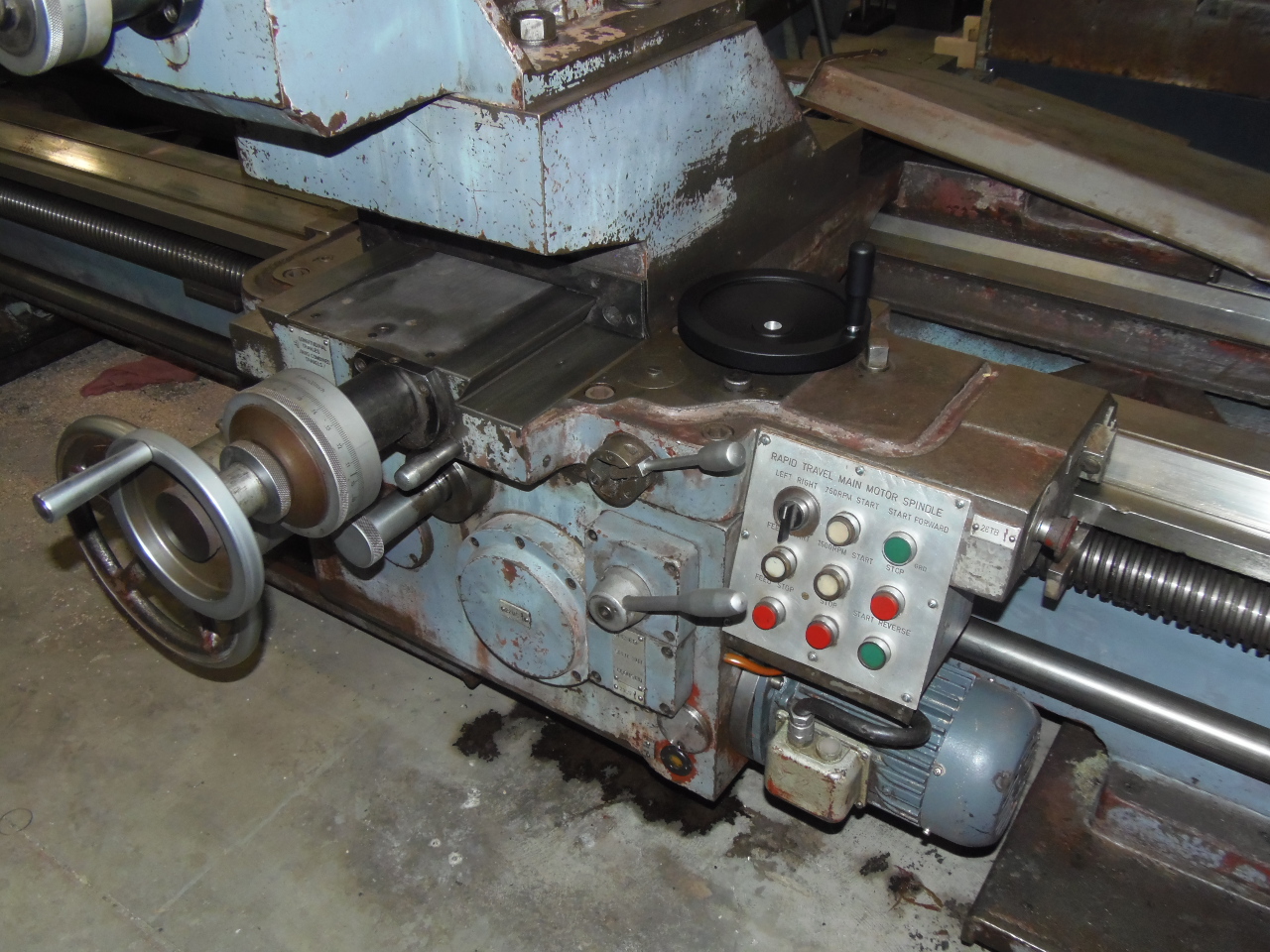

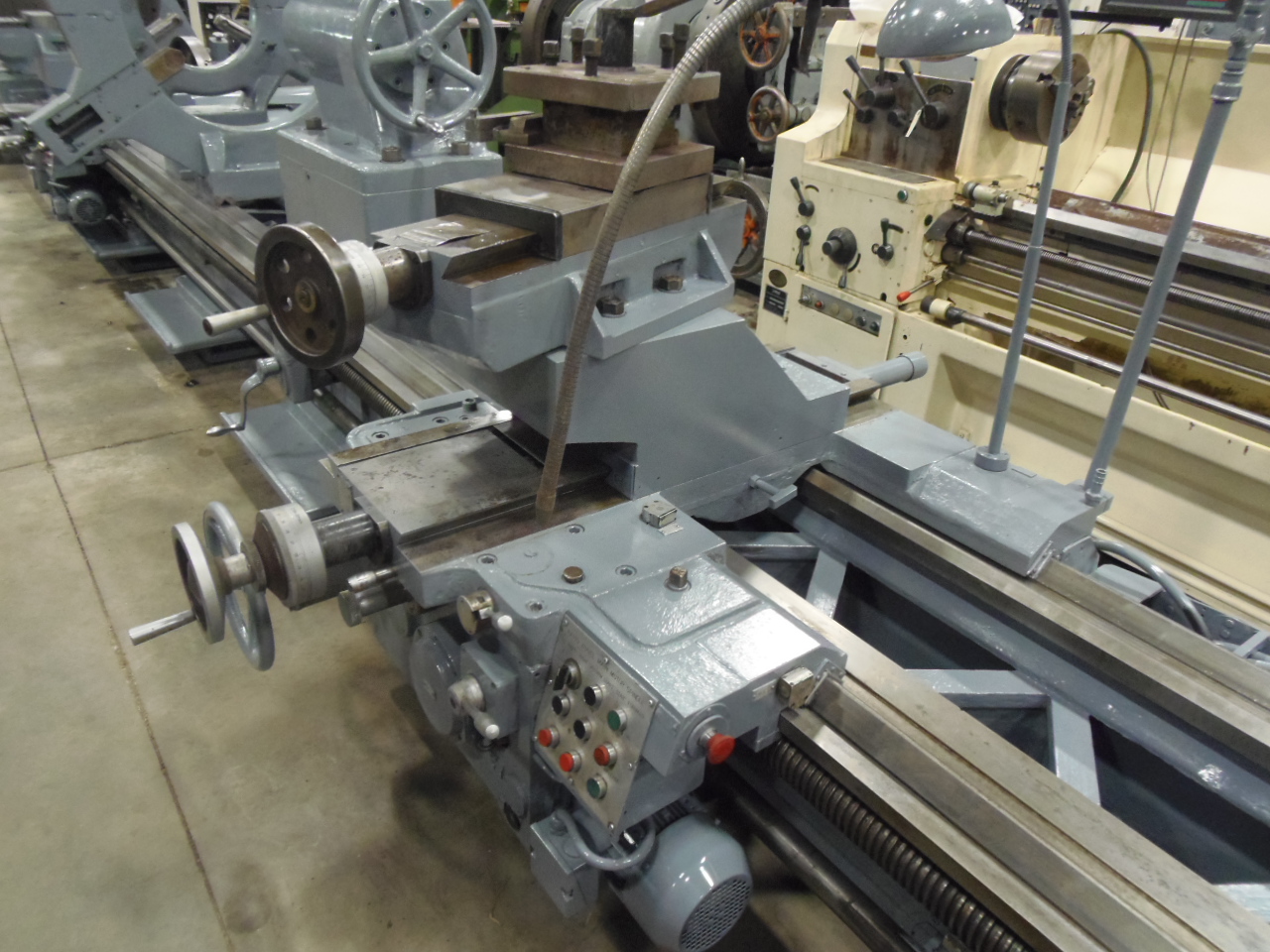

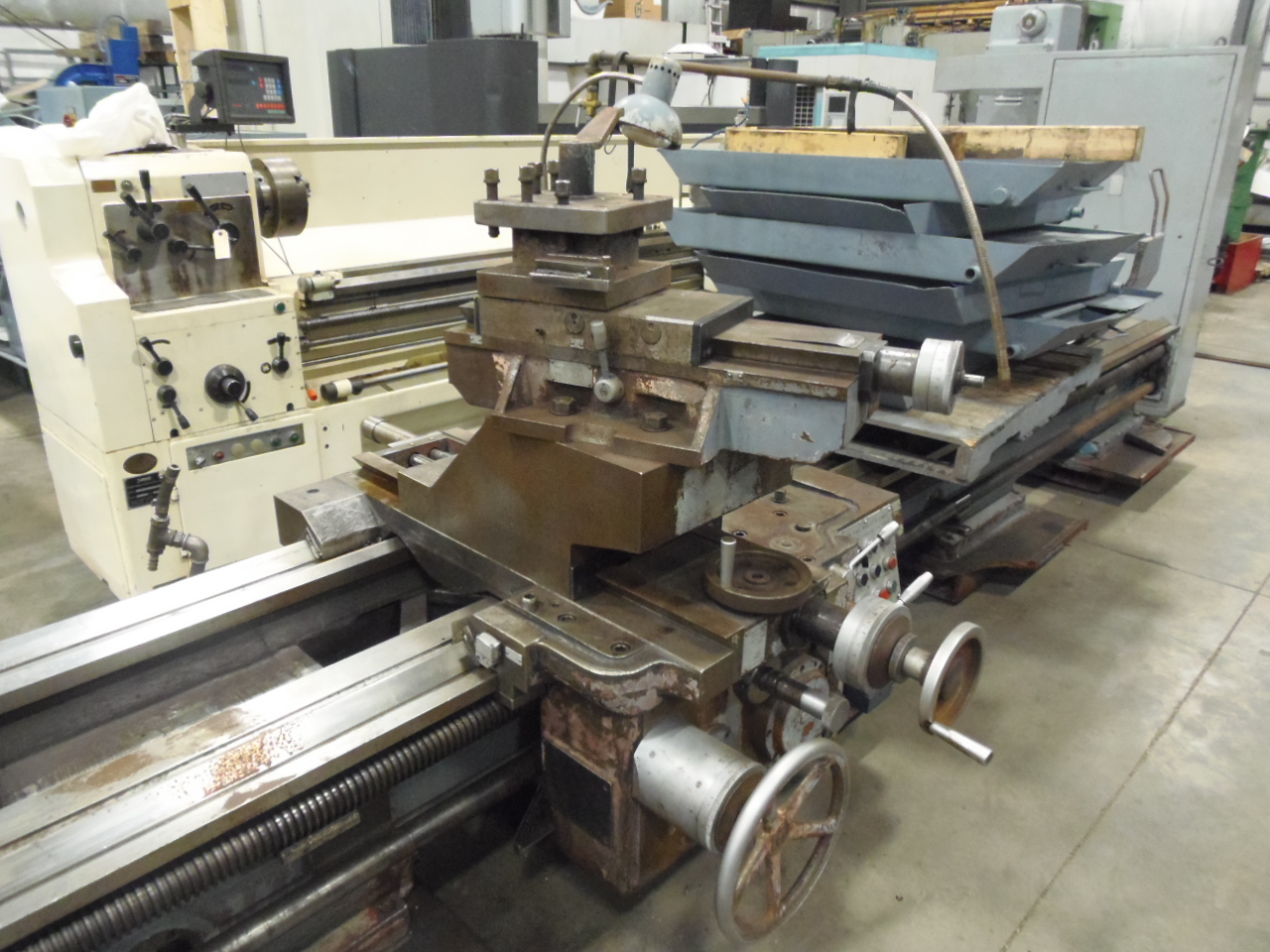

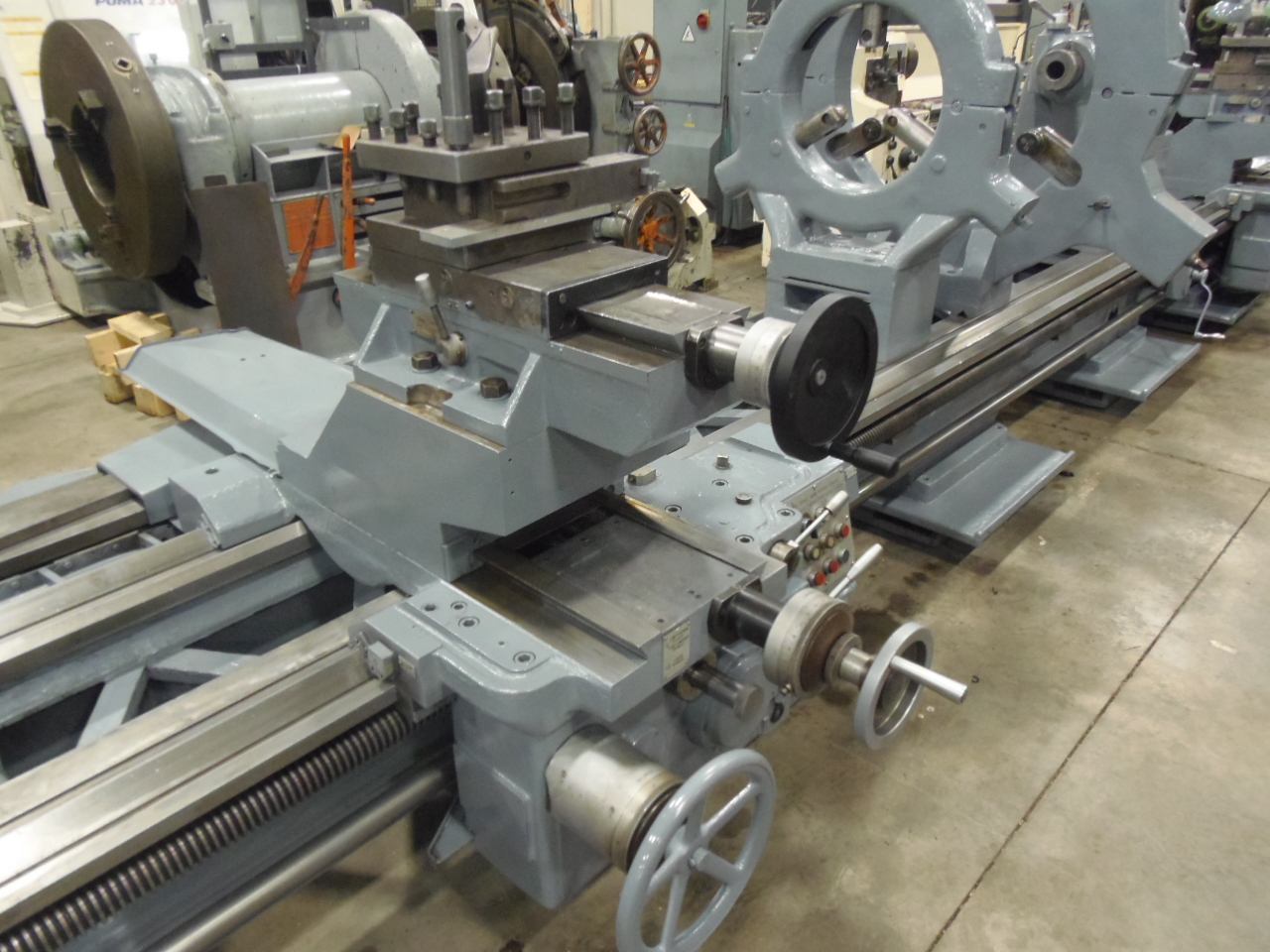

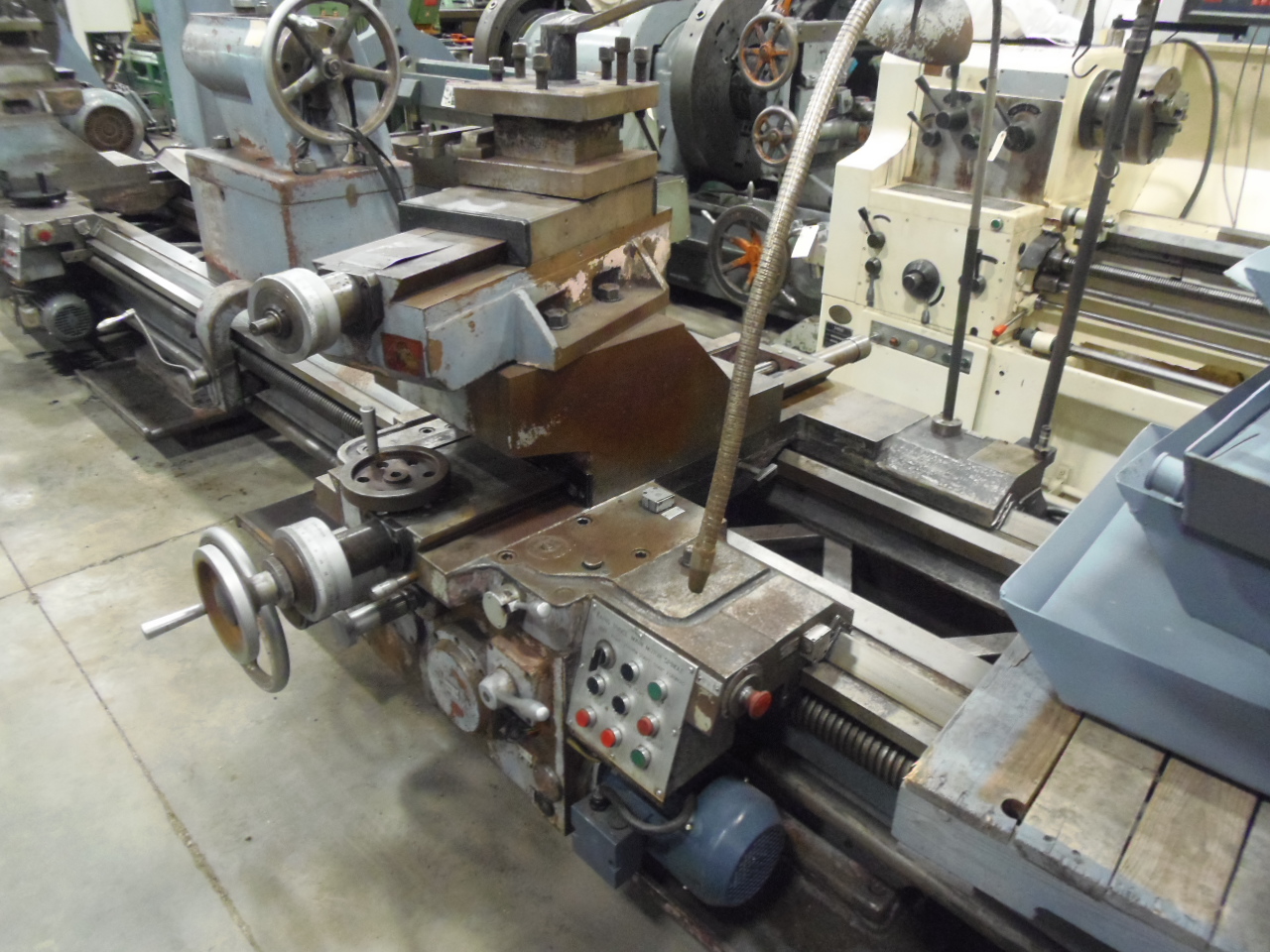

DUAL CARRIAGES

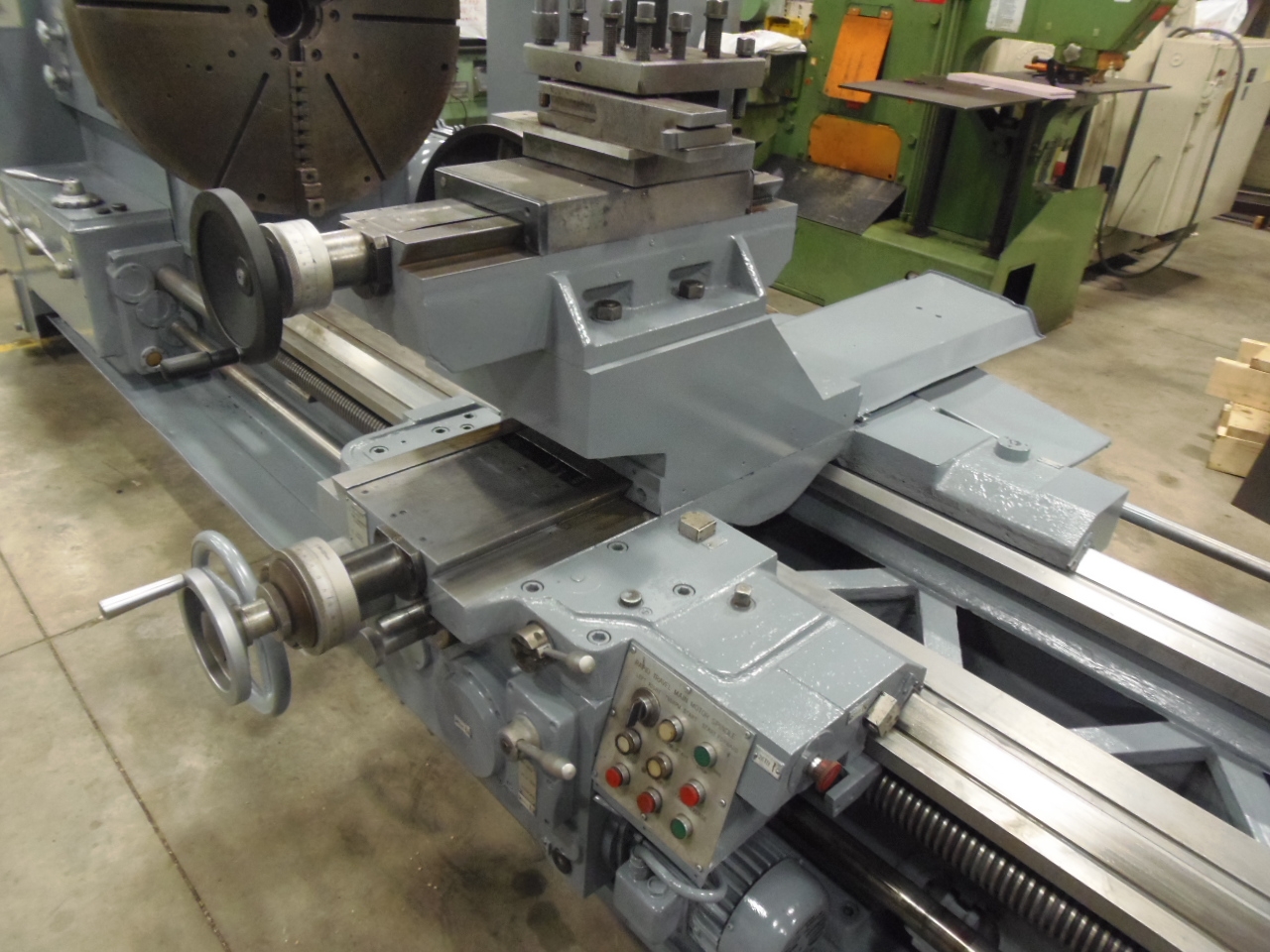

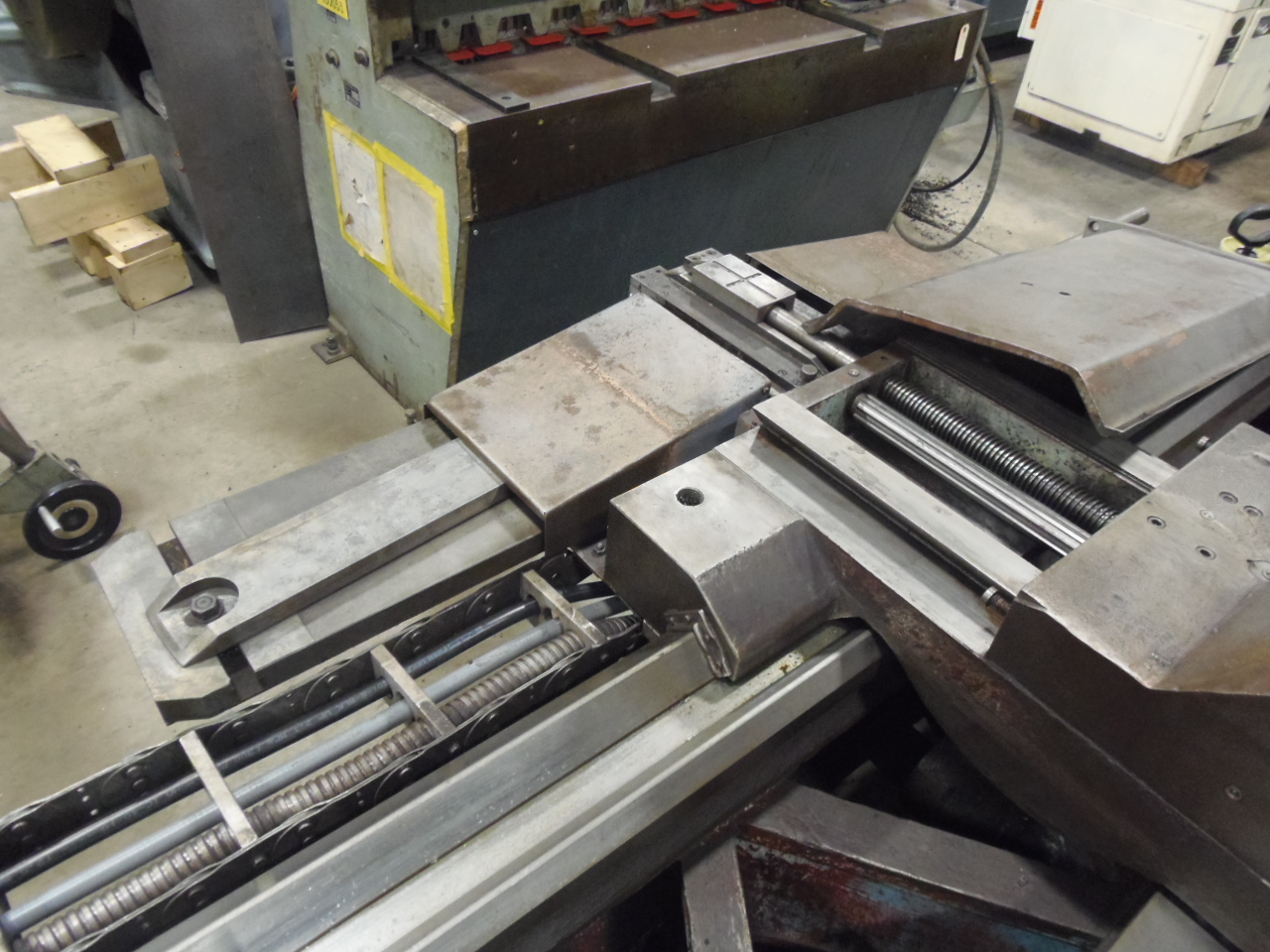

TAPER ON FRONT CARRIAGE

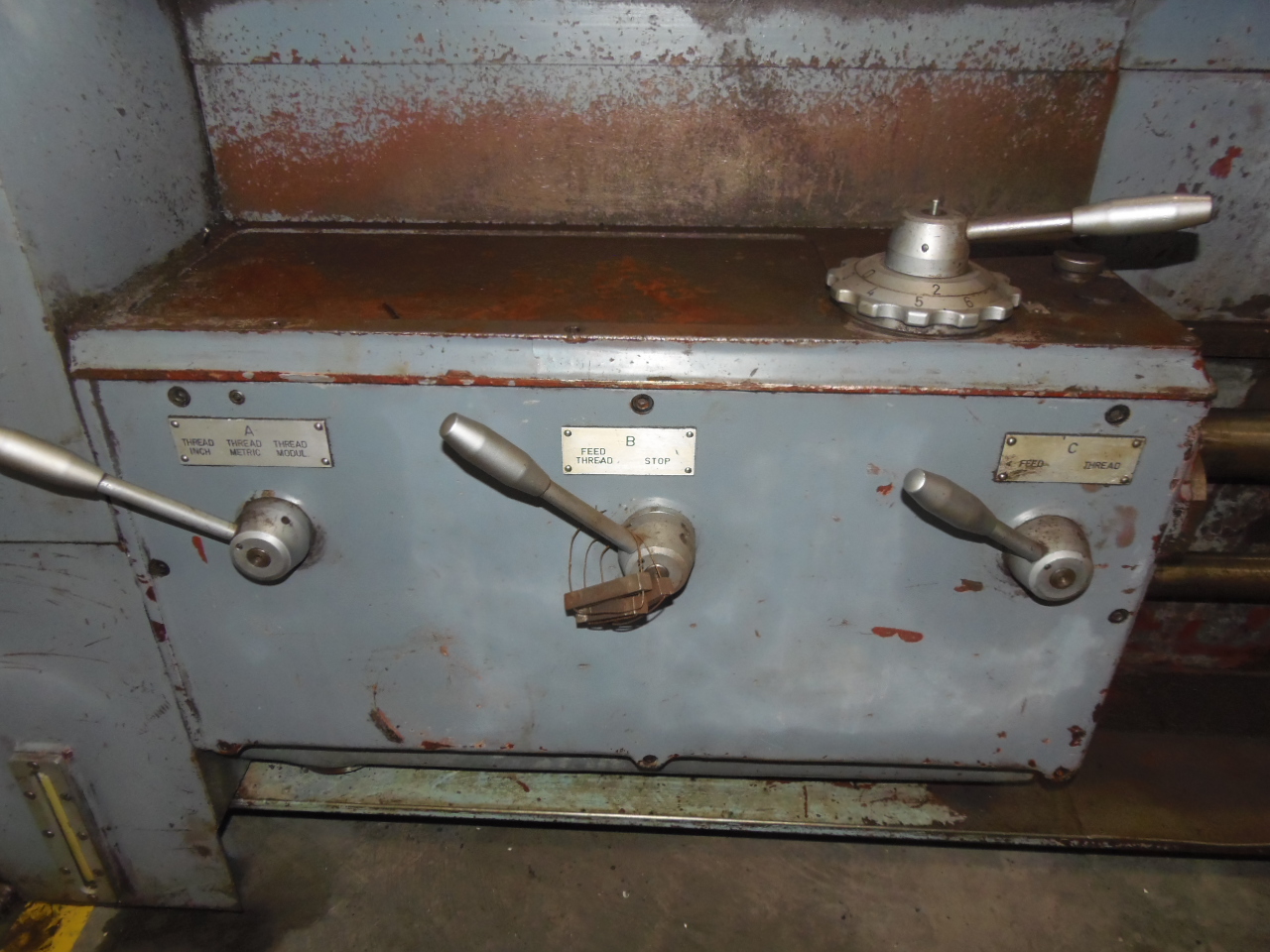

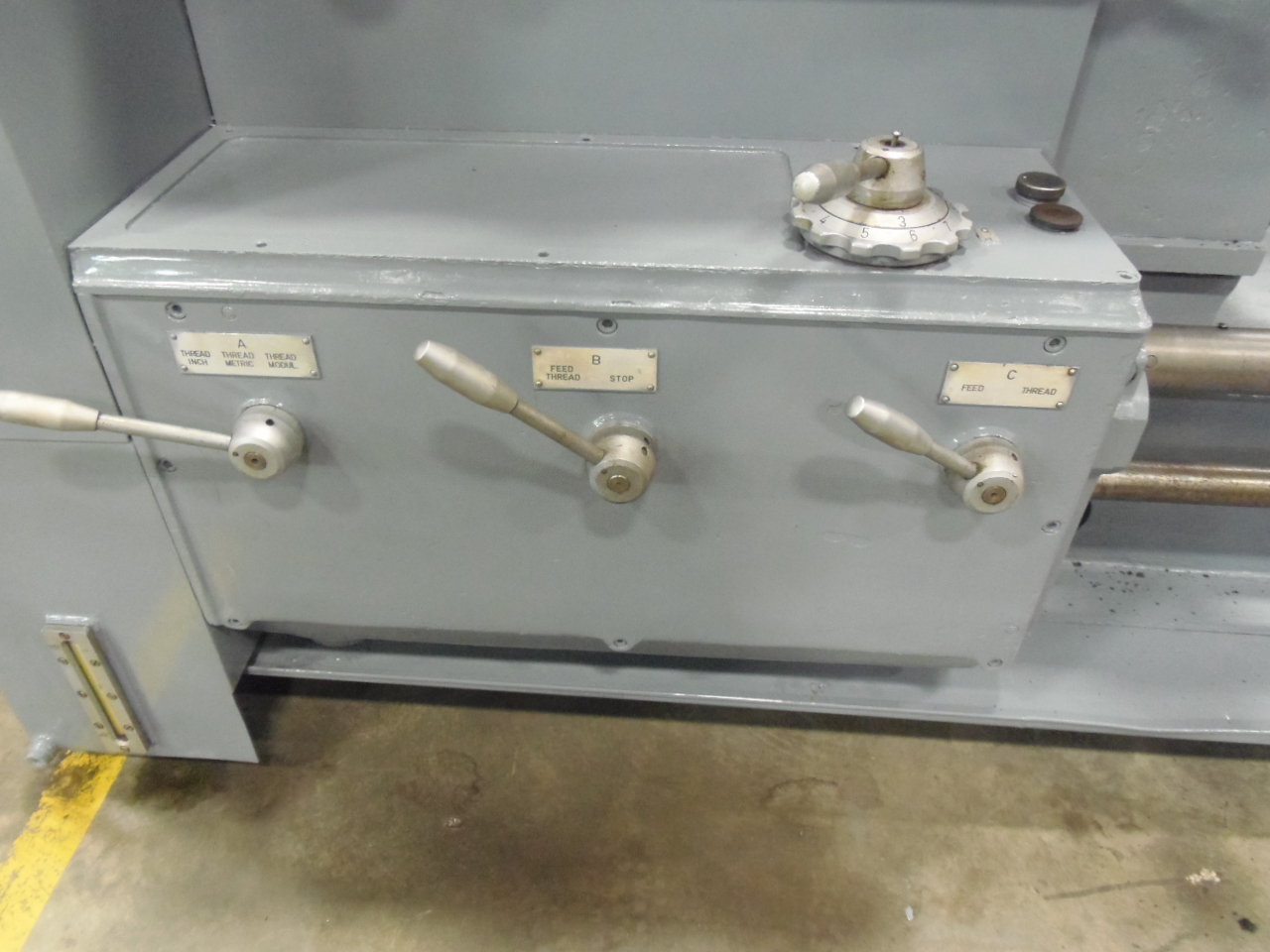

INCH/METRIC THREADING

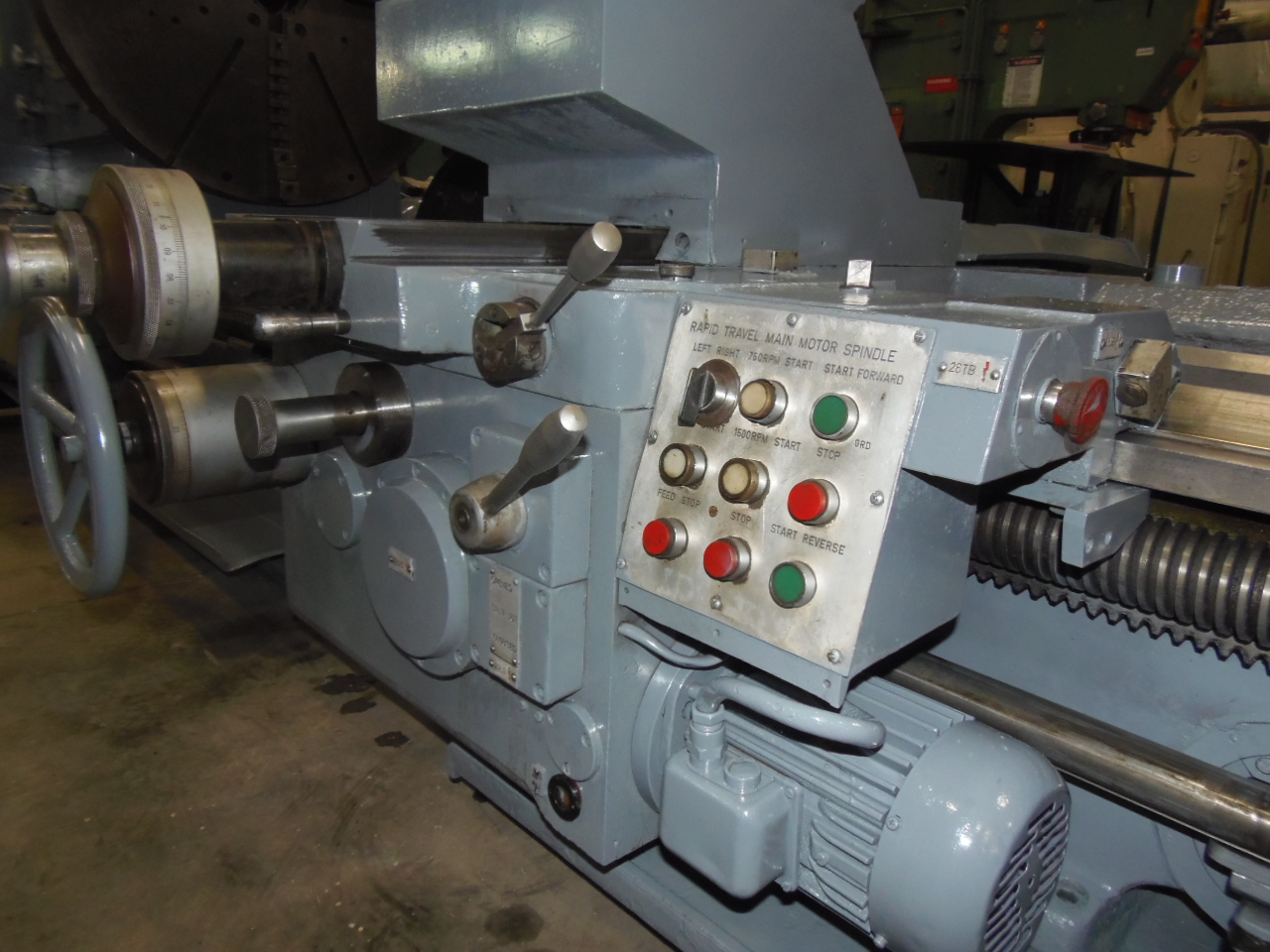

6 WAY POWER RAPID TRAVERSE
4-WAY TOOL POST

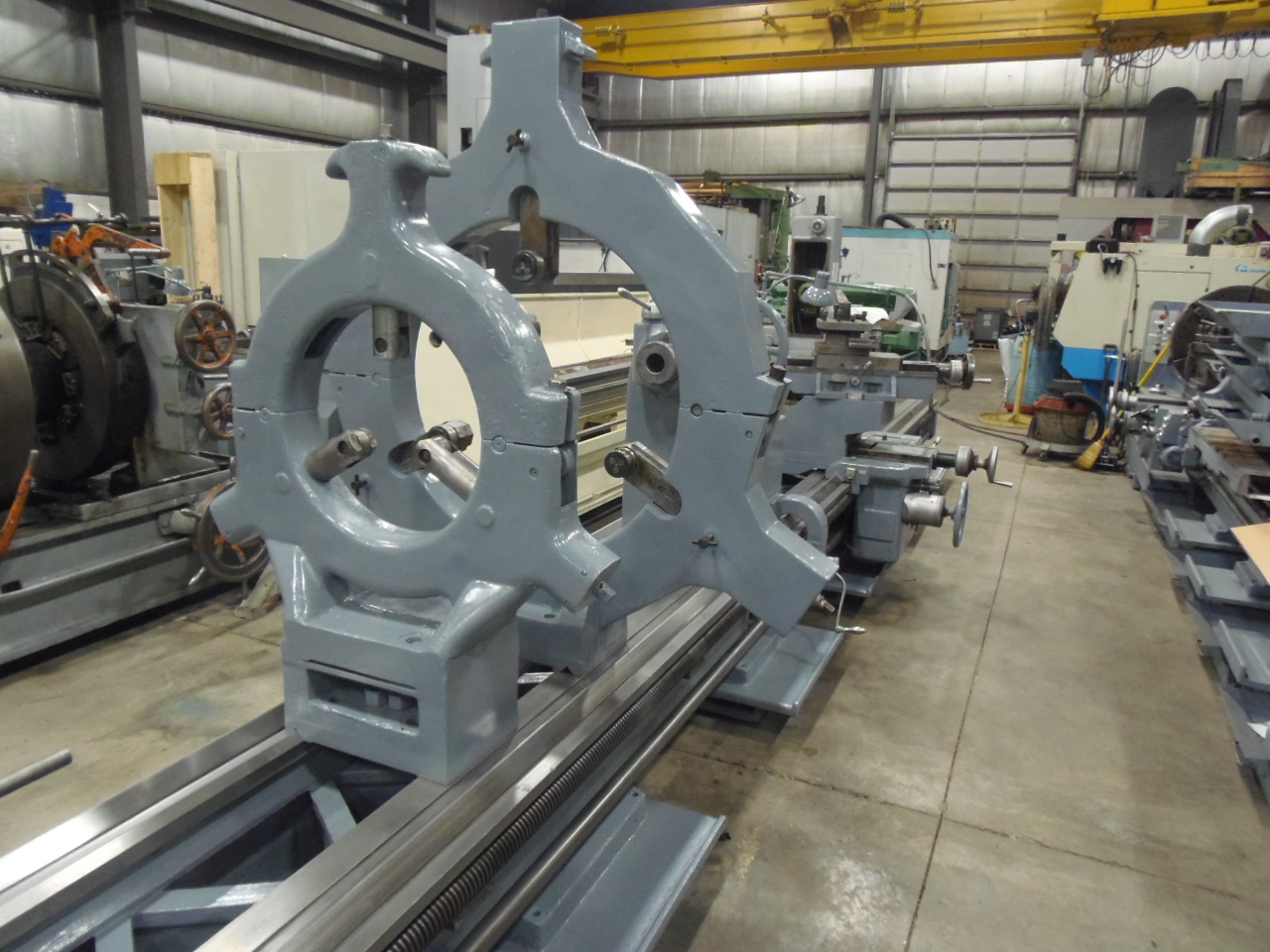

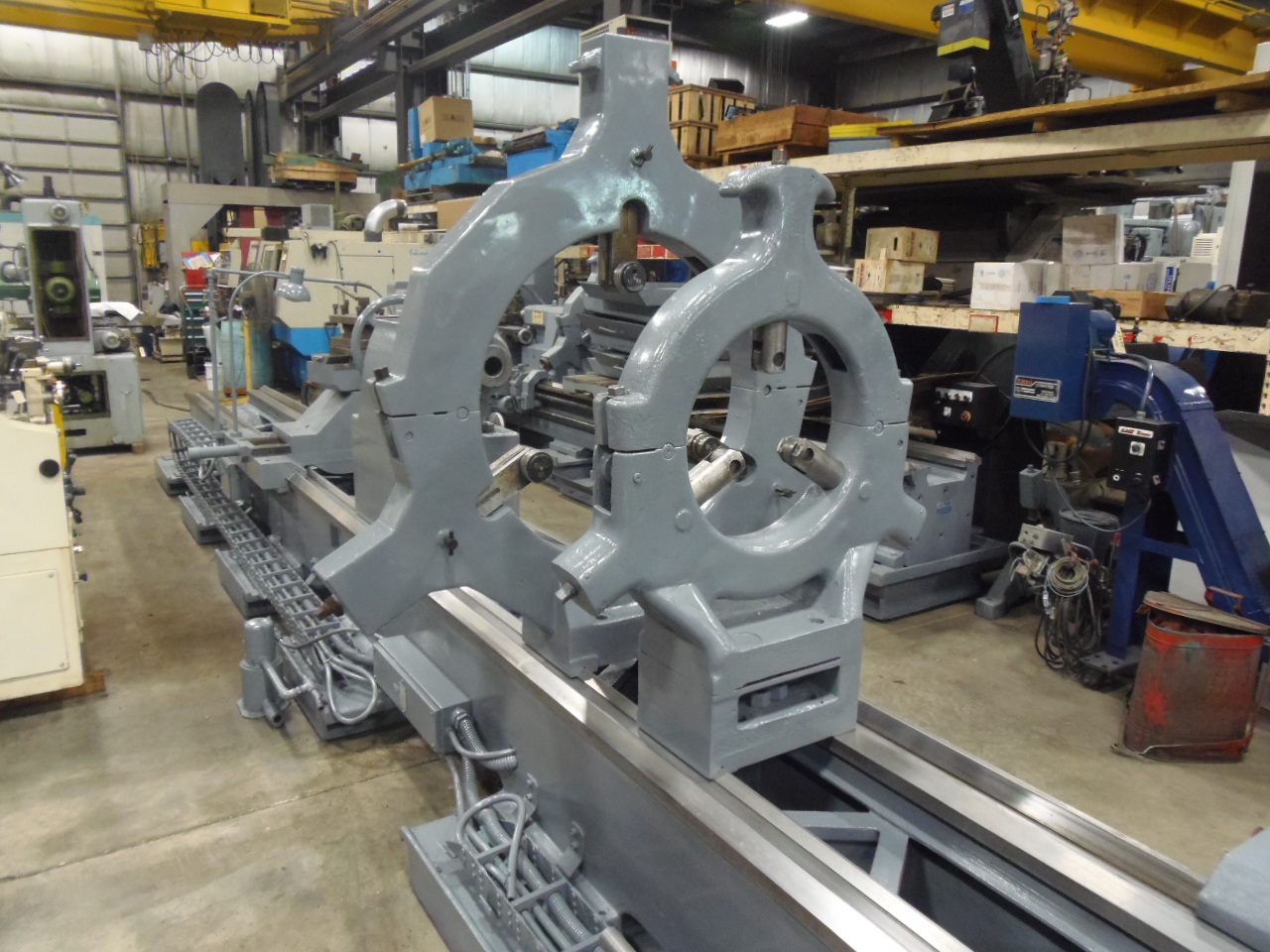

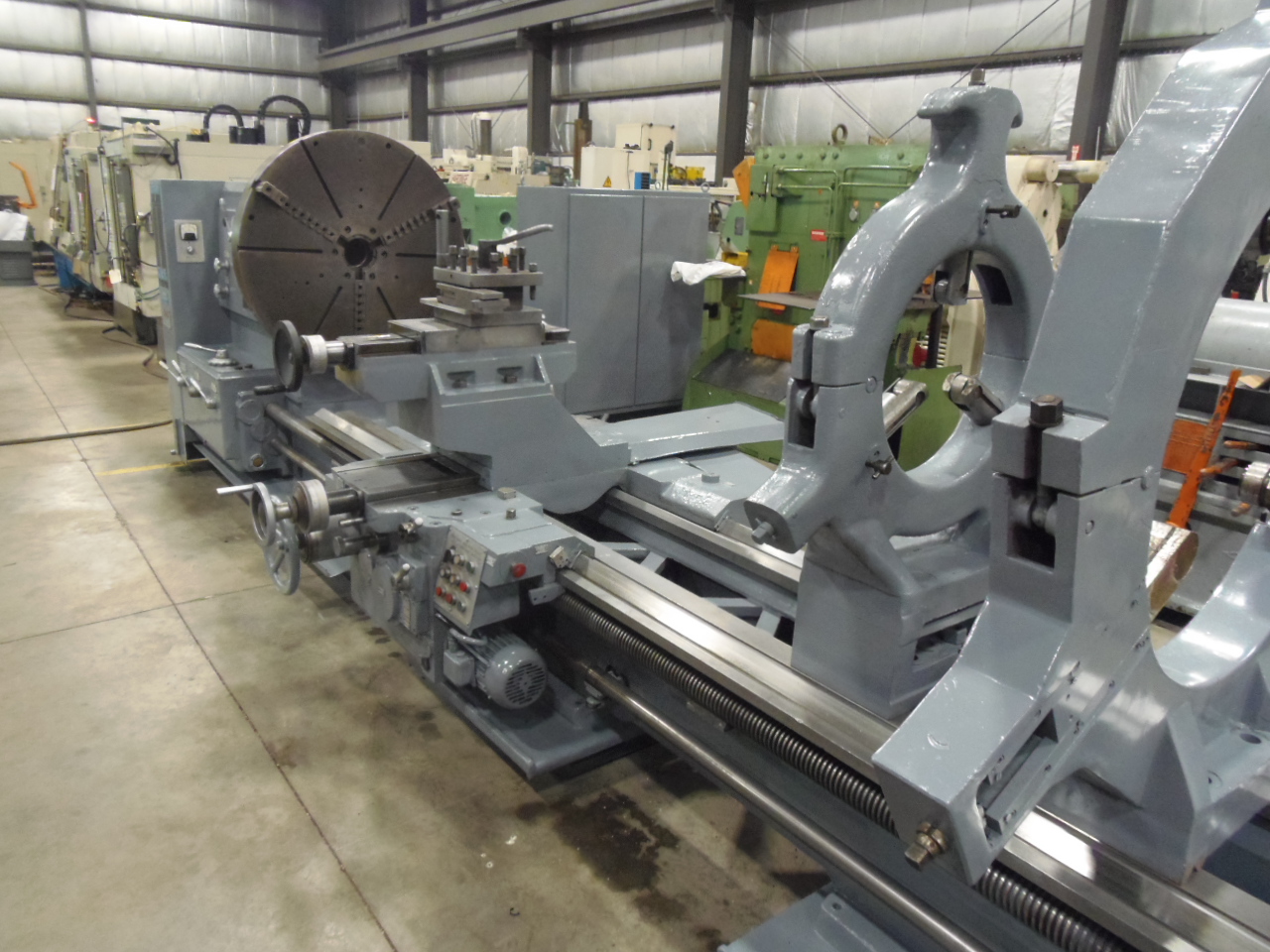

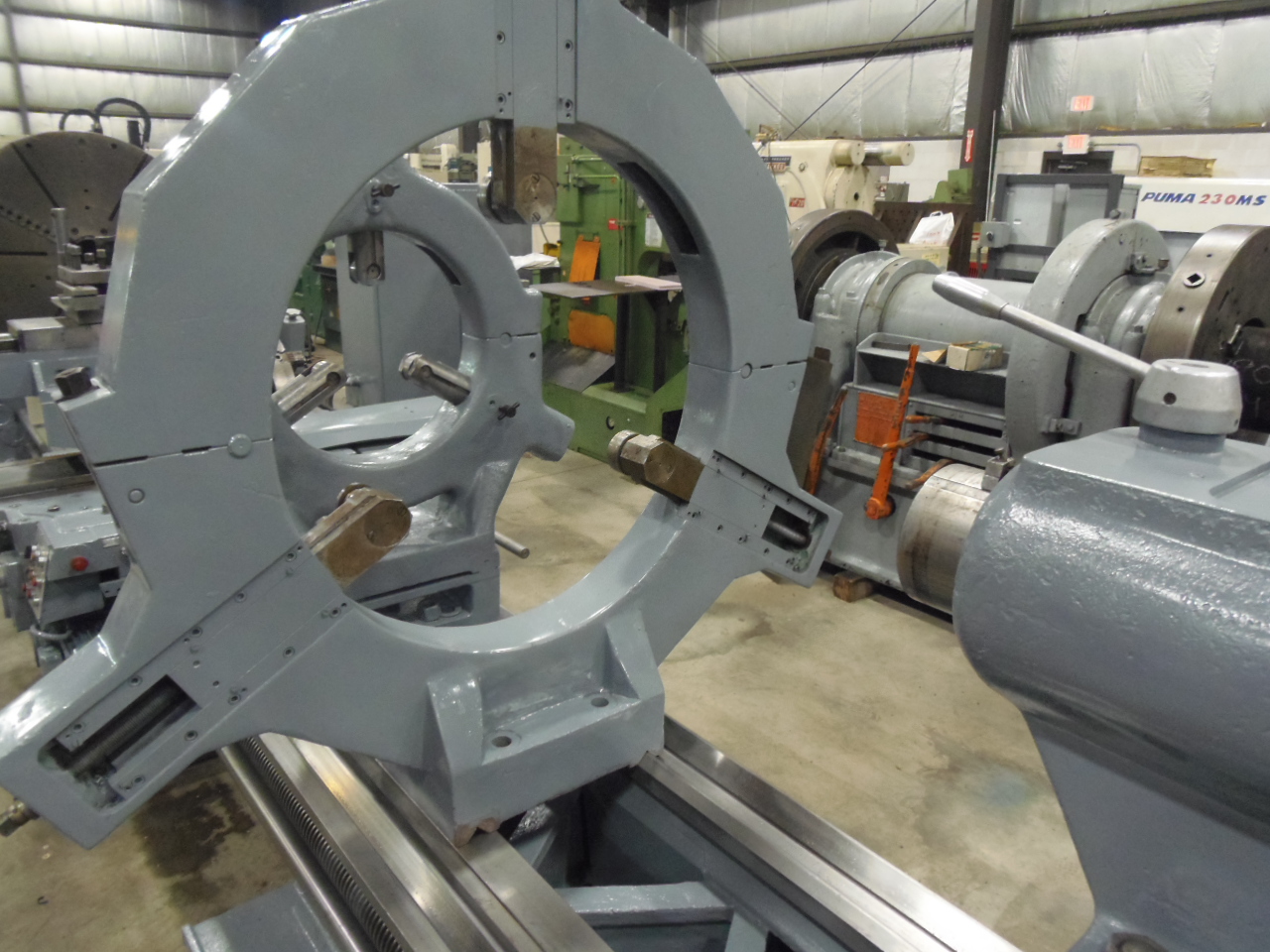

30" ROLLER STEADY REST
18" ROLLER STEADY REST
FOLLOW REST
