GENERAL SPECIFICATIONS:
MANUFACTURER........................ BULLARD
MODEL............................... DYNE AU TURN
SERIAL#............................. 33755
AGE APPROXIMATELY................... 1983
MAX SWING........................... 52"
CHUCK DIAMETER...................... 46"
TABLE SPEED......................... 8 TO 162 RPM
MAIN MOTOR.......................... 75 HP
FEED AND TRAVERSE SPEED............. .001 TO 200 IPM
TRAVELS (CROSS RAIL)................ FIXED
(VERTICAL HEAD)............. 26"
(HORIZONTAL HEAD)........... 46"
CLEARANCE UNDER THE RAIL............ 36"
CLEARANCE UNDER THE TURRET FACE..... 45"
DIMENSIONS.......................... 178"H X 129"W X 120"F-B
EQUIPPED WITH:

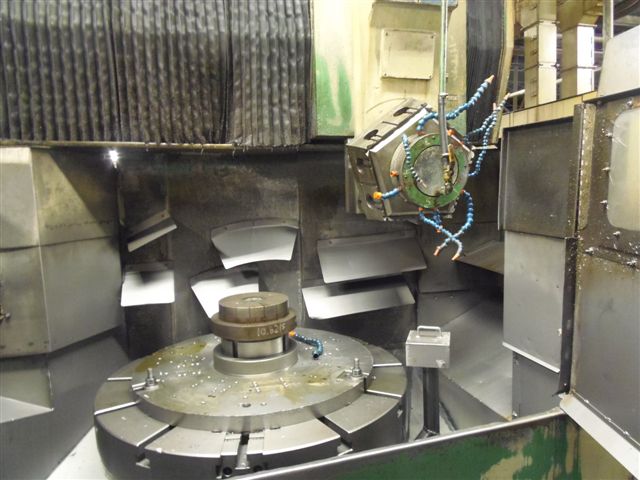

5 SIDED TURRET (2) TOOLS EA SIDE

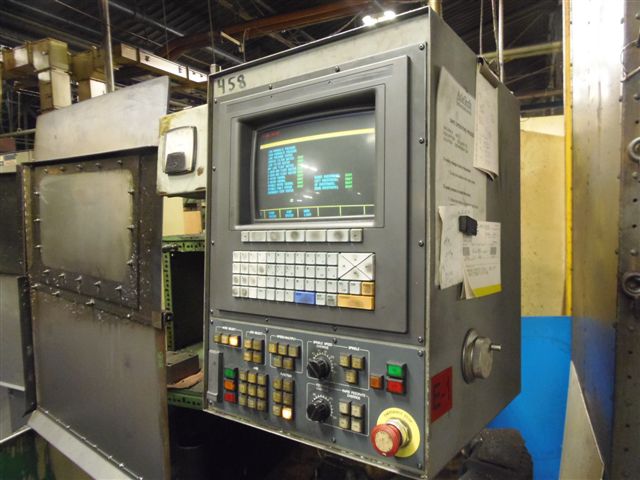

ALLEN BRADLEY SERIES 9 CONTROL
46" 3 JAW POWER CHUCK
CHIP CONVEYOR
COOLANT SYSTEM
SPECIFICATIONS SUBJECT TO VERIFICATION
