Specifications
Equipped With

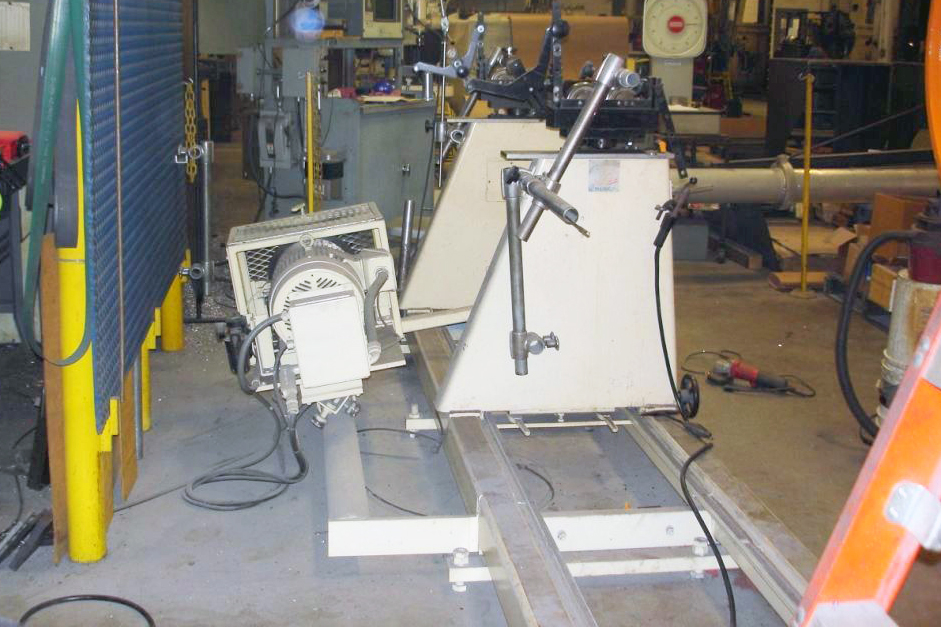

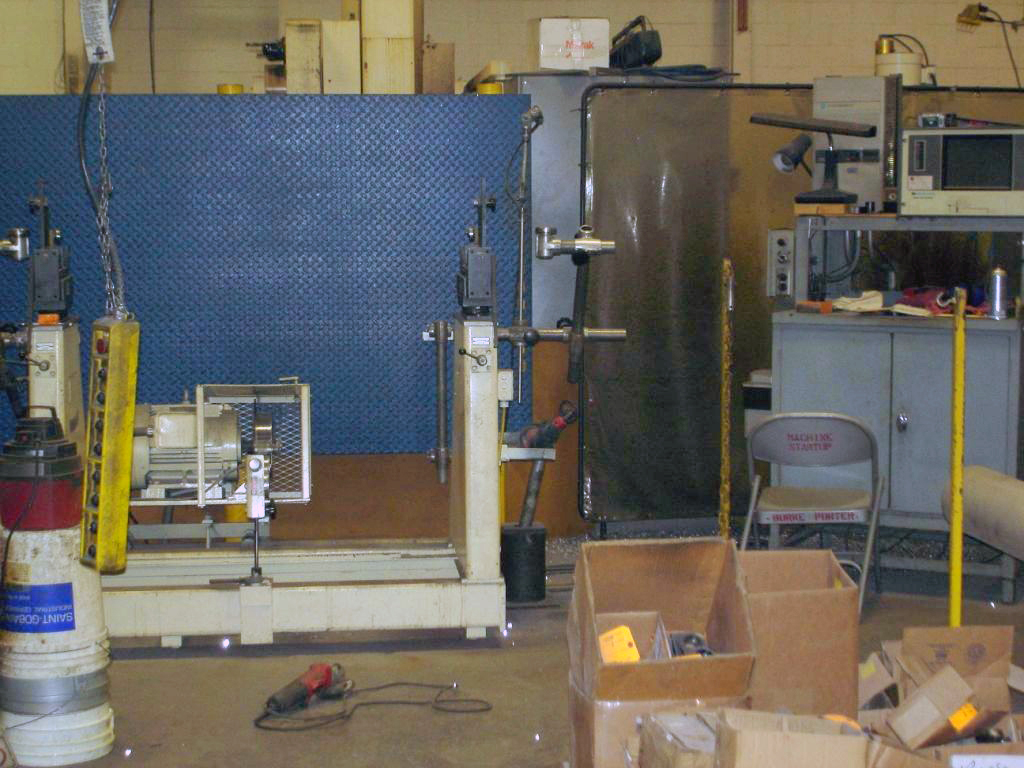

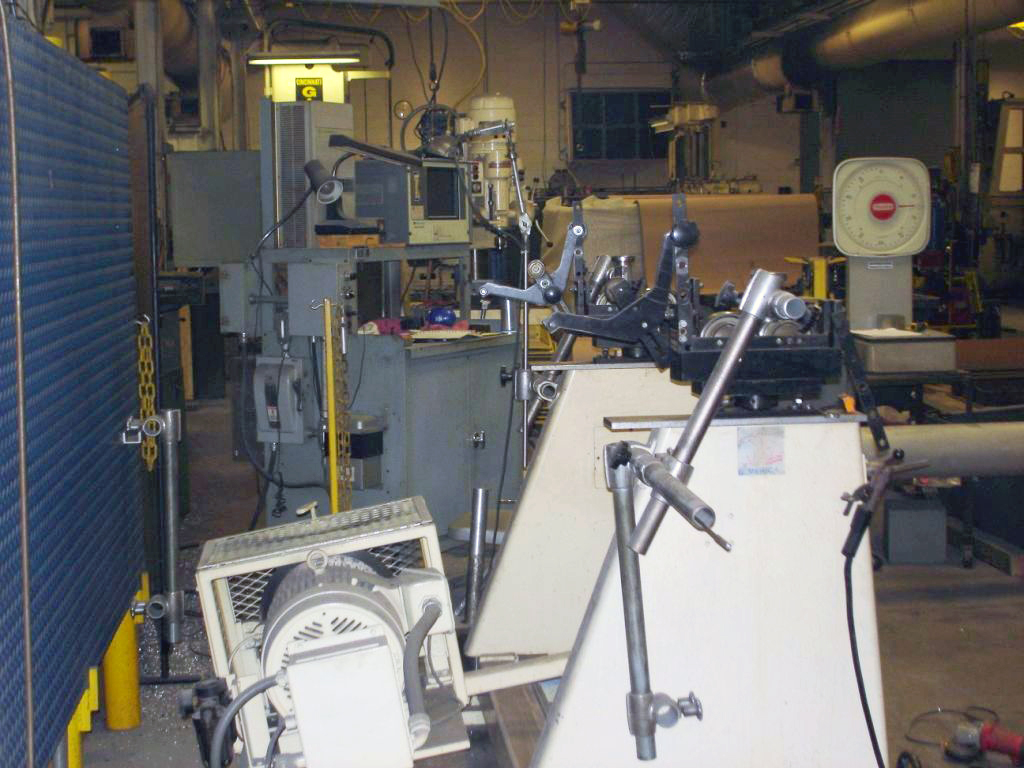

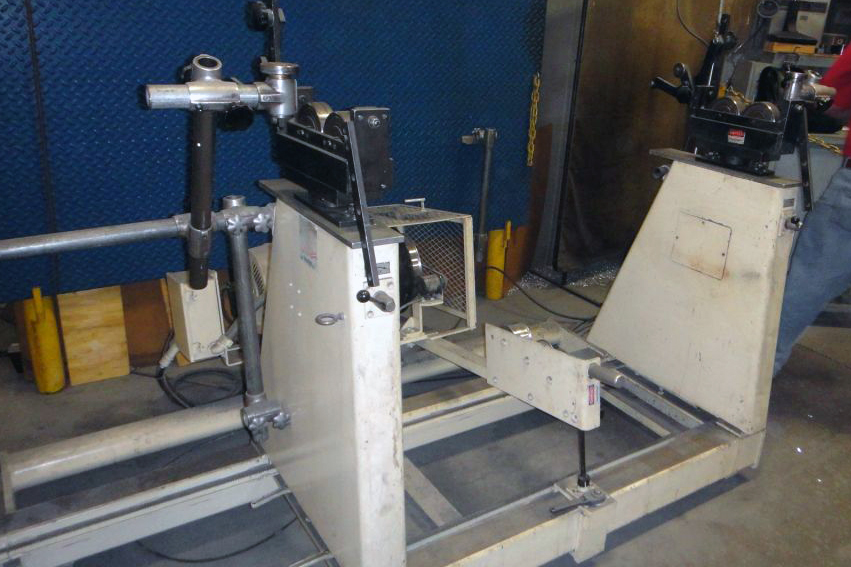

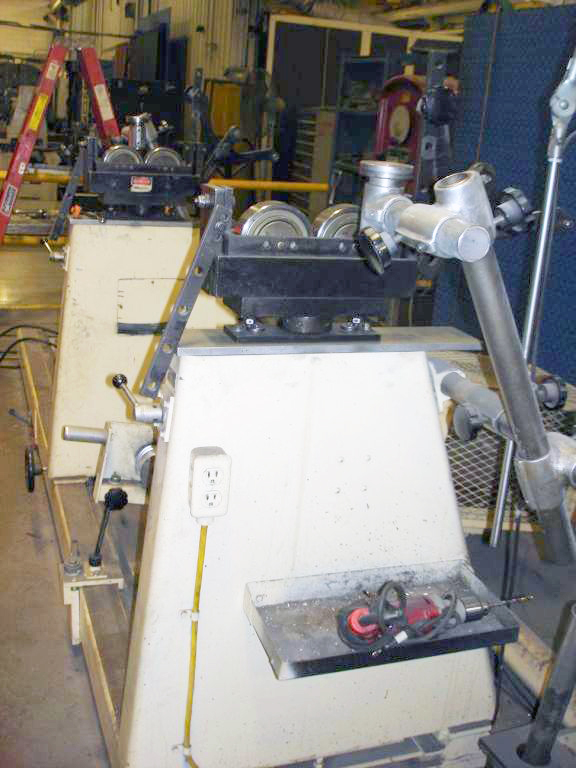

GENERAL SPECIFICATIONS:
MANUFACTURER........................ IRD
MODEL............................... B50
AGE................................. 1990
WEIGHT CAPACITY..................... 5,000 LBS
WEIGHT CAPACITY MIN................. 1 LB
ROTOR SWING DIAMETER................ 80-96"
MAX. SWING OVER DRIVE SYSTEM........ 59"
DISTANCE BETWEEN BEARING JOURNALS... 128" MAX
... 10" MIN
JOURNAL DIAMETERS................... 3/4" - 13"
ROTOR CENTER LINE FROM FLOOR........ 45"
DRIVE TYPE.......................... FLAT ENDLESS BELT
BALANCING SPEED RANGE............... VARIABLE DEPENDS ON PULLEYS

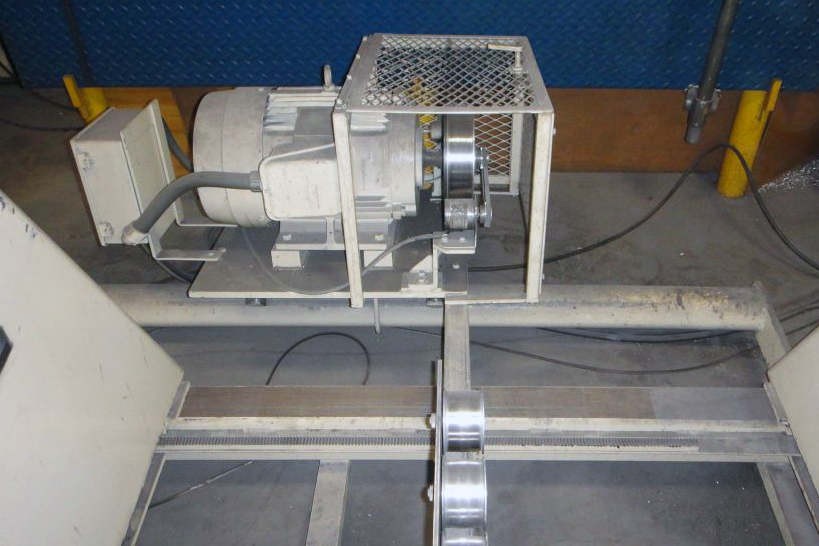

DRIVE MOTOR......................... 15 HP WITH A/B DRIVE
FLOOR SPACE......................... 6' X 18'
SHIPPING WEIGHT..................... 3,000 LBS APPROX.
EQUIPPED WITH:

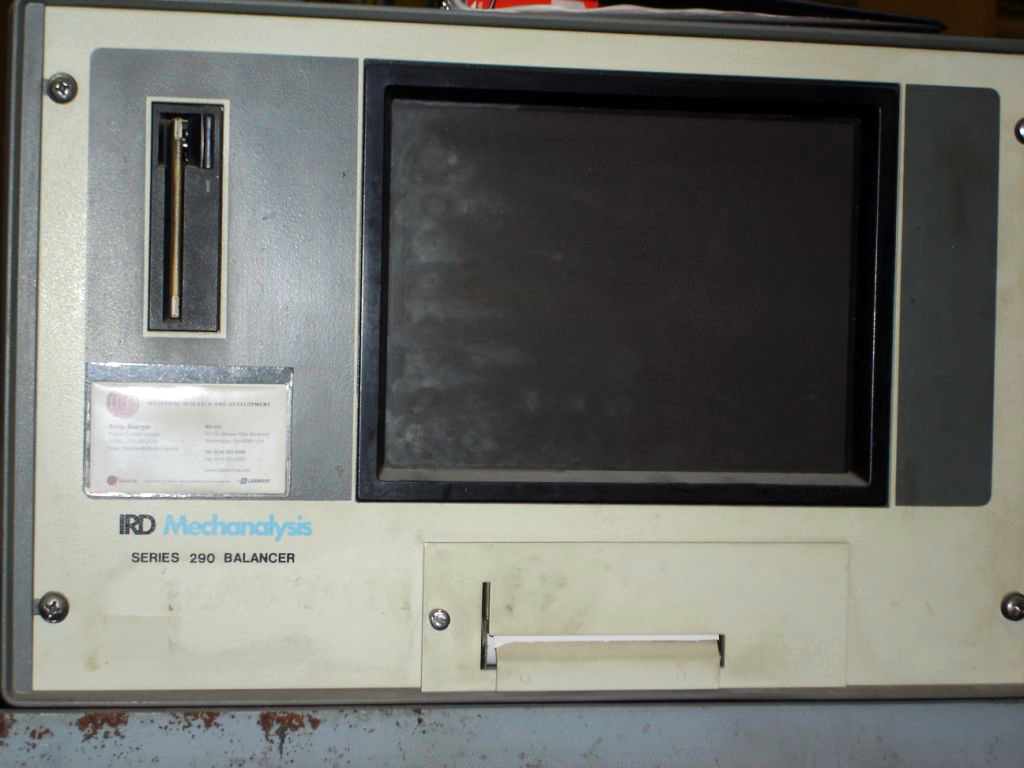

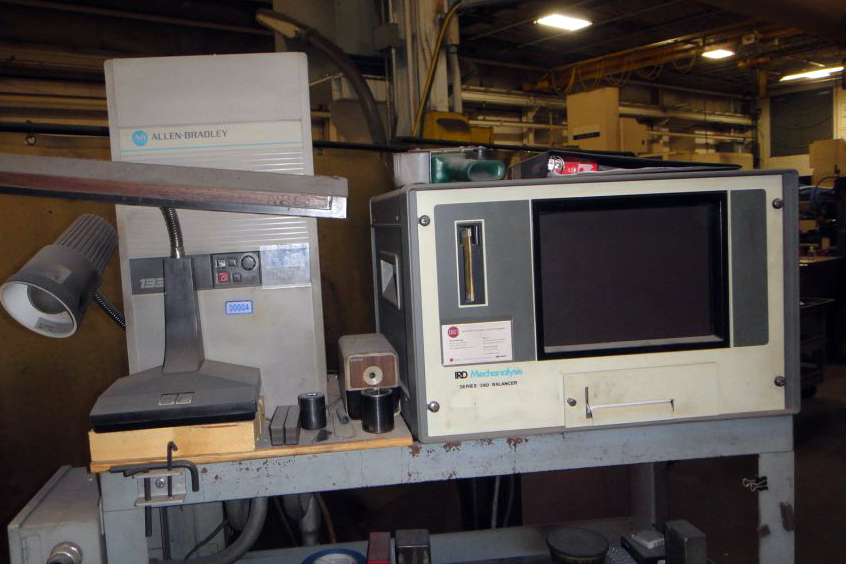

SERIES 290T BALANCING MACHINE INSTRUMENT WITH TOUCH-ACTIVATED SCREEN, ULTRA LOW SPEED BALANCING, HELP SCREENS, ROTOR MEMORY STORAGE, BALANCE TOLERANCE INDICATOR,SIMPLE FUNCTION SELECTION FROM MENU, VECTOR ADD/SPLIT, KEY/TOOL COMPENSATION, DIGITAL OR DIGITAL/POLAR DISPLAY, INCH/METRIC, AUTO. AMPLITUDE RANGING, AUTO. READOUT HOLDING.

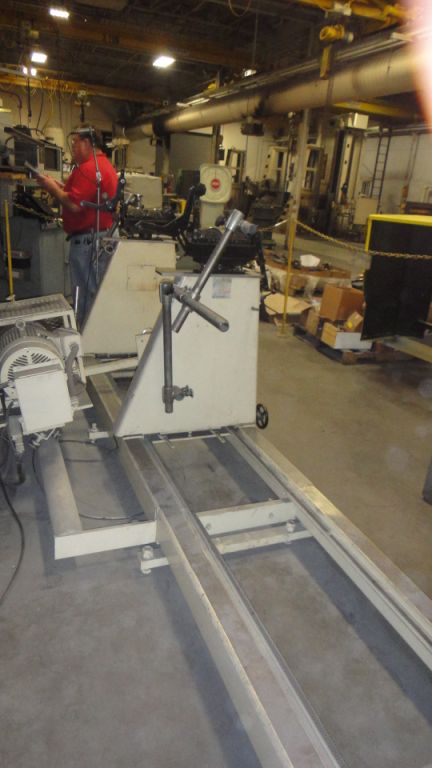

48" BASE EXTENSION EXTENDING FROM 8' TO 12'
LARGE QUANTITY OF DRIVE BELTS
MISC. MANUALS
