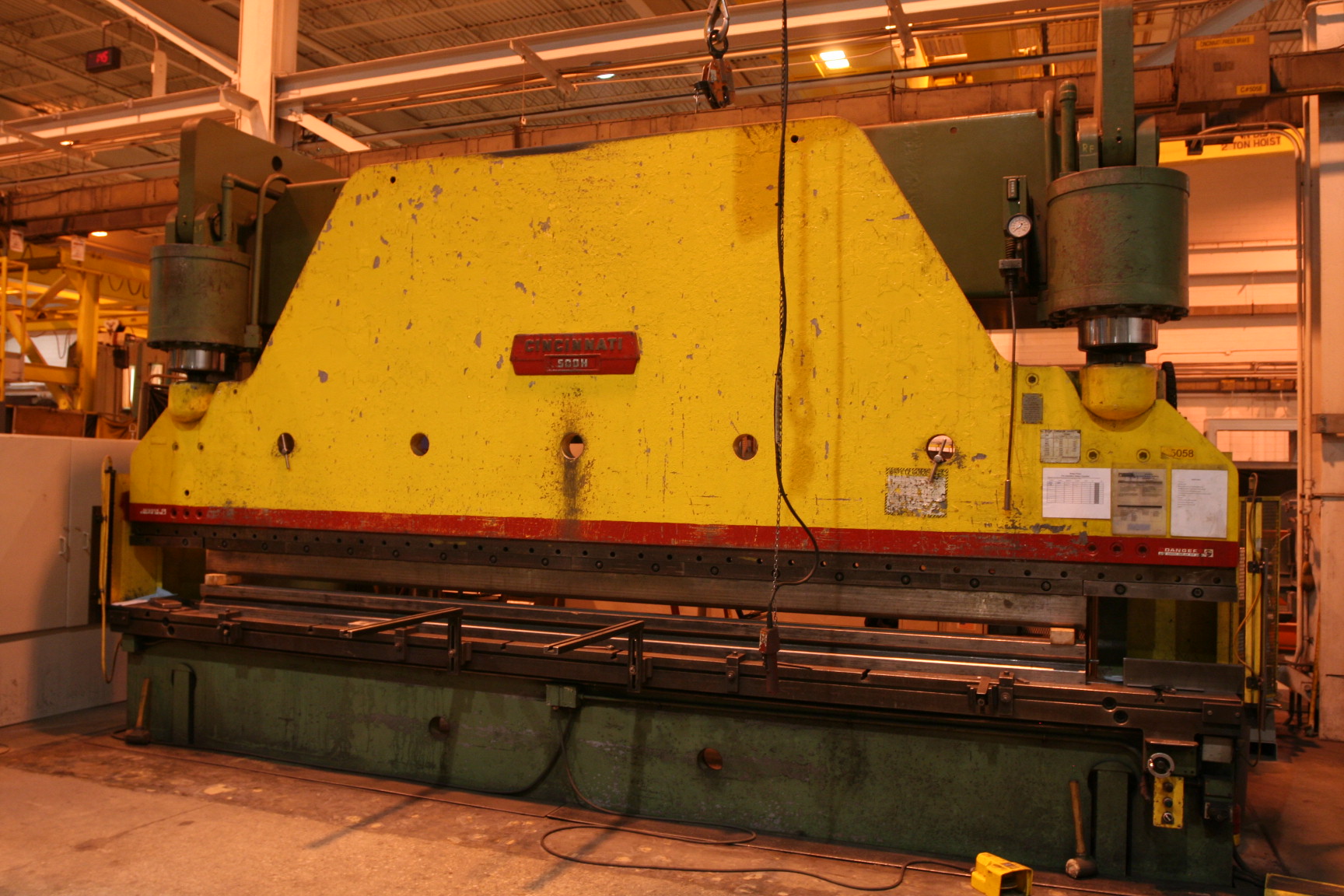

500 TON X 20' CINCINNATI HYD.,16'6" BET., NEW PUMP & REBUILT CYLINDERS in 2010, LIGHT CURTAINS, FINE ADJUSTMENT 1971

General Specifications

Manufacturer Cincinnati
Model                           500H16
Serial                          37854
Year                            1971
Capacity                        500 tons
Bending capacity                5/8" X 13'(16MM X 4M)
Overall length of bed & ram     20' (6.09 METERS)
Distance between housings       16'5" (5 METERS)
Stroke of ram                   12"
Shut height                     10"
Open height                     22"
Fast press                      55 IPM
Full tonnage press              26 IPM
Return speed                    60 IPM
Drive motor                     50 hp
Weight                          85,900 lbs.

Machine is equipped with:
Motorized ram adjustment w/ micrometer adjustments
Adjustable light curtains

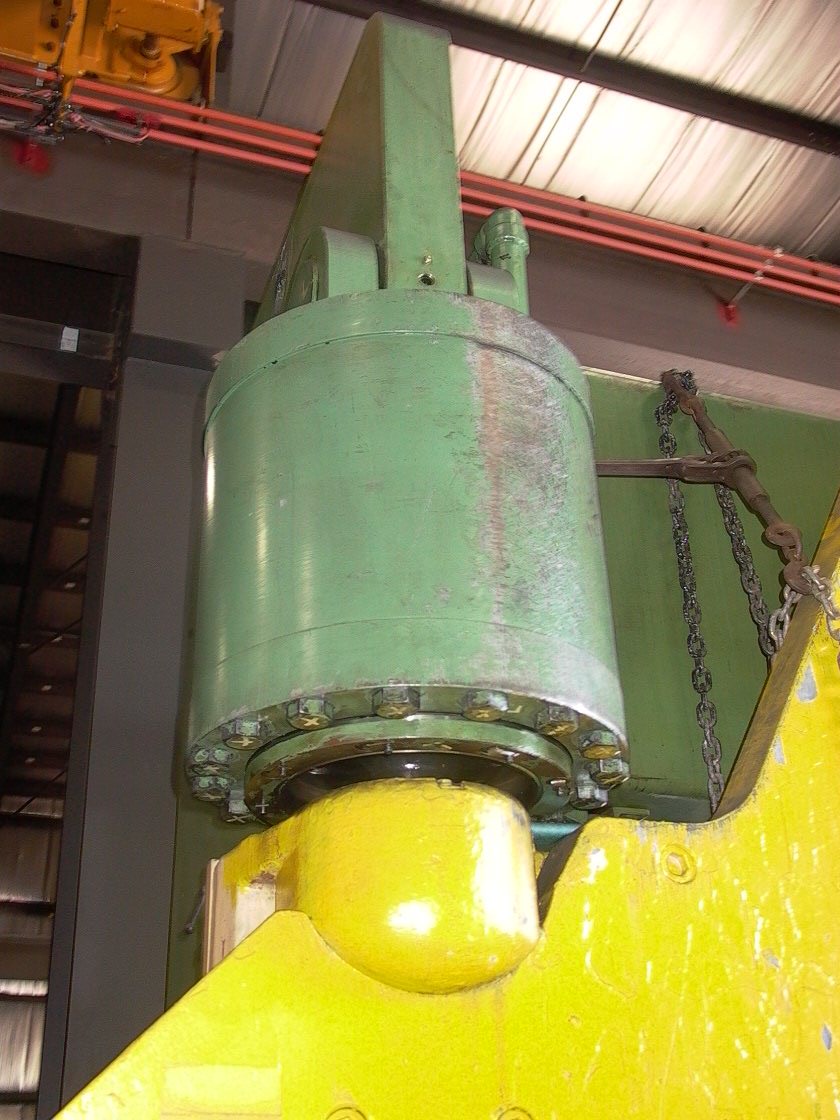

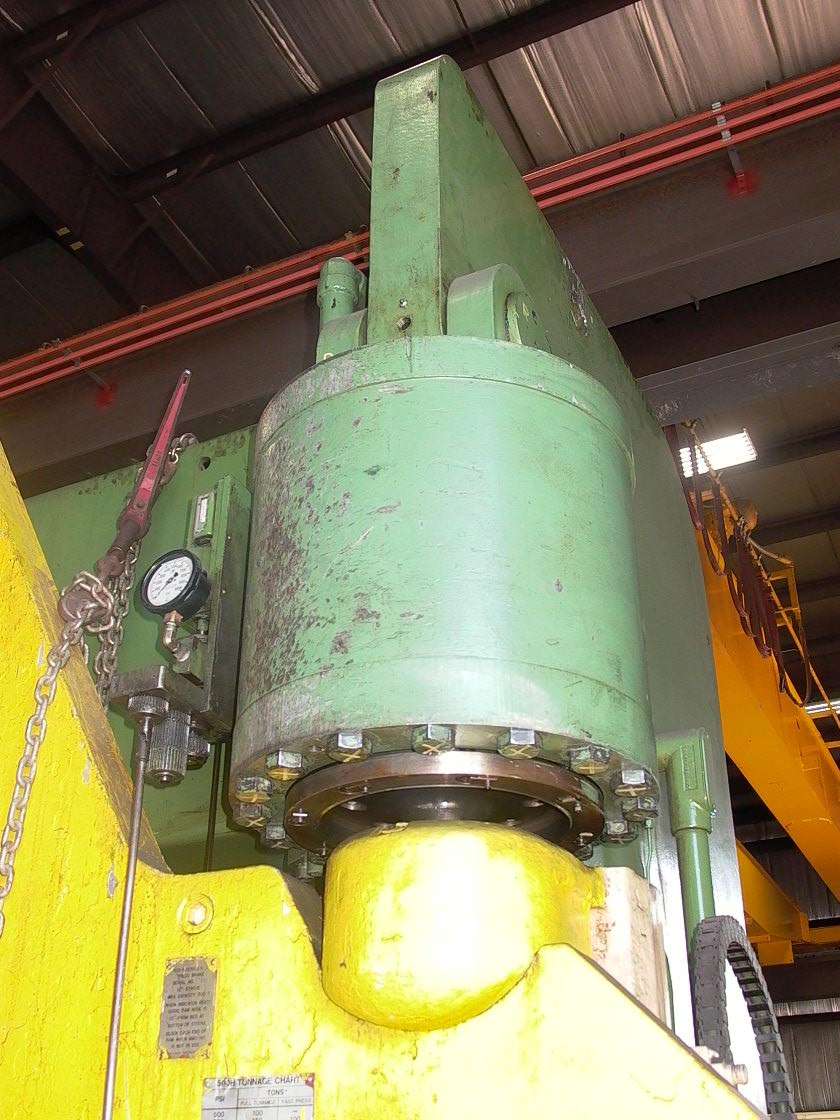

Hydraulic cylinders recently repacked
