Specifications
Equipped With

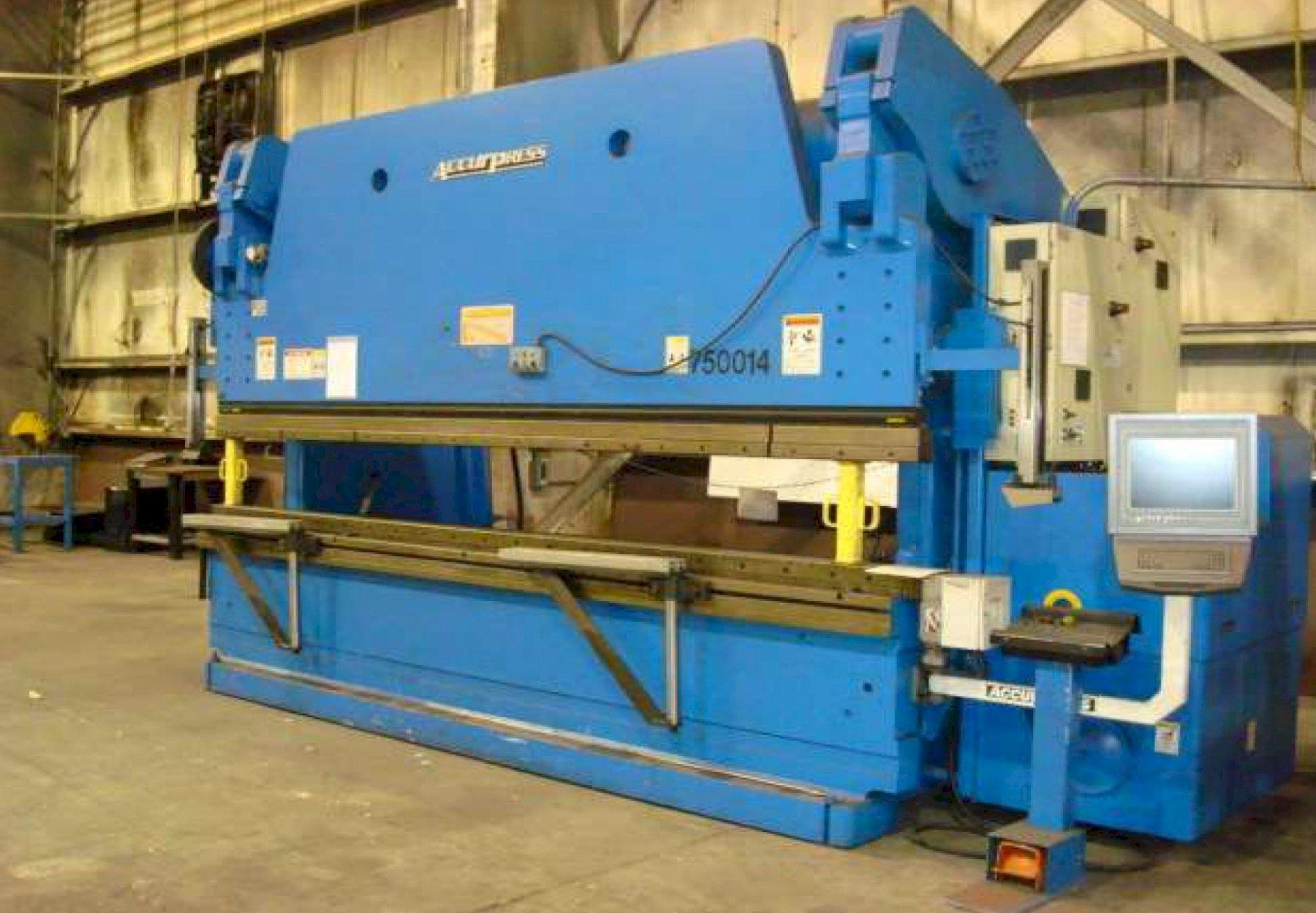

Manufacturer....................... Accurpress
Model.............................. 750014
Age................................ 2005
Serial number...................... 8422
Bending Capacity................... 14' x 5/8 (Mild Steel)
Length of Bed...................... 14'
Distance between Side Frames....... 12' 4"
Bed Height......................... 34"
Bed Width.......................... 12"
Bed Depth Below Floor.............. 0"
Overall Dimensions
Width........................... 174"
Depth........................... 80"
Height.......................... 124"
Length of Stroke................... 10"
Open Height........................ 24.85" under Wila clamp
Closed Height...................... 14.85" with Wila Upper Clamp
Throat Depth....................... 12"
Ram speed
Fast Approach................... 55 ipm
Slow Bend....................... 14 ipm
Fast Return..................... 90 ipm
Main Motor HP...................... 40
Approximate Shipping Weight........ 54,000lbs
Equipped with:

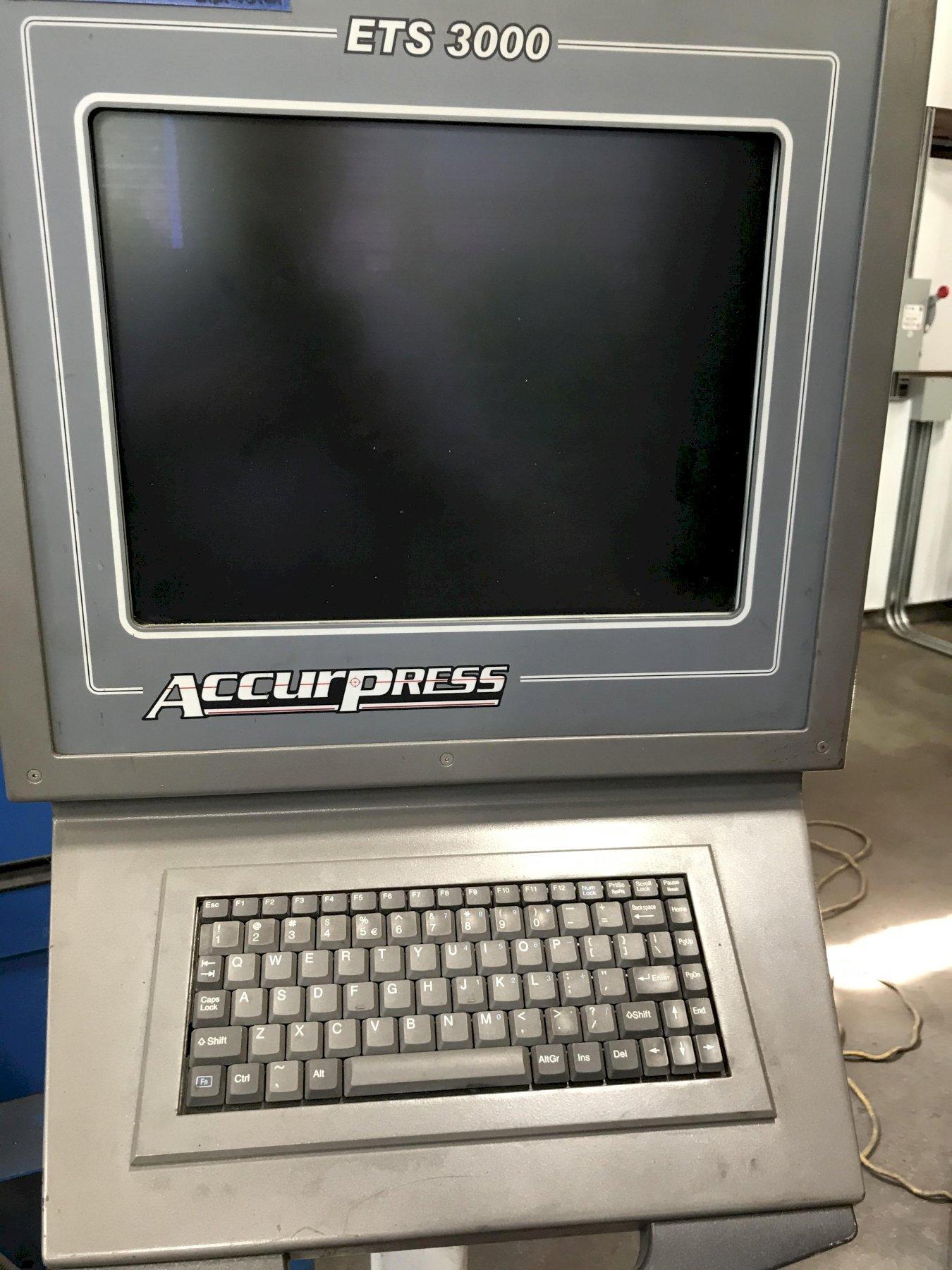

Accurpress ETS3000 6 Axis Control with Y, X, R, Z1/Z2, CNC CROWNING

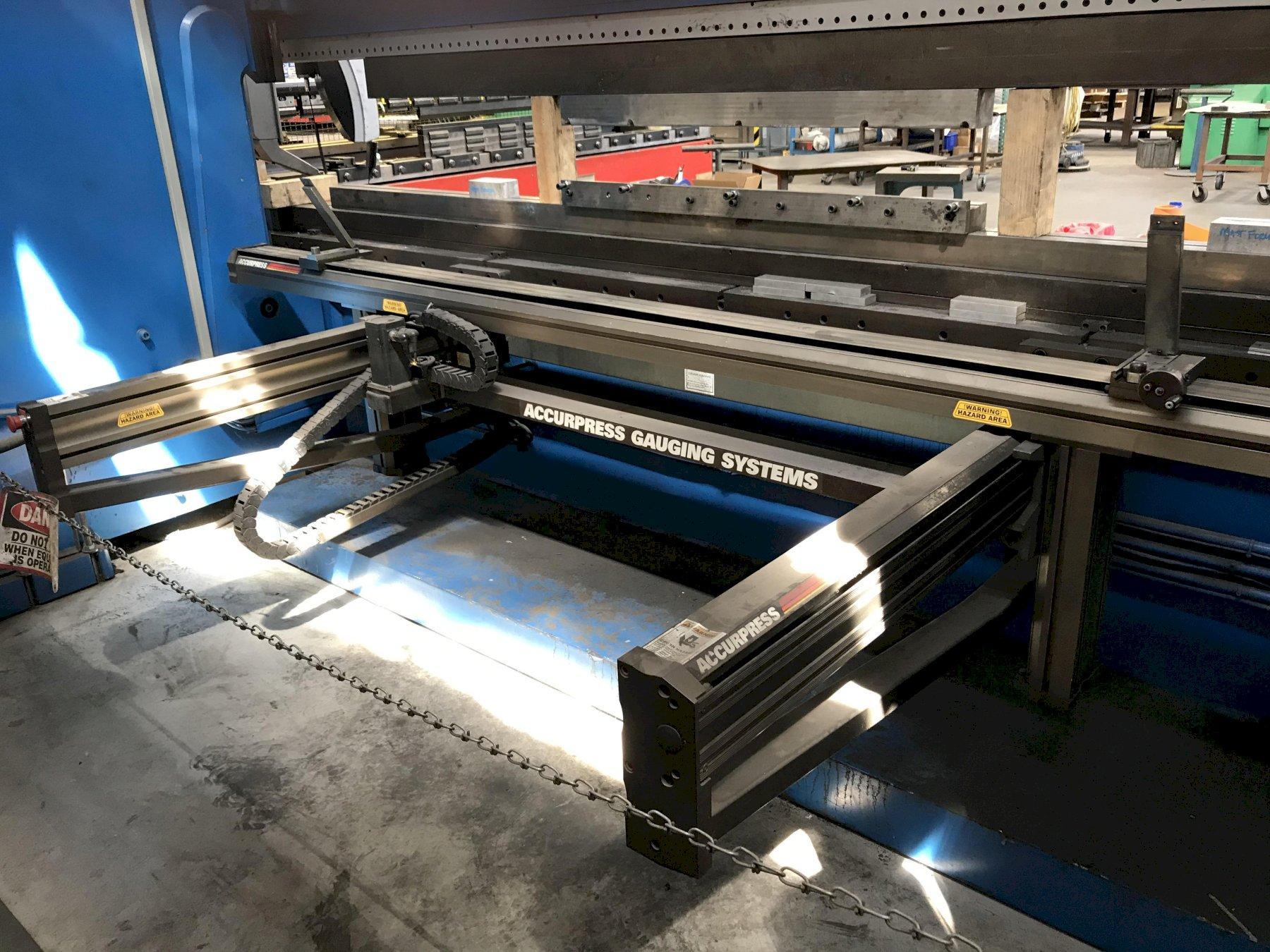

36" Heavy Duty Front Swing Away Front Support Arms
Wila Hydraulic American Upper Clamp ASCL 1
WILA CNC CVV/E E-Wide Crowning System
Bed Groove
Adjustable Bend Speed
Dual Ram Feedback DRF
Open Height 24.85" Under Wila Clamp
8" Extra Open Height

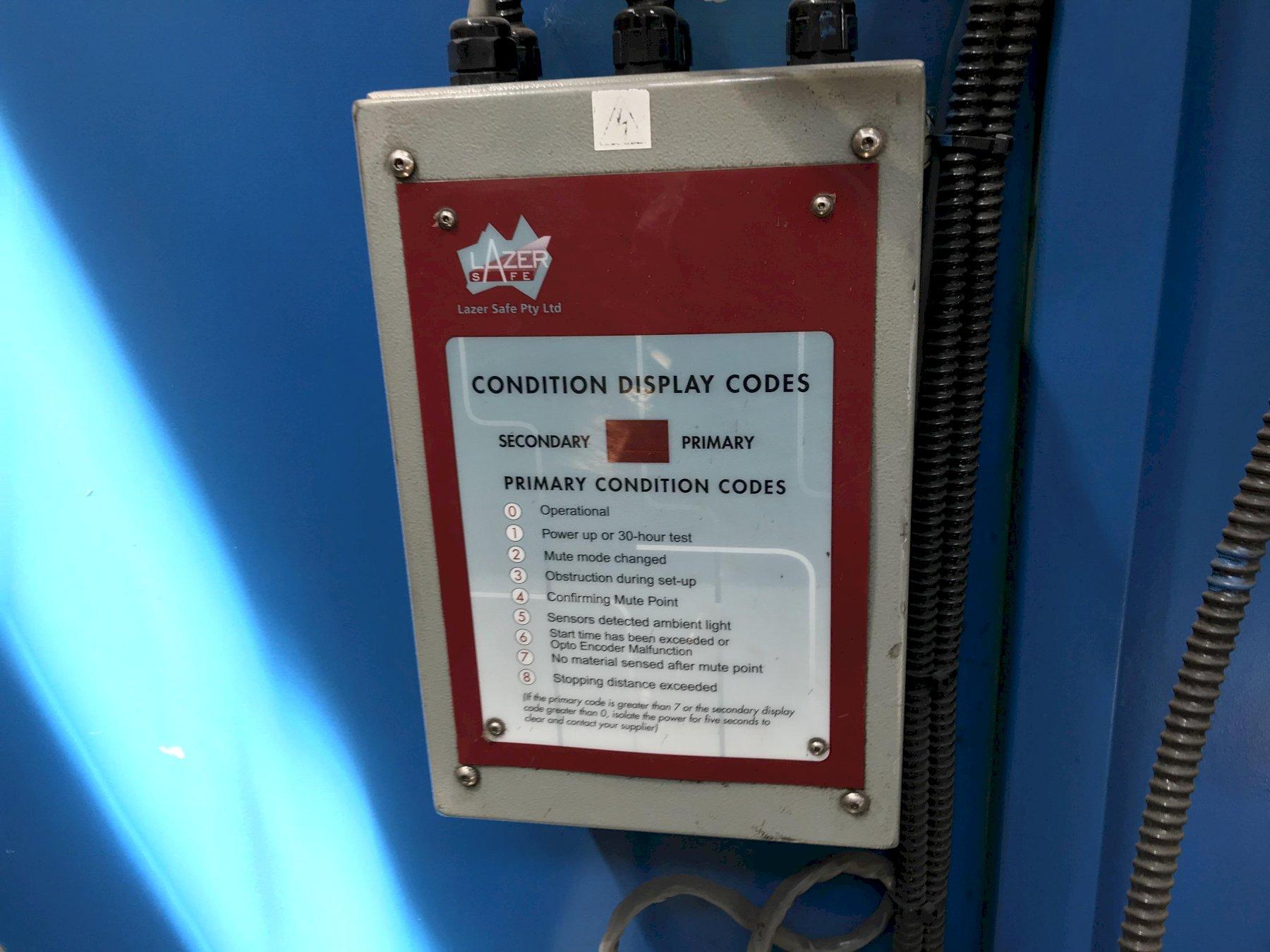

Lazersafe Guarding
running 460v with transformer
