GENERAL SPECIFICATIONS:

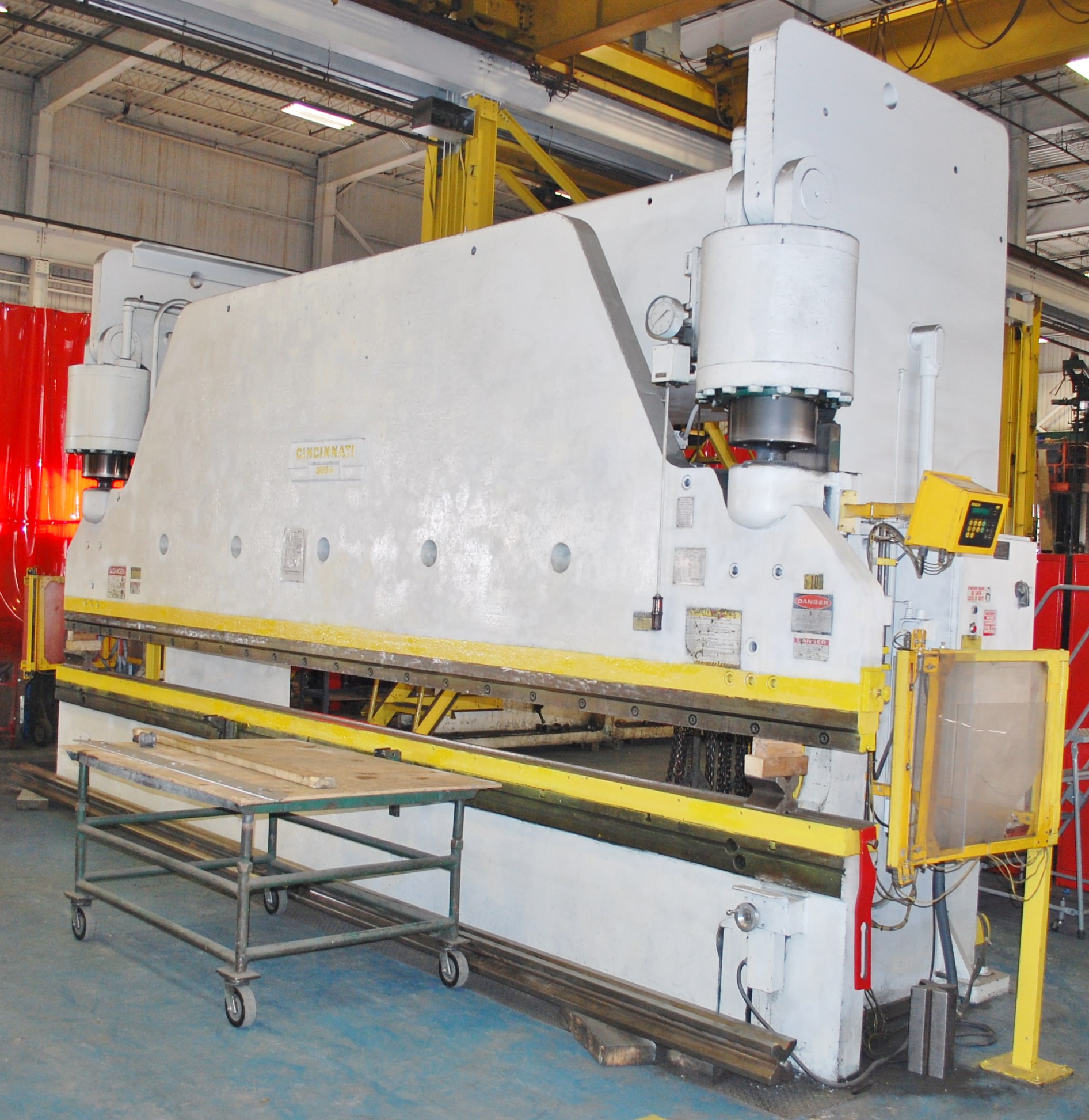

MANUFACTURER......................... CINCINNATI
MODEL................................ 500H X 18
NEW (APPROX.)........................ 1970
SERIAL NUMBER........................ 26196
TYPE................................. HYDRAULIC
FULL TONNAGE......................... 500 TON
OVERALL LENGTH....................... 22'
DISTANCE BETWEEN HOUSINGS............ 18' 4"
STROKE............................... 12"
OPEN HEIGHT.......................... 22"
CLOSED HEIGHT........................ 10"
THROAT DEPTH......................... 14"
MOTOR HORSEPOWER..................... 50
APPROXIMATE WEIGHT................... 108,200 LBS
EQUIPPED WITH:
MERLIN LIGHT CURTAINS

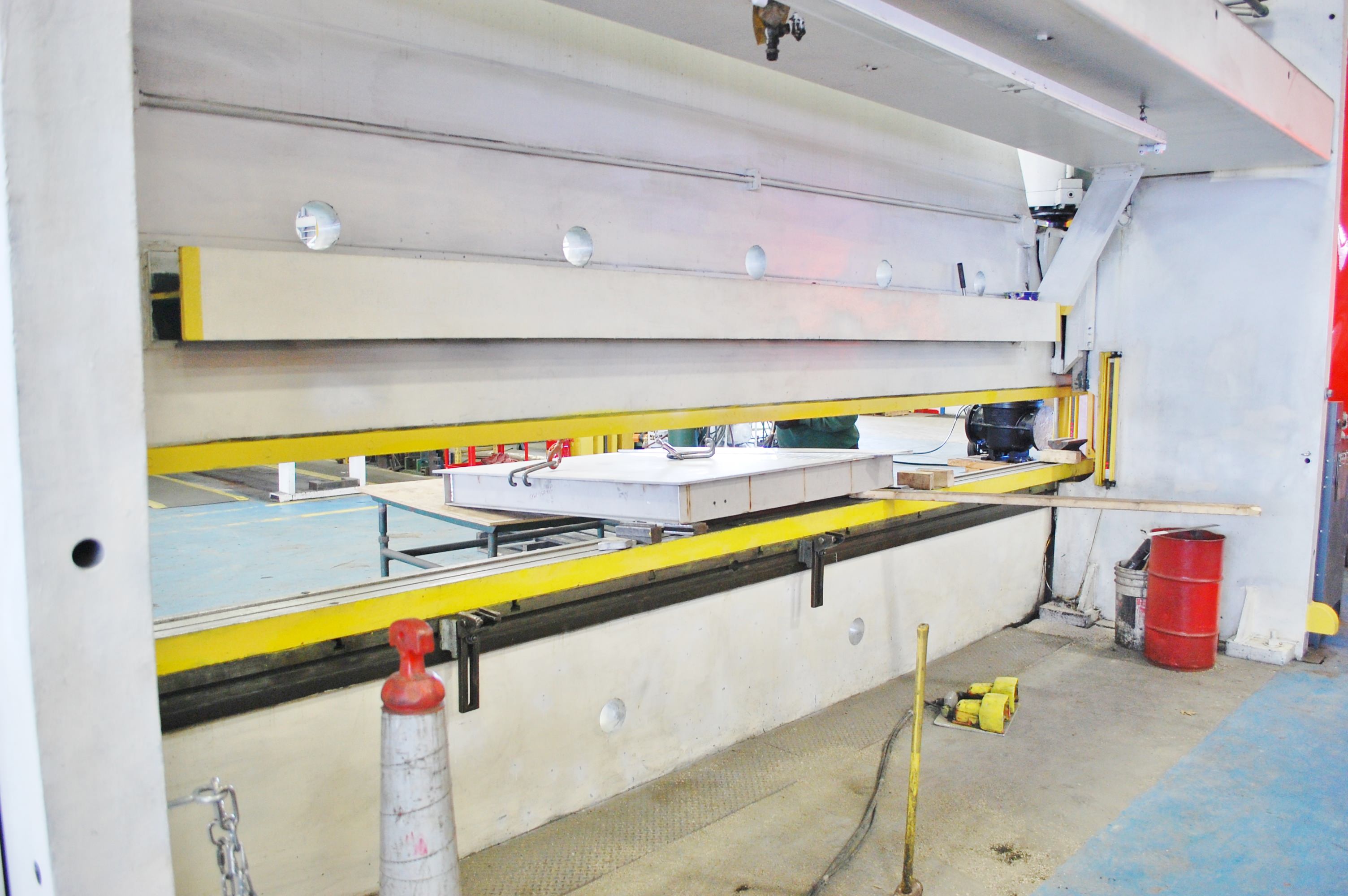

LOWER DIE RAIL

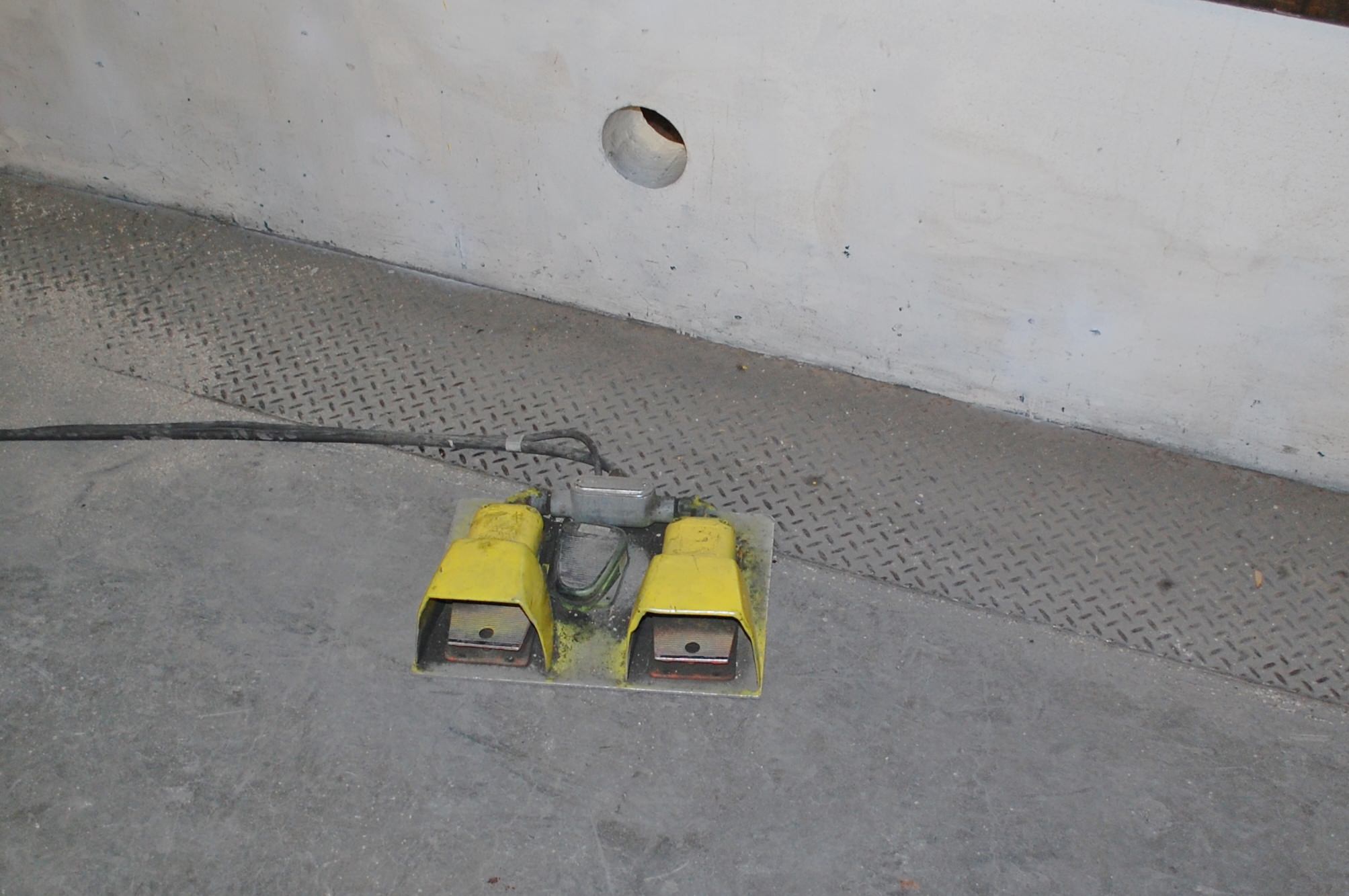

FOOT PEDAL

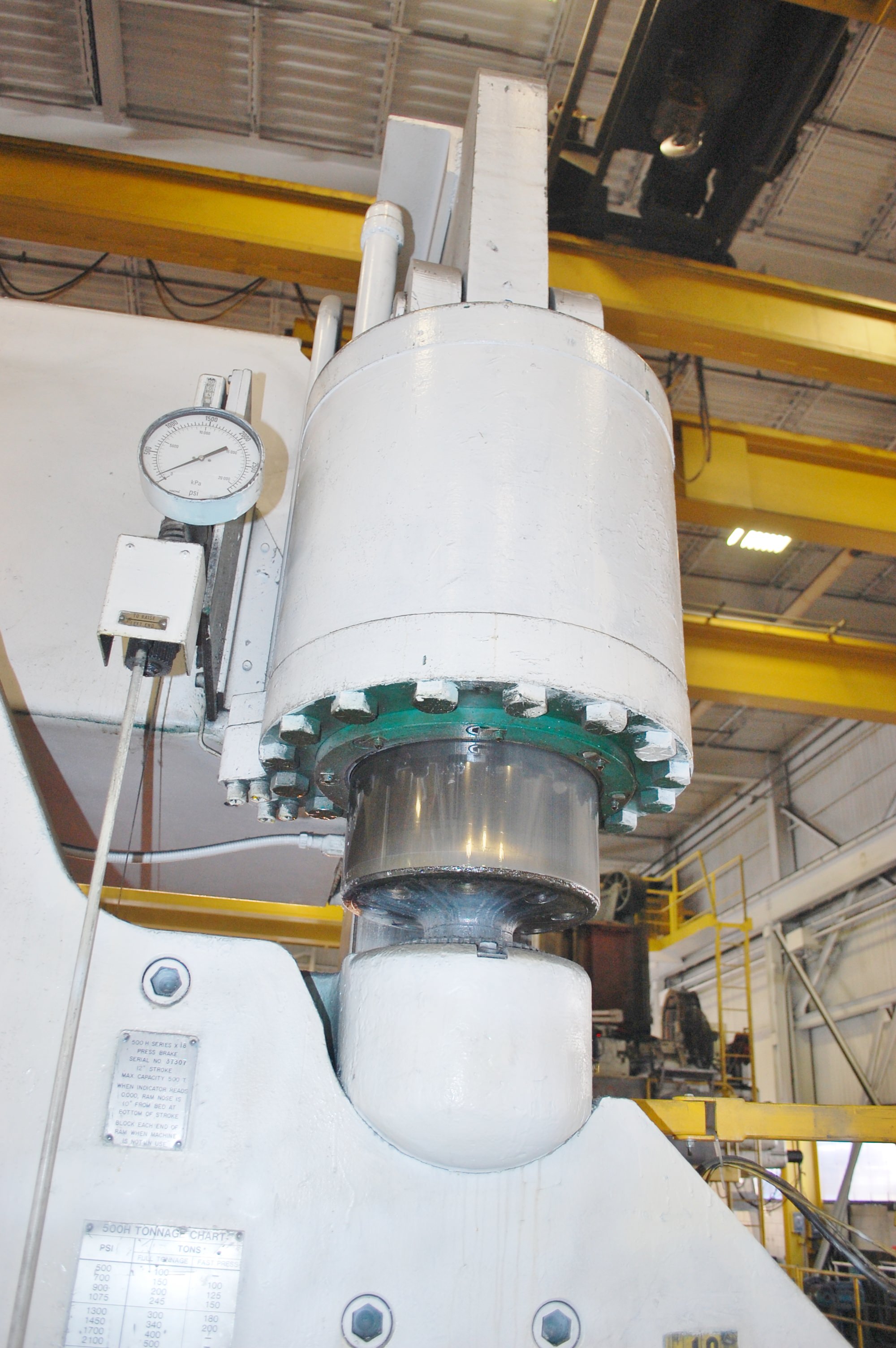

TONNAGE INDICATOR
