Specifications
Equipped With
GENERAL SPECIFICATIONS:

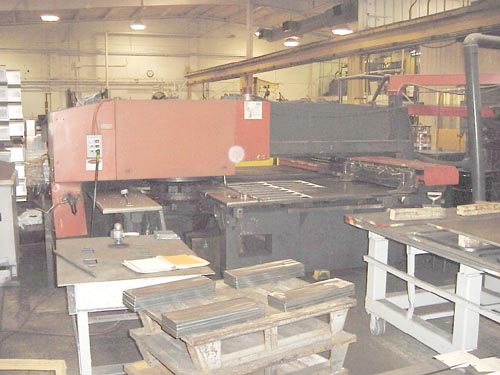

MODEL FC1500/45
NEW APPROXIMATELY 1994
TONNAGE CAPACITY 50 TON
NORMAL SHEET SIZE 60" X 80"
MAX. SHEET SIZE W/REPOSITIONING 60" X 160"
HOLE PUNCHING CAPCITYS (DIA.): 4" IN 1/4" MAT.
2-1/4" IN 3/8" MAT.
1-1/2" IN 1/2" MAT.
1" IN 5/8" MAT.
MIN. STOCK THICKNESS 16 GA.
HIT RATES 95-170 HPM
MAX. AXIS TRAVEL SPEED 2000 IPM
DIMENSIONS (APPROX.) 210" L X 171" W X 96" H
WEIGHT (APPROX.) 43,000 LBS.
EQUIPPED WITH:

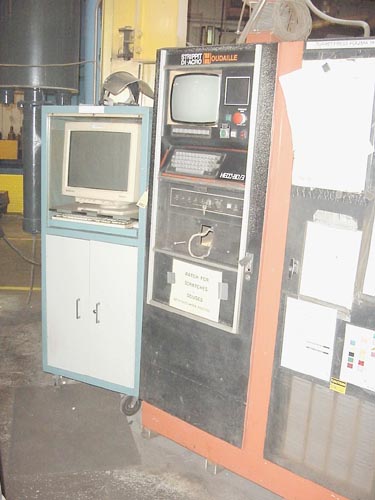

HECC-80/3 CONTROL W/CRT & RS232 PORT FOR DNC OPERATION

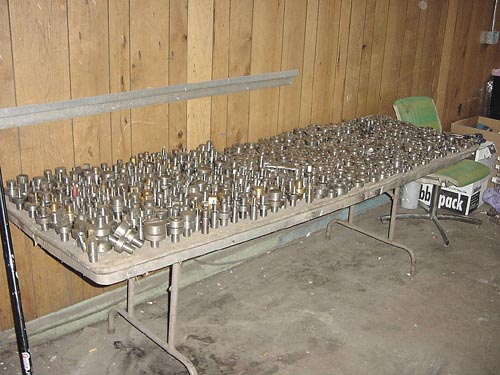

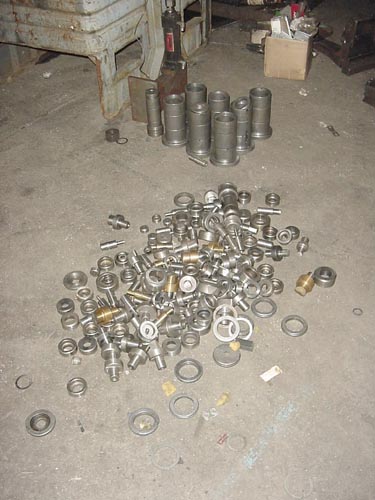

16 STATION BI-DIRECTIONAL TURRET
600 AMP INTEGRATED PLASMA CUTTING SYSTEM
