Specifications
Equipped With

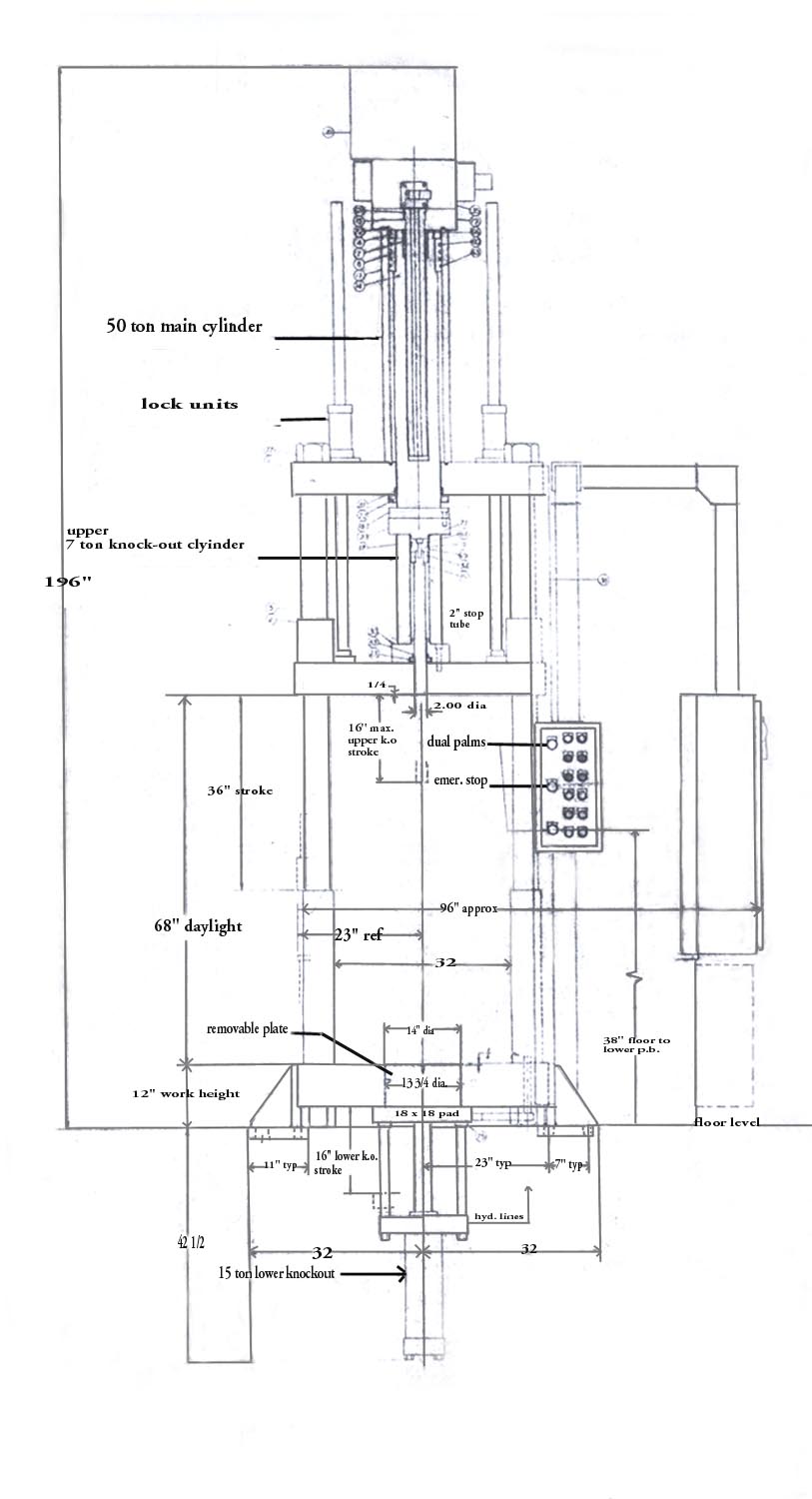

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1981
SERIAL 81T3849
RAM AND BED SIZE 32" X 32"
MAIN CYLINDER: STROKE 36"
TONNAGE 50
CLOSE SPEED 1000 IPM
PRESS 400 IPM
RETURN 953 IPM
DAYLIGHT 68"
SHUT HEIGHT 32"
UPPER KNOCKOUT - STROKE 16"
TONNAGE 7
ROD DIAMETER 2"
LOWER KNOCKOUT - STROKE 16"
TONNAGE 15
ROD DIAMETER 3"

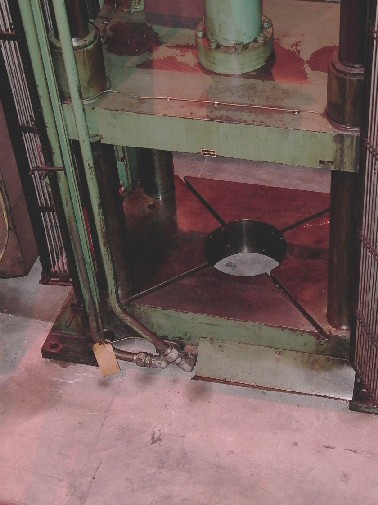

HOLE IN BOLSTER (REMOVEABLE PLATE) 13-3/4" DIA.
HEIGHT ABOVE FLOOR 196" (16'4")
HEIGHT BELOW FLOOR 42-1/2" (3'6-1/2")
EQUIPPED WITH:

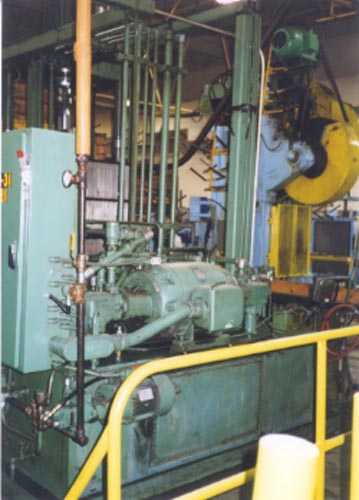

SELF CONTAINED HEAT EXCHANGER
OILGEAR AND VICKERS HYDRAULICS
MAIN HYDRAULIC MOTOR 75 HP
ADJUSTABLE PRESSURE ON MAIN AND KNOCKOUT CYLINDERS
LOCK UNITS HYDRAULIC MOTOR 5 HP
OIL CIRCULATION HYDRAULIC MOTOR 3/4 HP
CURRENTLY WIRED 480/60/3
4 POST TYPE CONSTRUCTION
ELECTRICS, HYDRAULICS AND SAFETY FENCES
