Specifications
Equipped With
GENERAL SPECIFICATIONS:

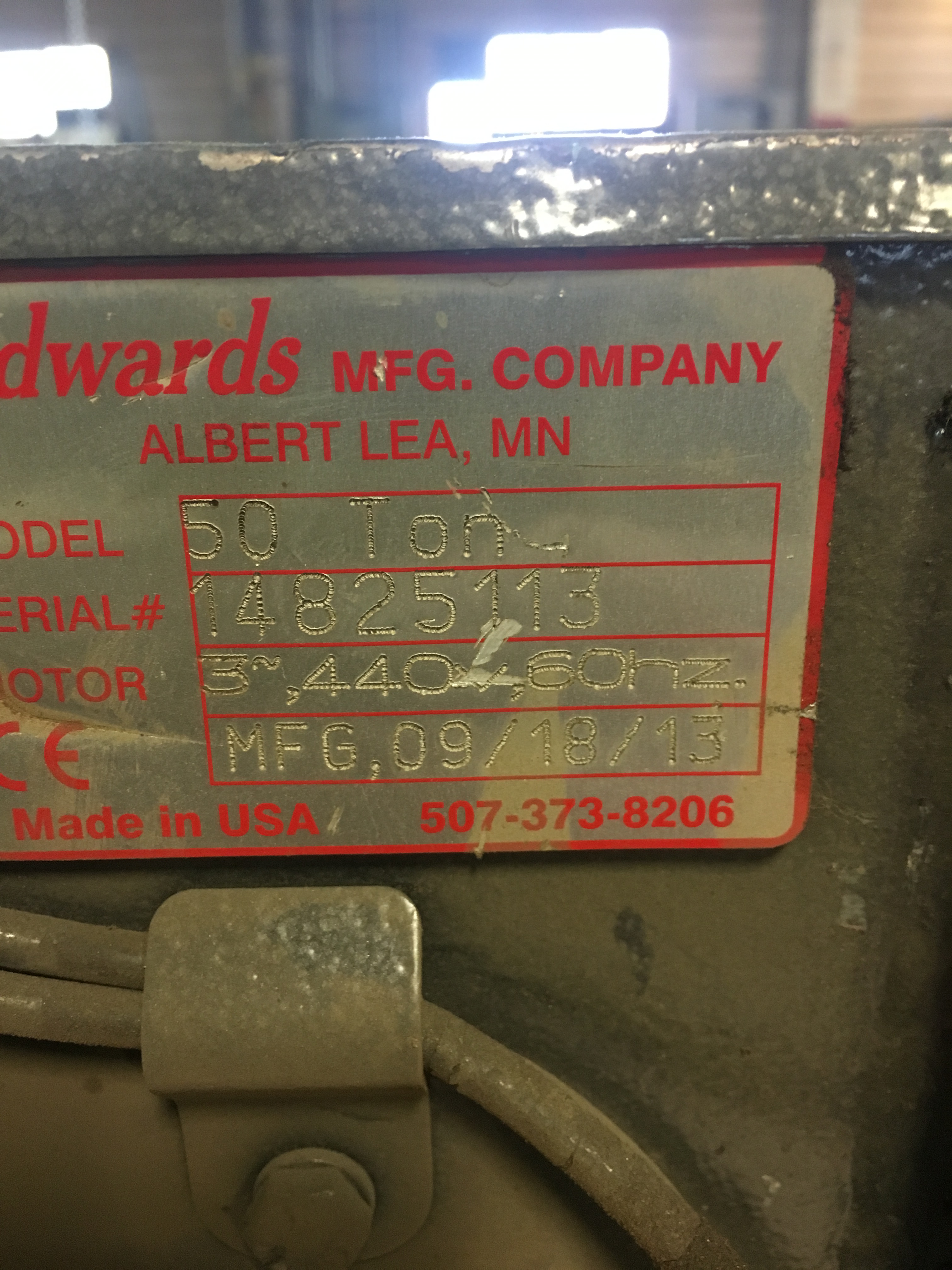

MANUFACTURER.......................... EDWARDS
MODEL................................. 50 TON
NEW................................... 2013
SERIAL #.............................. 4825113
RATED CAPACITY........................ 50 TON
THROAT................................ 7"
MAX. CAPACITY......................... 1" DIA.-5/8" PLATE
OPEN HEIGHT........................... 8.15"
SHUT HEIGHT........................... 6.25"
STROKE................................ 1.875"
BAR SHEAR ROUNDS/SQUARES.............. 3/4"
BAR SHEAR FLAT MAX. THICKNESS......... 1/2"
BAR SHEAR FLAT MAX. WIDTH............. 10"
ANGLE SHEAR MAX. SIZE................. 3" x 3" x 3/8"
COPER NOTCHER......................... 2" X 3" X 5/16"
HYDRAULIC PUMP........................ 3-1/2 GPM-1 STAGE
MOTOR................................. 5 HP 3 - 460V
DIMENSIONS (APPROX.) 30.25" x 30.25" x 62.5"H
WEIGHT (APPROX.) 1,325 LBS.
EQUIPPED WITH:
REMOTE FOOT PEDAL OPERATION
