Specifications
Equipped With

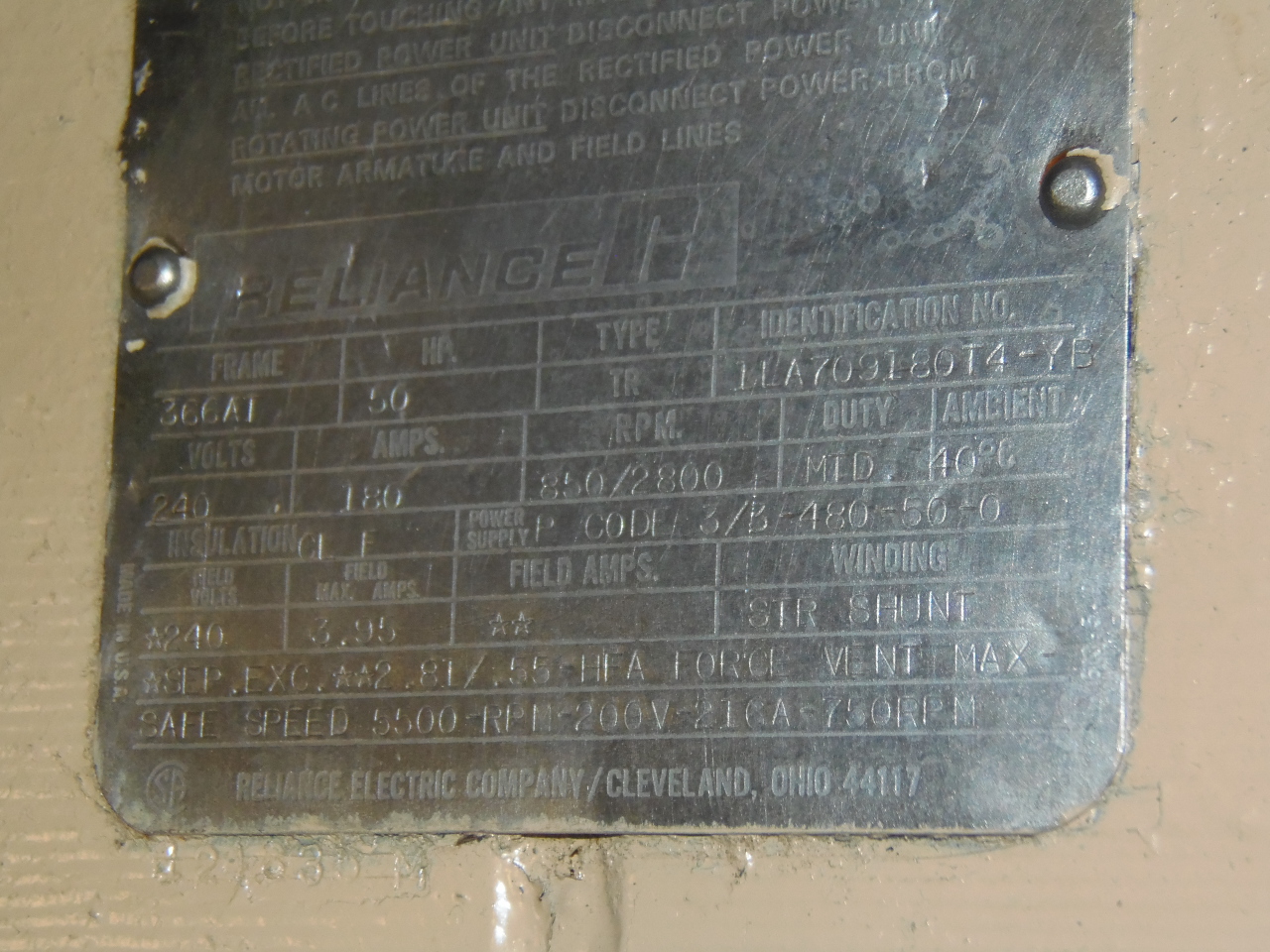

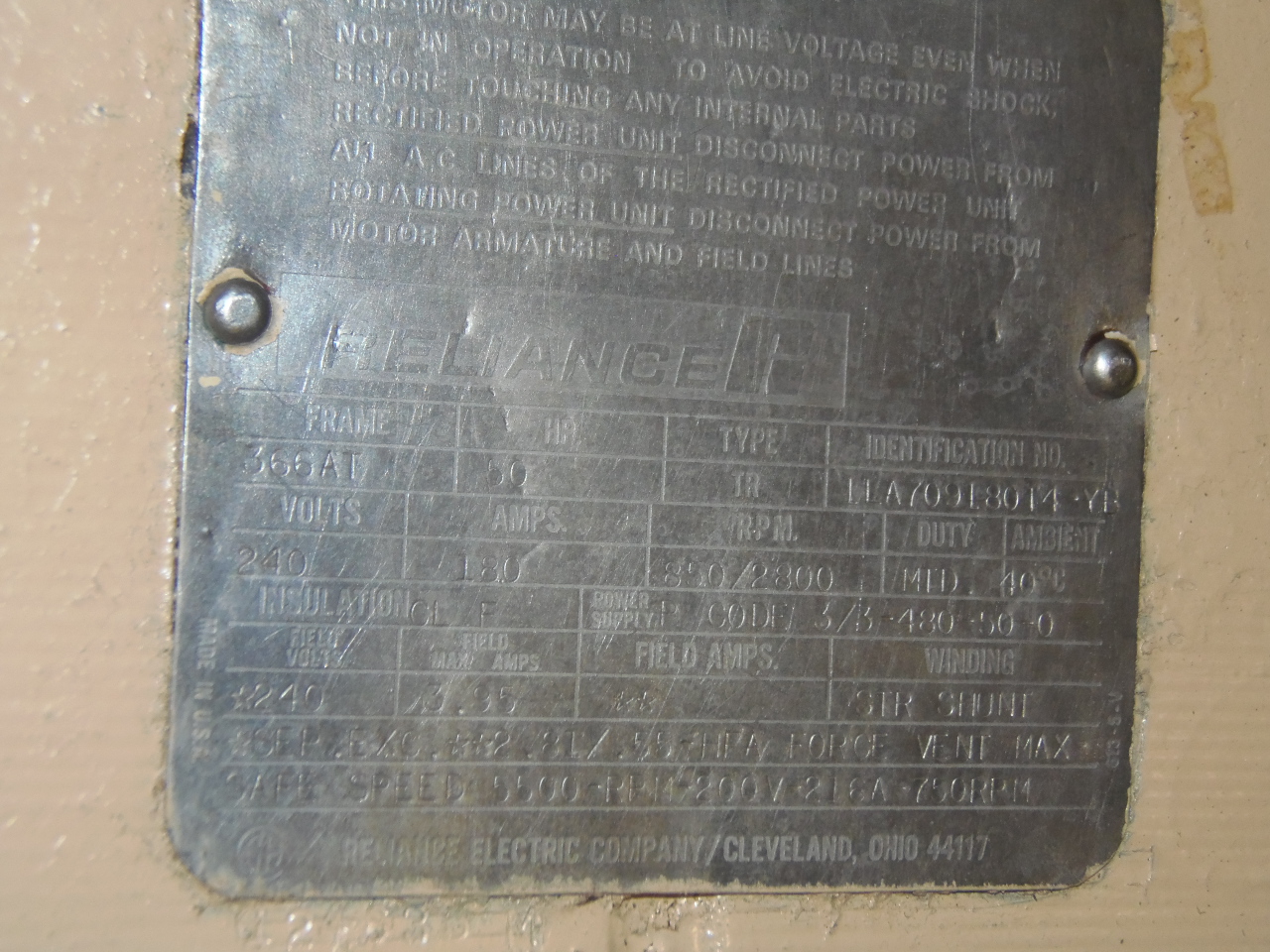

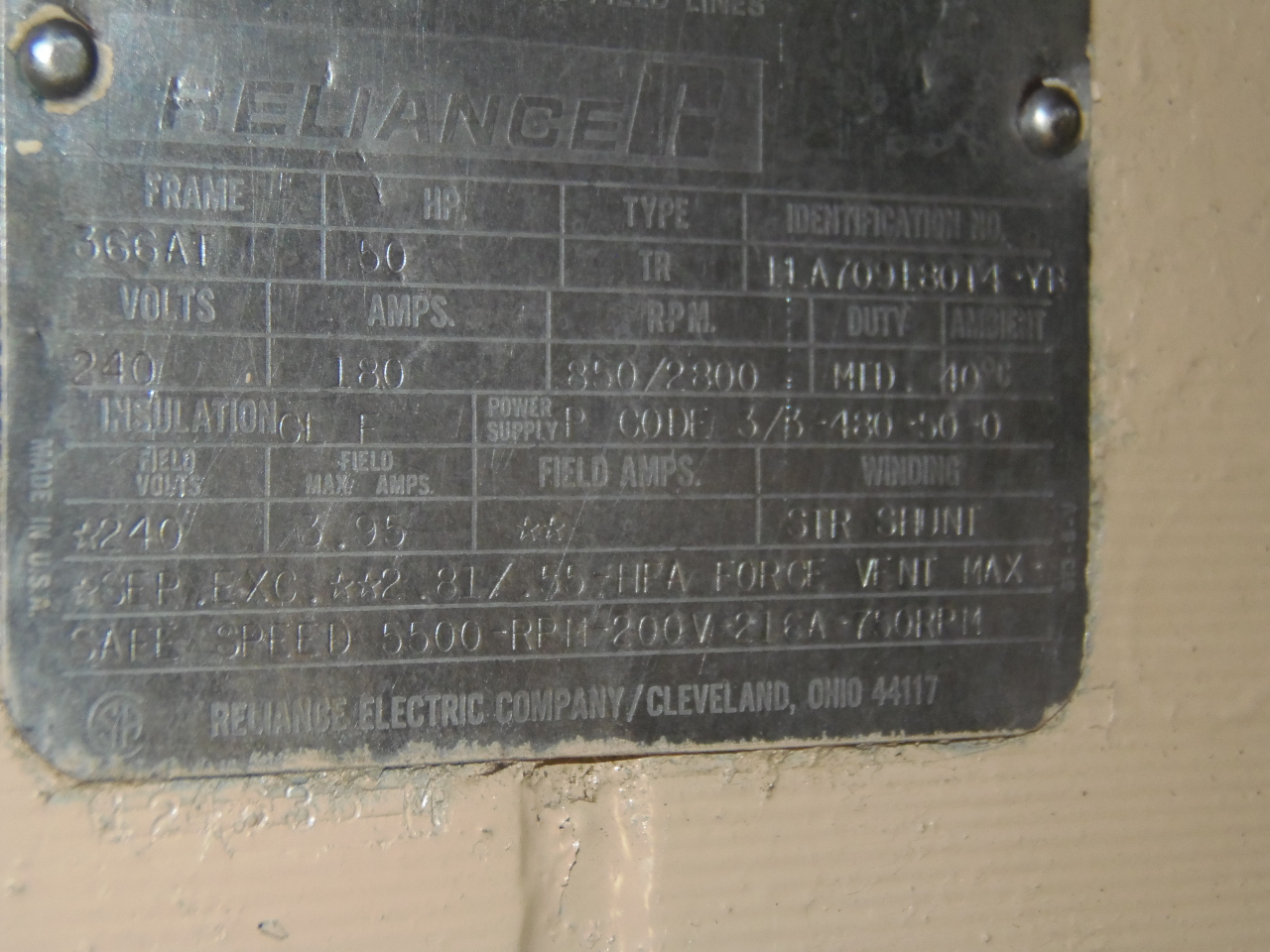

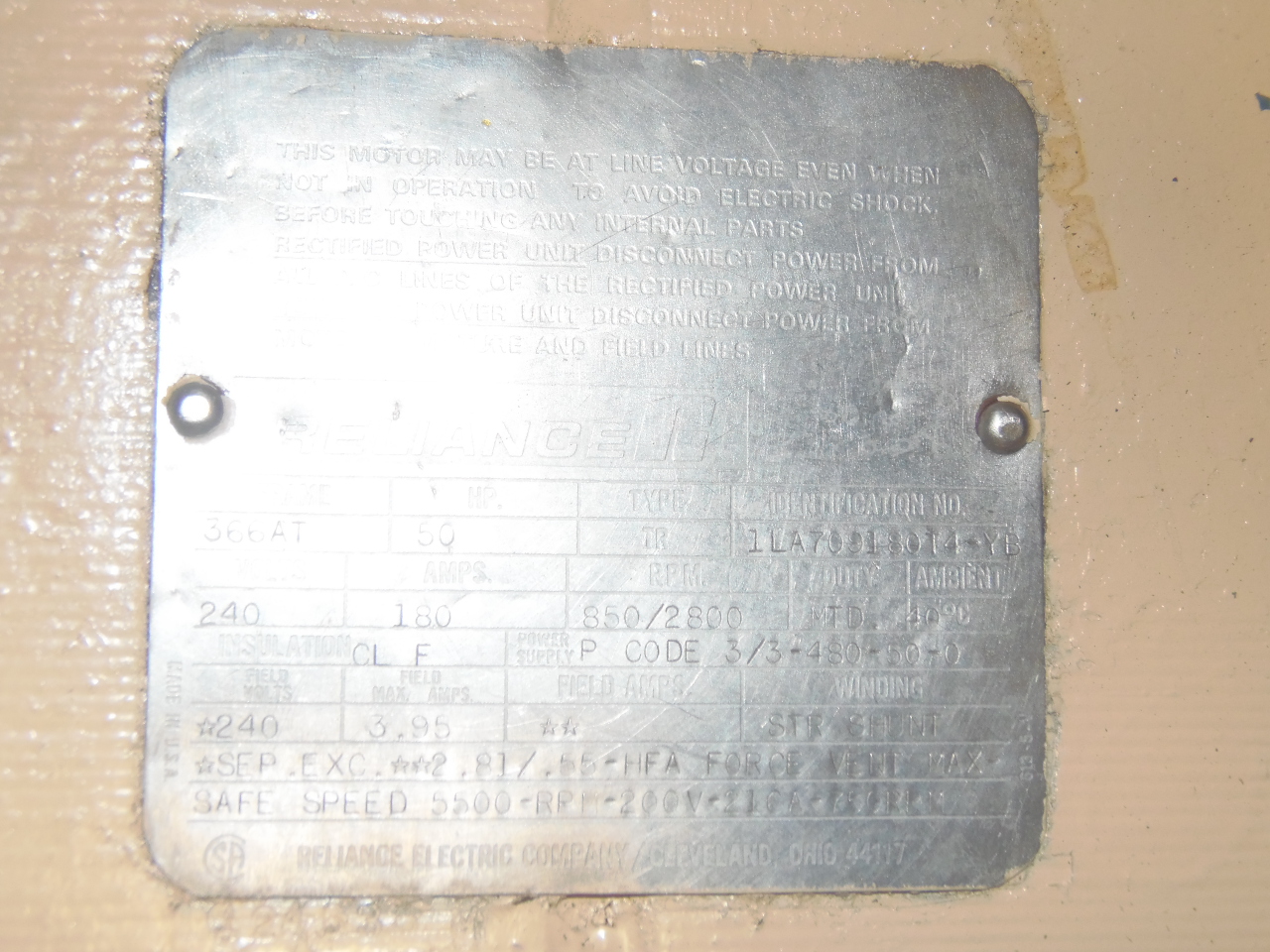

GENERAL SPECIFICATIONS
MAKE................. RELIANCE (DC)
ID................... 1LA709180T4-YB
FRAME................ 366AT (CAST IRON)
MOTOR................ 50 HP MACHINE TOOL DUTY
TYPE................. TR
VOLTS................ 240 DC ARM, 240 VDC FIELD
AMPS................. 180
AMBIENT.............. 40 DEG. C
WINDING.............. STRAIGHT SHUNT
BASE SPEED........... 850 RPM
MAX SPEED............ 2800 RPM
INSULATION........... CL-F
EQUIPPED WITH:

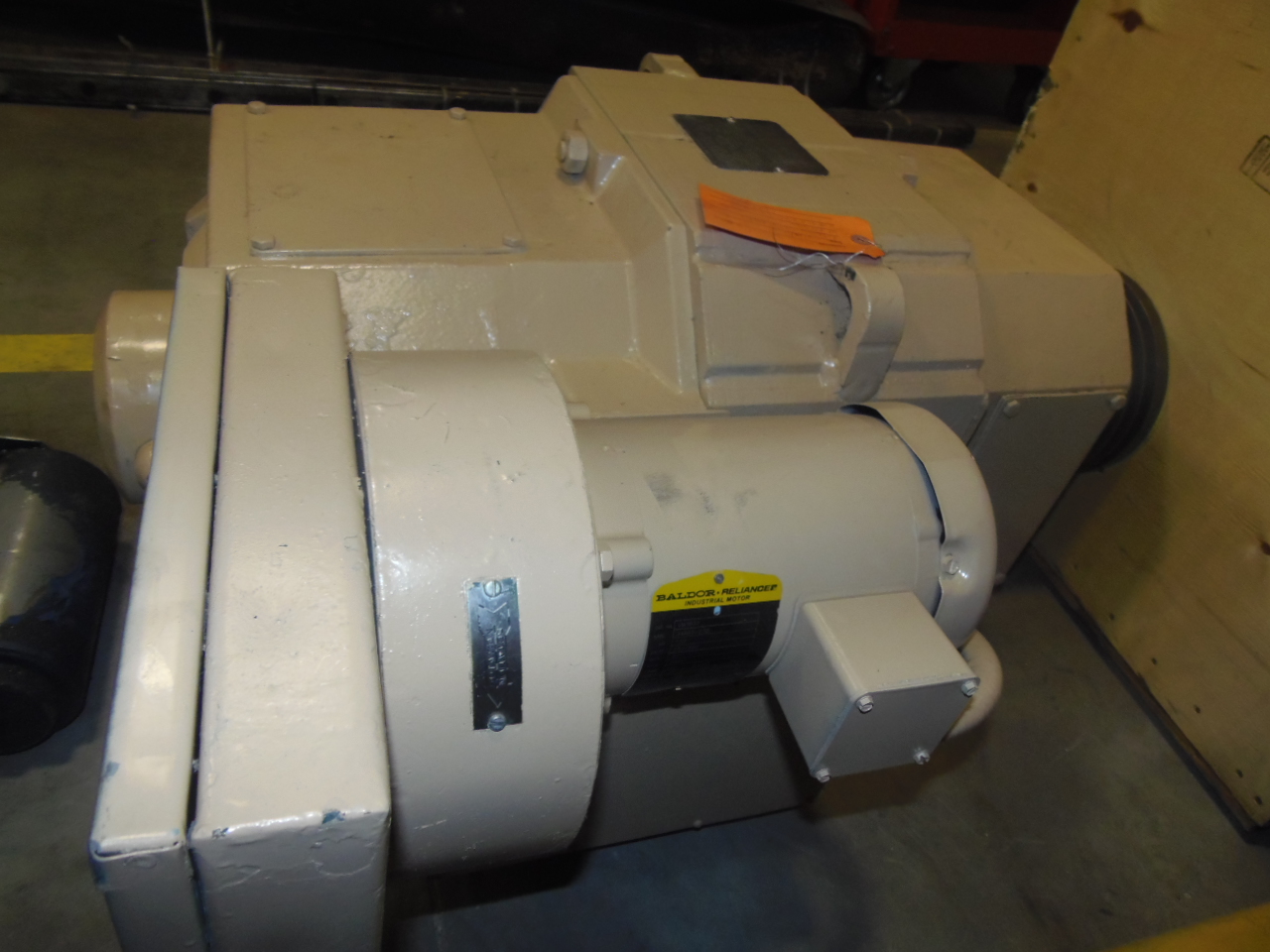

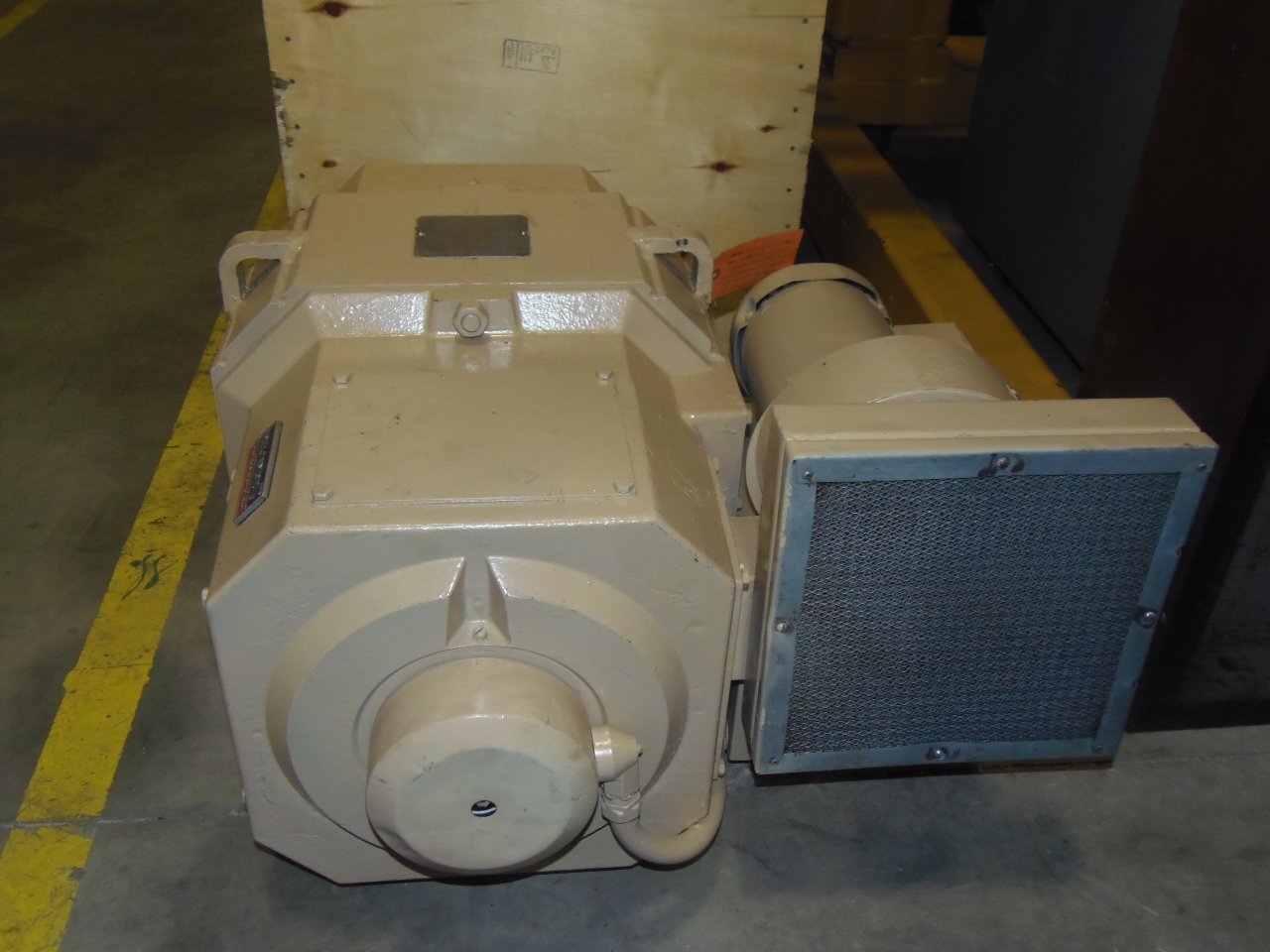

DPFV - DRIP PROOF FORCE VENT

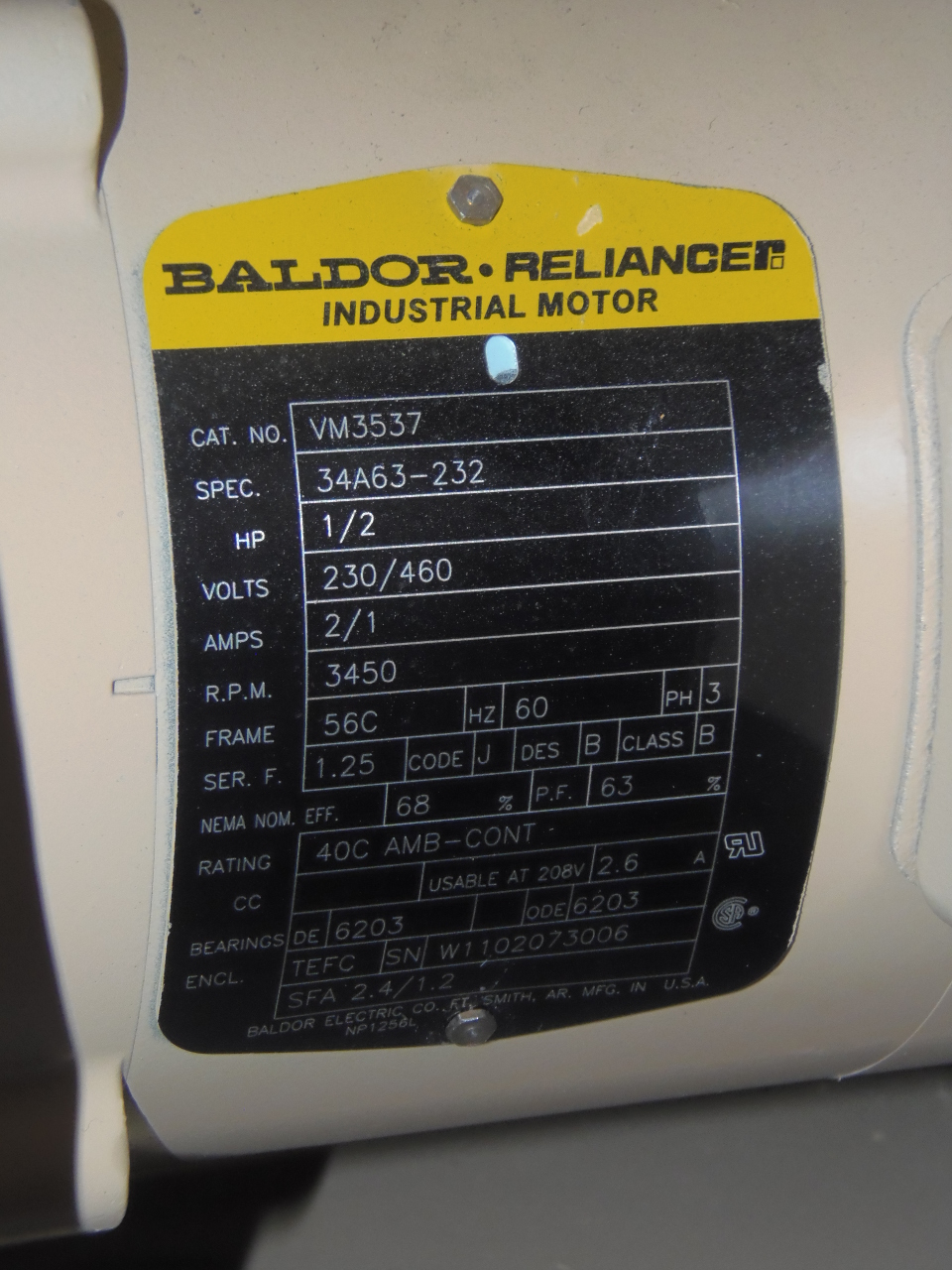

(VM3537 COOLING BLOWER MOTOR)
DE BEARING SETUP FOR BELTED LOAD
18V/1000 RPM TACHOMETER MOUNTED TO NDE OF MOTOR
NC THERMOSTAT ON FIELD WINDING
REBUILT
SPECIFICATIONS SUBJECT TO VERIFICATION
