Specifications
Equipped With
GENERAL SPECIFICATIONS:

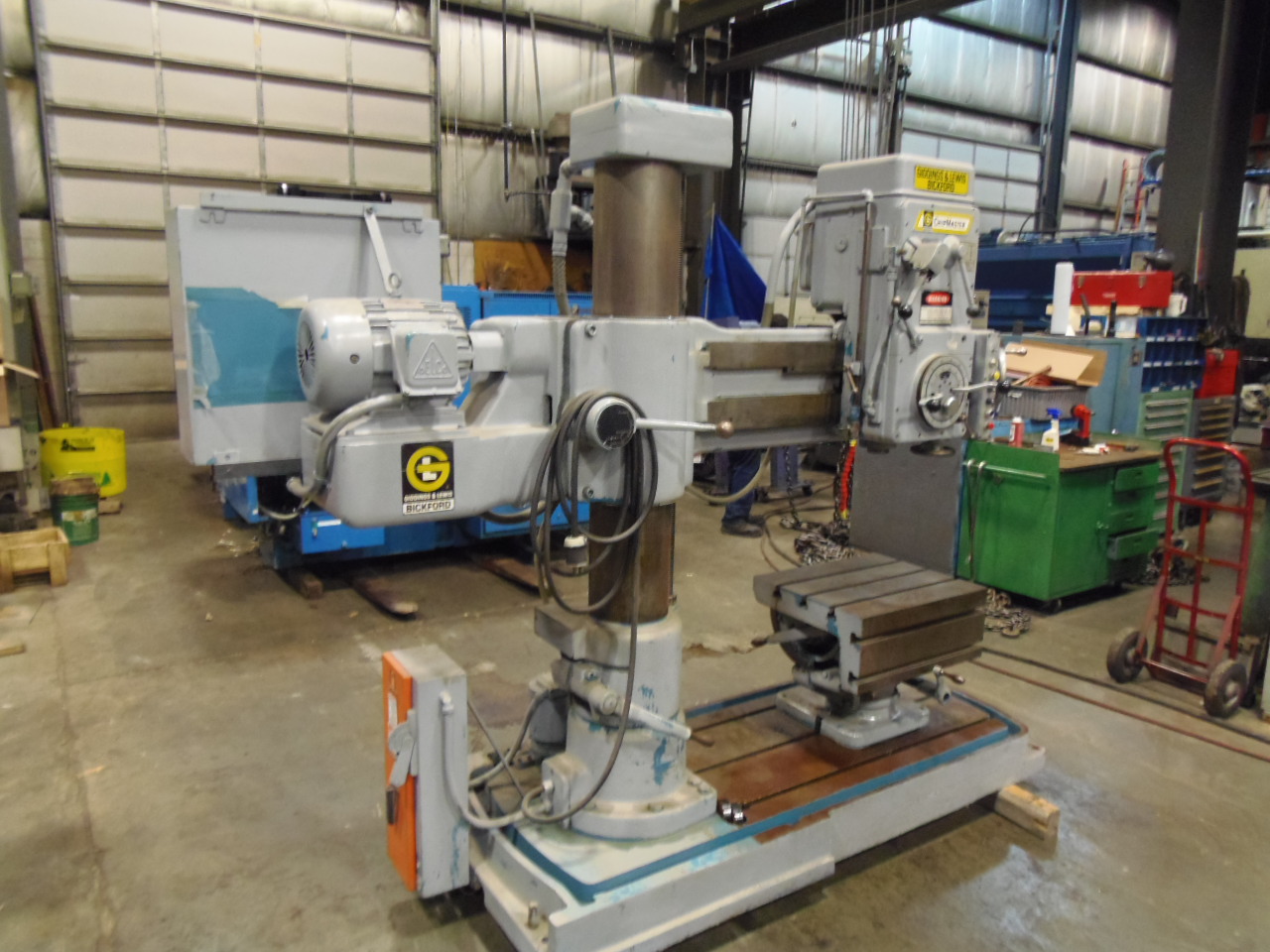

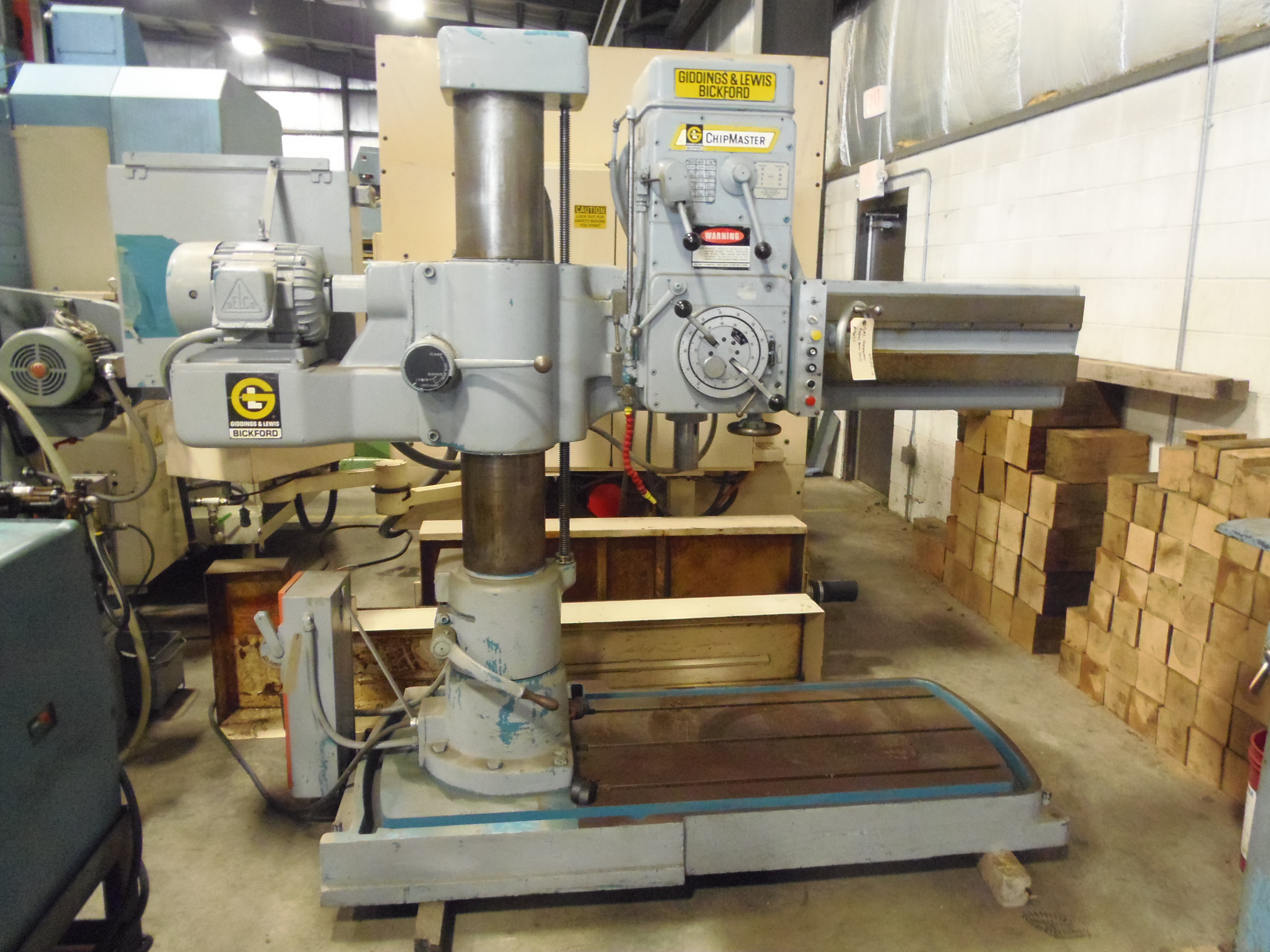

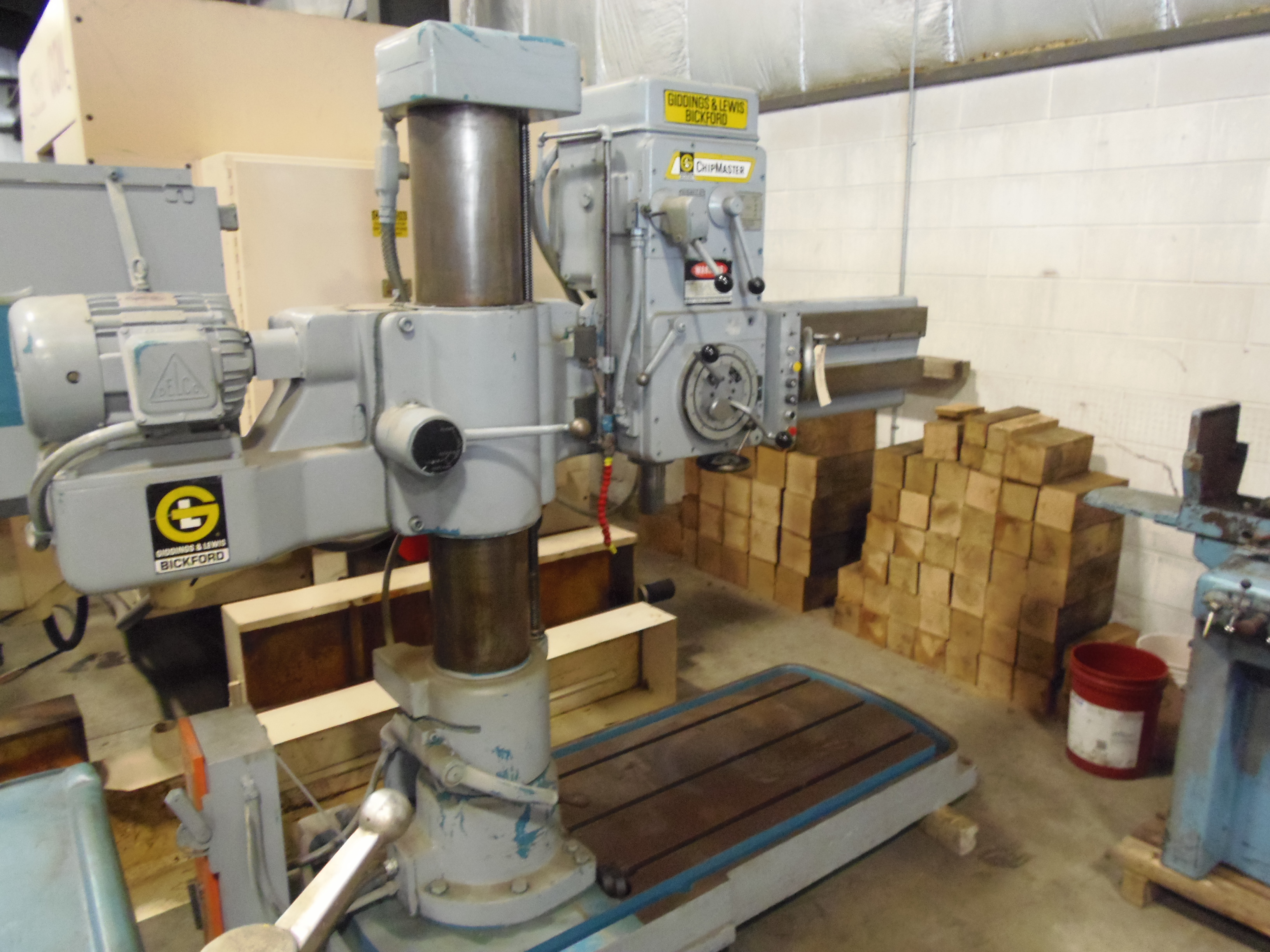

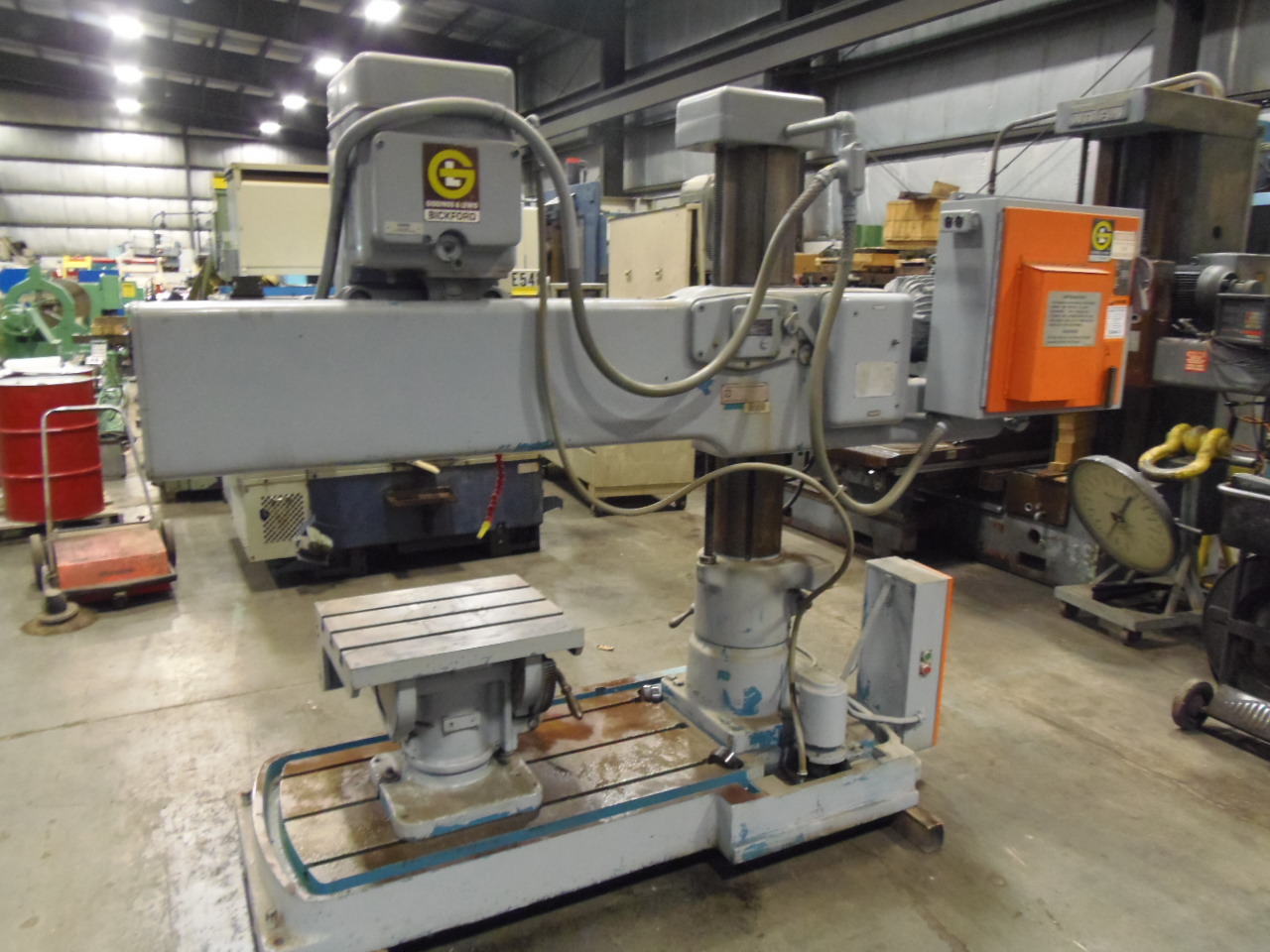

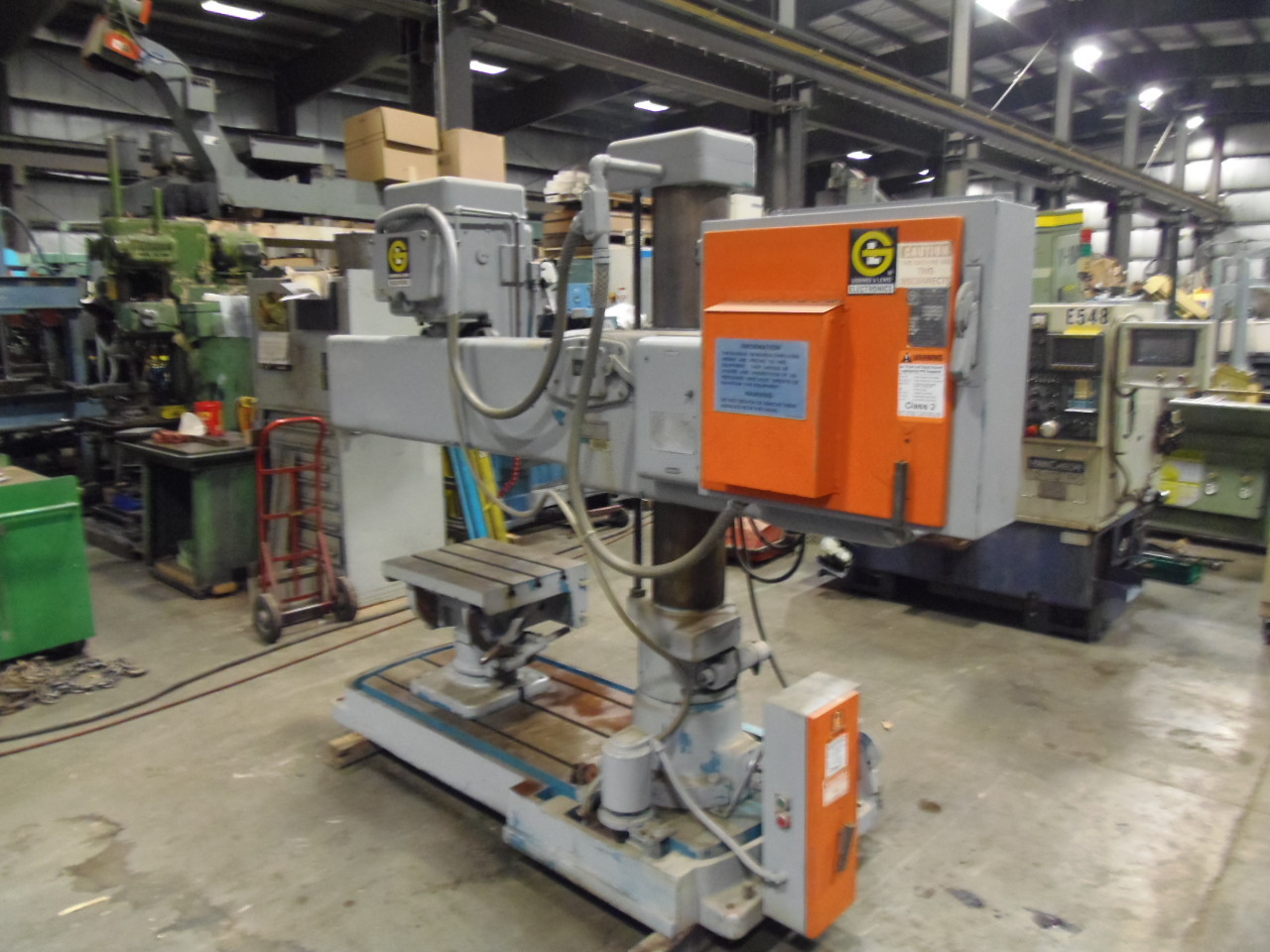

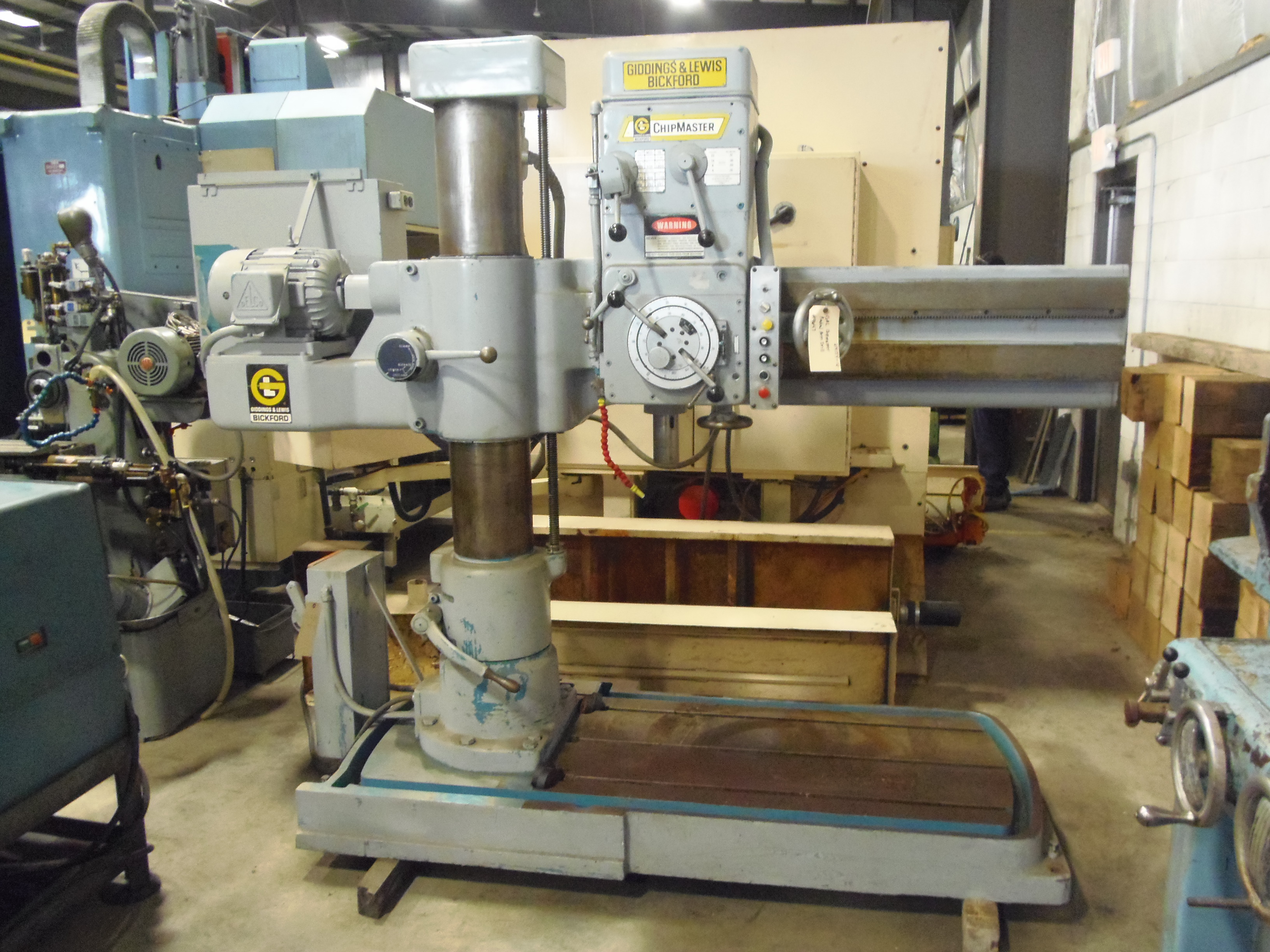

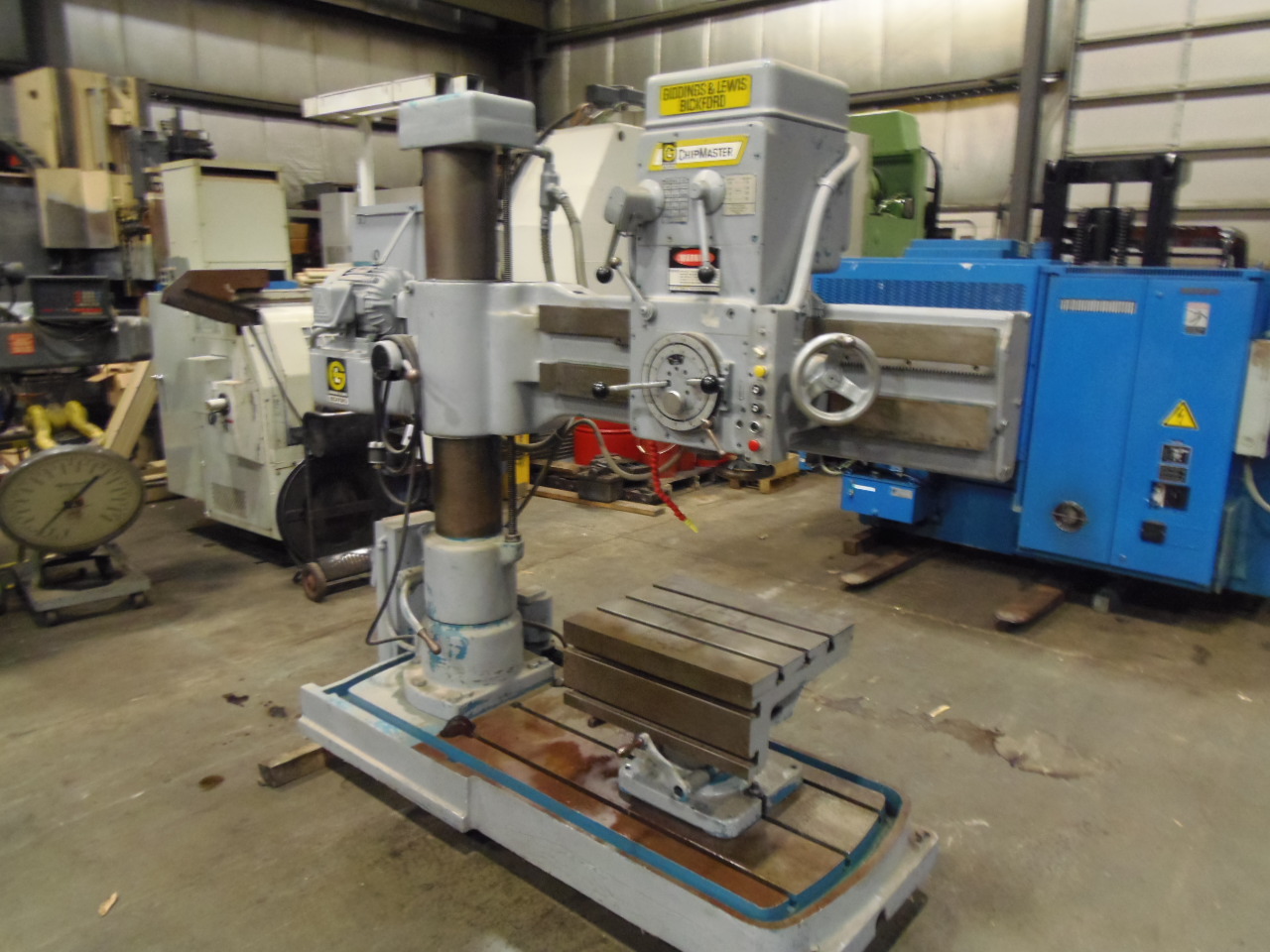

MANUFACTURER............................ GIDDING & LEWIS

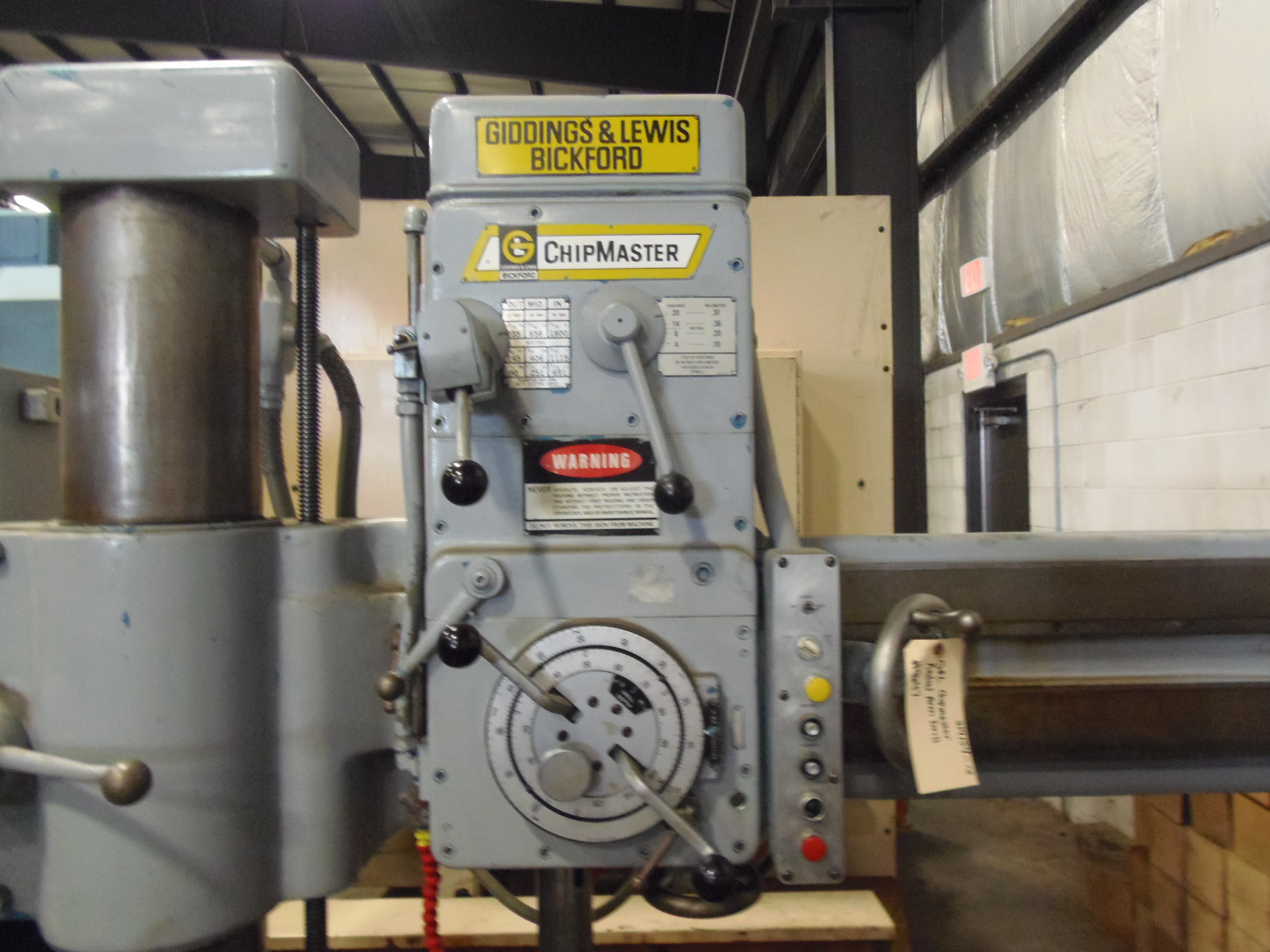

MODEL................................... CHIPMASTER

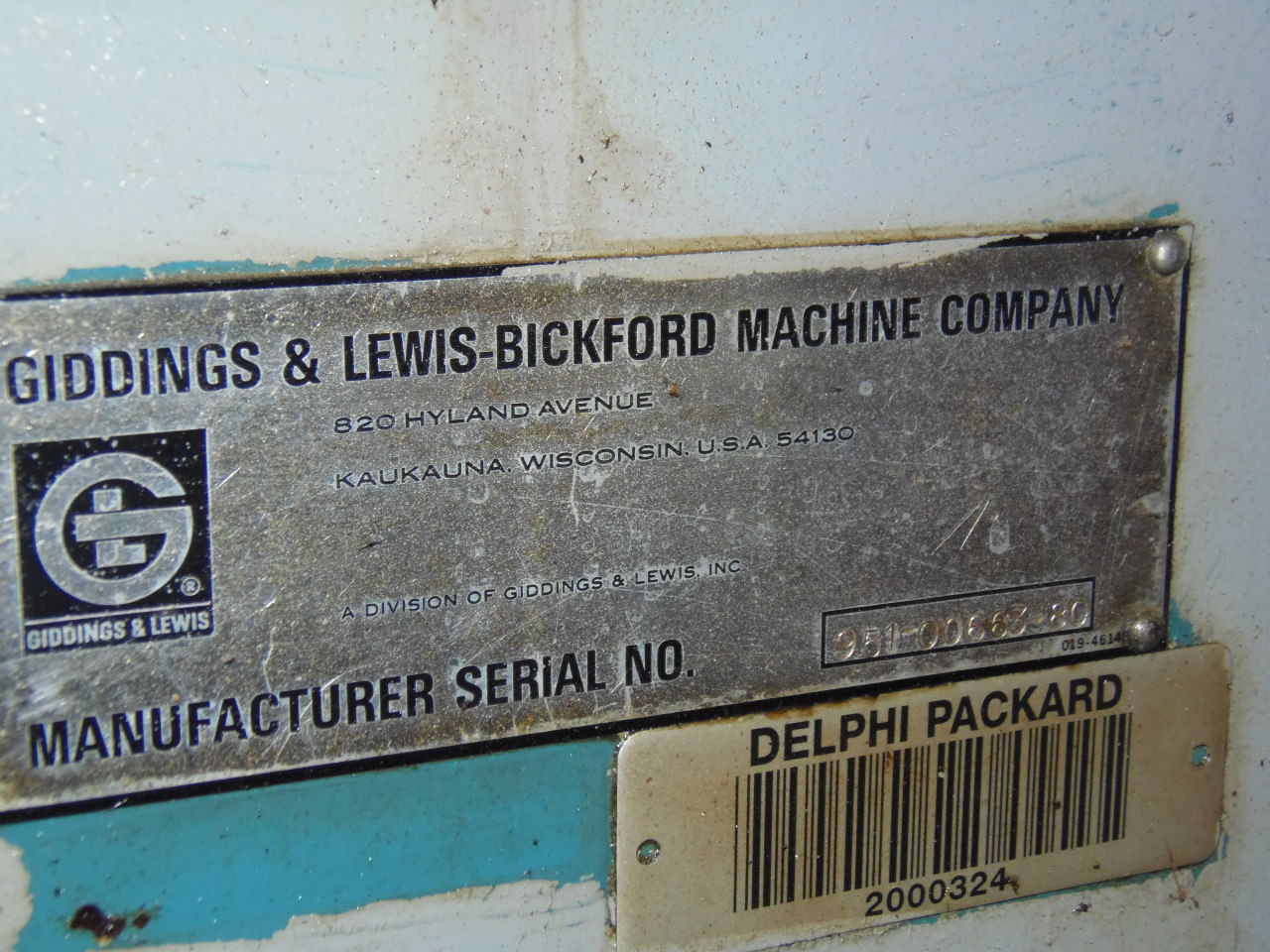

SERIAL #................................ 951-00663-80
NEW APPROXIMATELY....................... 1980/REBUILT 2009
COLUMN DIAMETER......................... 9" (8 7/8")
TAPER IN SPINDLE........................ #4 MORSE
SPINDLE QUILL DIAMETER.................. 2-5/8"
SPINDLE TRAVERSE IN HEAD................ 10-3/4"
MAX/MIN DISTANCE, SPINDLE TO BASE....... 52"/26"

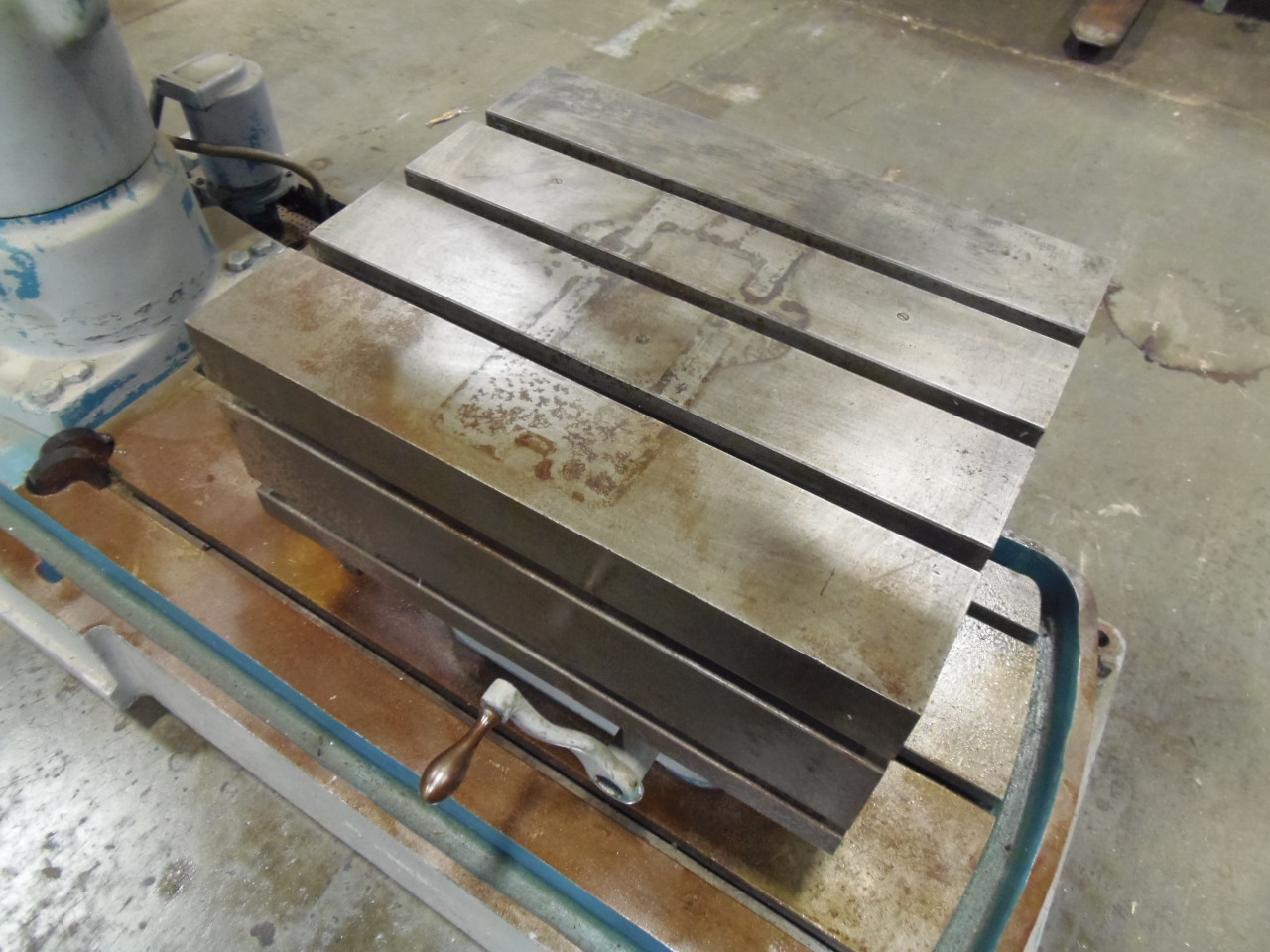

WORKING SURFACE OF BASE................. 30"FB x 48"LR
HEIGHT OF BASE.......................... 7"

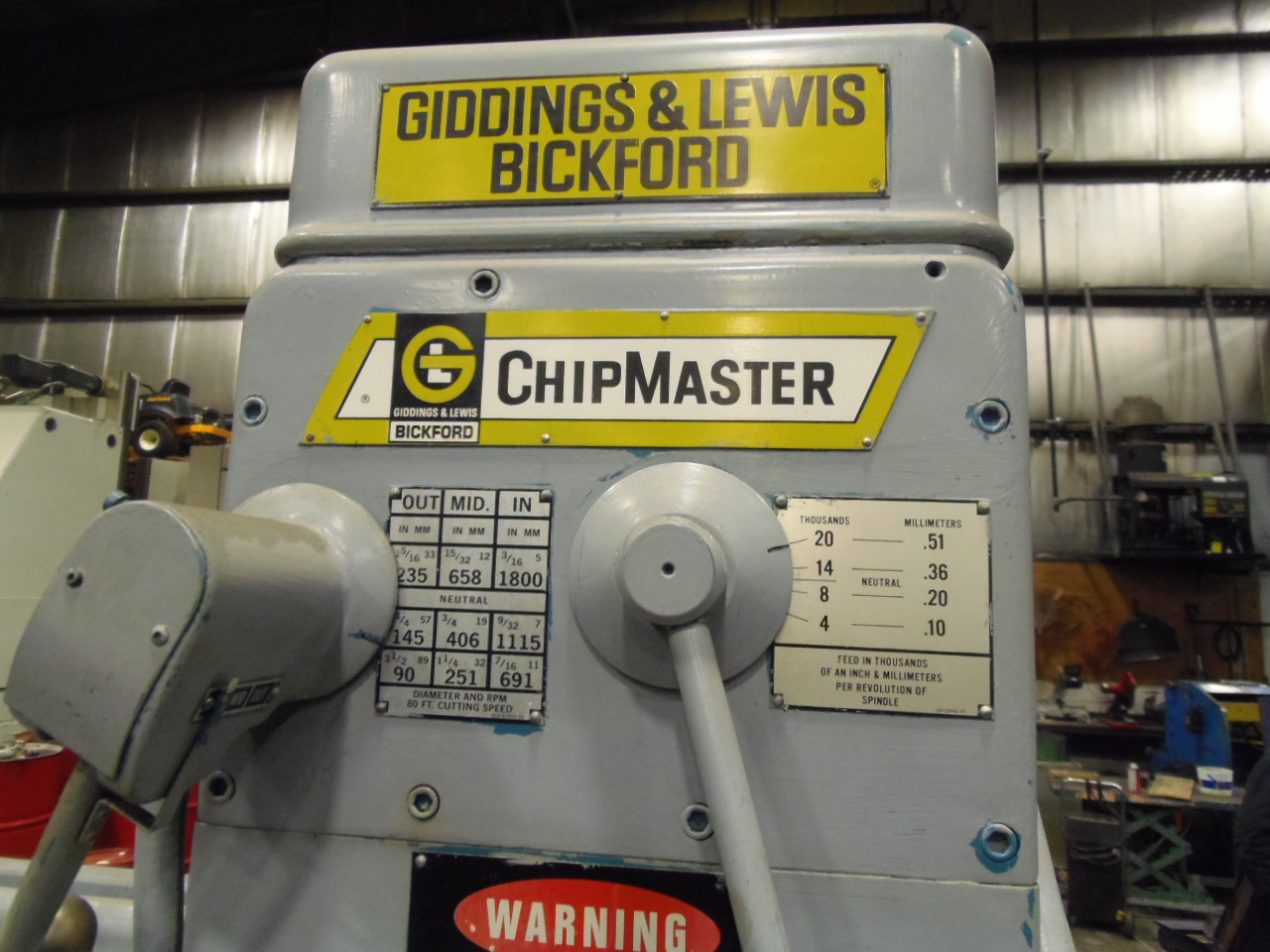

(12) SPINDLE SPEEDS..................... 90 - 1800 RPM
INCH SPINDLE FEEDS...................... 4,8,14,20 THOUSANDS PER REV
METRIC SPINDLE FEEDS.................... .10,.20,.36,.51 MILLIMETERS PER REV
SPINDLE MOTOR.............................. 5 HP

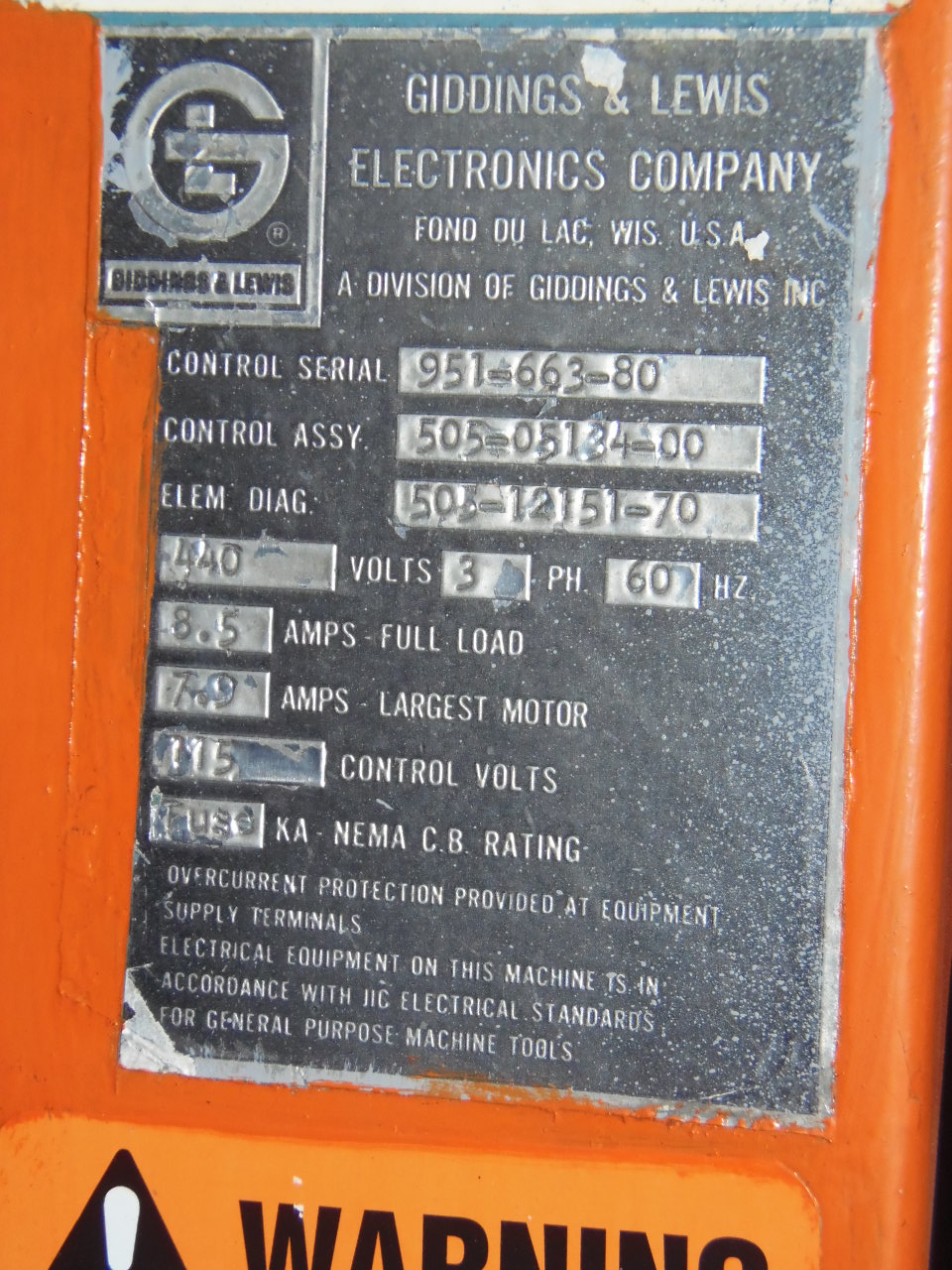

ELECTRICAL CONTROLS........................ 3/60/440
WEIGHT (APPROX.)........................... 8,800 LBS.
EQUIPPED WITH:

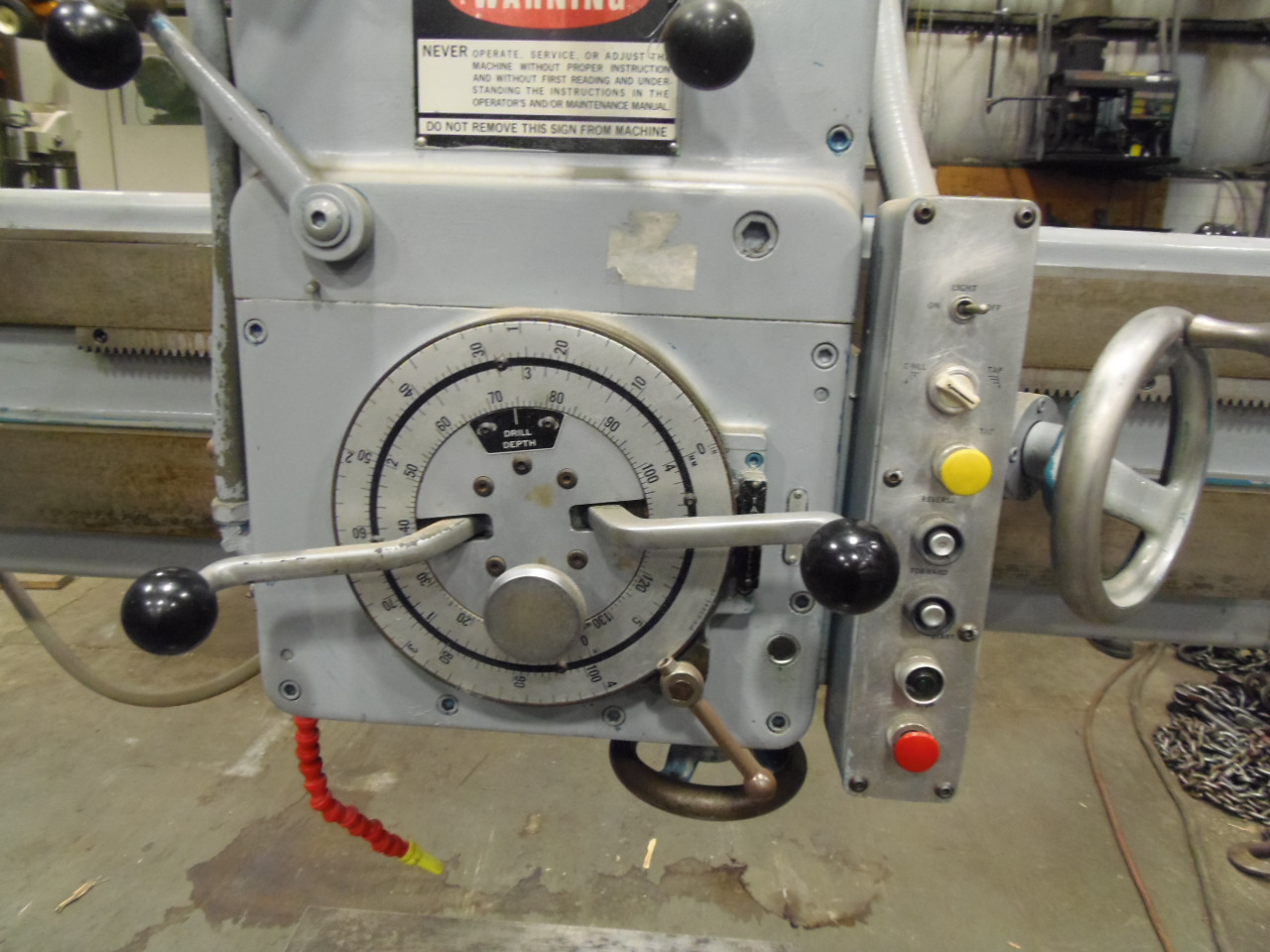

DRILL/TAP MODES

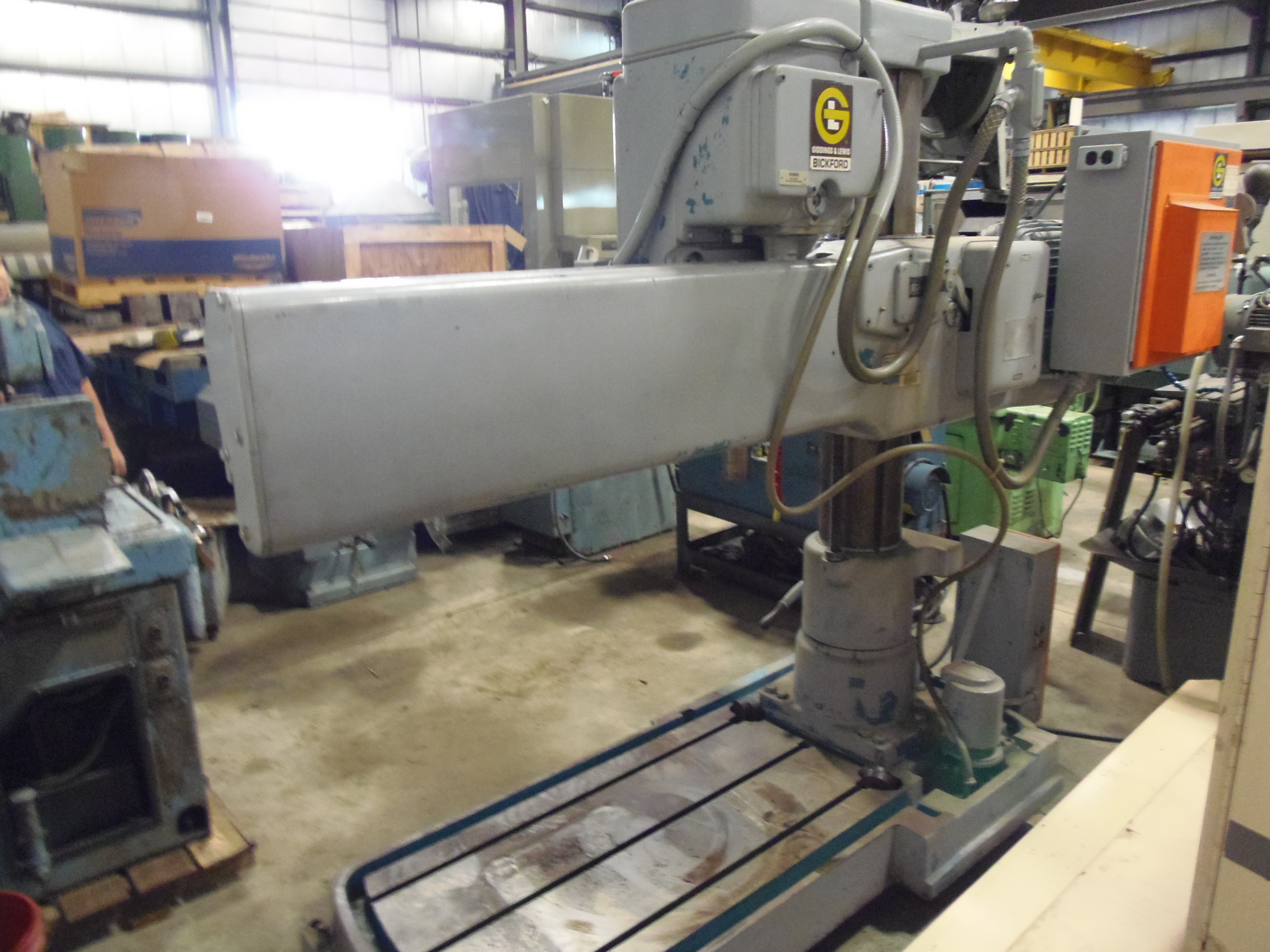

MOTORIZED ELEVATION OF ARM ON COLUMN
ELECTRICALLY ACTUATED COLUMN AND HEAD CLAMPING ON ARM
SELF CONTAINED COOLANT SYSTEM
MACHINE REBUILT IN 2009 LITTLE USE SINCE.
SPECIFICATIONS SUBJECT TO VERIFICATION
